Eliminator Lighting ADJ SC8 II PAD SYSTEM Analog Lighting Controller System

Product Description Specifications

Eliminator Lighting ADJ SC8 II PAD SYSTEM Analog Lighting Controller System

  • Eliminator Lighting ADJ SC8 II PAD SYSTEM Analog Lighting Controller System
  • Eliminator Lighting ADJ SC8 II PAD SYSTEM Analog Lighting Controller System
  • Eliminator Lighting ADJ SC8 II PAD SYSTEM Analog Lighting Controller System
  • Eliminator Lighting ADJ SC8 II PAD SYSTEM Analog Lighting Controller System
  • Eliminator Lighting ADJ SC8 II PAD SYSTEM Analog Lighting Controller System
1 5

AMERICAN DJ

Eliminator Lighting ADJ SC8 II PAD SYSTEM Analog Lighting Controller System

Eliminator Lighting ADJ SC8 II PAD SYSTEM Analog Lighting Controller System

8-Channel Analog Lighting Controller System, 15A Relay Pack, 25' DMX Cable, IEC Power Cord Included

Free Shipping

$159.99
$159.99 $199.00
Save 19%
Shipping calculated at checkout.
Features
    • Eight-channel analog on/off control for non-DMX lighting
    • Eight channel toggles plus eight individual flash switches
    • Relay pack switches eight Edison outlets at 15A total
    • Includes a 25 ft 3-pin DMX cable and 4 ft IEC power cord
    • Relay pack has an M10 clamp thread and safety loop for truss
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

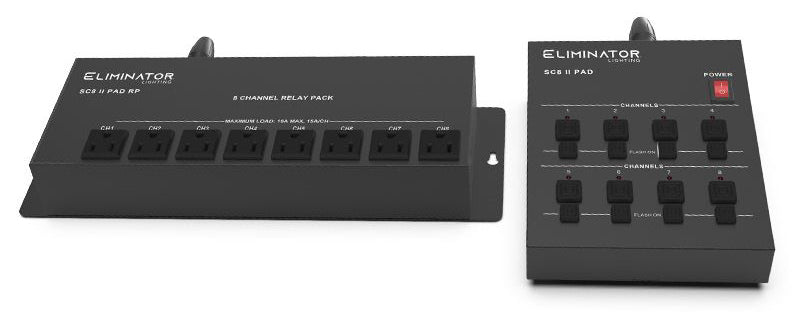

    • 1x SC8 II Pad Controller
    • 1x SC8 II Pad RP Relay Pack
    • 1x 25 ft 3-Pin DMX Cable
    • 1x 4 ft (1.2 m) IEC Power Cord

SKU: SC8 II PAD SYSTEM

View full details

Product Description

The SC8 II Pad System is an analog on/off controller for lighting that does not run on DMX. Eight channels of switched power let you turn practicals, non-DMX pars, and other fixtures on and off from a control pad at your position instead of walking to each unit or pulling plugs mid-show.

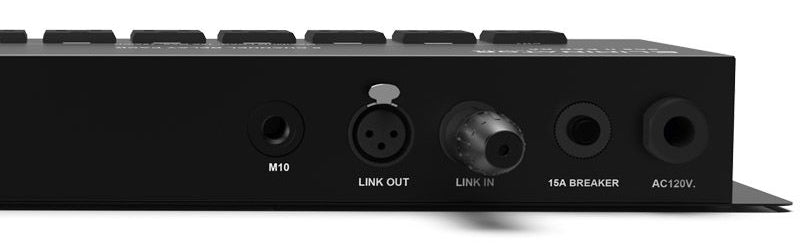

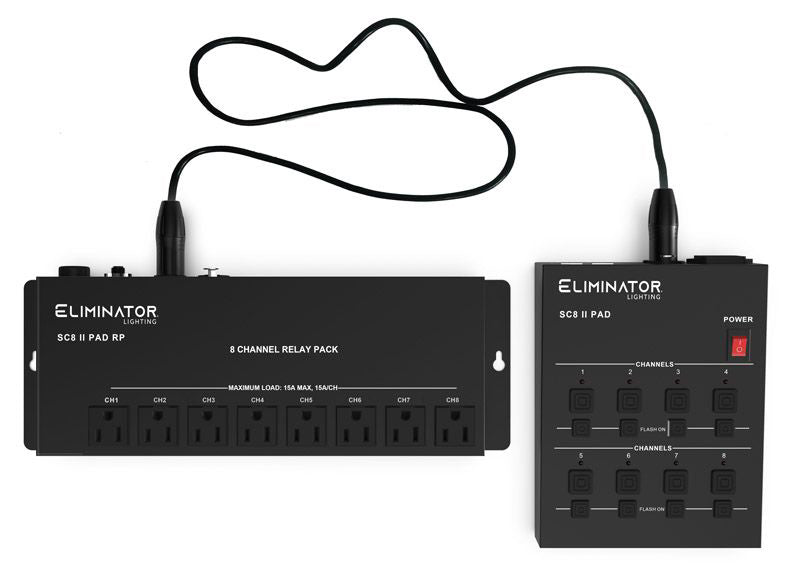

Everything needed is in the box: the SC8 II Pad controller, the SC8 II Pad RP relay pack, a 25 ft 3-pin DMX cable to connect them, and a 4 ft IEC power cord. The relay pack has eight Edison power inputs with a total capacity of 15A, which works out to 1500W at 100V or 1800W at 120V. It also has a circuit breaker reset, an M10 mounting thread for a clamp, and a safety loop, so it can hang on truss near the fixtures it feeds.

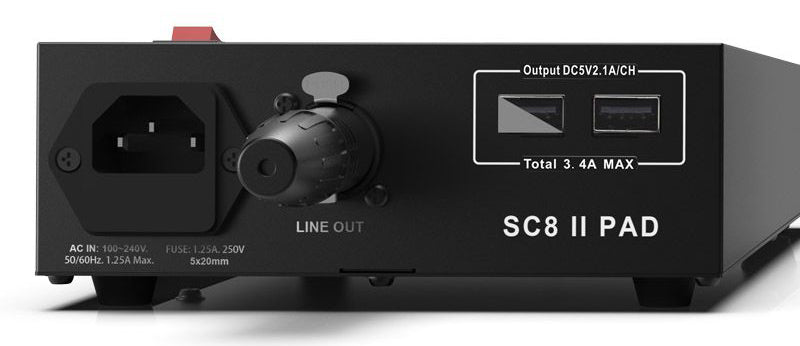

The pad has eight on/off toggle switches plus eight flash switches, so you can bring a channel up for a moment without changing its state. A main power switch, rubber feet for desk use, and a 3-pin XLR data output finish it. It runs on AC through IEC or on DC over USB, which helps when outlet space is tight.

Chain a second relay pack through the 3-pin XLR data in and out to expand past eight circuits. Total weight is 5 lb. IP20.

Features

    • Control For Non-DMX Fixtures

      Eight switched channels turn practicals and non-DMX pars on and off from your position, so nobody has to reach behind a fixture mid-show.

    • Flash Without Losing Your State

      Eight dedicated flash switches bump a channel up momentarily and return it, keeping the look you set intact.

    • Ready Out Of The Box

      The pad, relay pack, 25 ft DMX cable, and IEC power cord all ship together, so the system runs on the first night.

    • Power Handling With Protection

      The relay pack takes 15A total across eight Edison outlets and includes a circuit breaker reset for a fast recovery.

    • Mounts Where The Fixtures Are

      An M10 clamp thread and safety loop let the relay pack hang on truss near the lights, cutting long power runs to the floor.

Technical Specifications

  • Product Type 8-Channel Analog Lighting Controller System
  • System Includes 1x SC8 II Pad Controller, 1x SC8 II Pad RP Relay Pack, 1x 25 ft 3-Pin DMX Cable, 1x 4 ft IEC Power Cord
  • Pad Controls 8x Channel On/Off Toggle Switches, 8x Individual Flash Switches, Main On/Off Power Switch
  • Pad Connections 3-Pin XLR Data Output, IEC and USB Power Inputs
  • Pad Features Rubber Feet for Desk Use
  • Relay Pack Outlets 8x Edison Power Inputs
  • Relay Pack Capacity 15A Total per Relay Pack
