SDC12 12-Channel DMX Controller

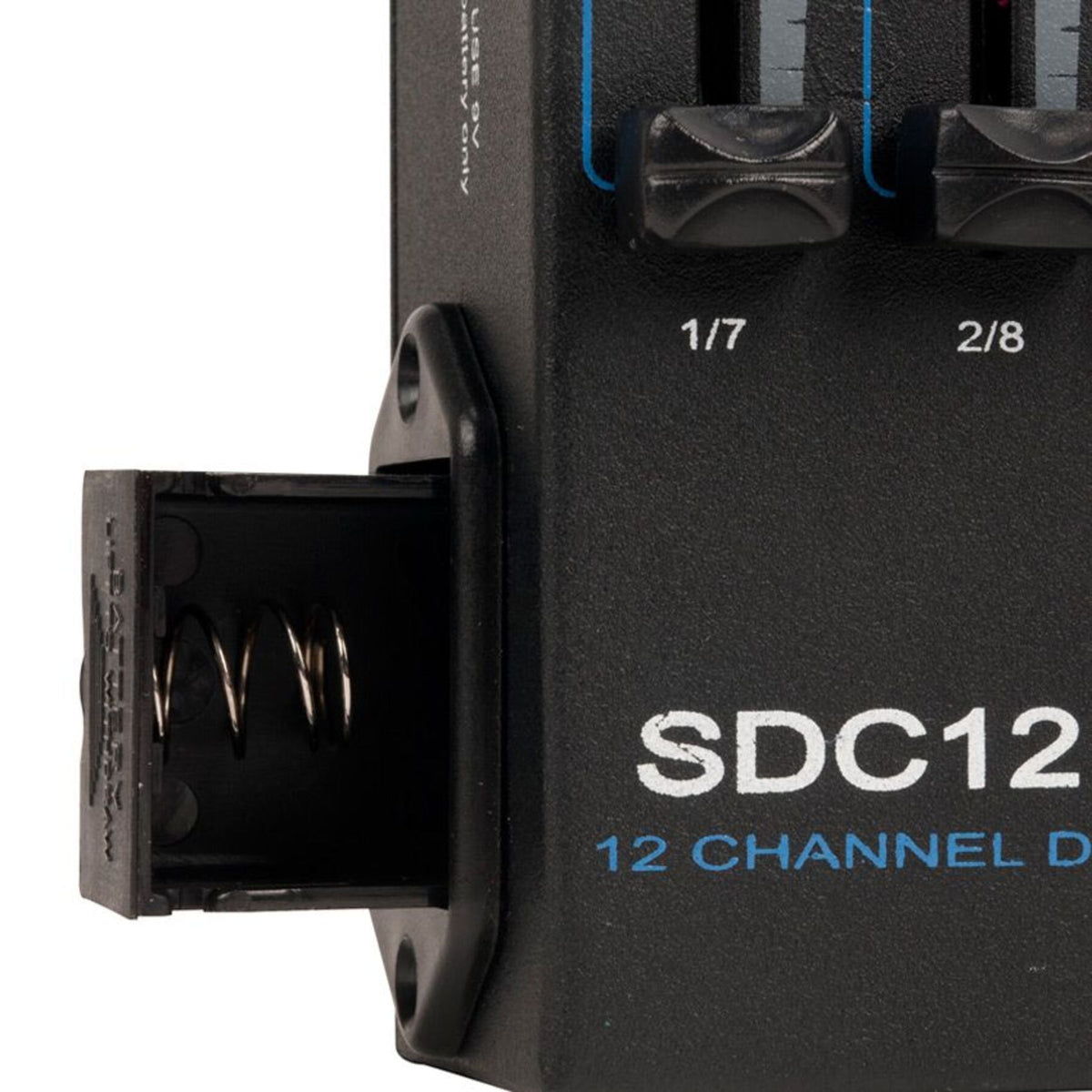

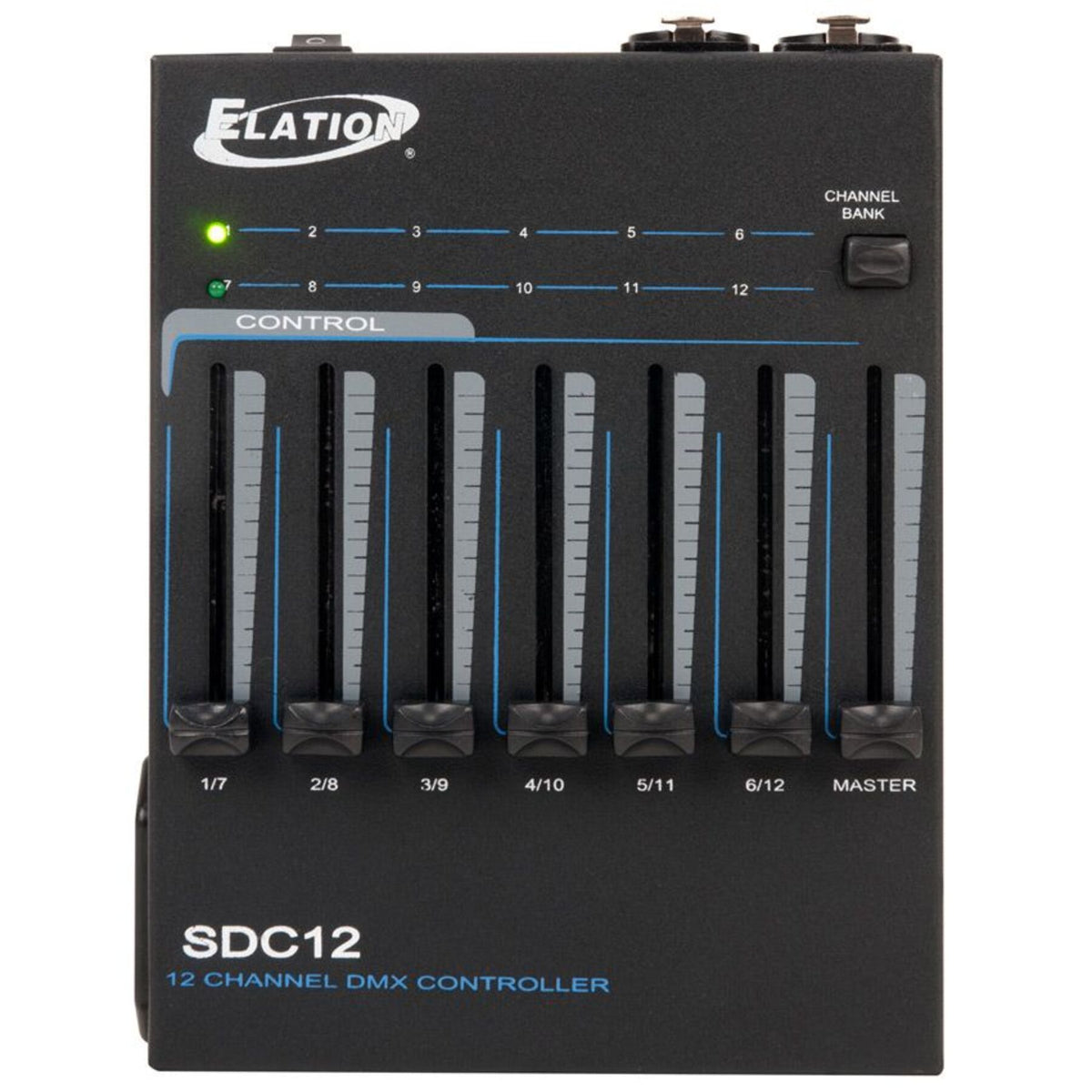

The ADJ SDC12 is a compact 12-channel DMX controller with individual faders for each channel and a main dimmer fader for overall intensity. It runs on the included 12V DC power supply or an optional 9V battery (not included), making it practical for both permanent installations and portable demo setups where AC power may not be nearby.

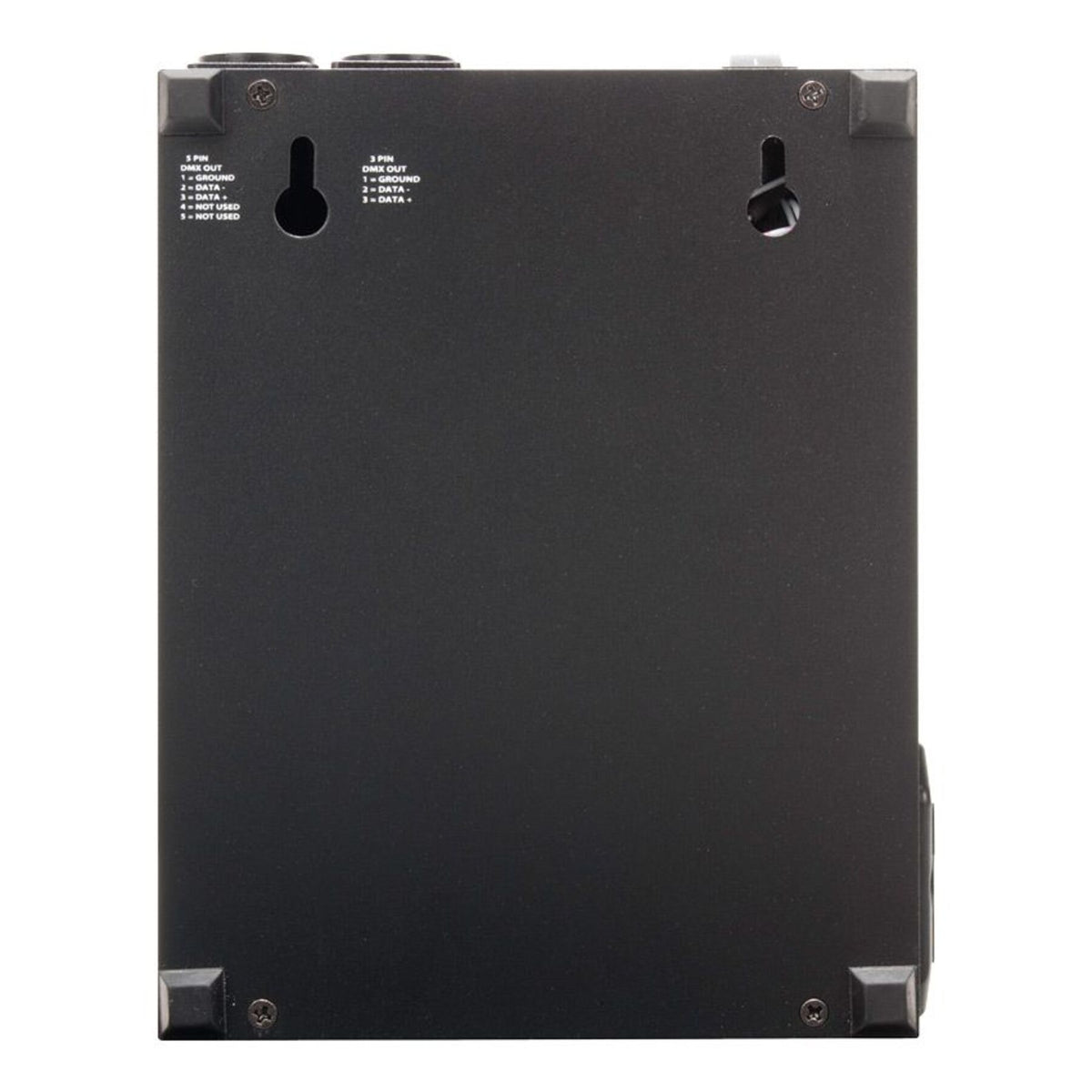

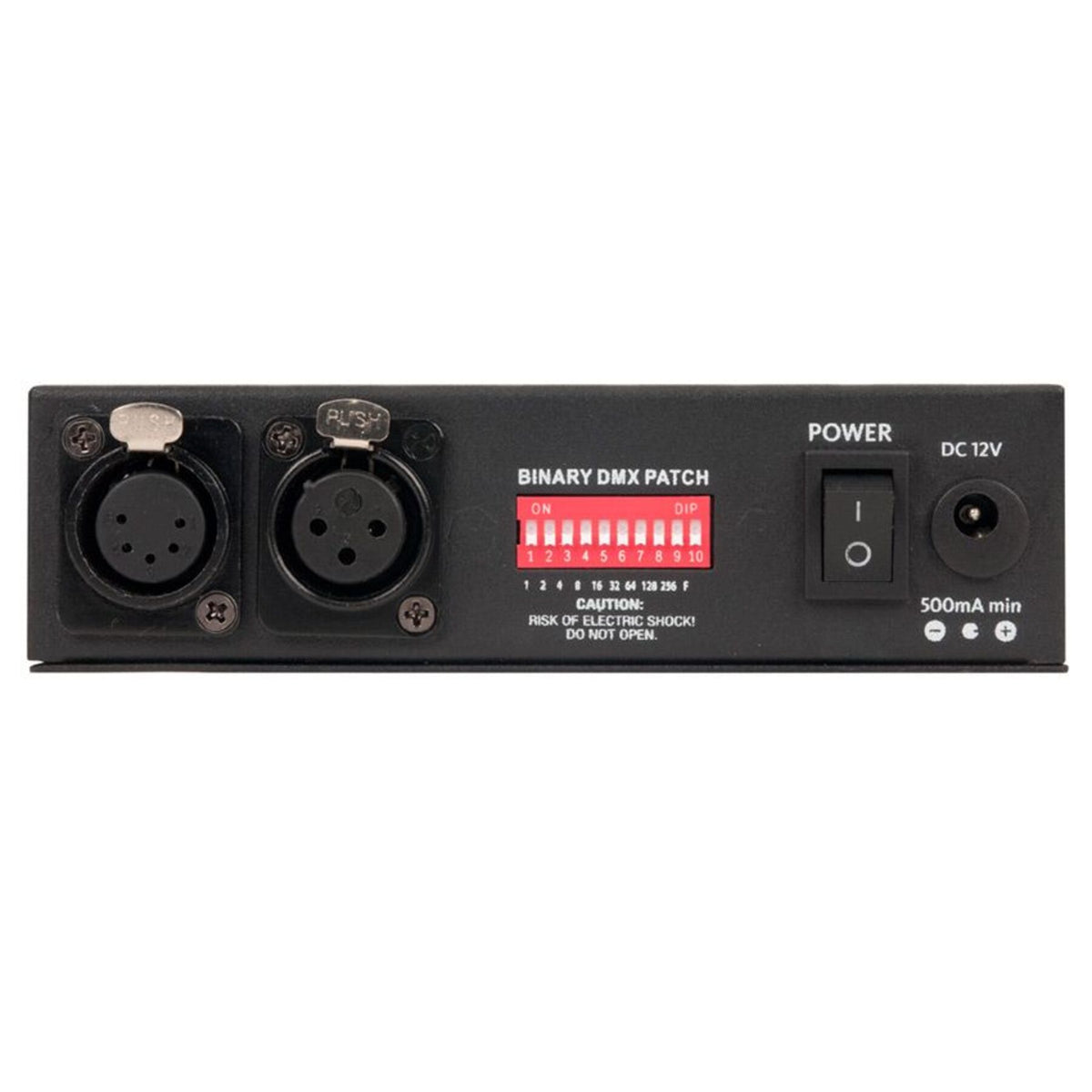

DIP switches on the unit set the starting DMX channel, so you can control any 12-channel block in your DMX universe. Both 3-pin and 5-pin DMX outputs are built in, which means it connects to either connector standard without adapters. The housing measures 7.5" x 5.9" x 1.6" and weighs 2 lb, small enough to hold in one hand or wall-mount in a permanent location. An LED channel bank indicator shows which channels are active. Product demonstrations, small venue installs, retail displays, and manual control of LED or conventional fixtures are all solid use cases for this controller.
