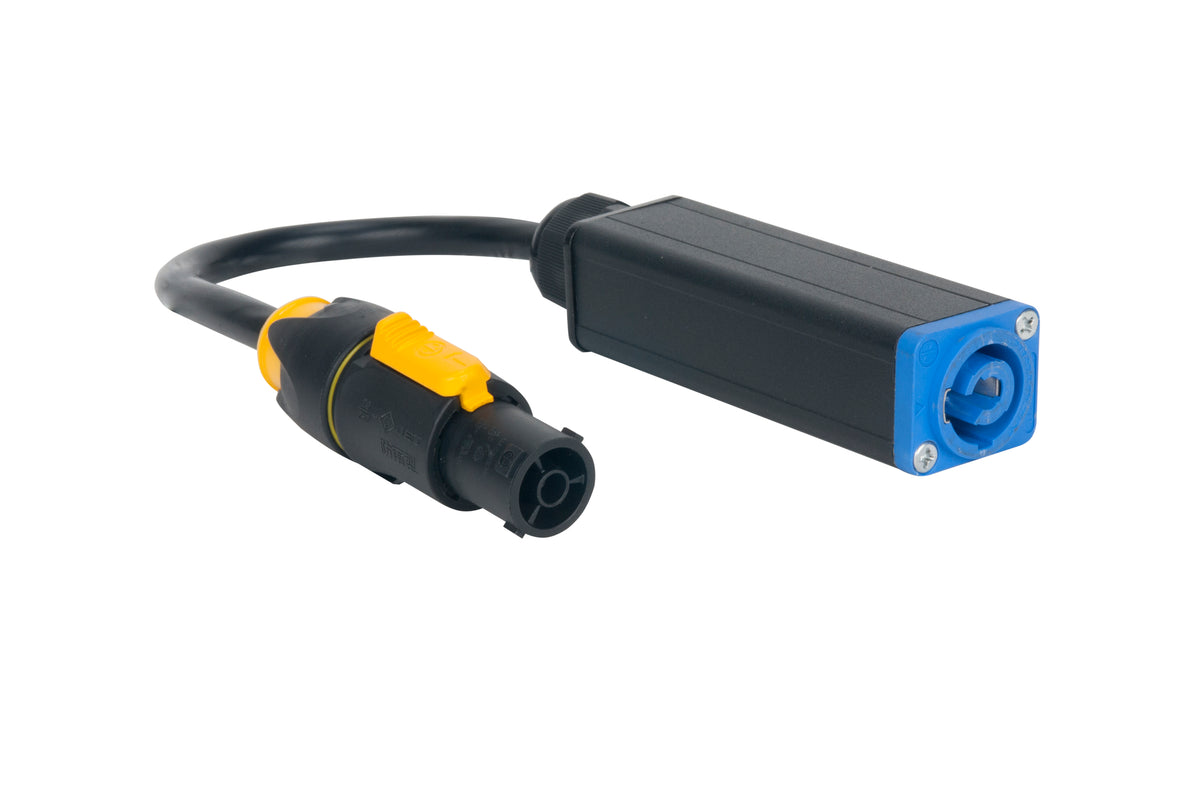

American DJ ADJ SIP1PCIA IP65 Outdoor 1 Foot 12 AWG Locking Power Cable Adapter

American DJ ADJ SIP1PCIA IP65 Outdoor 1 Foot 12 AWG Locking Power Cable Adapter

Locking Power Input Adapter, 1', 12 AWG, IP65 To Standard Connector, 20A At 120VAC

Free Shipping

Regular price $61.99
Sale price $61.99 Regular price $67.95
Save 8%
Shipping calculated at checkout.
Features
    • 1' / 0.3 m length adds minimal bulk at the connection point
    • 12 AWG conductor rated 20A at 120VAC and 16A at 250VAC
    • Joins IP65 locking power cables to standard locking power inputs
    • Built with UL recognized components for production use
    • Durable molded body holds up to repeated load-ins
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • Cable Adapter

SKU: SKU: SIP1PCIA

View full details

Product Description

The SIP1PCIA bridges two generations of locking power connectors. One end takes an IP65-rated locking power connector, the other is a standard locking power input connector, so IP65 cables and extensions can feed gear already wired for standard locking connectors.

This is the adapter that keeps existing inventory in service. Crews and rental houses adding IP65 fixtures rarely replace every cable and extension at once, and a short adapter closes the gap between the two connector types instead of leaving good cable in the case.

At 1' / 0.3 m end to end, it adds almost no bulk at the connection point and coils flat with the rest of your accessories. The 12 AWG conductor is rated for 20A at 120VAC and 16A at 250VAC, enough current for a full daisy-chained run of LED fixtures rather than a single unit. UL recognized components and a durable molded body hold up to nightly load-in and load-out handling.

Note the rating: the adapter itself is IP20, since one end is a standard connector. A fully sealed IP65 connection requires IP65 connectors on both mating halves, so use this adapter where the joint stays dry.

Features

    • Mixes New And Existing Cable Stock

      Connects IP65 locking power cables to fixtures and extensions wired for standard locking connectors, so gear you already own keeps working as IP65 units join the rig.

    • Carries A Full Fixture Chain

      The 12 AWG conductor is rated for 20A at 120VAC and 16A at 250VAC, enough current for a linked run of LED fixtures rather than one unit.

    • Short By Design

      At 1' / 0.3 m end to end, the adapter stays tight to the connection point and stores flat alongside the rest of your accessories.

    • Locks And Stays Locked

      Both ends use twist-lock power connectors that seat with a quarter turn, so the adapter will not separate when cables shift during a show.

    • Built For Touring Handling

      UL recognized components and a molded body with strain relief stand up to nightly load-in and load-out cycles in mobile production work.

Technical Specifications

  • Product Type Locking Power Cable Adapter
  • Cable Length 1' / 0.3 m
  • Wire Gauge 12 AWG
  • Connector 1 IP65 Locking Power Connector
  • Connector 2 Standard Locking Power Input Connector
  • Current Rating 20A At 120VAC / 16A At 250VAC
  • IP Rating IP20
