American DJ Ultra LB18 18 x 10 Watt RGBAL Color Mixing LED DMX Wash Bar Light
AMERICAN DJ
American DJ Ultra LB18 18 x 10 Watt RGBAL Color Mixing LED DMX Wash Bar Light
American DJ Ultra LB18 18 x 10 Watt RGBAL Color Mixing LED DMX Wash Bar Light

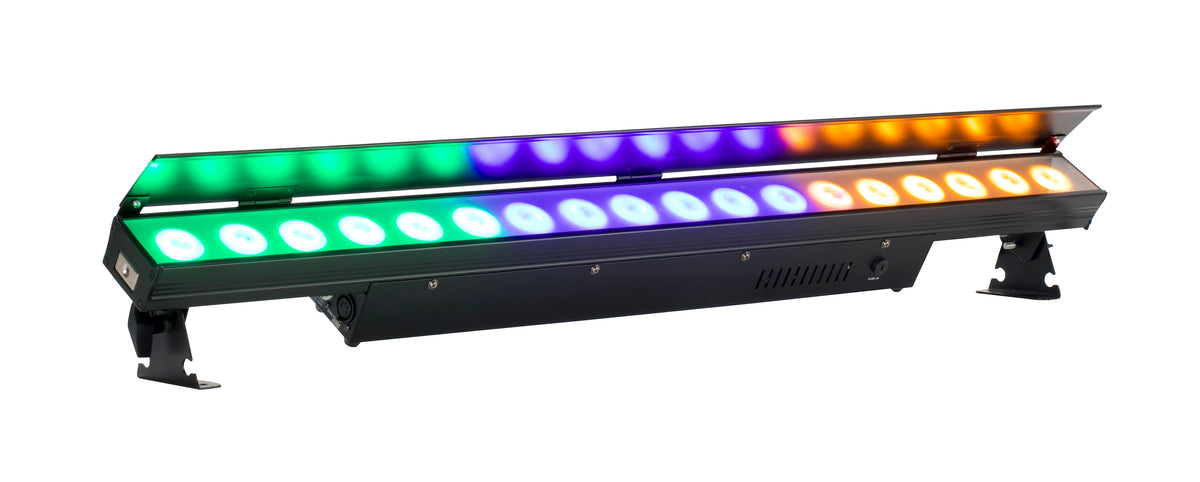

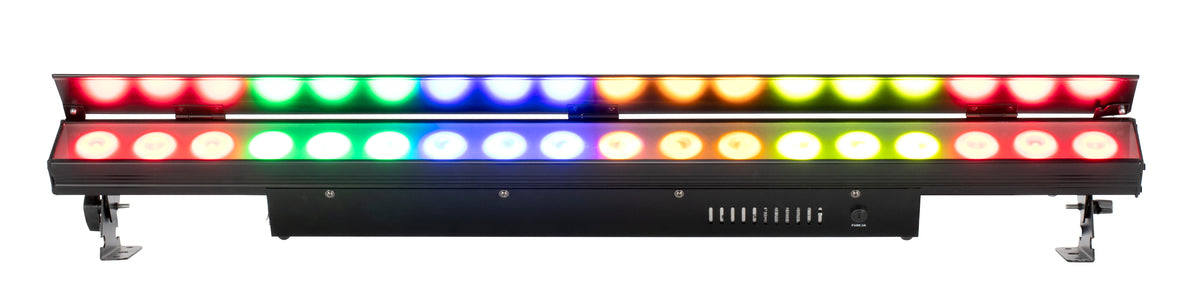

39" Linear LED Wash Bar, 18x10W RGBAL LEDs, Includes Locking Power Cord, Glare Shield, Mounting Brackets
Free Shipping
Features
- Eighteen 10W RGBAL LEDs with over 90 CRI white output
- Tunable white light from 2,300K to 9,900K

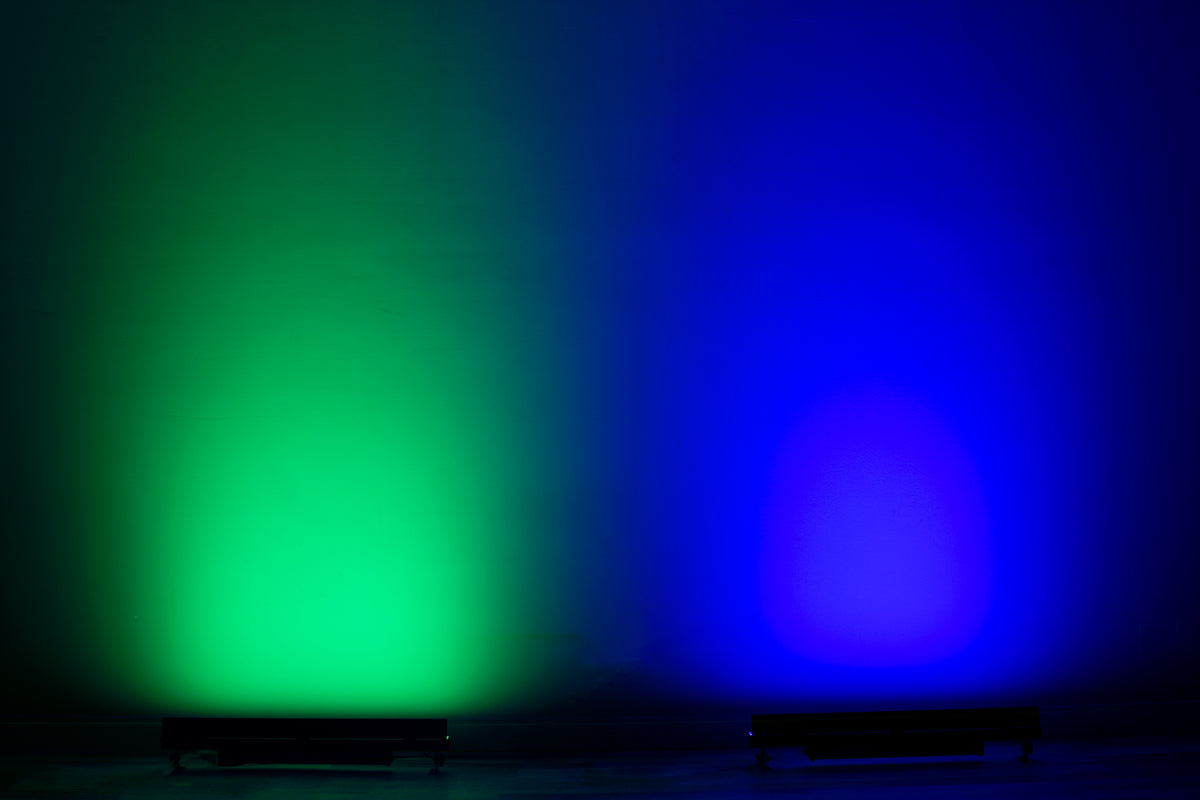

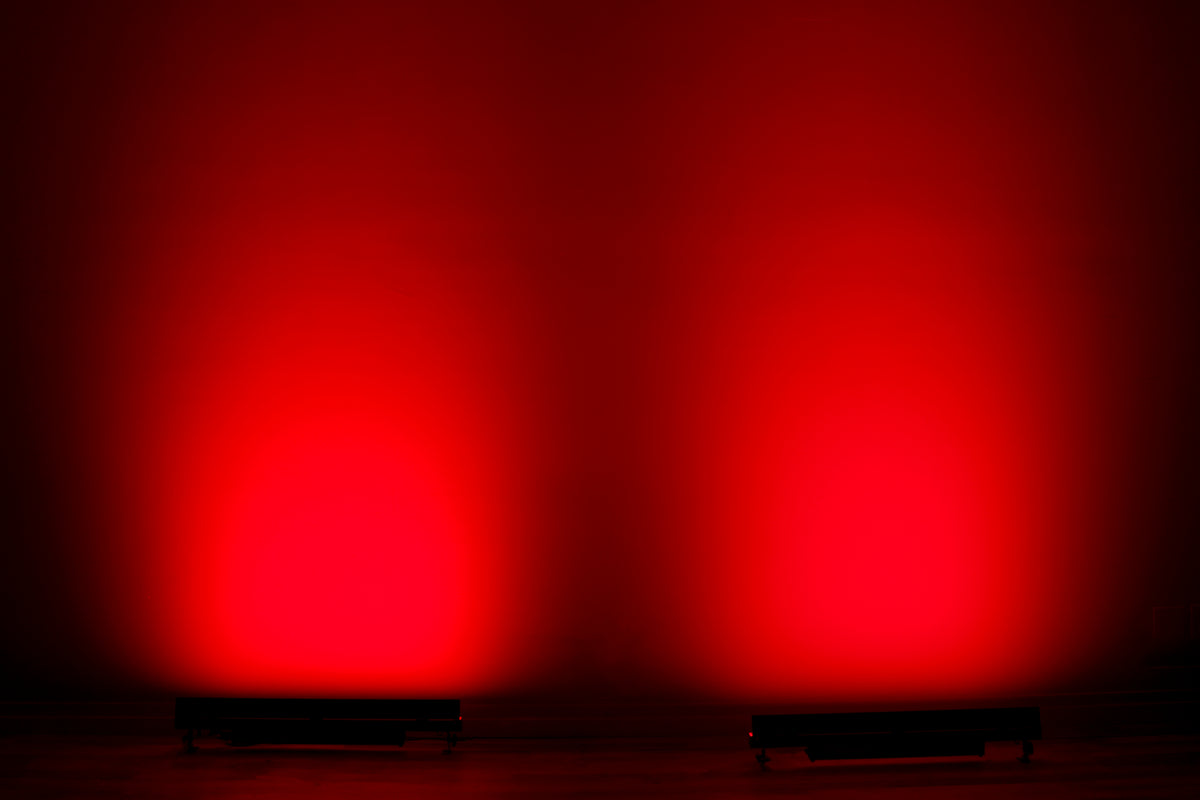

- 17 x 40 degree beam for stages, floors, and wall washes
- Magnetic ends line up fixtures into longer continuous bars

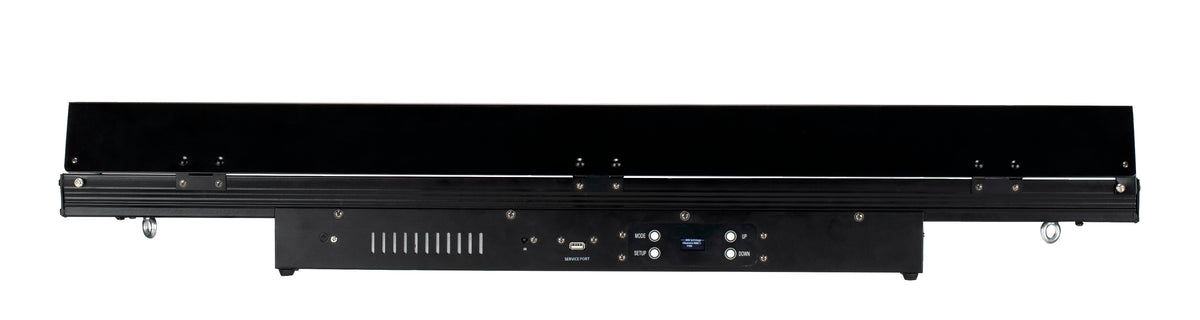

- Removable glare shield hides and protects the LEDs
Couldn't load pickup availability
What's Included in the box
- 1x Ultra LB18 linear wash fixture
- 1x Locking power cord
- 1x Removable glare shield
- Mounting brackets for ground or clamp mounting
SKU: SKU: Ultra LB18
View full details









Product Description
Features
Color Plus Accurate White
An added lime chip widens the RGBAL color palette and lifts white light rendering above 90 CRI, so decor, skin tones, and fabrics read true.

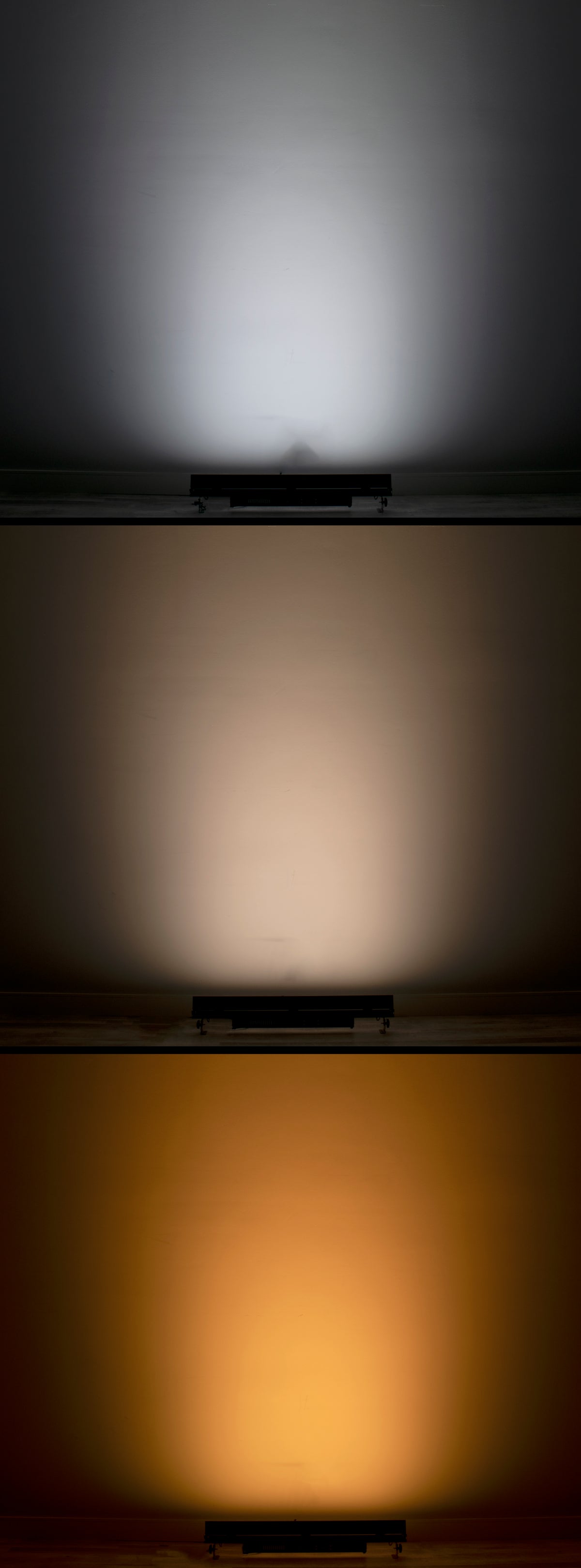

Tunable White Light
Color temperature adjusts anywhere from 2,300K warm tungsten to 9,900K daylight, with 15 white presets among the 64 built-in macros for fast recall.
Longer Continuous Runs

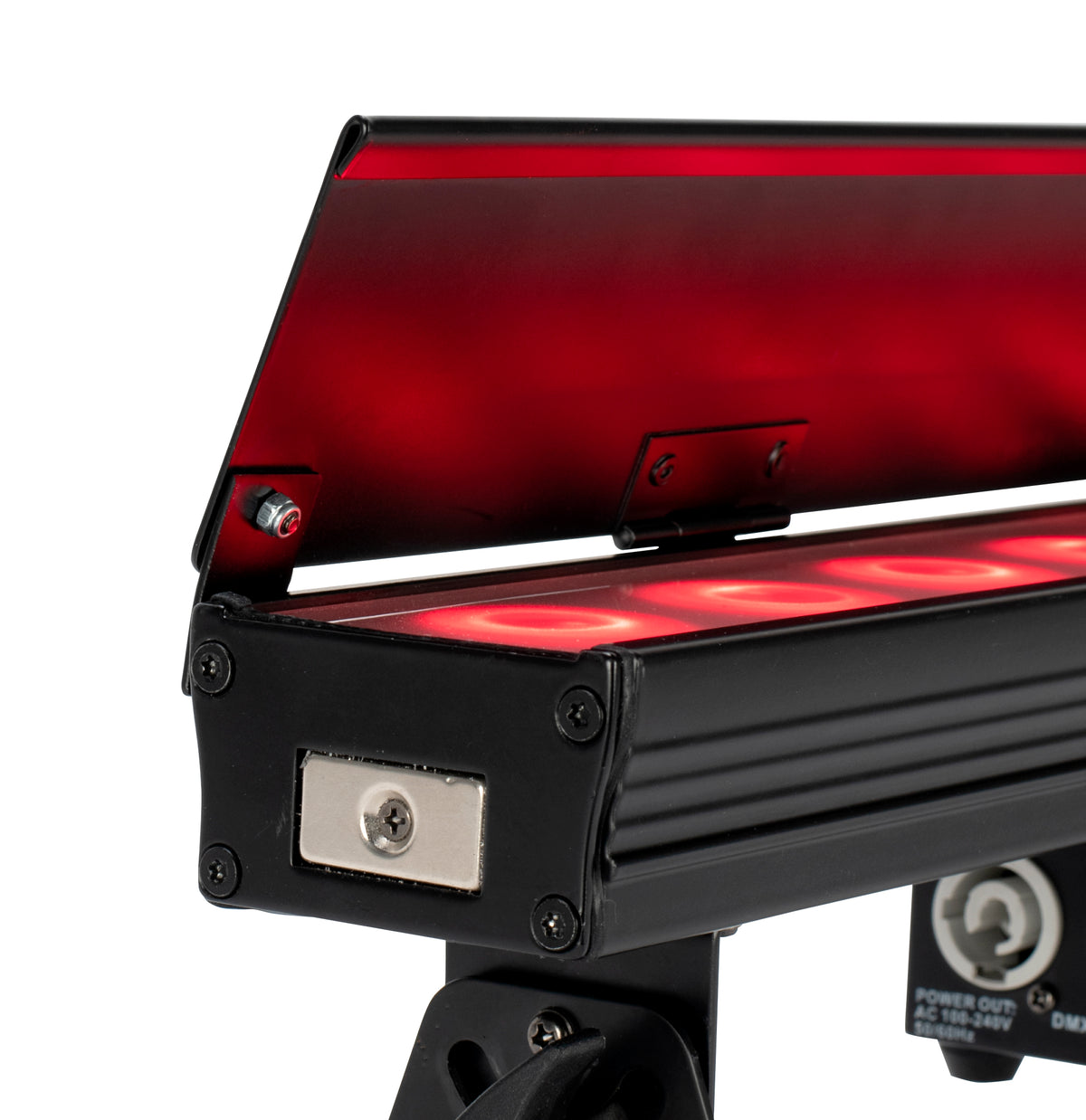

Magnetic ends hold adjacent fixtures in alignment, letting you join several bars into one uniform line to wash a wide wall or stage edge.
Transport-Ready Design
The removable glare shield keeps the LEDs out of the audience sightline during a show and protects them from impact inside a road case afterward.
Detailed Pixel Control
Eleven DMX modes from 5 to 71 channels include six groups of three RGBAL pixels, so one fixture handles both simple washes and pixel chases.
Technical Specifications
- Product Type Linear LED Wash Bar
- Light Source 18 x 10W RGBAL (Red, Green, Blue, Amber, Lime) LEDs
- LED Life Approximately 50,000 hours
- Beam Angle 17 x 40 degrees
- CRI Greater than 90
- Color Temperature Range 2,300K to 9,900K
- DMX Channel Modes 5, 8, 10, 13, 16, 30, 33, 38, 41, 60 and 71 channels
- Pixel Control 6 groups x 3 RGBAL pixels in 30, 33, 38, 41, 60 and 71 channel modes
- Operational Modes Auto Run, Program, Sound Trigger, RGBAL Manual, Static Color, DMX-512
- Color Macros 64 built-in, including 15 white color temperature presets
- Dim Modes 6 (Standard, Stage, TV, Architectural, Theatre, Stage 2)
- Dim Curves 4 (Square, Linear, Inv. Square, S. Curve)
- Refresh Rate Selectable, 2.88KHz to 25kHz, flicker free
- Dimming Electronic, 0-100%

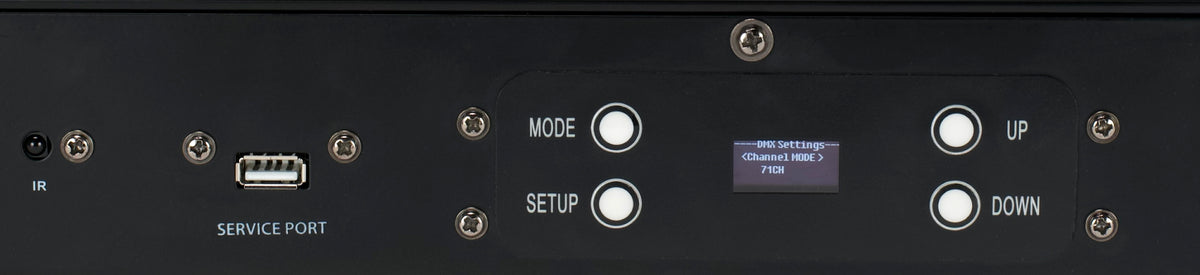

- Display Digital display with 4-button menu
- Service Port USB for firmware updates
- Remote Compatible with ADJ UC IR, up to 32.8 feet (10 meters)

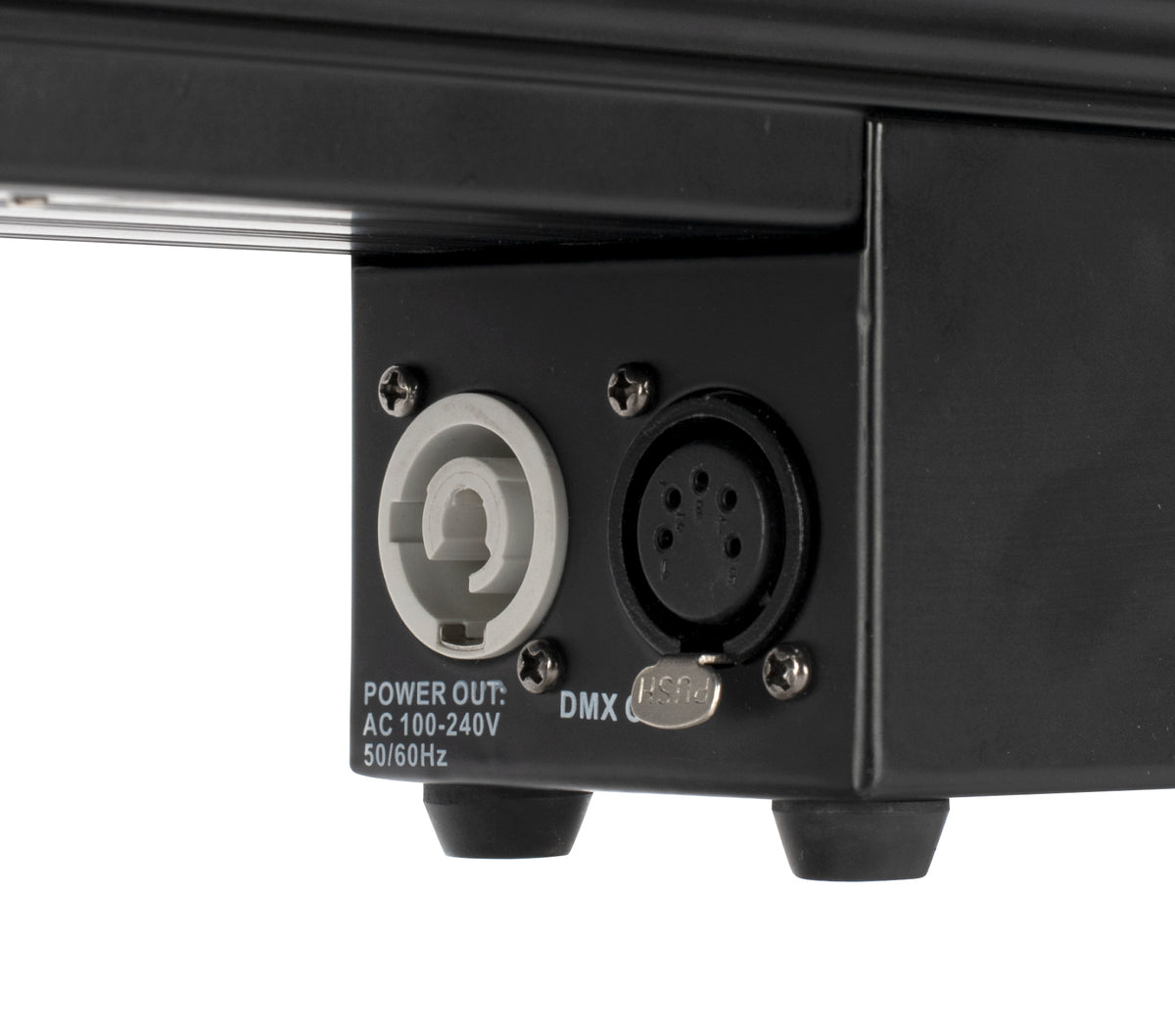

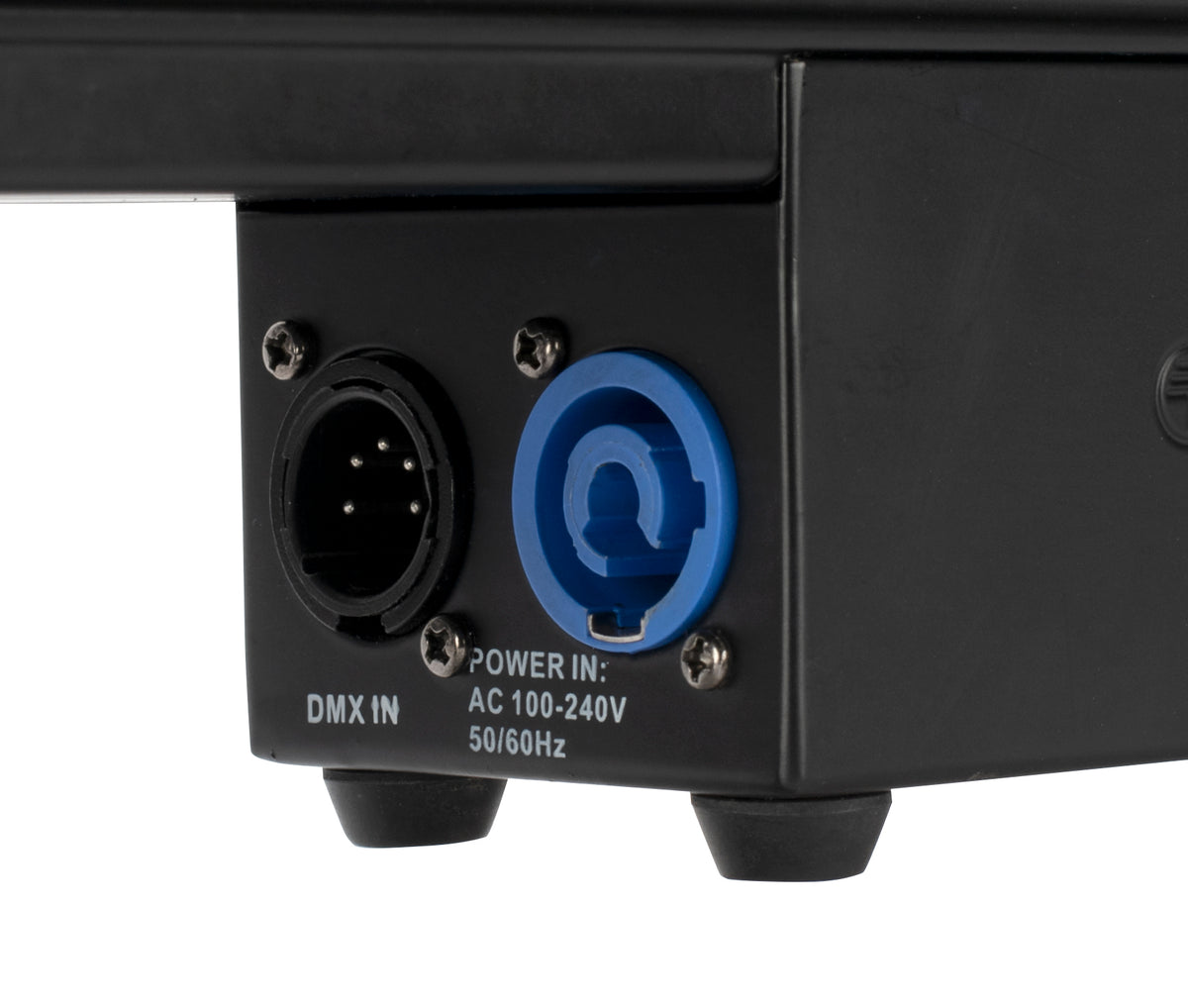

- DMX Connections 5-pin XLR in/out
- Power Connections Locking in/out for daisy chaining
- Power Draw 130W
- Voltage AC 100V-240V, 50/60Hz
- Daisy Chain Up to 12 units at 120V, up to 25 units at 240V
- Weight 11.2 lb
- Dimensions (LxWxH) 3.39" x 39.3" x 7.42" (86 x 996 x 188.4mm)
