Ultra LB18 18x10W RGBAL Color Mixing LED DMX Wash Bar Light
Ultra LB18 18x10W RGBAL Color Mixing LED DMX Wash Bar Light
Ultra LB18 LED Wash Bar, 18x10W RGBAL, 90+ CRI, Magnetic Alignment
Free Shipping
Regular price
$609.99
Sale price
$609.99
Regular price
$739.95
Unit price
/
per
Save 17%
Shipping calculated at checkout.
Features
- Eighteen 10W RGBAL LEDs deliver over 90 CRI color output
- Color temperature adjustable from 2,300K to 9,900K
- Magnetic end alignment creates gapless multi-fixture runs
- 6 operational modes including Sound Trigger and DMX up to 71 channels
- Removable glare shield blocks direct LED view and protects LEDs in transit
Couldn't load pickup availability
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
What's Included in the box
- Ultra LB18 LED Wash Bar Light
- Locking Power Cord
- Removable Glare Shield
- Mounting Brackets
SKU: SKU: Ultra LB18*
View full details









Product Description

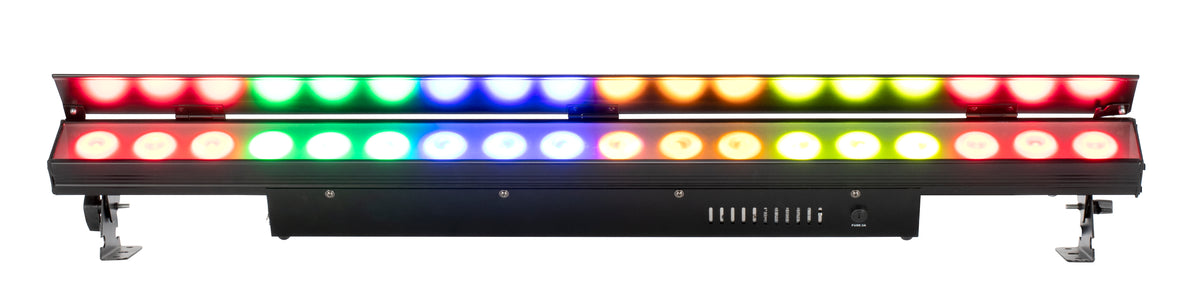

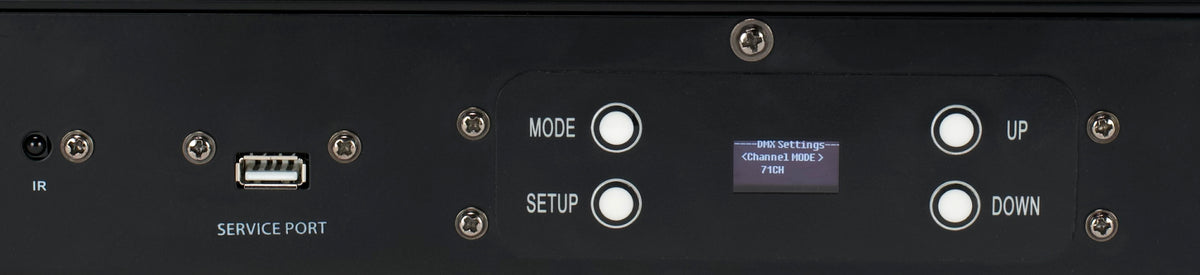

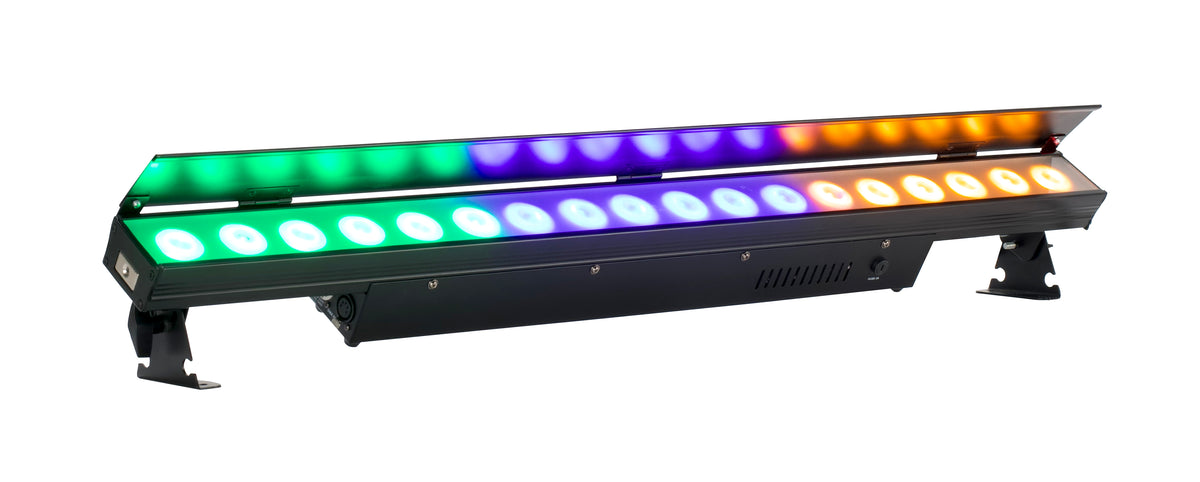

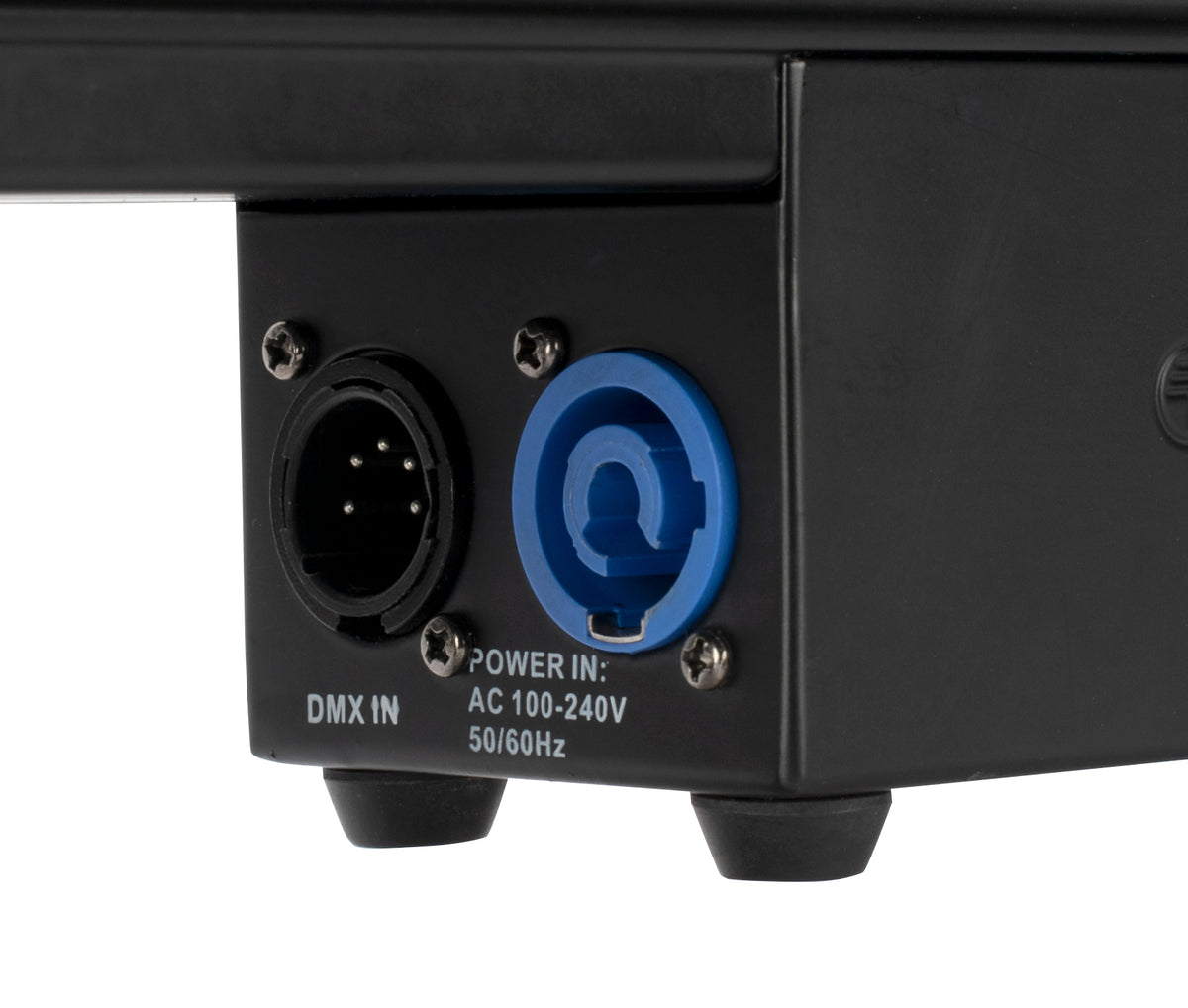

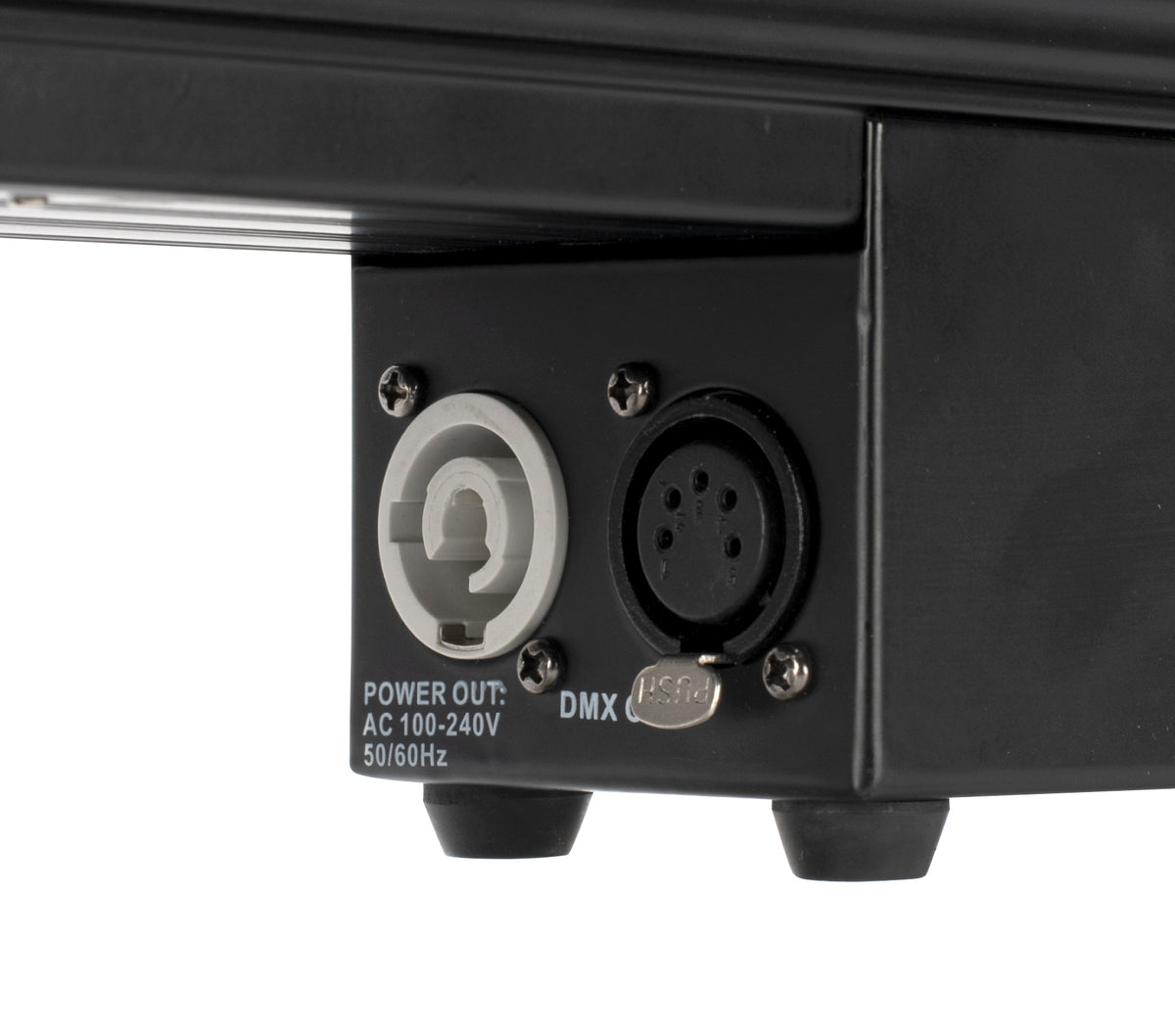

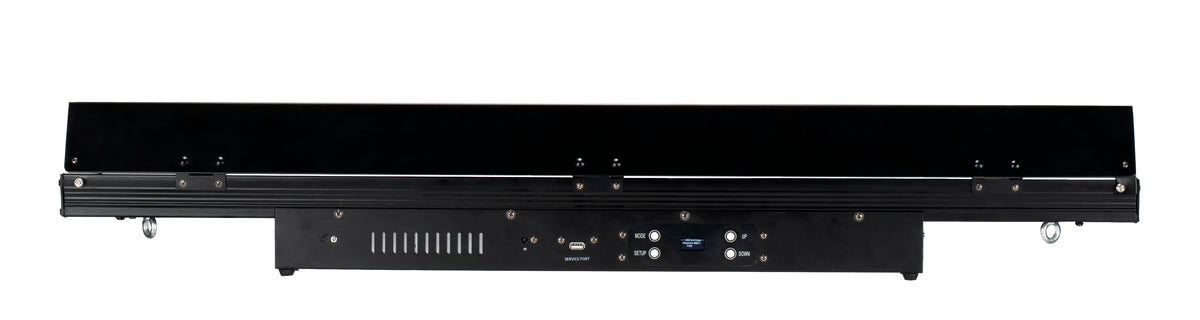

The Ultra LB18 is a linear wash fixture built for indoor installs and event production, with eighteen 10-Watt LEDs combining red, green, blue, amber, and lime in each chip. The lime addition widens the available color palette and pushes white light output above 90 CRI, with color temperature adjustable from 2,300K to 9,900K for anything from a warm architectural wash to a cool white beam. A 17 by 40-degree beam angle suits stages, dance floors, and wall sections alike, and magnetic ends let adjacent fixtures align for a continuous run of light with no visible break, which matters when washing a long wall or stage front. Six operational modes cover Auto Run, Program Mode, Sound Trigger using a built-in microphone, manual RGBAL control, Static Color, and full DMX, with DMX modes ranging from 5 to 71 channels depending on how much individual pixel control a show needs. A rear-panel digital display with a 4-button menu handles mode selection and addressing, and a USB port supports firmware updates without needing to send the fixture back to a shop. Locking power in and out daisy-chains up to 12 units at 120V or 25 at 240V, and a removable glare shield blocks the LEDs from direct view while protecting them during transport. It's built for permanent installs in bars, clubs, and theaters as well as temporary rigs that get loaded in and out.
Features
High-CRI, Tunable White

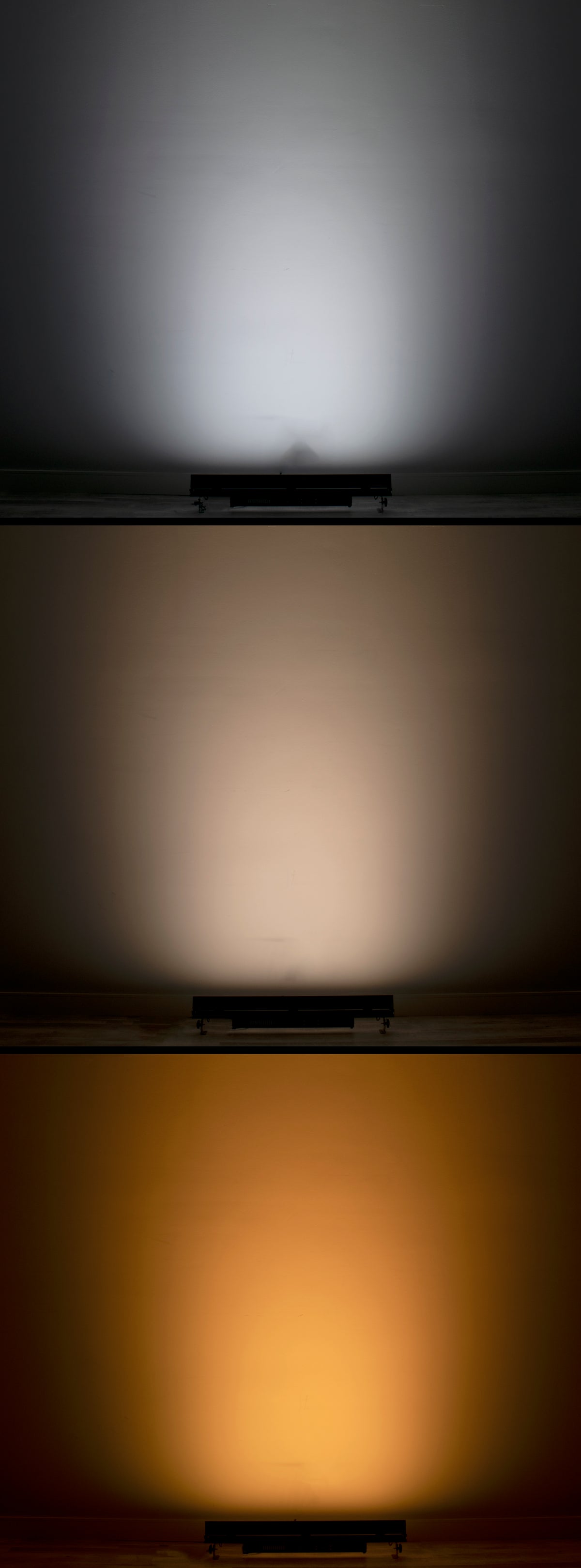

A lime LED chip pushes color rendering over 90 CRI and allows white output from 2,300K to 9,900K.
Gapless Multi-Fixture Runs

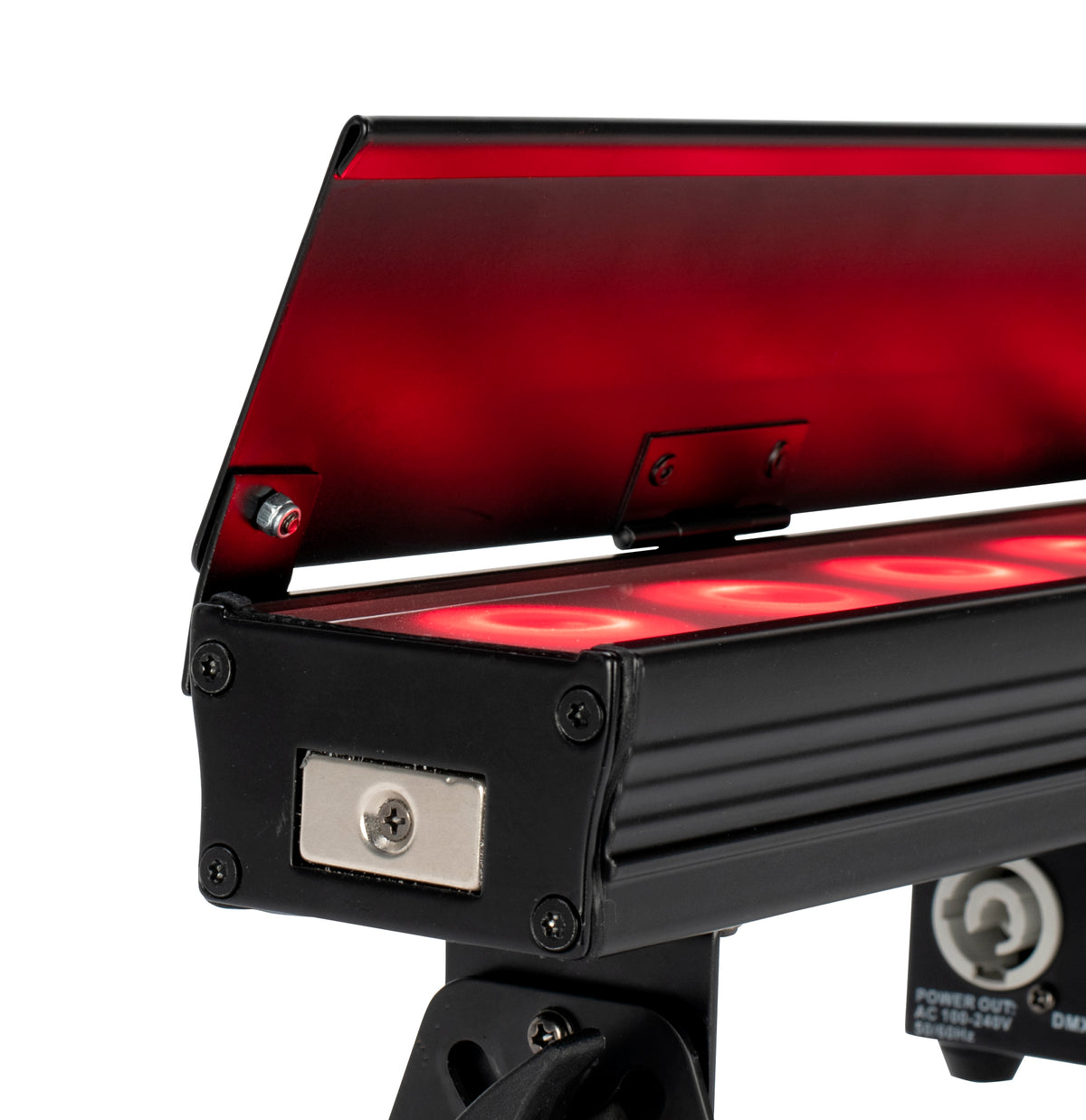

Magnetic ends let adjacent bars align for one continuous wash with no visible seam between fixtures.
Built-In Sound Reactivity
A built-in microphone drives Sound Trigger mode, so the bar reacts to music without a controller.
Deep DMX Control
DMX modes scale from 5 to 71 channels, giving shows fine, pixel-level control when it's needed.
Protected For Transport
A removable glare shield blocks direct LED view on site and protects the LEDs during load-out.
Technical Specifications
- Product Type Linear LED Wash Bar
- Light Source 18x 10W RGBAL LEDs
- Beam Angle 17x40 Degrees
- Color Rendering CRI > 90
- Color Temperature Range 2,300K to 9,900K
- DMX Channel Modes 5, 8, 10, 13, 16, 30, 33, 38, 41, 60, 71
- Operational Modes Auto Run, Program Mode, Sound Trigger, RGBAL Manual, Static Color, DMX-512
- Daisy Chain Up to 12 Units @ 120V / 25 Units @ 240V
- Power Draw 130W
- Weight 11.2 lb (5.1 kg)
- Dimensions 3.39" x 39.3" x 7.42" (86 x 996 x 188.4mm)
