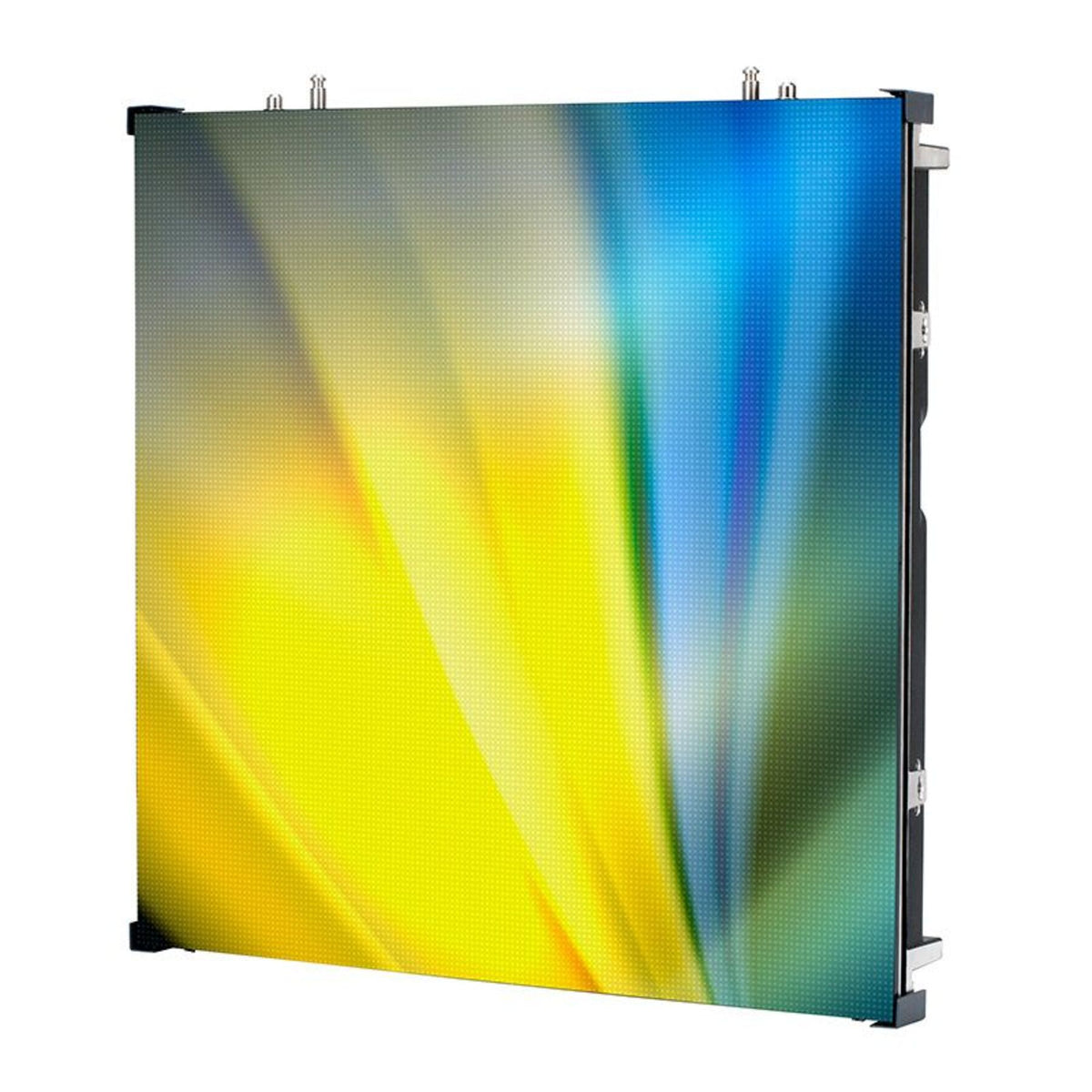

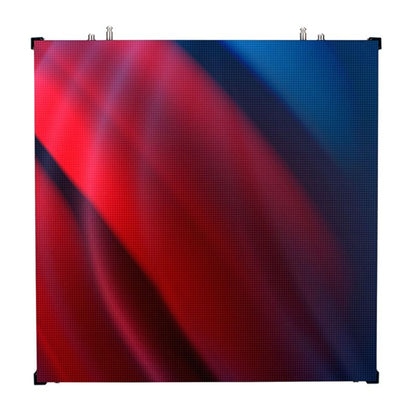

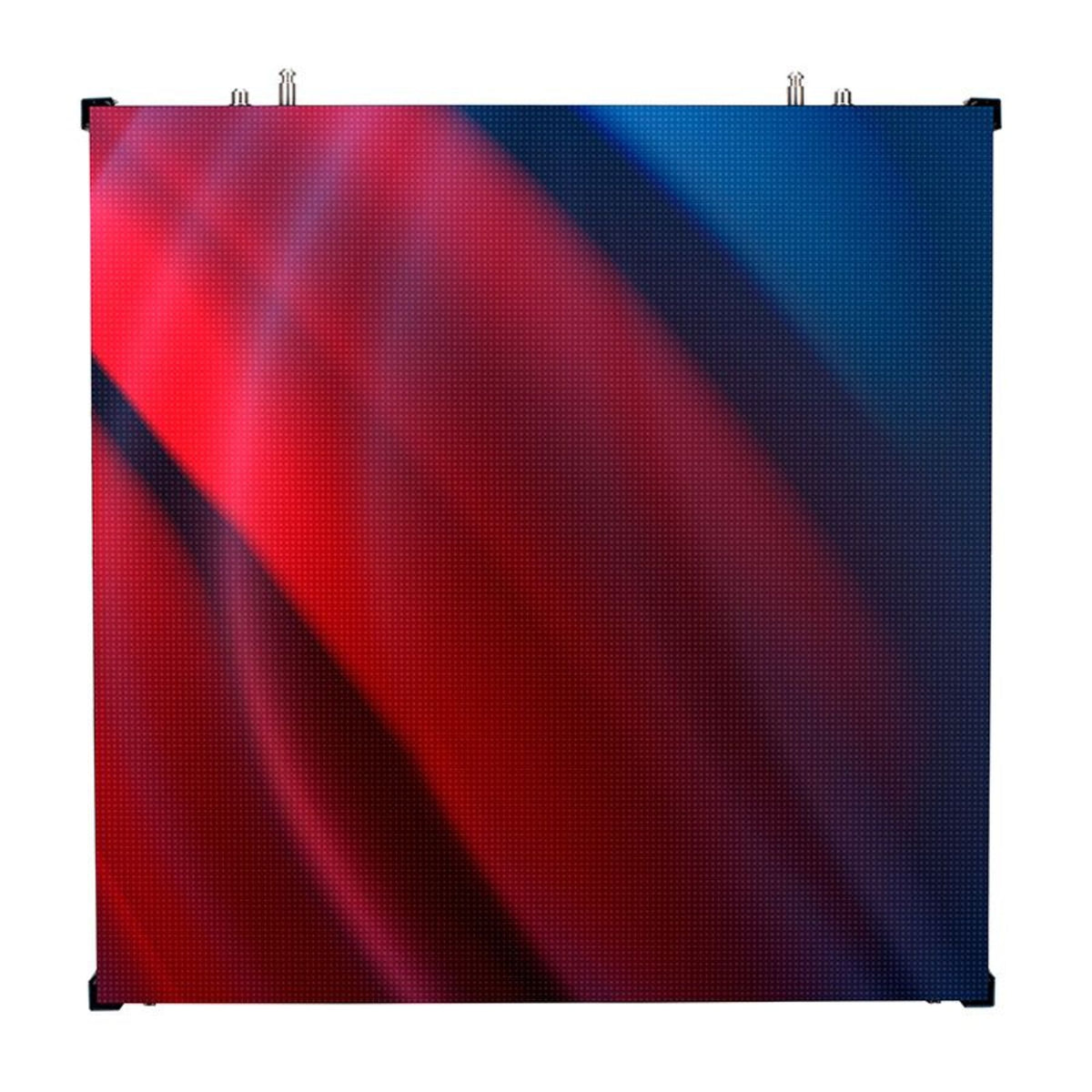

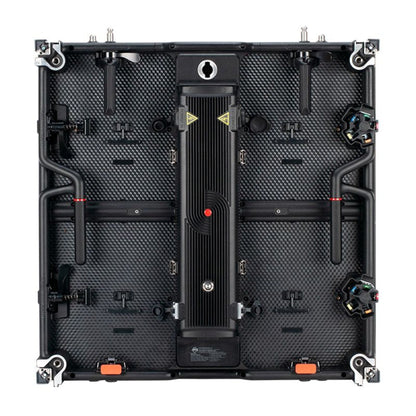

American DJ ADJ VS3IP High-Res IP Rated Indoor/Outdoor RGB LED Video Panel
American DJ ADJ VS3IP High-Res IP Rated Indoor/Outdoor RGB LED Video Panel
3.84mm Pixel Pitch IP Rated LED Video Panel, 4500 NITS, 150x150 Pixels, IP65 Front, IP54 Rear
Features
- IP65 front and IP54 rear for temporary outdoor use
- 3.84mm pixel pitch with 3-in-1 RGB SMD1921 LEDs
- 4500 NITS brightness holds an image in daylight
- Panels curve convex or concave at 3 or 6 degrees
- Quick release power supply and receiving card module
Couldn't load pickup availability
What's Included in the box
- 1x VS3IP high-resolution outdoor LED video panel
SKU: SKU: VS3IP
View full details






Product Description
Features
Rated For The Weather

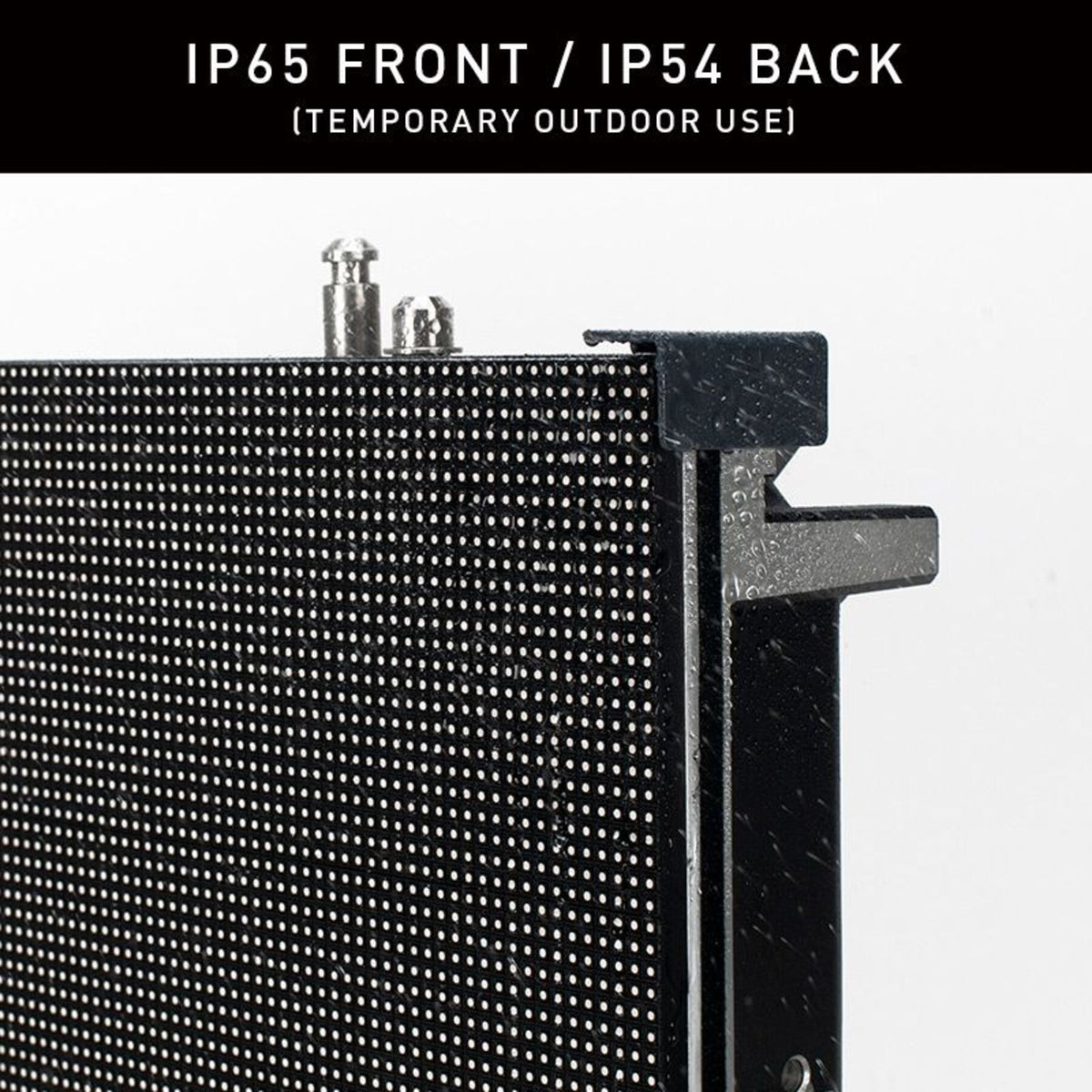

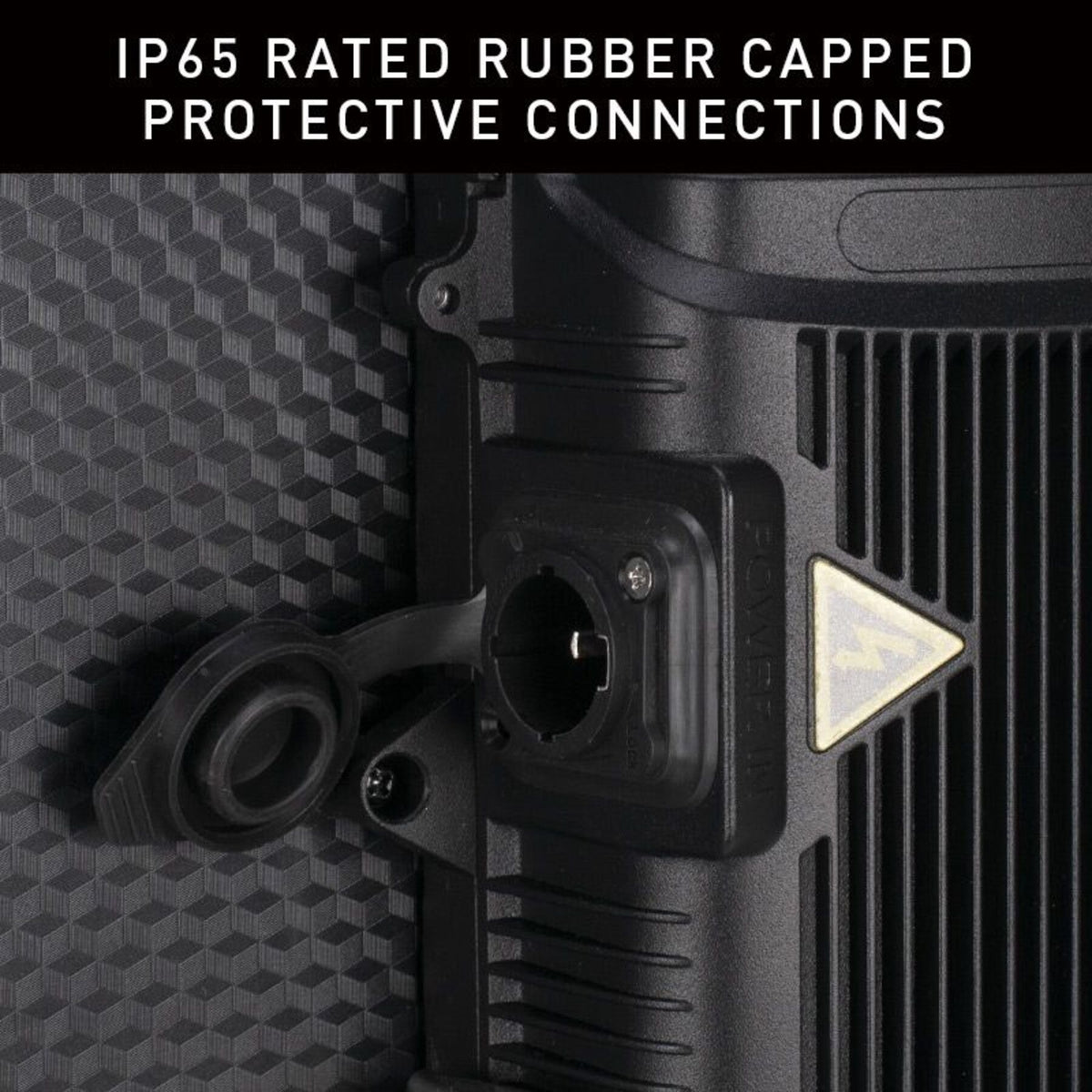

An IP65 front and IP54 rear with rubber capped connectors let the panel work outdoors for temporary stages and events, not just indoor rooms.
Daylight Brightness
At 4500 NITS the wall holds a visible image under sunlight, where indoor panels rated near 1000 NITS wash out completely.
Fast Service On Site

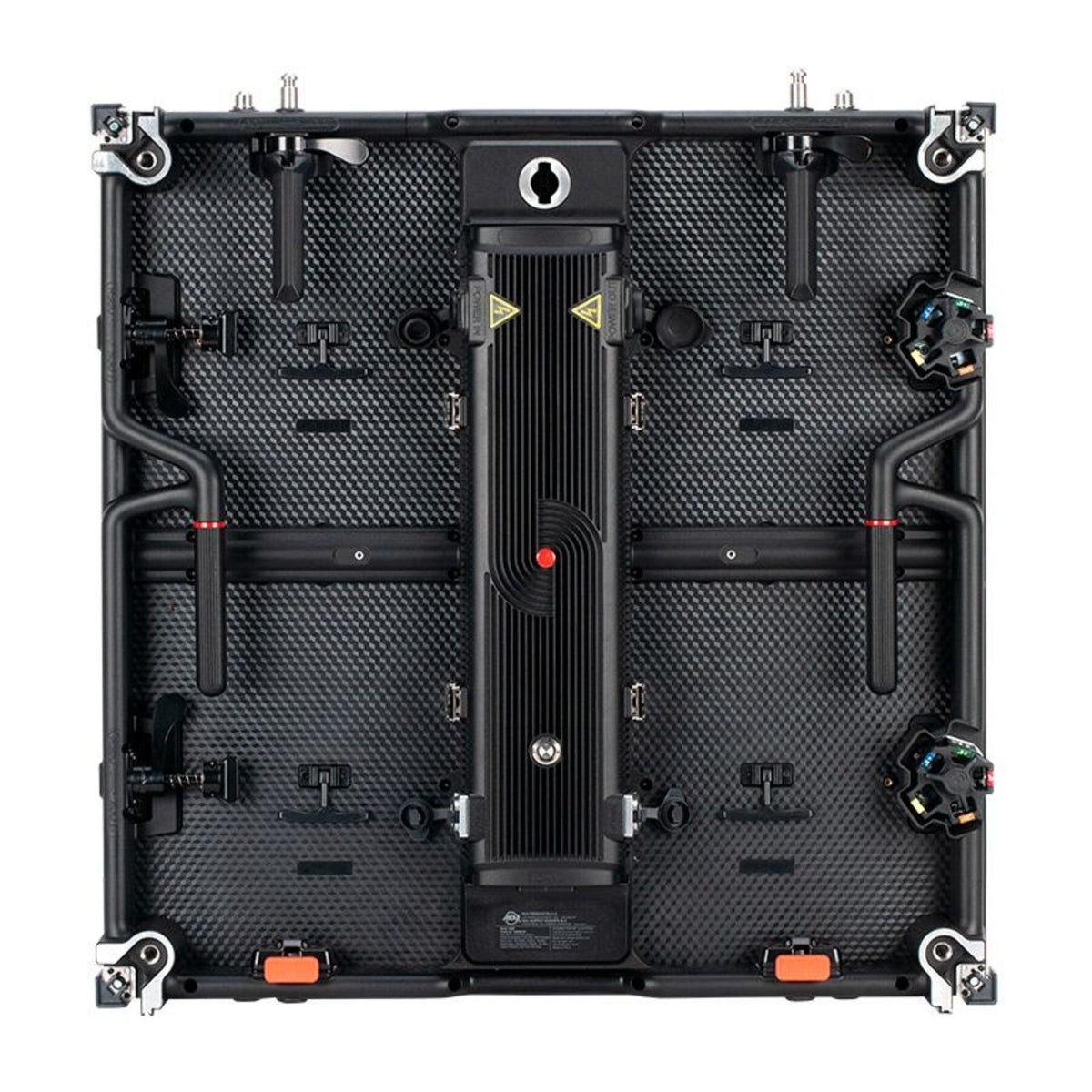

Four rear serviceable modules plus a quick release power supply and receiving card module keep a repair to minutes during a changeover.
Calibration That Travels
Memory On Module technology stores calibration data on each module, so a replacement module matches the wall without recalibrating the whole surface.
Straight Or Curved

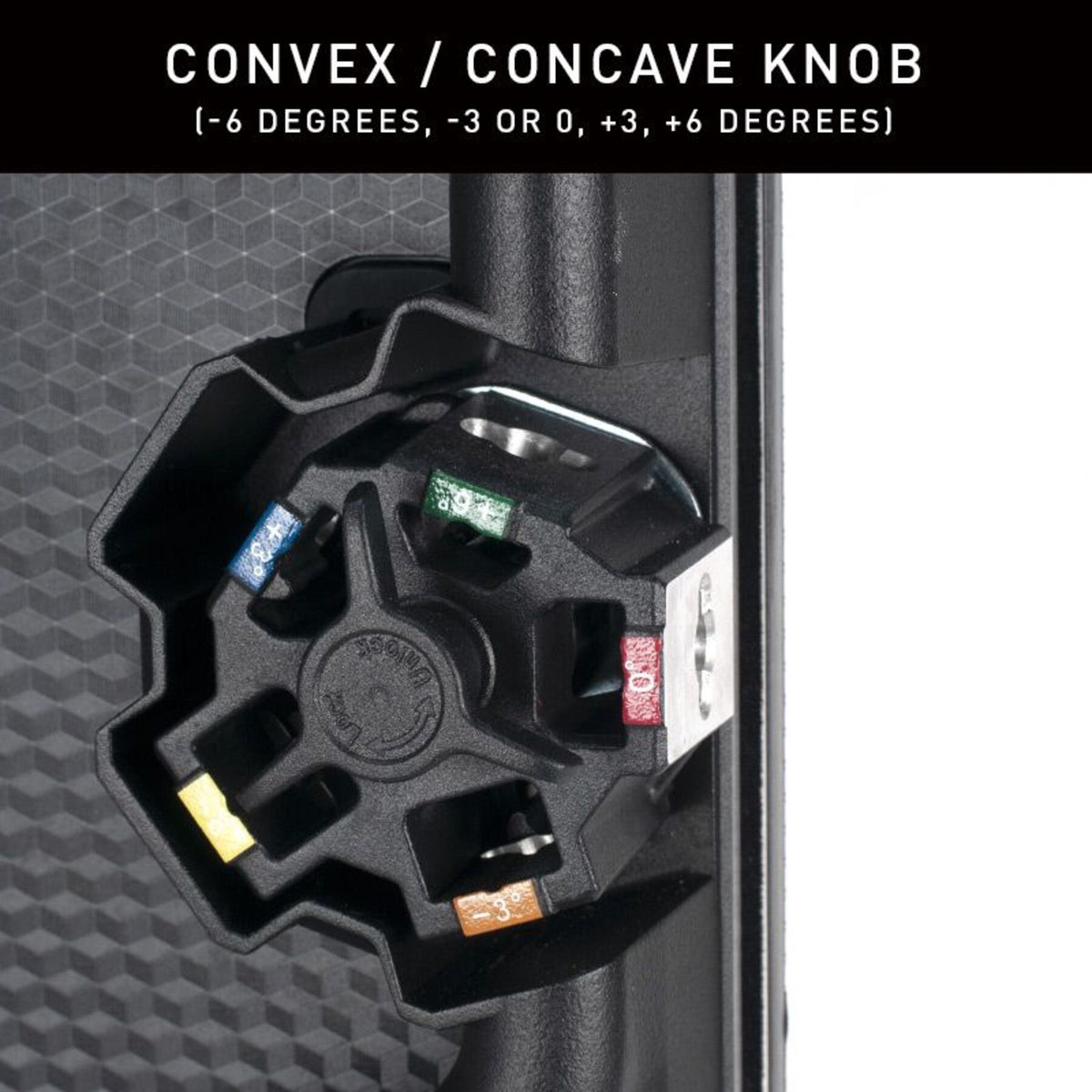

A quick lock system joins panels fast and allows convex or concave curves at 3 or 6 degrees, so the same inventory builds flat walls or arcs.
Technical Specifications
- Product Type IP Rated Indoor/Outdoor LED Video Panel
- Pixel Pitch 3.84mm (0.15")
- LED Configuration 3-in-1 RGB SMD1921 LED
- Pixel Density 150 x 150 per panel, 67,816 per square meter
- Module Quantity 4, rear serviceable
- Brightness 4500 NITS
- Protection Level IP65 front, IP54 rear, temporary outdoor use
- Surface Flatness Gaps less than 0.5mm
- Refresh Rate 3840Hz
- Scan Mode 1/15
- Frame Update Frequency 50-75Hz
- Control Mode Novastar synchronous system with control via DVI
- Receiving Card Novastar A5S, built in
- Module Memory Memory On Module (MOM) technology
- Supported Inputs Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI
- Control Distance Ethernet cable under 120m, fiber optic over 120m
- Connections IP65 locking power in/out, locking RJ45 Ethernet in/out
- Curving Convex or concave at 3 or 6 degrees

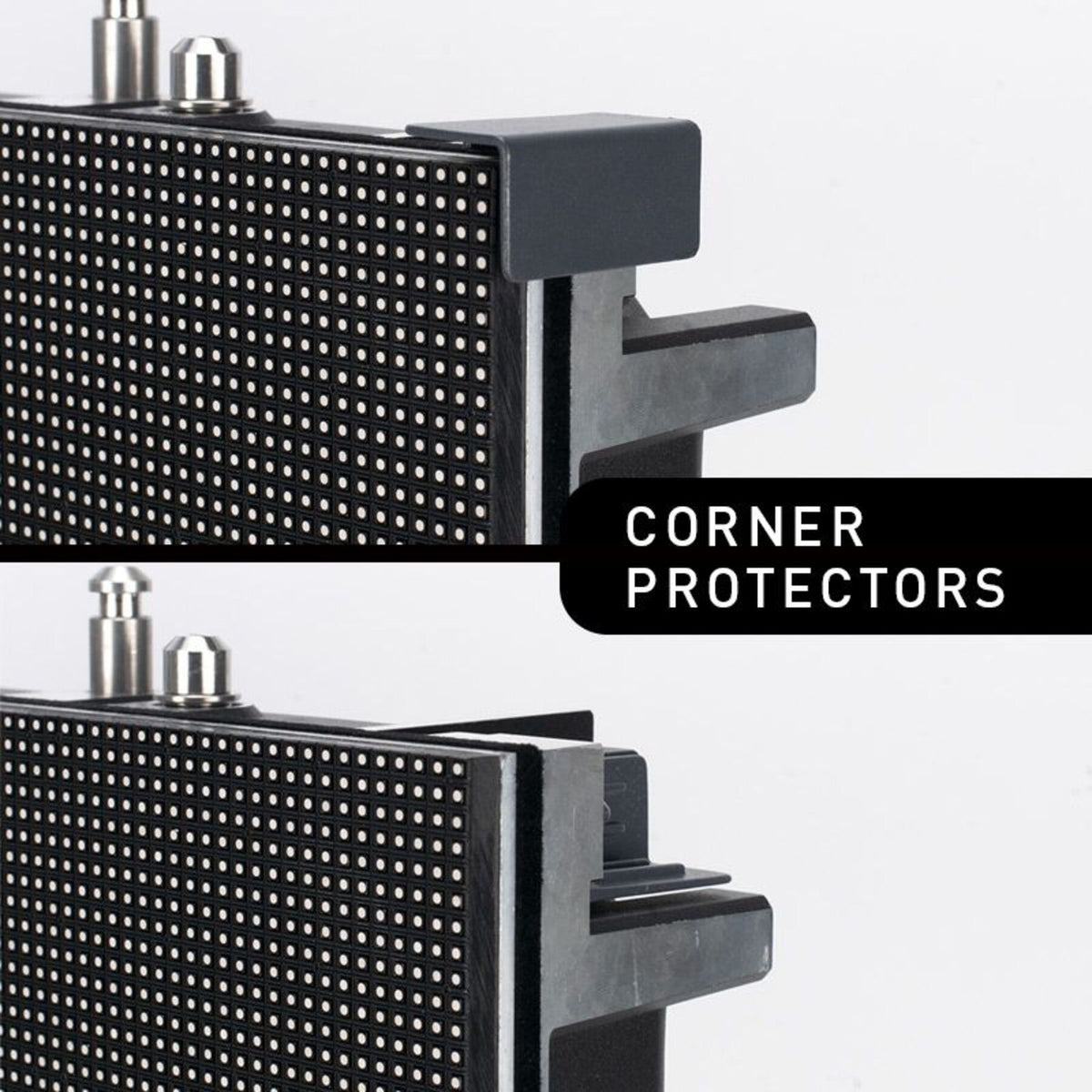

- Handling Corner protectors, rear carry handles, quick lock panel connection
- Operating Temperature -4F to 104F (-20C to 40C), 10-90% humidity
- Operating Life / MTBF 50,000 hours / 5,000 hours
- Certifications cETLus approved, CE, FCC
- Weight 19.84 lb
- Dimensions (LxWxH) 22.7" x 22.7" x 3.00" (576 x 576 x 75mm)
