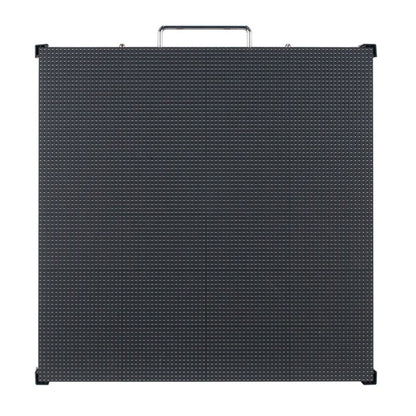

American DJ ADJ VS5 Vision Series 5.95mm Pixel Pitch RGB SMD2121 LED Video Panel

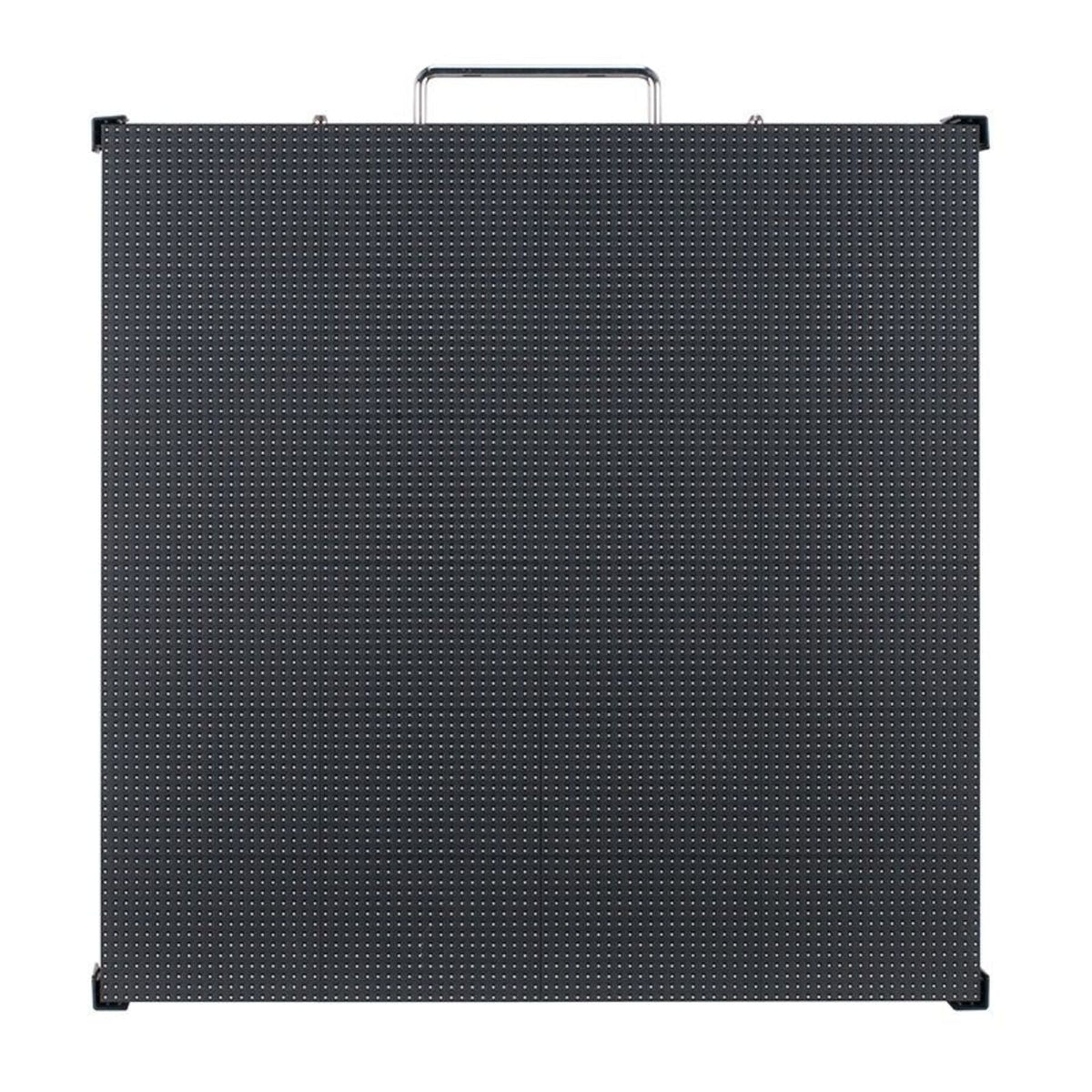

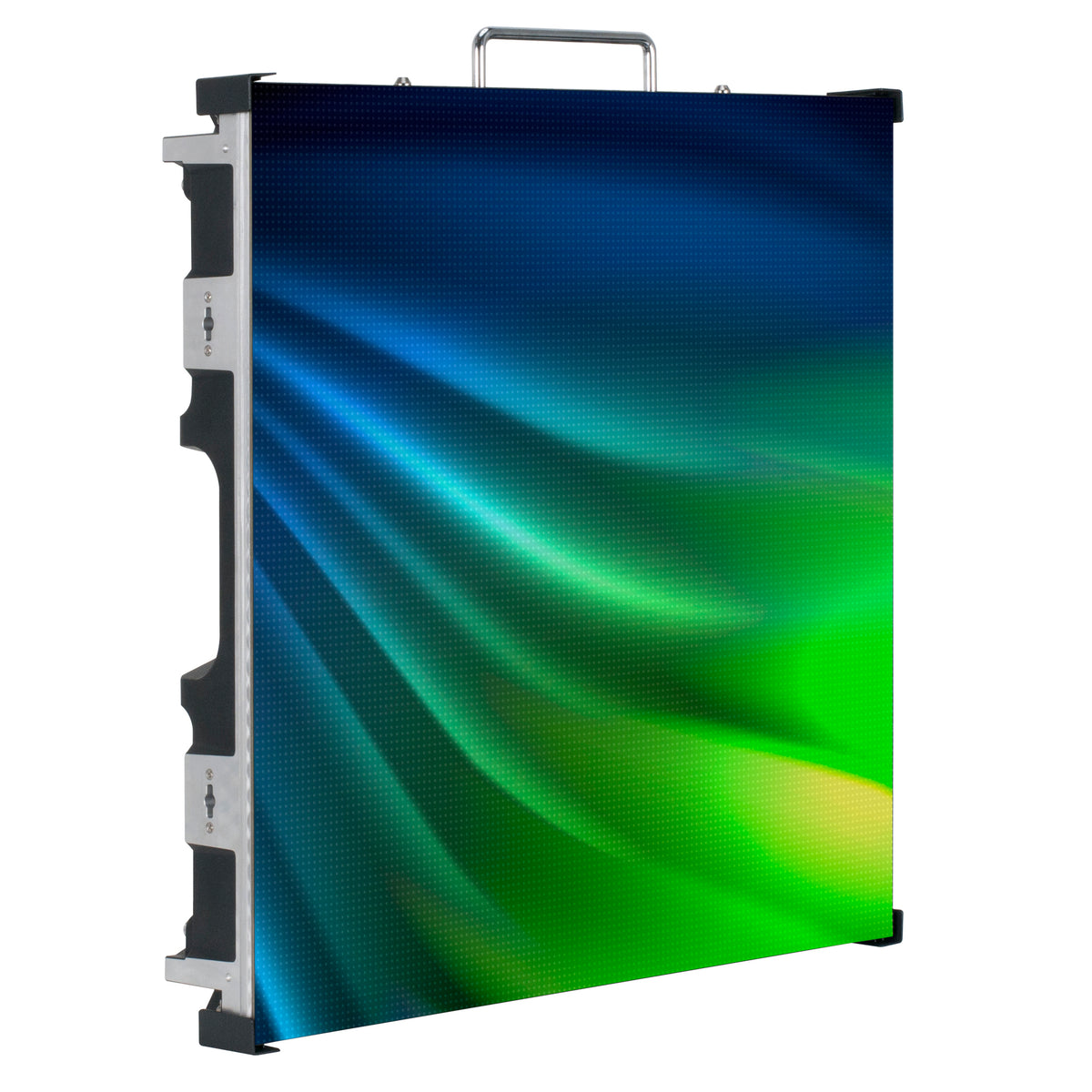

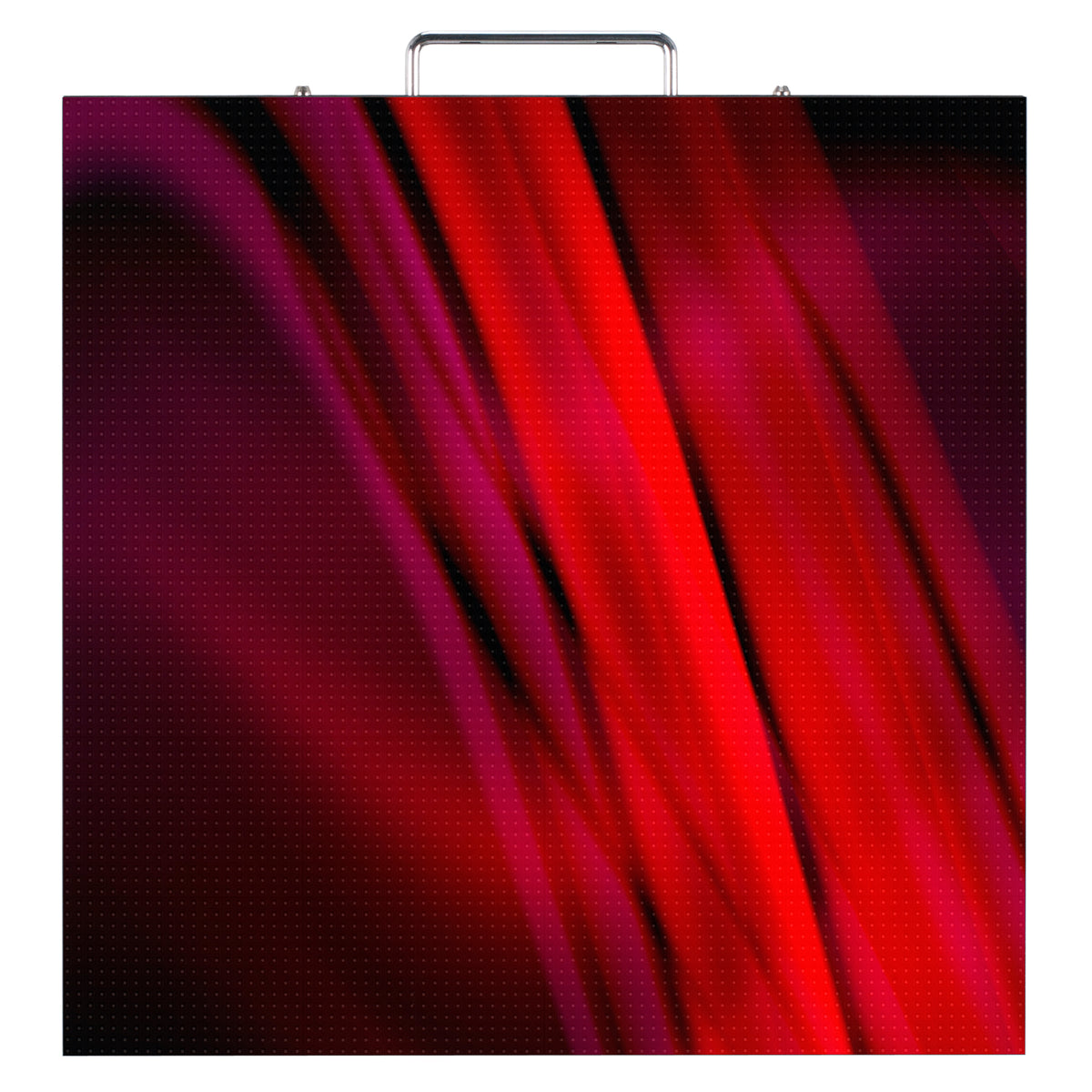

The ADJ VS5 is a 5.95mm pixel pitch LED video panel from the Vision Series, built for stage backdrops, DJ walls, and touring video where the audience views from a moderate distance. A 3-in-1 RGB SMD2121 LED gives 84 x 84 pixels per panel and 28,224 pixels per square meter, with 1000 NITS of output so content stays readable under stage wash and house light. A 14-bit processing path and 3840Hz refresh rate keep the wall clean on camera for broadcast, streaming, and IMAG work.

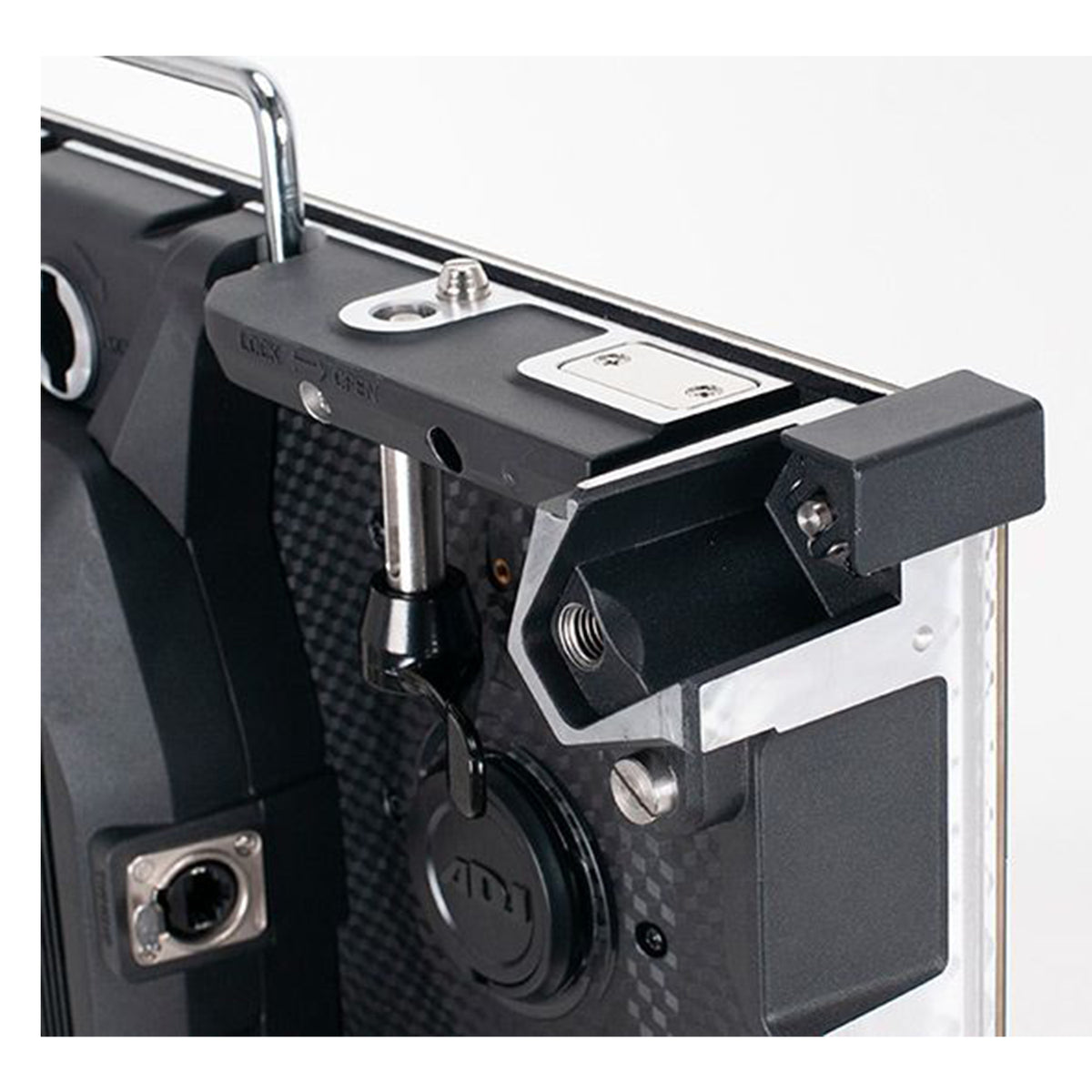

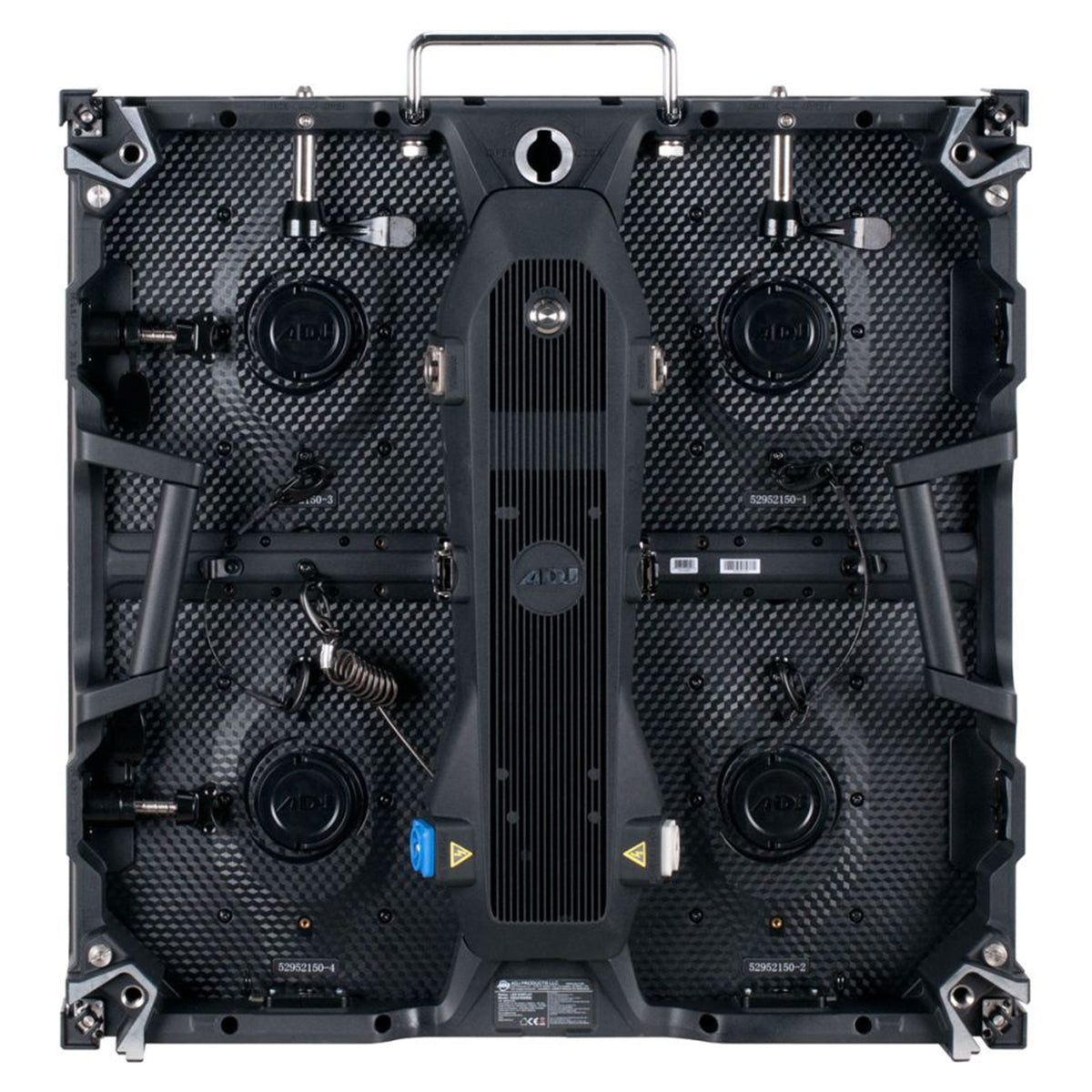

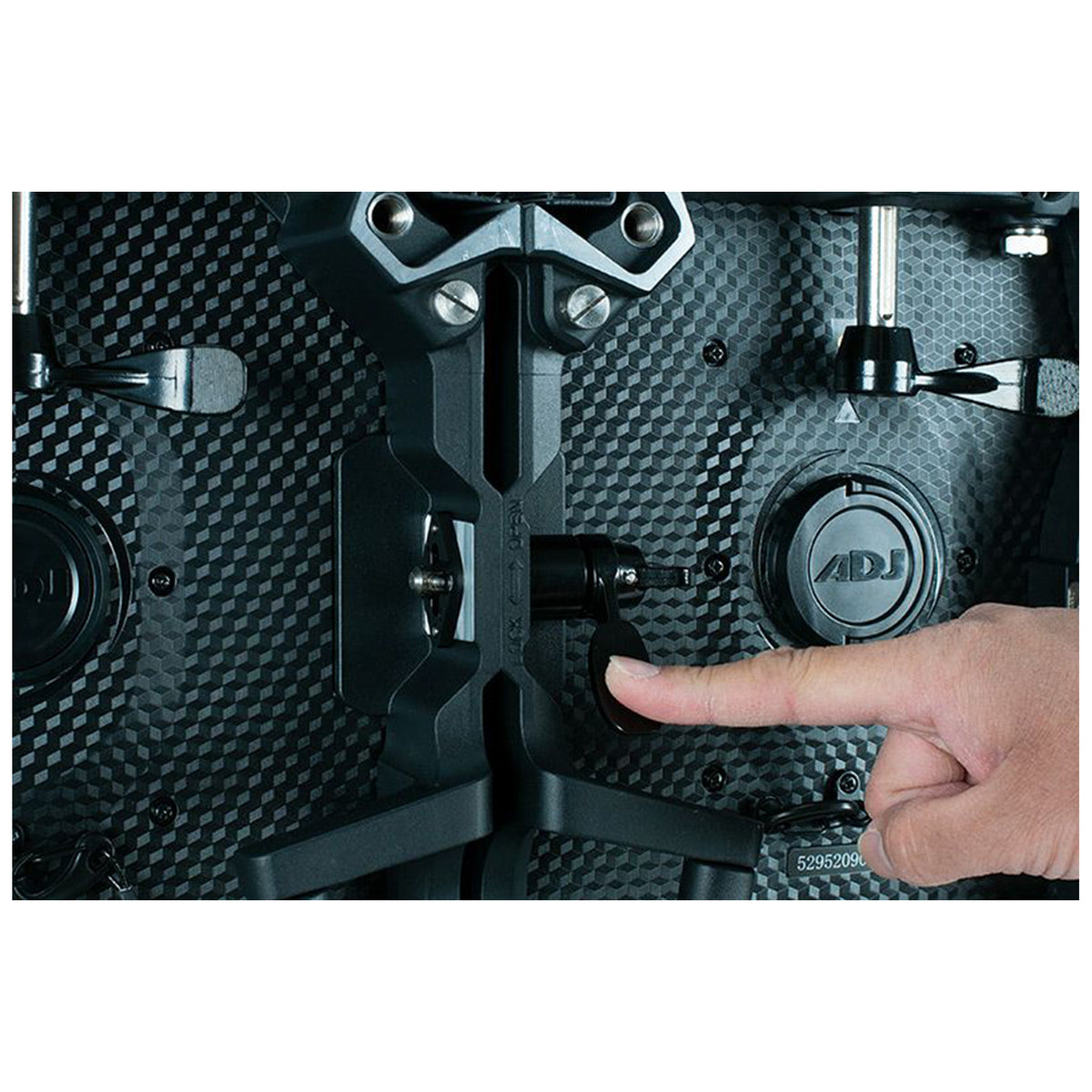

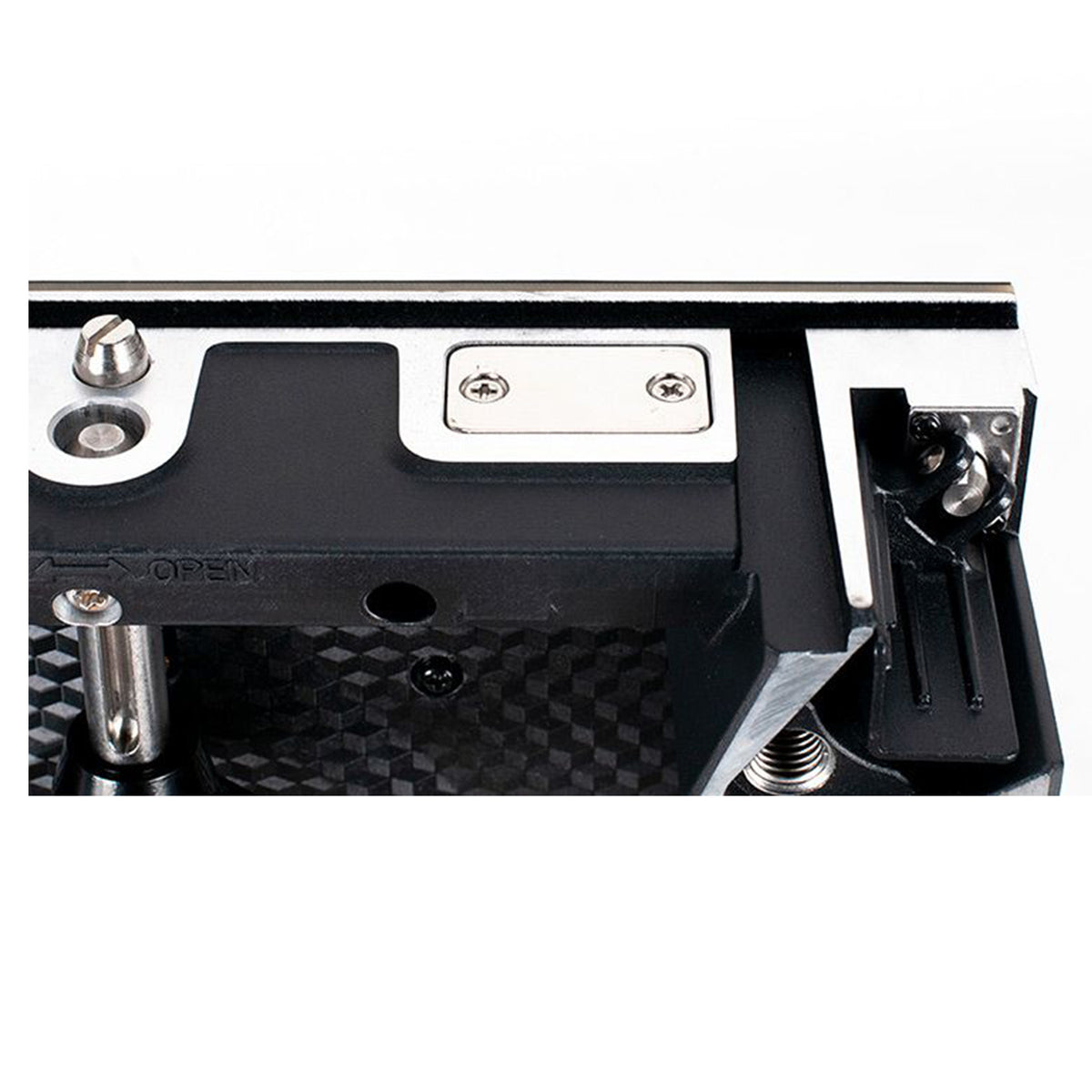

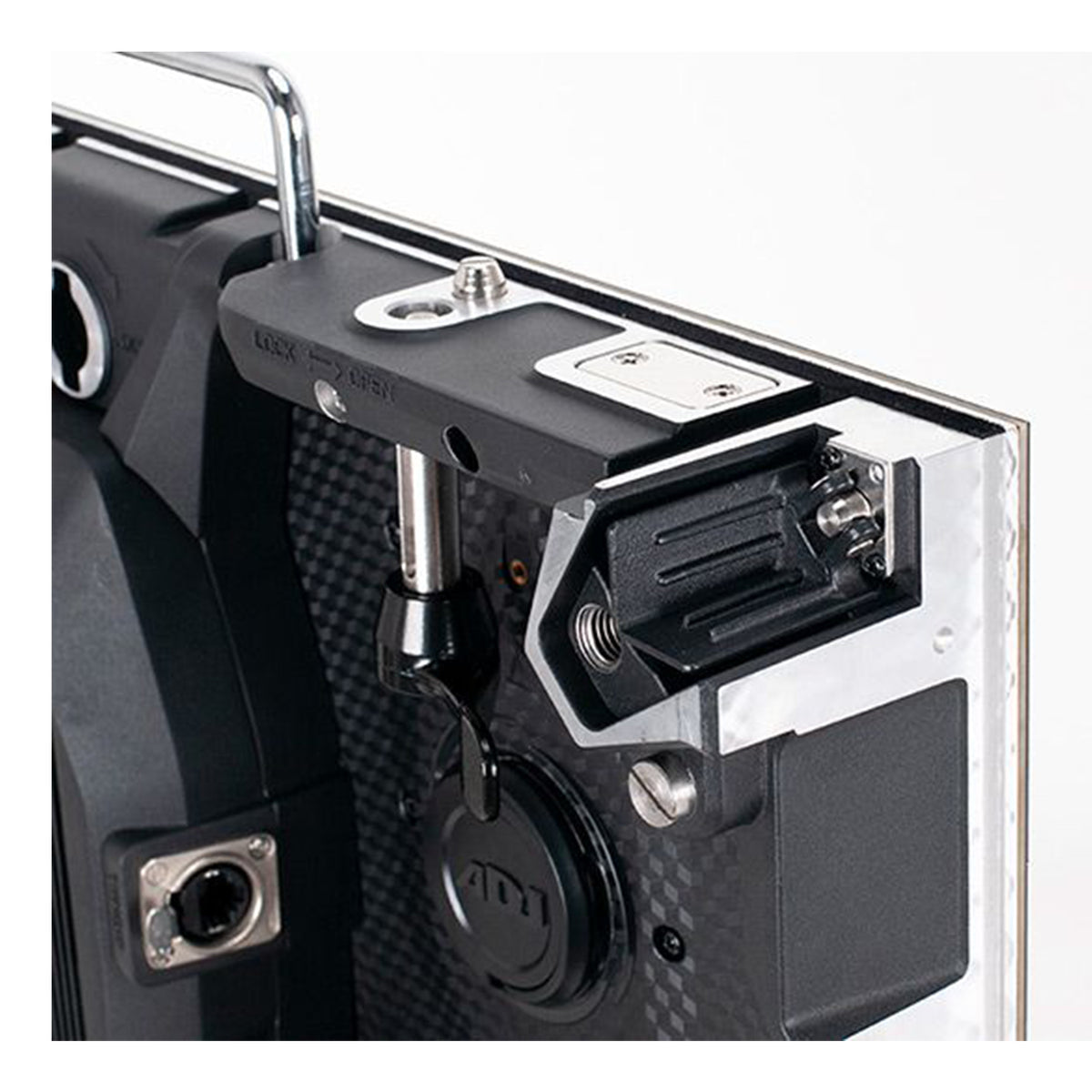

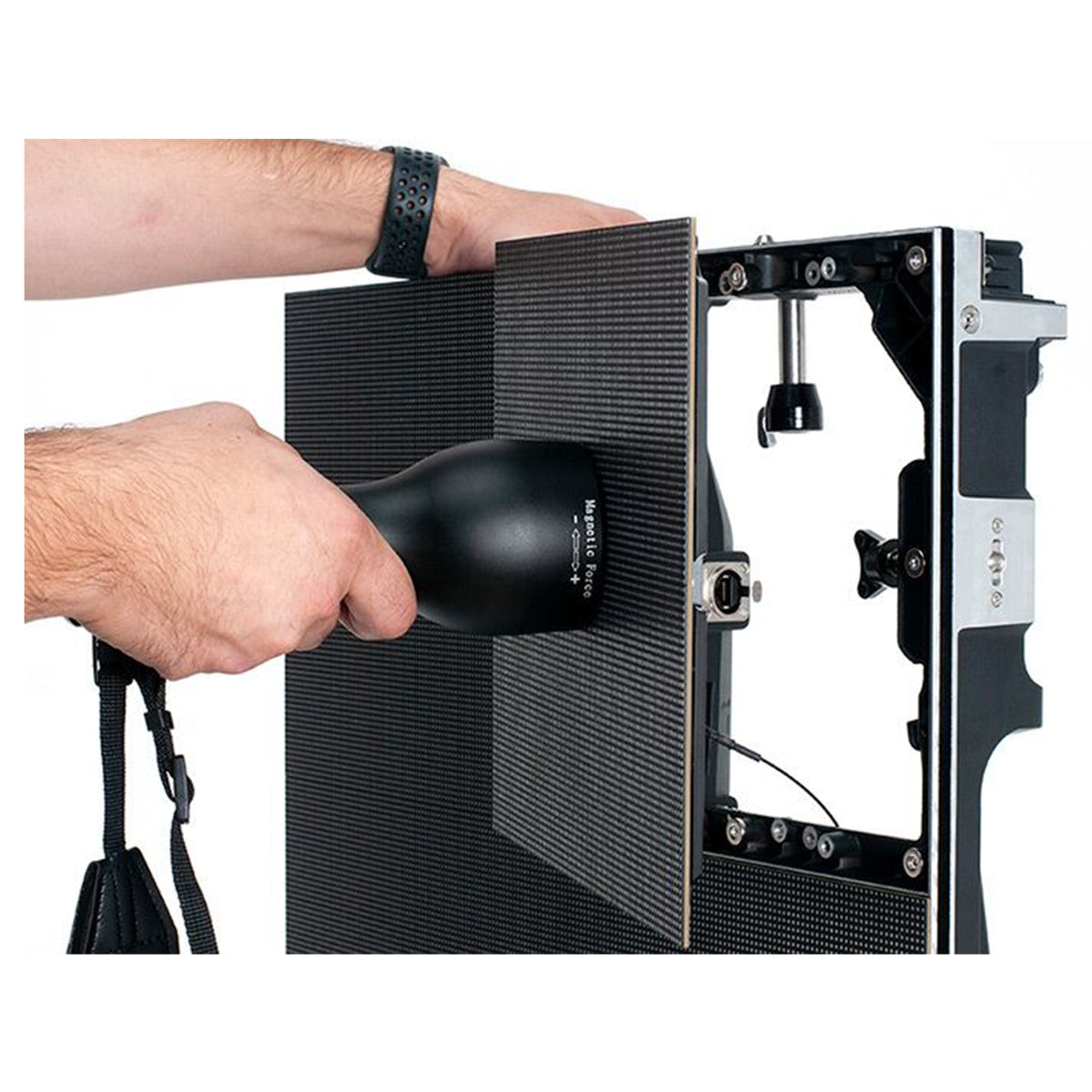

Each 19.68 inch square panel carries four individual LED modules and is serviceable from the front and the rear. A failed module comes out on site without pulling the panel from the wall, which matters when the show is in two hours. Moveable corner protectors shield panel corners during transport, setup, and teardown. Magnets on the top and bottom hold two panels together while you reach behind and latch them at the rear, so one technician can build an entire wall without a second set of hands.

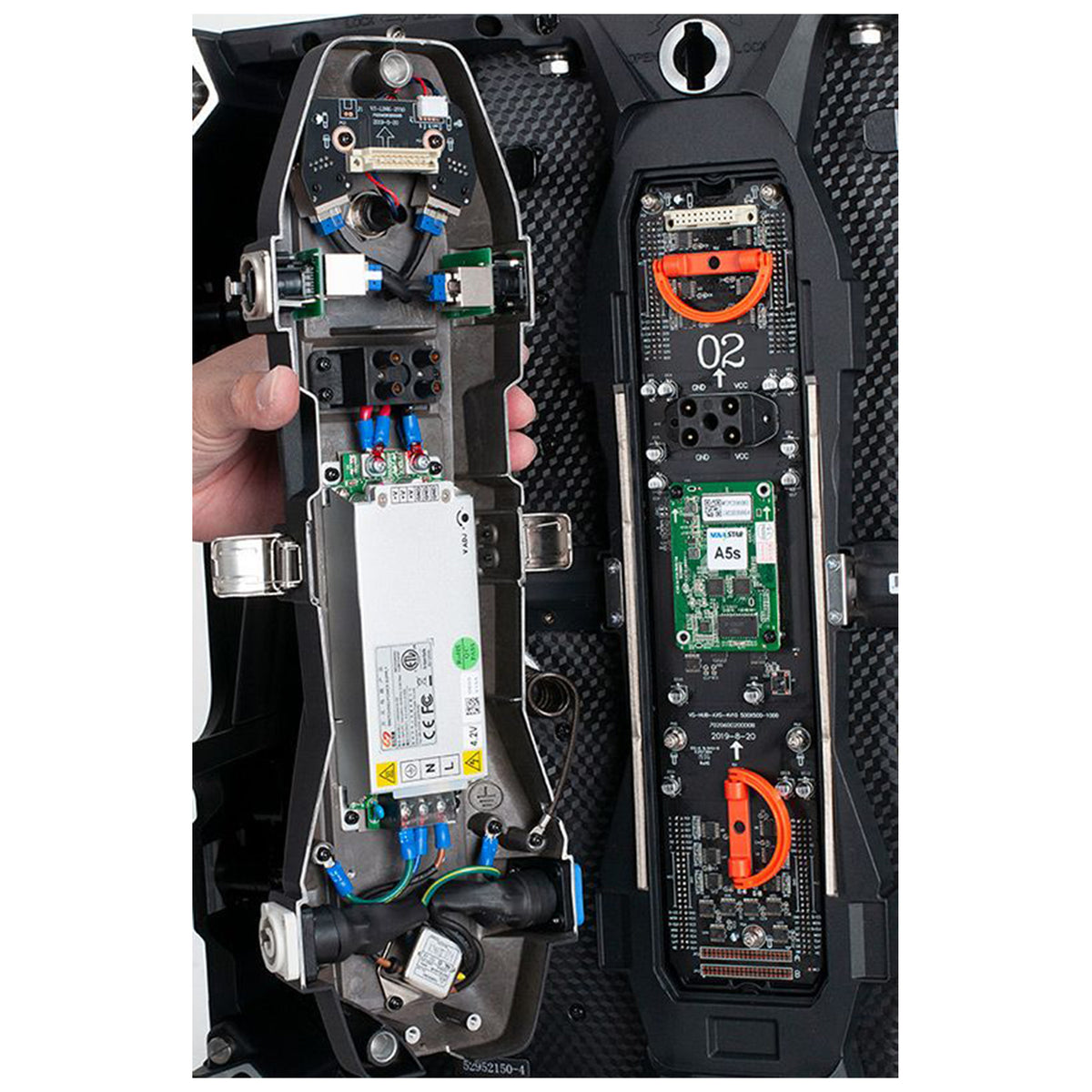

The VS5 shares its frame with the rest of the Vision Series, so it mixes with other resolutions in the same wall, hangs on the VSRB1 rigging bar, and packs eight to a VSFC8 flight case. PowerLock and DataLock connectors daisy-chain panel to panel, and a built-in Novastar A5s receiving card runs from a Novastar synchronous system over DVI with input support up to HD-SDI. At 17 lb per panel and 170 W maximum draw, the VS5 works for rental inventory, permanent installs, corporate stages, and houses of worship.
