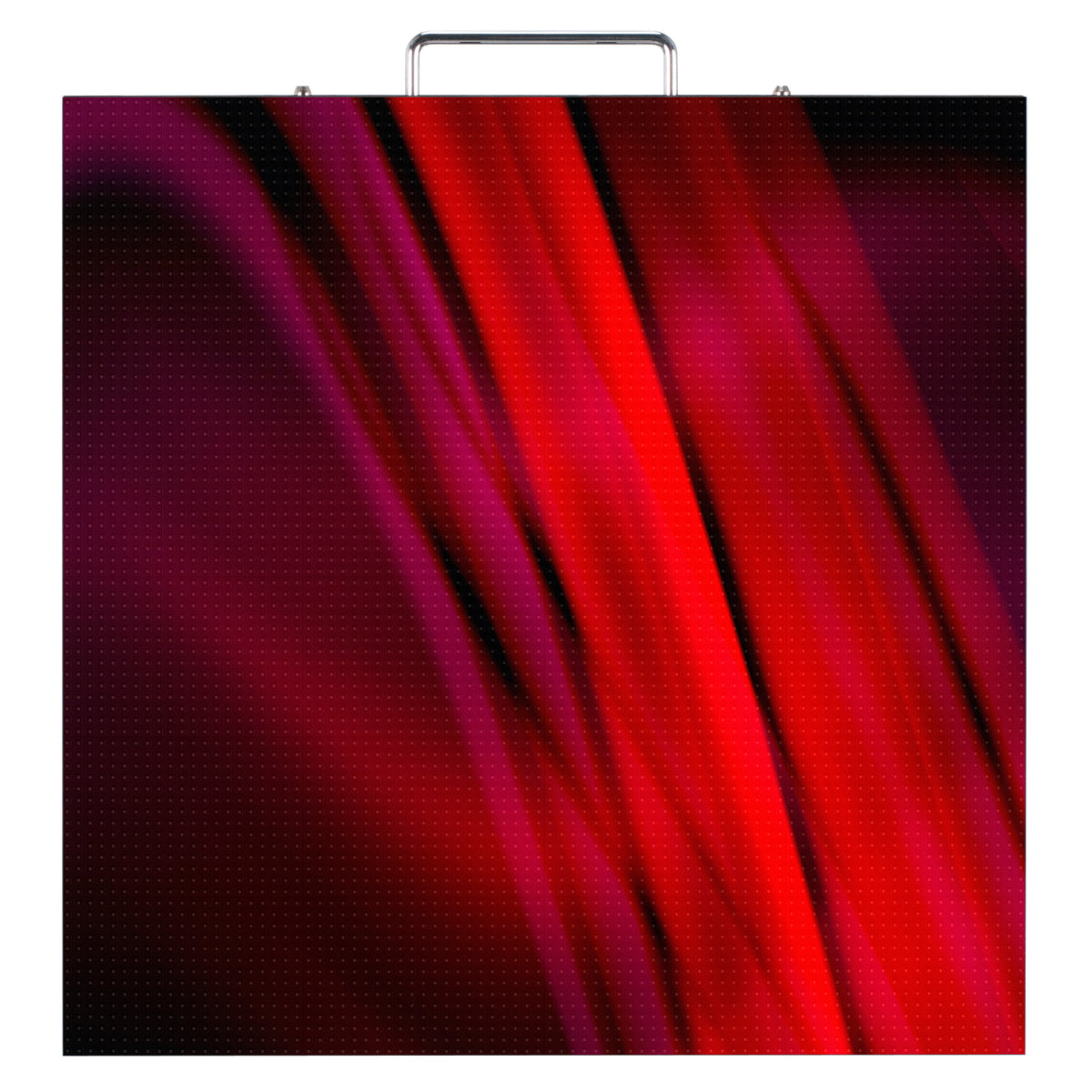

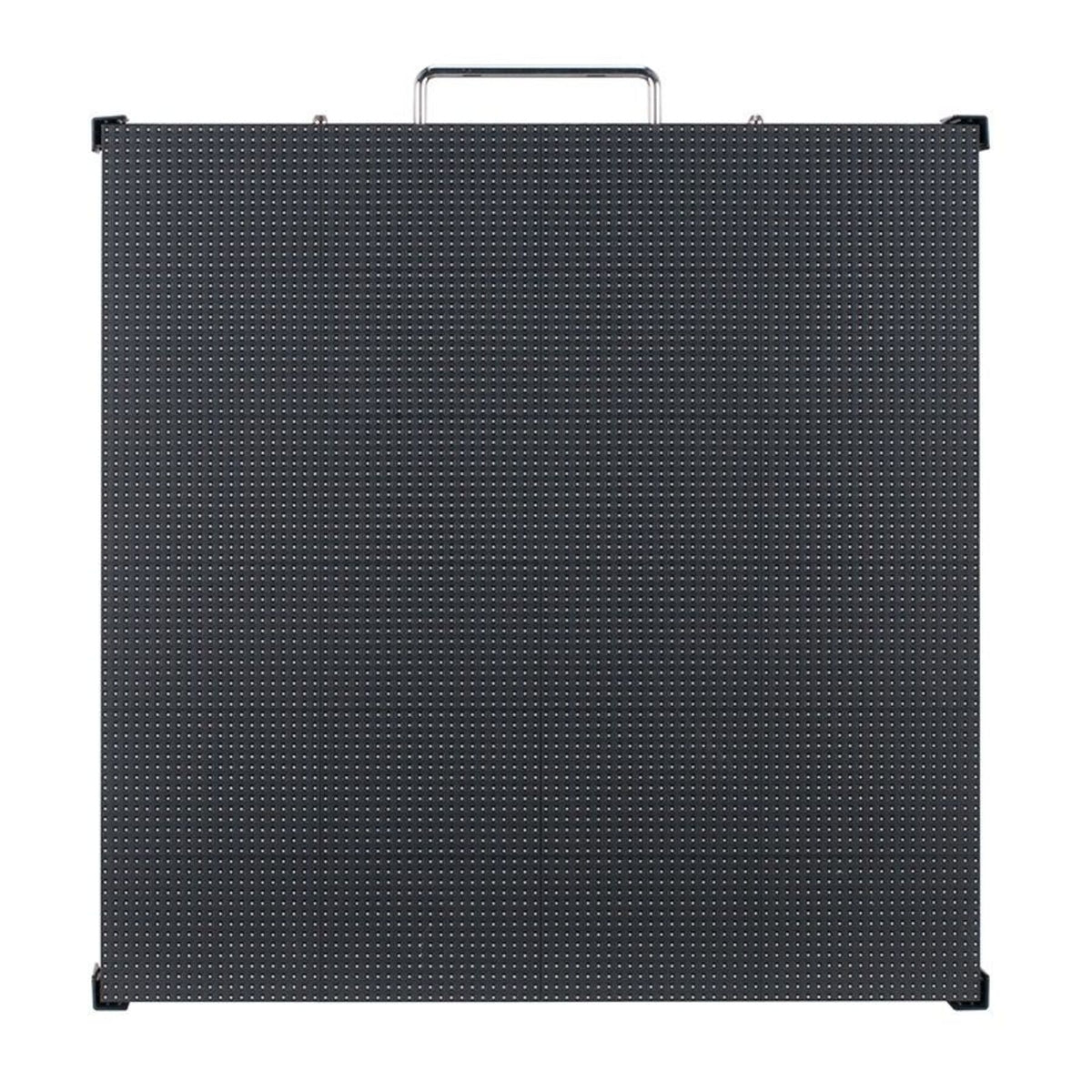

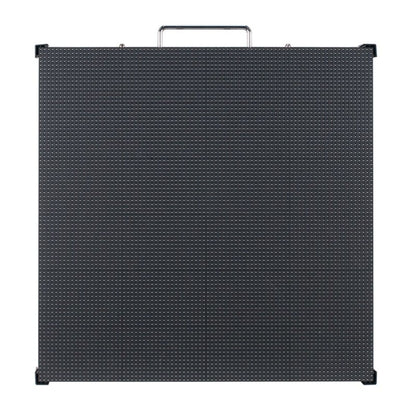

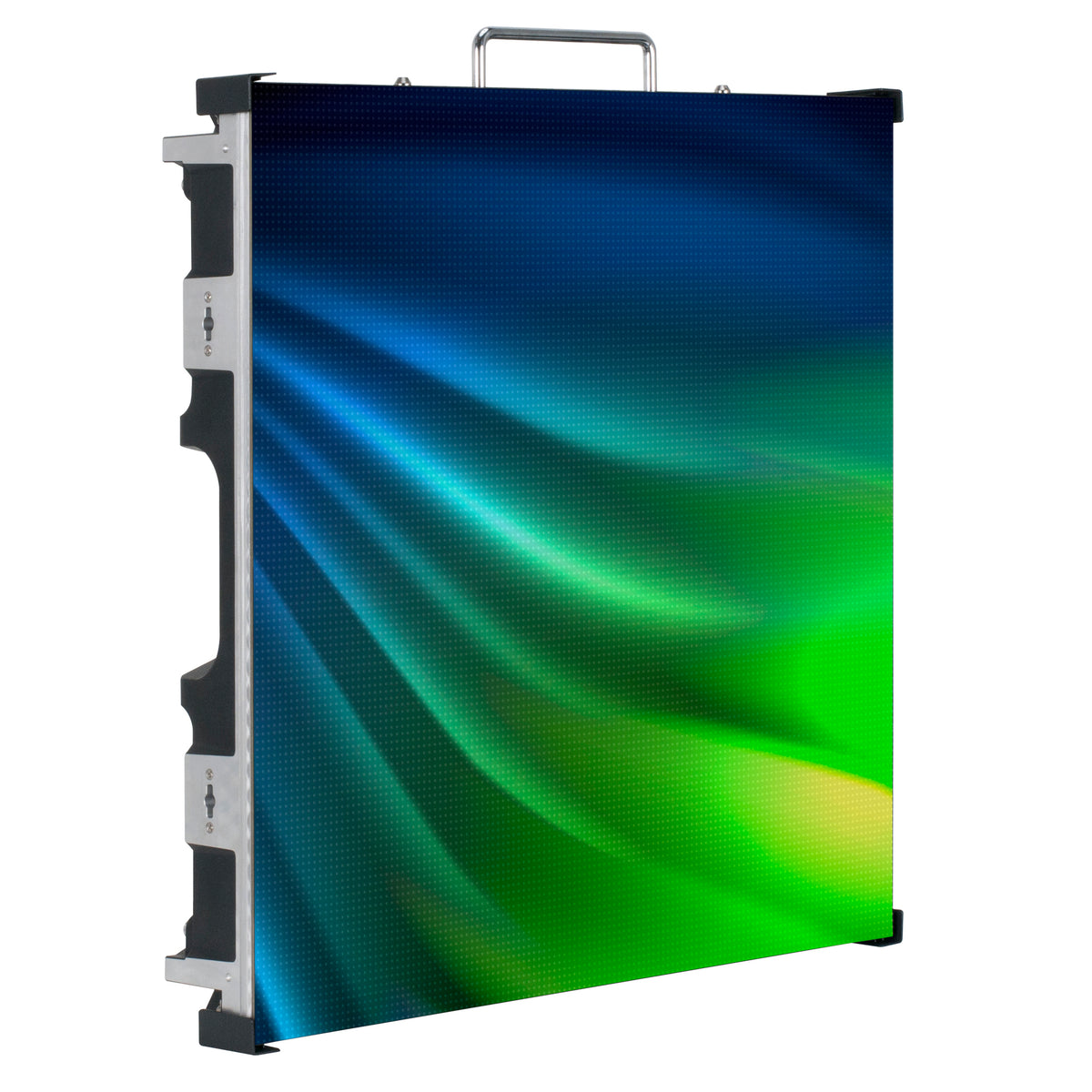

ADJ VS5 Vision Series 5.95mm Pixel Pitch RGB SMD2121 LED Video Panel

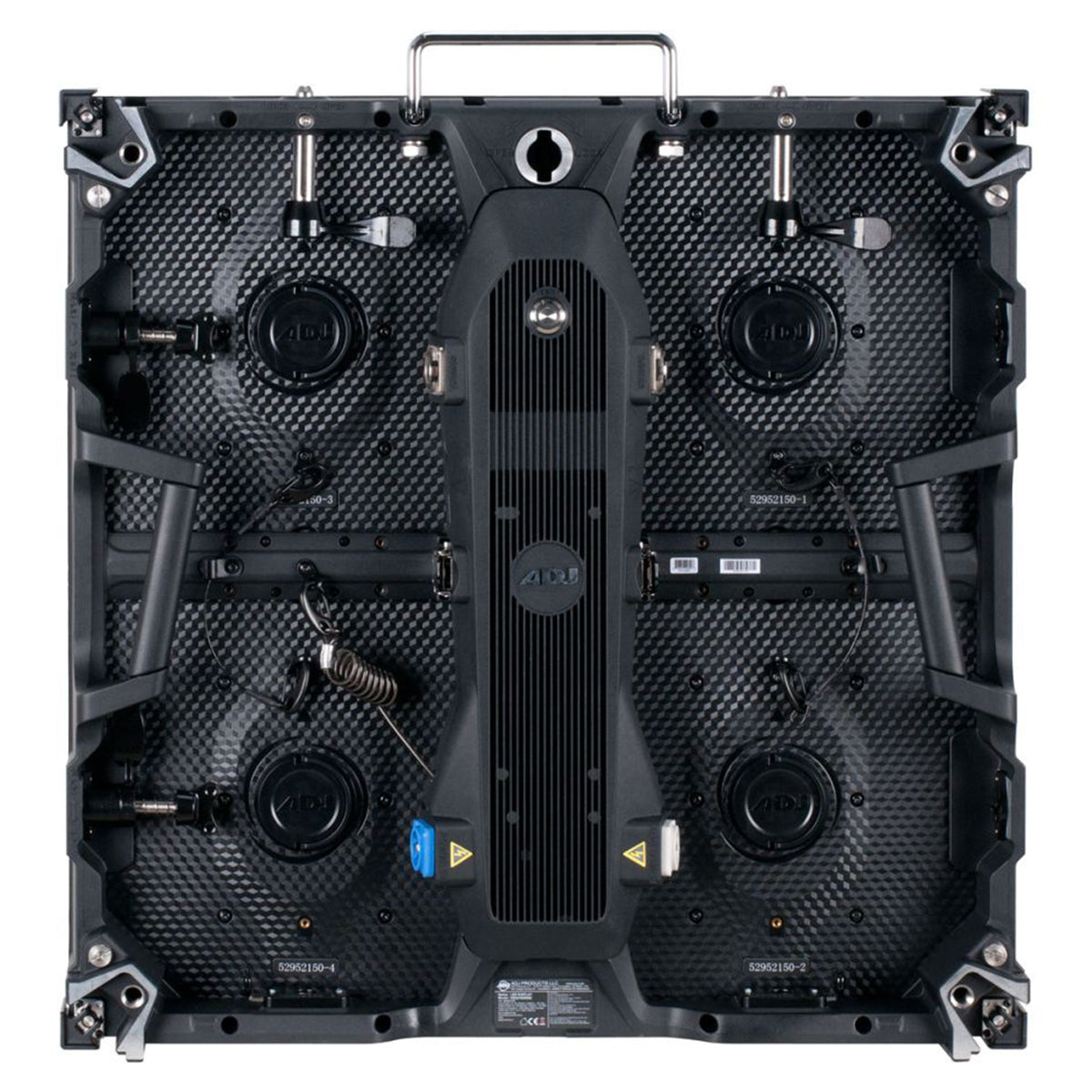

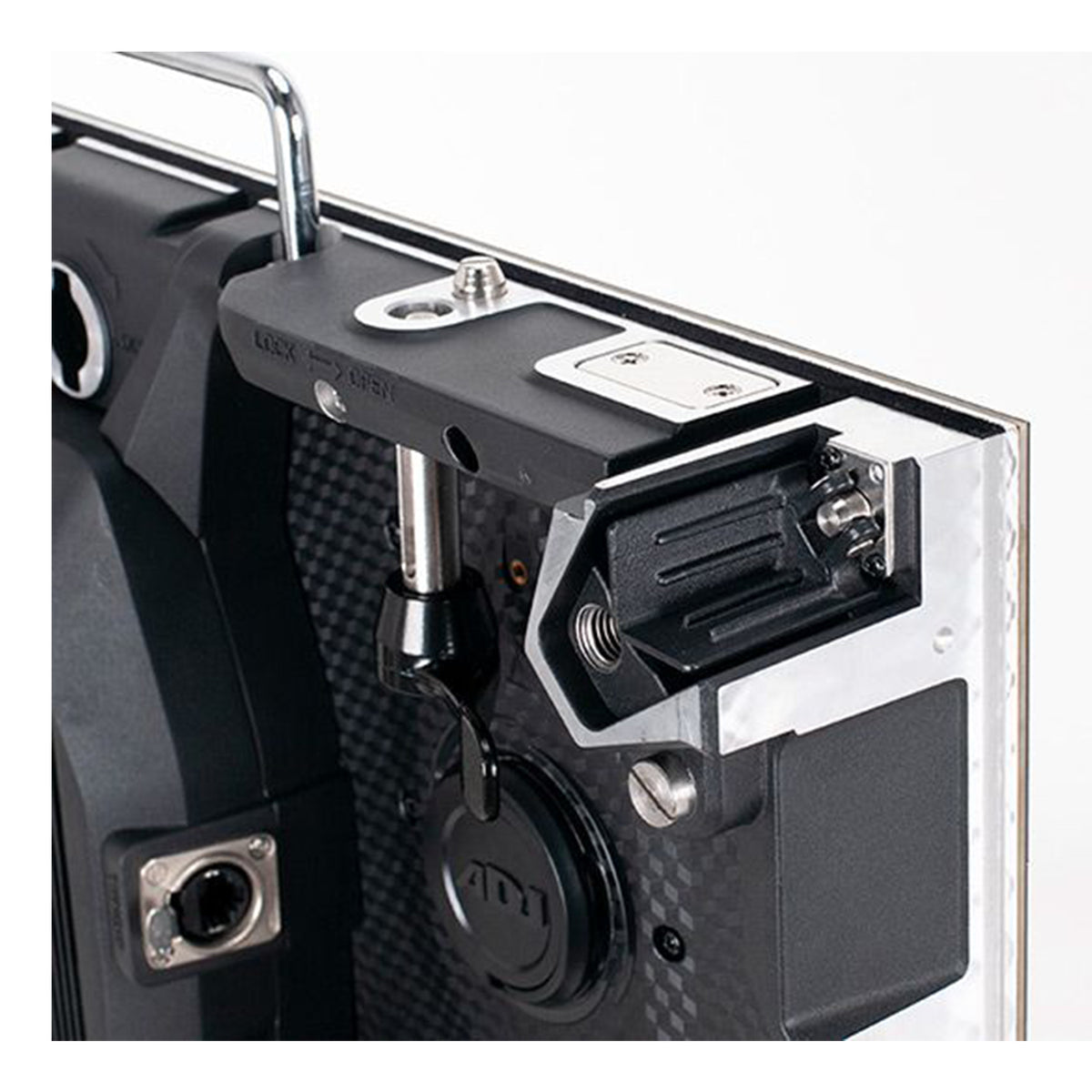

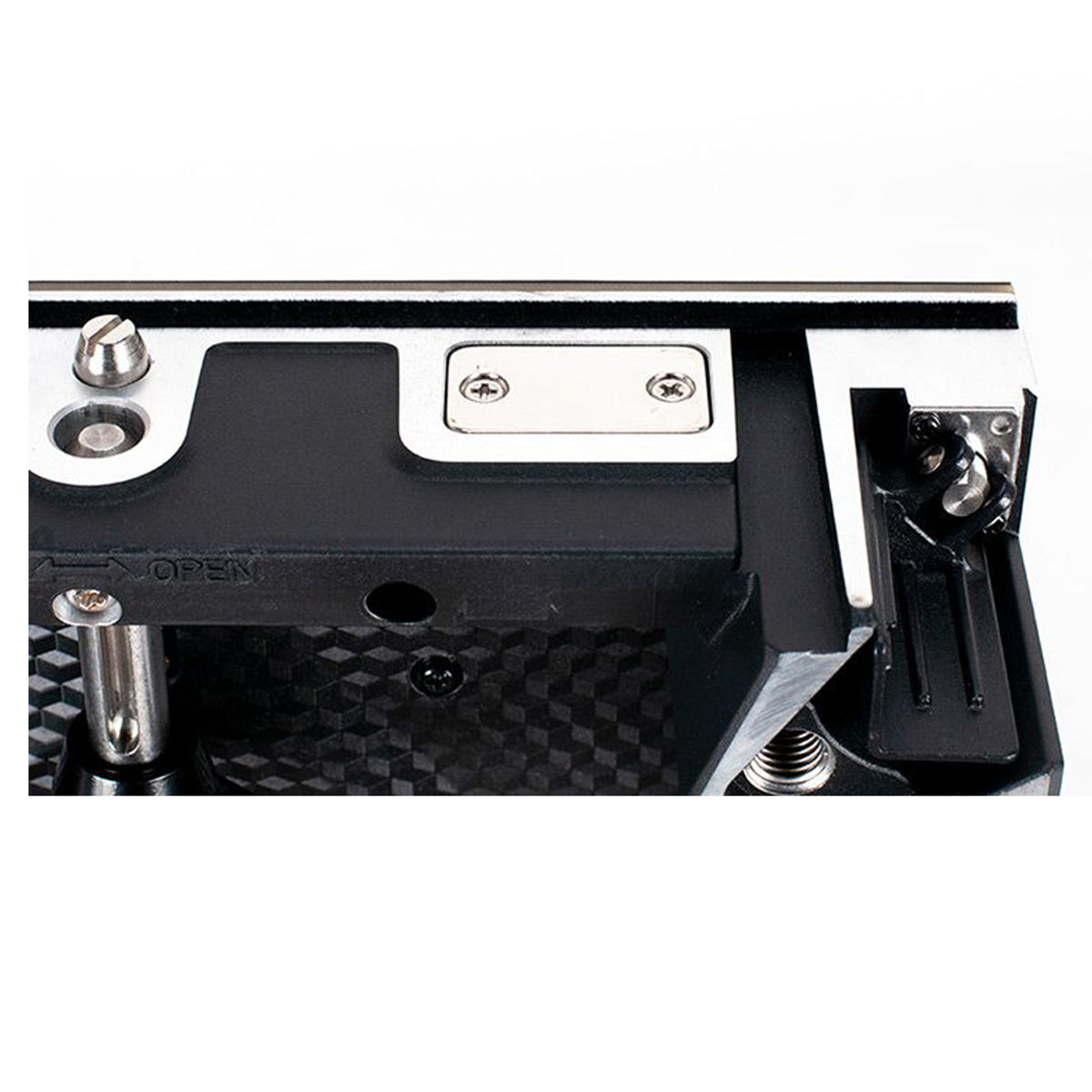

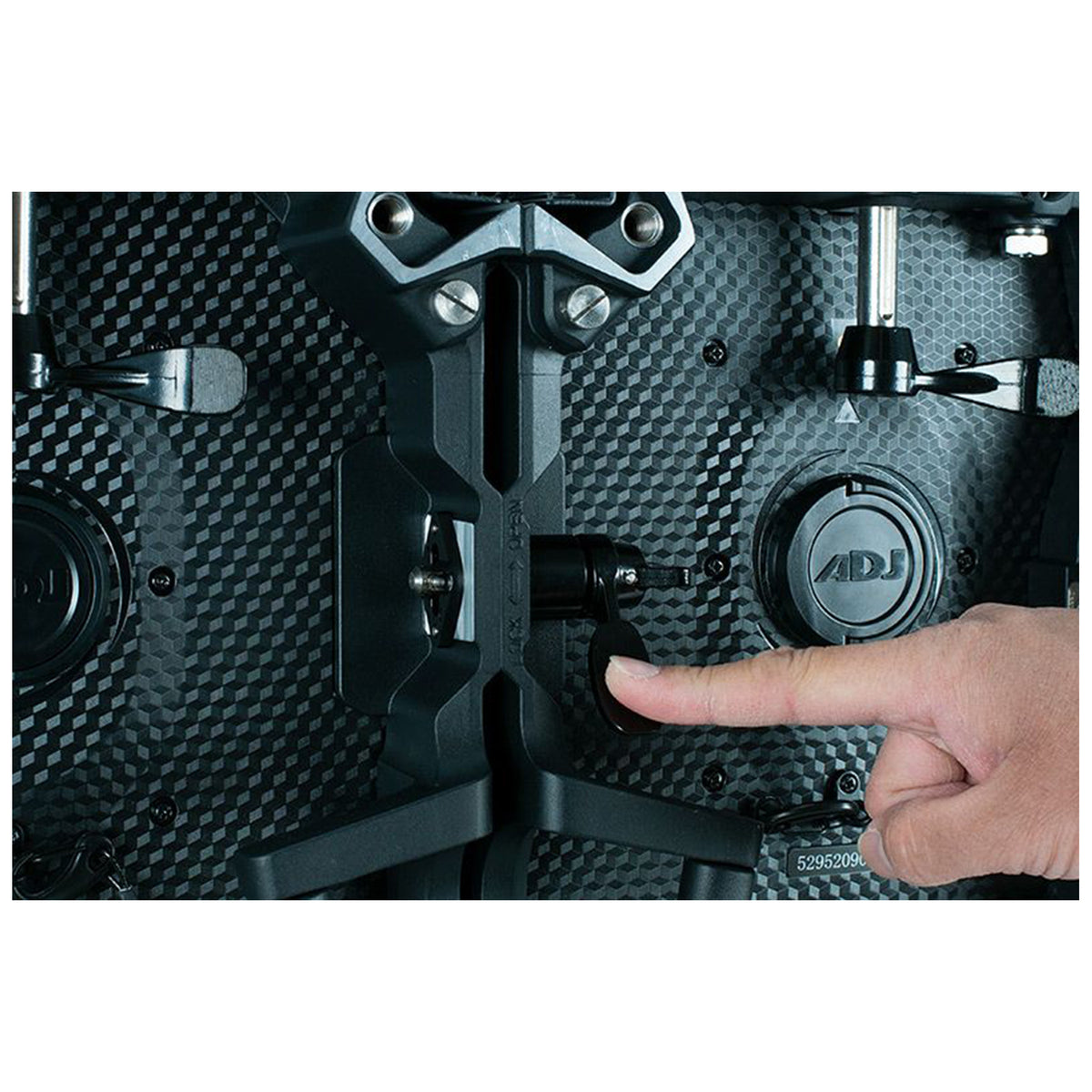

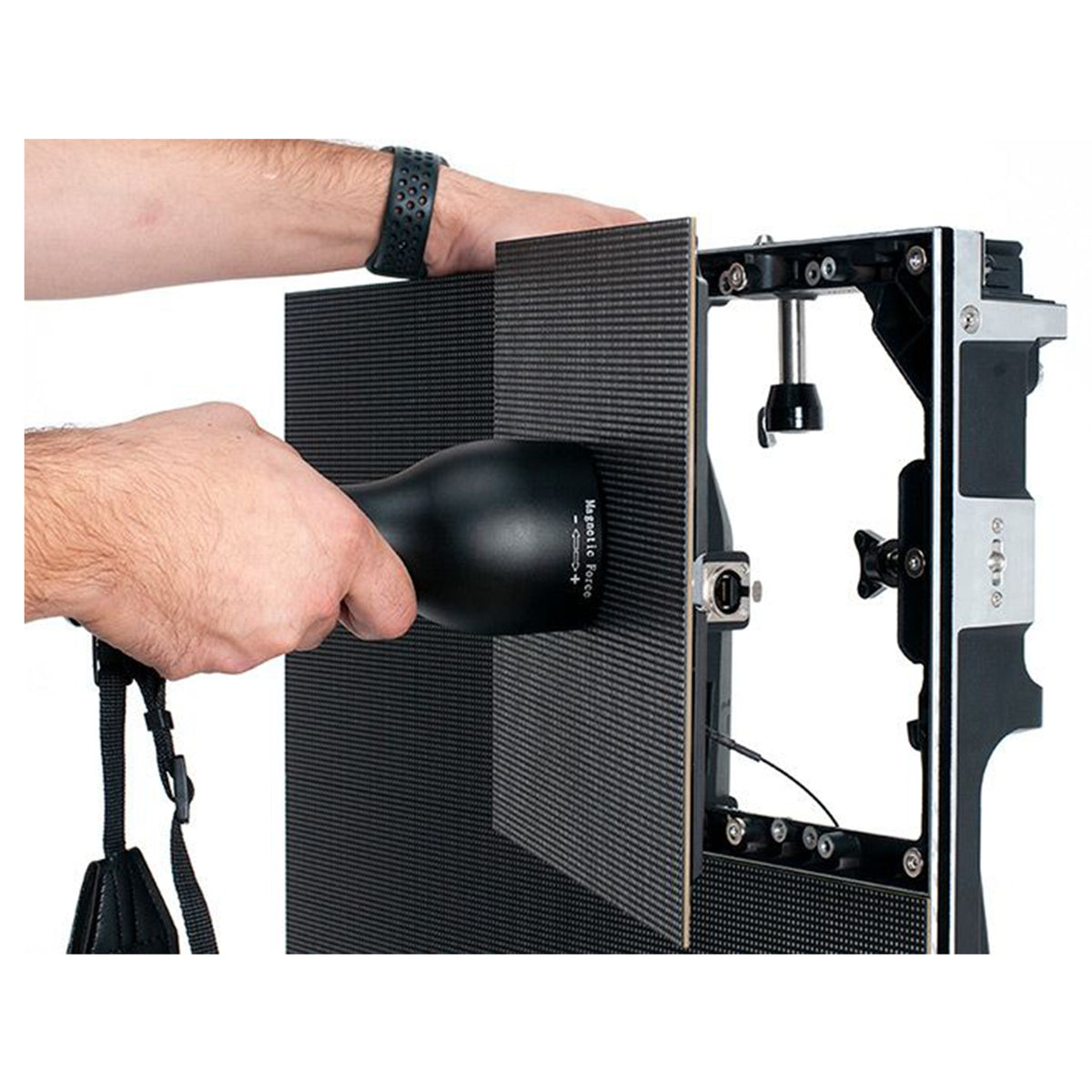

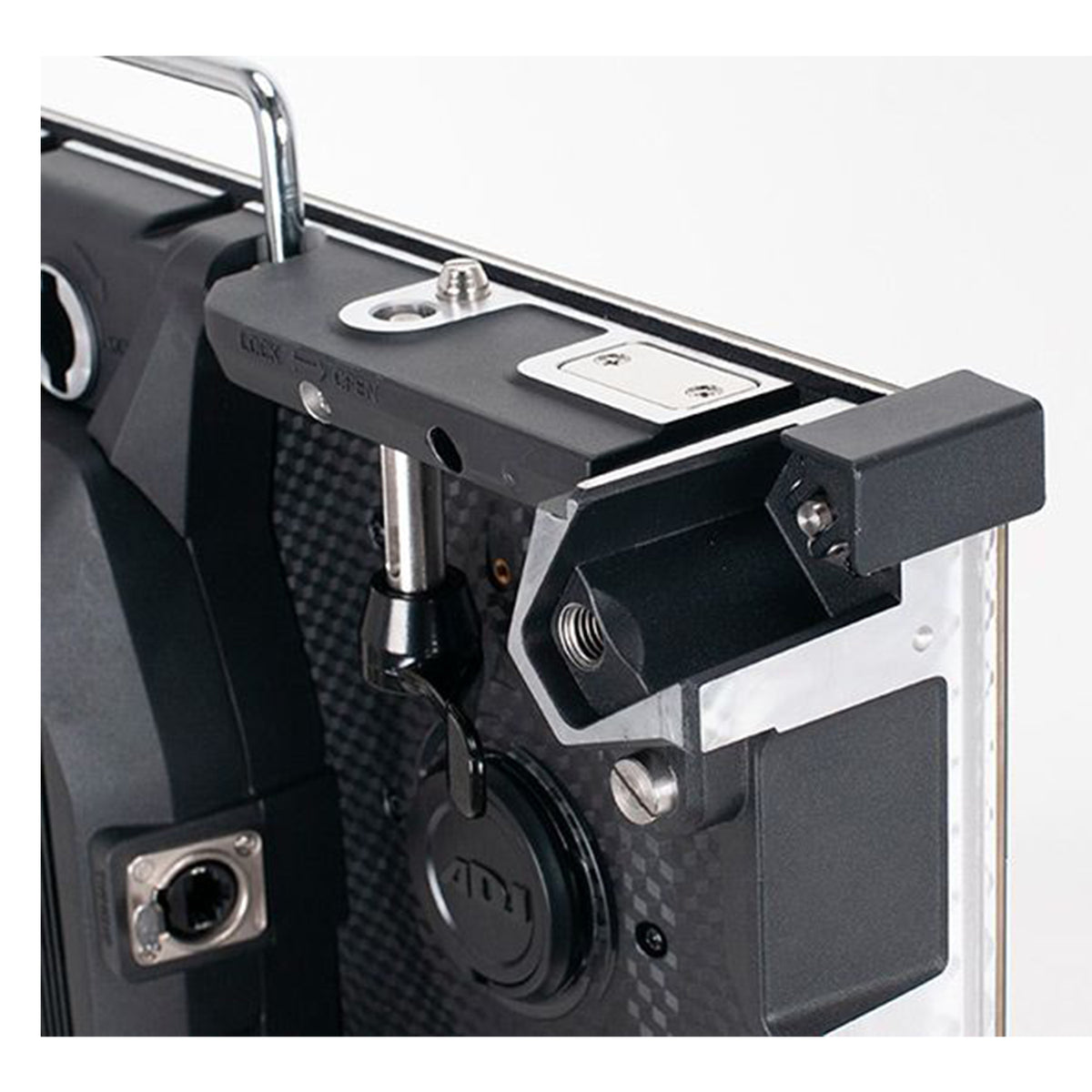

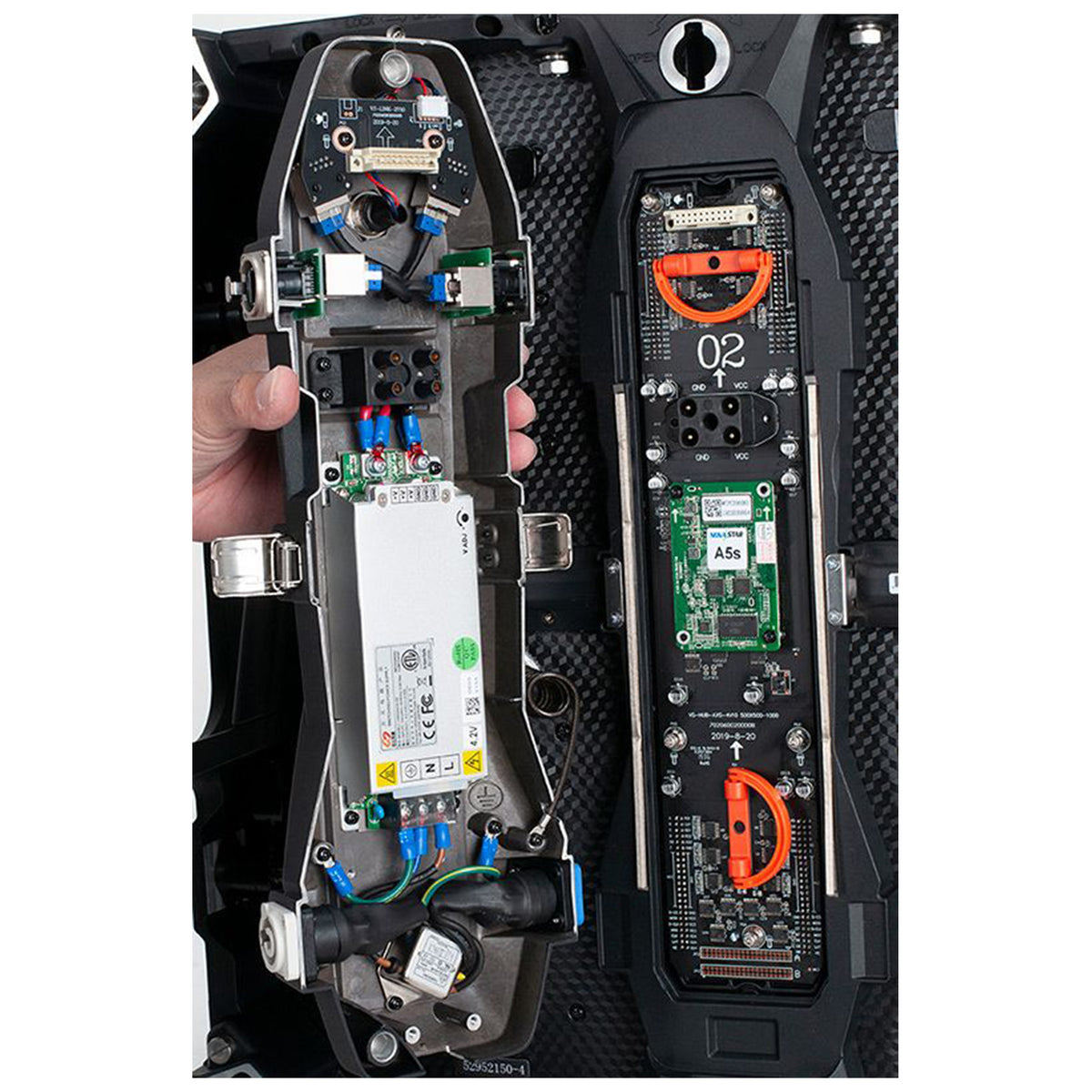

The VS5 is part of ADJ's Vision Series video panel line, built with a 5.95mm pixel pitch and 3-in-1 RGB SMD2121 LEDs for a brightness of 1000 NITS. Four individual mini modules per panel make it front and rear serviceable, so a technician can access failed modules from either side without disassembling the frame. Magnets on the top and bottom of each panel let one installer temporarily connect two panels together before letting go and securely latching them on the rear, which means a single person can build a full wall without a second set of hands holding panels in place. A built-in Novastar A5s receiving card handles signal processing, and power lock and data lock in/out connections daisy-chain cleanly between panels. Because every Vision Series panel shares the same frame, rigging bar, and flight case, the VS5 can mix into a wall alongside other resolutions in the lineup, such as the VS3IP, without needing separate mounting hardware. Up to 8 VS5 panels fit inside the VSFC8 flight case for transport, and up to 20 panels hang vertically off the VSRB1 rigging bar. At 17 lb per panel, it stays light enough for one-person handling during install and strike, which matters on tight load-in schedules.
