Arturia

Arturia RackBrute 3U NOIR Armored EuroRack Security Carrier Case - 88 HP

Arturia RackBrute 3U NOIR Armored EuroRack Security Carrier Case - 88 HP

88 HP 3U Eurorack Case, Aluminum Chassis, Built-In Power Supply, 20 Power Slots, Link Handle System

Free Shipping

Regular price $259.00
Sale price $259.00 Regular price $299.00
Save 13%
Shipping calculated at checkout.
Features
    • 88 HP Eurorack format with 83 HP free once the power module is fitted
    • Aluminum chassis with wood side panels for a light, stiff build
    • Included 5 HP supply with 1600mA on +12V and -12V, 900mA on +5V
    • Noise-filtered power rail with 20 standard module slots
    • Link handle system sets angles and joins a second RackBrute or MiniBrute 2
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

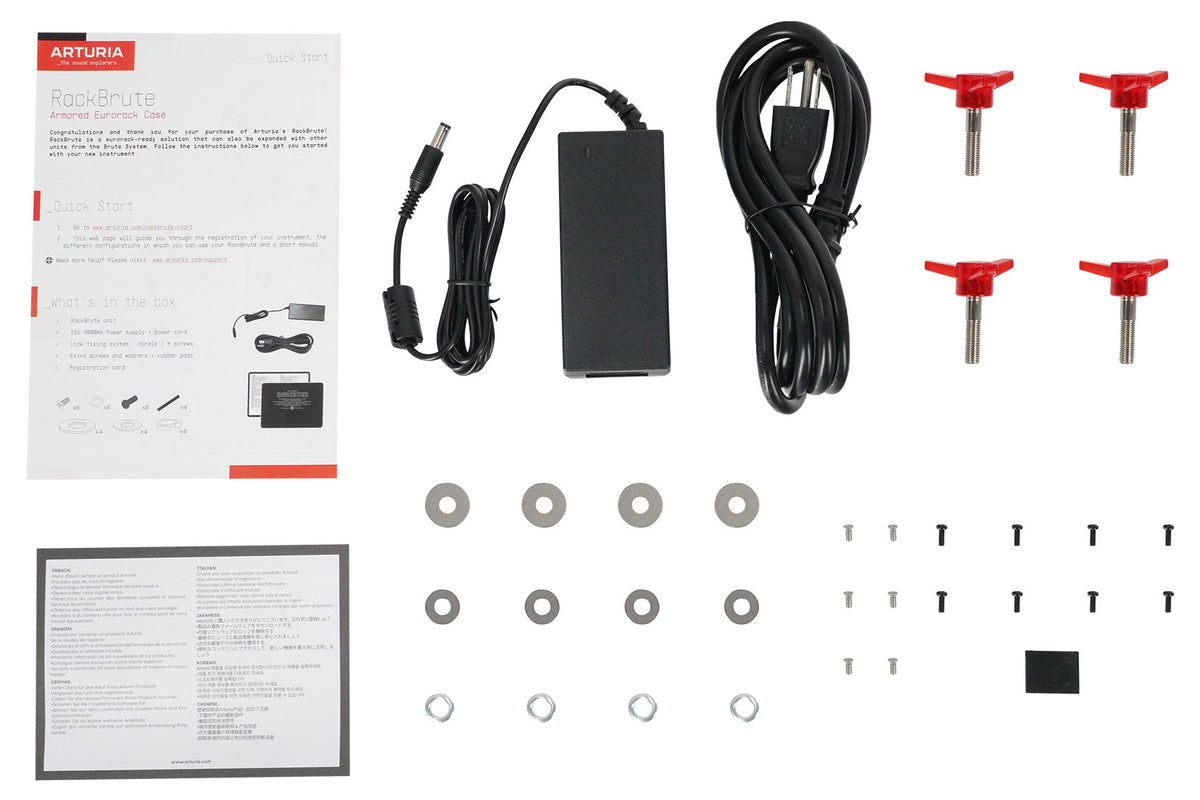

    • RackBrute 3U Noir 88 HP Eurorack case
    • 5 HP power supply module
    • Power cord
    • Link handle

SKU: SKU: RackBrute 3U NOIR

View full details

Product Description

RackBrute 3U Noir is an 88 HP Eurorack case that houses, powers, and transports a module collection. The chassis is aluminum with wood side panels, light enough to carry but stiff enough to keep rails true when modules are packed in tightly.

Power comes from an included 5 HP supply module delivering up to 1600mA on +12V, 1600mA on -12V through two separate 800mA circuits, and up to 900mA on +5V for USB and 5V modules. The power rail includes noise filtering and provides 20 standard slots, with 83 HP left for modules once the supply is fitted. That covers a small performance rack or an effects and utility case sitting next to a larger system.

The Link fastening system and the included handle set the case at several angles and orientations, so it can lie flat on a desk, stand upright behind a keyboard, or fold against a second unit. Link also connects RackBrute 3U to a RackBrute 6U or a MiniBrute 2 and 2S, which makes a semi-modular synth and a module rack into one portable setup. The Link standard is patent-free.

Transport details are handled: threaded nut strips and steel fasteners take the strain, built-in spacers keep two stacked units from touching, retractable stops protect the folded configuration, and anti-slip strips keep the case steady when it sits face-up. It suits a studio rack that leaves the house for gigs and a travel case for a growing module collection.

Features

    • Power Included, Not Extra

      The 5 HP supply module delivers 1600mA on +12V and -12V through separate circuits plus 900mA on +5V, so a full rack runs without a third-party board.

    • Clean Rails For Quiet Patches

      Noise filtering on the power rail keeps hum and digital chatter out of 20 module slots, which matters most on high-gain and audio-rate patches.

    • Set Your Playing Angle

      The Link system and included handle hold several positions, from flat on a desk to tilted upright, so the panel faces you at any table height.

    • Joins The Rest Of Your Rig

      Link connects the case to a RackBrute 6U or a MiniBrute 2 and 2S, turning separate boxes into one setup that moves as a single unit.

    • Travels Without Damage

      Aluminum and steel construction, built-in spacers, retractable stops, and anti-slip strips protect modules in transit at just 4.7 lb empty.

Technical Specifications

  • Product Type Eurorack Case
  • Format 3U, 88 HP (83 HP available with power module fitted)
  • Chassis Aluminum with wood side panels
  • Power Module 5 HP, included
  • Power Output Up to 1600mA on +12V and 1600mA on -12V (2 separate 800mA circuits)
  • 5V Output Up to 900mA
  • Power Rail Noise filtering, 20 standard slots up to 800mA on +12V and -12V
