Audio Technica ATW-1312/L System 10 PRO Wireless Handheld+Lavalier Microphone
Audio Technica ATW-1312/L System 10 PRO Wireless Handheld+Lavalier Microphone
2.4 GHz Rack-Mount Digital Wireless System, 24-Bit/48 kHz, Handheld Mic, Body-Pack, Lavalier Microphone
Free Shipping
Features

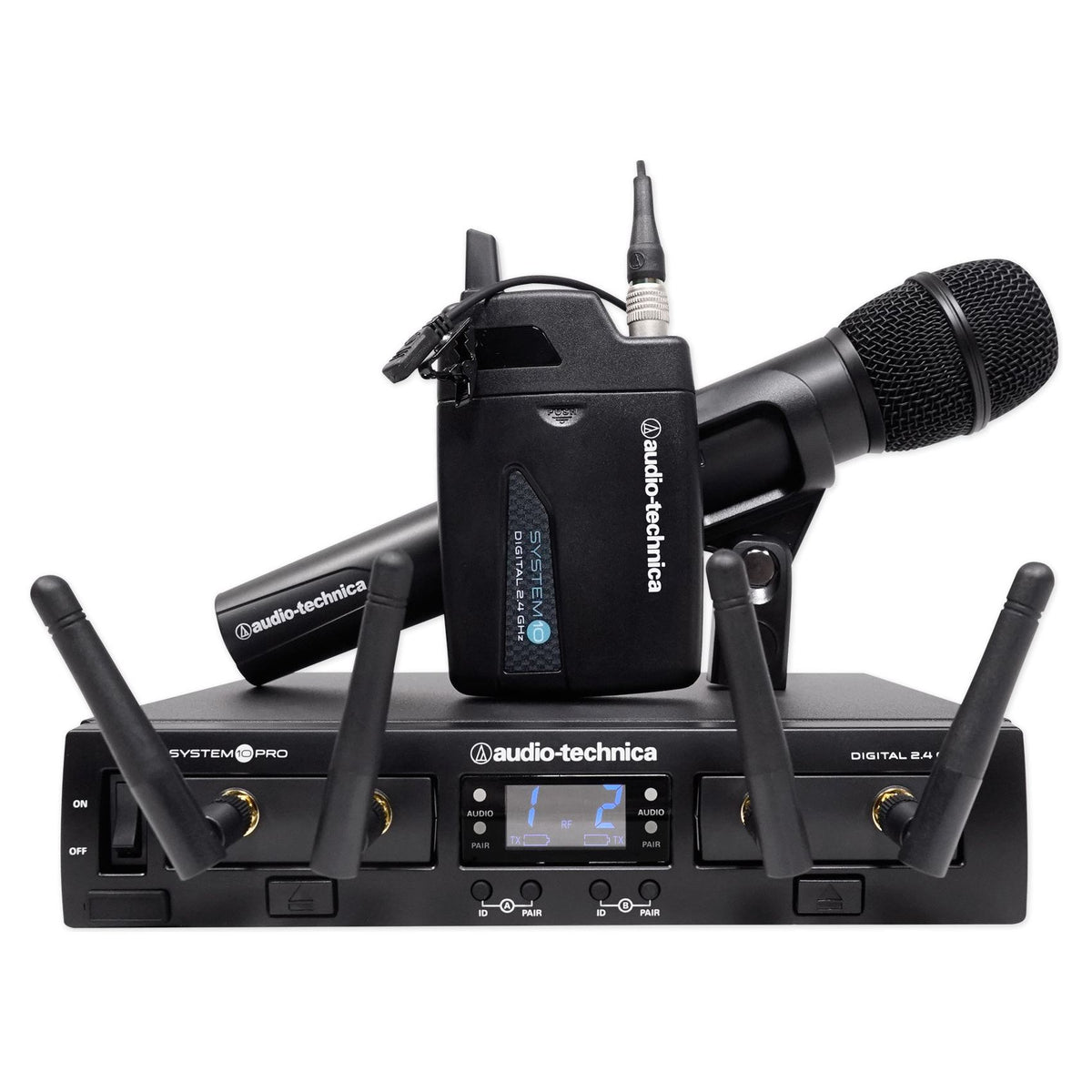

- Handheld microphone and body-pack with lavalier in one system
- Receiver units mount remotely up to 328 feet away via Ethernet
- Up to five chassis link for as many as 10 channels
- Each receiver unit pairs with up to 10 transmitters
- Ground-lift switch removes hum caused by ground loops
Couldn't load pickup availability

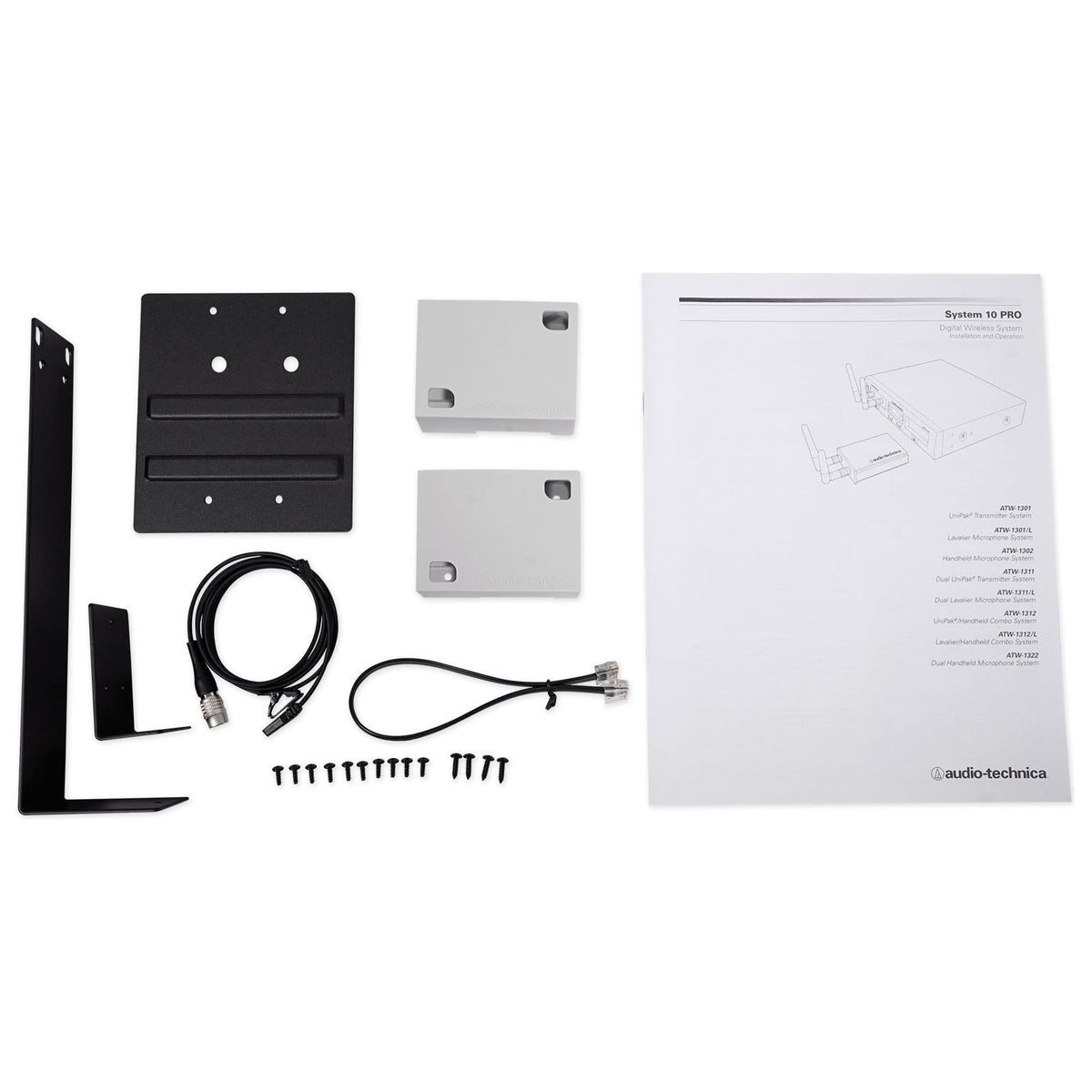

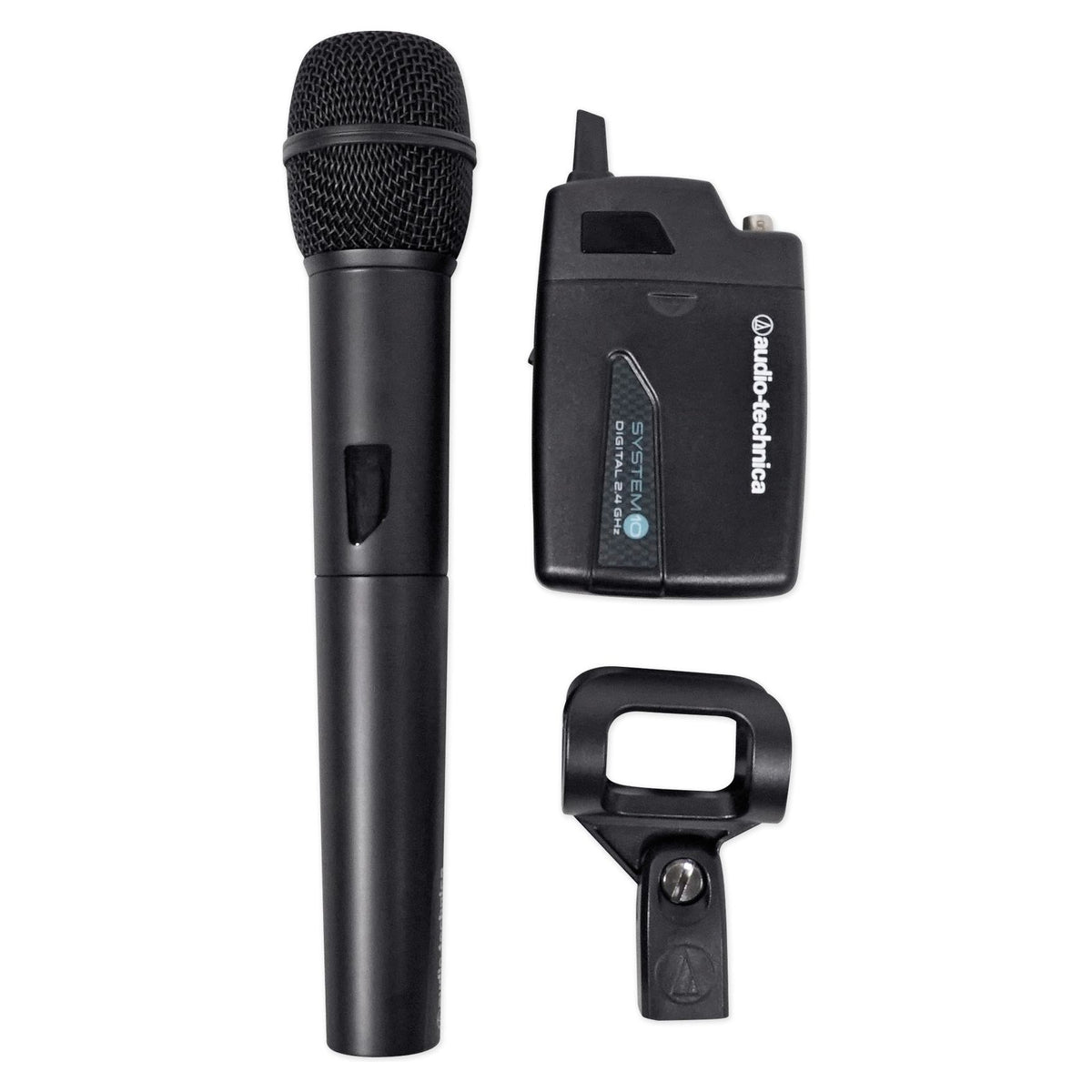

What's Included in the box
- Half-Rack Receiver Chassis With Two Receiver Units
- Handheld Microphone/Transmitter
- Body-Pack Transmitter
- Lavalier Microphone
- RJ12 Linking Cable
- Power Supply
SKU: SKU: ATW-1312/L
View full details








Product Description

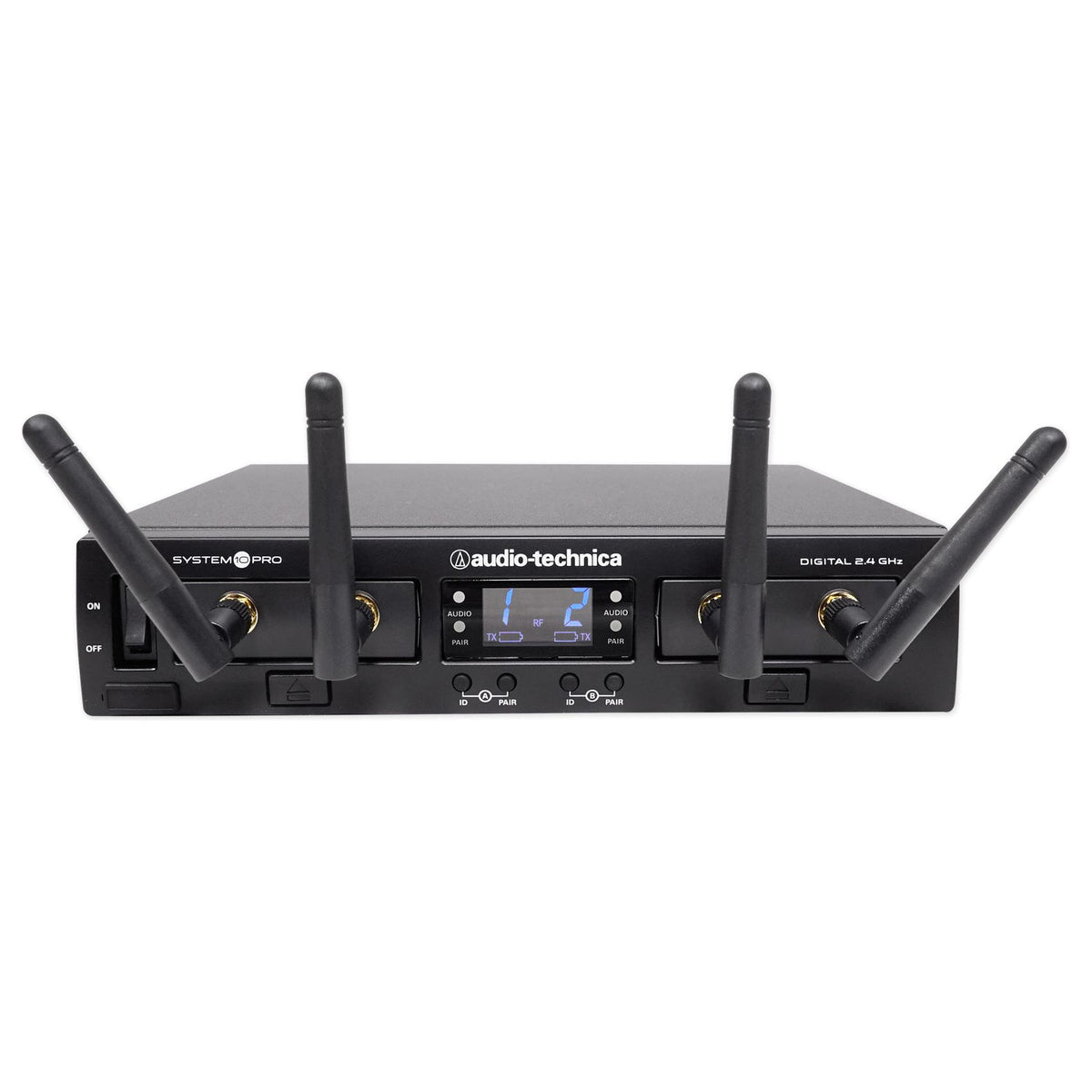

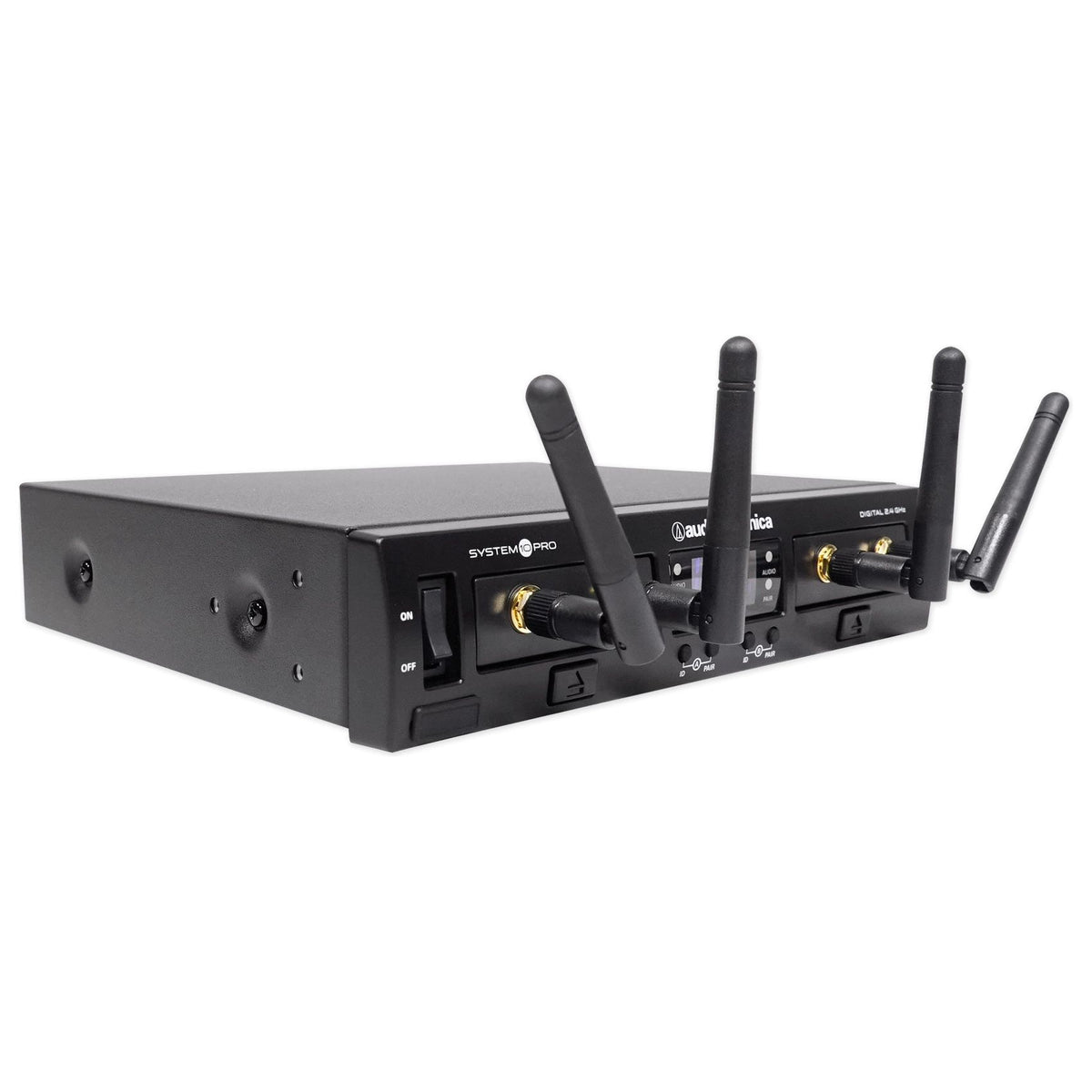

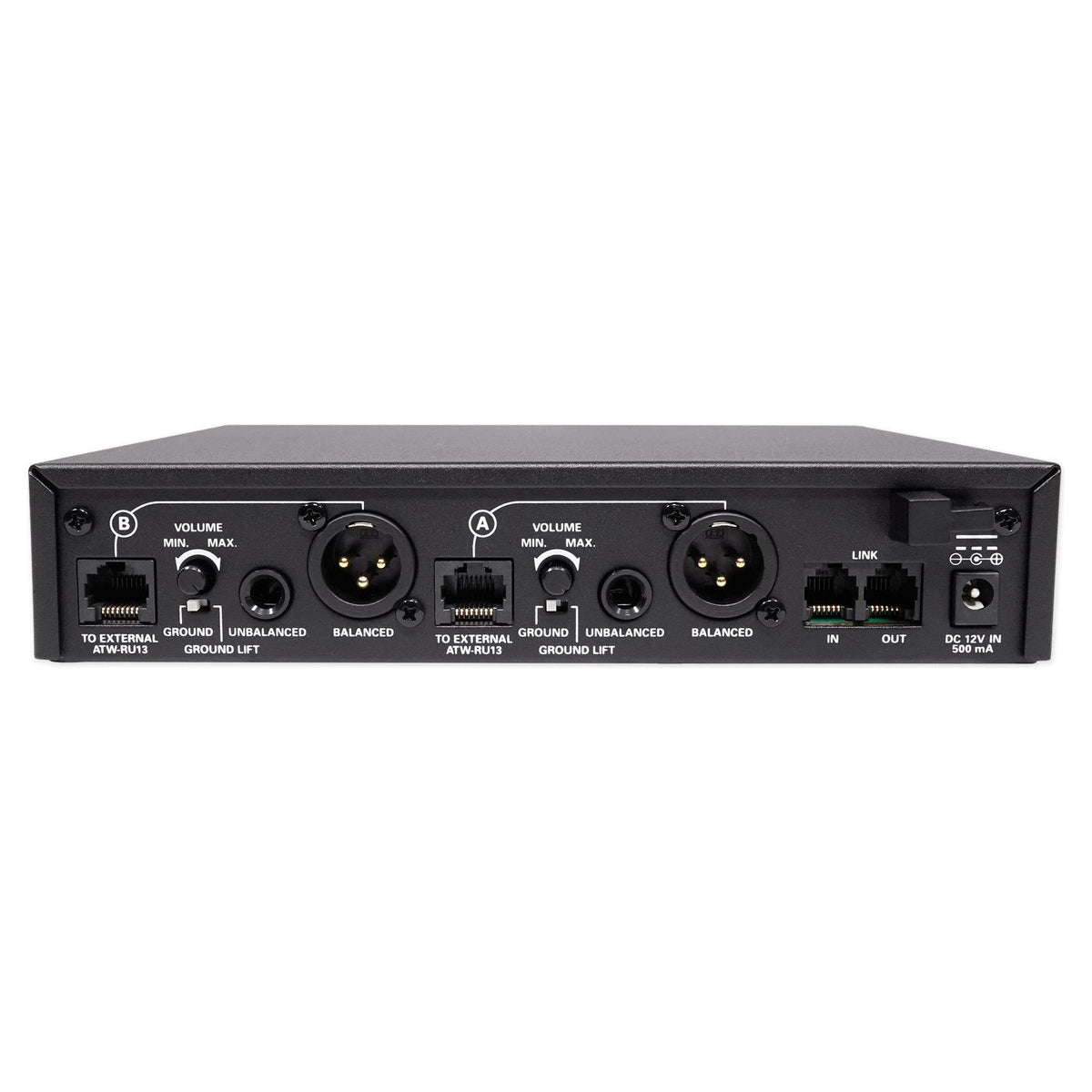

The durable half-rack chassis houses two receiver units that operate docked or release from the chassis for remote mounting up to 328 feet away over Ethernet cable. That matters in rooms where the rack lives backstage but the RF needs to be near the audience. Up to five chassis link together with the included RJ12 cable for as many as 10 simultaneous channels.
Operation runs at 24-bit/48 kHz in the 2.4 GHz range, outside TV bands, with the same three levels of diversity assurance as the rest of the System 10 family: two dynamically allocated frequencies, multiple time slots against multipath, and two antennas on every transmitter and receiver unit.
Each receiver unit pairs with up to 10 transmitters, so you can switch between handheld, lav, and headworn configurations instantly. The System ID Display shows RF level, system ID, transmitter battery level, and link status at a glance. A ground-lift switch removes hum caused by ground loops. Typical operating range is 200 feet.
Features
-
Two Channels, Two Formats
A handheld microphone and a body-pack with lavalier cover the presenter and the roving mic from a single half-rack chassis.
-
Put The RF Where It Works
Receiver units release from the chassis and mount up to 328 feet away over Ethernet, so antennas sit near the audience while the rack stays backstage.
-
Scales To Ten Channels
Up to five chassis link with the included RJ12 cable, growing the setup to 10 simultaneous channels without new coordination work.
-
Swap Transmitters Instantly
Each receiver unit pairs with up to 10 transmitters, letting you switch between handheld, lav, and headworn units between segments.
-
Status At A Glance
The System ID Display shows RF level, system ID, transmitter battery, and link status, so problems surface before they hit the room.
Technical Specifications
- Product Type Rack-Mount Digital Wireless Microphone System
- Operating Frequencies 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Audio Sampling Rate 24-bit/48 kHz
- Dynamic Range > 109 dB (A-weighted), typical
- Total Harmonic Distortion < 0.05% typical
- Operating Range 200 ft, open range with no interfering signals
- Frequency Response 20 Hz to 20 kHz, depending on microphone type
- Operating Temperature Range 32 F to 104 F
- Receiving System Diversity (frequency/time/space)
- Output Connectors Remote receiver: RJ45; Link: RJ12
- Maximum Output Level XLR balanced: 0 dBV; 1/4" unbalanced: +6 dBV
- Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A external supply
- Handheld Transmitter RF Power Output 10 mW
- Handheld Transmitter Batteries Two 1.5V AA (not included)
- Handheld Transmitter Battery Life > 7 hours (alkaline)
- Weight 2.08 lb (receiver chassis); 0.62 lb (handheld transmitter)
- Dimensions 8.26" W x 1.73" H x 6.67" D (receiver chassis); 10.03" long, 1.97" diameter (handheld transmitter)
