Audio-Technica 3000 ATW-3211/831 Wireless Microphone System
Audio-Technica 3000 ATW-3211/831 Wireless Microphone System
UHF Wireless Lavalier System, Band DE2 470-530 MHz, 60 MHz Tuning, Receiver, Body-Pack, AT831cH Mic
Free Shipping
Features
- 60 MHz tuning range across Band DE2, 470 to 530 MHz
- Frequency scan and IR sync speed up setup
- Backup frequency swaps on both units with one button press
- AT831cH cardioid condenser lavalier microphone included
- True Diversity operation with Auto Squelch reduces dropouts
Couldn't load pickup availability
What's Included in the box
- ATW-R3210 Receiver

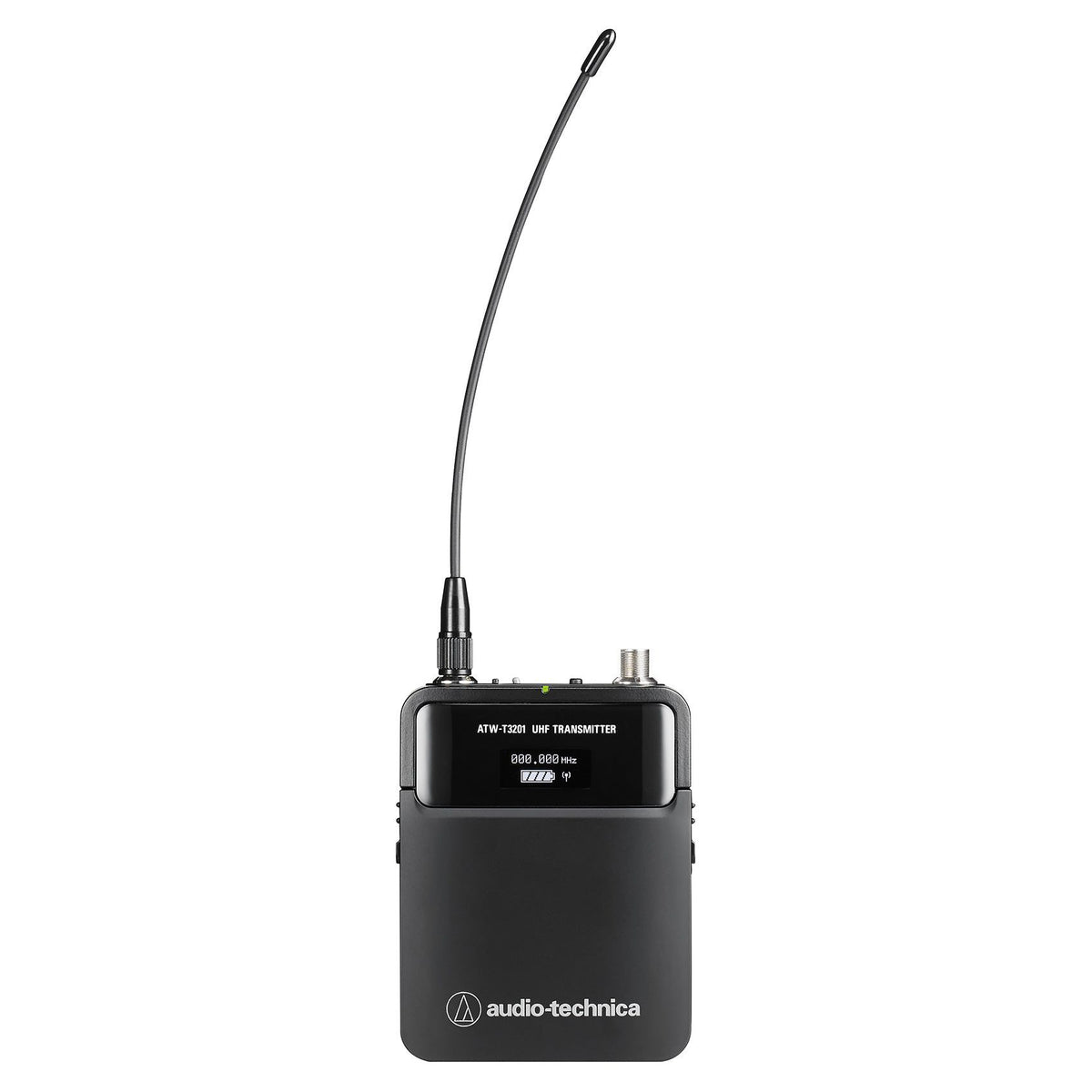

- ATW-T3201 Body-Pack Transmitter
- AT831cH Cardioid Condenser Lavalier Microphone
- Clothing Clip
- AT8444 Instrument Adapter
- AT8116 Windscreen
- Protective Carrying Case

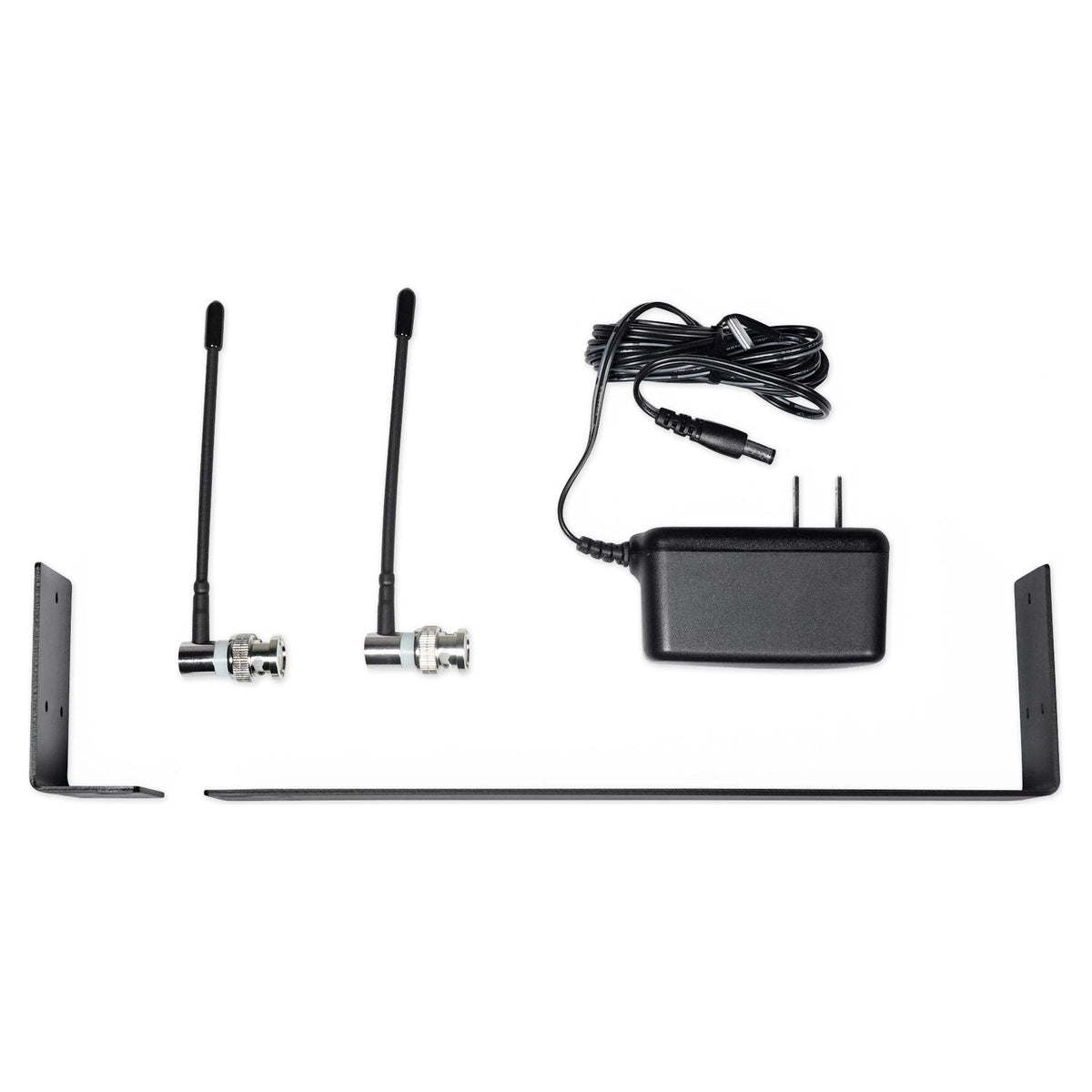

- Two Flexible UHF Antennas
- AC Adapter
- Rack-Mount Adapters
SKU: SKU: ATW-3211/831DE2
View full details










Product Description

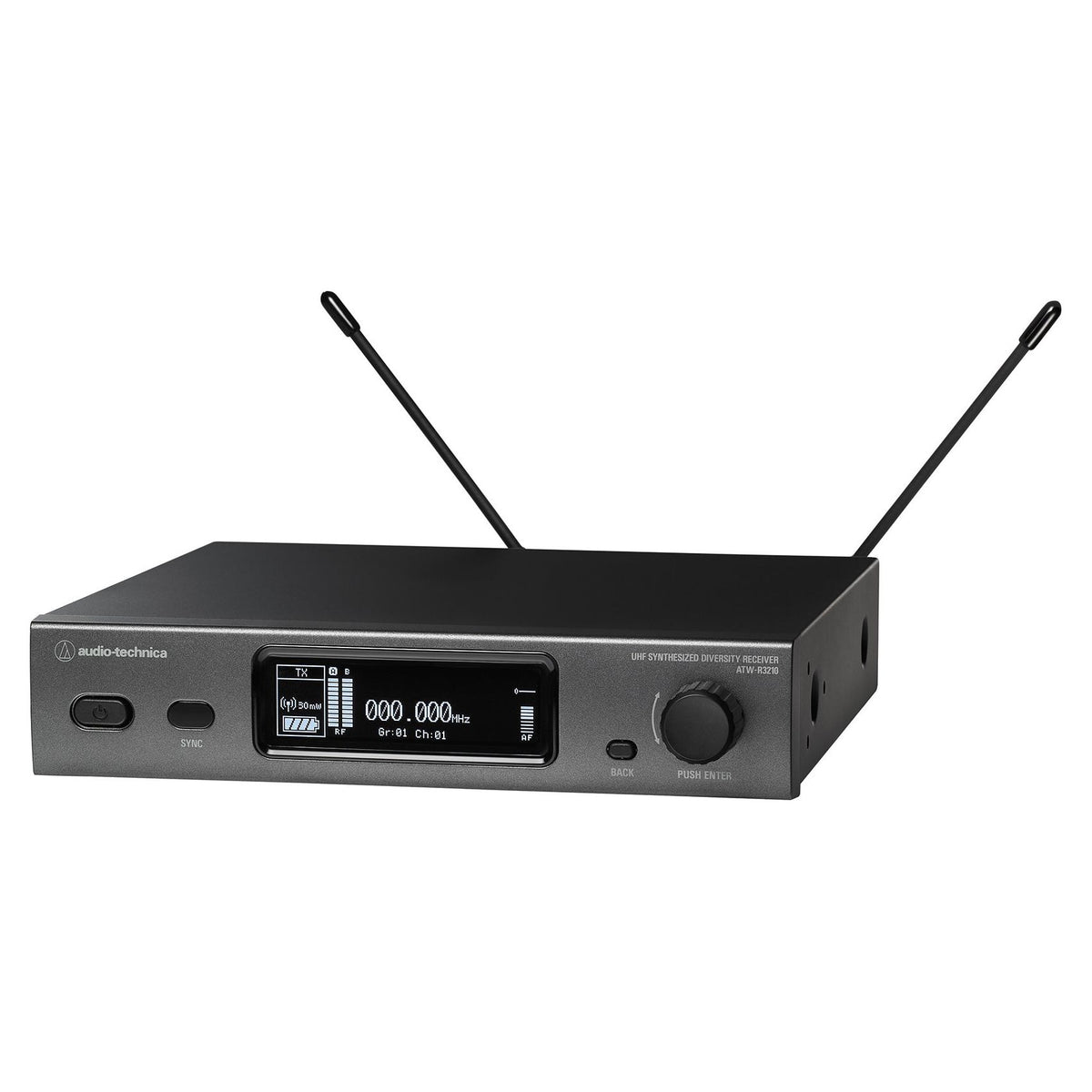

Setup is scan and sync. The ATW-R3210 receiver scans for open frequencies, you select one, and IR sync pushes it to the ATW-T3201 body-pack transmitter. You can also set a backup frequency ahead of time and swap both units to it with one press of the transmitter multifunction button if interference appears mid-show.

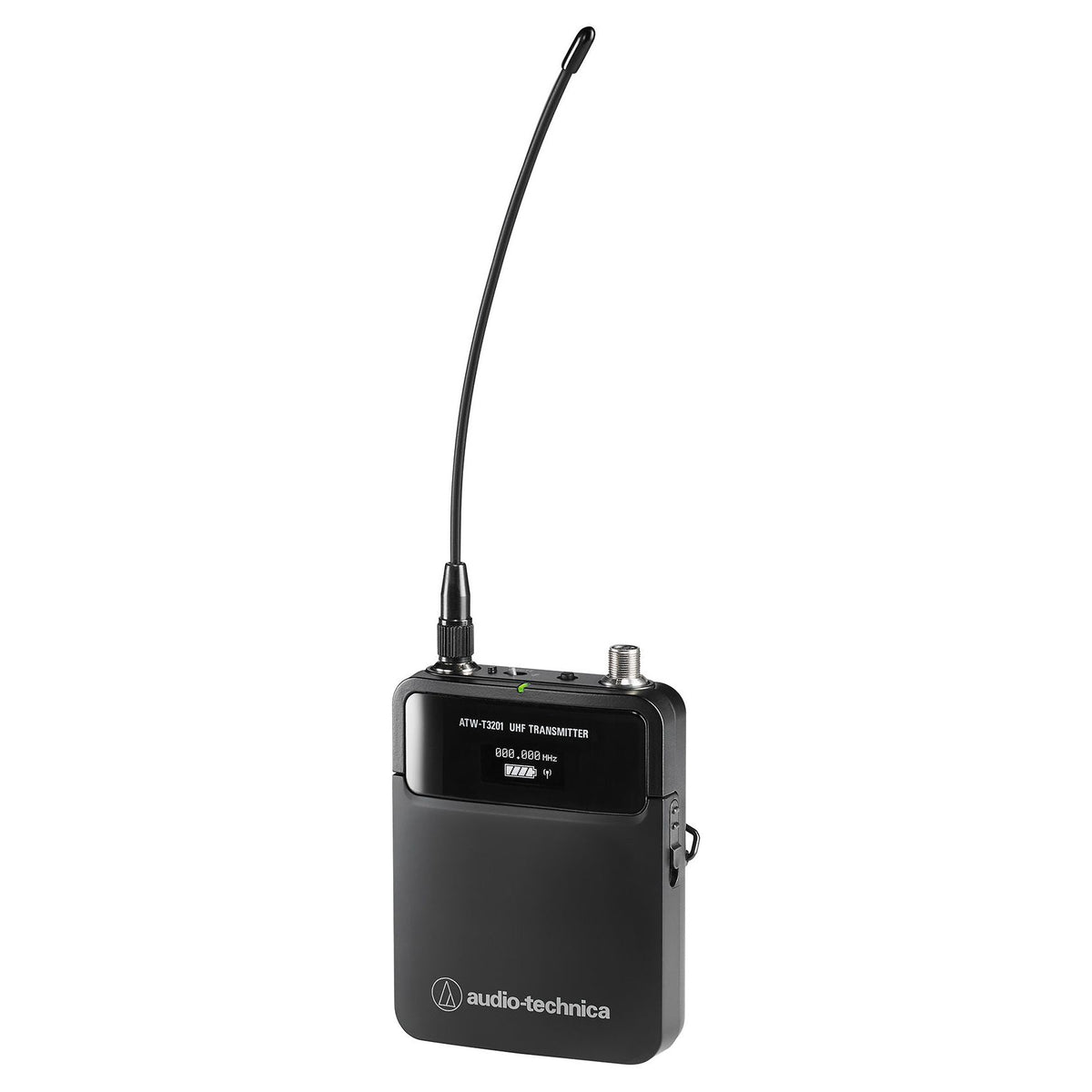

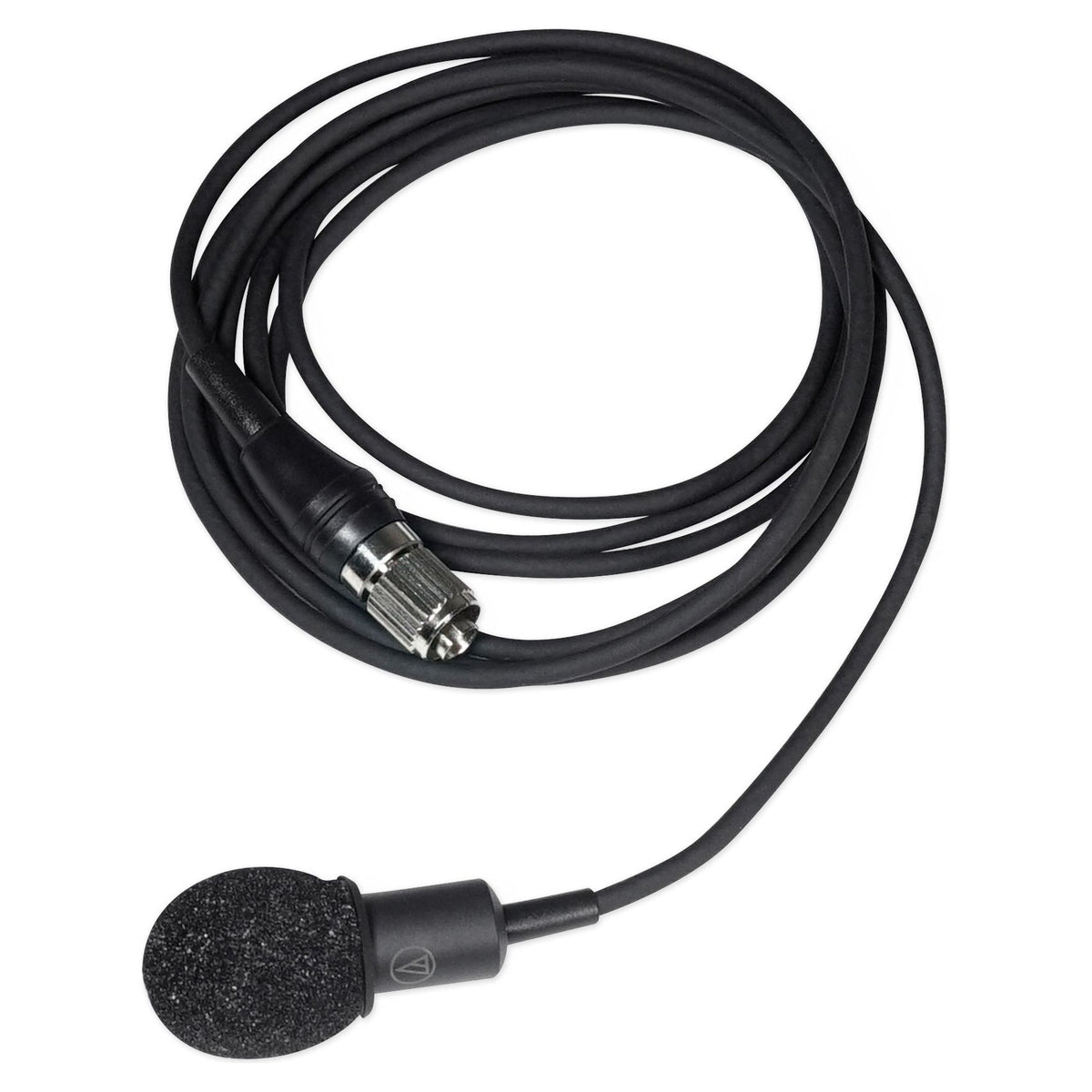

The package includes the AT831cH miniature cardioid condenser lavalier microphone, which connects through a rugged cH-style screw-down 4-pin connector that will not shake loose. The body-pack has a metal housing, a tactile mute toggle for physical confirmation when you cannot see the display, and charging terminals for optional ATW-CHG3 and ATW-CHG3N docks.
True Diversity reception reduces dropouts, Auto Squelch adjusts to maximize range against interference, and OLED screens on both units display settings and alerts. A ground-lift switch removes hum from ground loops, antenna power supports in-line RF devices, and balanced and unbalanced outputs connect to any console.
Features
-
Room To Move In UHF
A 60 MHz tuning range across Band DE2, 470 to 530 MHz, gives you open frequencies to find even in markets packed with broadcasters.
-
Setup In Two Steps
The receiver scans for a clear frequency and IR sync pushes it to the transmitter, so a channel is configured in seconds.
-
Interference Insurance
A preset backup frequency swaps on both transmitter and receiver with one press of the multifunction button, mid-performance if needed.
-
Secure Connections

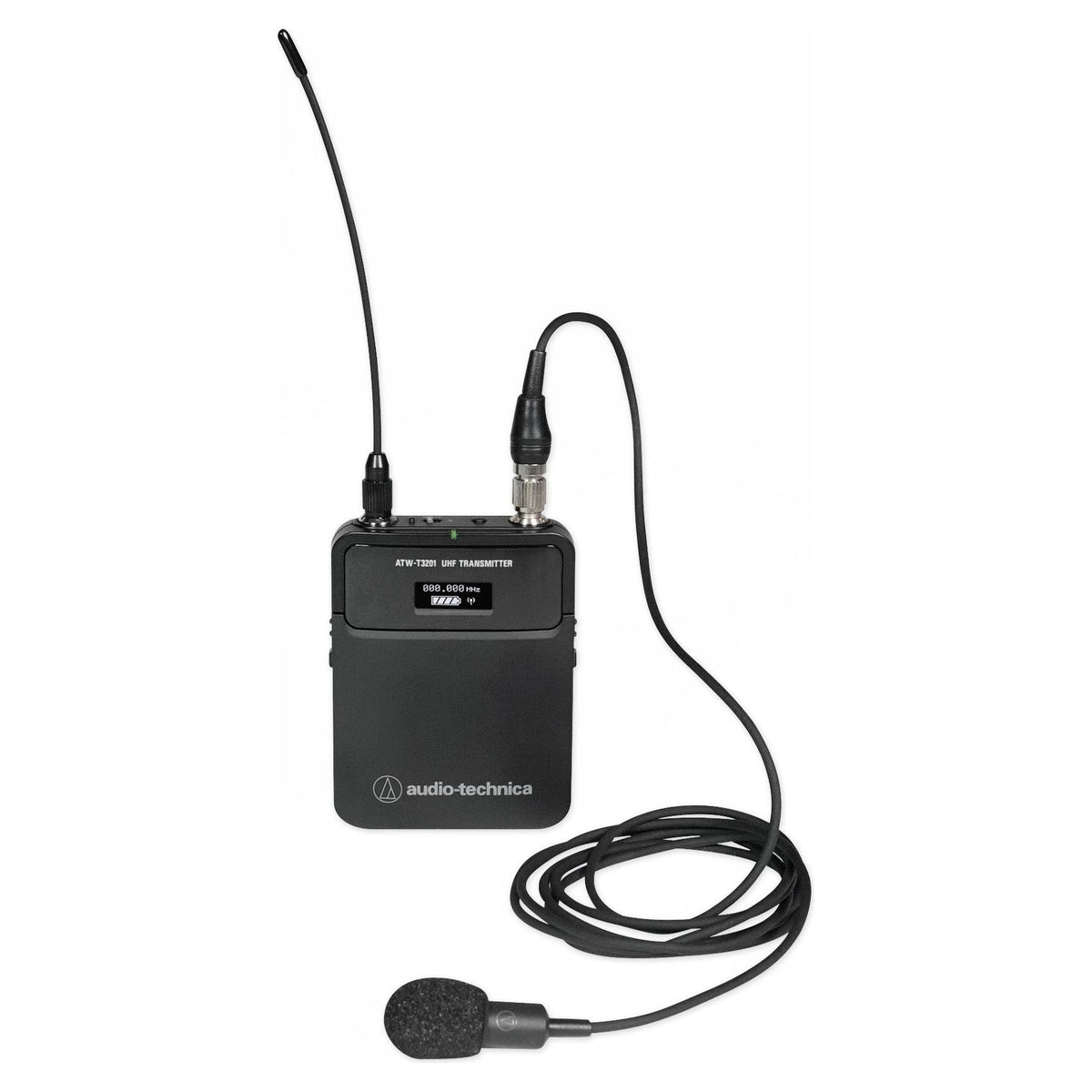

The cH-style screw-down 4-pin connector locks the AT831cH lavalier to the body-pack, so the mic cannot shake loose during movement or a costume change.
-
Clean Output

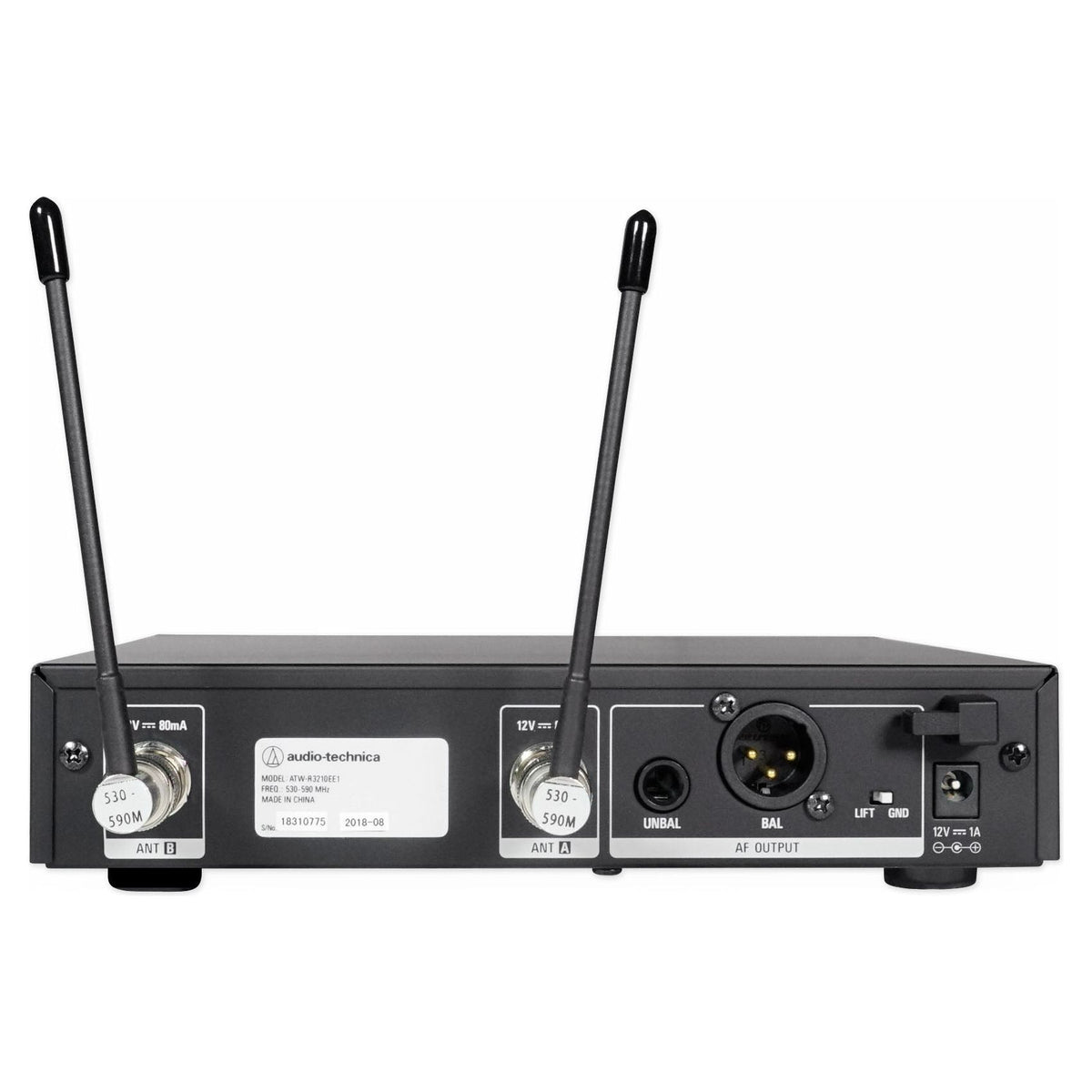

A ground-lift switch removes hum from ground loops, and balanced XLR plus unbalanced outputs connect to any console or interface.
Technical Specifications
- Product Type UHF Wireless Lavalier Microphone System
- Operating Frequencies Band DE2: 470.125 to 529.975 MHz
- Minimum Frequency Step 25 kHz
- Modulation Mode FM
- Maximum Deviation ATW-T3201: +/-38 kHz (THD 10%)
- Simultaneous Use 40 channels per band, region and band dependent
- Frequency Response ATW-T3201: 31 Hz to 15,500 Hz
- Operating Range 100 m
- Dynamic Range ATW-T3201 mic input: > 115 dB (A-weighted) typical; instrument input: > 112 dB typical
- Total Harmonic Distortion < 1.0% (at 1 kHz, +/-17.5 kHz deviation)
- Operating Temperature Range -5 C to +45 C
- Receiving System True Diversity
- Receiver Sensitivity 20 dBuV at 60 dBA S/N ratio (50 ohm termination)
- Maximum Output Level XLR balanced: +14 dBV; 6.3 mm (1/4") unbalanced: +8 dBV
- Antenna Input BNC-type, 50 ohms
- Antenna Power Output 12 V DC, 160 mA (combined)
- Receiver Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A external supply
- Body-Pack RF Power Output High: 30 mW; Low: 10 mW (switchable), at 50 ohms
- Body-Pack Input Connections 4-pin screw-down cH-style connector, DC bias +5V
- Body-Pack Battery Type Two 1.5V AA (not included)
- Body-Pack Battery Life High: 8.0 hours / Low: 9.0 hours (alkaline); High: 9.0 hours / Low: 9.5 hours (NiMH 1900 mAh)
- Microphone Element Fixed-charge back plate, permanently polarized condenser
- Microphone Polar Pattern Cardioid
- Microphone Weight 2.8 g
- Microphone Dimensions 25.0 mm long, 10.2 mm diameter
- Microphone Output Connector 4-pin cH-style screw-down connector
- Microphone Cable 1.4 m long, 2.6 mm diameter, 2-conductor shielded
- Weight 2.43 lb (1,100 g) receiver without accessories; 0.22 lb (102 g) body-pack transmitter
- Dimensions 210.0 mm x 191.0 mm x 43.4 mm (receiver); 64 mm x 82 mm x 23 mm (body-pack transmitter)
