Audio Technica ATW-3211/831EE1 3000 Series Wireless Lavalier Microphone System
Audio Technica ATW-3211/831EE1 3000 Series Wireless Lavalier Microphone System
AUDIO TECHNICA
Audio Technica ATW-3211/831EE1 3000 Series Wireless Lavalier Microphone System
Audio Technica ATW-3211/831EE1 3000 Series Wireless Lavalier Microphone System
UHF Wireless Lavalier System, Band EE1 530-590 MHz, 60 MHz Tuning, Receiver, Body-Pack, AT831cH Mic
Free Shipping
Features
- 60 MHz tuning range across Band EE1, 530 to 590 MHz
- Frequency scan and IR sync speed up setup
- Backup frequency swaps on both units with one button press
- AT831cH cardioid condenser lavalier microphone included
- Dual-mode receiver display switches to a metering view
Couldn't load pickup availability
What's Included in the box
- ATW-R3210 Receiver
- ATW-T3201 Body-Pack Transmitter
- AT831cH Cardioid Condenser Lavalier Microphone
- Clothing Clip
- AT8444 Instrument Adapter
- AT8116 Windscreen
- Protective Carrying Case

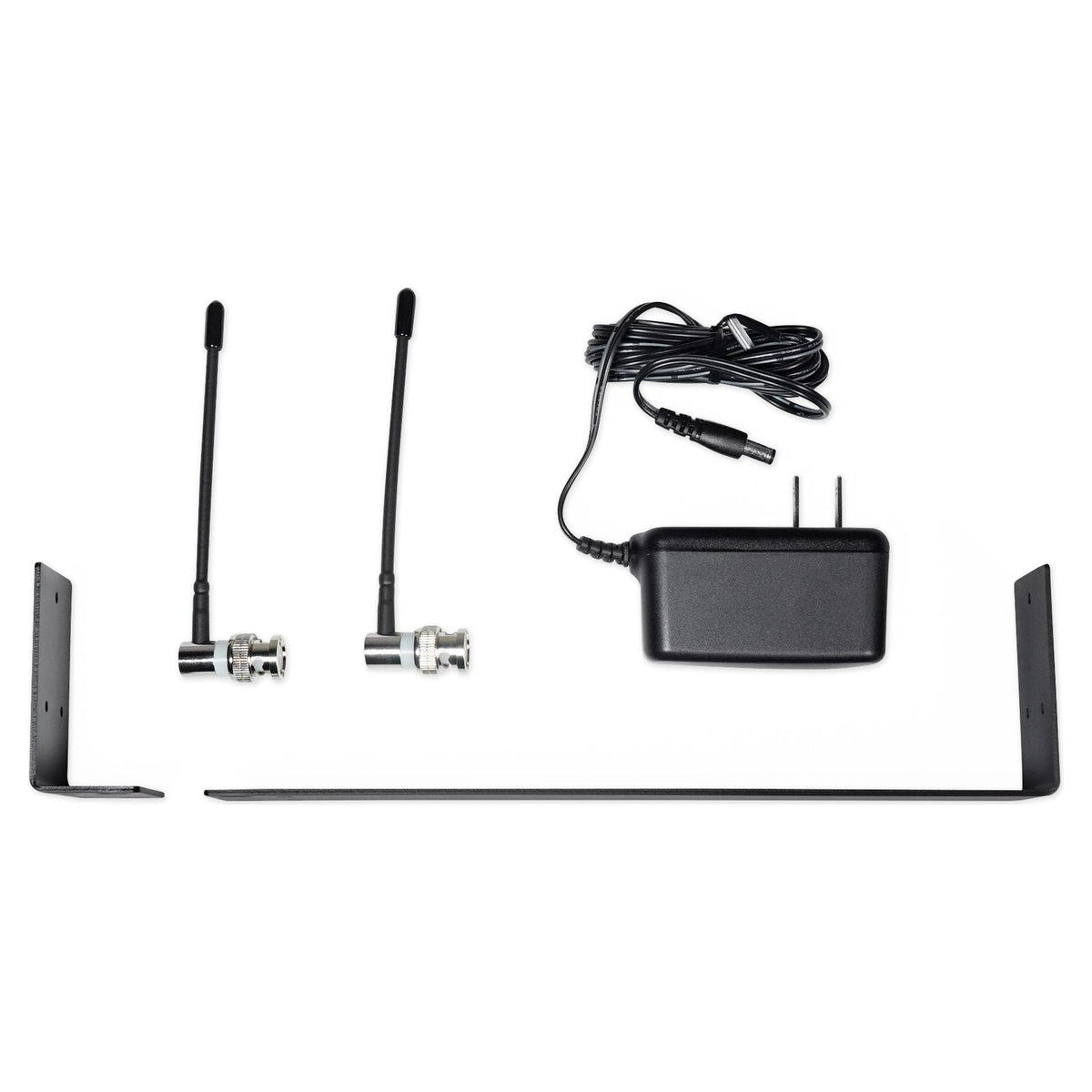

- Two Flexible UHF Antennas
- AC Adapter
- Rack-Mount Adapters
SKU: SKU: ATW-3211/831EE1
View full details







Product Description

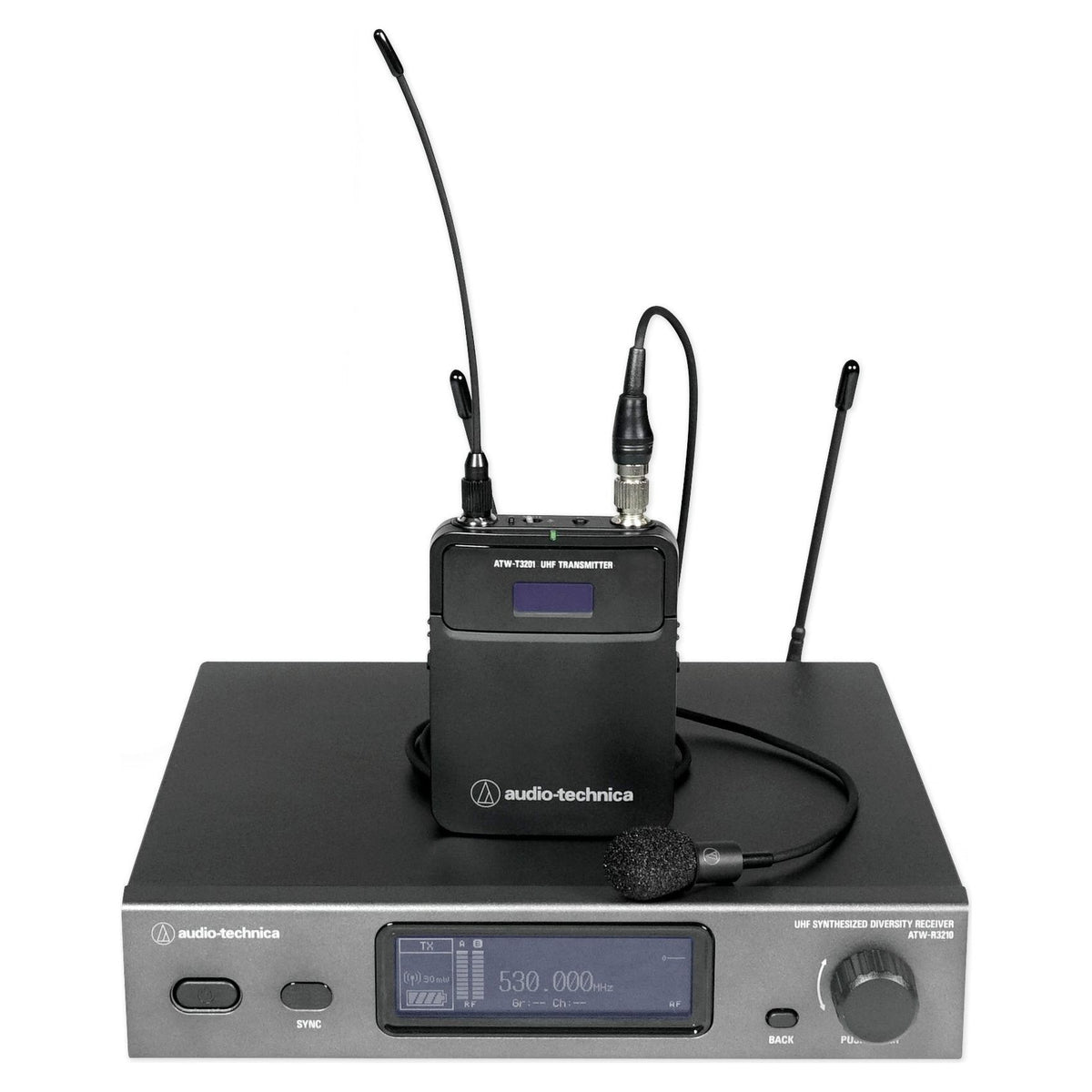

The ATW-R3210 receiver scans for clear frequencies and IR sync transfers the selection to the ATW-T3201 body-pack transmitter. Set a backup frequency in advance and one press of the transmitter multifunction button moves both units to it if interference shows up during a performance.

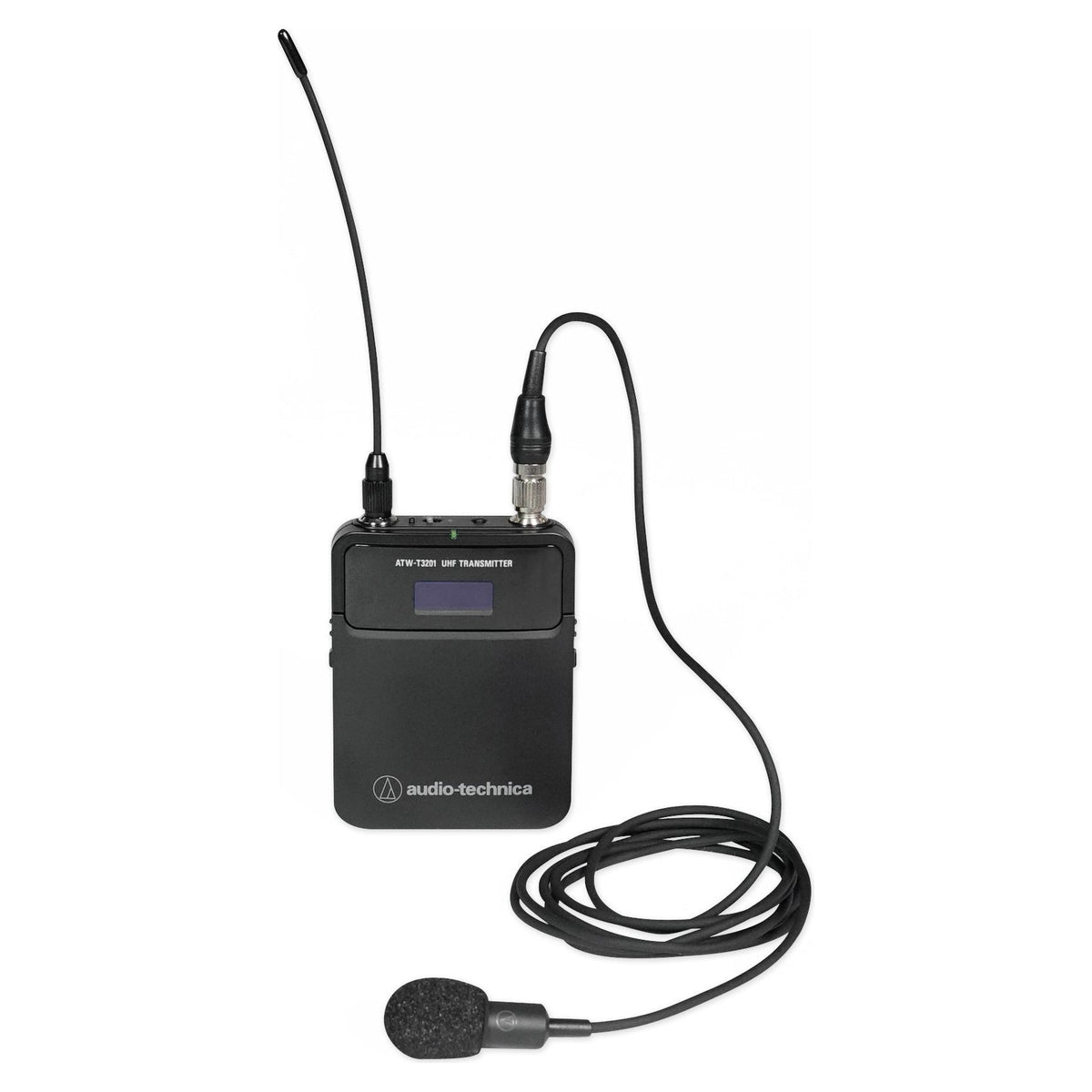

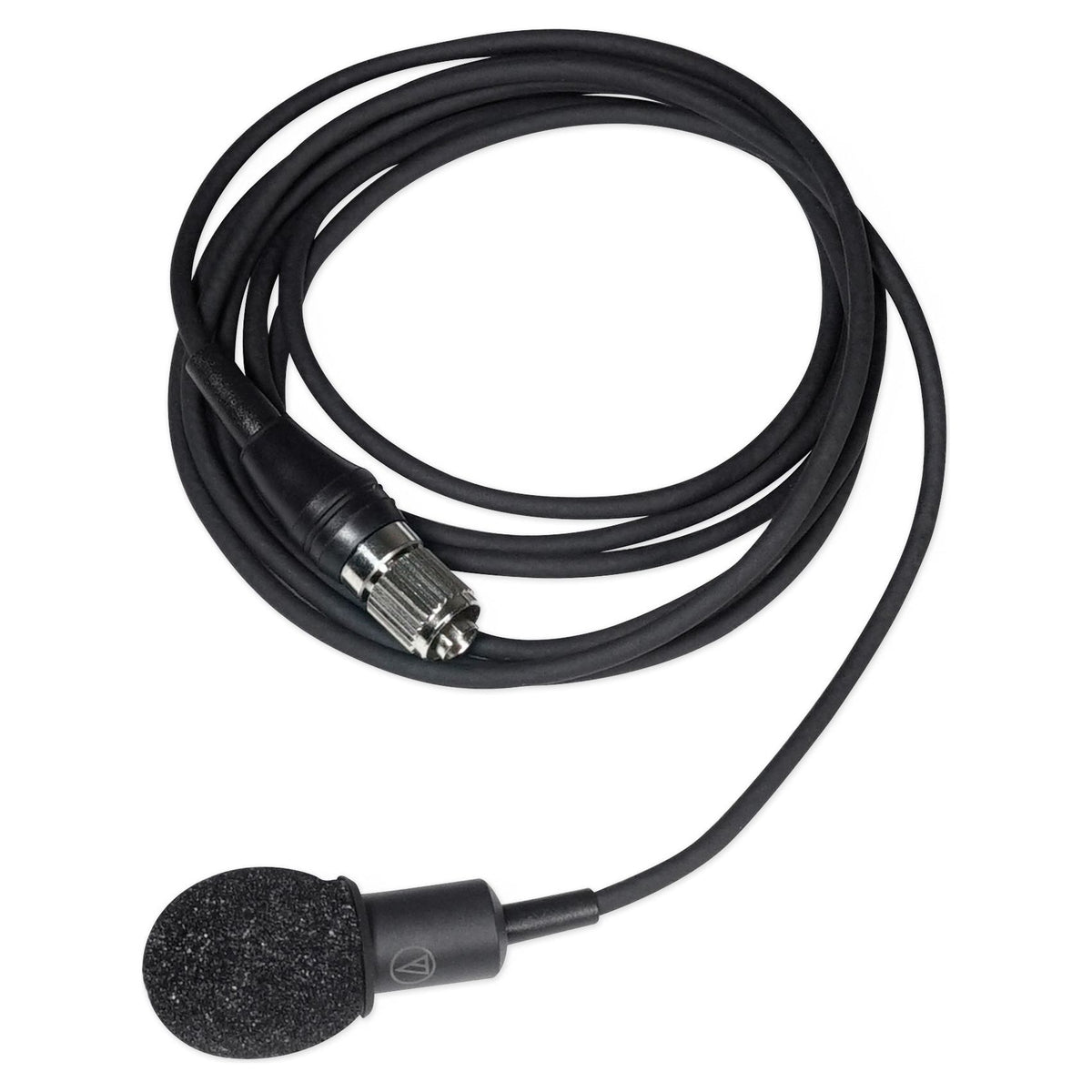

The system ships with the AT831cH miniature cardioid condenser lavalier microphone. Its cH-style screw-down 4-pin connector locks to the body-pack, and the transmitter adds a metal housing, a tactile mute toggle you can confirm by feel, and charging terminals for optional ATW-CHG3 and ATW-CHG3N docks.

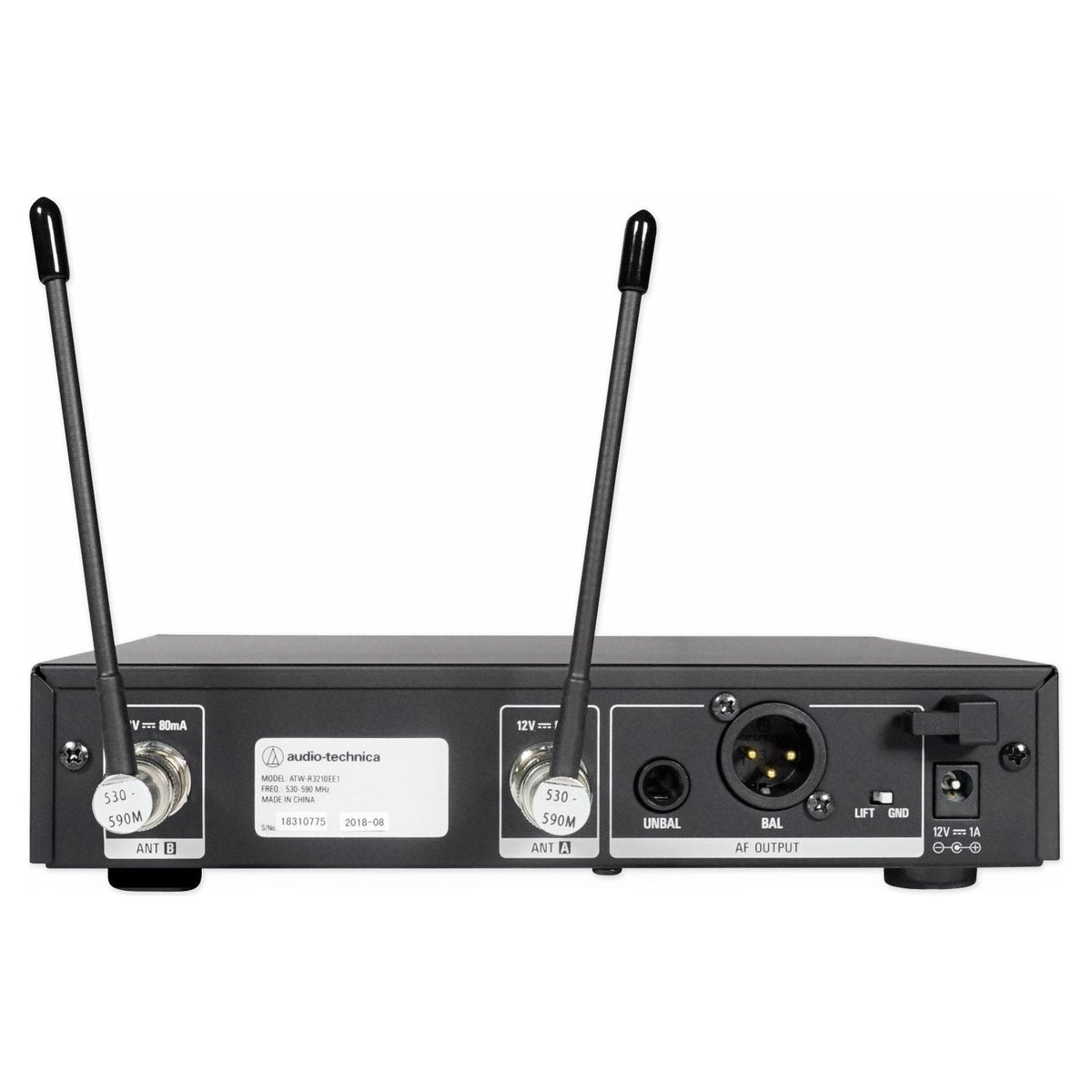

True Diversity reception reduces dropouts and Auto Squelch adjusts automatically to hold range while minimizing interference. A dual-mode receiver display switches between standard and performance views, OLED screens on both units show settings and alerts, a ground-lift switch removes ground loop hum, and antenna power supports in-line RF devices.
Features
-
Higher UHF Window
Band EE1 tunes 530 to 590 MHz across a 60 MHz range, opening spectrum when the lower bands are already crowded in your venue.
-
Setup In Two Steps
The receiver scans for a clear frequency and IR sync pushes it to the transmitter, so a channel is configured in seconds.
-
Interference Insurance
A preset backup frequency swaps on both transmitter and receiver with one press of the multifunction button, mid-performance if needed.
-
Confirm By Feel
A tactile mute toggle on the body-pack tells the wearer the mute state even when the display is out of sight under clothing.
-
Metering At A Glance
The dual-mode receiver display switches between a standard view and a performance view that highlights key metering during a show.
Technical Specifications
- Product Type UHF Wireless Lavalier Microphone System
- Operating Frequencies Band EE1: 530.000 to 589.975 MHz
- Minimum Frequency Step 25 kHz
- Modulation Mode FM
- Maximum Deviation ATW-T3201: +/-38 kHz (THD 10%)
- Simultaneous Use 40 channels per band, region and band dependent
- Frequency Response ATW-T3201: 31 Hz to 15,500 Hz
- Operating Range 100 m
- Dynamic Range ATW-T3201 mic input: > 115 dB (A-weighted) typical; instrument input: > 112 dB typical
- Total Harmonic Distortion < 1.0% (at 1 kHz, +/-17.5 kHz deviation)
- Operating Temperature Range -5 C to +45 C
- Receiving System True Diversity
- Receiver Sensitivity 20 dBuV at 60 dBA S/N ratio (50 ohm termination)
- Maximum Output Level XLR balanced: +14 dBV; 6.3 mm (1/4") unbalanced: +8 dBV
- Antenna Input BNC-type, 50 ohms
- Antenna Power Output 12 V DC, 160 mA (combined)
- Receiver Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A external supply
- Body-Pack RF Power Output High: 30 mW; Low: 10 mW (switchable), at 50 ohms
- Body-Pack Input Connections 4-pin screw-down cH-style connector, DC bias +5V
- Body-Pack Battery Type Two 1.5V AA (not included)
- Body-Pack Battery Life High: 8.0 hours / Low: 9.0 hours (alkaline); High: 9.0 hours / Low: 9.5 hours (NiMH 1900 mAh)
- Microphone Element Fixed-charge back plate, permanently polarized condenser
- Microphone Polar Pattern Cardioid
- Microphone Weight 2.8 g
- Microphone Dimensions 25.0 mm long, 10.2 mm diameter
- Microphone Output Connector 4-pin cH-style screw-down connector
- Microphone Cable 1.4 m long, 2.6 mm diameter, 2-conductor shielded
- Weight 2.43 lb (1,100 g) receiver without accessories; 0.22 lb (102 g) body-pack transmitter
- Dimensions 210.0 mm x 191.0 mm x 43.4 mm (receiver); 64 mm x 82 mm x 23 mm (body-pack transmitter)
