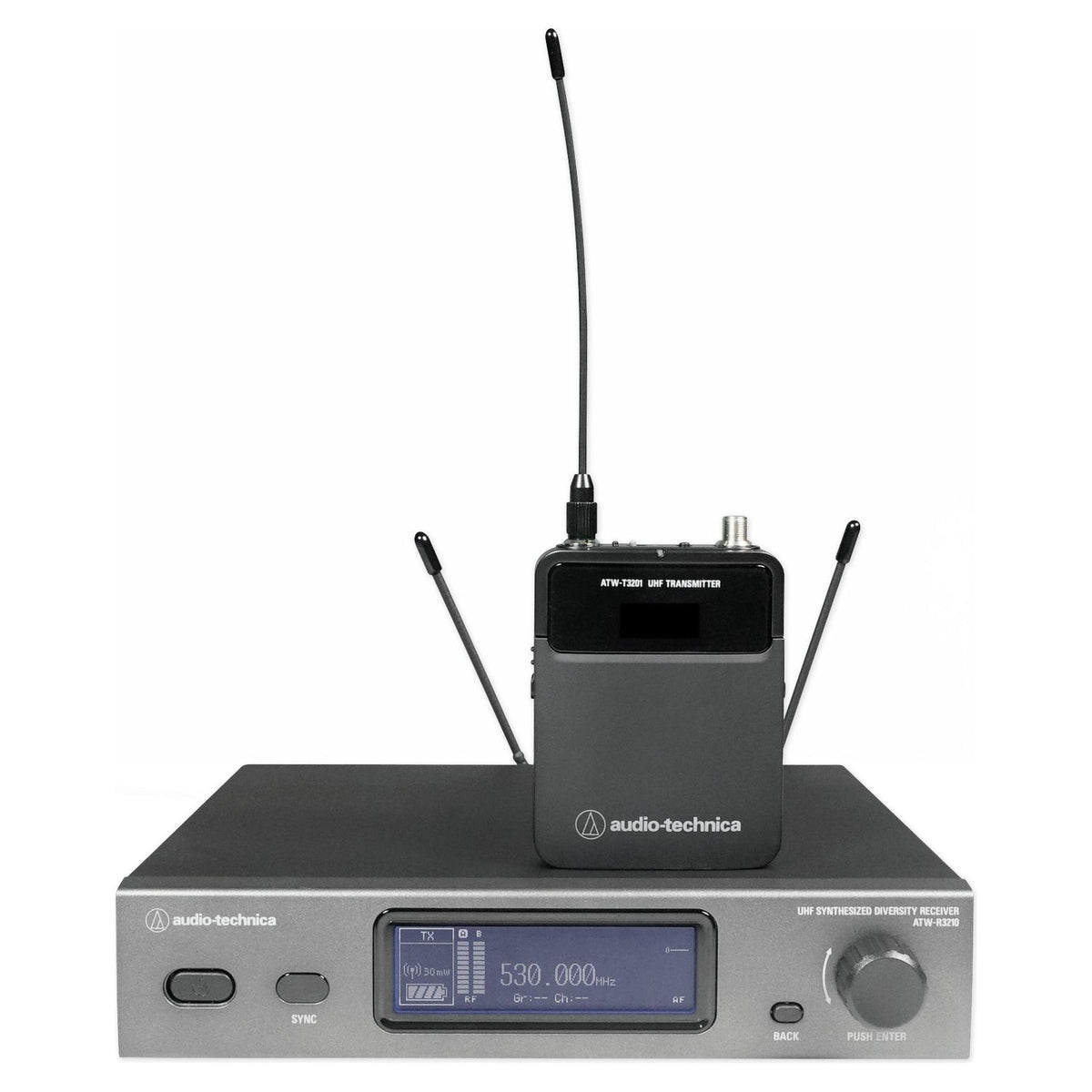

Audio Technica ATW-3211EE1 3000 Series Wireless Receiver+Body-Pack transmitter
Audio Technica ATW-3211EE1 3000 Series Wireless Receiver+Body-Pack transmitter
AUDIO TECHNICA
Audio Technica ATW-3211EE1 3000 Series Wireless Receiver+Body-Pack transmitter
Audio Technica ATW-3211EE1 3000 Series Wireless Receiver+Body-Pack transmitter
UHF Wireless Body-Pack System, 60 MHz Tuning Range, 530-590 MHz, Includes R3210 Receiver, T3201 Body-Pack Transmitter
Free Shipping
Features
- 60 MHz UHF tuning range in band EE1, 530.000 to 589.975 MHz
- True Diversity reception with Auto Squelch cuts dropouts and interference
- Frequency scan and IR sync pair the receiver and transmitter in seconds
- Multifunction button moves both units to a stored backup frequency
- Includes ATW-R3210 receiver and metal-housing ATW-T3201 body-pack
Couldn't load pickup availability

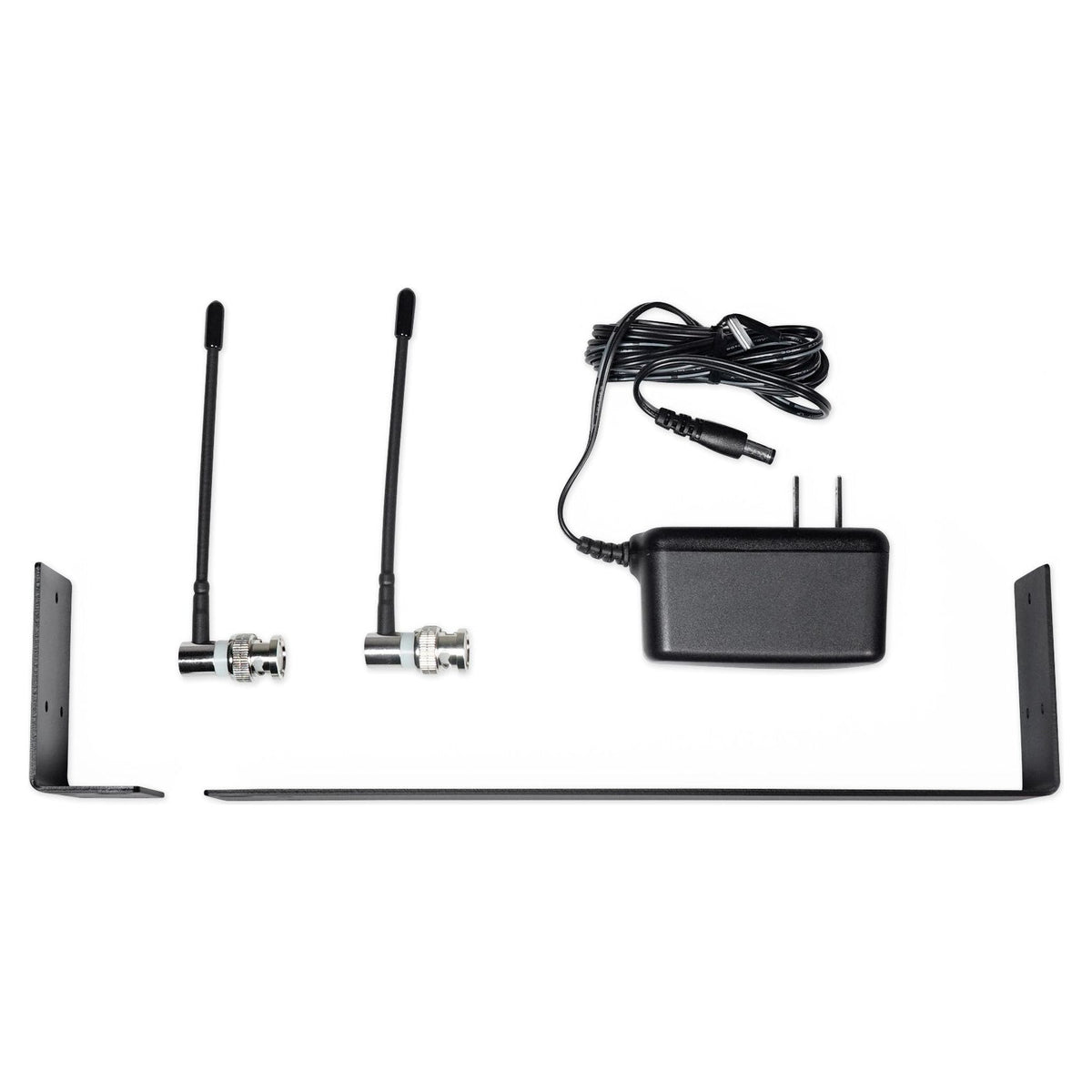

What's Included in the box
- ATW-R3210 receiver
- ATW-T3201 body-pack transmitter
- Two flexible UHF antennas
- AC adapter
- Rack mount adapters
SKU: SKU: ATW-3211EE1
View full details






Product Description
A 60 MHz tuning range across band EE1 (530.000 to 589.975 MHz) gives you room to work around local TV and wireless traffic, with 40 channels per band for multi-system rigs. Frequency scan finds open air on the receiver and IR sync pushes that frequency to the transmitter in seconds. You can also store a backup frequency and move both units to it with one press of the transmitter's multifunction button if interference turns up mid-event.

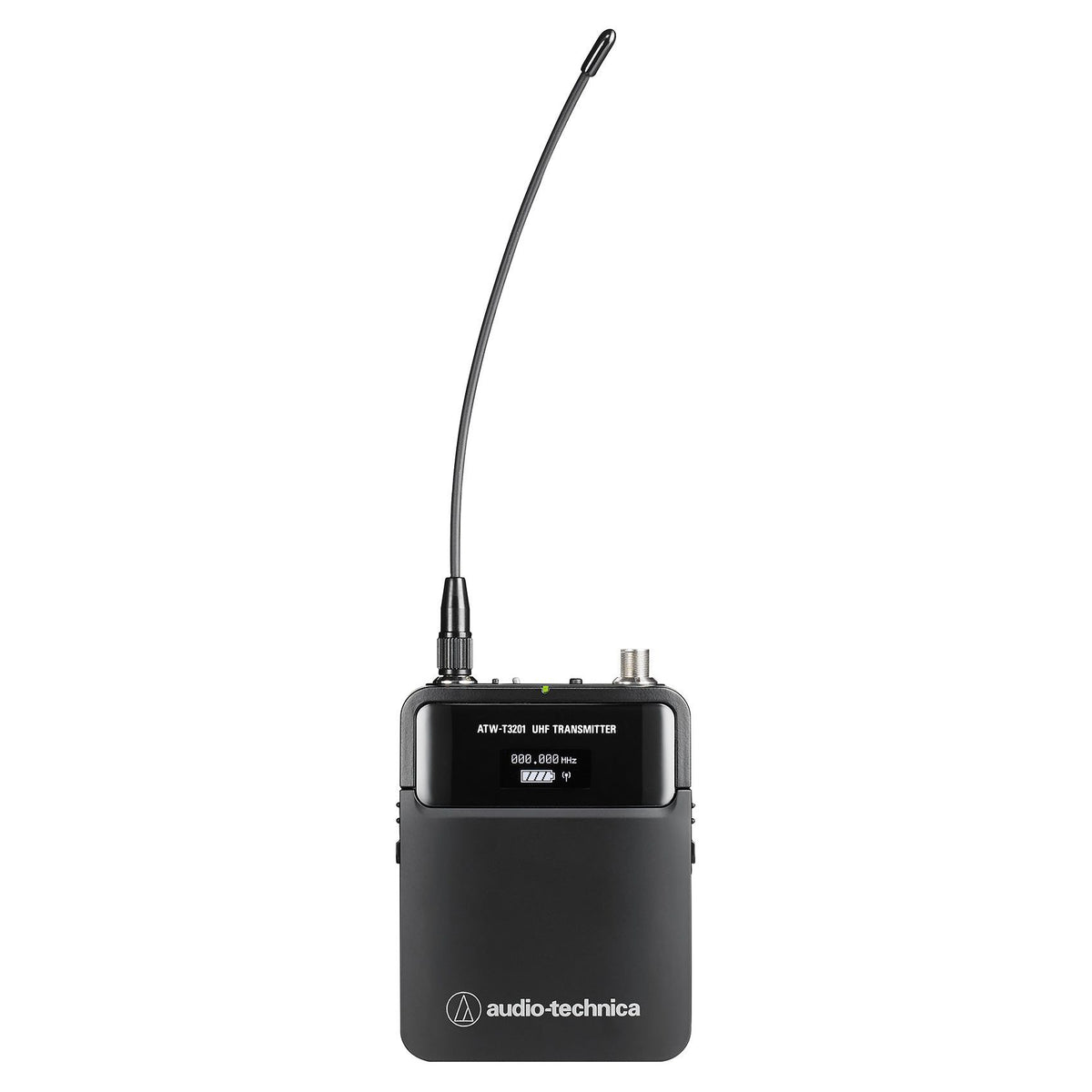

The ATW-T3201 body-pack uses a metal housing and a screw-down cH-style 4-pin connector that locks Audio-Technica cH-style lavalier and headworn microphones and cables in place. A tactile mute toggle gives physical confirmation of mute status when the display is out of sight, and OLED screens on both units read out frequency, level, and battery. Two AA batteries run the pack up to 9 hours, and charging terminals work with the ATW-CHG3 and networkable ATW-CHG3N docks (sold separately) to recharge NiMH cells.

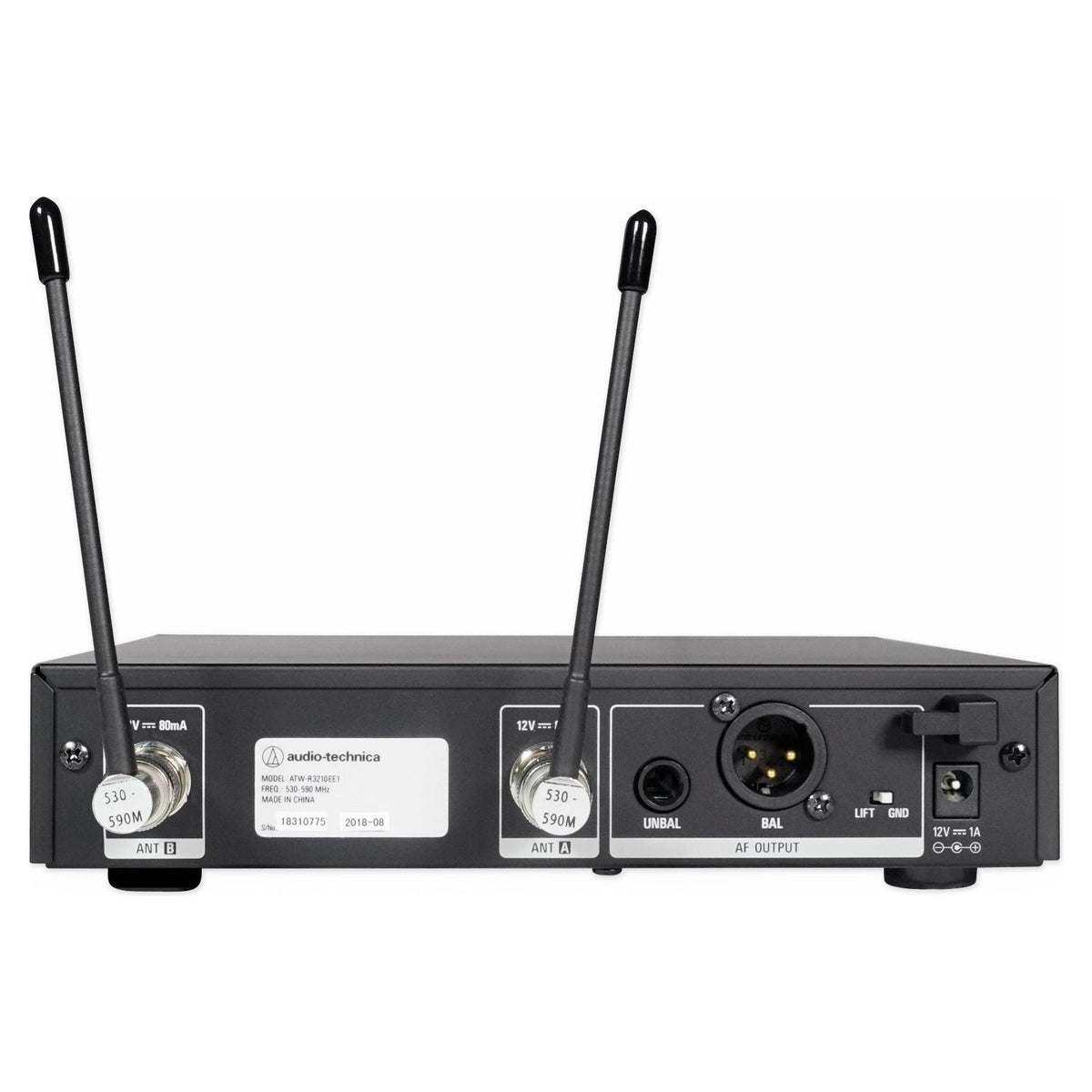

At the rack, True Diversity reception cuts dropouts and Auto Squelch adjusts itself to hold range while limiting interference. The dual-mode display switches between a standard view and a performance view with key metering. Balanced XLR and unbalanced 1/4" outputs, antenna power for in-line RF devices, and a ground-lift switch cover house systems, portable racks, and permanent installs.
Features
-
Room To Find Clear Air
The 60 MHz tuning range across band EE1 opens up 40 channels per band, so you can work around local TV and wireless traffic at any venue.
-
Setup In Under A Minute
Scan for an open frequency on the receiver, then send it to the transmitter over IR sync, so a full channel is dialed in before doors open.
-
Backup Frequency On Demand
Store a second frequency and press the transmitter's multifunction button to move both units there the moment interference shows up during a live show.
-
Locked-In Mic Connection
The screw-down cH-style 4-pin connector holds Audio-Technica lavalier and headworn mics tight, so a cable tug during movement will not drop your audio.
-
Full Event Runtime
Two AA batteries run the body-pack up to 9 hours, and charging terminals work with optional ATW-CHG3 docks to recharge NiMH cells between shows.
Technical Specifications
- Product Type UHF Wireless Body-Pack Microphone System
- Operating Frequencies Band EE1: 530.000 to 589.975 MHz
- Tuning Bandwidth 60 MHz
- Minimum Frequency Step 25 kHz
- Modulation Mode FM
- Simultaneous Use 40 channels per band
- Operating Range 100 m (328')
- Total Harmonic Distortion <1.0% at 1 kHz, ±17.5 kHz deviation
- Frequency Response 31 Hz to 15,500 Hz
- Dynamic Range Greater than 115 dB (A-weighted) mic input
- Operating Temperature Range -5 °C to +45 °C
- Receiving System True Diversity
- Receiver Sensitivity 20 dBuV at 60 dBA S/N ratio (50 ohm termination)
- Maximum Output Level XLR balanced: +14 dBV; 6.3 mm (1/4") unbalanced: +8 dBV
- Antenna Input BNC-type, 50 ohms
- Antenna Power Output 12 V DC, 160 mA combined
- Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A external supply
- Transmitter RF Power Output High: 30 mW / Low: 10 mW, switchable at 50 ohms
- Battery Type Two 1.5V AA (not included)
- Battery Life Up to 8.0 hours high / 9.0 hours low (alkaline); 9.0 / 9.5 hours (Ni-MH 1900mAh)
- Transmitter Input Connection 4-pin screw-down cH-style connector
- Weight Receiver: 2.4 lb (1,100 g); body-pack: 3.6 oz (102 g)
- Dimensions Receiver: 8.3" x 7.5" x 1.7"; body-pack: 2.5" x 3.2" x 0.9"
