ATW-3212/C710DE2 3000 Wireless Handheld Microphone+Mic Receiver
AUDIO TECHNICA
ATW-3212/C710DE2 3000 Wireless Handheld Microphone+Mic Receiver
ATW-3212/C710DE2 3000 Wireless Handheld Microphone+Mic Receiver
3000 Series Wireless Handheld, Condenser Capsule, DE2 Band, True Diversity
Free Shipping
Features
- ATW-C710 condenser capsule with 80 to 20,000 Hz response for vocal detail
- 60 MHz tuning range on DE2 band with true diversity reception

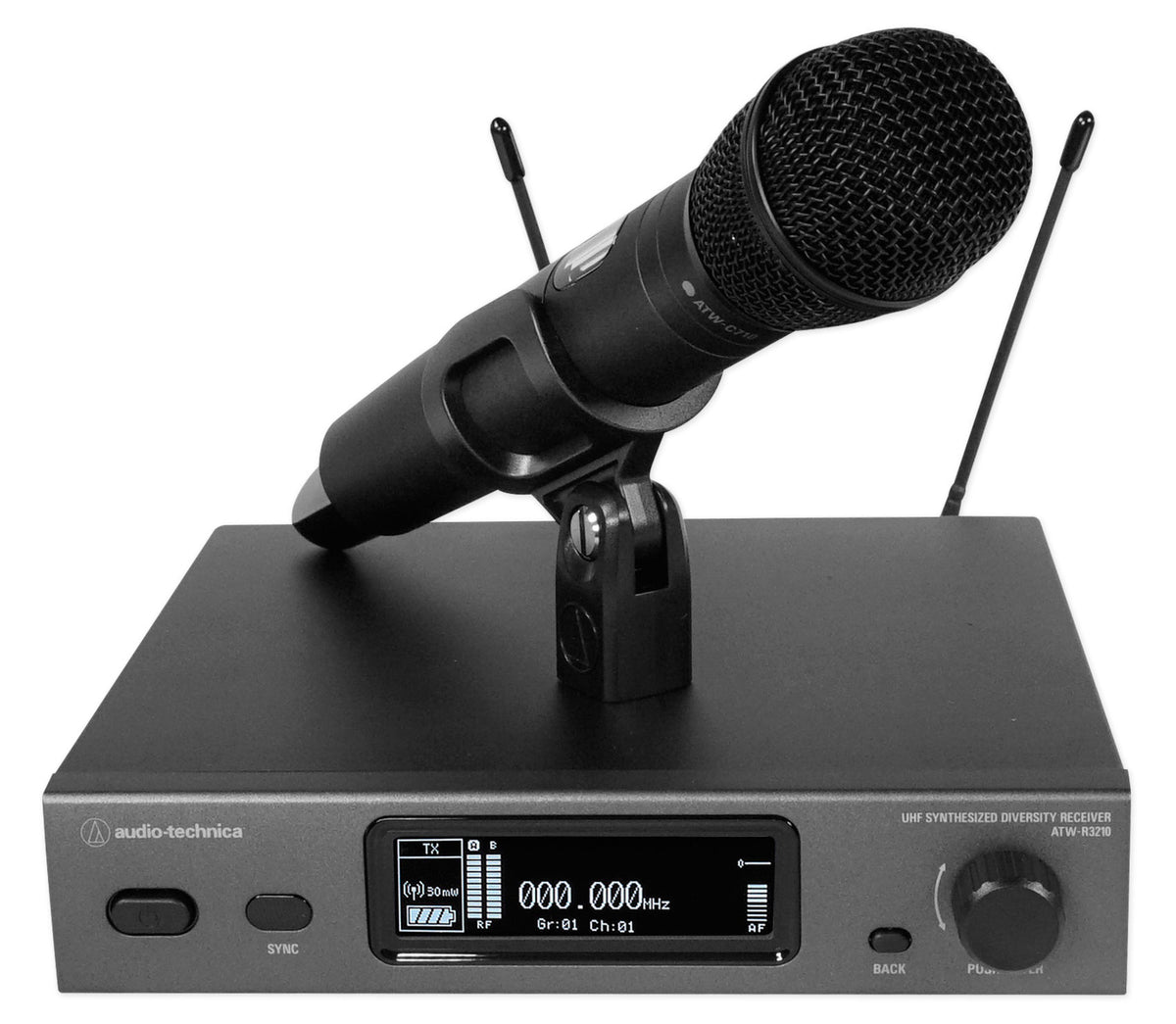

- OLED screens on transmitter and receiver display all key parameters
- Industry-standard thread mount accepts other compatible capsules
- Up to 9 hours of battery life with optional smart-dock charging
Couldn't load pickup availability
What's Included in the box

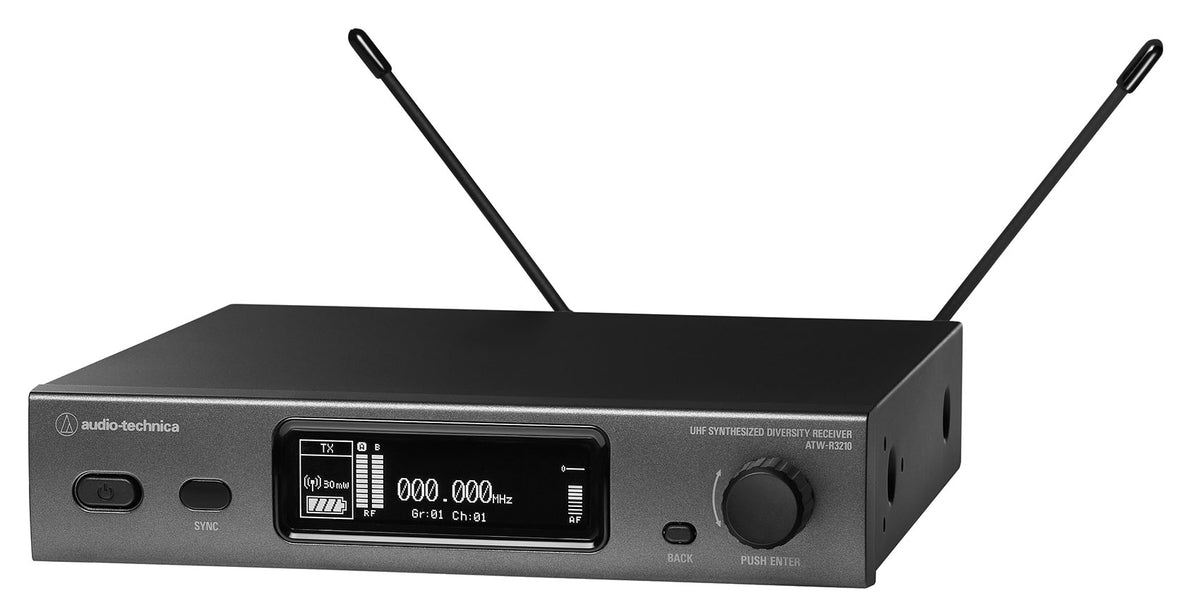

- ATW-R3210 receiver

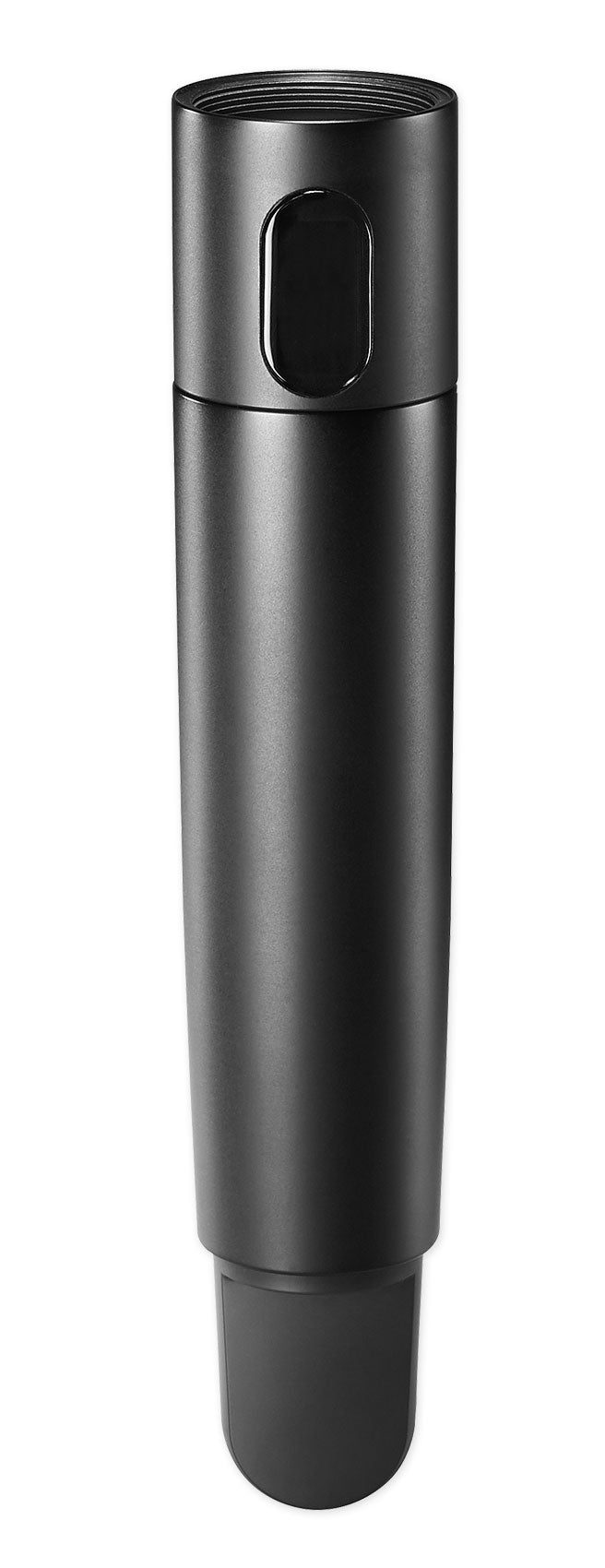

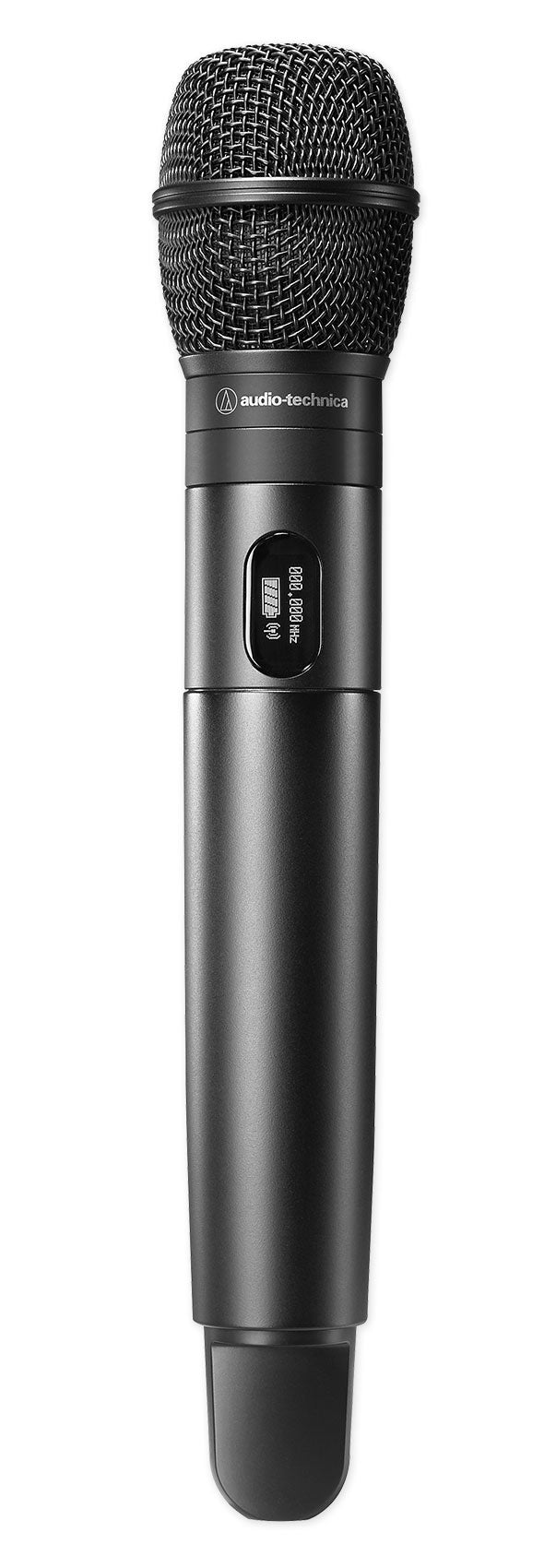

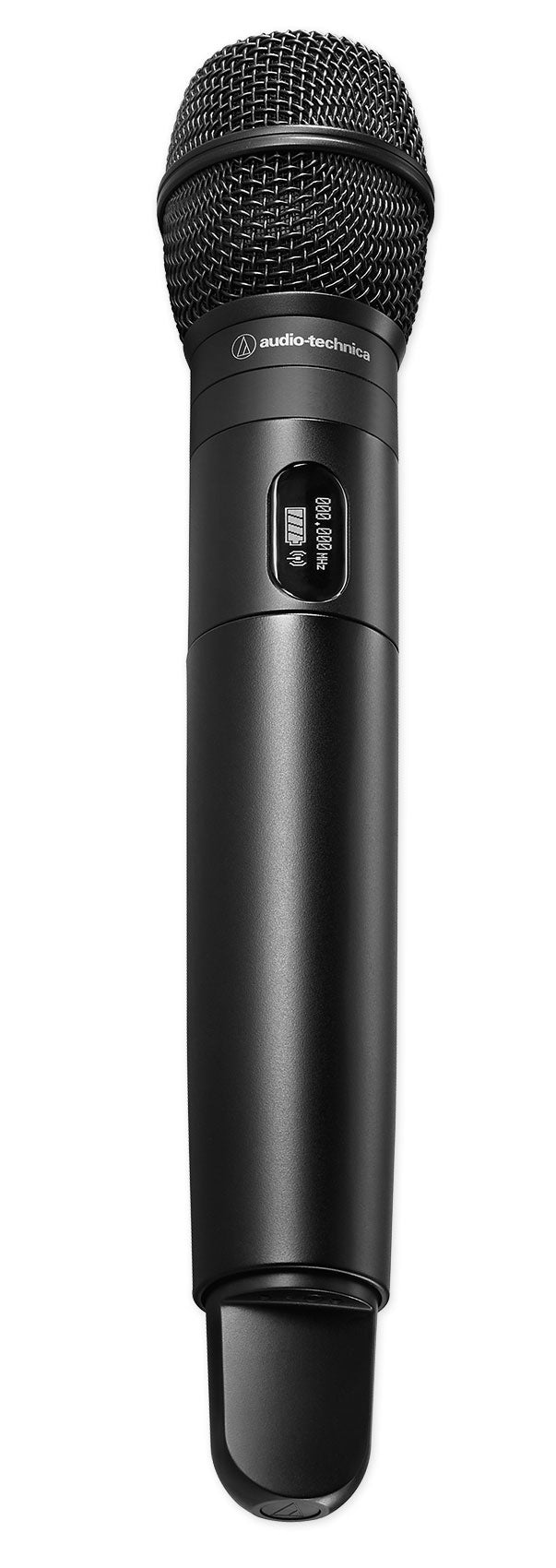

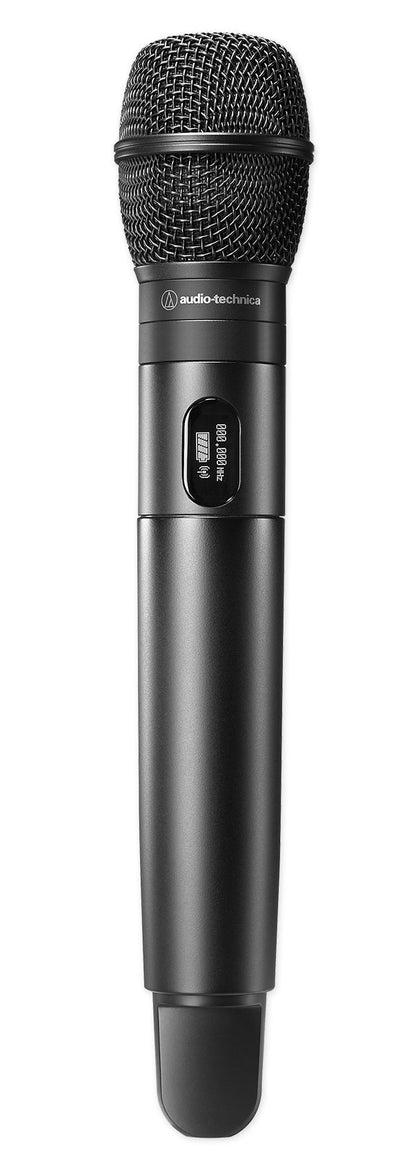

- ATW-T3202 handheld transmitter

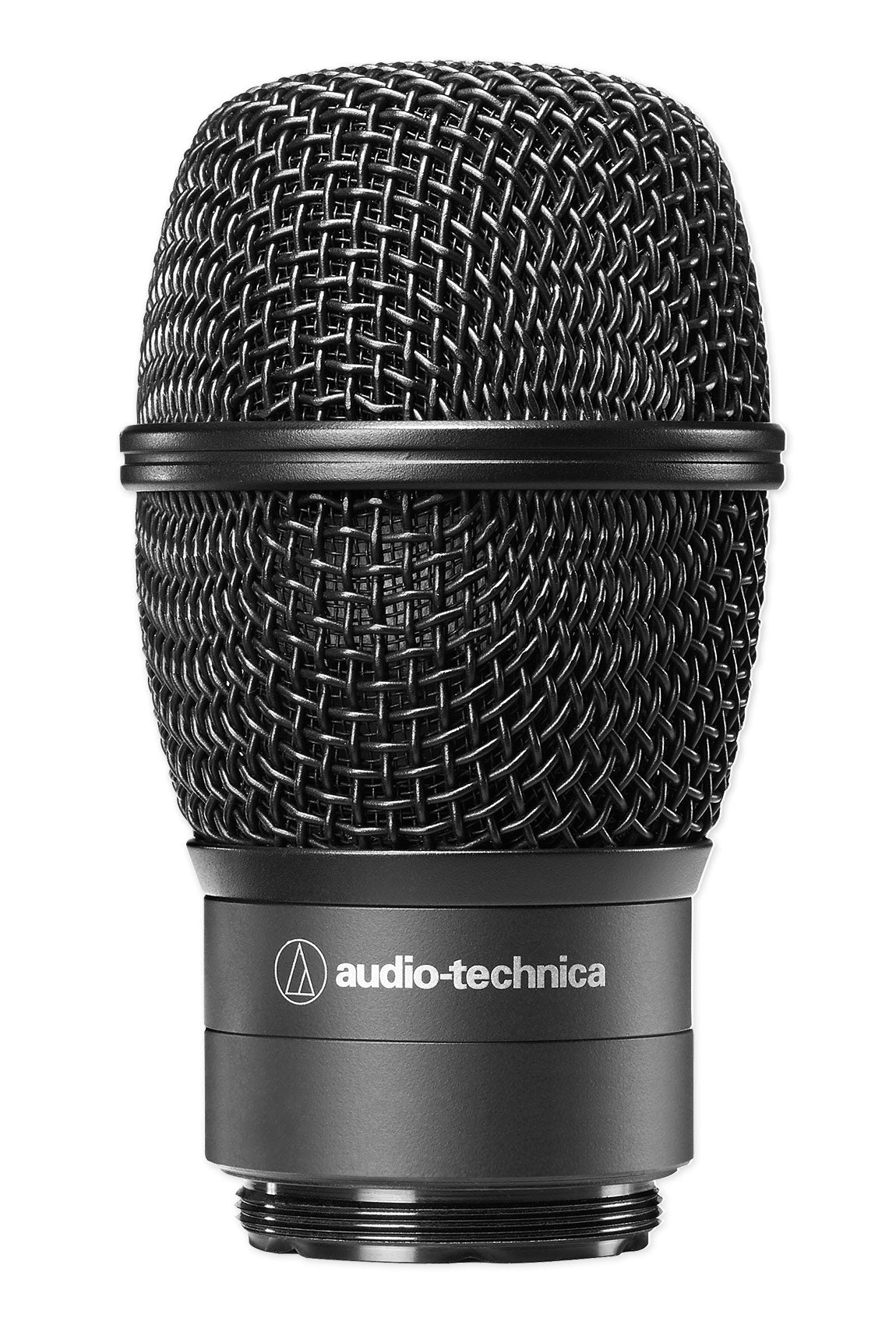

- ATW-C710 cardioid condenser microphone capsule

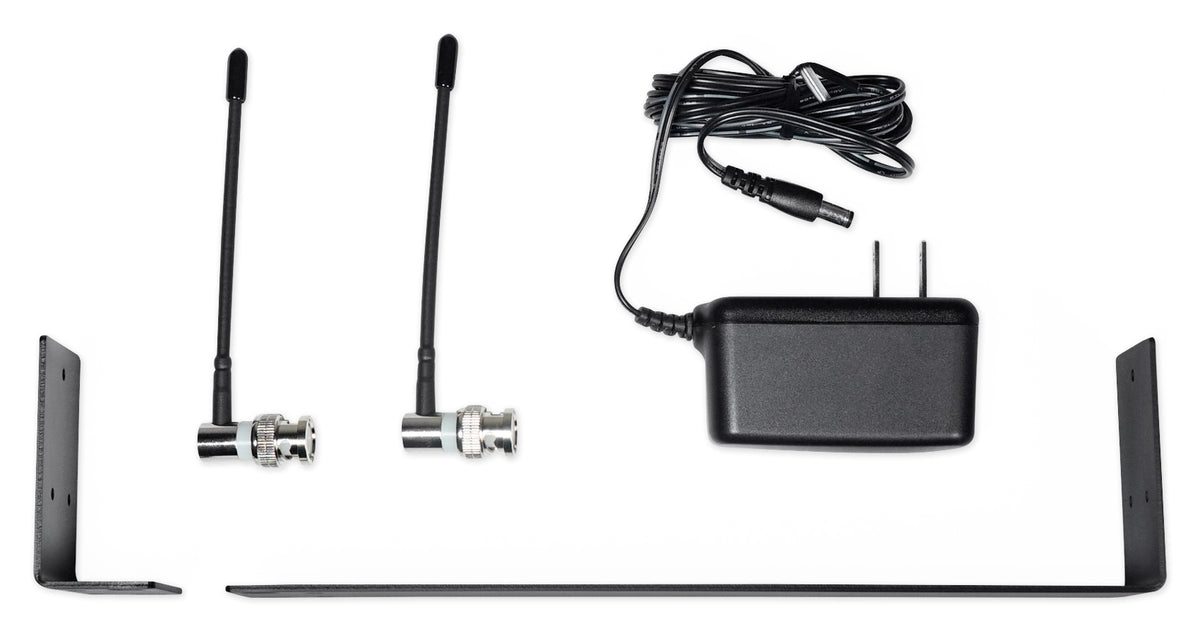

- Two flexible UHF antennas
- AC adapter
- Rack-mount adapters

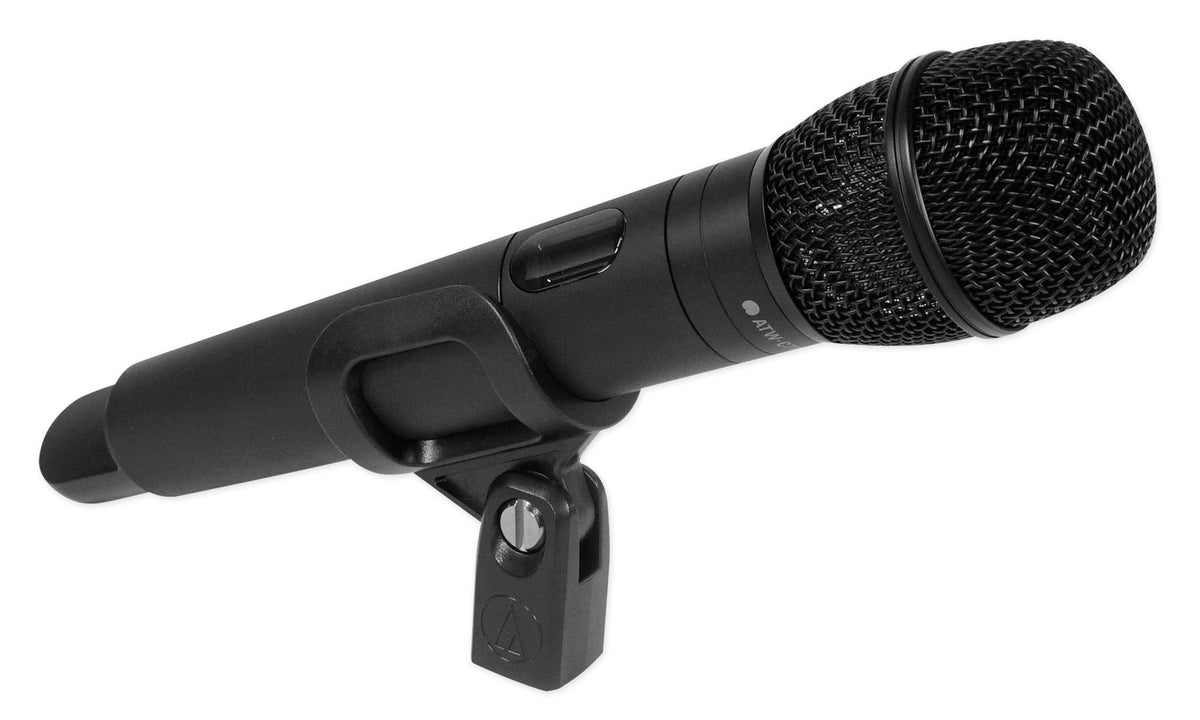

- AT8456a Quiet-Flex stand clamp
SKU: SKU: ATW-3212/C710DE2*
View full details










Product Description
The ATW-C710 condenser capsule is the key differentiator here. With a frequency response of 80 to 20,000 Hz and a permanently polarized condenser element, it captures more detail and high-frequency clarity than a dynamic capsule, making it the better choice for vocal performances, worship, and broadcast applications where nuance matters. The capsule threads onto the transmitter with an industry-standard mount, so you can swap in other compatible capsules as needs change. The metal-housed transmitter runs up to 9 hours on two AA batteries and includes charging terminals compatible with ATW-CHG3 and ATW-CHG3N smart docks. Antenna power is available on the receiver for powered antennas, and a ground-lift switch helps eliminate hum from ground loops. OLED displays on both units show all operating parameters at a glance.
Features
Condenser Clarity
The ATW-C710 condenser capsule reproduces frequencies from 80 to 20,000 Hz, capturing vocal nuances that a dynamic element would miss.
Broad Frequency Agility
A 60 MHz tuning range on the DE2 band (470 to 530 MHz) provides ample room to find interference-free channels in dense RF environments.
One-Button Backup
The transmitter multifunction button switches both mic and receiver to a preset backup frequency, so unexpected interference never kills the audio.
Smart Charging Compatible
Charging terminals on the transmitter work with ATW-CHG3 and ATW-CHG3N smart docks to recharge NiMH batteries without removing them from the mic.
Ground-Loop Protection

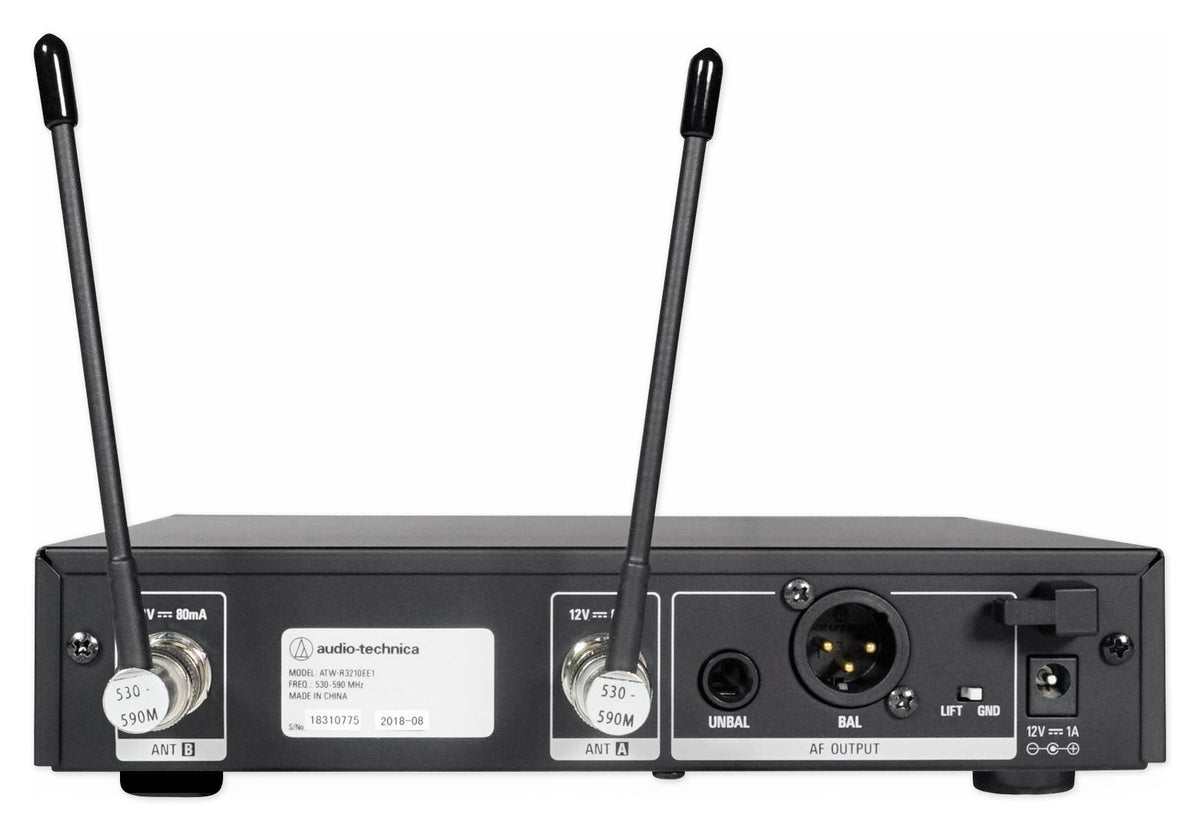

A ground-lift switch on the receiver eliminates audible hum from ground loops, keeping the signal clean in complex audio setups.
Technical Specifications
- Product Type Wireless Handheld Microphone System
- Operating Frequencies DE2 Band: 470.125 to 529.975 MHz
- Tuning Range 60 MHz
- Operating Range 100 m (328 ft)
- Capsule Type Condenser Cardioid (ATW-C710)
- Capsule Frequency Response 80 to 20,000 Hz
- Capsule Impedance 60 Ohms
- Receiving System True Diversity
- Transmitter Battery Life 8 hours (high) / 9 hours (low), alkaline
- RF Power Output High: 30 mW / Low: 10 mW
- Receiver Max Output XLR balanced: +14 dBV / 1/4" unbalanced: +8 dBV
- Transmitter Weight 200 g
- Transmitter Dimensions 193.0 mm long, 37.0 mm diameter
- Receiver Weight 1100 g without accessories
- Receiver Dimensions 210.0 mm x 191.0 mm x 43.4 mm (W x H x D)
