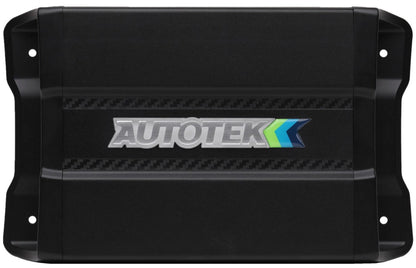

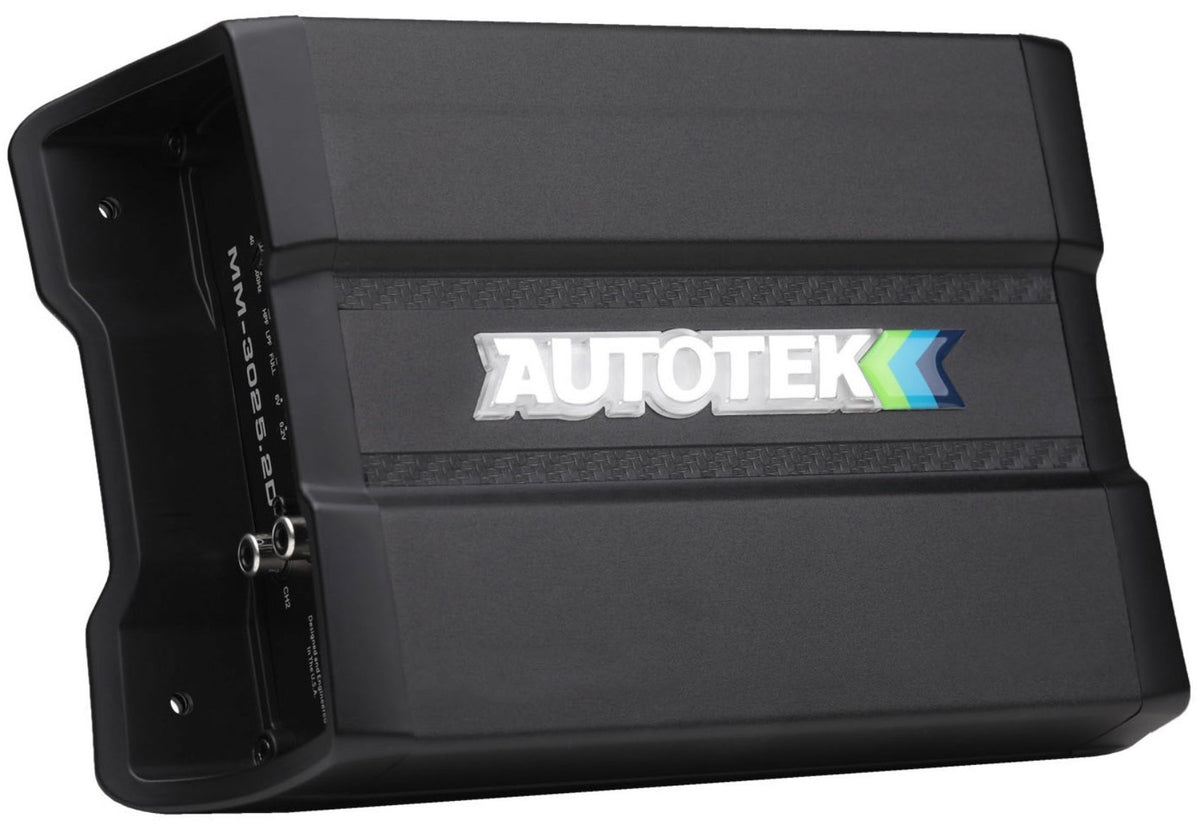

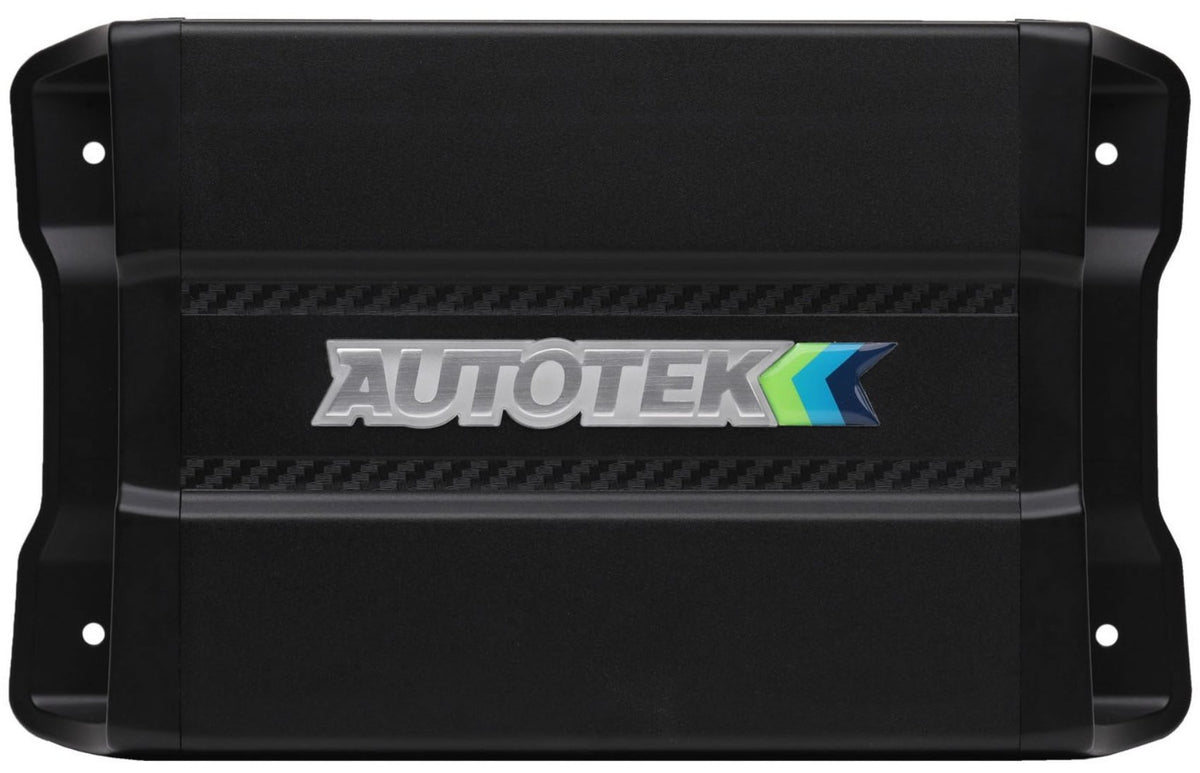

MM-3025.2D

The Autotek MM-3025.2D is the largest amplifier in the compact Mean Machine two-channel lineup, rated at 3000W maximum power. It delivers 2 x 1500W at 2 ohms, 2 x 750W at 4 ohms, and bridges to 1 x 3000W at 4 ohms. Stereo, it gives high-power component speakers more headroom than most factory systems will ever ask for. Bridged, it runs a subwoofer that needs serious input.

Class D topology keeps the chassis compact relative to the output, so mounting under a seat or against a trunk wall stays realistic. PRO-FI High Speed MOSFETs and Twin Coil Isolation Design keep distortion low while the amp works at the top of its range, and the high energy PWM power supply moderates the load on the vehicle electrical system.

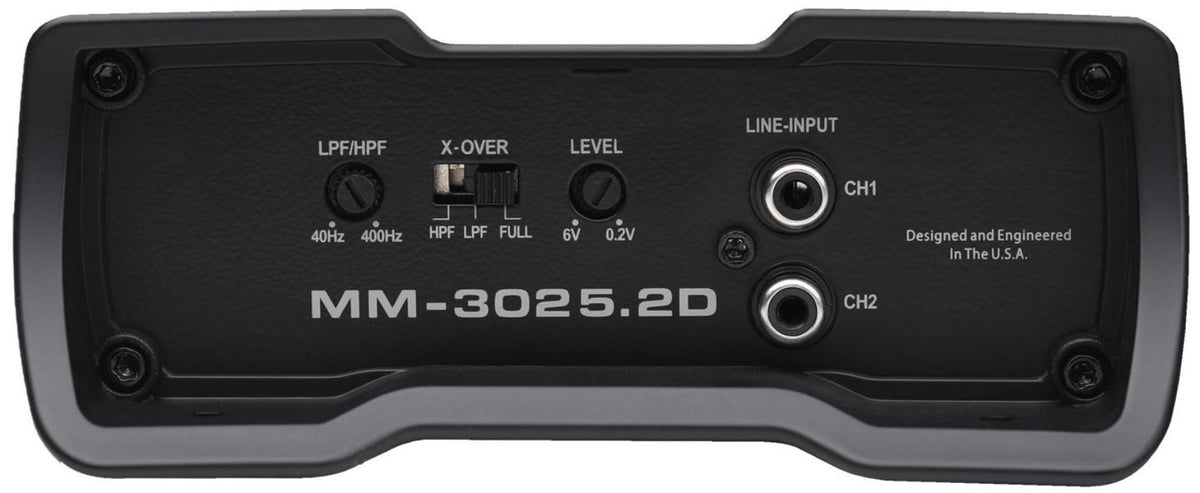

Variable 12dB per octave high-pass and low-pass crossovers each span 40Hz to 400Hz. Keep low frequencies out of door speakers in stereo mode, or set the low-pass and hand the amp full sub duty when bridged. Built-in bass control adjusts low-end level at the amplifier.

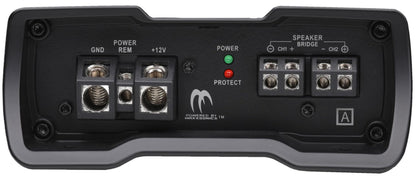

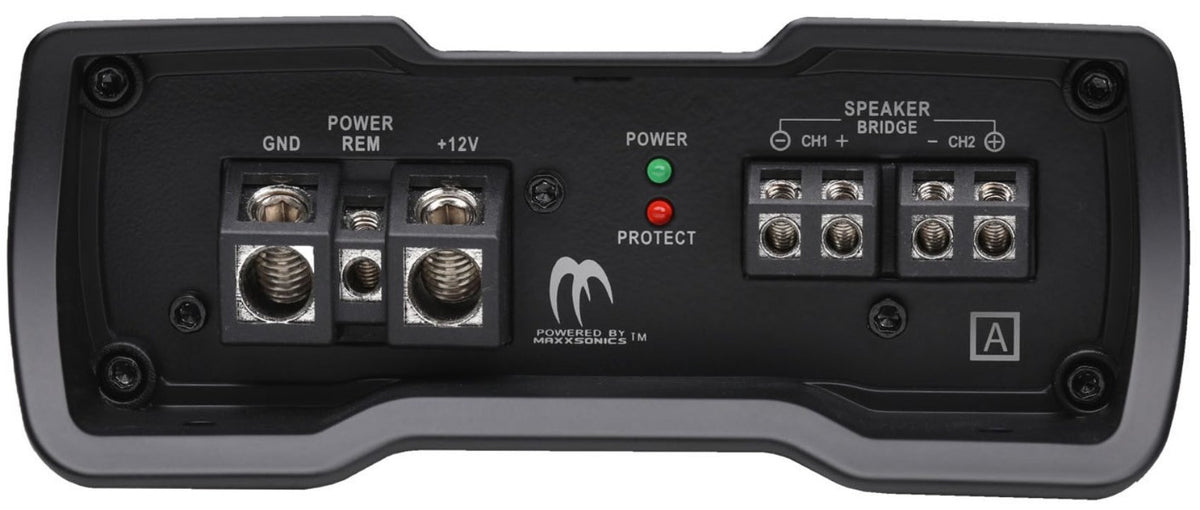

Full-range RCA pass-through outputs feed another amplifier without a second long cable run. Nickel-plated brass terminals with angled Allen key connectors keep power and speaker connections tight, and LED diagnostics report overload and speaker short protection from the end panel.
