AUTOTEK

SM-2600.1D

SM-2600.1D

Class D Mono Car Amplifier, 2600W Max, Compact Chassis, Adjustable Crossover, Wired Bass Remote

Free Shipping

$79.95
$79.95 $249.00
Save 67%
Shipping calculated at checkout.
Features
    • 2600W maximum power in a compact Class D mono subwoofer amplifier
    • Puts out 1 x 2600W at 2 ohms and 1 x 1300W at 4 ohms
    • Adjustable 40Hz-300Hz low-pass crossover and 10Hz-40Hz subsonic filter
    • Wired bass remote adjusts low-end level from the driver seat
    • Internal 50A fusing means no separate fuse block to mount
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

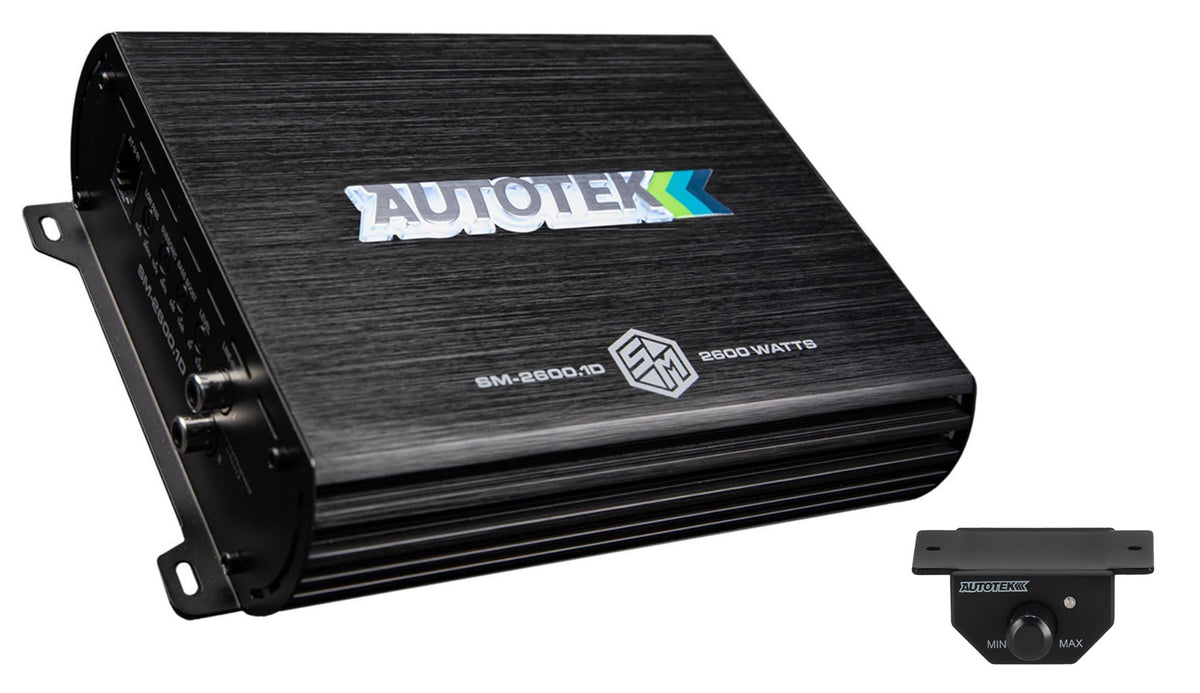

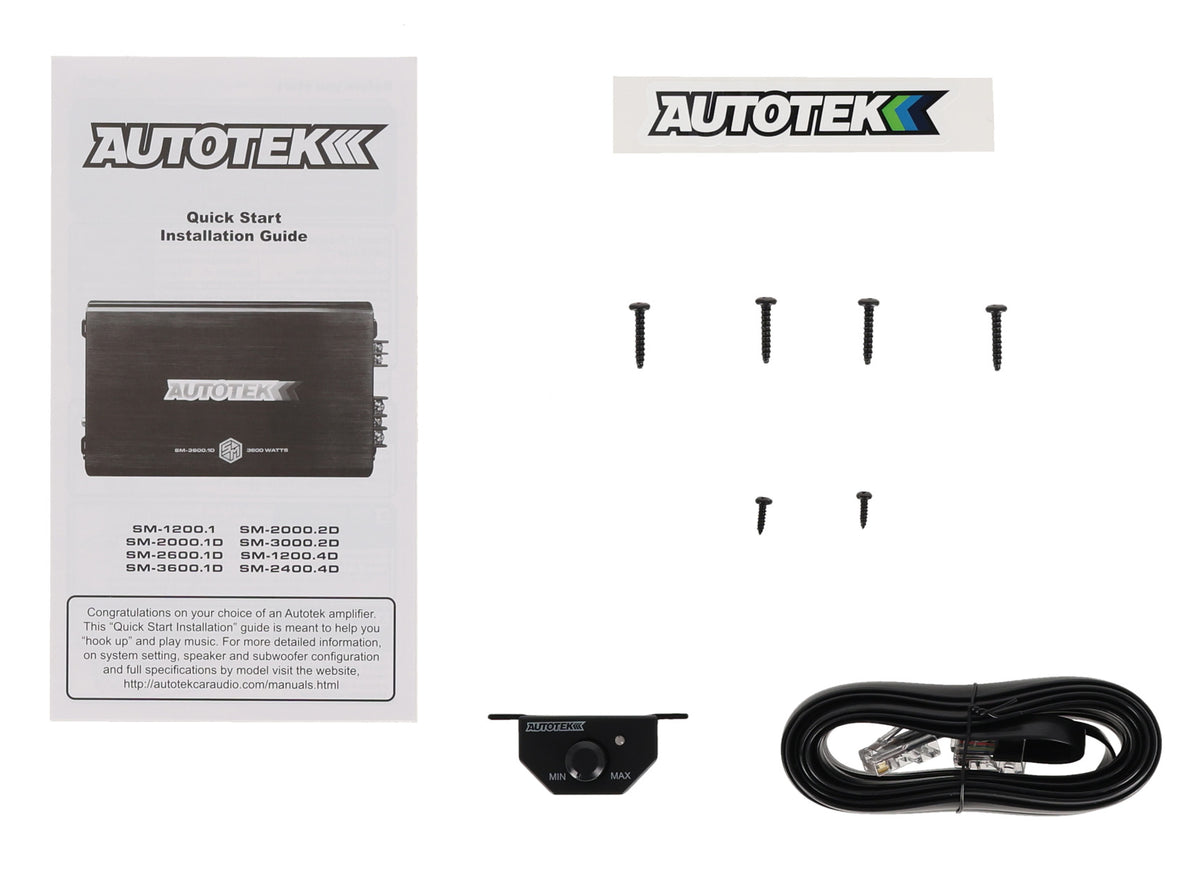

    • Autotek SM-2600.1D Mono Amplifier
    • Wired Bass Remote

SKU: SM-2600.1D

View full details

Product Description

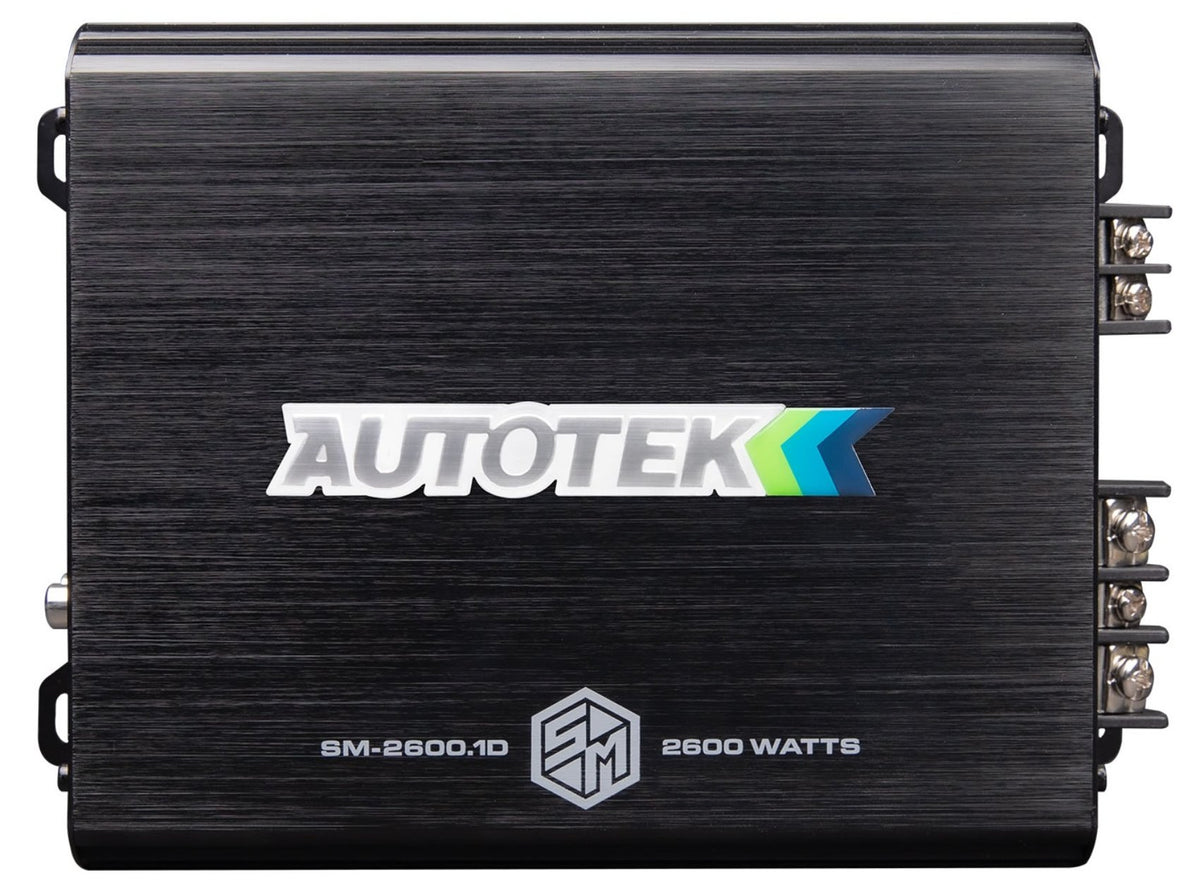

The Autotek SM-2600.1D is a compact Street Machine Class D monoblock rated at 2600W maximum power. It delivers 1 x 2600W at 2 ohms and 1 x 1300W at 4 ohms, enough to run a demanding subwoofer or a pair of subs wired to a 4-ohm load.

The chassis measures 8.5 x 6.125 x 2.06 inches and weighs 3.3 lb, so a high-output mono amp fits under a seat or on a small amp rack rather than claiming the trunk floor.

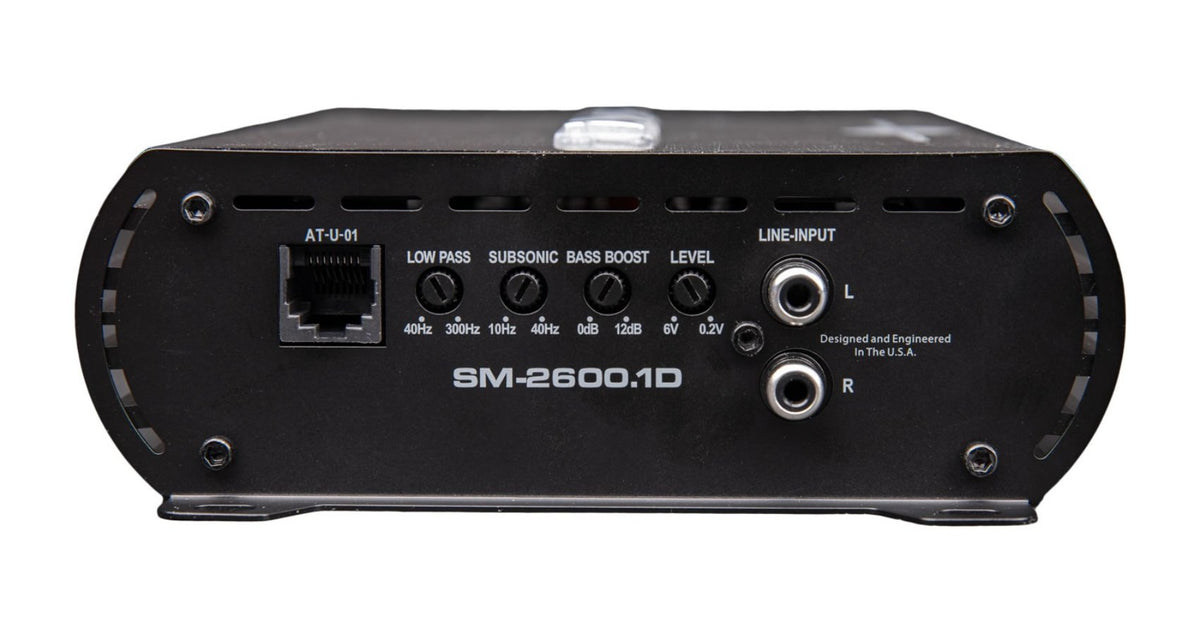

Low-end tuning is handled on the amplifier. A fully adjustable 12dB low-pass crossover covers 40Hz to 300Hz, a subsonic filter from 10Hz to 40Hz keeps frequencies below enclosure tuning out of the sub, and bass boost adds up to 12dB. The included wired bass remote mounts within reach of the driver seat for level changes on the move.

QTD Technology packs extra mass into the aluminum heat sink for quick thermal dispersion, holding output steady through long sessions. Pro-Fi High Speed MOSFETs keep efficiency high and distortion low, and a high energy Pulse Width Modulated power supply limits the load on the vehicle electrical system.

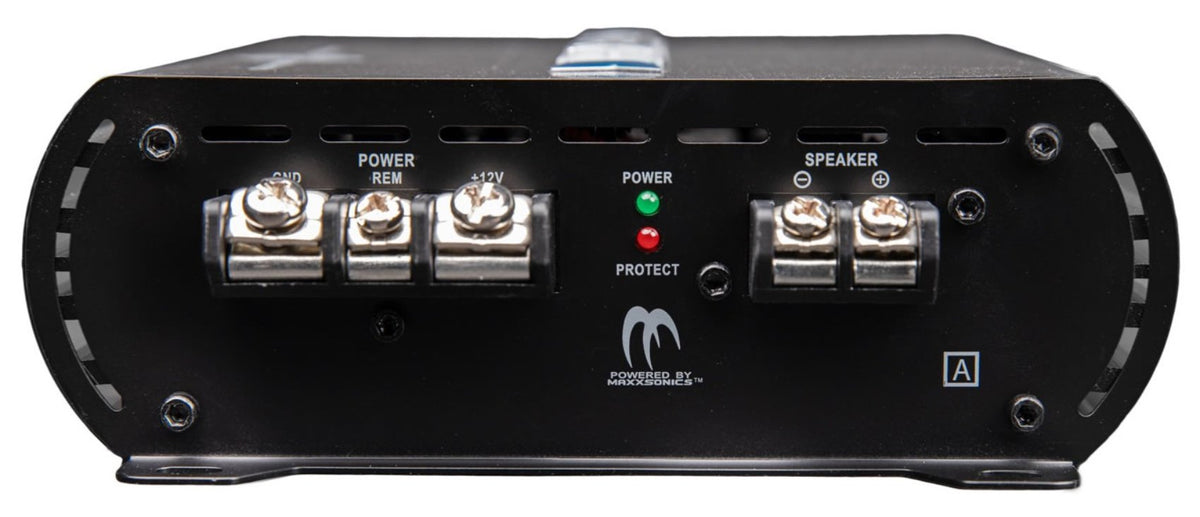

RCA inputs with a low noise preamplifier circuit hold the noise floor below 100dB signal-to-noise. Nickel-plated brass terminals take 4 GA power and 8 GA speaker wire, and LED indicators show overload and speaker short protection. Internal 50A fusing means no external fuse block to mount.

Features

    • High Output, Small Footprint

      2600W maximum power comes from an 8.5 x 6.125 x 2.06 inch chassis at 3.3 lb, fitting under a seat or on a compact amp rack.

    • Matched To Your Sub Load

      1 x 2600W at 2 ohms or 1 x 1300W at 4 ohms suits a single demanding subwoofer or a pair wired to a higher load.

    • Protect Cone Travel

      The 10Hz-40Hz subsonic filter blocks frequencies below your enclosure tuning, keeping amplifier power on bass you can actually hear and feel.

    • Adjust Bass Without Stopping

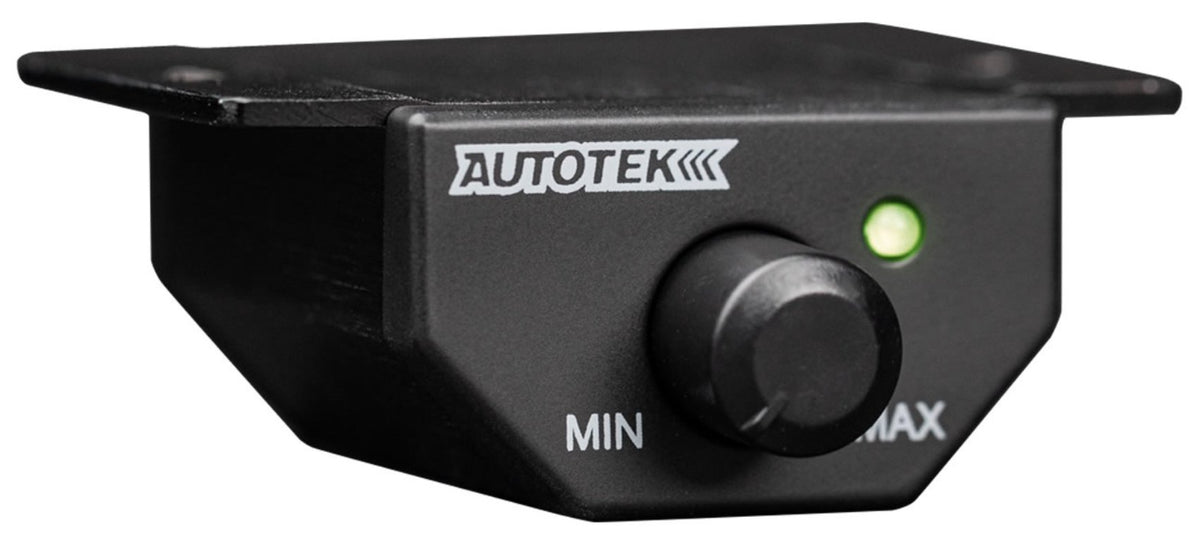

      The included wired remote mounts anywhere in the cabin, so level changes between music and spoken word take a single turn of a knob.

    • One Less Part To Install

      Internal 50A fusing removes the need for a separate fuse block at the amplifier, shortening the install and reducing connection points.

Technical Specifications

  • Product Type Class D Mono Car Amplifier
  • Series Street Machine
  • Total Channels 1
  • Max Power 2600 W
  • Power @ 2 Ohms 1 x 2600 W
  • Power @ 4 Ohms 1 x 1300 W
  • Crossover Variable Electronic 12dB Per Octave
