RV Factory-Replacement Bluetooth Receiver, 160W Total Power, Dual-Zone Audio, HDMI Pass-Thru, USB, Aux, A/V Inputs
Features
- Fits RV chassis openings at 3.86" W x 3.98" H x 2.64" D
- Dual-zone control sets interior and awning speaker volumes independently
- 40W x 4 channels for 160W total power output
- HDMI pass-thru plus RCA video in/out for a coach TV or streaming stick
- Zero current draw memory holds presets and EQ when the battery is pulled
Couldn't load pickup availability

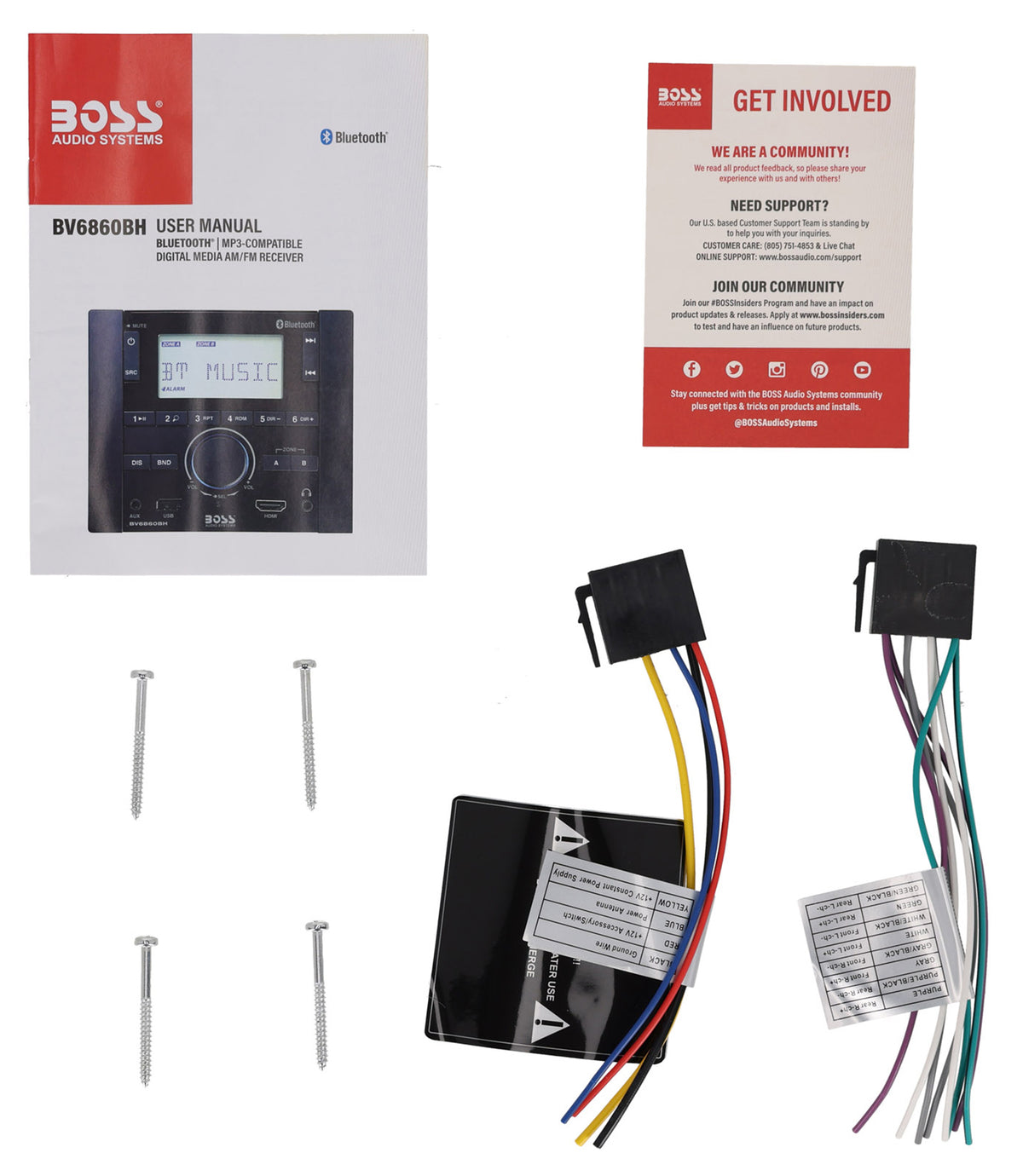

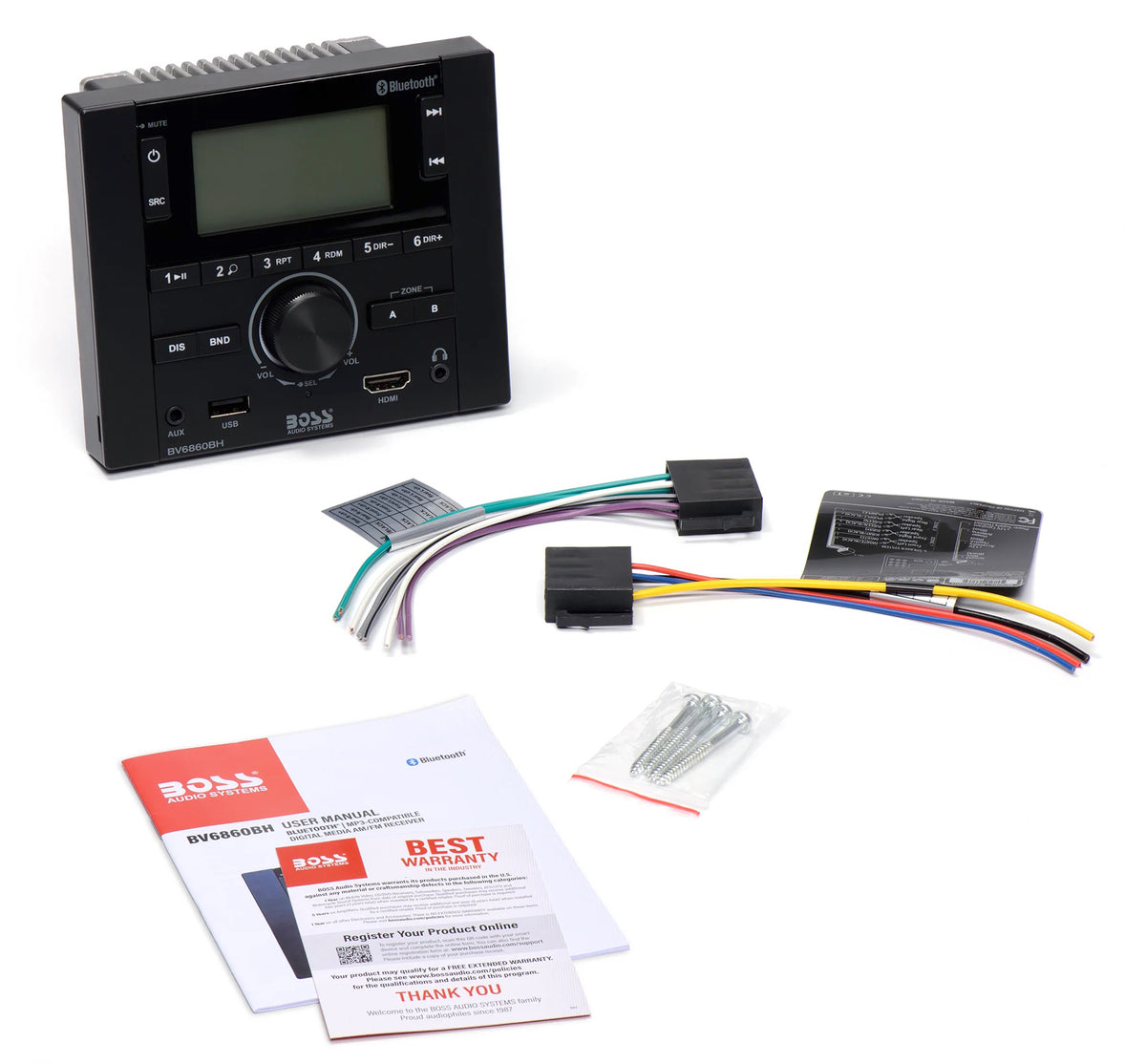

What's Included in the box
- BV6860BH RV Digital Media Receiver
SKU: SKU: BV6860BH
View full details






Product Description
Power output is 40W x 4 channels for 160W total, enough to run interior cabin speakers and an exterior awning pair at the same time. Dual-zone control sets those two areas to different volumes, so guests outside at the campfire can turn things up while someone inside keeps it quiet. Pre-amp outputs for front, rear, and subwoofer leave room to add an amplifier later.
Connections cover both modern and older gear. Bluetooth streams music and podcasts from a phone, the front-panel USB port and aux input handle wired sources, and a front 3.5mm headphone output allows late-night listening without waking the rest of the camper. HDMI pass-thru and RCA video input/output route a streaming stick, game console, or DVD player to a coach TV, with dual-zone A/V output feeding a second screen. An LCD display shows ID3 tag data and the clock, with high and low backlight levels for daytime glare and after-dark travel. A built-in alarm clock rounds out the daily-use features.
Features
-
Drops Into Your Existing Dash
The RV-spec chassis fits a 3.86" W x 3.98" H opening at 2.64" deep, so it replaces a tired coach radio without cutting or rebuilding the panel.
-
Two Listening Areas, One Radio
Dual-zone control sets inside and outside volumes separately, letting the awning speakers play loud at the campsite while the cabin stays quiet.
-
Presets Survive Storage
Zero current draw memory retains radio presets and EQ settings even after the house battery is disconnected for the off-season, so setup is not repeated each spring.
-
Video Routing Built In
HDMI pass-thru, RCA video input/output, and dual-zone A/V output send a streaming stick or game console to one or two coach screens.
-
Every Source Connects
Bluetooth audio streaming, a front USB port, a front aux input, and a rear A/V input cover phones, flash storage, and older disc players alike.
Technical Specifications
- Product Type RV Digital Media Receiver
- Chassis Type RV
- Total Power Output 160W
- Power Per Channel 40W x 4 Channels
- Tuner AM/FM, Switchable US and EU Frequencies
- Tuner Presets 18 FM
- Bluetooth Yes
- Media Playback MP3 via Bluetooth and USB
- HD Digital Input HDMI Pass-Thru

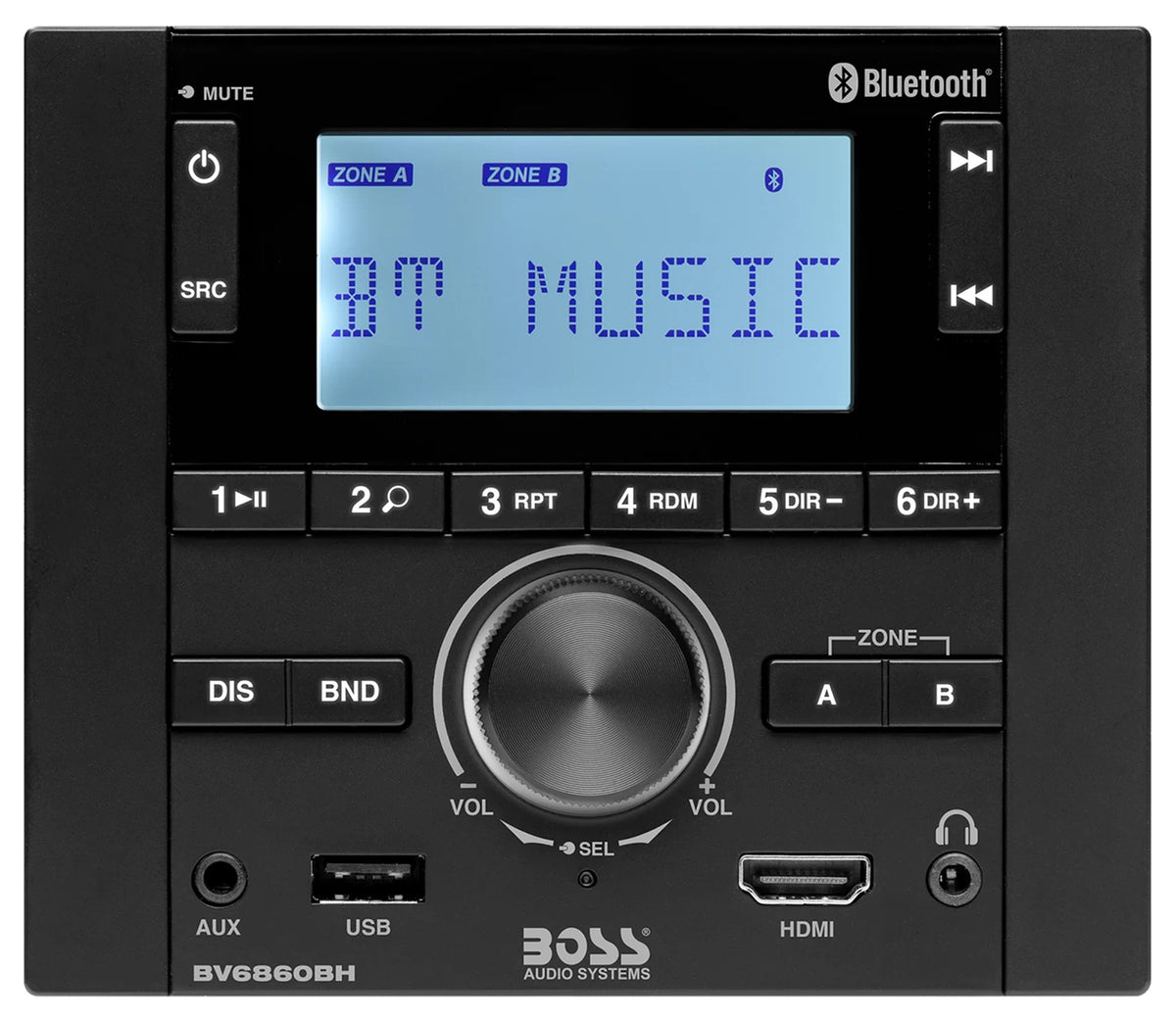

- USB Port Front Panel
- Aux Input Front Panel
- Headphone Output Front Panel 3.5mm

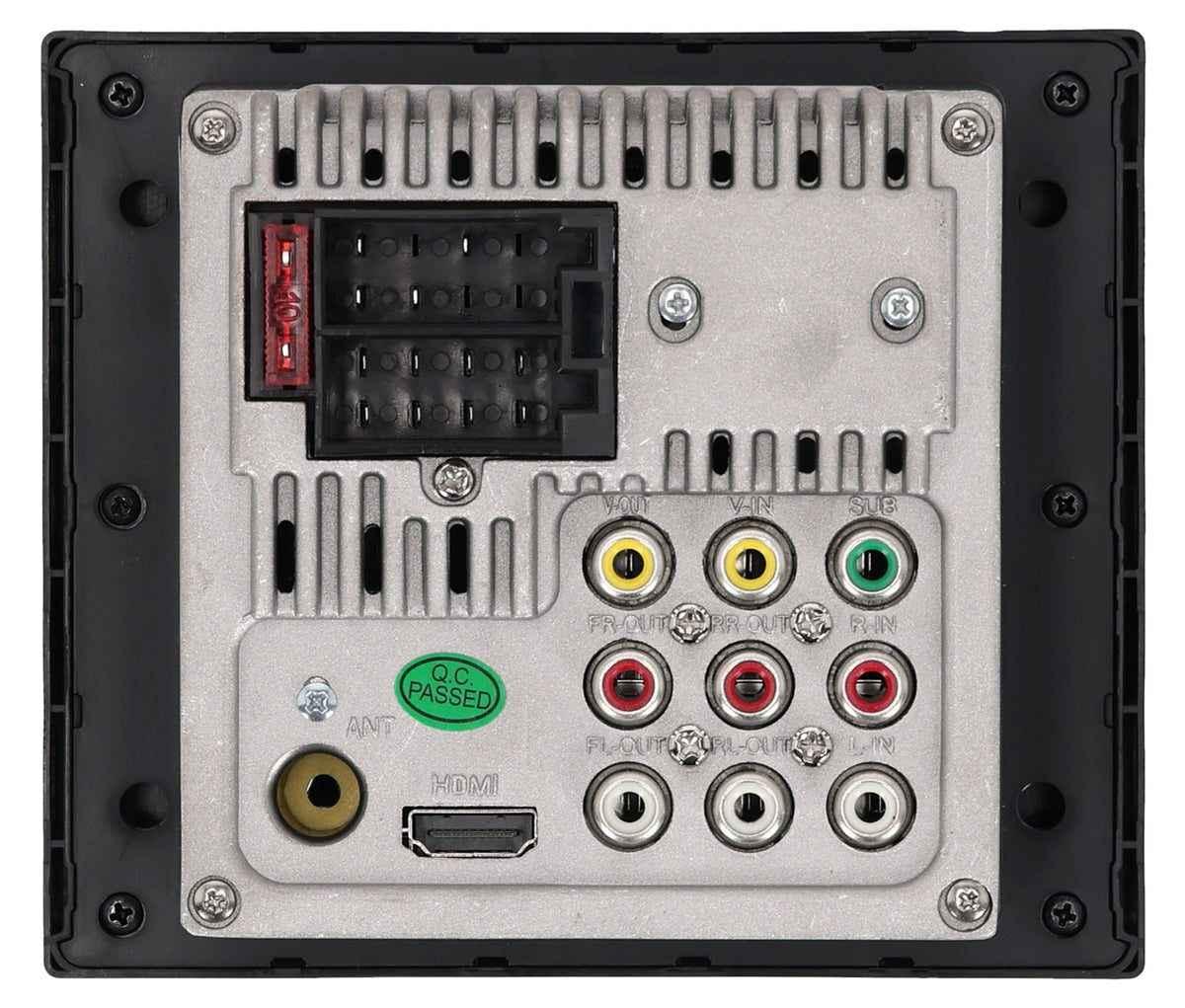

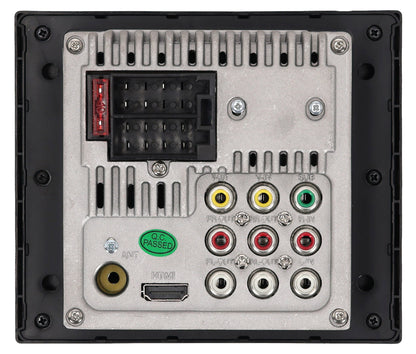

- A/V Input Rear
- RCA Video Input/Output Pass-Thru
- Pre-Amp Outputs Front, Rear, Subwoofer
- Dual-Zone A/V Output Yes
- Dual-Zone Volume Control Yes
- Memory Zero Current Draw, Retains Presets and EQ
- Equalizer Selectable Presets
- Display LCD with High/Low Backlight Control
- Additional Features Alarm Clock, Clock Display, ID3-Tag Information

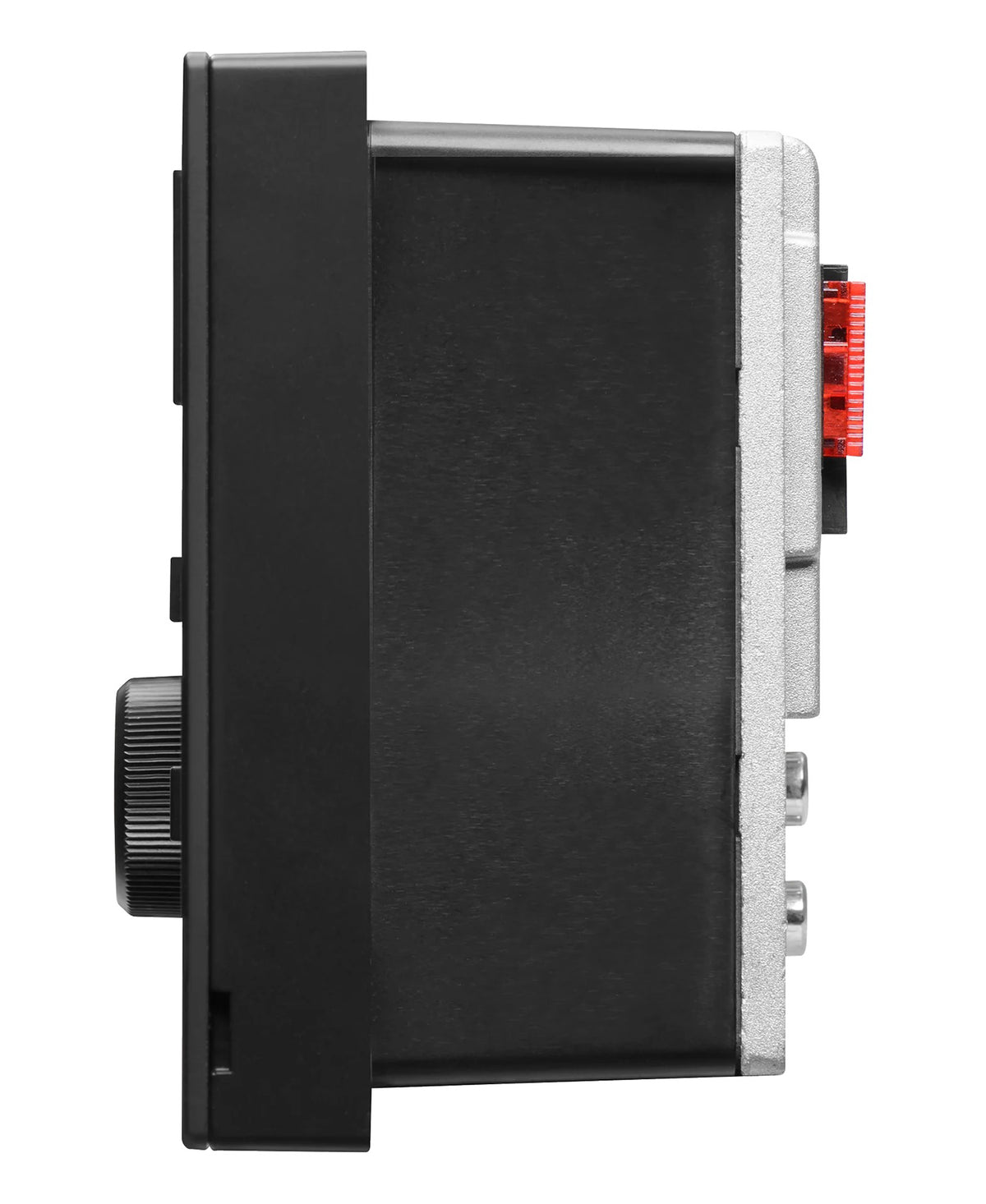

- Cutout Dimensions 3.86" W x 3.98" H x 2.64" D
