CBT 70J-1 + ATW-901a/H
CBT 70J-1 + ATW-901a/H

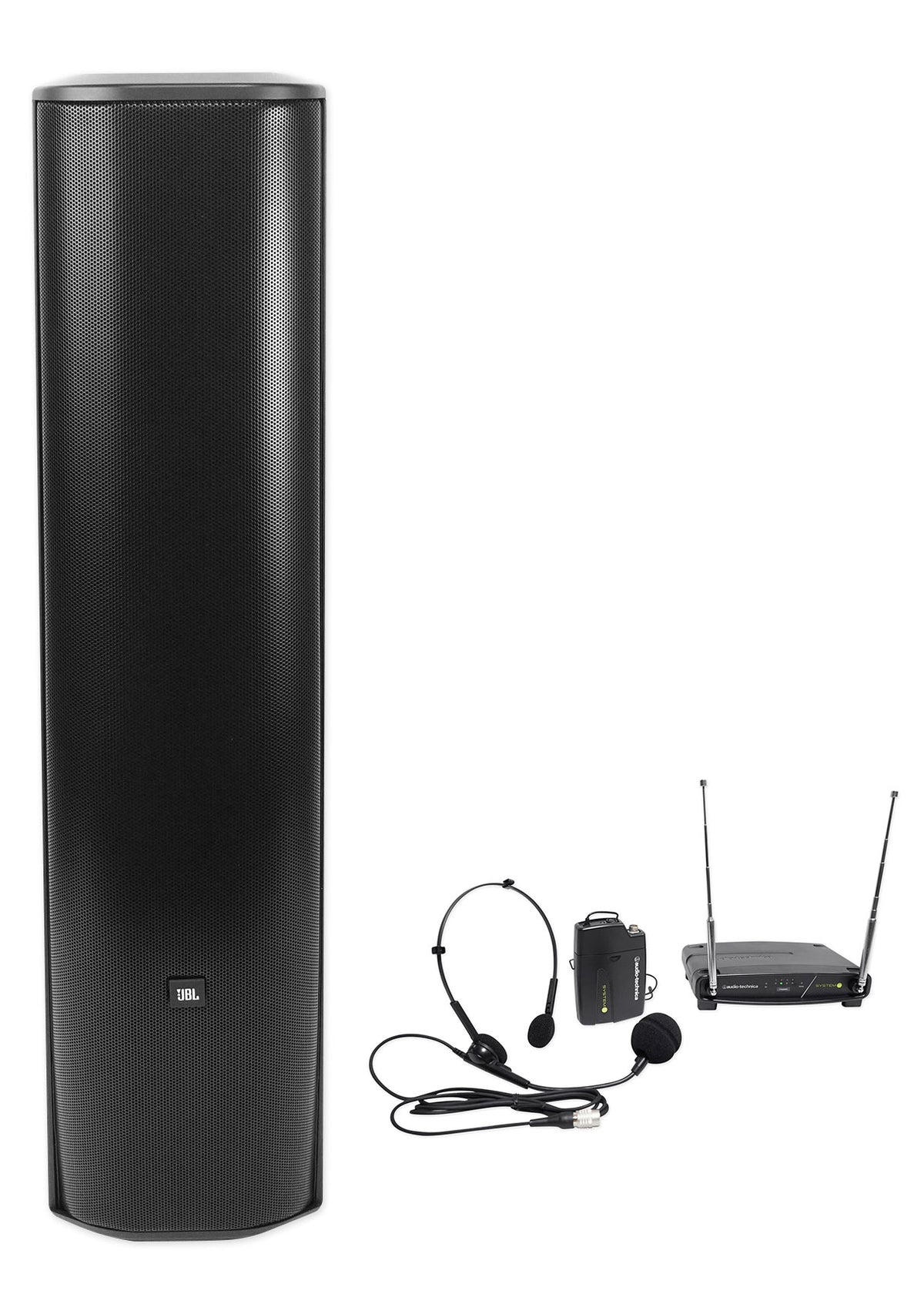

500W Line Array Column Speaker, Wireless Headset Mic System, Swivel Wall Bracket, for Churches, Classrooms, Conference Rooms
Features
- Constant Beamwidth Technology keeps vertical coverage consistent up to high frequencies
- Asymmetrical coverage pushes more sound toward the back for even front-to-back levels
- 500 W continuous power handling with sixteen 1 in tweeters and four 5 in woofers
- Wireless headset mic with 4 VHF channels and up to 200 ft of operating range
- Swivel and tilt wall bracket included for precise aiming during installation
Couldn't load pickup availability
What's Included in the box

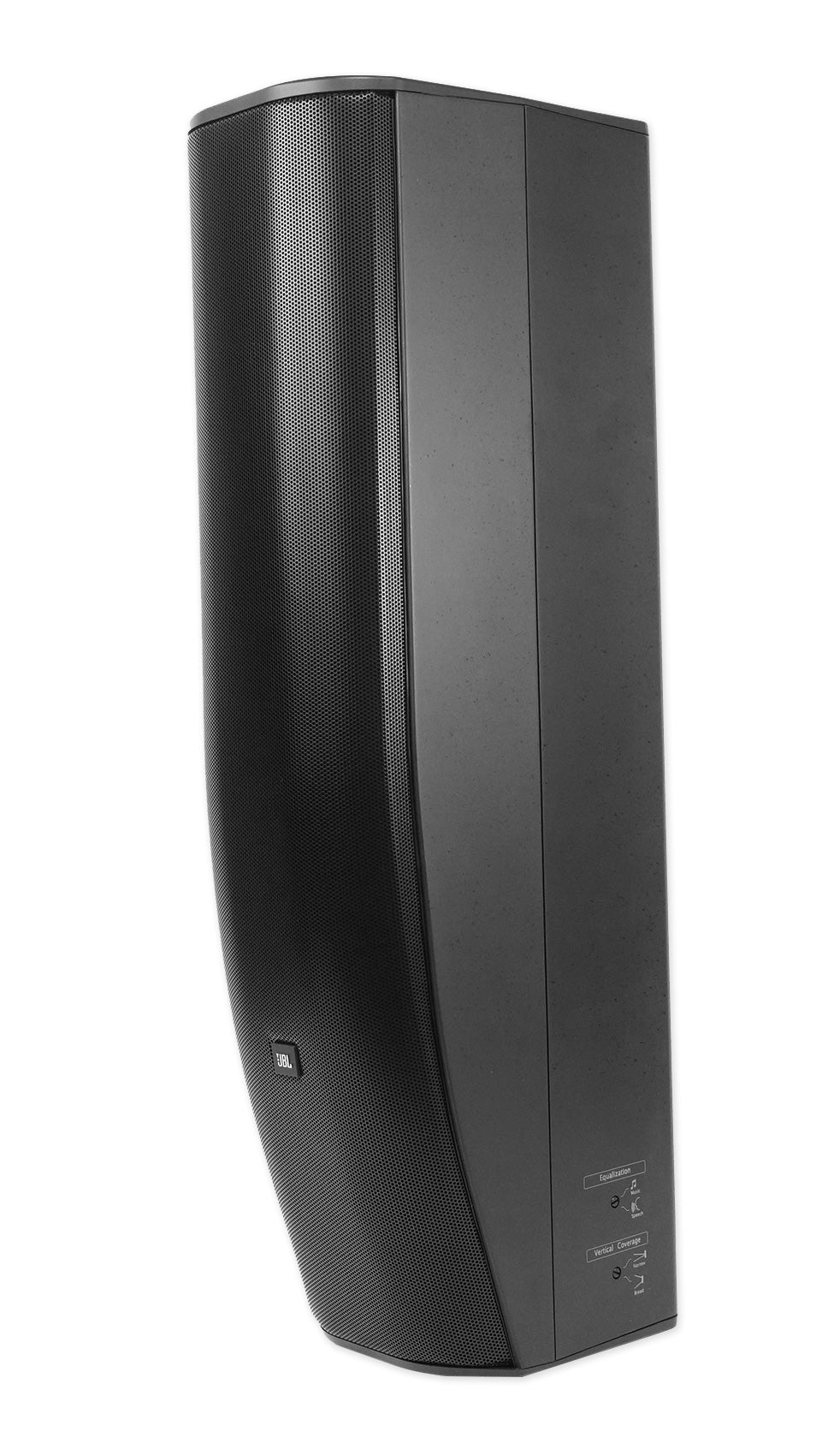

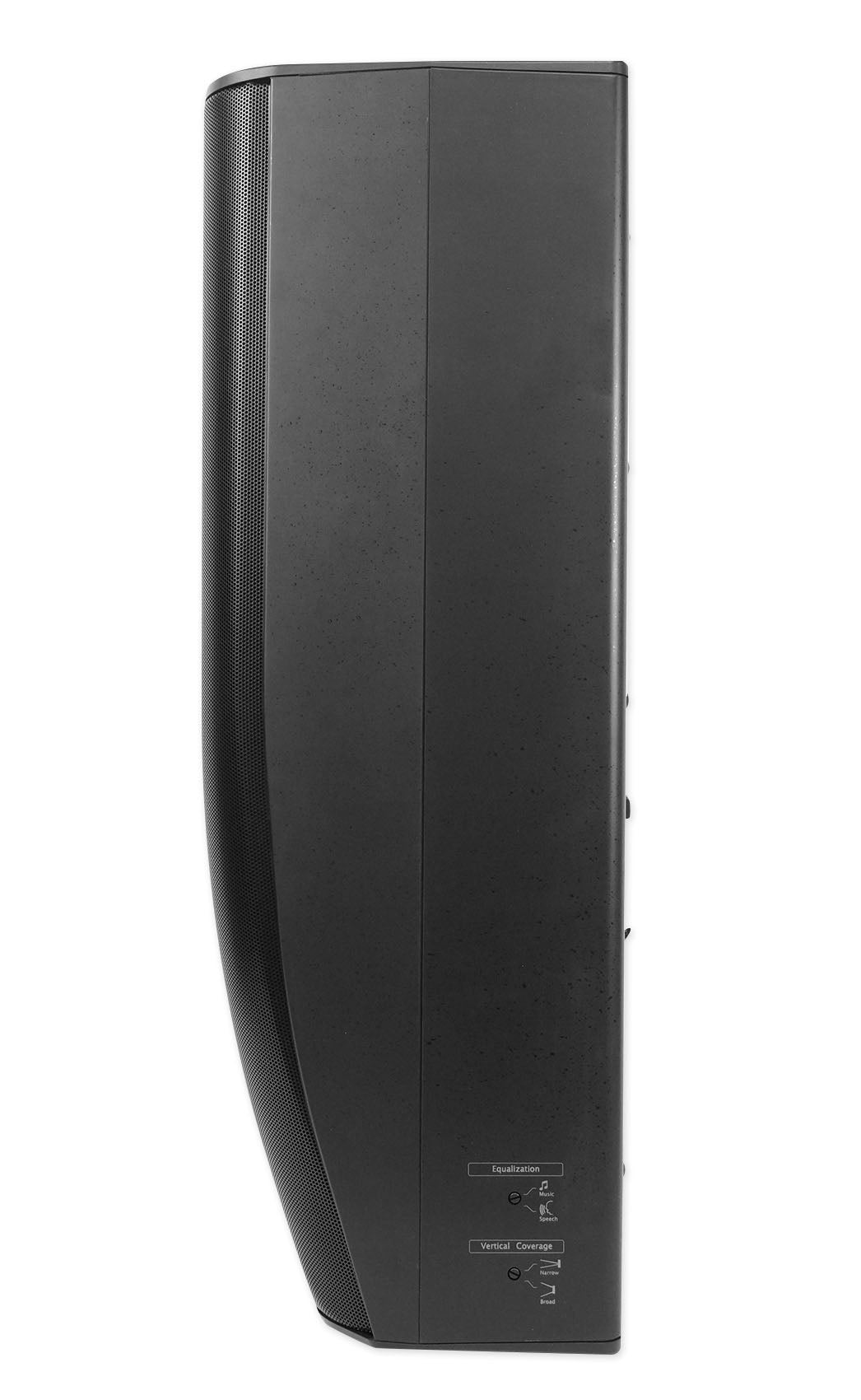

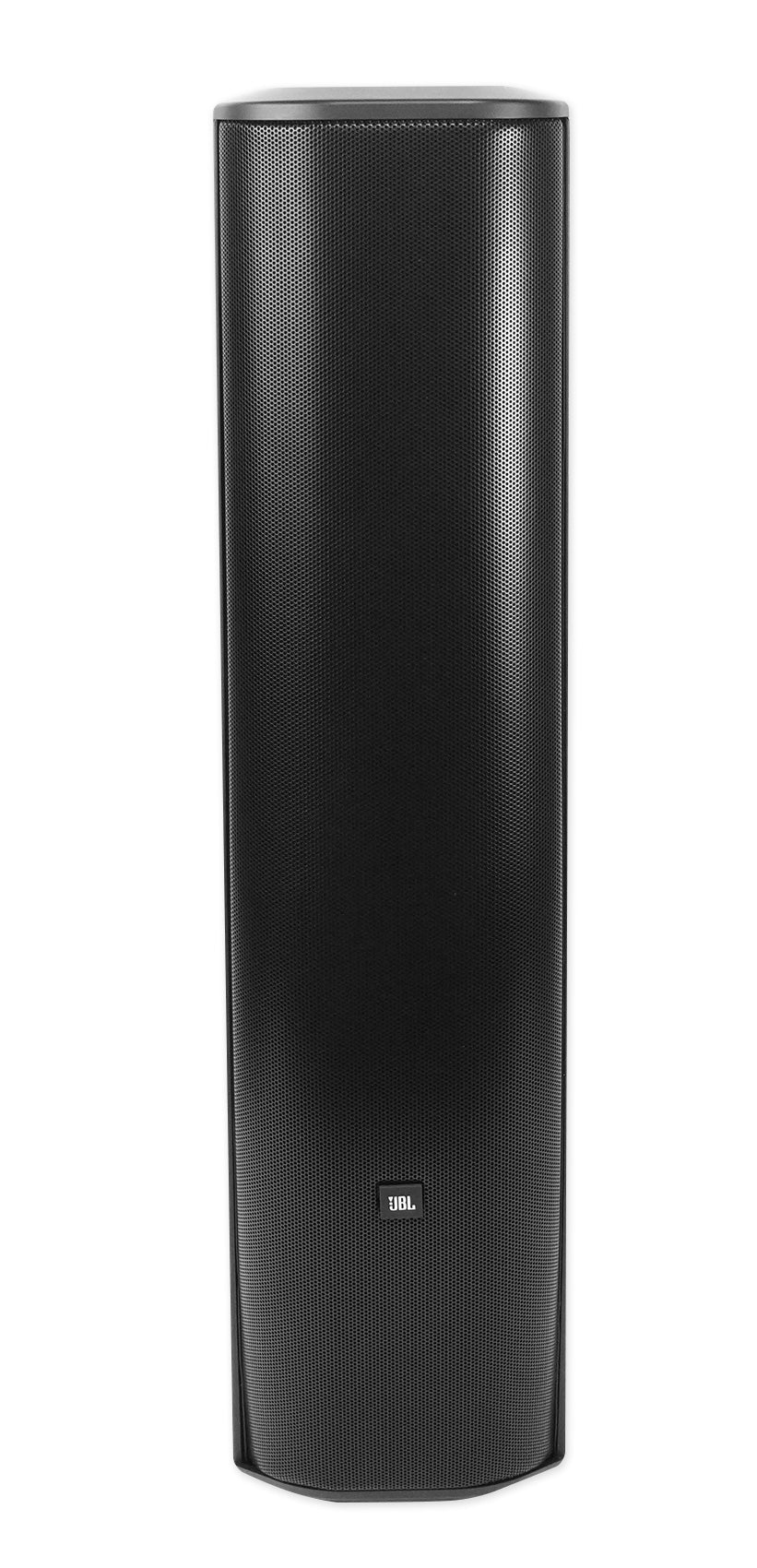

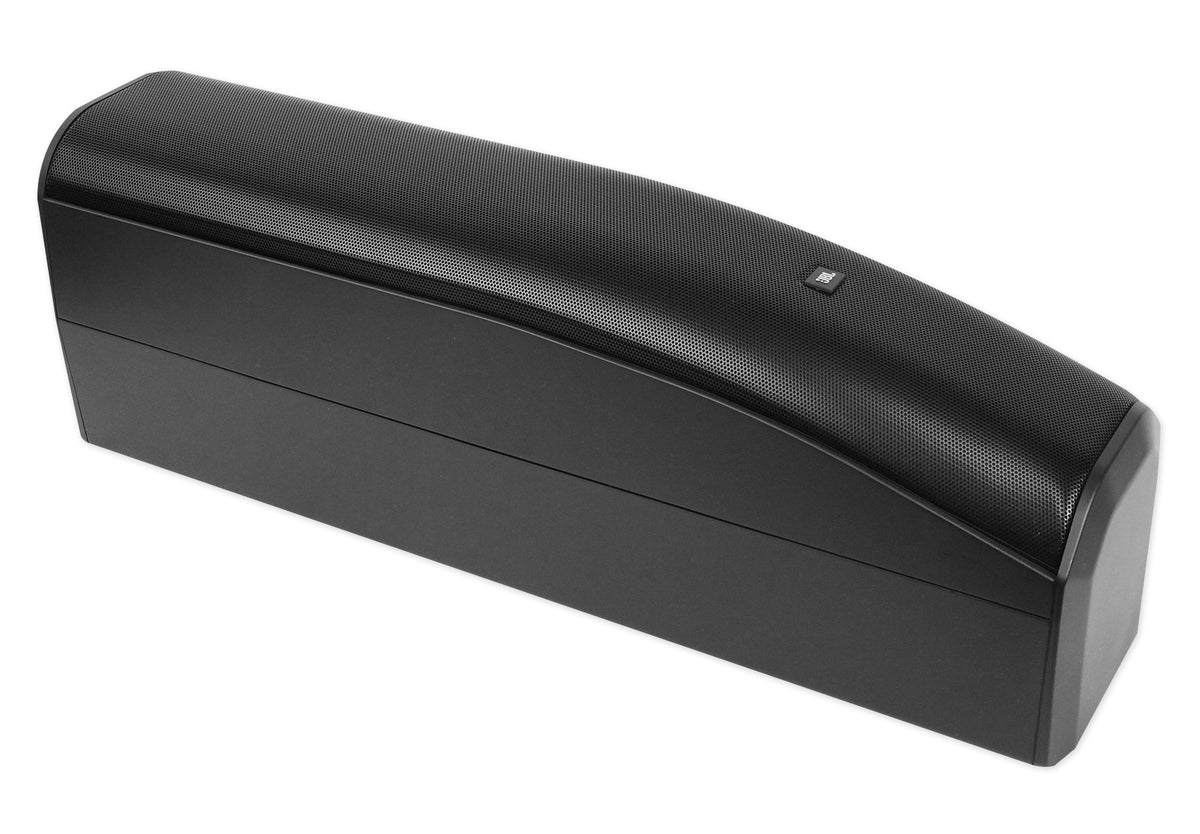

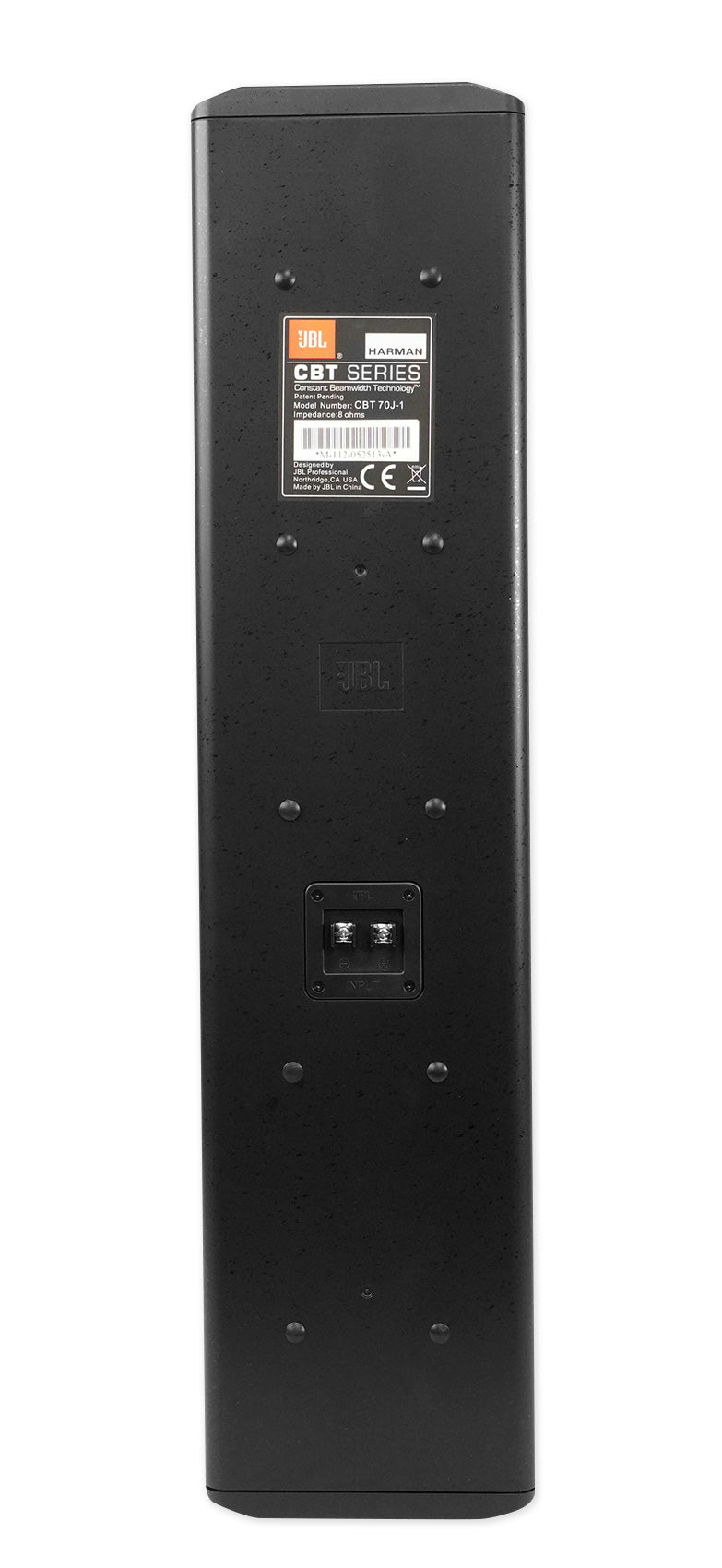

- (1) JBL CBT 70J-1 Line Array Column Speaker (Black)

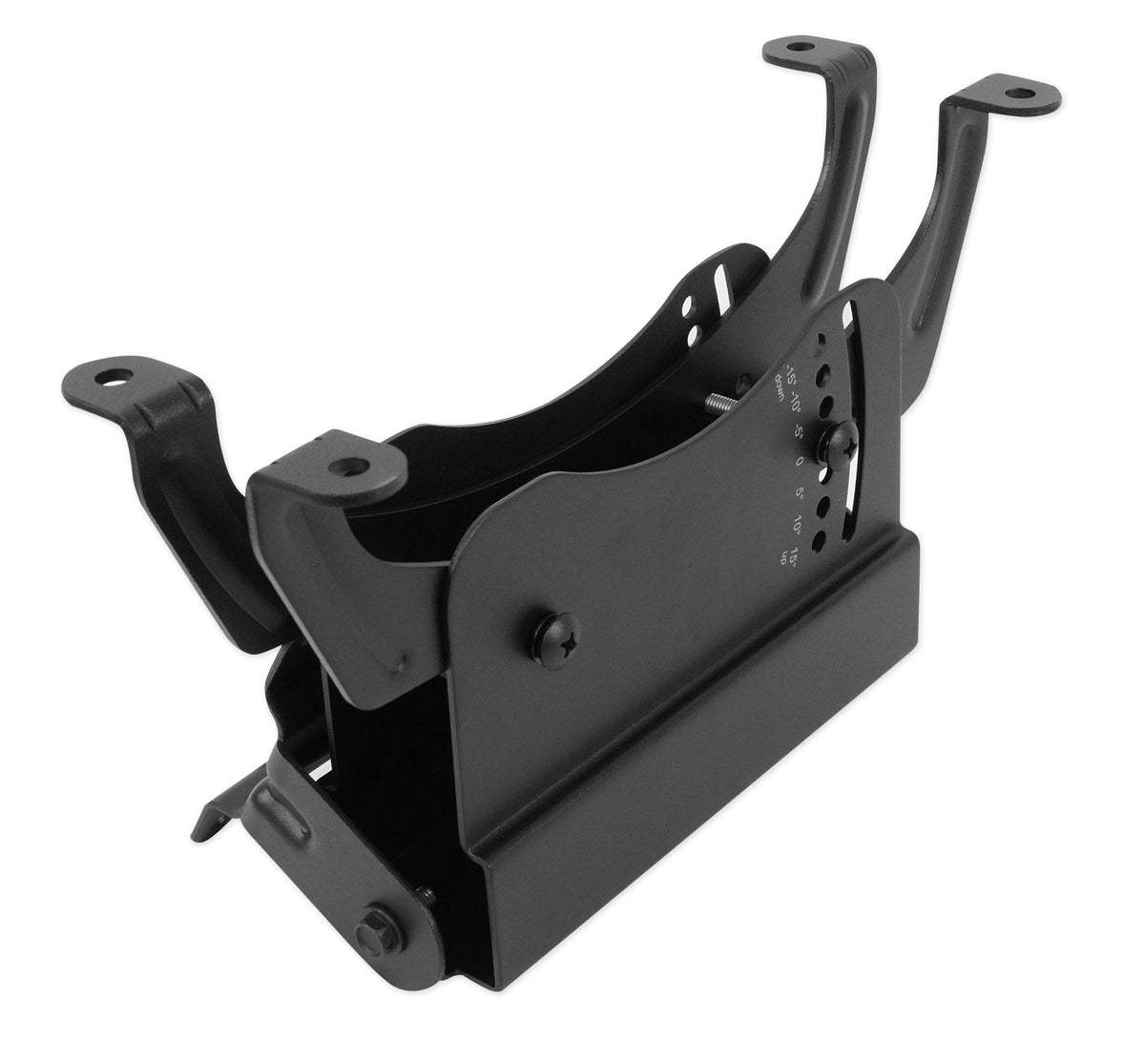

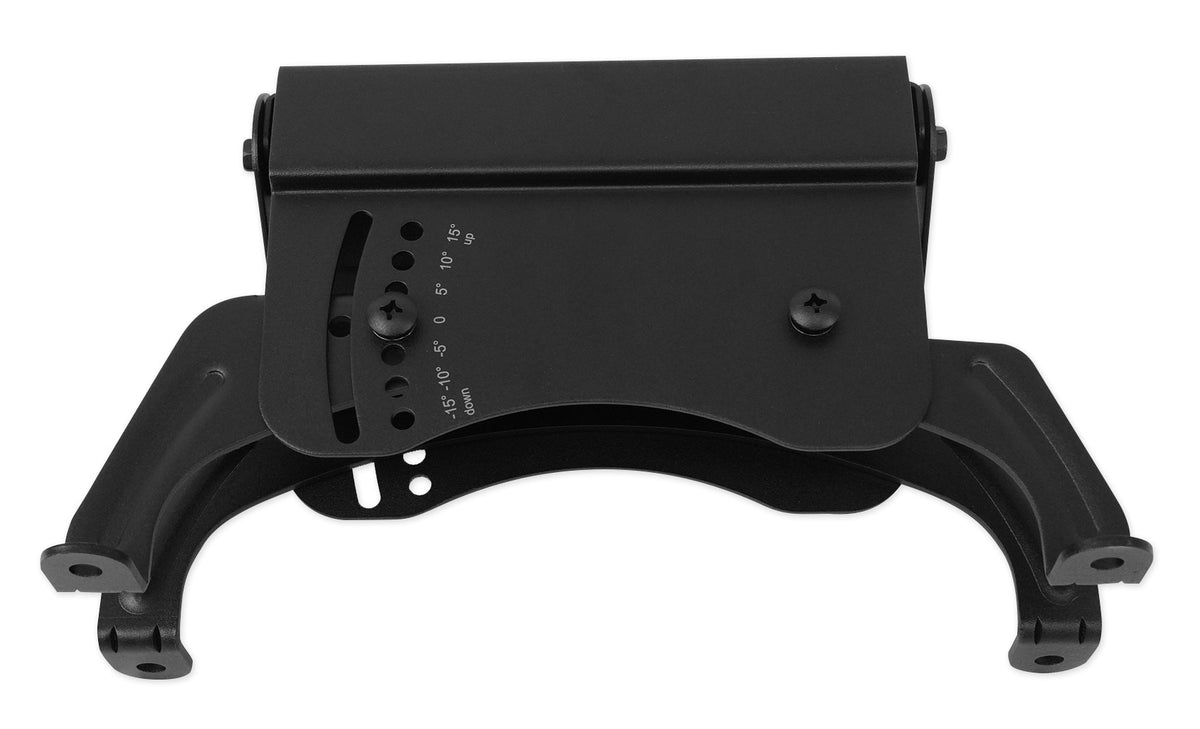

- (1) Swivel/Tilt Wall Bracket

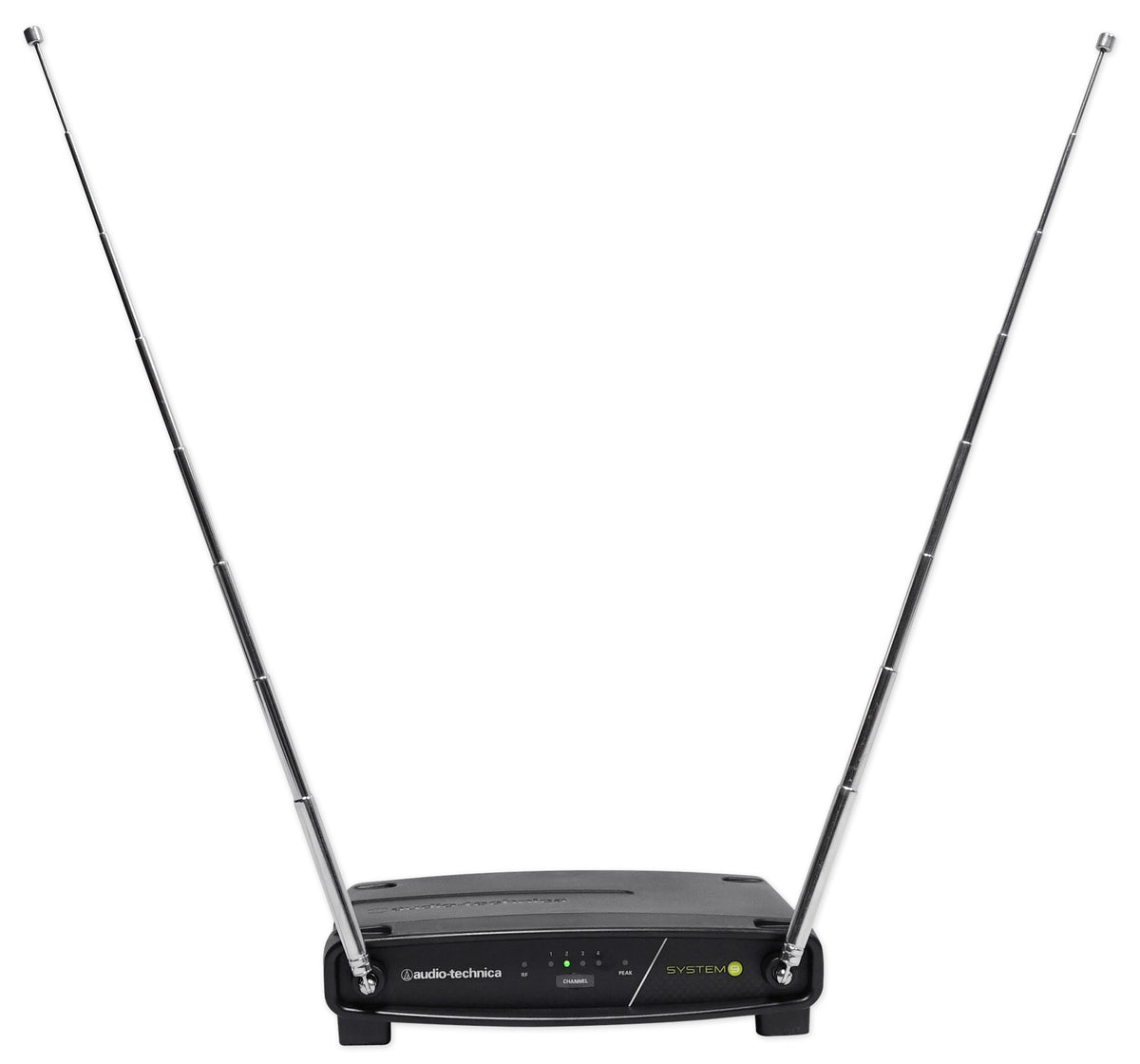

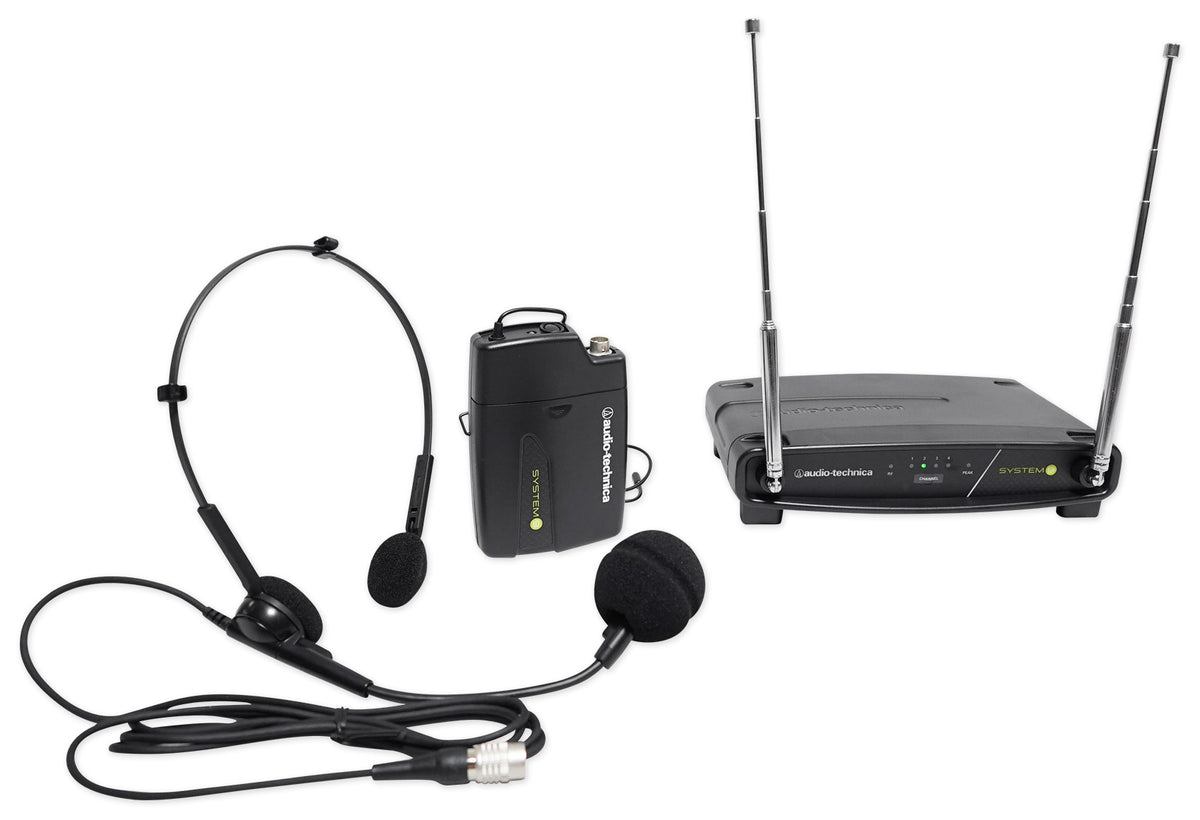

- (1) Audio-Technica ATW-R900a Wireless Receiver

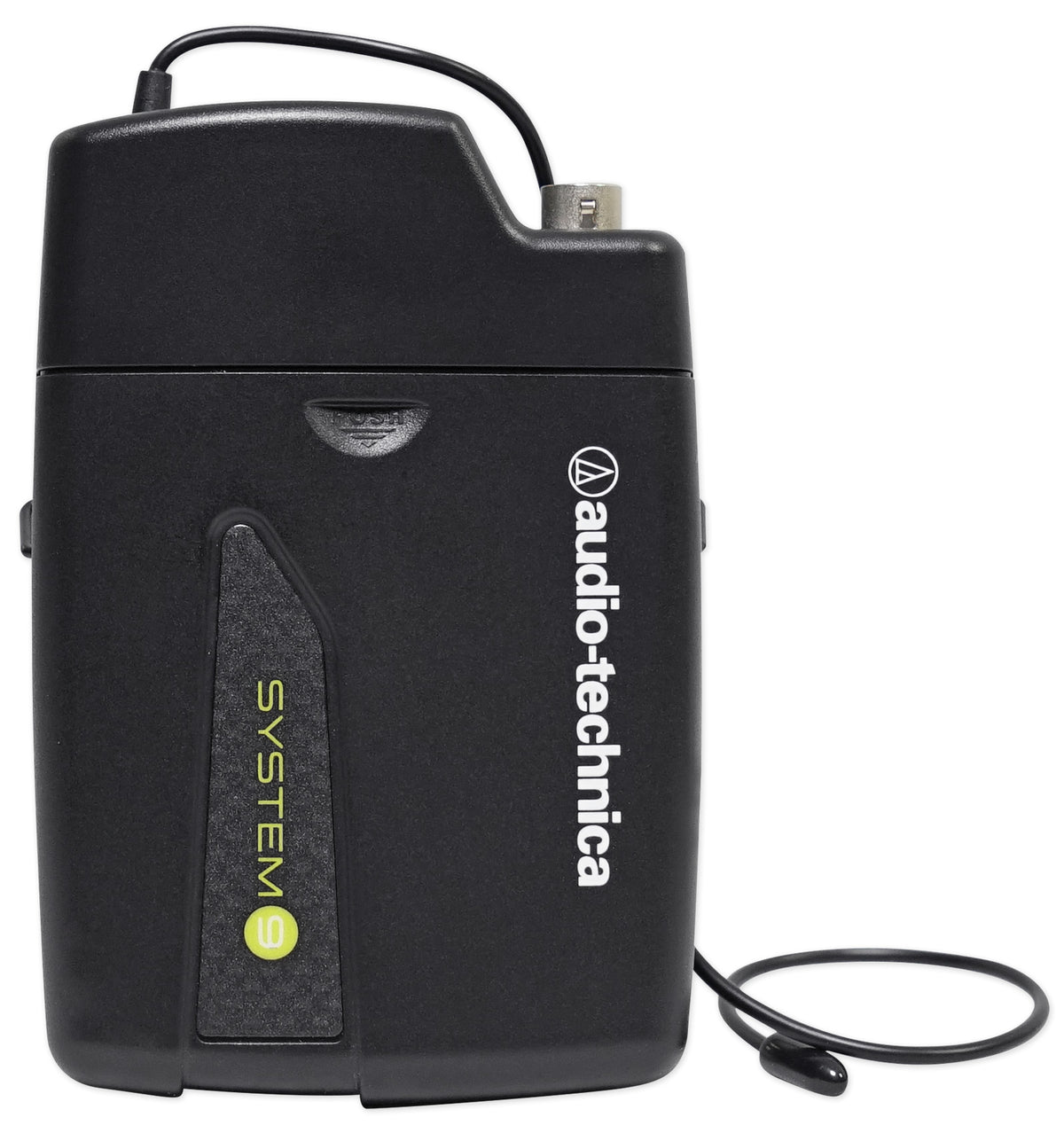

- (1) Audio-Technica Body-Pack Transmitter

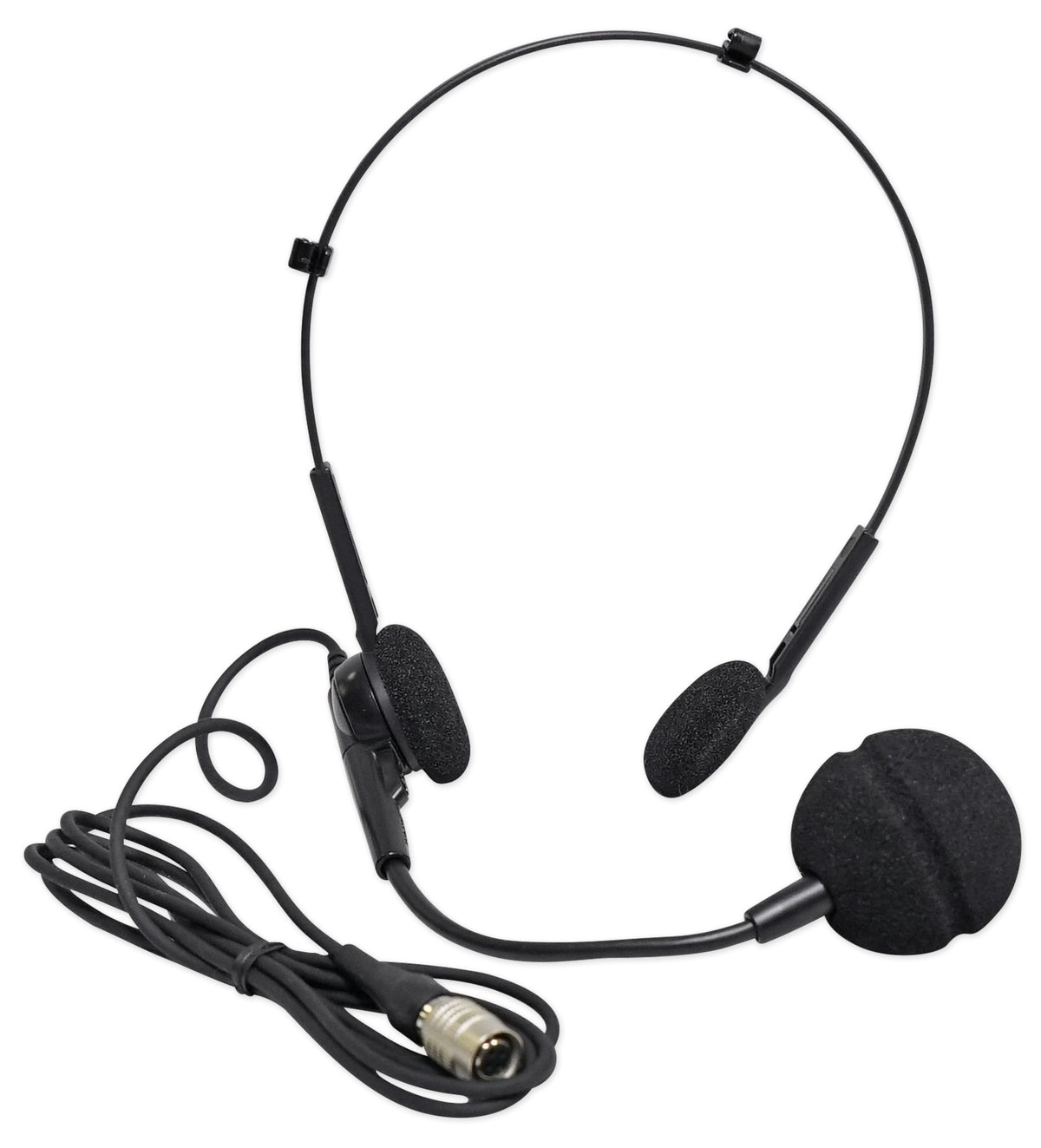

- (1) Audio-Technica Headset Microphone

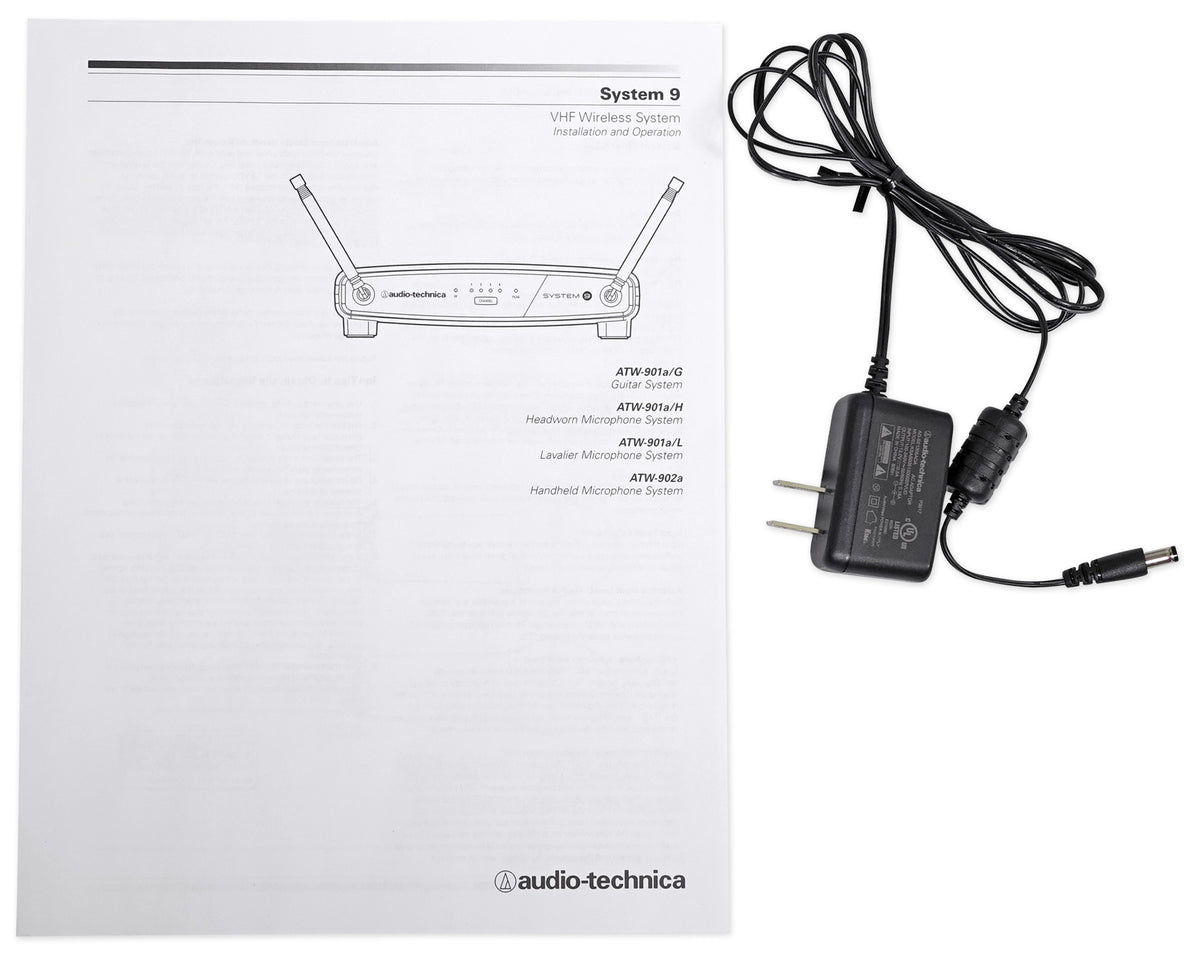

- (1) Receiver Power Supply
SKU: SKU: CBT 70J-1+ATW-901a/H
View full details


















Product Description

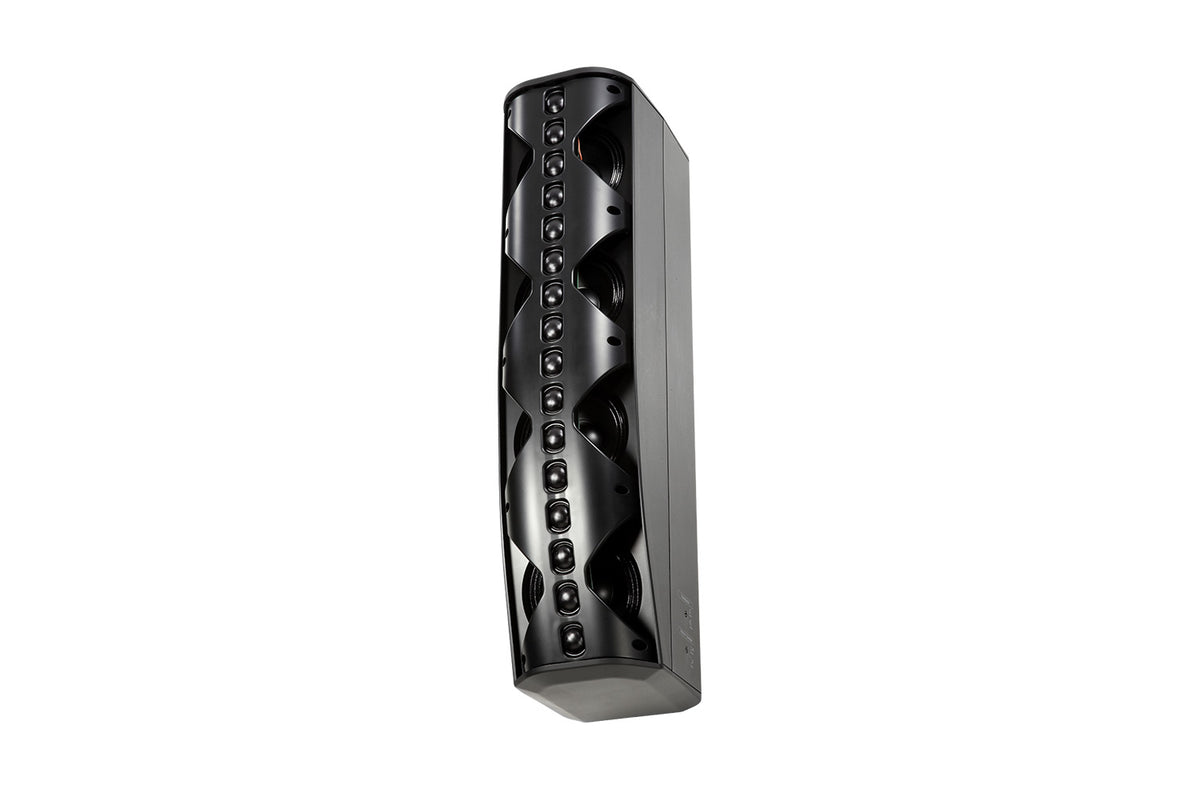

The CBT 70J-1 uses Constant Beamwidth Technology to hold consistent vertical coverage up to the highest frequencies, and its asymmetrical pattern sends more sound toward the back of the room so the last row hears nearly as well as the first. Sixteen 1 in soft dome tweeters and four 5 in low-frequency drivers handle 500 W continuous (2000 W peak). One switch sets vertical coverage to 45° for medium throw or 25° for long throw, and another flips voicing between flat music mode and a speech mode with a mid-range presence peak that helps the spoken word cut through. The included swivel and tilt wall bracket gives up to ±80° of pan and ±15° of tilt for precise aiming.
On the wireless side, System 9 offers four frequency-coordinated VHF channels between 169.505 and 171.905 MHz, up to 200 ft of operating range, and a body-pack transmitter that runs about 8 hours on two AA batteries. A pastor, teacher, or presenter can walk the stage or the aisle and still be heard clearly in every seat.
Features
Even Coverage Front to Back
Constant Beamwidth Technology and an asymmetrical vertical pattern send more sound toward the far end of the room, so back rows hear speech nearly as clearly as the front.
Hands-Free Wireless Speech
The ATW-901a/H headset and body-pack transmitter give presenters up to 200 ft of range on four VHF channels, leaving both hands free for notes, slides, or gestures.
Tuned for Speech or Music
Switchable voicing moves between flat music response and a speech mode with a mid-range presence peak, keeping sermons, lectures, and announcements intelligible in reverberant rooms.
Adjustable Throw Distance
Choose 45° vertical coverage for medium-throw rooms or 25° for long-throw spaces, matching the column's pattern to your venue without swapping any hardware.
Flexible Wall Mounting
The included swivel and tilt bracket offers up to ±80° of pan and ±15° of tilt, letting installers aim the column right where the audience sits.
Technical Specifications
- Product Type Line Array Column Speaker and Wireless Headset Microphone Bundle
- Speaker Drivers Four 5 in LF drivers, sixteen 1 in soft dome HF drivers
- Speaker Power Rating 500 W continuous (2000 W peak)
- Speaker Frequency Range (-10 dB) 60 Hz to 20 kHz
- Speaker Impedance 8 ohms
- Vertical Coverage Switchable 25° (long throw) or 45° (medium throw)
- Horizontal Coverage 150°
- Max SPL (1 m) Up to 125 dB continuous (131 dB peak), narrow speech mode
- Voicing Switchable music or speech mode
- Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
- Mounting Swivel/tilt wall bracket, ±80° pan, ±15° tilt
- Speaker Color Black
- Wireless System Audio-Technica System 9 VHF
- Operating Frequencies 169.505 to 171.905 MHz
- Channels 4 selectable, frequency-coordinated
- Operating Range 200 ft
- Wireless Frequency Response 80 Hz to 13 kHz
- Receiver Outputs Balanced XLR, unbalanced 1/4"
- Transmitter Batteries Two AA (not included)
- Battery Life 8 hours (alkaline)
- Weight Speaker: 21 lb, Receiver: 12.0 oz, Transmitter: 2.8 oz
- Dimensions Speaker: 27.4 x 6.7 x 9.3 in (H x W x D), Receiver: 7.48 x 1.82 x 5.06 in (W x H x D), Transmitter: 2.76 x 4.08 x 0.98 in (W x H x D)
