CF1840JD

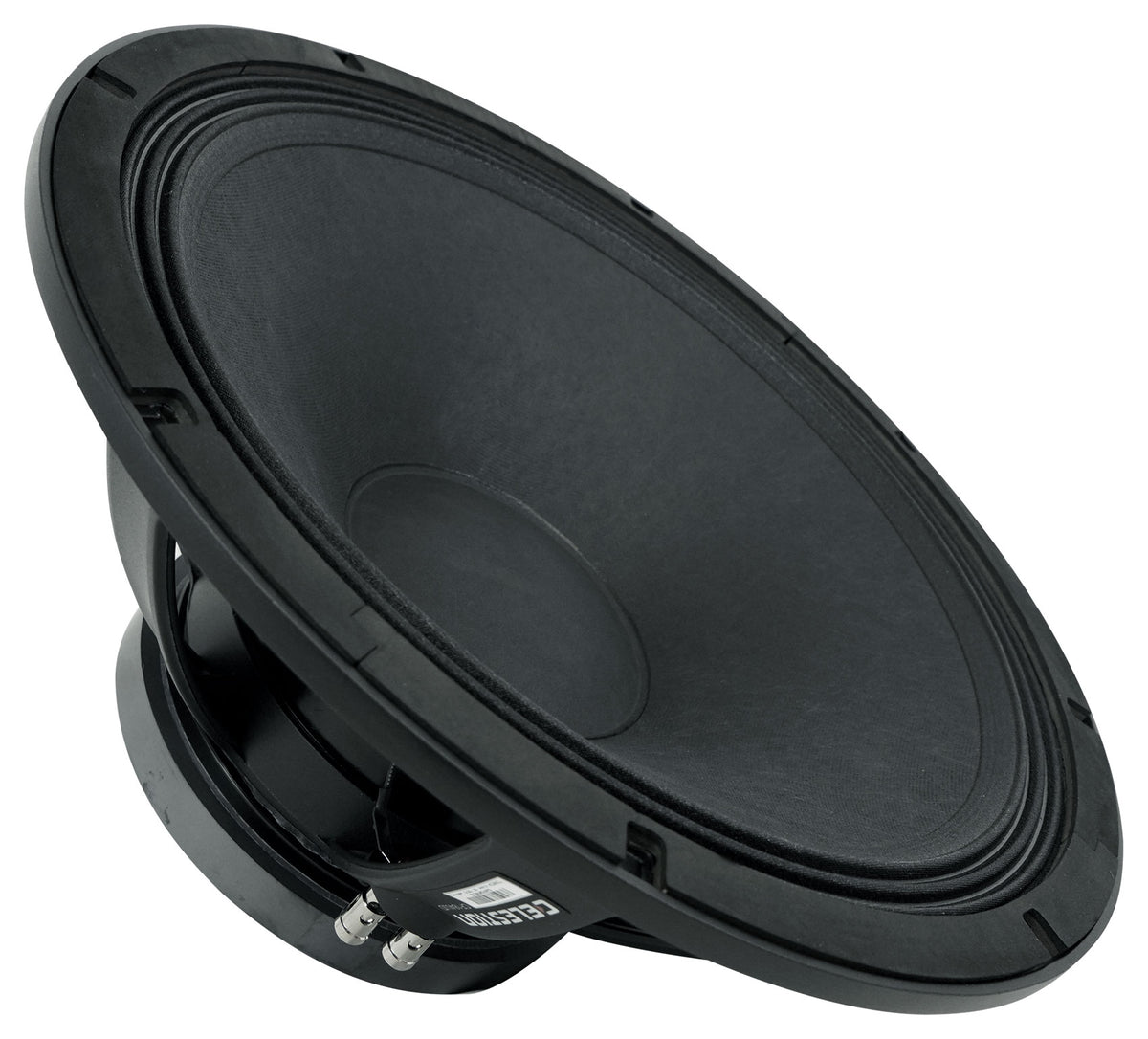

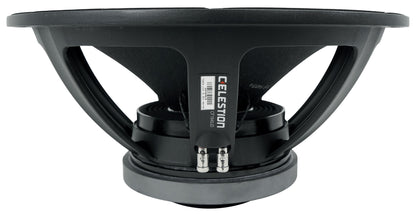

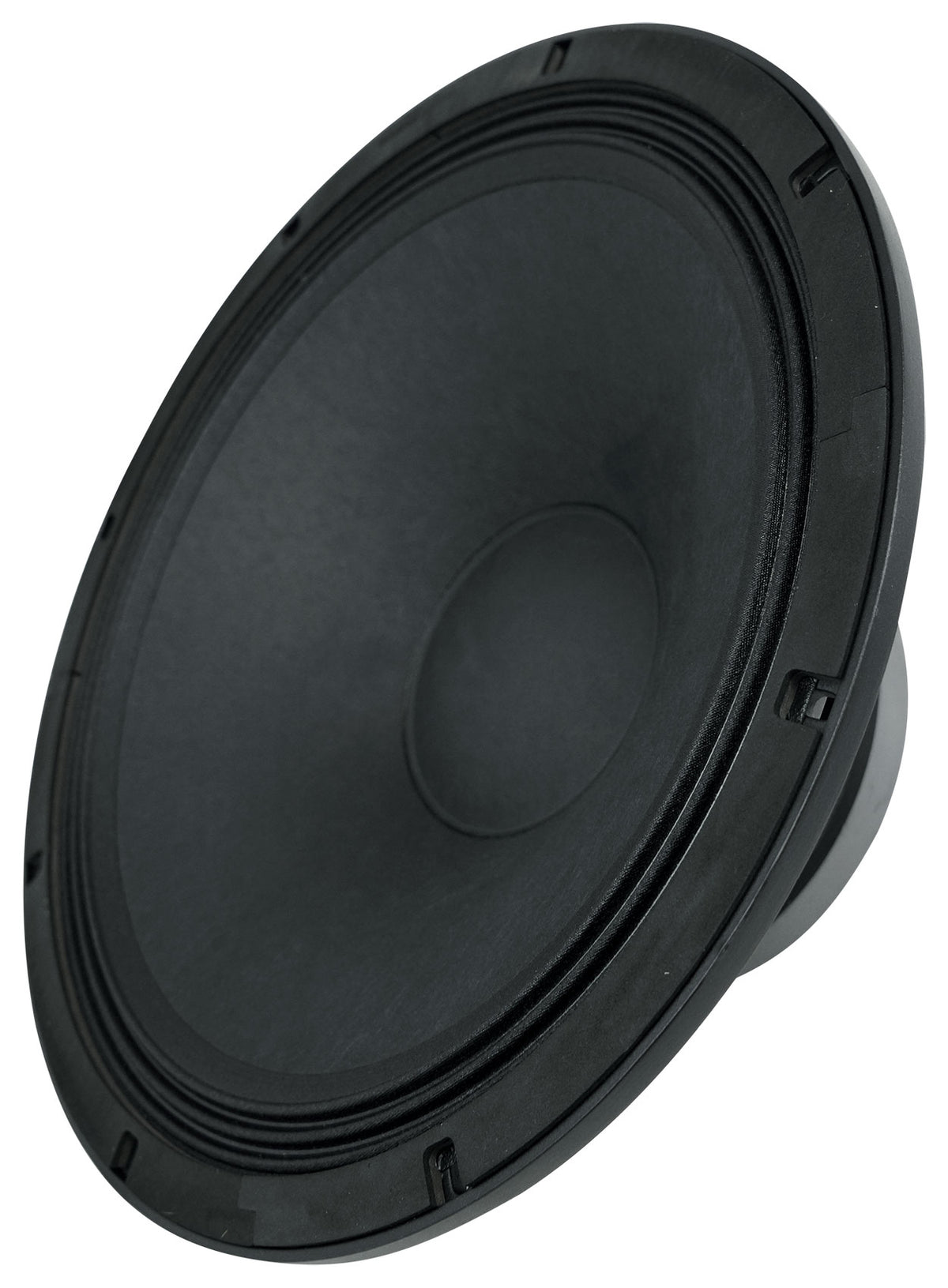

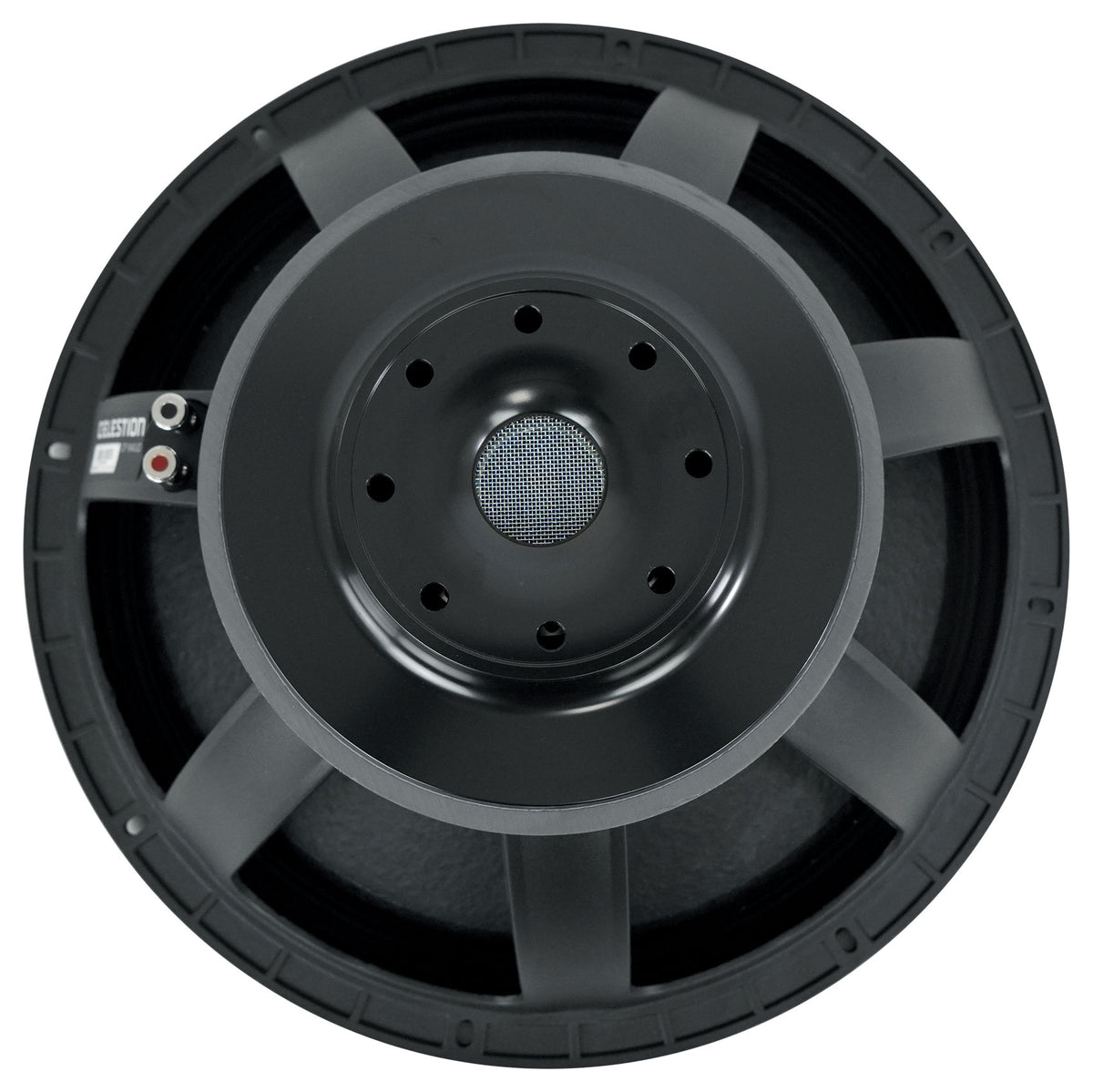

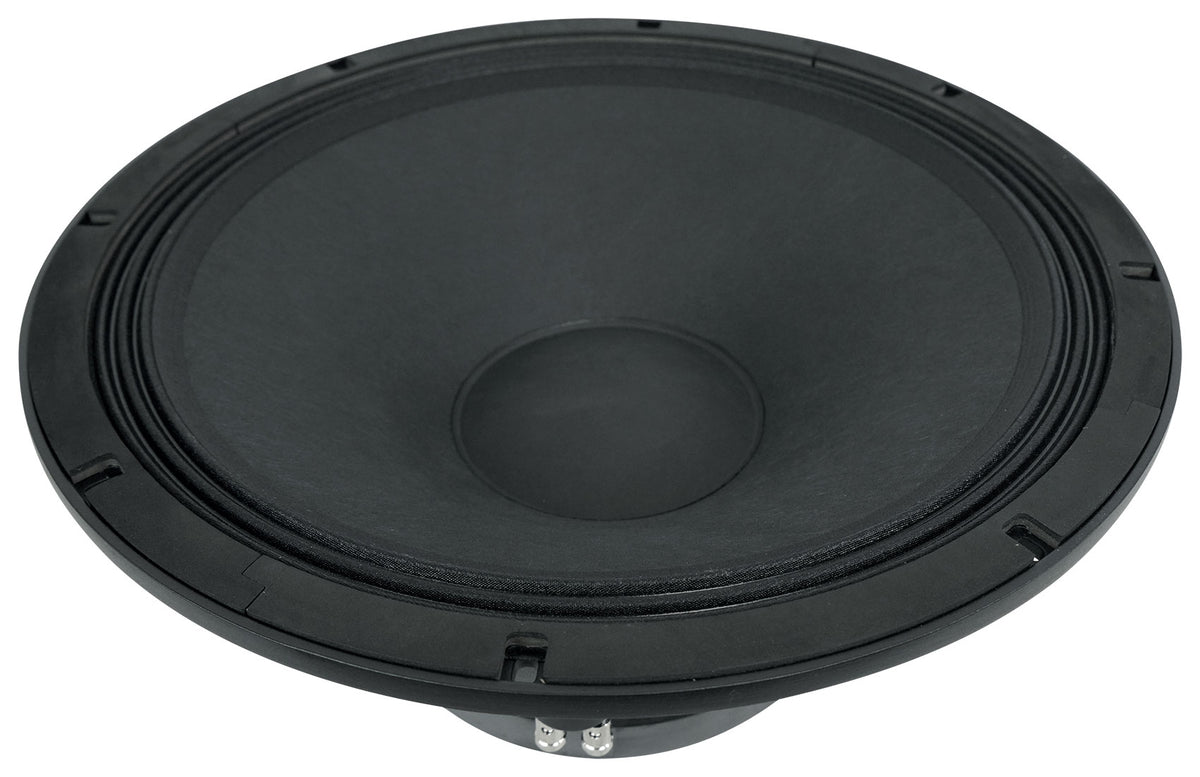

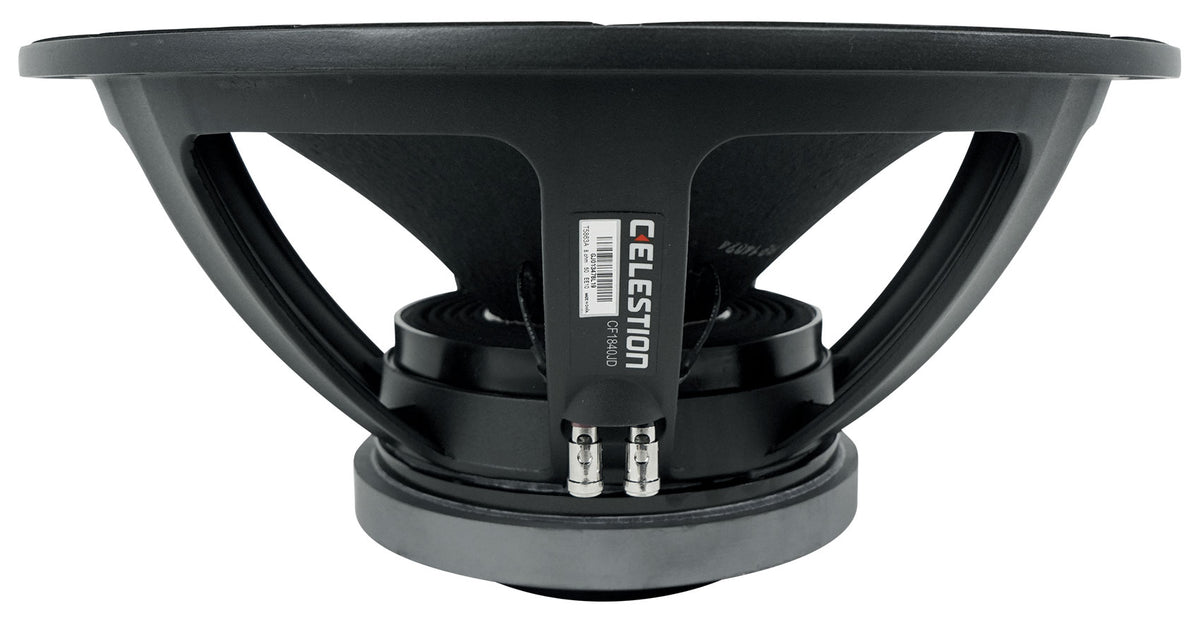

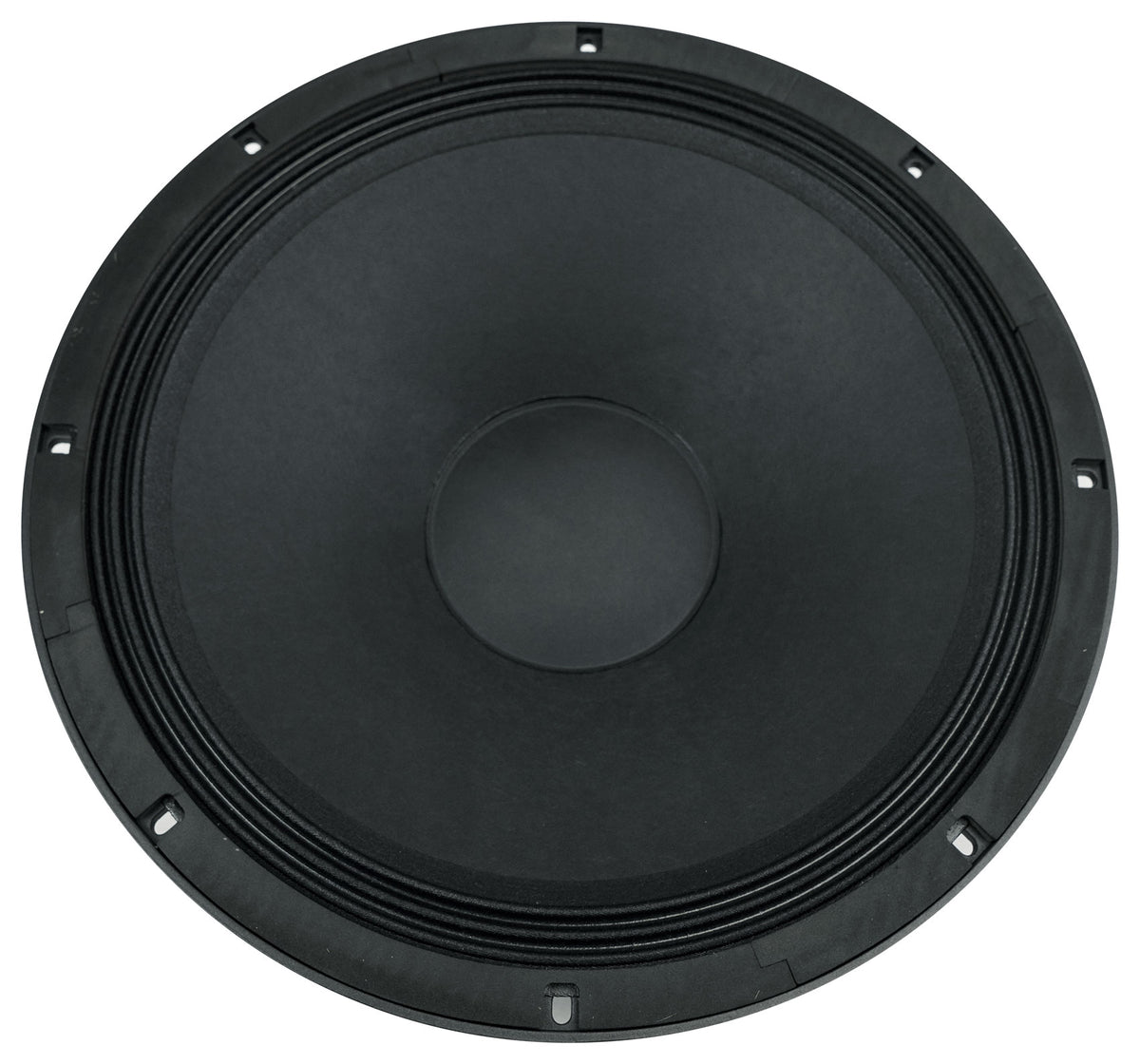

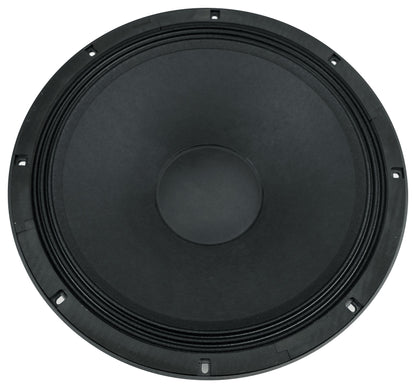

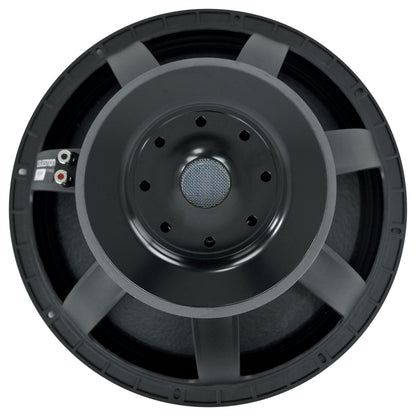

The Celestion CF1840JD is an 18-inch woofer for high-output subwoofer cabinets. It handles 1,200W AES and 2,400W continuous into 8 Ohm, with 97dB sensitivity and a 30Hz to 2,500Hz range, so it reaches into kick and synth bass territory while staying controlled at concert levels. A 100mm copper voice coil on a glass fibre former sits in a motor with balanced airflow venting, which moves heat out of the gap during long sets and keeps power compression in check. Twin demodulation rings reduce inductance-related distortion, so low notes stay defined rather than turning into one thick rumble. The Kevlar loaded paper cone with a cloth-sealed surround and optimised double suspension holds alignment through 12.5mm of Xmax, which is what keeps a reflex or horn-loaded box clean when you push it. A cast aluminium chassis resists flex under high excursion and adds stiffness in a heavy cabinet. Unit weight is 25.5 lb, low for an 18 of this output, which helps when a two-person crew is loading subs. Thiele-Small parameters (Fs 37Hz, Qts 0.397, Vas 155 litres) suit vented designs for live sound, DJ rigs, and touring PA. Also available in 4 Ohm.
