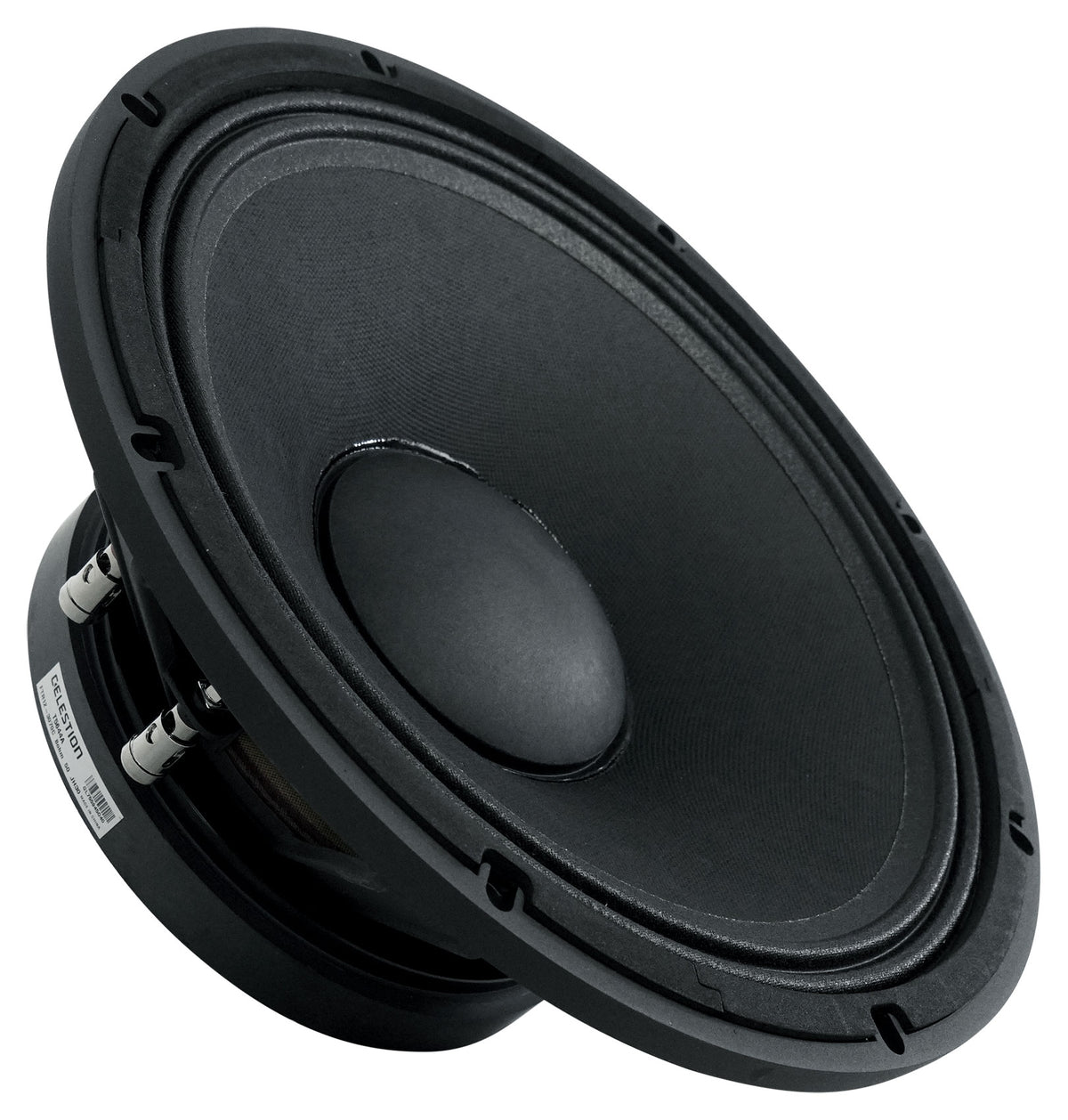

FTR12-3070C

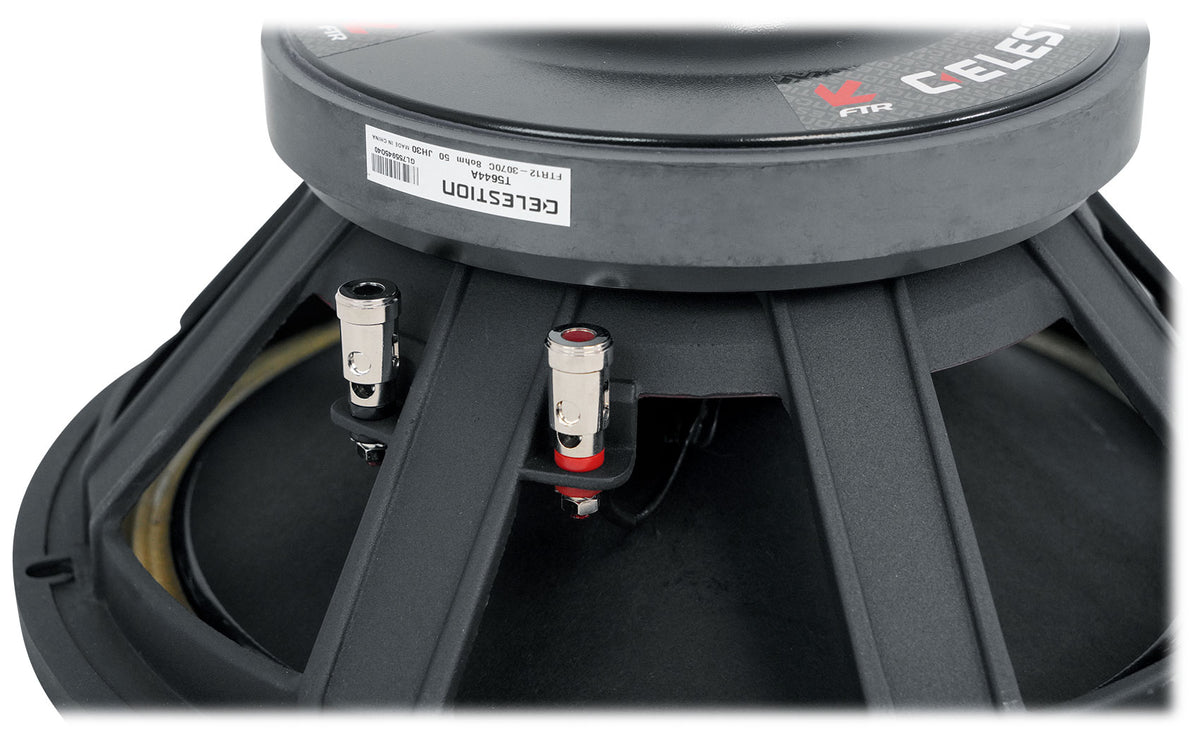

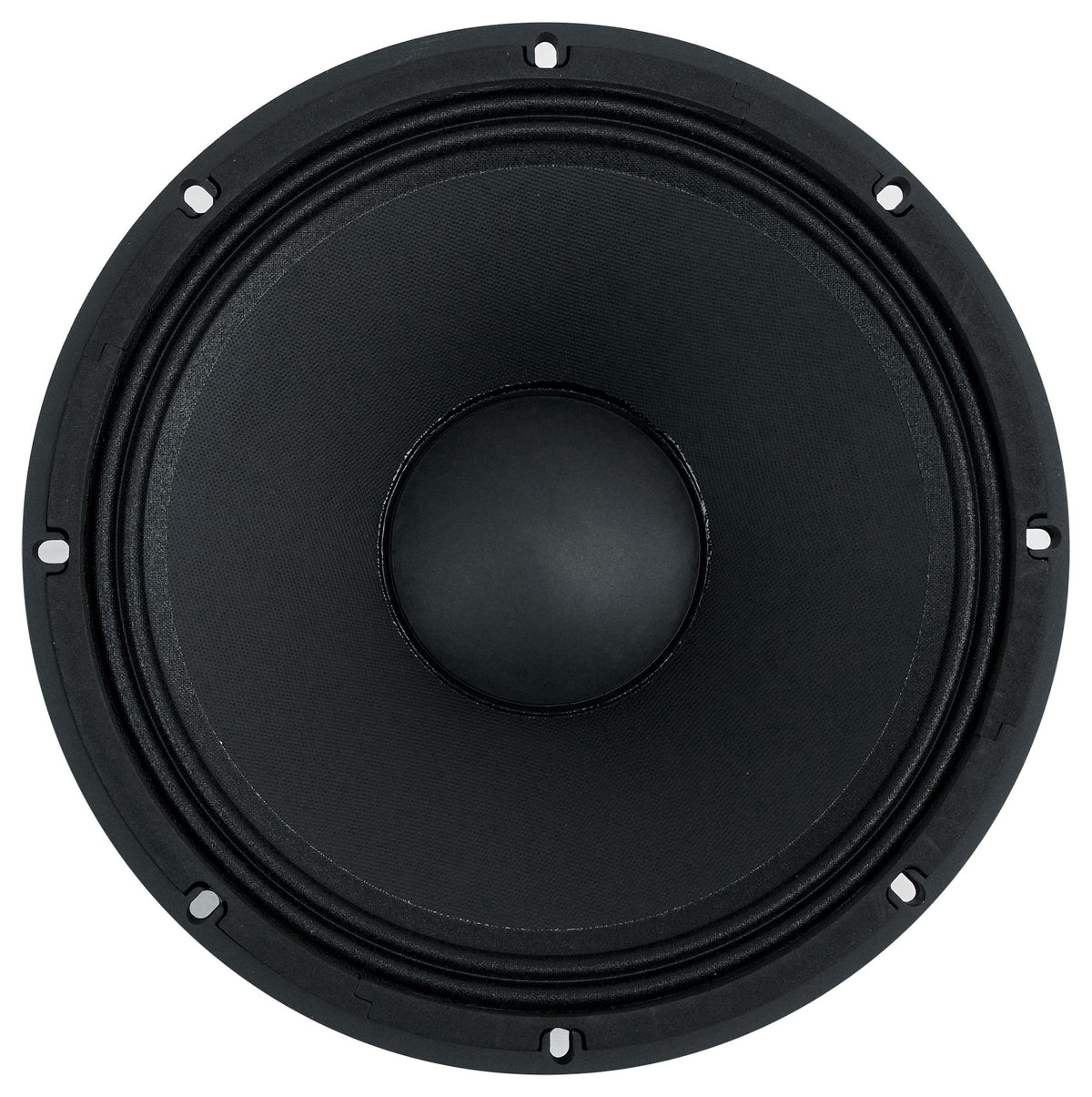

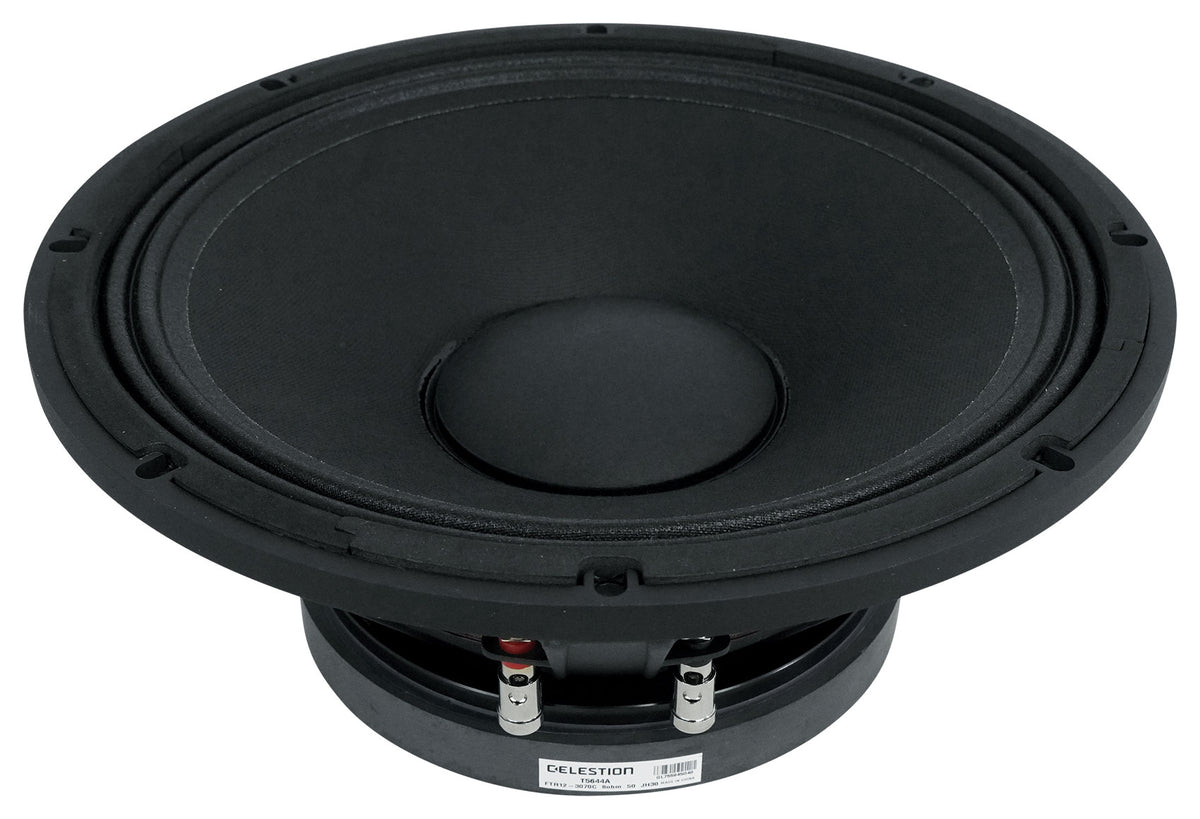

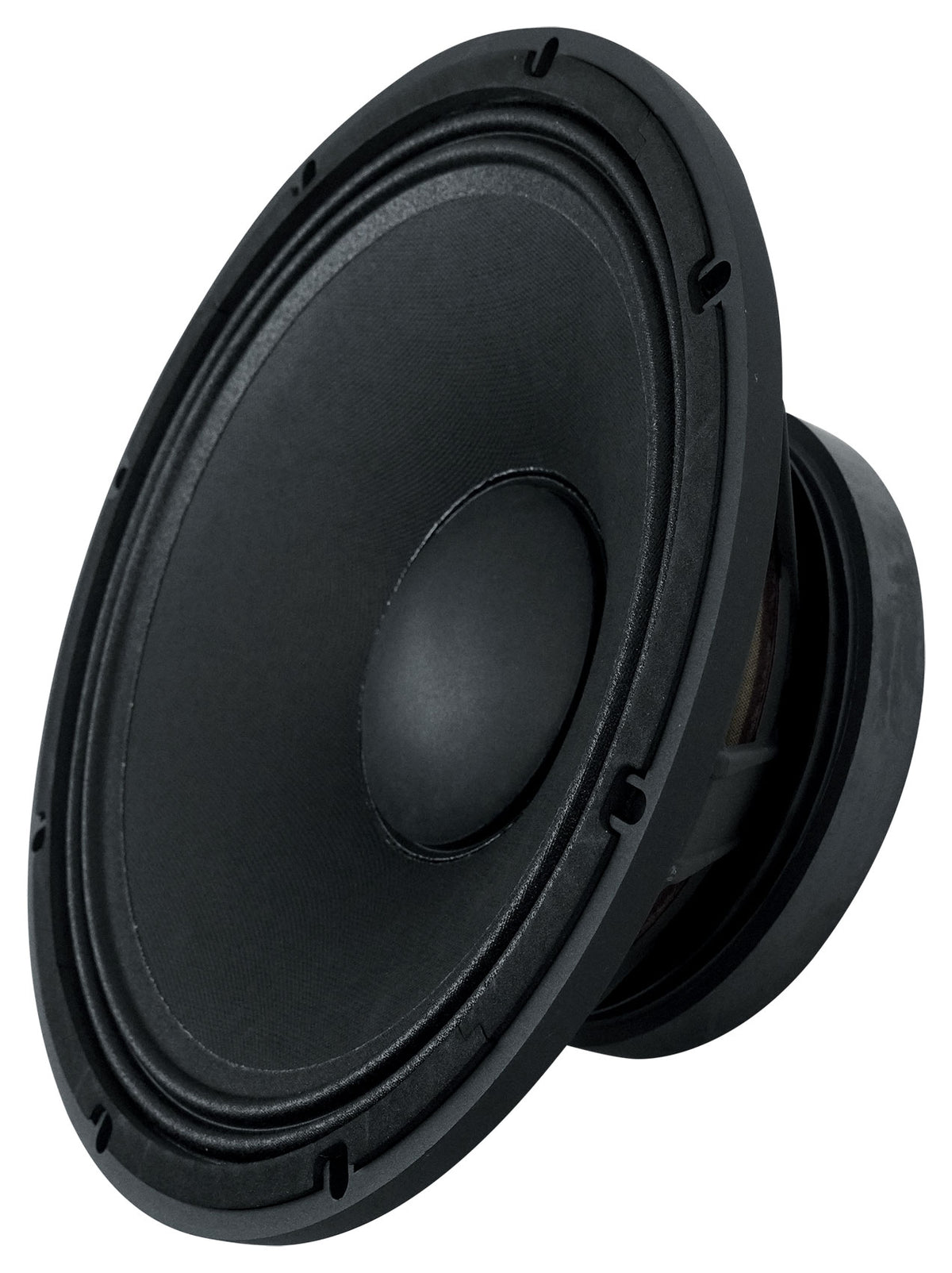

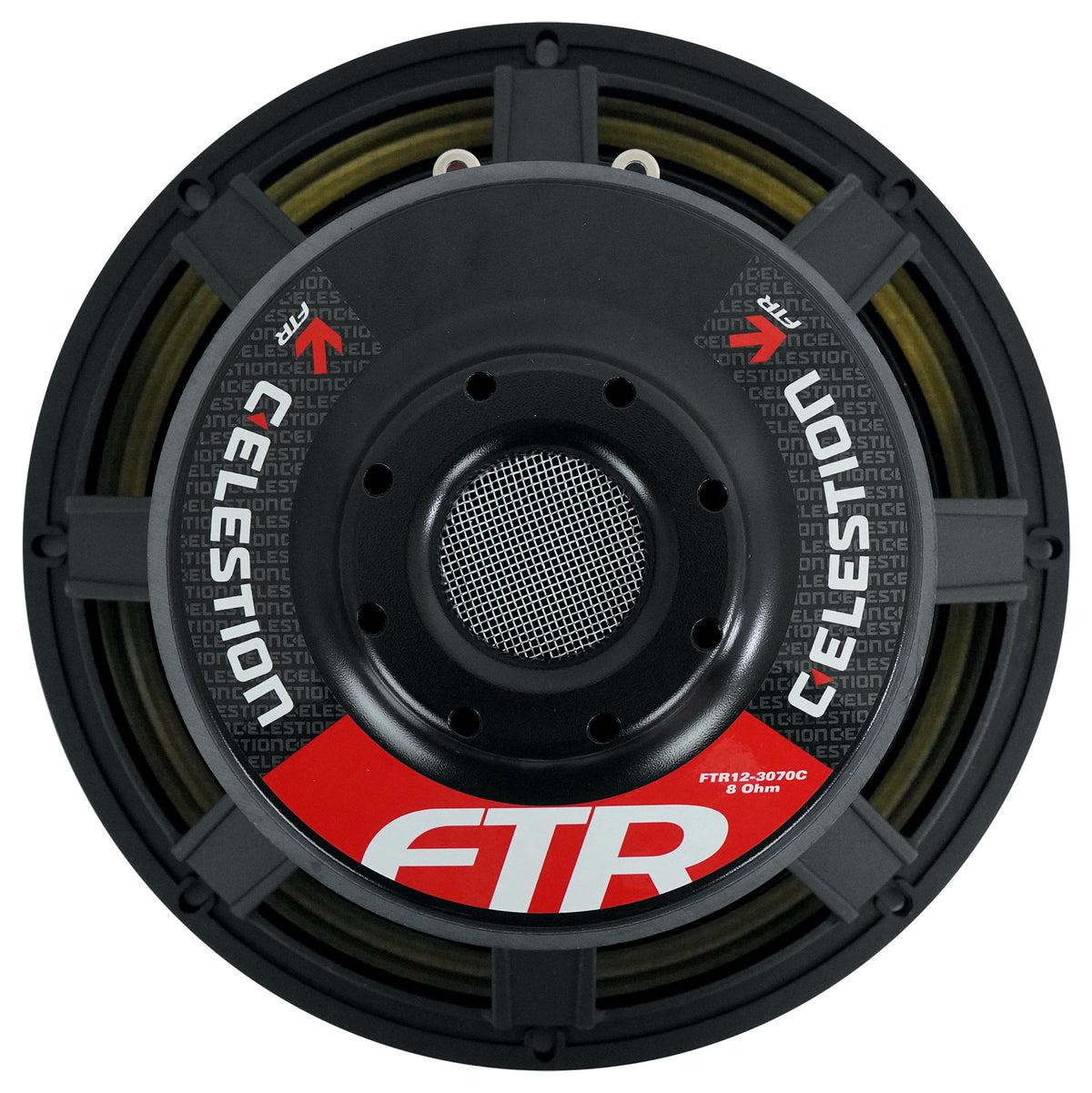

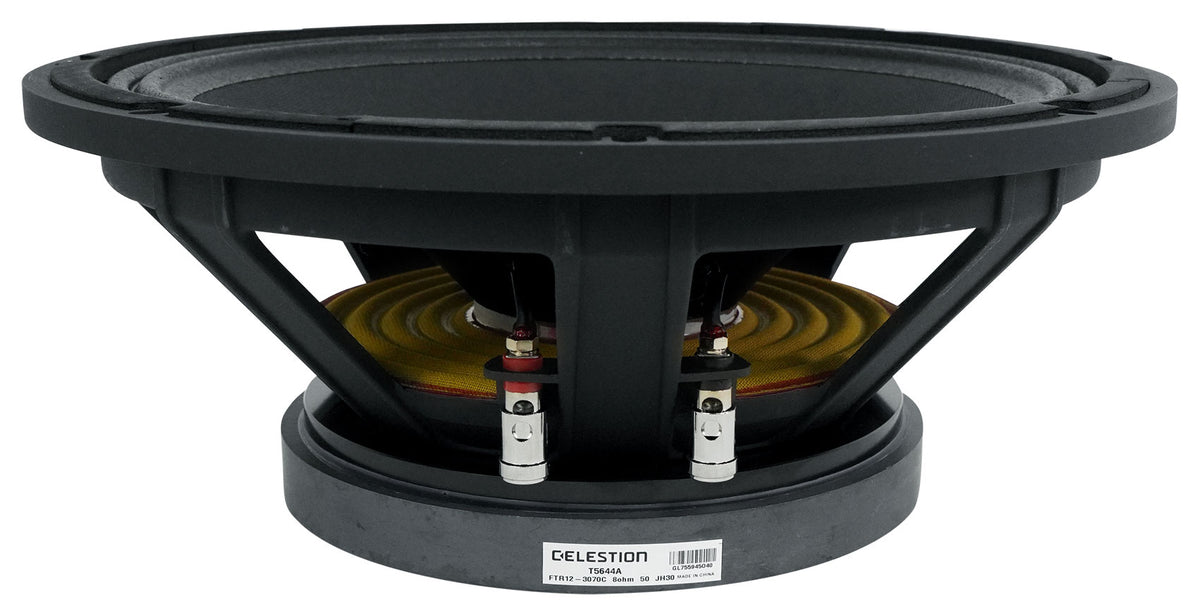

The Celestion FTR12-3070C is a 12-inch low and mid frequency driver for pro audio PA cabinets. It handles 350W AES and 700W continuous at 8 Ohm with 96dB sensitivity across a 40Hz to 4,000Hz range, wide enough to carry both the bass and vocal range in a two-way top. The cone is glass loaded paper with weather-resistant impregnation, so it holds up in outdoor cabinets, patio installs, and stage boxes that live in a trailer. An airflow vented magnet assembly disperses heat during long sets, keeping power compression low when the system runs hard for hours. A 75mm copper voice coil on a glass fibre former sits in a ferrite motor with a cast aluminium chassis that resists flex under load. Parameters (Fs 65.1Hz, Qts 0.321, Vas 43.7 litres, Bl 18.58Tm) suit compact vented two-way designs and stage monitors. Unit weight is 13.9 lb with a 286mm cut-out and eight mounting holes, making it a practical replacement driver for existing cabinets as well as new builds. Xmax is 5.5mm.
