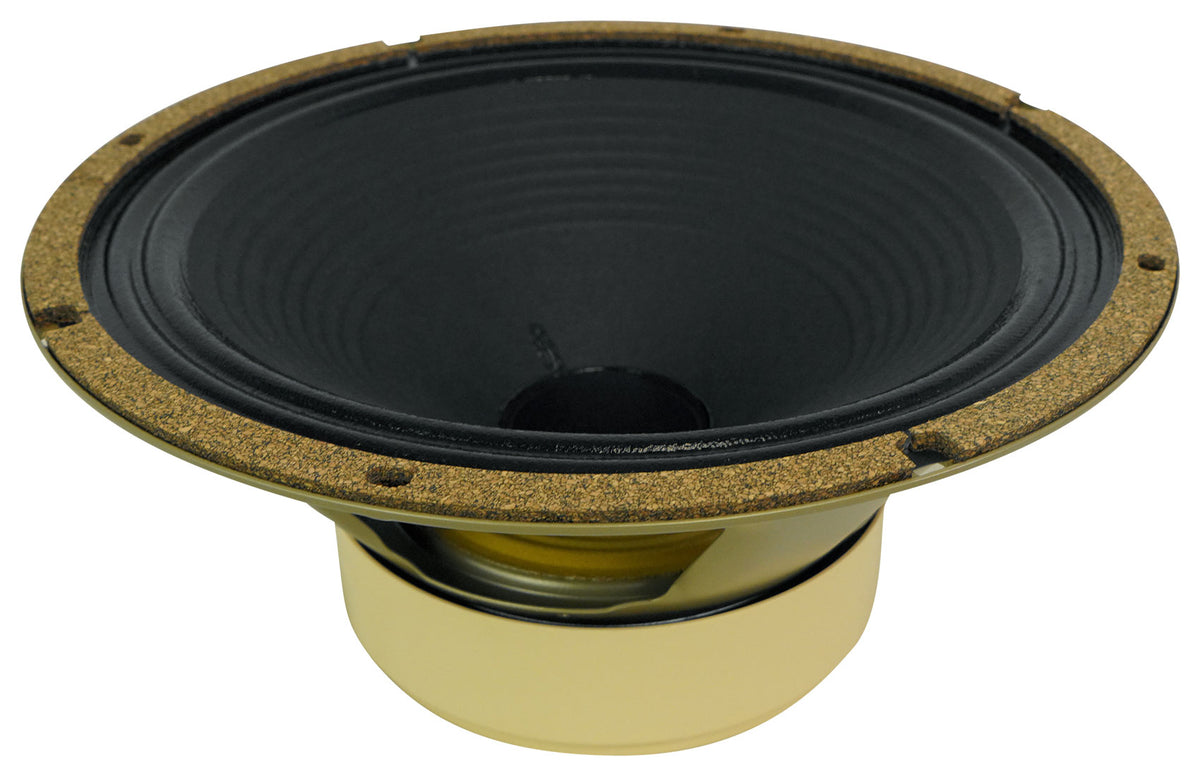

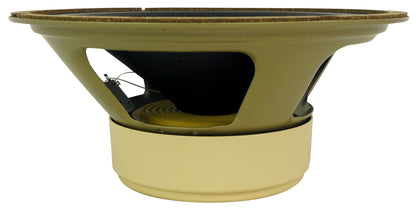

G12H-75 Creamback 16 Ohm
Celestion
G12H-75 Creamback 16 Ohm
G12H-75 Creamback 16 Ohm

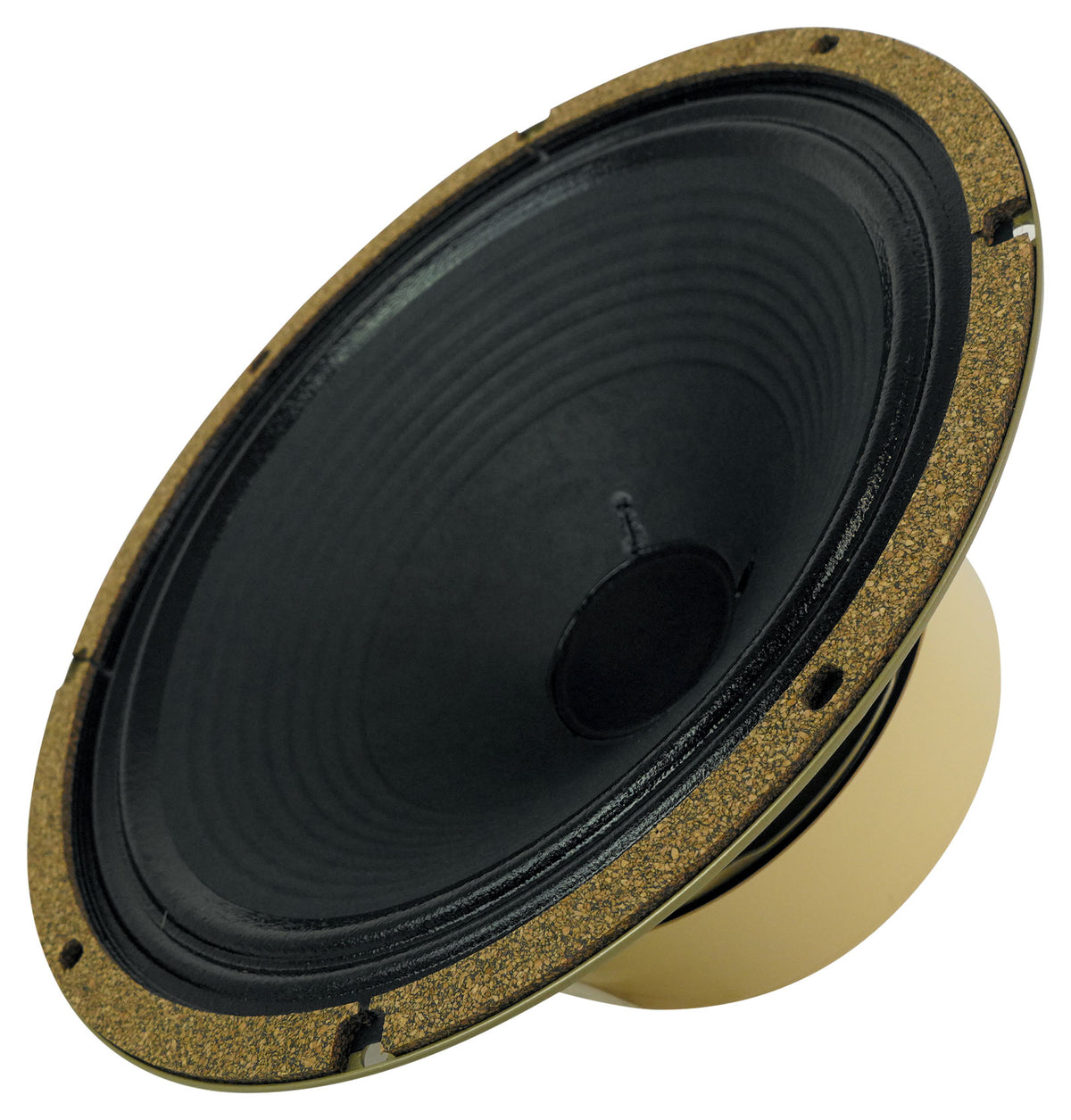

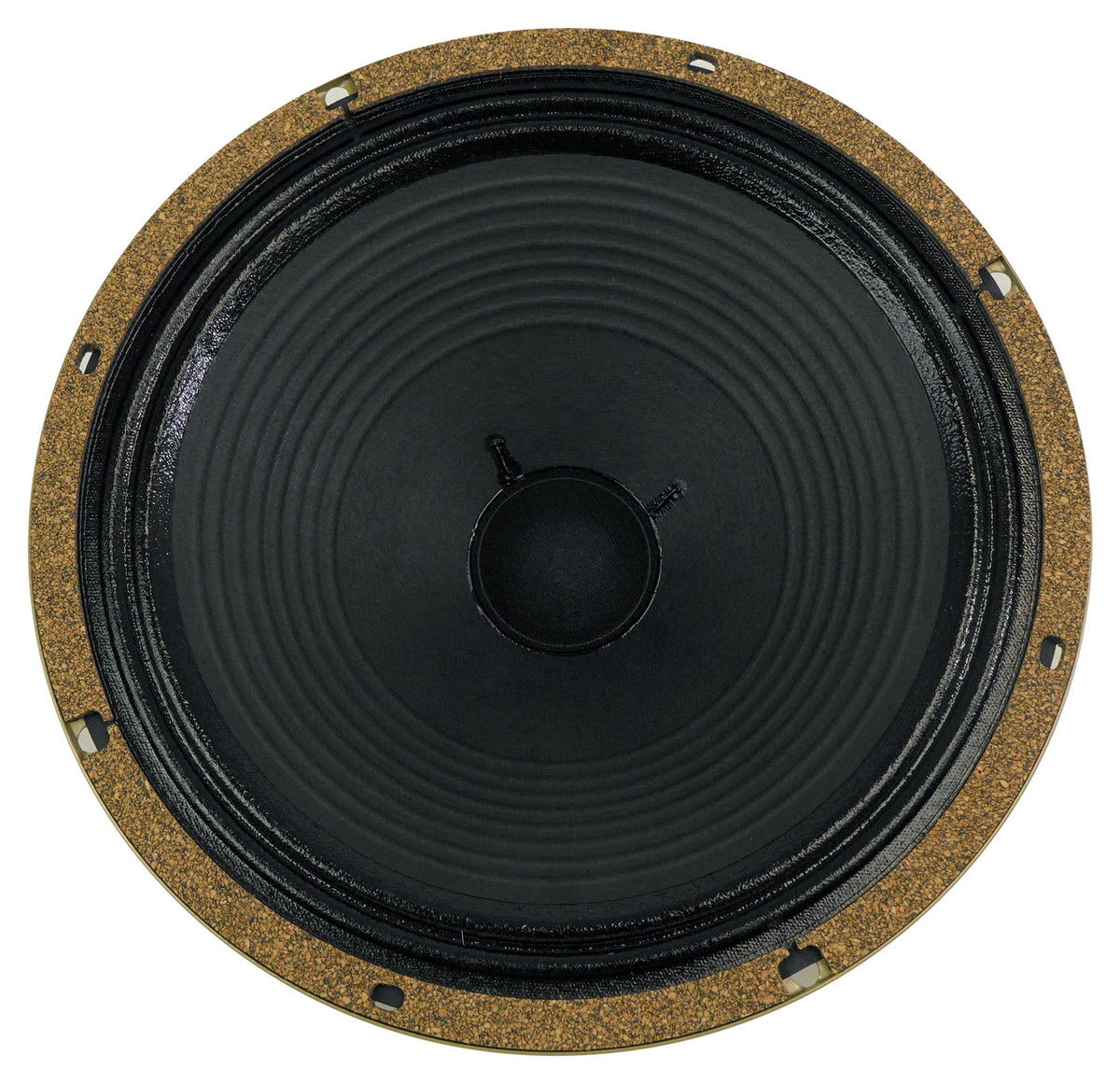

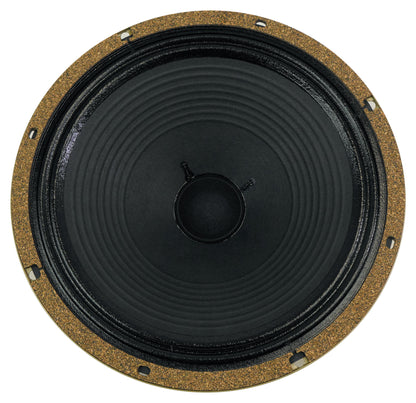

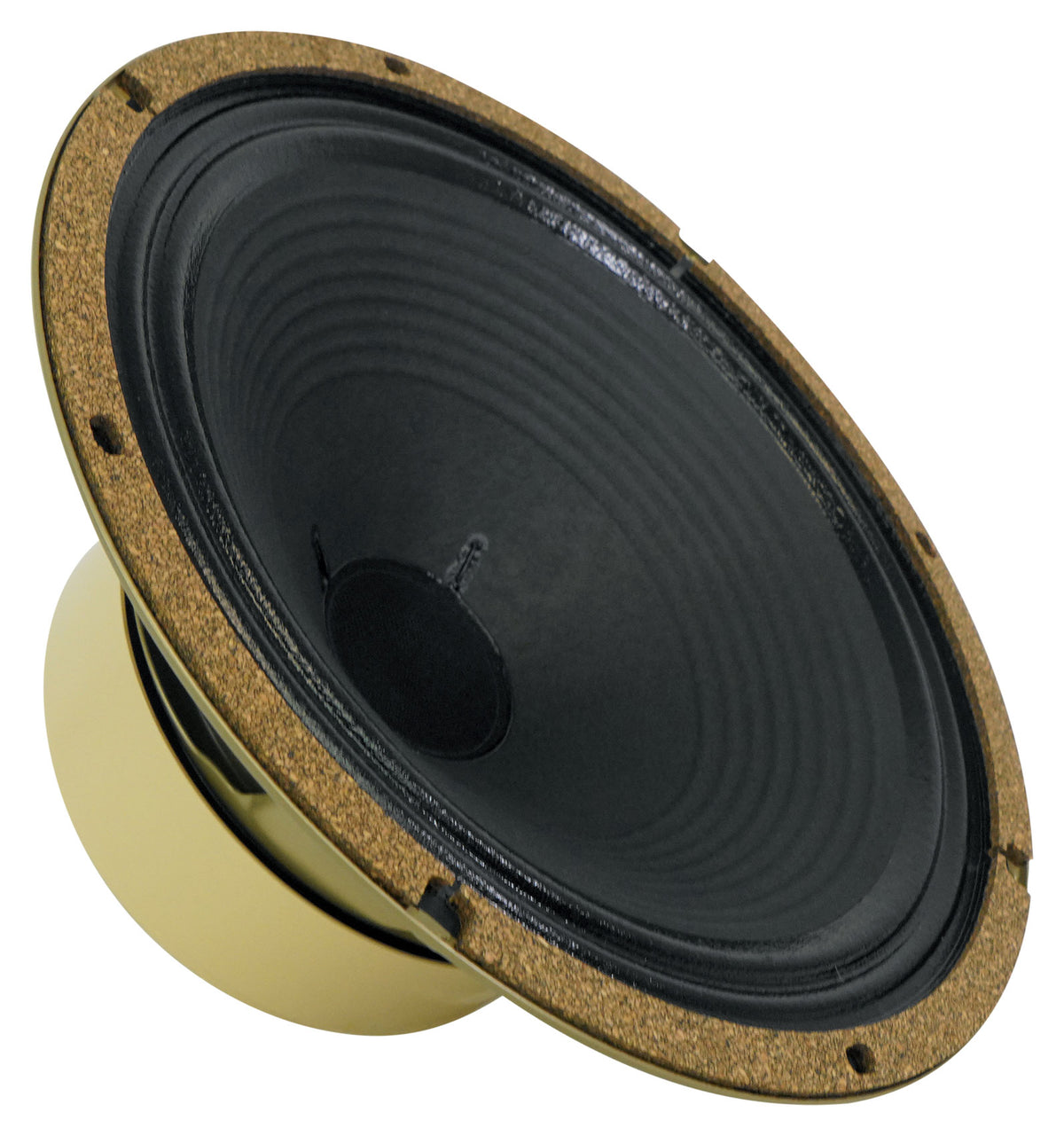

12" Ceramic Guitar Speaker, 75W, 16 Ohm, 100dB Sensitivity, 50oz Magnet
Free Shipping
Features
- 75W power handling with classic G12H tonal character
- Heavy H-type ceramic magnet tightens the low end and adds punch
- Thickens single notes for an articulate lead guitar voice
- 16 Ohm rating suits 16 Ohm heads and 4x12 wiring schemes
- 100dB sensitivity across a 70-5000Hz range
Couldn't load pickup availability
What's Included in the box
- Celestion G12H-75 Creamback 12-inch Guitar Speaker, 16 Ohm
SKU: SKU: G12H-75 Creamback 16 Ohm
View full details







Product Description
Features
G12H Tone, Creamback Power
Fitting the heavy H magnet to a Creamback gives you classic G12H voicing with 75W of handling, so vintage character survives modern amplifier output.
Tighter, Firmer Bass
The H magnet controls cone movement more firmly than a standard G12M magnet, keeping low notes defined when a high-gain amp is pushed hard.
Built For Lead Playing
Added focus, body, and girth thicken single notes into an articulate vocal character, which is why this speaker suits solos and melodic lines.
Large In A 4x12
Four of these fill a stage with weight and dynamics while keeping enough definition that chords do not collapse into a single wall of sound.
Wiring That Works Out
The 16 Ohm rating matches heads specifying 16 Ohm and makes series-parallel wiring in a 4x12 land cleanly on an 8 or 16 Ohm total load.

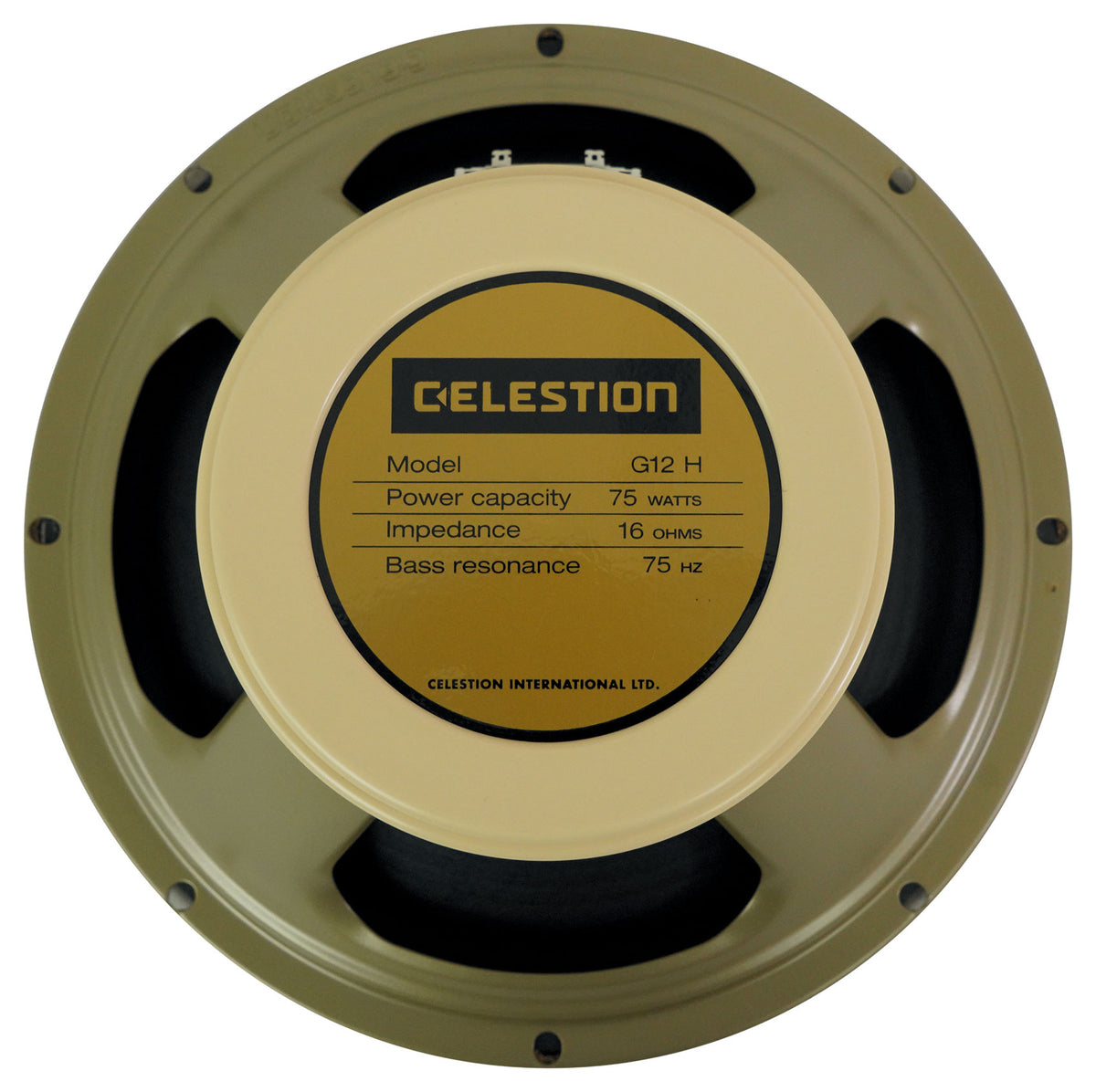

Technical Specifications
- Product Type 12-inch Ceramic Guitar Speaker
- Nominal Diameter 305mm / 12in
- Power Rating 75W
- Rated Impedance 16 Ohm
- Sensitivity 100dB
- Frequency Range 70-5000Hz

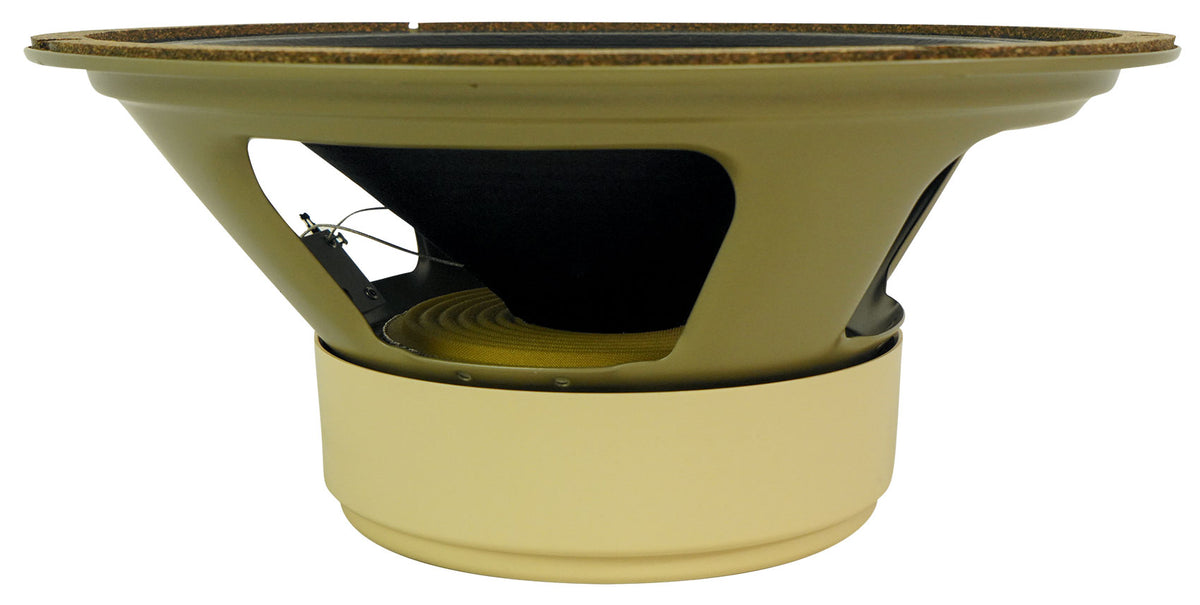

- Chassis Type Pressed Steel
- Magnet Type Ceramic
- Magnet Weight 1.42kg / 50oz
- Voice Coil Diameter 44mm / 1.75in
- Voice Coil Material Round Copper
- Resonance Frequency (Fs) 75Hz
- DC Resistance (Re) 12.5 Ohm
- Cut-out Diameter 283mm / 11.1in
- Mounting Holes 8 on 297mm / 11.7in PCD
- Weight 10.4 lb
- Dimensions 12.2in Diameter x 5.4in Overall Depth
