Chauvet DJ COLORband PiX-M ILS RGB LED Moving Strip Effect/Blinder/Wash Light
Chauvet DJ
Chauvet DJ COLORband PiX-M ILS RGB LED Moving Strip Effect/Blinder/Wash Light
Chauvet DJ COLORband PiX-M ILS RGB LED Moving Strip Effect/Blinder/Wash Light
Moving LED Strip Light, 10 Tri-Color RGB LEDs, 245° Tilt, Pixel Mapping, Blinder, Wall Wash
Free Shipping
Features
- 10 tri-color RGB LEDs at 6 W deliver 7,441 lux at 2 m
- Built-in motors tilt 245° for sweeping movement and easy aiming
- Individual LED control creates animations and video-style effects
- Built-in RF receiver works with optional RFC and RFC-XL remotes
- 3- and 5-pin DMX plus D-Fi USB and ILS control options
Couldn't load pickup availability

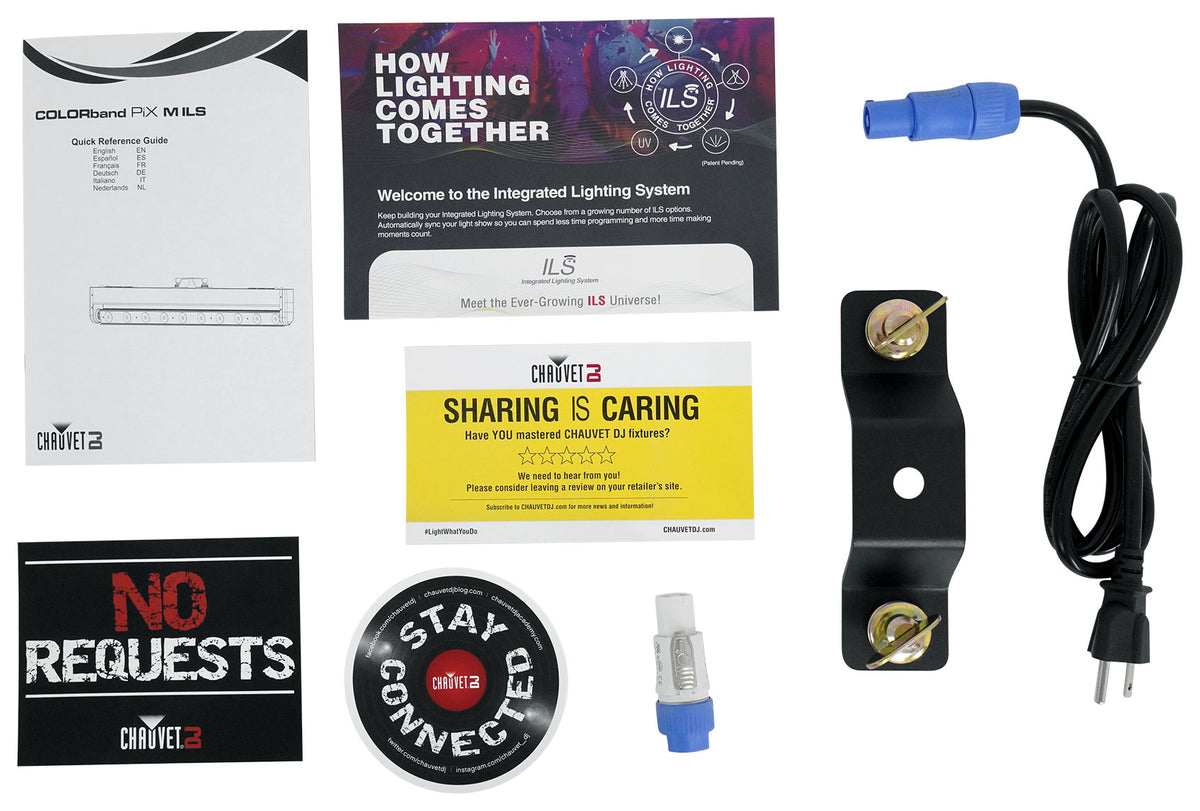

What's Included in the box
- COLORband PiX-M ILS
- Power Cord
SKU: SKU: COLORband PiX-M ILS
View full details







Product Description
Features
-
Movement And Wash In One
Built-in motors tilt the bar through 245 degrees, so a single fixture delivers sweeping aerial looks and static wall wash without adding a moving head.
-
Pixel-Level Control

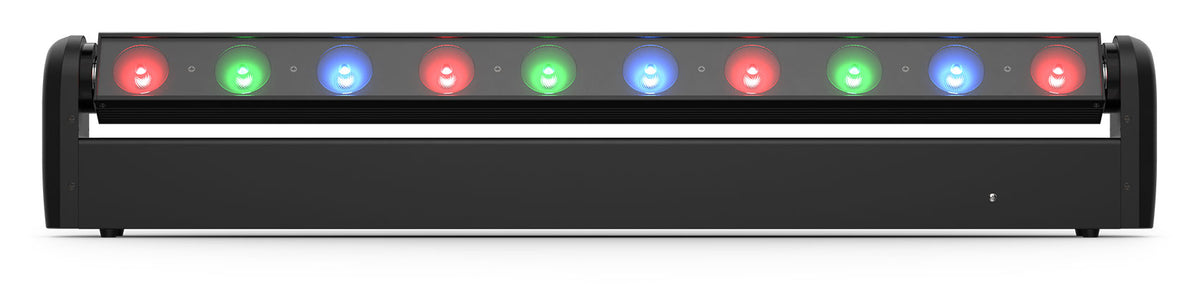

Individual control over each of the 10 LEDs creates chases, animations, and video-style effects that a single-color wash bar cannot produce.
-
Output That Reads
Ten 6 W tri-color RGB LEDs put out 7,441 lux at 2 m, bright enough to work as a blinder or wash in a lit room.
-
Control Without A Console
A built-in RF receiver pairs with the optional RFC and RFC-XL remotes, and ILS compatibility syncs the fixture with other Integrated Lighting System units.
-
Fewer Cables To Run

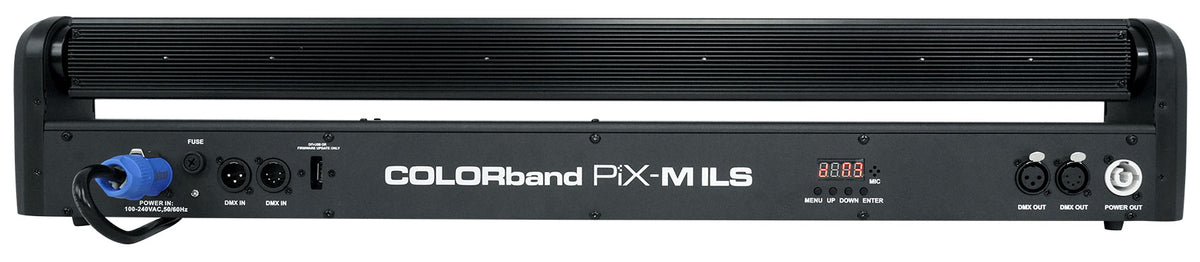

powerCON-compatible input and output connections power link up to 12 units at 120 V, keeping extension cords off the floor at a busy venue.
Technical Specifications
- Product Type Moving LED Strip Wash Light
- Light Source 10 LEDs (tri-color RGB), 6 W, 50,000 hours life expectancy
- DMX Channels 5, 6, 8, 10, 17, 32 or 36
- DMX Connectors 3- and 5-pin XLR
- Strobe Rate 0 to 29 Hz
- Beam Angle 15°
- Field Angle 27°
- Illuminance 7,441 lux @ 2 m
- Tilt 245°
- Power Linking 12 units @ 120 V; 20 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 86 W, 1.2 A @ 120 V, 60 Hz; 84 W, 0.7 A @ 230 V, 50 Hz

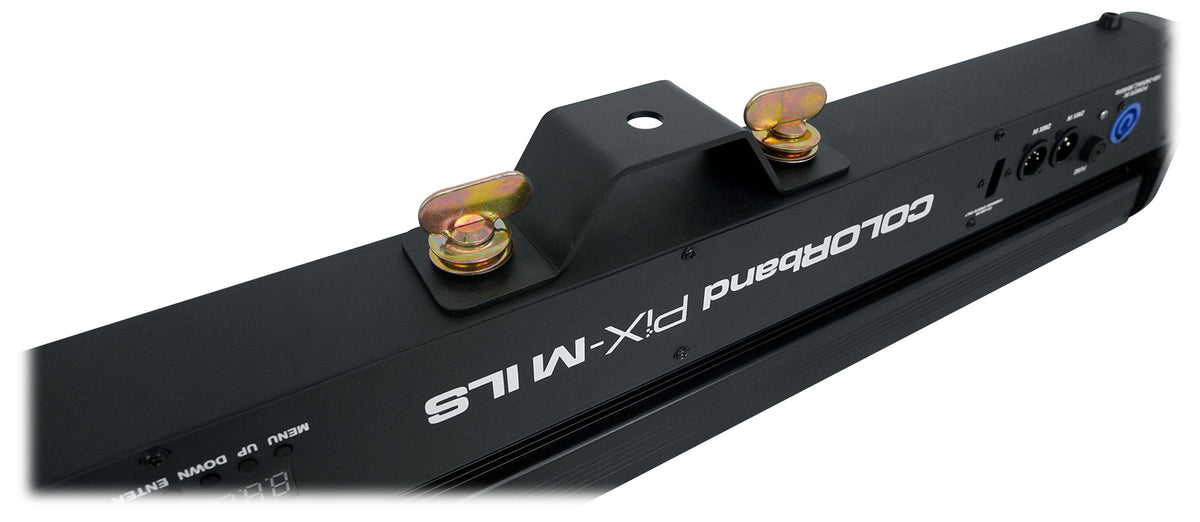

- Bracket Mounting Hole 13 mm
- Optional Controllers RFC, RFC-XL
- Approvals CE, UKCA, RoHS
- Weight 8.2 lb (3.7 kg)
- Dimensions 31 x 2.6 x 4.8 in (785 x 67 x 123 mm)
