Data Stream 4 Datastream 1 - 4 Optical Splitter

Product Description Specifications

Data Stream 4 Datastream 1 - 4 Optical Splitter

  • Data Stream 4 Datastream 1 - 4 Optical Splitter
  • Data Stream 4 Datastream 1 - 4 Optical Splitter
  • Data Stream 4 Datastream 1 - 4 Optical Splitter
  • Data Stream 4 Datastream 1 - 4 Optical Splitter
  • Data Stream 4 Datastream 1 - 4 Optical Splitter
  • Data Stream 4 Datastream 1 - 4 Optical Splitter
1 6
Open Box

Chauvet DJ

Data Stream 4 Datastream 1 - 4 Optical Splitter

Data Stream 4 Datastream 1 - 4 Optical Splitter

1-to-4 Universal DMX-512 Optical Splitter with Thru Port

Free Shipping

$170.00
$170.00 $226.65
Save 24%
Shipping calculated at checkout.
Features
    • Universal DMX-512 optical splitter with one input, four outputs
    • Both 3-pin and 5-pin connectors on every output
    • Additional thru port for daisy-chaining more units
    • Electrical isolation protects fixtures from signal noise
    • 1U rack-mount housing fits standard equipment racks
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

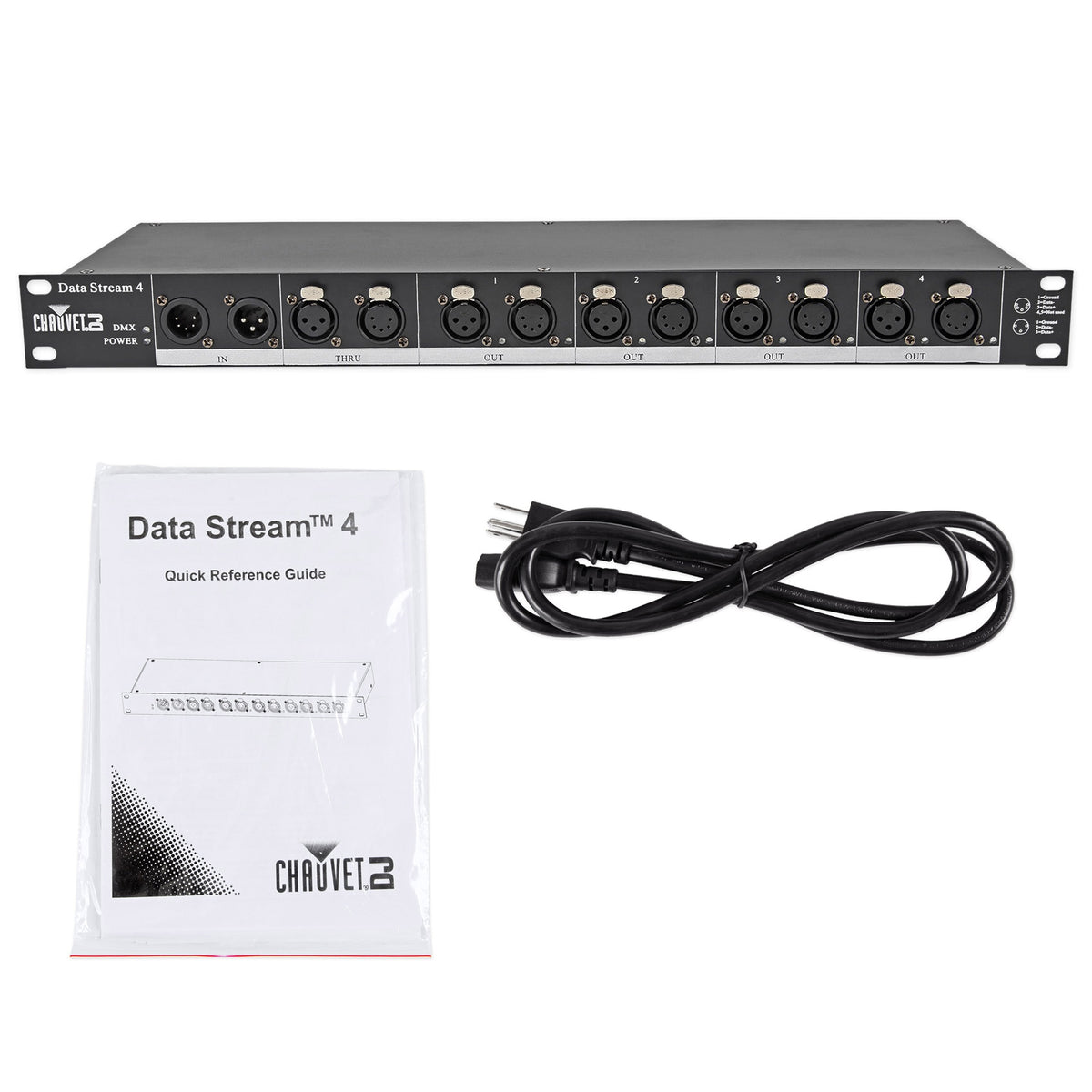

    • (1) Data Stream 4 Unit

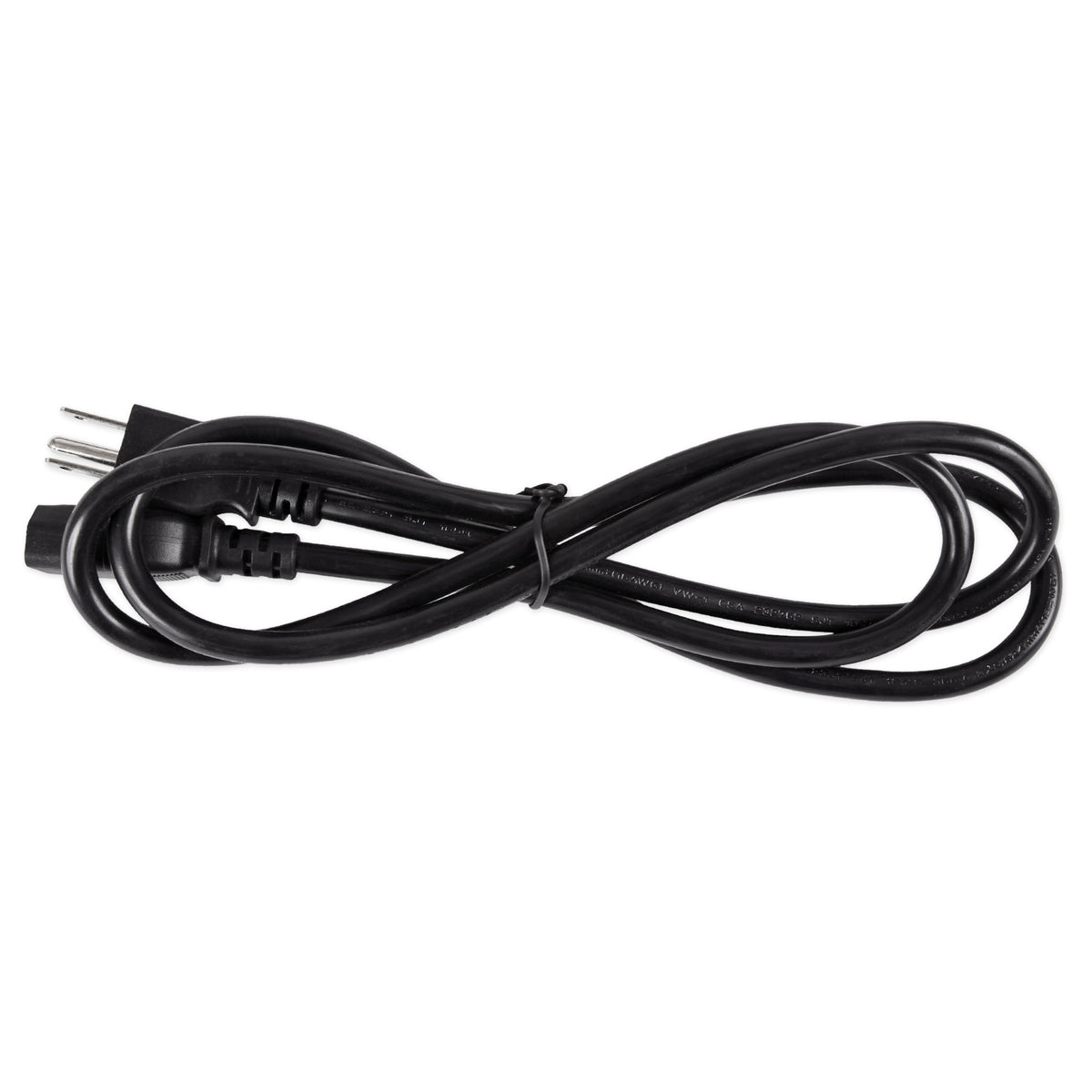

    • (1) Power Cord

SKU: DATASTREAM4*

View full details

Product Description

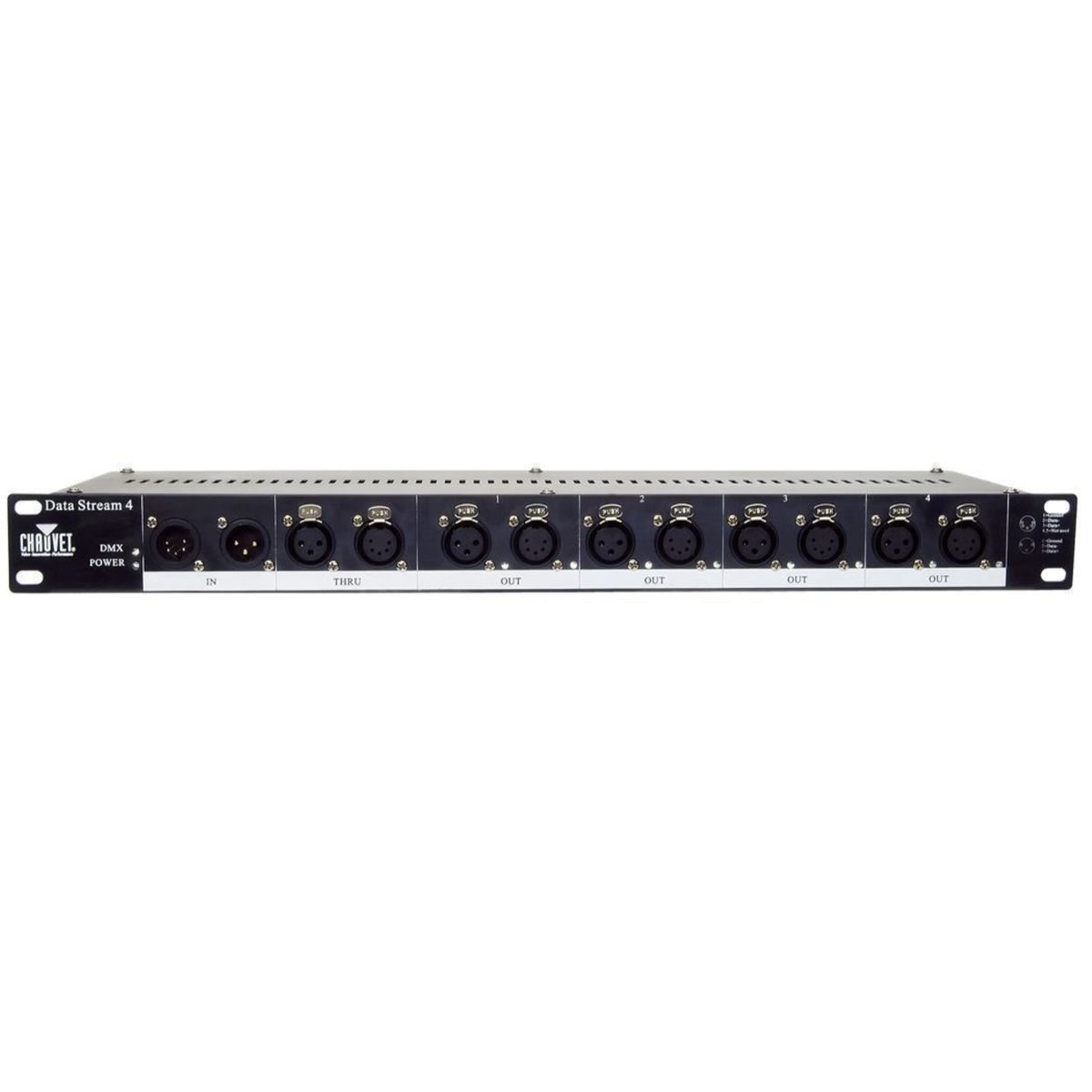

Data Stream 4 is a universal DMX-512 optical splitter built to take one incoming DMX signal and distribute it into four separate outputs, each with 3-pin and 5-pin connectors for compatibility with different fixtures. An additional thru port lets you daisy-chain into another Data Stream unit when a rig needs more than four splits, and electrical isolation between input and output protects connected fixtures from signal noise or ground loops. Housed in a 1U rack-mount case, it drops straight into an existing rack alongside other DMX gear rather than needing separate mounting hardware. For any rig running multiple DMX universes to different areas of a stage or venue, this splitter keeps the signal clean and boosts it across all four outputs from a single source.

Features

    • Clean Signal Distribution

      One DMX input splits into four isolated outputs, keeping signal quality consistent across a larger rig.

    • Flexible Connector Options

      Both 3-pin and 5-pin connectors on every output match whatever fixtures are already in the rig.

    • Expandable Daisy-Chaining

      An additional thru port links to more Data Stream units when a show needs more than four splits.

    • Noise-Free Operation

      Electrical isolation between input and output helps prevent ground loops and signal interference.

    • Rack-Ready Design

      A 1U housing mounts directly into a standard equipment rack alongside other gear.

Technical Specifications

  • Product Type DMX-512 Optical Splitter
  • Inputs/Outputs 1 Input, 4 Outputs Plus Thru Port
  • Connectors 3-Pin and 5-Pin XLR
  • Rack Mount 1U
  • Weight 5.8 lb
  • Size 19 x 5.3 x 1.8 in
