Chauvet DJ

Chauvet DFI USB2 Finger-Sized Wireless D-Fi Transceiver

Chauvet DFI USB2 Finger-Sized Wireless D-Fi Transceiver

Wireless DMX Transceiver, 165' Range, USB Powered, LED Channel Indicators

Free Shipping

Regular price $69.99
Sale price $69.99 Regular price $77.32
Save 9%
Shipping calculated at checkout.
Features
    • Plugs into a compatible fixture's USB port for instant wireless DMX
    • Runs on fixture power with no external supply or batteries
    • LED indicators replace dipswitches for faster channel selection
    • 165 ft unobstructed range on the 2.4 GHz band
    • Compatible with D-Fi XLR units and passes DMX, ILS, and lead/follow signals
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • D-Fi USB 2 wireless transceiver

SKU: SKU: DFIUSB2

View full details

Product Description

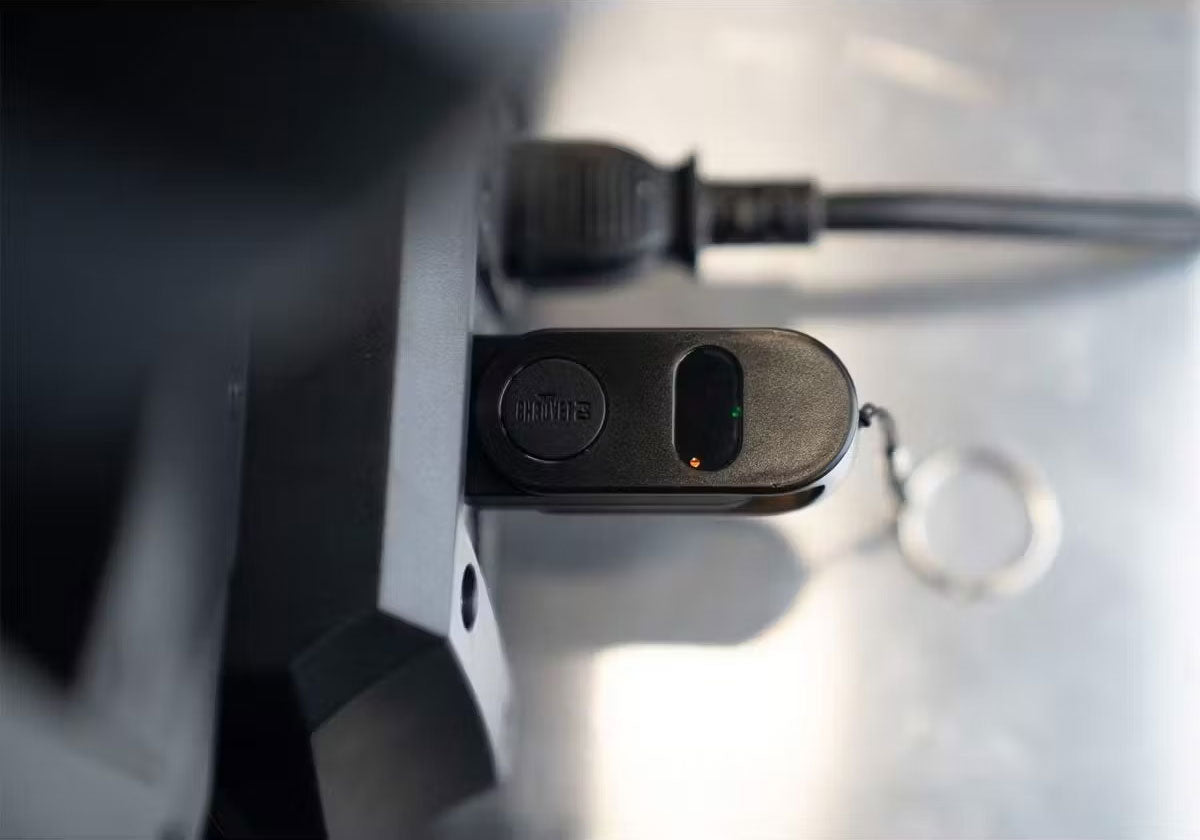

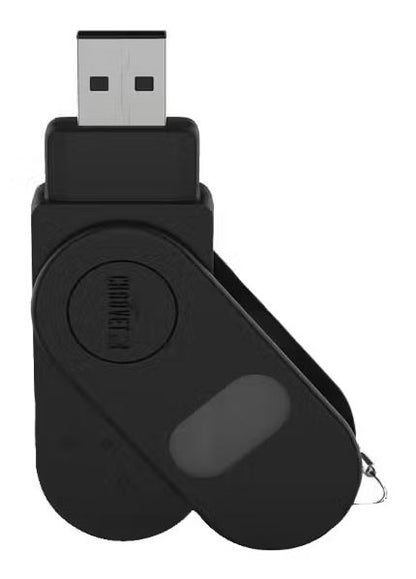

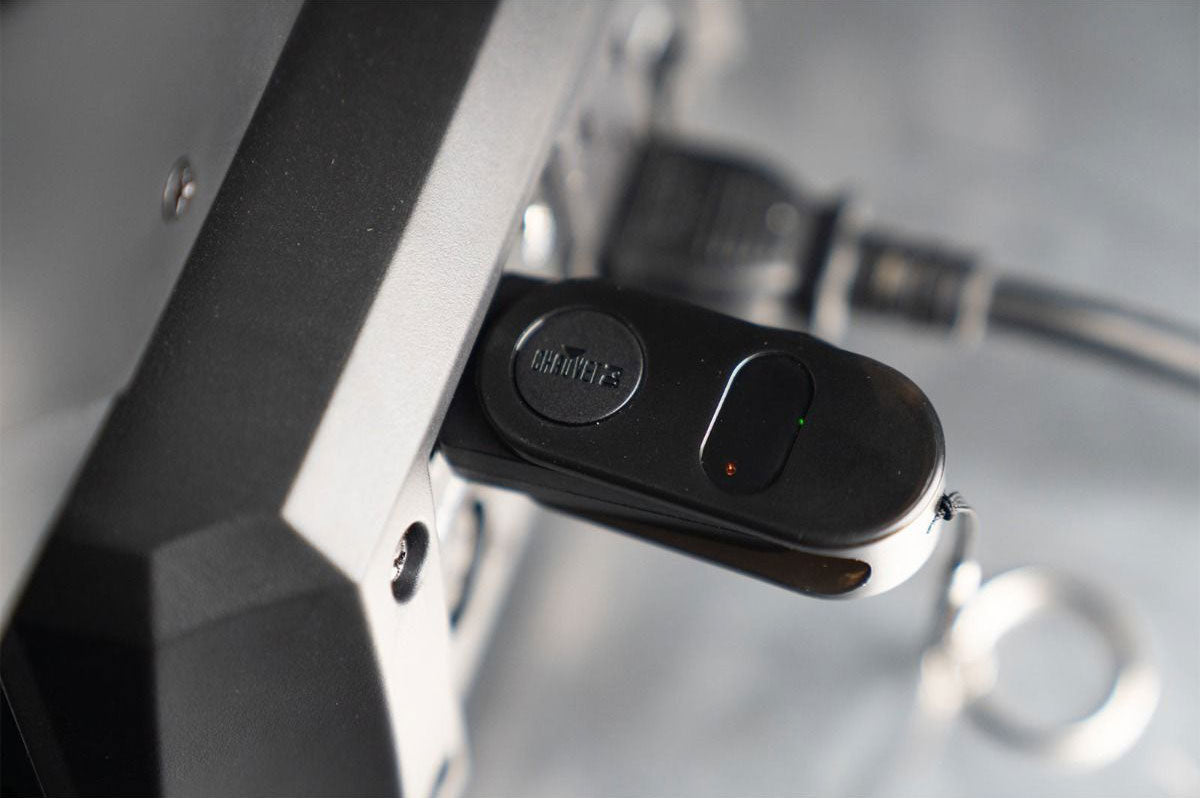

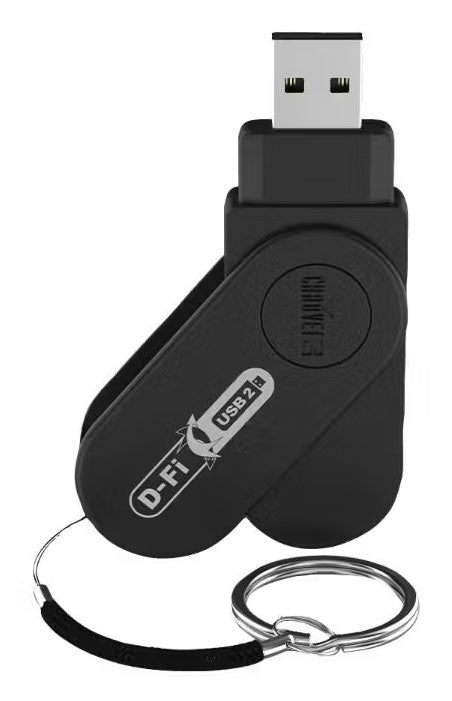

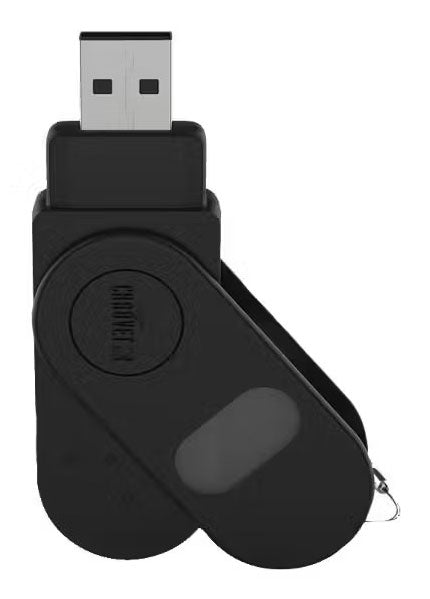

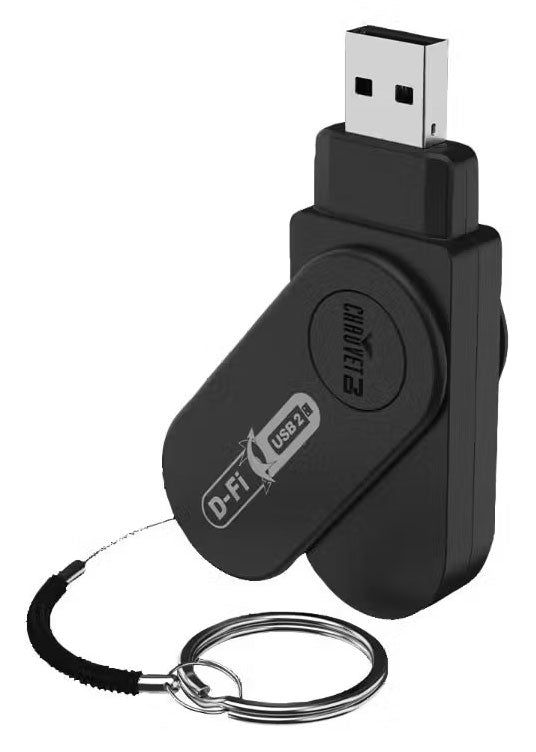

D-Fi USB 2 is a finger-sized wireless DMX transceiver that plugs directly into the USB port on a compatible CHAUVET DJ fixture and removes the DMX cable run between it and the rest of your rig. It draws power from the fixture itself, so there is no wall wart, no battery, and nothing extra to pack. LED indicators replaced the old dipswitches, which makes setting a channel a matter of pressing a button and reading a light instead of counting tiny switches in a dark venue. The unit is fully compatible with D-Fi XLR, so a mixed setup of USB and XLR D-Fi devices can share the same wireless channel. It transmits or receives DMX and ILS signals as well as lead/follow signals between similar fixtures, which covers both console-driven shows and simple sound-active setups. Maximum unobstructed range is 165 ft (50 m) over the 2.412 to 2.484 GHz band. The single-material plastic housing was chosen for signal transmission rather than looks, and at 0.7 oz and 3.2 in long it disappears into a gear bag pocket. D-Fi USB 2 works for mobile DJs running uplighting across a ballroom, install techs who cannot pull cable through finished walls, and anyone tired of taping DMX lines across a dance floor. Fully FCC and RED compliant.

Features

    • No More DMX Cable Runs

      The transceiver creates a wireless link between fixtures, so uplighting across a ballroom no longer means taping cable across walkways and doorways.

    • Powered By The Fixture

      D-Fi USB 2 draws 5 VDC straight from the fixture's USB port, so there is no external supply, no battery, and nothing extra in the bag.

    • Channel Setup In Seconds

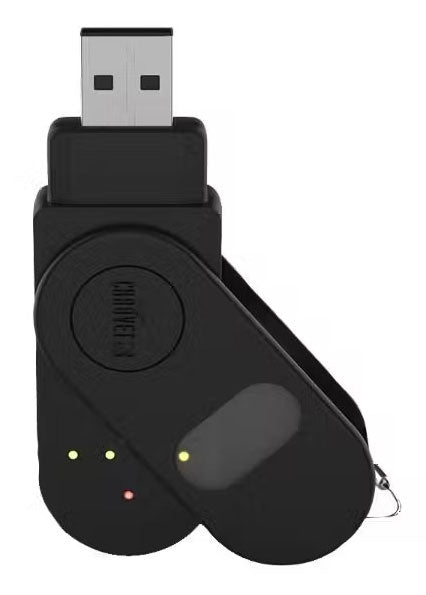

      LED indicators show the selected channel at a glance, replacing the dipswitch counting that slowed setup in dimly lit venues.

    • Range That Covers The Room

      Maximum unobstructed distance is 165 ft (50 m) on the 2.412 to 2.484 GHz band, enough for most ballrooms, halls, and clubs.

    • Mixes With Your Existing D-Fi Gear

      Full compatibility with D-Fi XLR means USB and XLR units share the same wireless channel across one rig.

Technical Specifications

  • Product Type Wireless DMX Transceiver
  • Operating Frequency 2.412 to 2.484 GHz
  • Max Unobstructed Distance 165 ft (50 m)
  • Input Voltage 5 VDC
  • RF Output 12.72 dBm
  • Thickness 0.09 in (14.2 mm)
  • Approvals CE, UKCA, RoHS, FCC, RED
