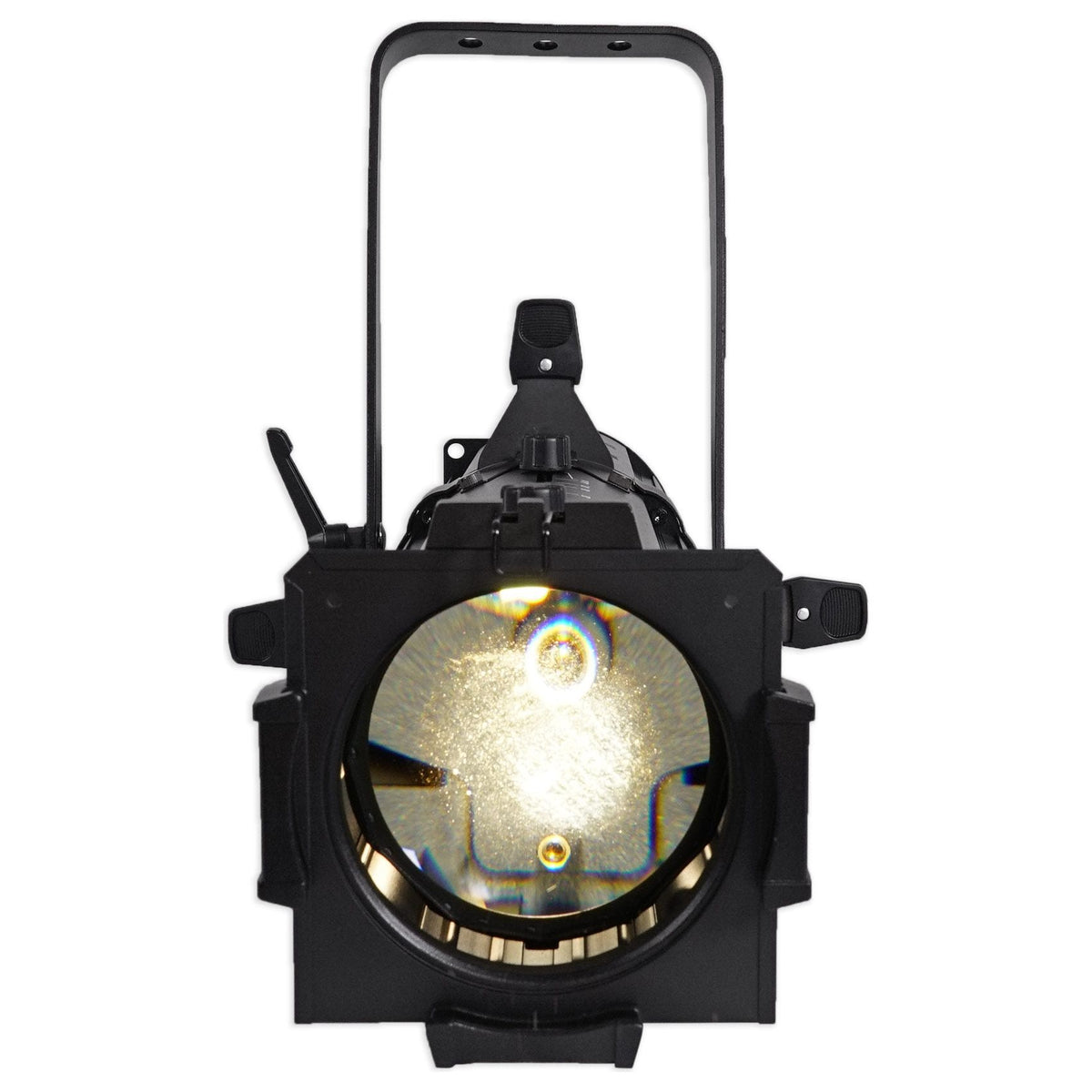

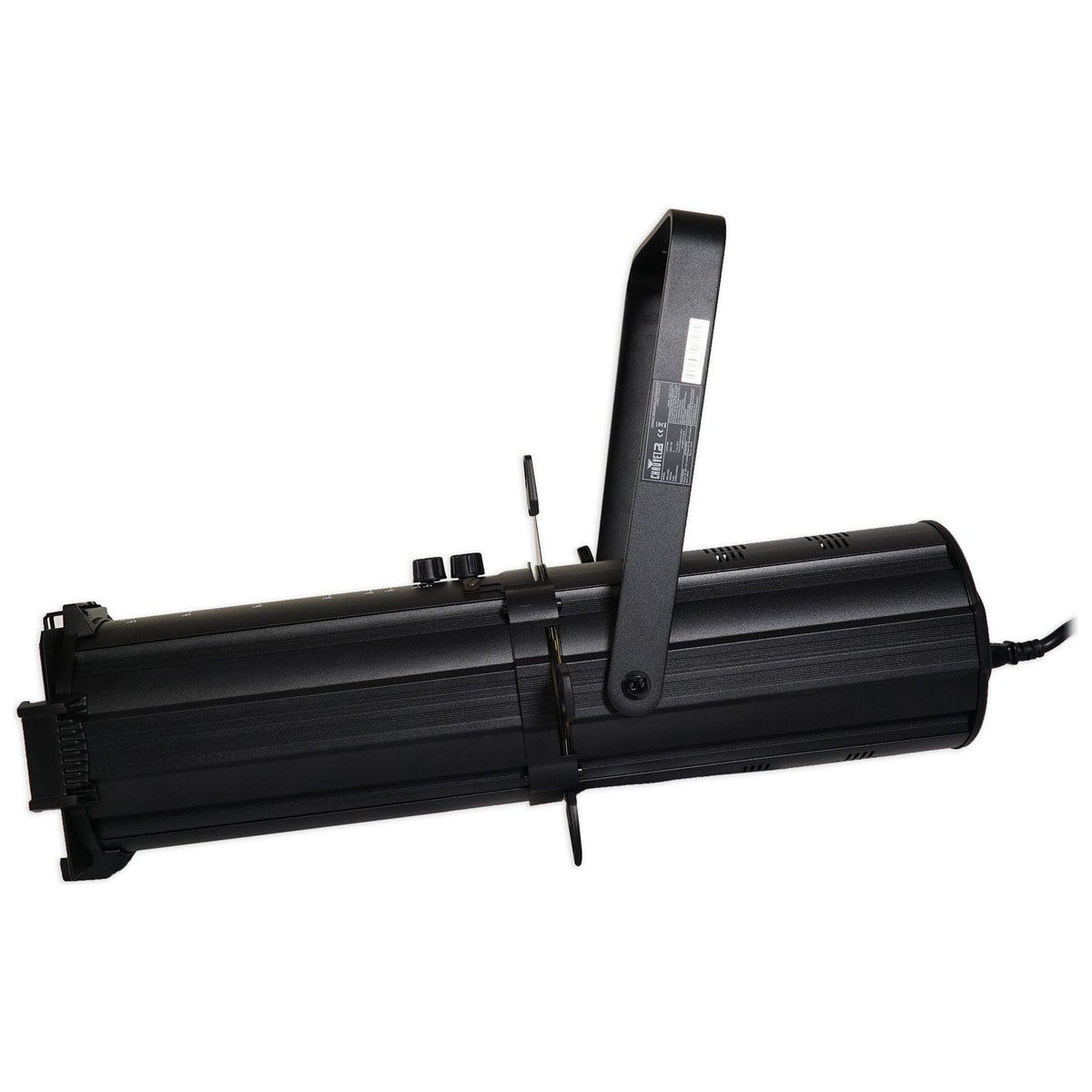

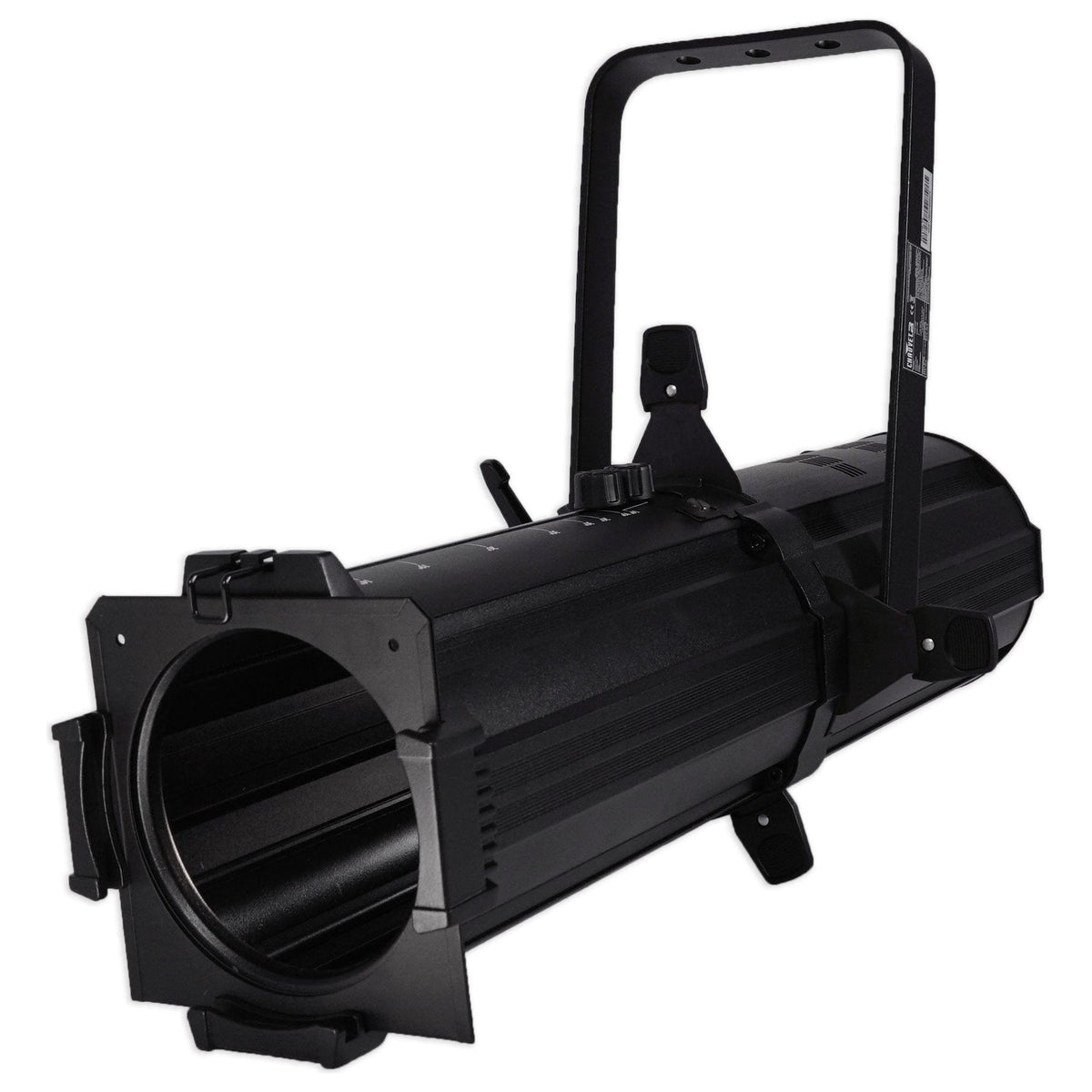

Chauvet DJ EVE E-100Z 100w White Ellipsoidal LED DMX Gobo Projector Spot Light
Chauvet DJ
Chauvet DJ EVE E-100Z 100w White Ellipsoidal LED DMX Gobo Projector Spot Light
Chauvet DJ EVE E-100Z 100w White Ellipsoidal LED DMX Gobo Projector Spot Light
100W Warm White LED Ellipsoidal Gobo Projector, 14-30 Degree Manual Zoom, Framing Shutters, Gobo Holders, Gel Frame
Features
- 100 W warm white LED projects sharp patterns at 15,100 lux at 2 m
- Manual zoom from 14 to 30 degrees sizes the image from the fixture
- Framing shutters trim the beam edge to the surface you are lighting
- Holders for both glass and steel gobos plus a gel frame included
- Power links 9 units at 120 V and runs standalone without DMX
Couldn't load pickup availability

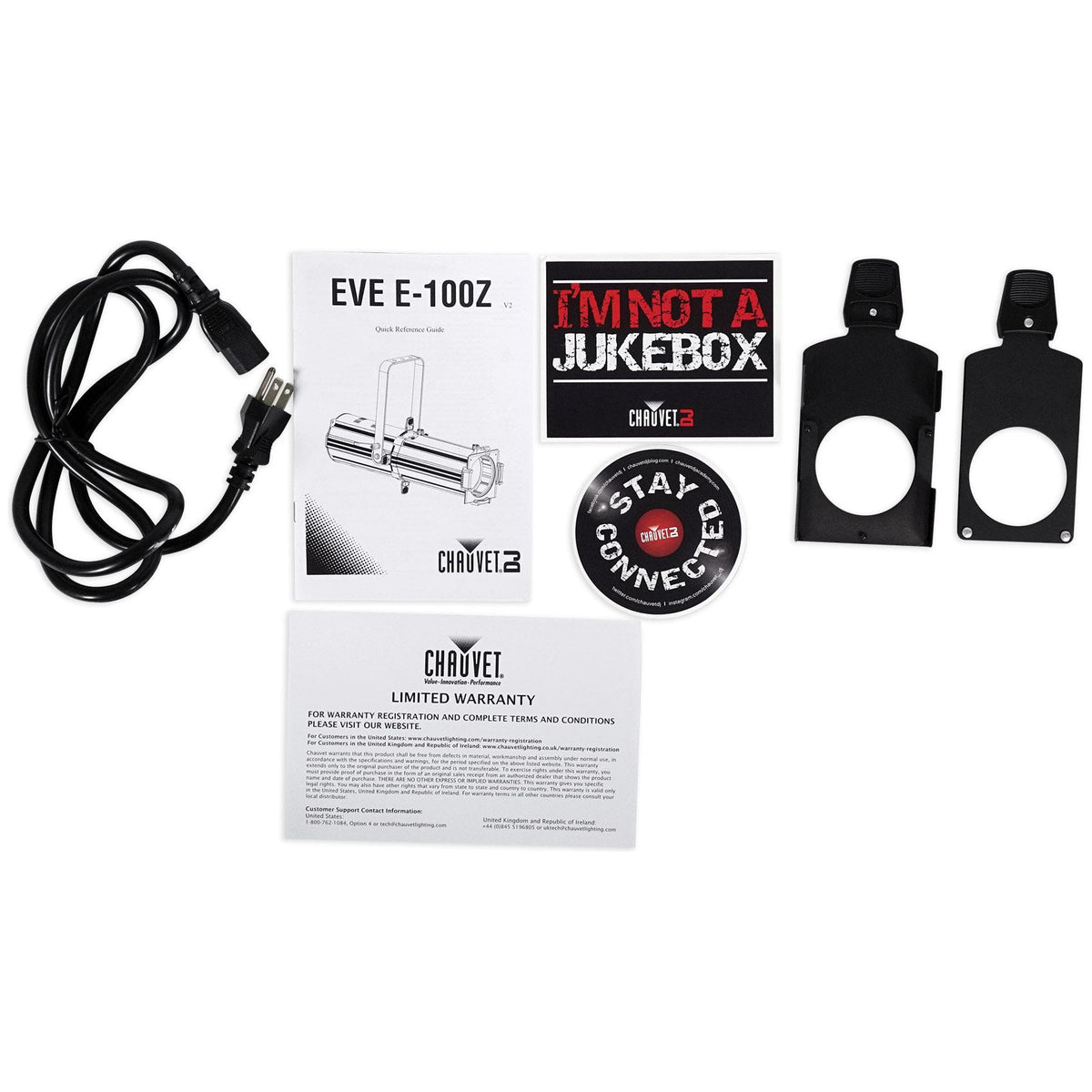

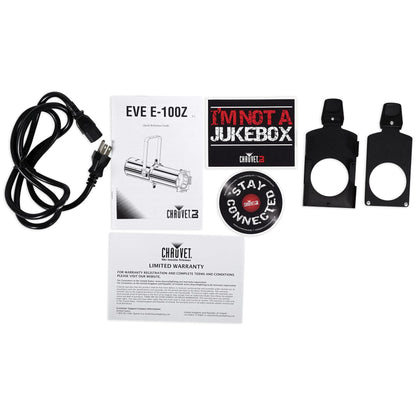

What's Included in the box
- EVE E-100Z fixture
- Power cord
- Gel frame
- Framing shutters
- Gobo holders for glass and steel gobos
SKU: SKU: EVE-E-100Z
View full details





Product Description
Features
-
Patterns That Hold Up
At 15,100 lux at 2 m in the narrow setting, projected monograms and textures stay crisp instead of washing out under ambient room light.
-
Size The Image From The Floor
Manual zoom from 14 to 30 degrees adjusts projection size at the fixture, so you are not moving the ladder to fix a logo that reads too small.
-
Clean Edges Every Time
Framing shutters cut the beam to the wall, floor, or object you are lighting, keeping spill off surrounding surfaces.
-
Glass Or Steel Gobos
Included holders take both types, so a steel breakup pattern and a full-color glass monogram run from the same fixture.
-
Simple Power And Control
Power linking runs 9 units at 120 V from one circuit, and standalone operation drops the DMX requirement on simple jobs.
Technical Specifications
- Product Type LED Ellipsoidal Gobo Projector

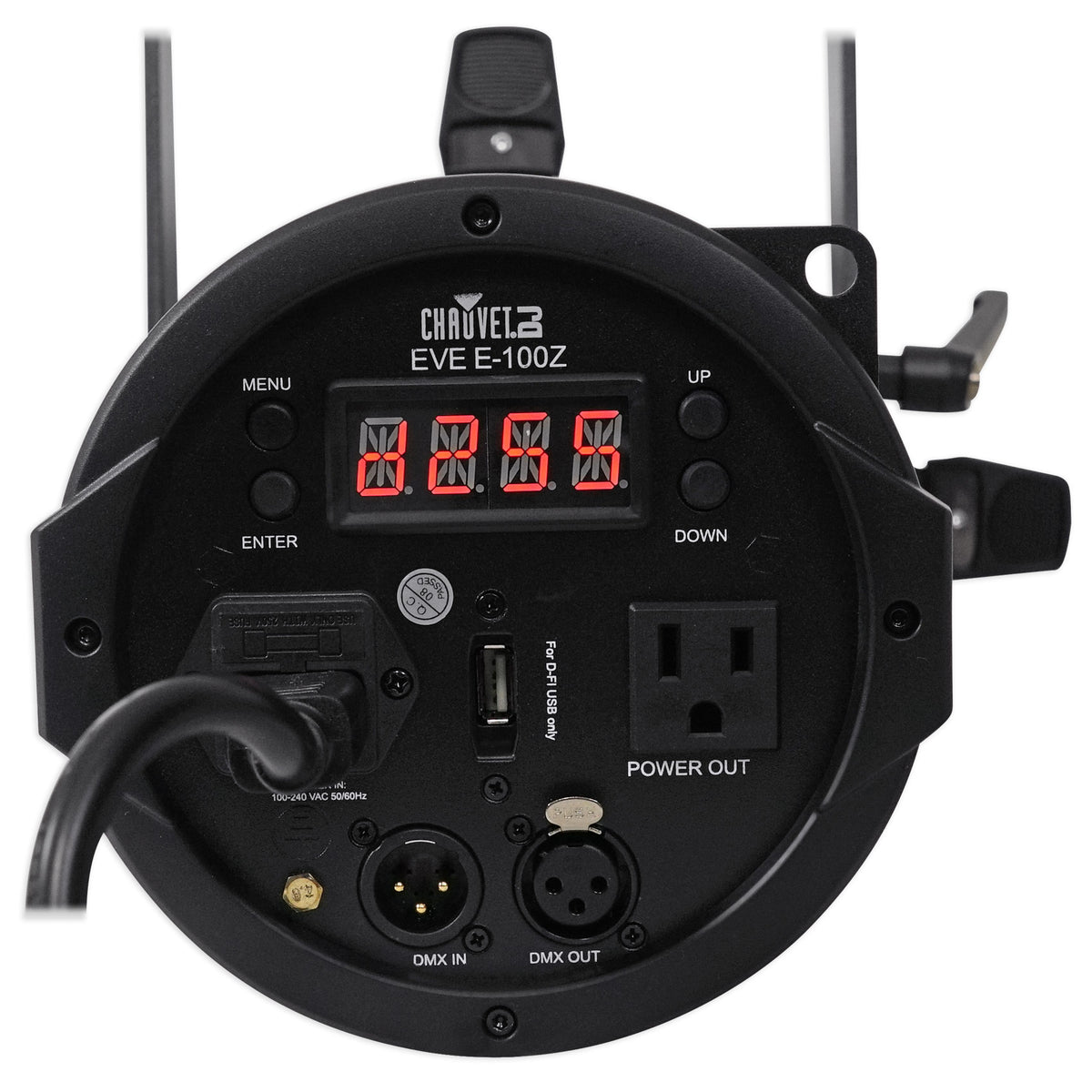

- DMX Channels 1 or 3
- DMX Connectors 3-Pin XLR
- Light Source 1 LED (warm white) 100 W, 2.3 A, 50,000 hours life expectancy
- Zoom Angle (manual) 14 to 30 degrees
- Strobe Rate 0 to 30 Hz
- Illuminance 14 degrees: 15,100 lux @ 2 m; 30 degrees: 3,800 lux @ 2 m
- Gobo Size M (66 mm outside, 48 mm image, 2 mm max thickness)
- Power Linking 9 units @ 120 V; 16 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 106 W, 0.9 A @ 120 V, 60 Hz; 103 W, 0.5 A @ 230 V, 50 Hz
- Approvals CE, MET
- Weight 12.6 lb (5.7 kg)
- Dimensions 24 x 7.2 x 16.9 in (611 x 183 x 430 mm)
