Chauvet DJ GigBAR MOVE + ILS Lighting System w/ Tripod+Footswitch+Remote+Bags.
Chauvet DJ
Chauvet DJ GigBAR MOVE + ILS Lighting System w/ Tripod+Footswitch+Remote+Bags.
Chauvet DJ GigBAR MOVE + ILS Lighting System w/ Tripod+Footswitch+Remote+Bags.
5-In-1 Lighting Bar With Moving Heads, Derbies, Washes, Laser, Strobe, Tripod, Footswitch, RF Remote, Bags
Features
- Five effects pre-mounted on one bar: moving heads, derbies, washes, laser, strobe
- Controls any ILS-enabled fixture wired or wirelessly by D-Fi
- 32 W moving heads with separate color and gobo wheels
- Totem Mode keeps the moving heads aimed at the dance floor
- Includes tripod, wireless footswitch, RF remote, and carry bags
Couldn't load pickup availability

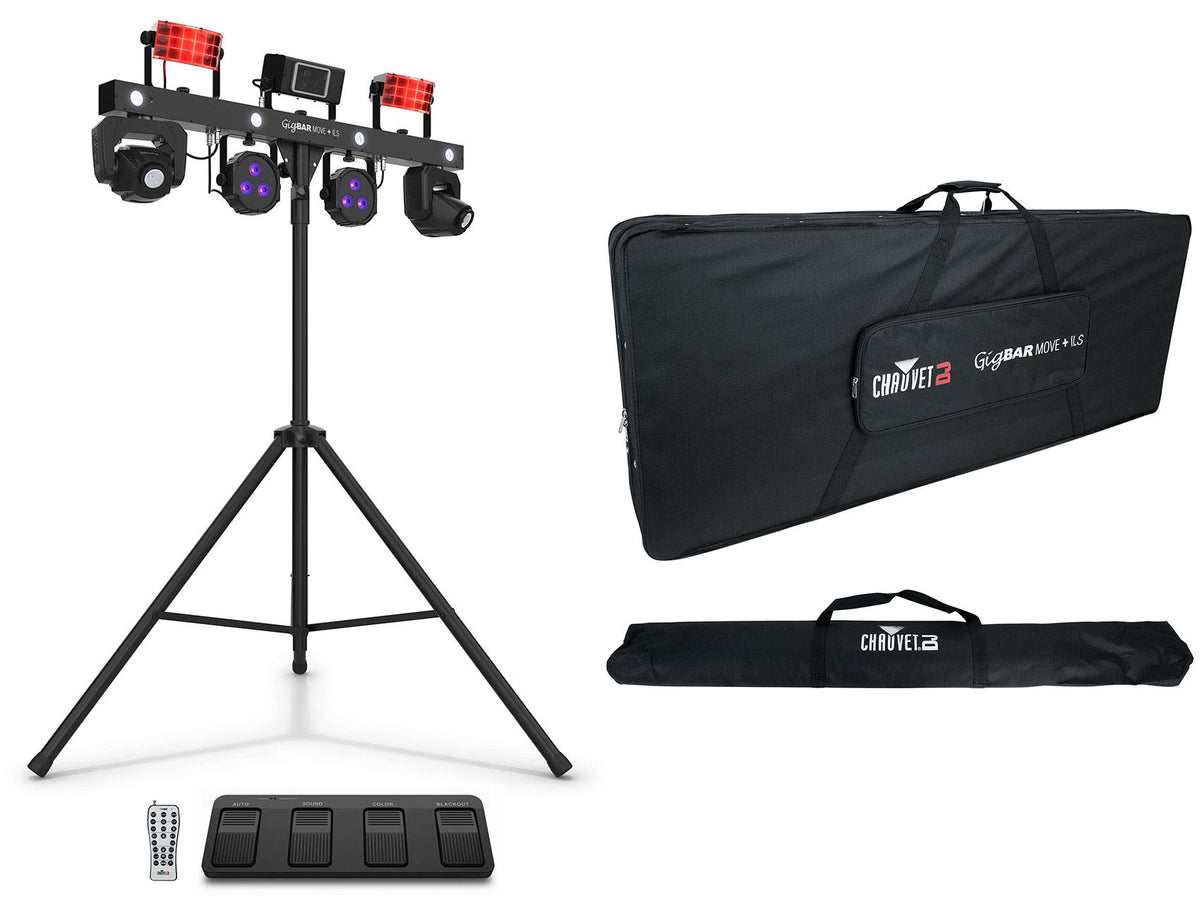

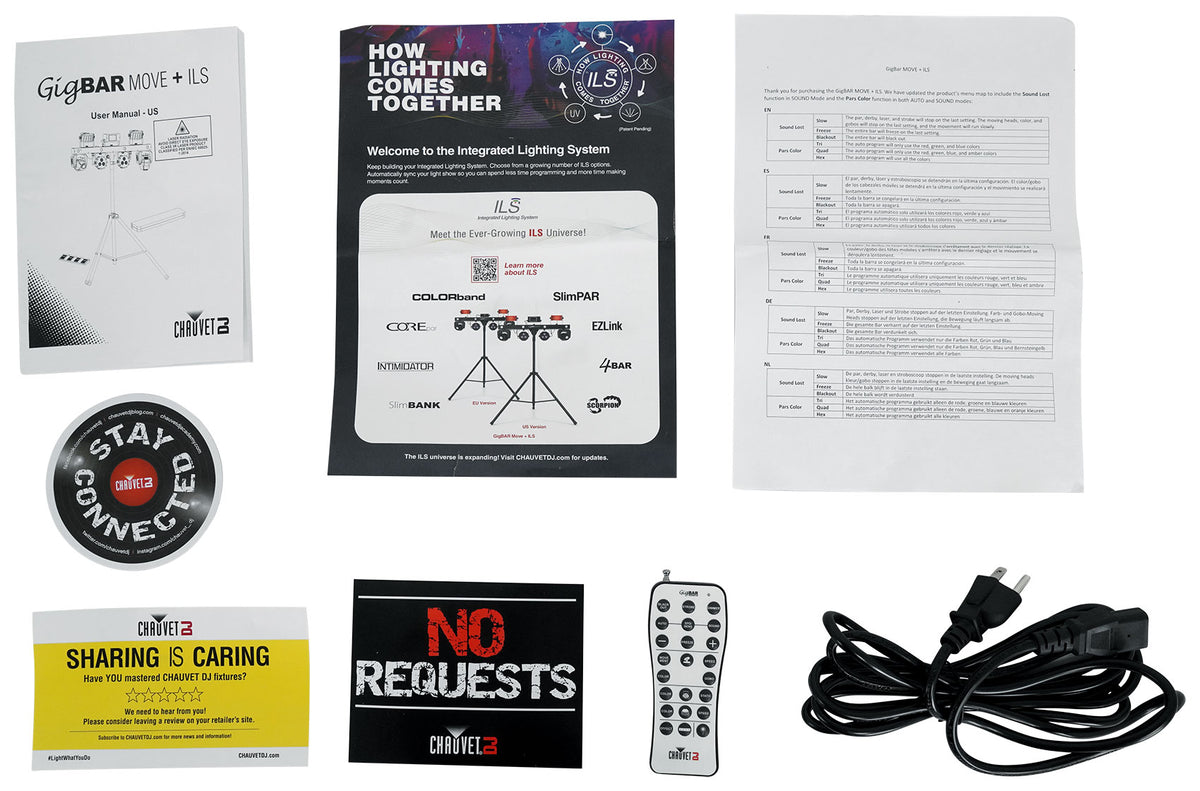

What's Included in the box
- GigBAR Move + ILS

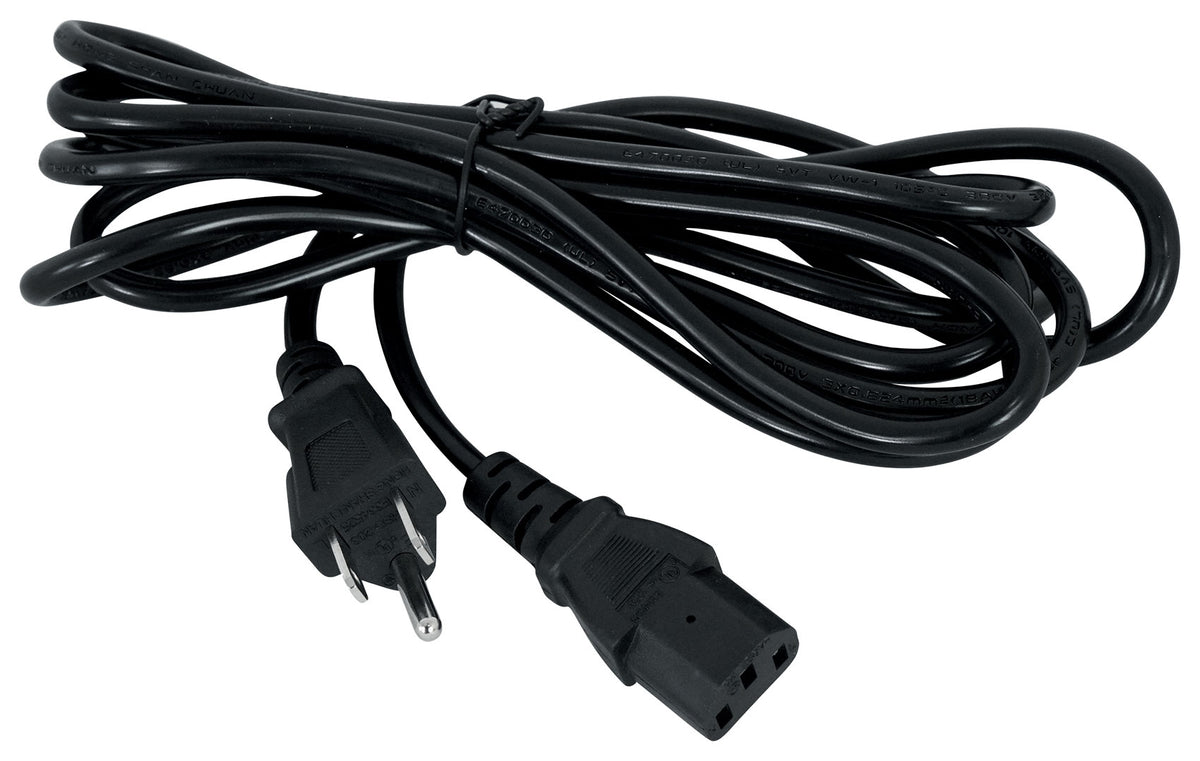

- Power cord
- RF remote

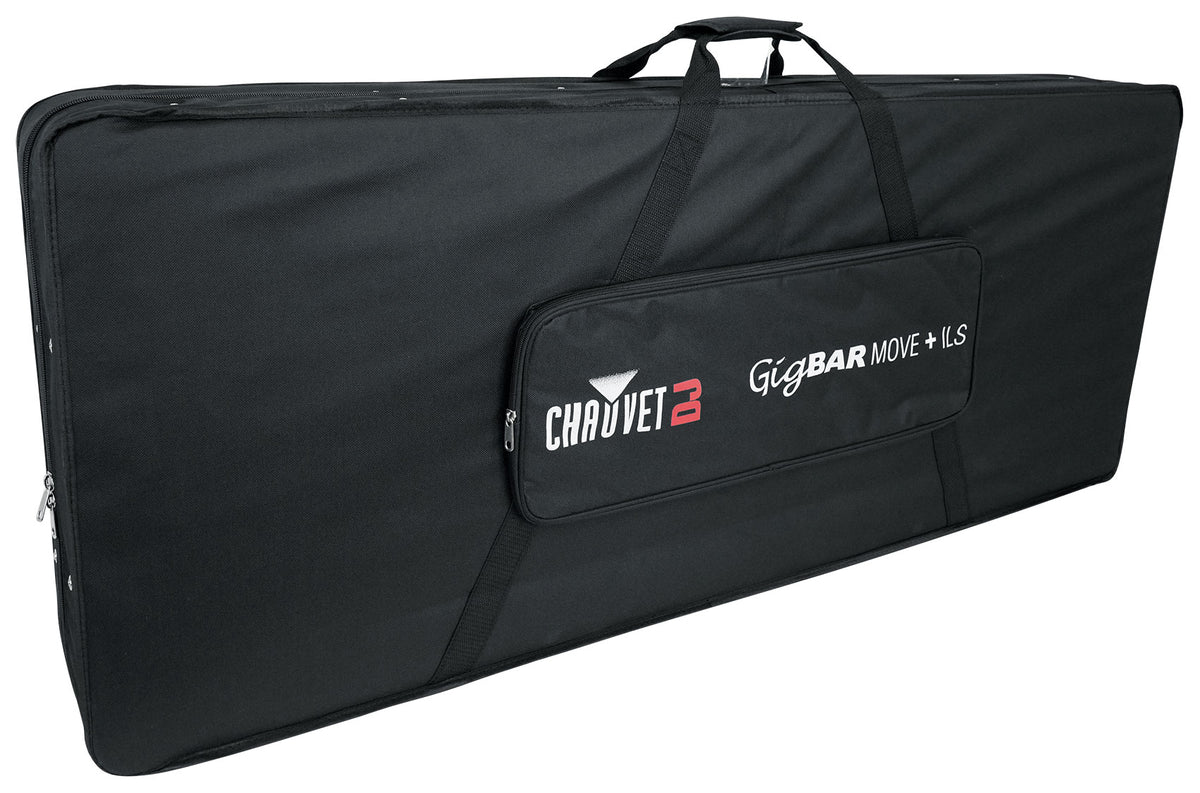

- Carry bag

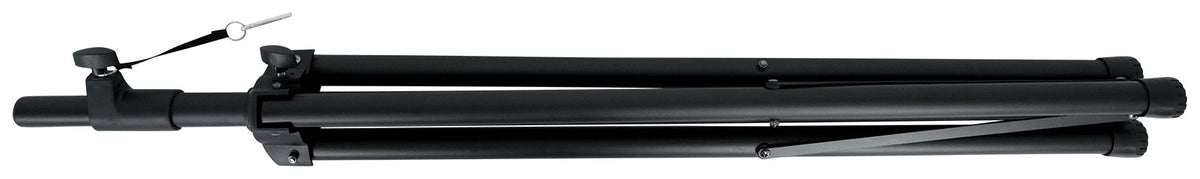

- Tripod

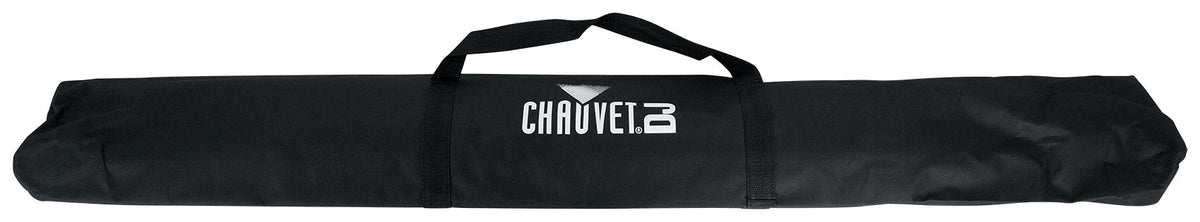

- Tripod carry bag
- Footswitch
SKU: SKU: GigBAR MOVE + ILS
View full details











Product Description
Features
-

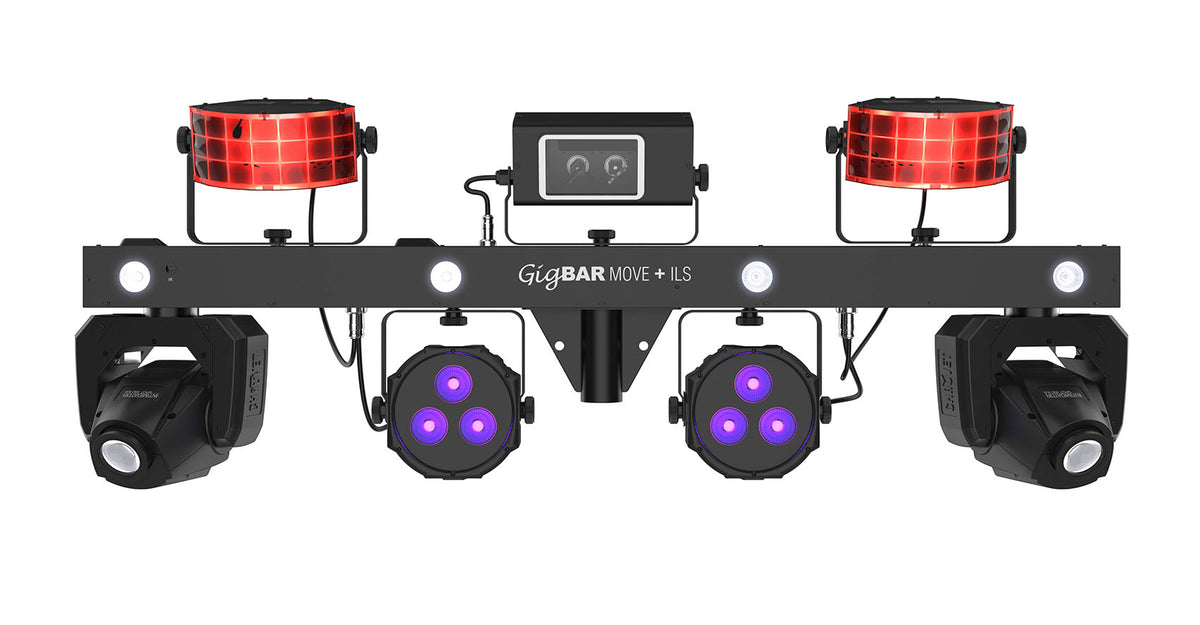

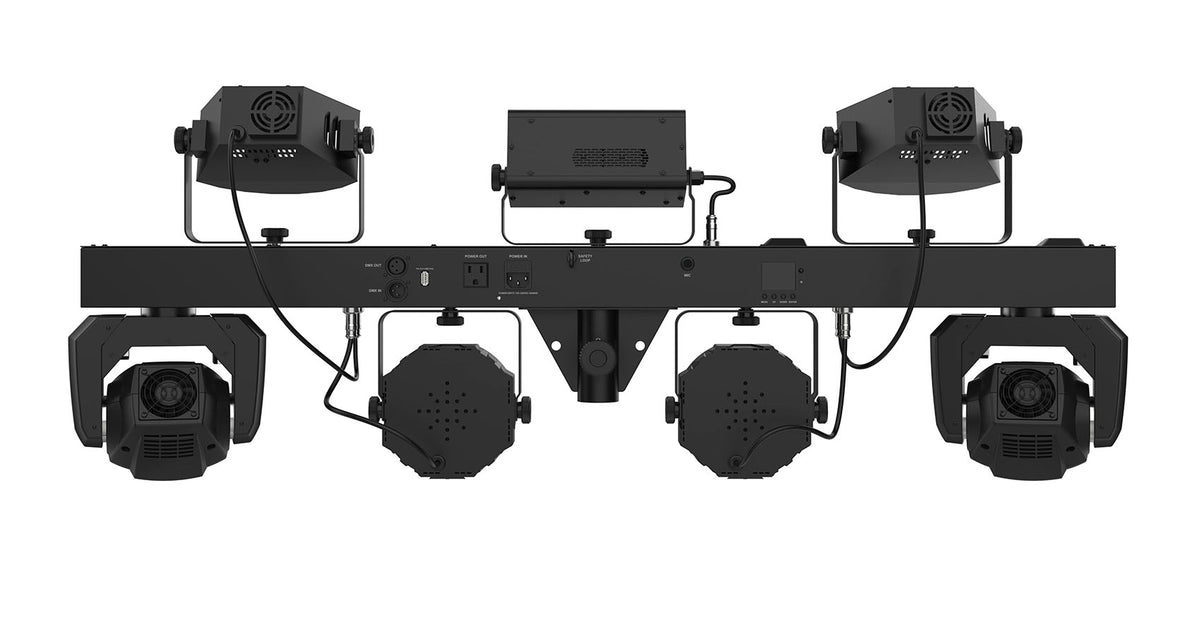

A Full Rig On One Bar

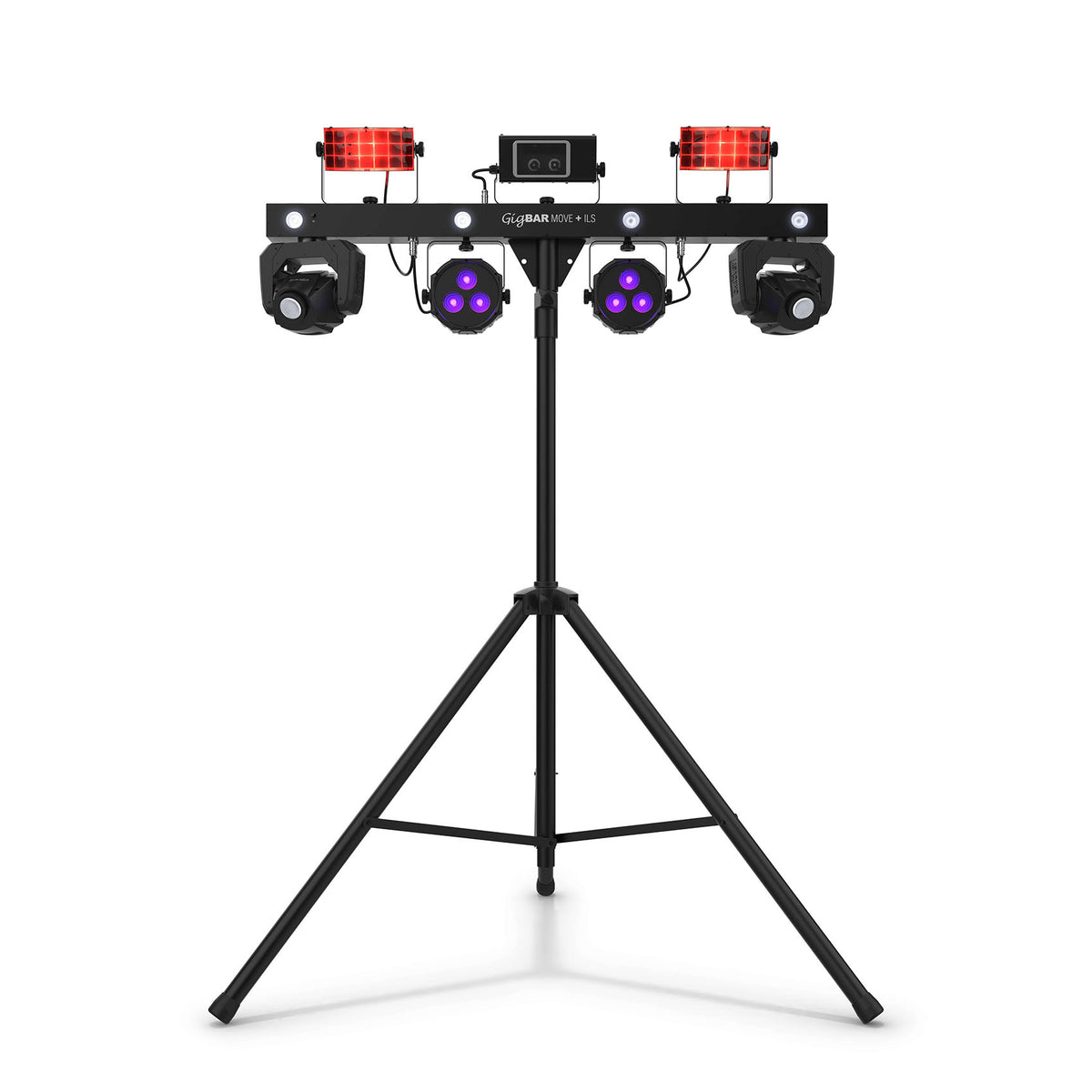

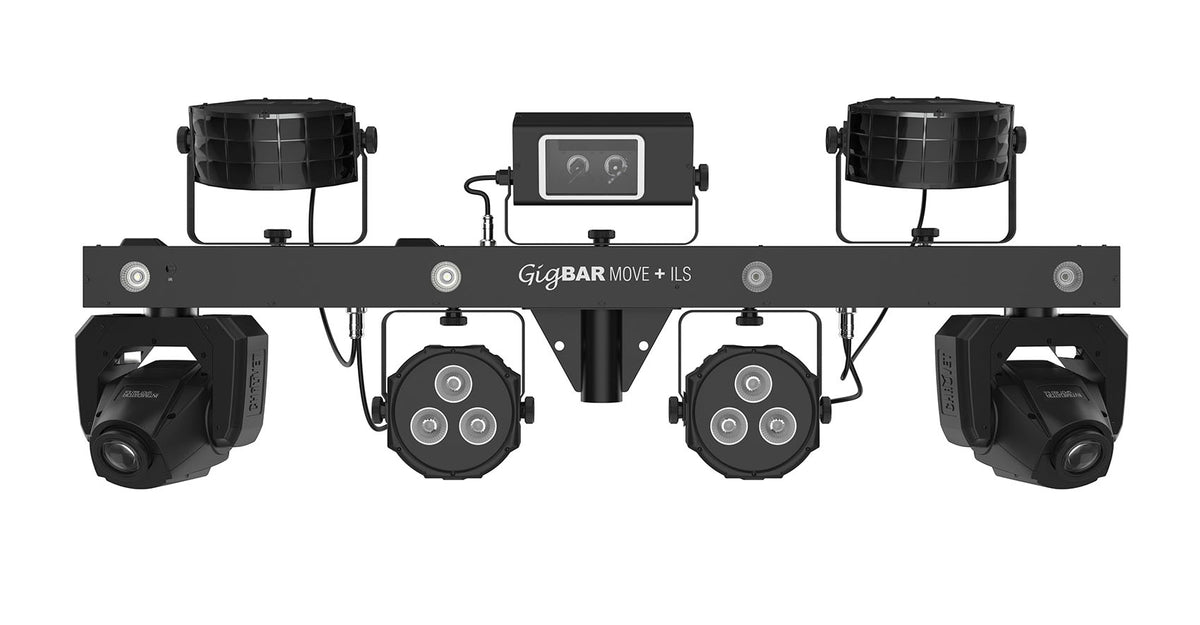

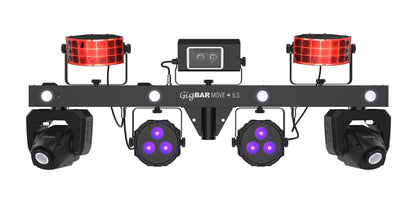

Moving heads, derbies, washes, a laser, and a strobe arrive pre-mounted and pre-wired, so one power cord and one tripod replace a van load of gear.
-
Grows With Your Setup
As the ILS controller, the bar syncs any ILS-enabled fixture wired or wirelessly, so added uplights join the same show with no programming.
-
Heads That Do Real Work
The 32 W moving heads carry separate color and gobo wheels with 9 colors and 9 gobos, giving you patterns beyond simple color sweeps.
-
Light Stays On The Floor
Totem Mode locks the moving heads onto the dance floor when the bar is stand-mounted, so beams land on people instead of the ceiling.
-
Run It Hands-Free

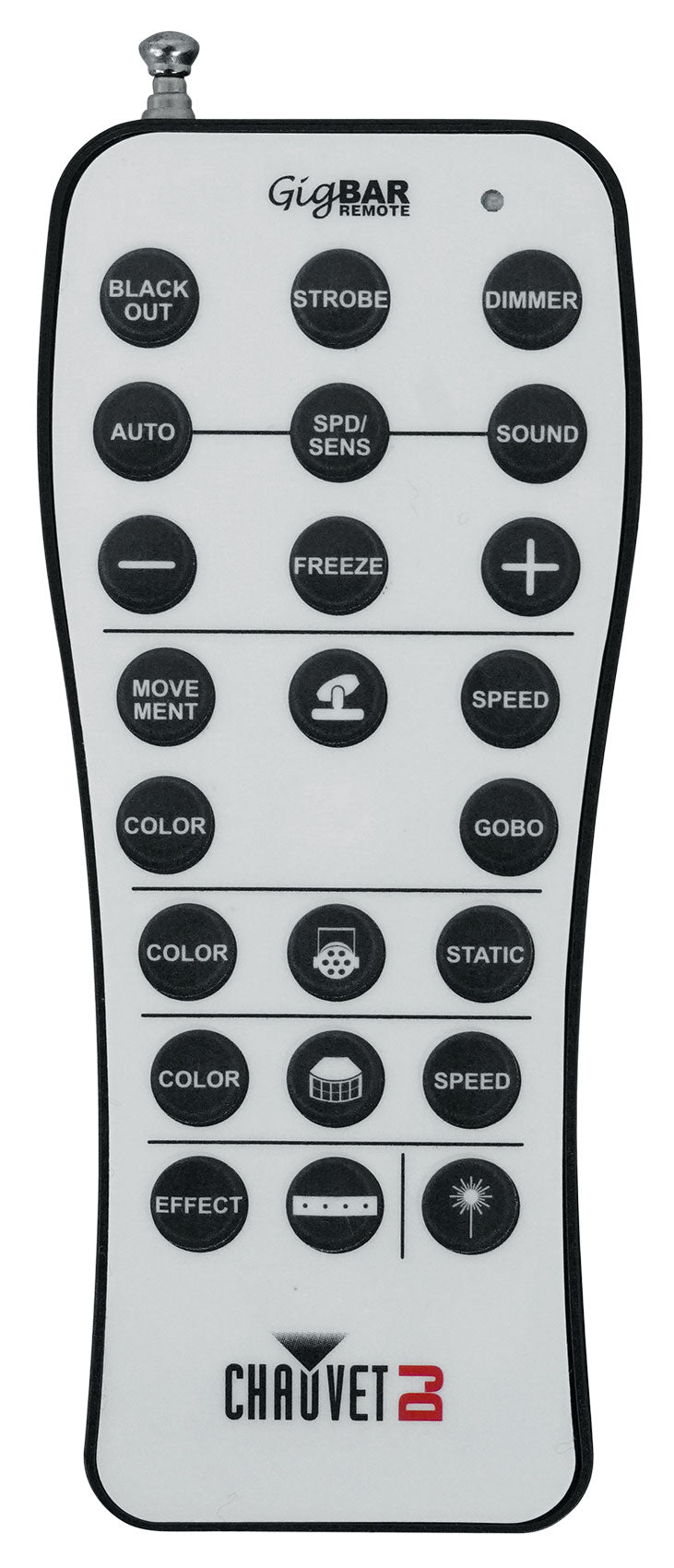

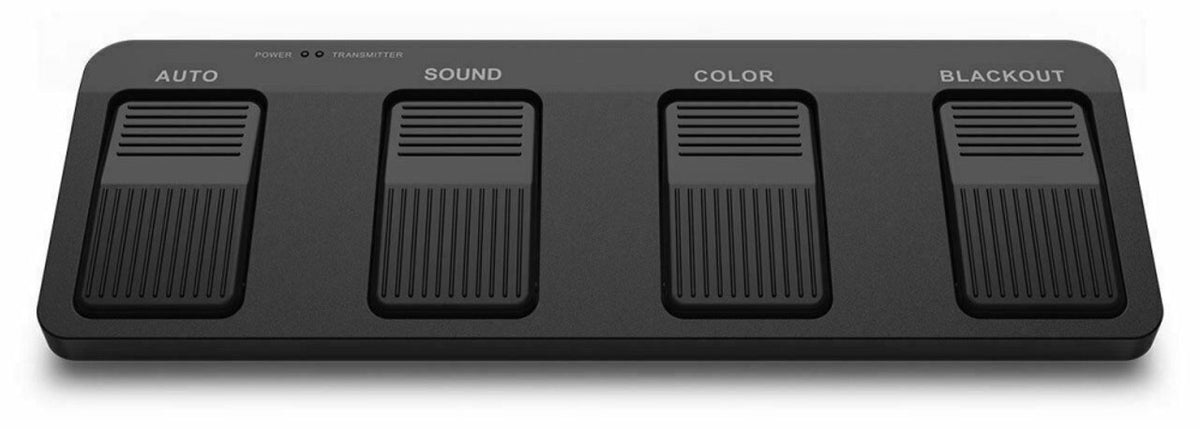

The included RF remote works without line of sight and the wireless footswitch triggers looks, so you can change the show mid-mix.
Technical Specifications
- Product Type 5-In-1 LED Lighting Bar System
- DMX Channels 3, 28, or 50
- DMX Connectors 3-pin XLR
- Pan and Tilt 540° / 180°
- Colors (Moving Head) 9 + open, split colors, continuous scroll at variable speeds
- Gobos (Moving Head) 9 + open, continuous scroll at variable speeds
- Light Source (Pars) 3 LEDs (hex-color RGBAW+UV) 6 W, 50,000 hours life expectancy
- Light Source (Strobe) 4 LEDs (cool white) 5 W, 50,000 hours life expectancy
- Light Source (Derby) 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W, 50,000 hours life expectancy
- Light Source (Moving Head) 1 LED (cool white) 32 W, 50,000 hours life expectancy
- Light Source (Laser) 638 nm/30 mW red, 520 nm/20 mW green, 450 nm/50 mW blue laser diodes
- Strobe Rate 0 to 30 Hz
- Beam Angle 17° (moving head), 22° (pars), 30° (strobe)
- Field Angle 33° (pars), 62° (strobe)
- Coverage Angle 131° (derby), 93° (laser)
- Illuminance 1,205 lux @ 2 m per par; 5,140 lux @ 2 m per moving head; 130 lux @ 2 m strobe
- Power Linking 7 units @ 120 V; 12 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 250 W, 3 A @ 120 V, 60 Hz
- Power and Current 248 W, 1.8 A @ 230 V, 50 Hz
- Stand Height 4.8 ft to 8.3 ft (1.5 to 2.5 m)
- Fits Tripod Size 1.5 in (37.4 mm)
- Footswitch Operating Frequency 433 MHz
- Footswitch Max Unobstructed Distance 100 ft (30.5 m)
- Included Controllers RF remote, wireless footswitch
- Cable Length 10 ft (3 m)
- Approvals CE, UKCA, RoHS, FCC, FDA
- Weight 31 lb (14 kg), bar only
- Size 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
