Chauvet DJ GIGBAR MOVE ILS Kit w/Moving Heads/Derbies/Washes/Laser/Strobe Lights
Chauvet DJ GIGBAR MOVE ILS Kit w/Moving Heads/Derbies/Washes/Laser/Strobe Lights
5-In-1 Lighting Bar With Moving Heads, Derbies, Washes, Laser, Strobe, Tripod, Footswitch, RF Remote, Bag
Features

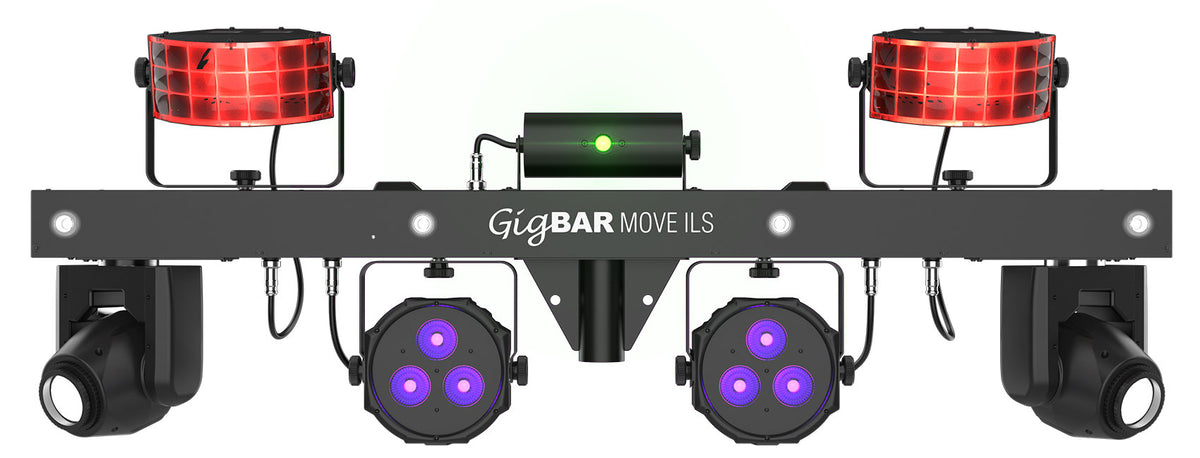

- Five effects pre-mounted on one bar: moving heads, derbies, washes, laser, strobe
- Controls any ILS-enabled fixture wired or wirelessly by D-Fi
- Moving heads with separate color and gobo wheels
- Totem Mode keeps the moving heads focused on the dance floor

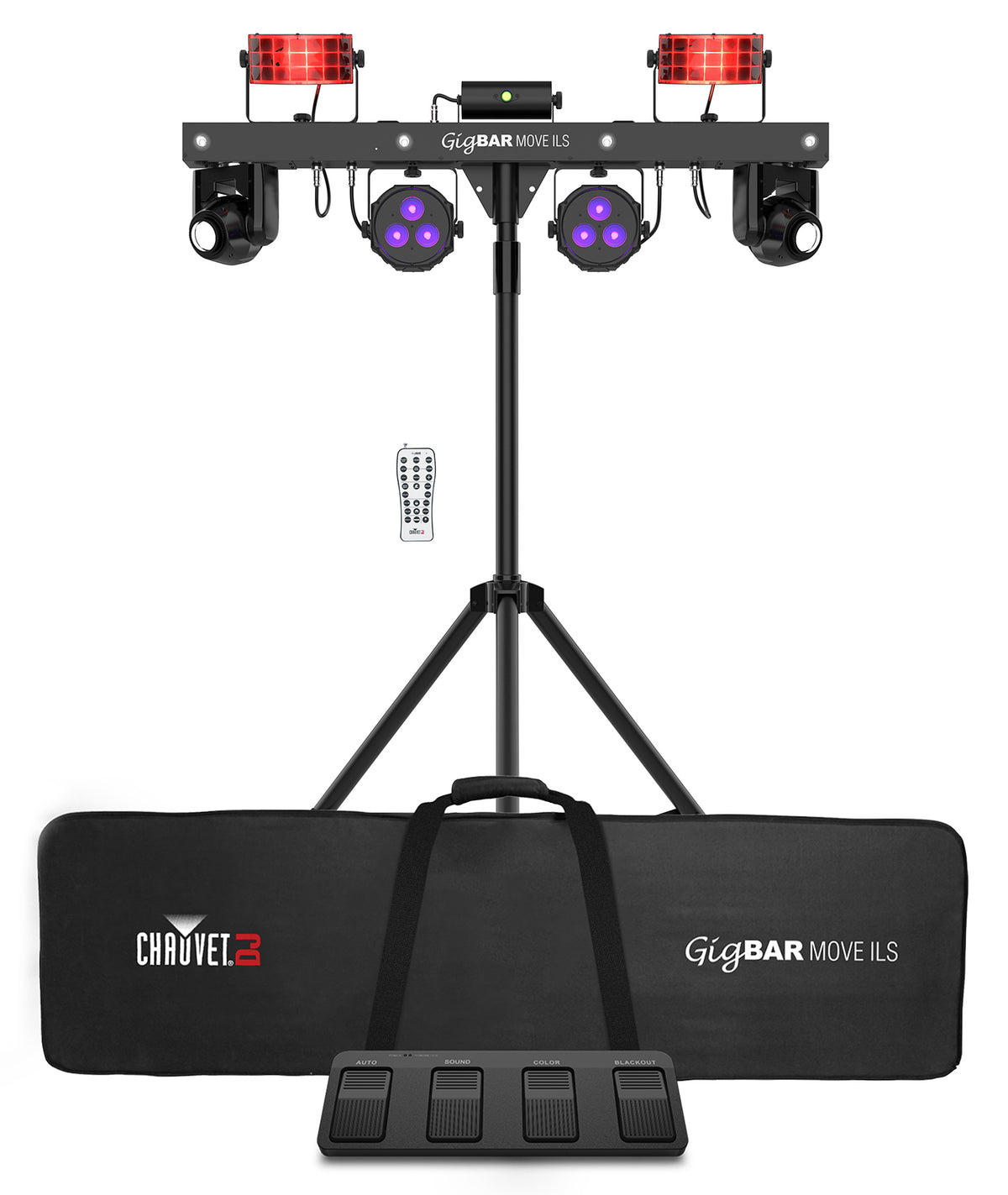

- Includes tripod, wireless footswitch, RF remote, and carry bag
Couldn't load pickup availability

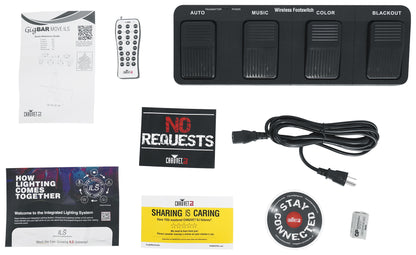

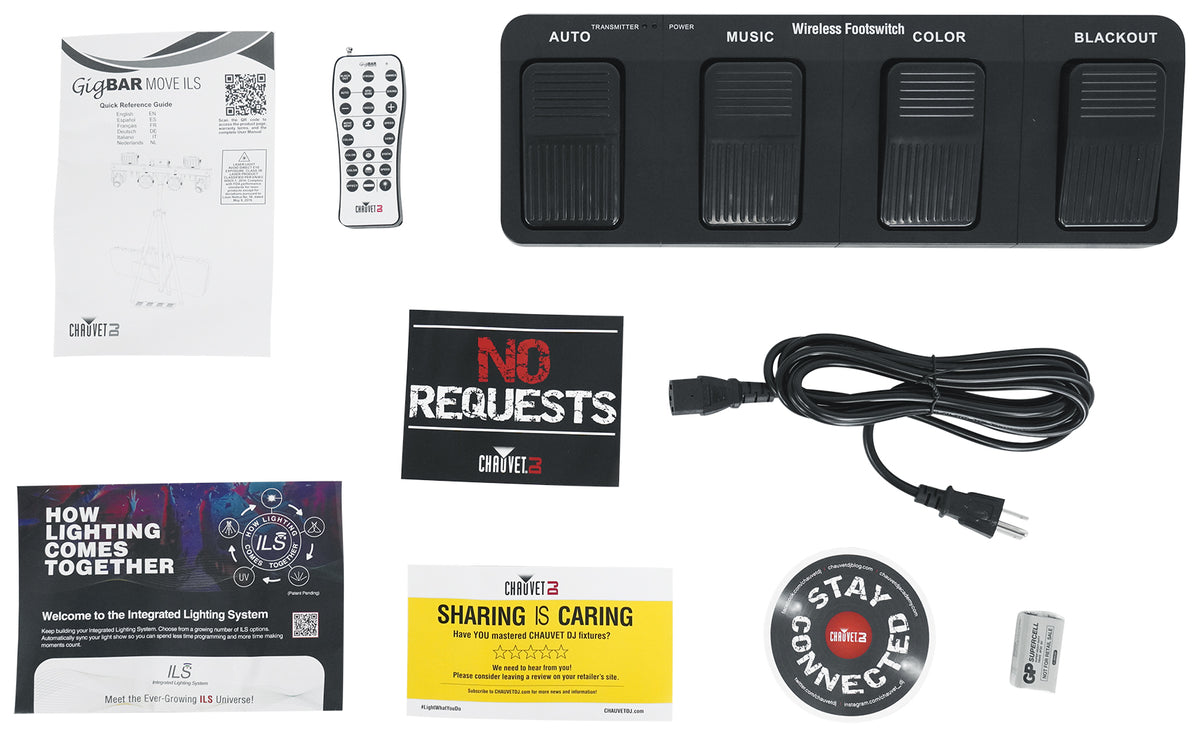

What's Included in the box

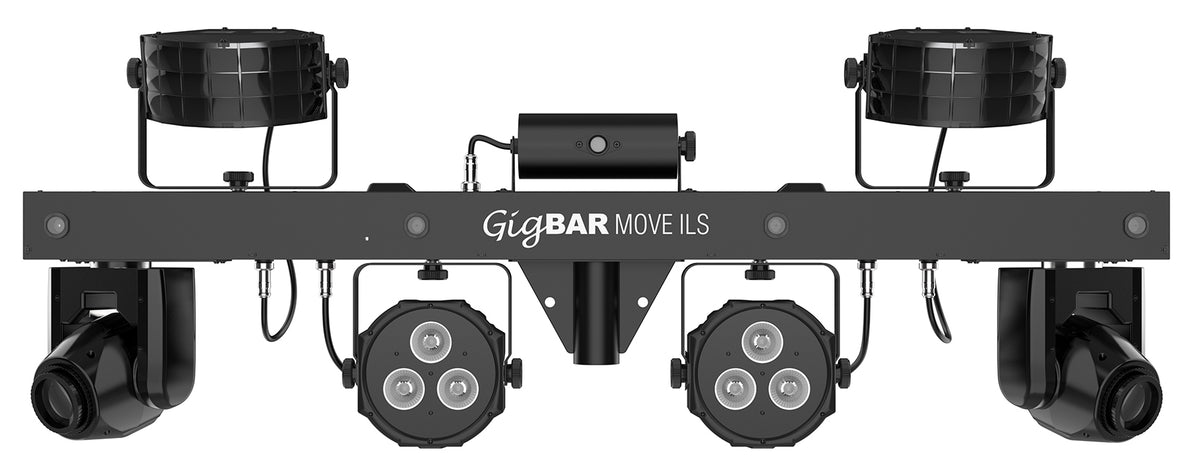

- GigBAR Move ILS
- Power cord

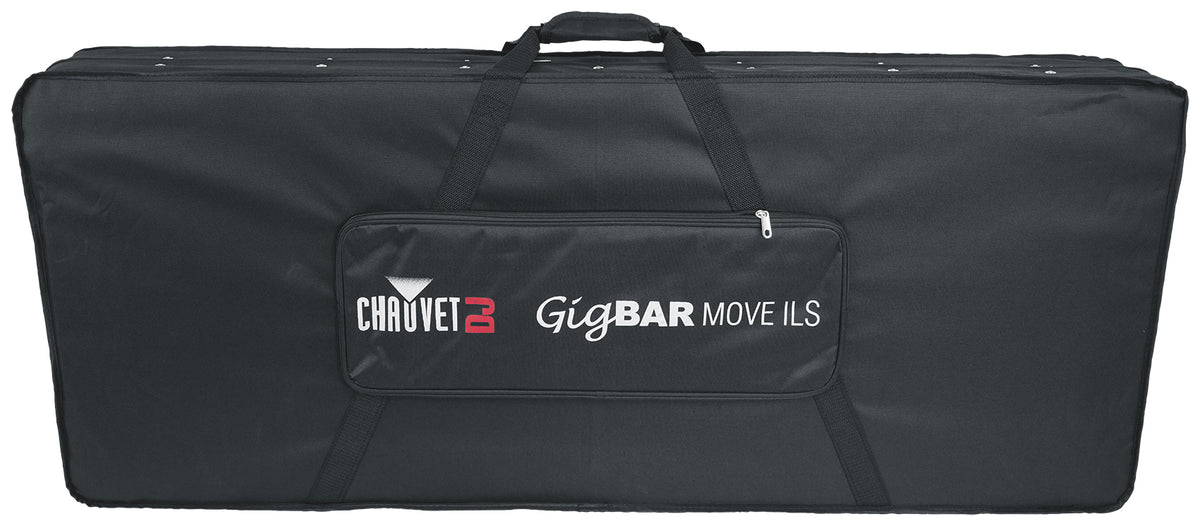

- Carrying bag
- Tripod
- Footswitch
- RF remote
- Key and interlock (EU)
SKU: SKU: GIGBARMOVEILS
View full details










Product Description
Features
-
Five Fixtures, One Load-In

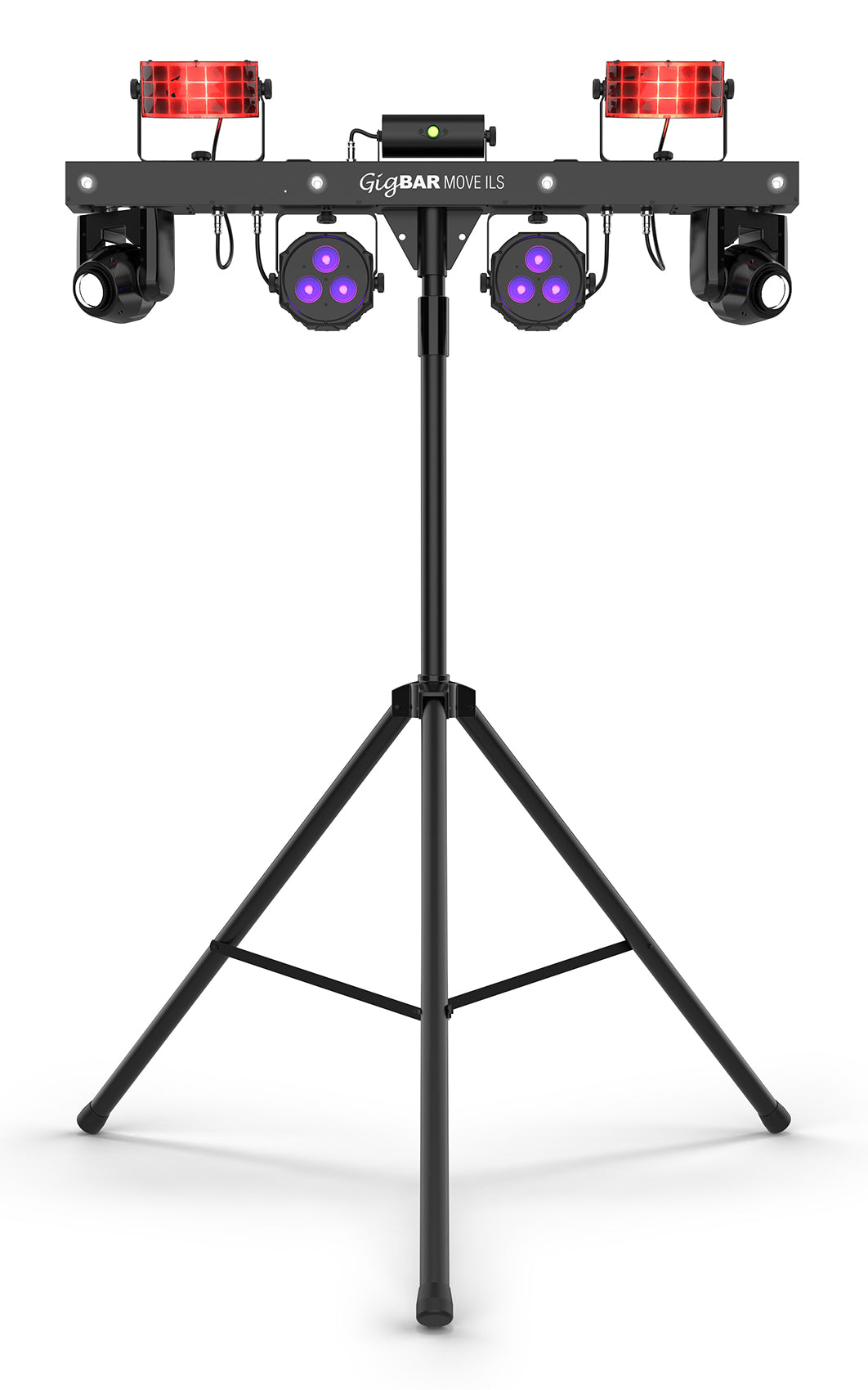

Moving heads, derbies, washes, a laser, and a strobe arrive pre-mounted, so a full show goes up on one tripod with one power cord.
-
Syncs Your Whole Rig
As an ILS controller, the bar coordinates any ILS-enabled fixture wired or wirelessly, so added lights join the show without programming.
-
Patterns, Not Just Color

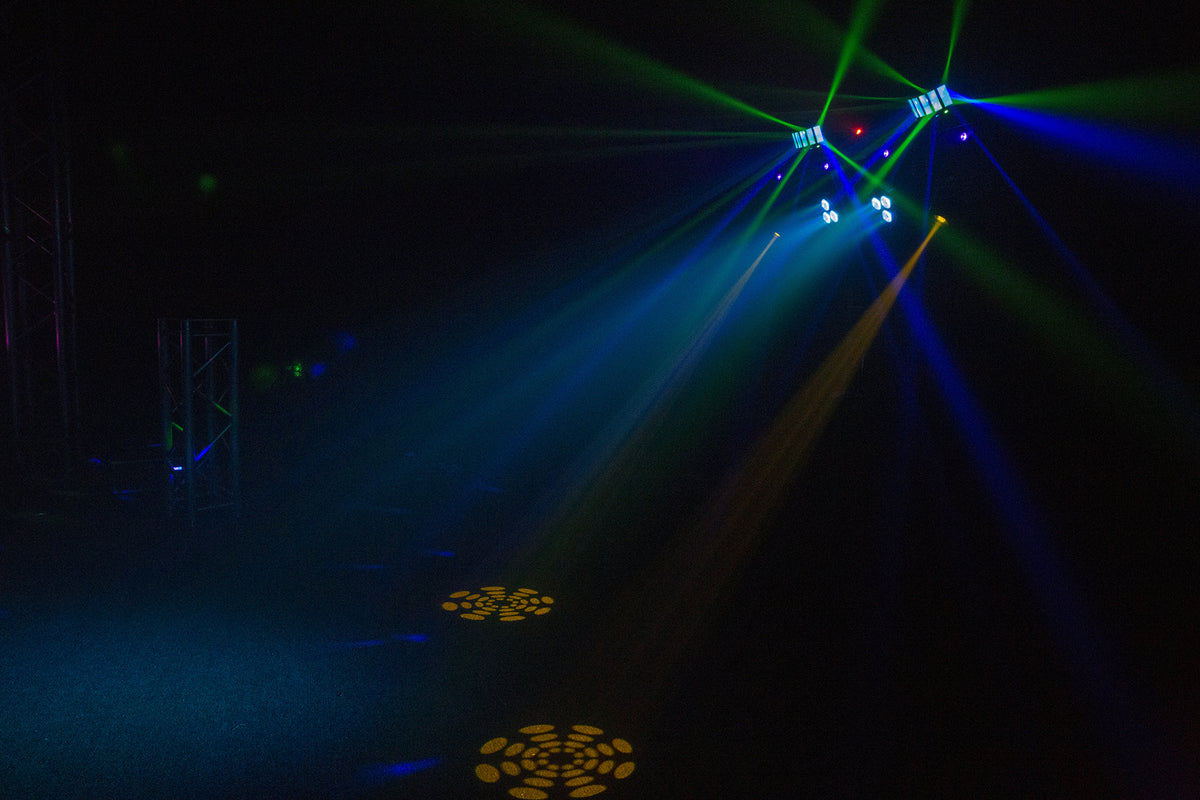

Separate color and gobo wheels in the moving heads scroll continuously at variable speeds, giving textured looks beyond a plain wash.
-
Light On The Dance Floor
Totem Mode holds the moving heads on the crowd when the bar is tripod-mounted, so beams work the room instead of the ceiling tiles.
-
Change Looks Mid-Mix

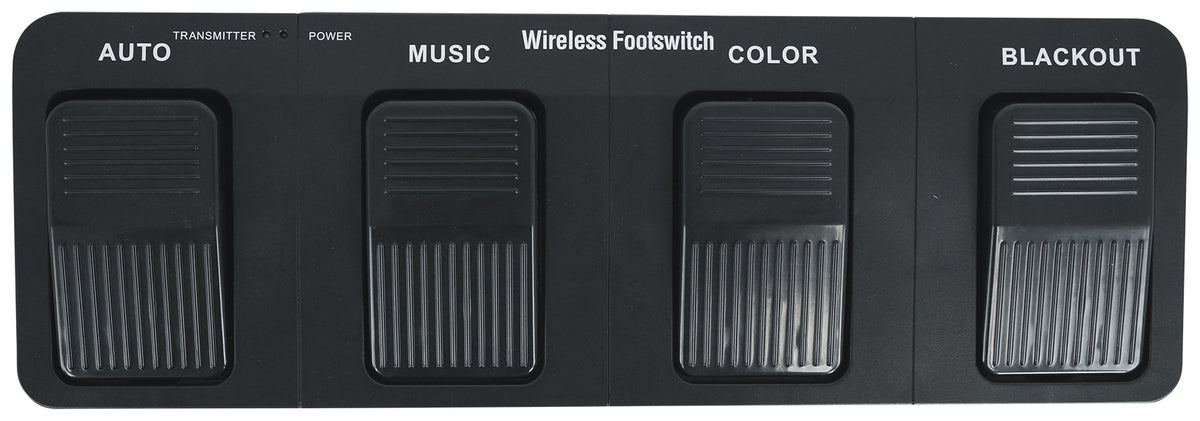

The included RF remote needs no line of sight and the wireless footswitch triggers cues, so you never leave the booth to adjust the show.
Technical Specifications
- Product Type 5-In-1 LED Lighting Bar System
- DMX Channels 3, 27 or 46
- DMX Connectors 3-pin XLR
- Pan and Tilt 540° / 180°
- Colors (Moving Head) 7 + white, continuous scroll at variable speeds
- Gobos (Moving Head) 7 + open, continuous scroll at variable speeds
- Light Source (Pars) 3 LEDs (quad-color RGB+UV) 3.5 W, 50,000 hours life expectancy
- Light Source (Strobe) 4 LEDs (white and UV) 5 W, 50,000 hours life expectancy
- Light Source (Derby) 6 LEDs (2 red, 2 green, 2 blue) 1 W, 50,000 hours life expectancy
- Light Source (Moving Head) 1 LED (cool white) 10 W, 50,000 hours life expectancy
- Light Source (Laser) 650 nm/100 mW red and 532 nm/30 mW green laser diodes
- Strobe Rate 0 to 20 Hz
- Beam Angle 11° (moving head), 19° (pars), 8° (strobe)
- Field Angle 30° (pars), 18° (strobe)
- Coverage Angle 131° (derby), 93° (laser)
- Illuminance 1,205 lux @ 2 m per par; 1,056 lux @ 2 m per moving head; 86 lux @ 2 m per strobe LED
- Power Linking 7 units @ 120 V; 12 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 81 W, 1.1 A @ 120 V, 60 Hz
- Power and Current 79 W, 0.6 A @ 230 V, 50 Hz
- Stand Height 4.8 ft to 8.3 ft (1.5 to 2.5 m)
- Tripod Leg Width 3.9 ft (1.2 m)
- Fits Tripod Size 1.5 in (37.4 mm)
- Footswitch Operating Frequency 433 MHz
- Footswitch Max Unobstructed Distance 100 ft (30.5 m)
- Included Controllers RF remote, wireless footswitch
- Approvals CE, RoHS, UKCA, FDA, FCC
- Weight 23.4 lb (10.7 kg)
- Size 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
