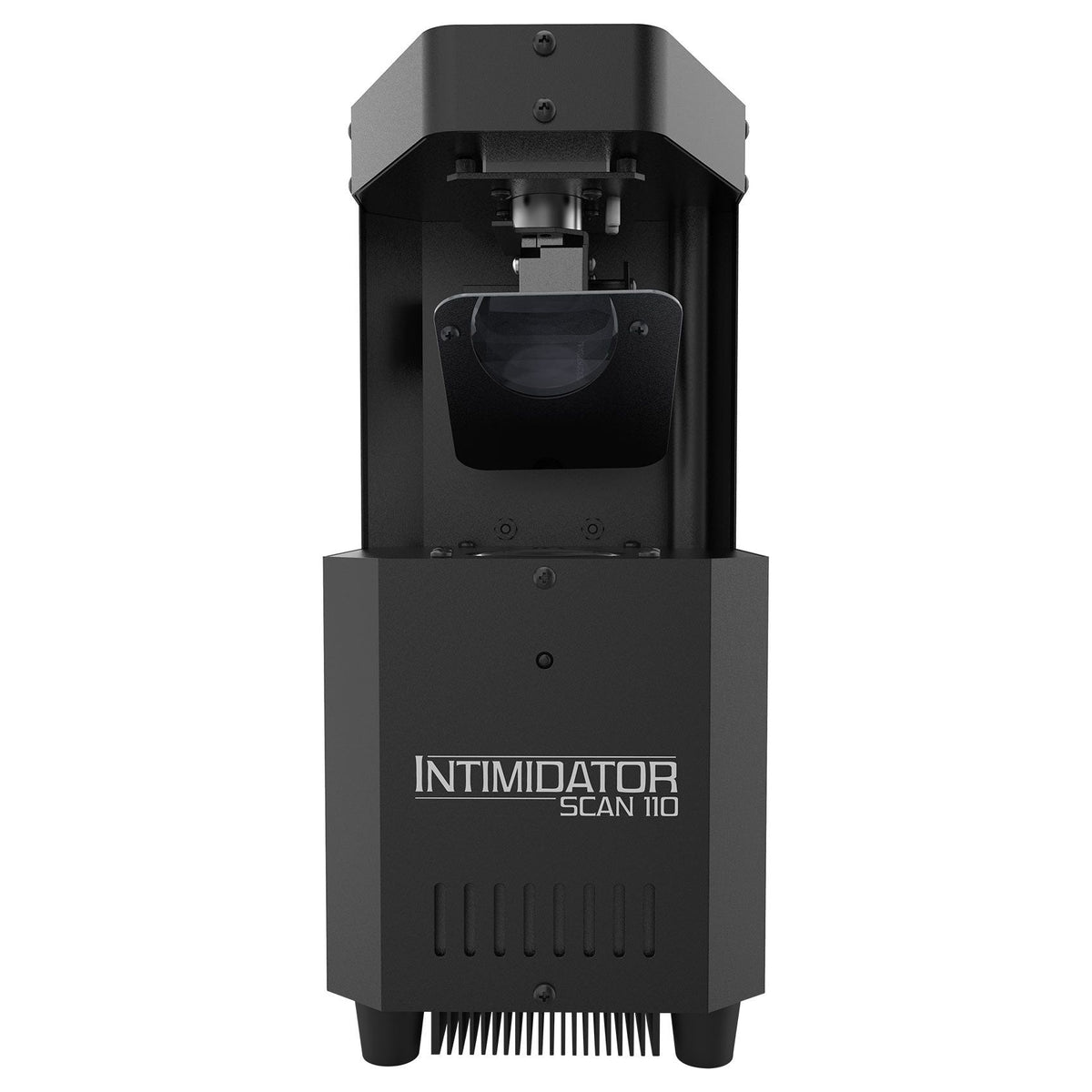

INTIMIDATOR SCAN 110
INTIMIDATOR SCAN 110
Compact 10 W LED Scanner, 13° Beam, 8 Color and Gobo Combinations, Sound-Activated Programs
Free Shipping
Features
- 10 W LED puts out 1,110 lux at 2 m through a 13 degree beam
- Fast mirror movement across 180 degree pan and 45 degree tilt

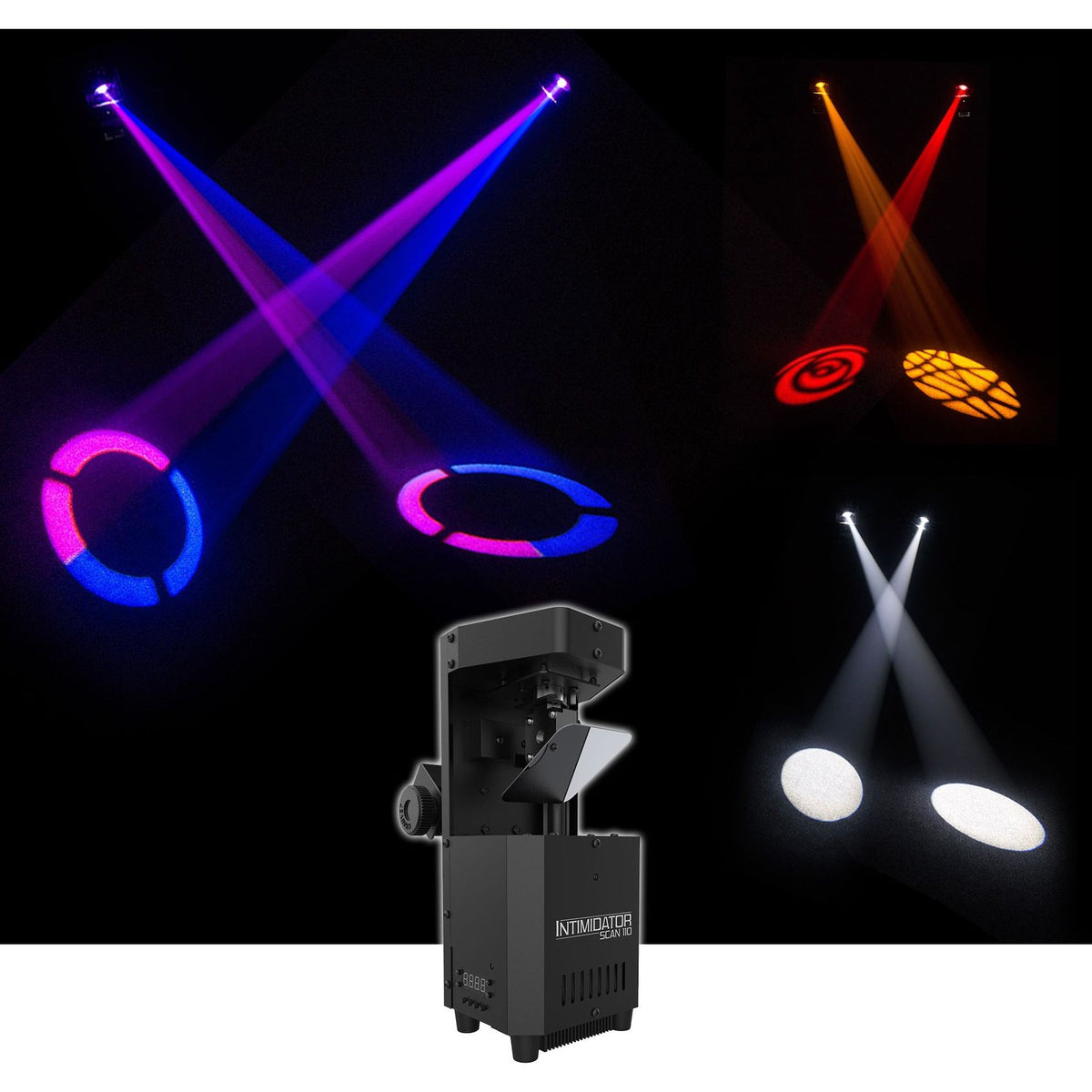

- 8 combined color and gobo patterns plus open
- Sound-activated programs move the beam with the music
- Power link up to 17 units at 120 V from one outlet
Couldn't load pickup availability

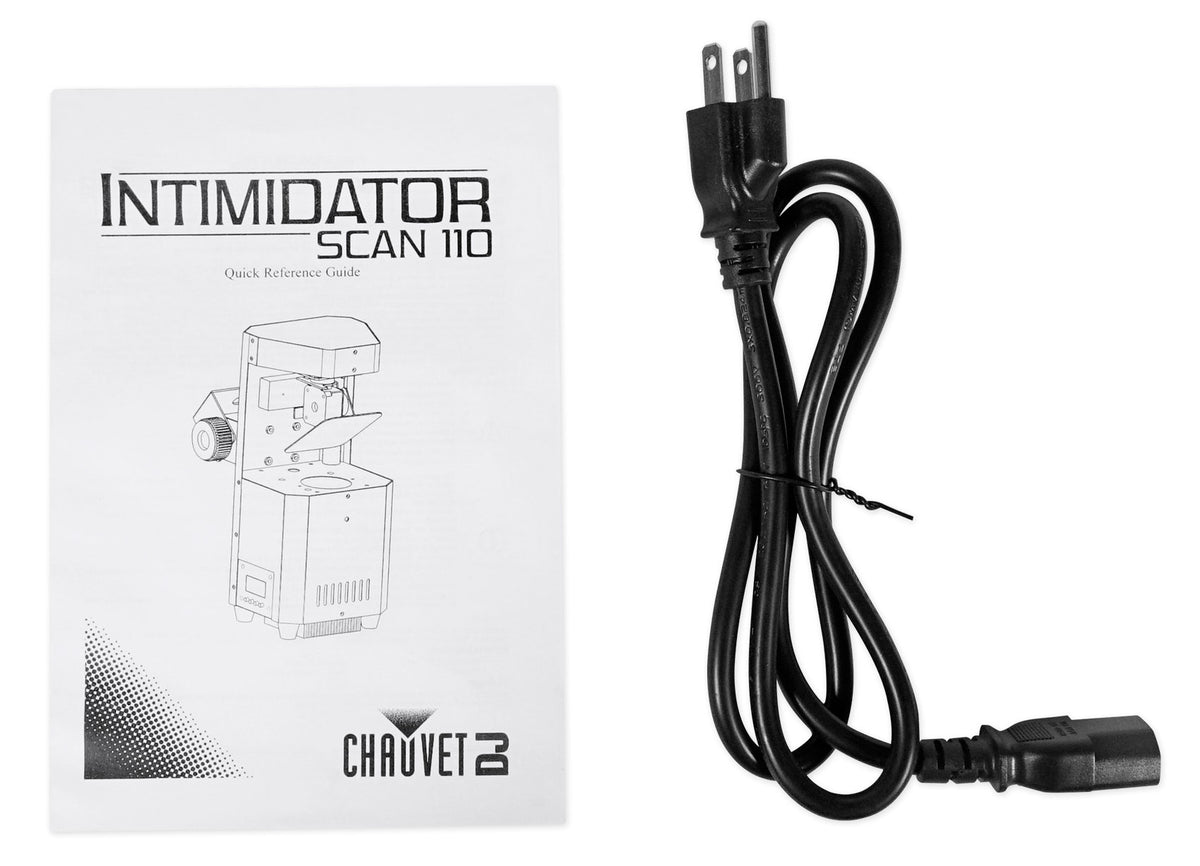

What's Included in the box
- Intimidator Scan 110
SKU: SKU: Intimidator Scan 110
View full details









Product Description
Features
-
Quick Beat-Driven Movement

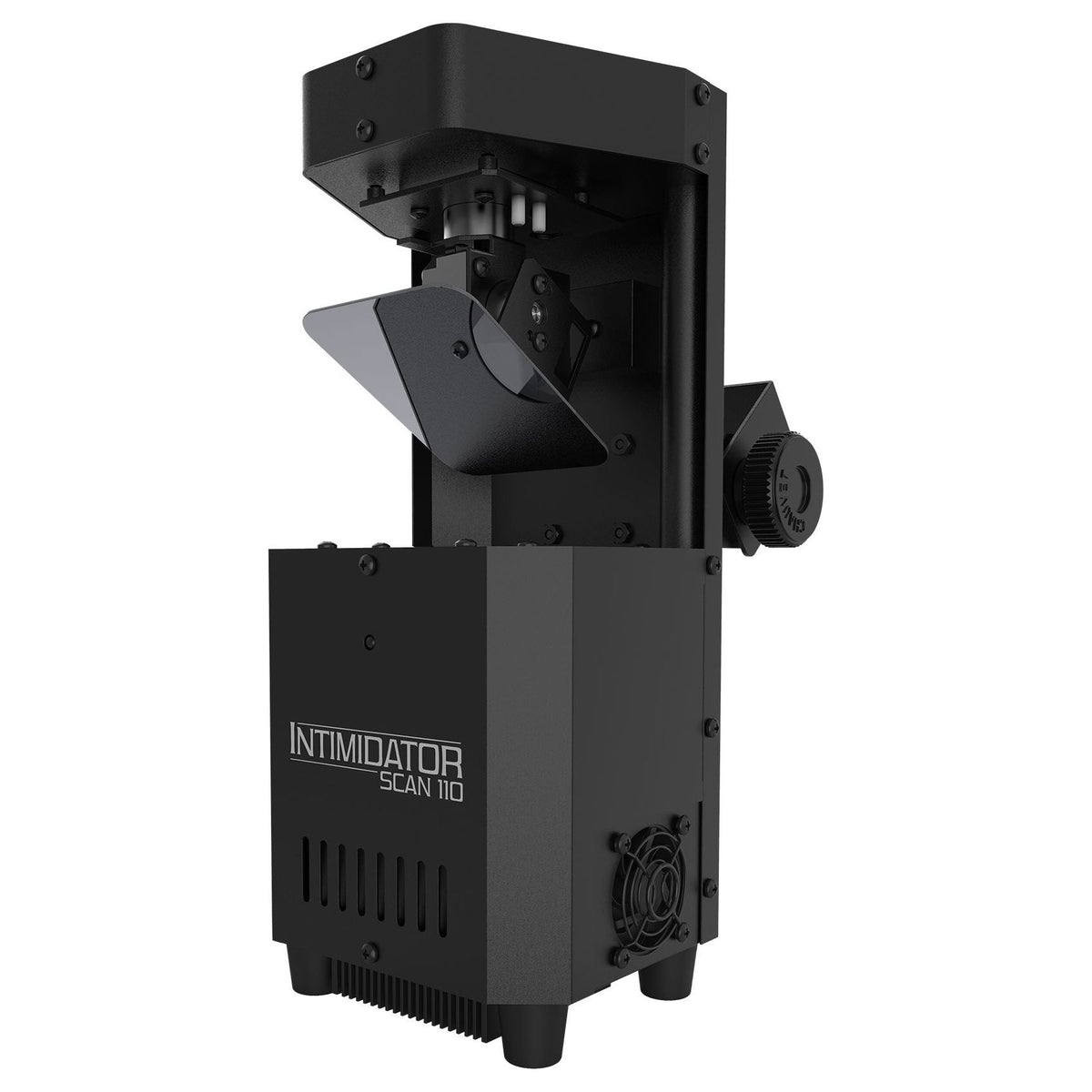

Mirror-based scanning reacts faster than a moving head across 180 degree pan and 45 degree tilt, keeping beam cues locked to fast tempo changes.
-
Programming Time Saved
Built-in movement macros and move-in-black features build looks without hand-writing every step, cutting hours out of show prep.
-
Console-Free Control
Sound-activated programs run the fixture off the music, and the optional IRC-6 remote adds manual control with no DMX line to run.
-
Fits Any Rig
At 4.6 lb and 7.5 x 4.7 x 10.6 in, the scanner mounts on light truss, a T-bar, or a stand and packs into the CHS-40 gear bag.
-
Fewer Cable Runs
Power linking connects 17 units at 120 V or 31 at 230 V, so a full row of scanners feeds from one outlet instead of multiple extension cords.
Technical Specifications
- Product Type LED Scanner Effect Light
- DMX Channels 5 or 11

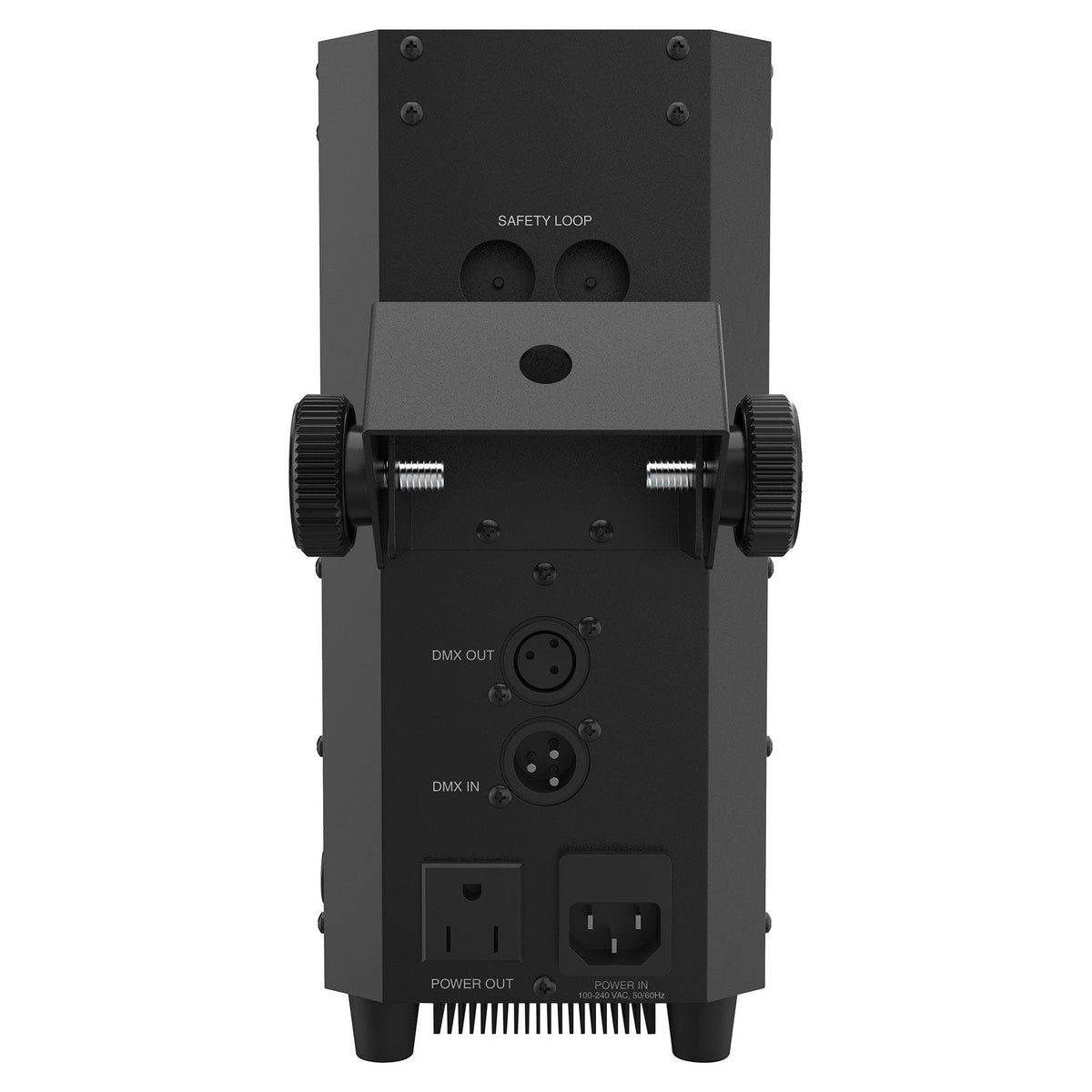

- DMX Connectors 3-pin XLR
- Pan and Tilt 180 degrees / 45 degrees
- Light Source 1 LED (cool white) 10 W, 2 A, 50,000 hours life expectancy
- Combined Color/Gobo Combinations 8 patterns + open
- Strobe Rate 0 to 18 Hz
- Beam Angle 13 degrees
- Illuminance 1,110 lux @ 2 m
- Power Linking 17 units @ 120 V; 31 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 30 W, 0.5 A @ 120 V, 60 Hz; 30 W, 0.3 A @ 230 V, 50 Hz
- Optional Controllers IRC-6
- Approvals CE
- Weight 4.6 lb (2.1 kg)
- Dimensions 7.5 x 4.7 x 10.6 in (190.5 x 119.3 x 269 mm)
