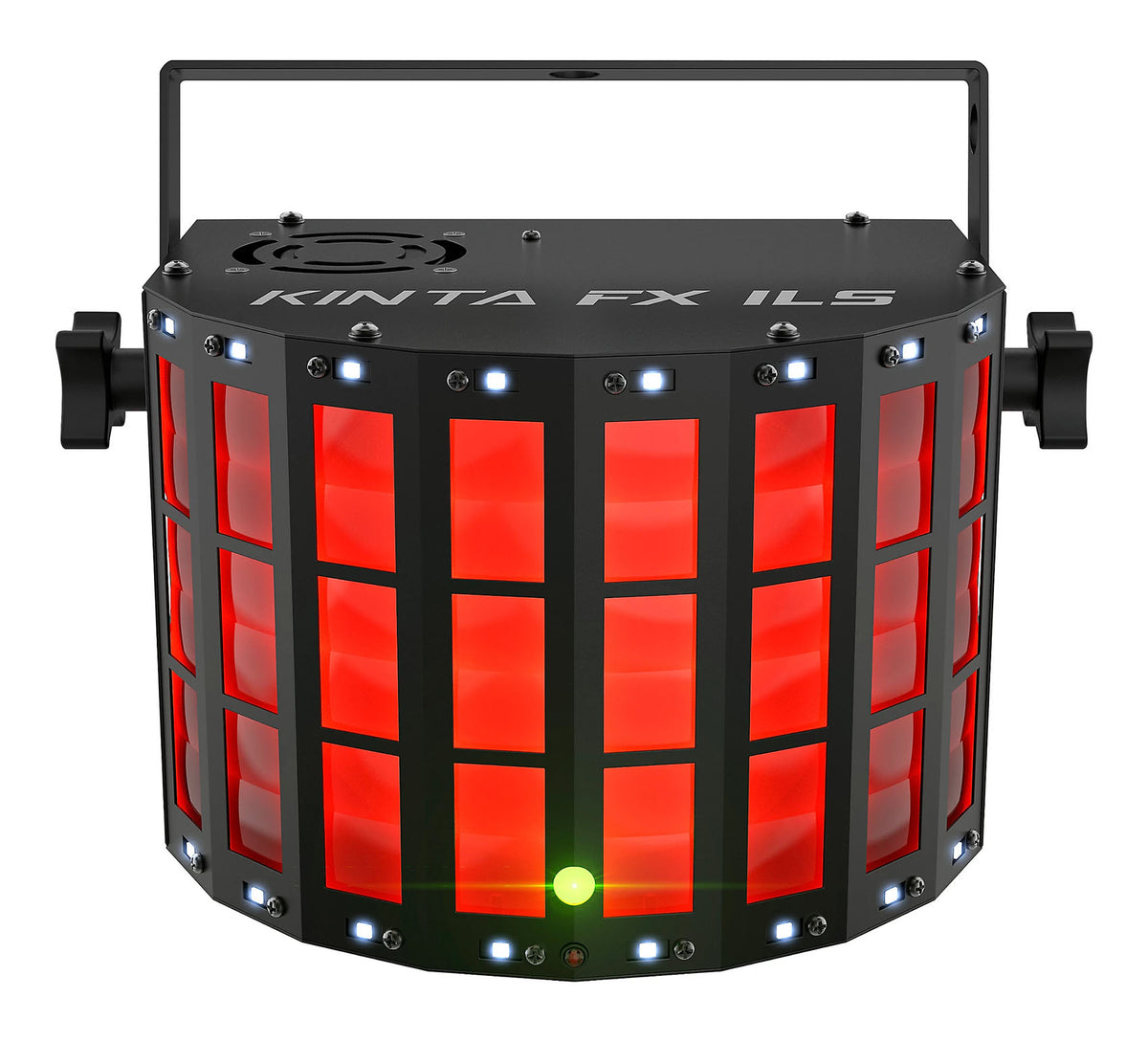

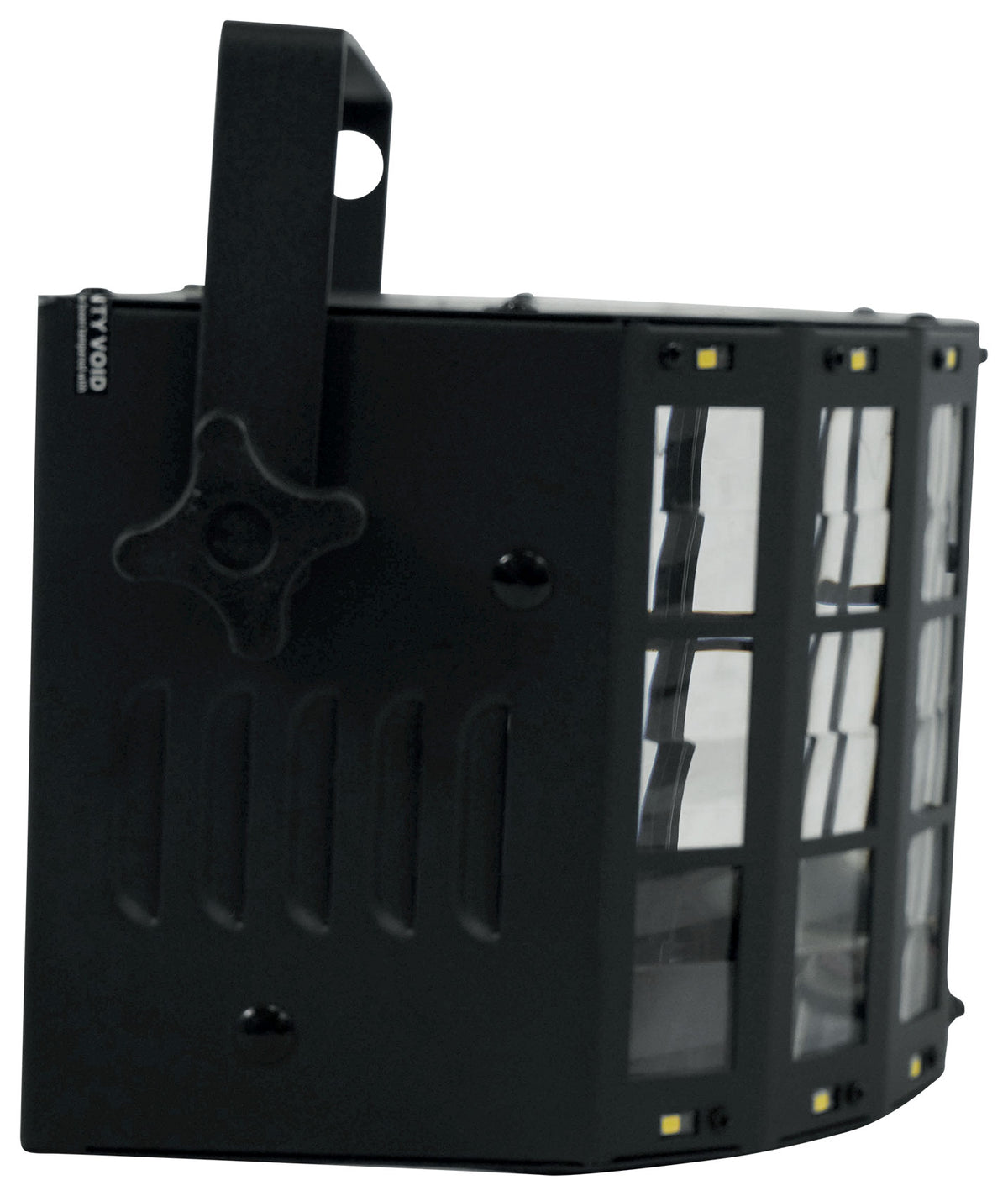

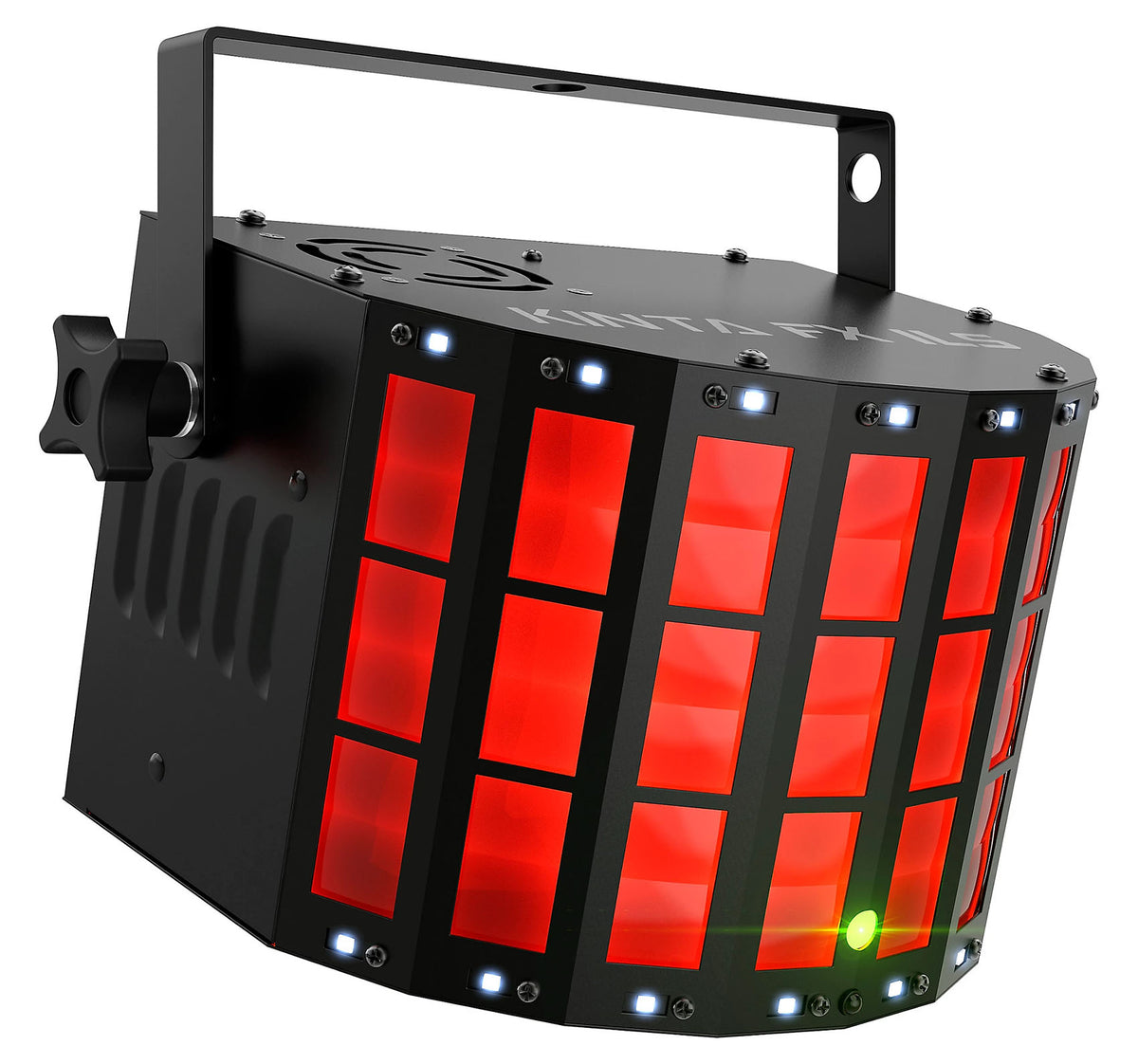

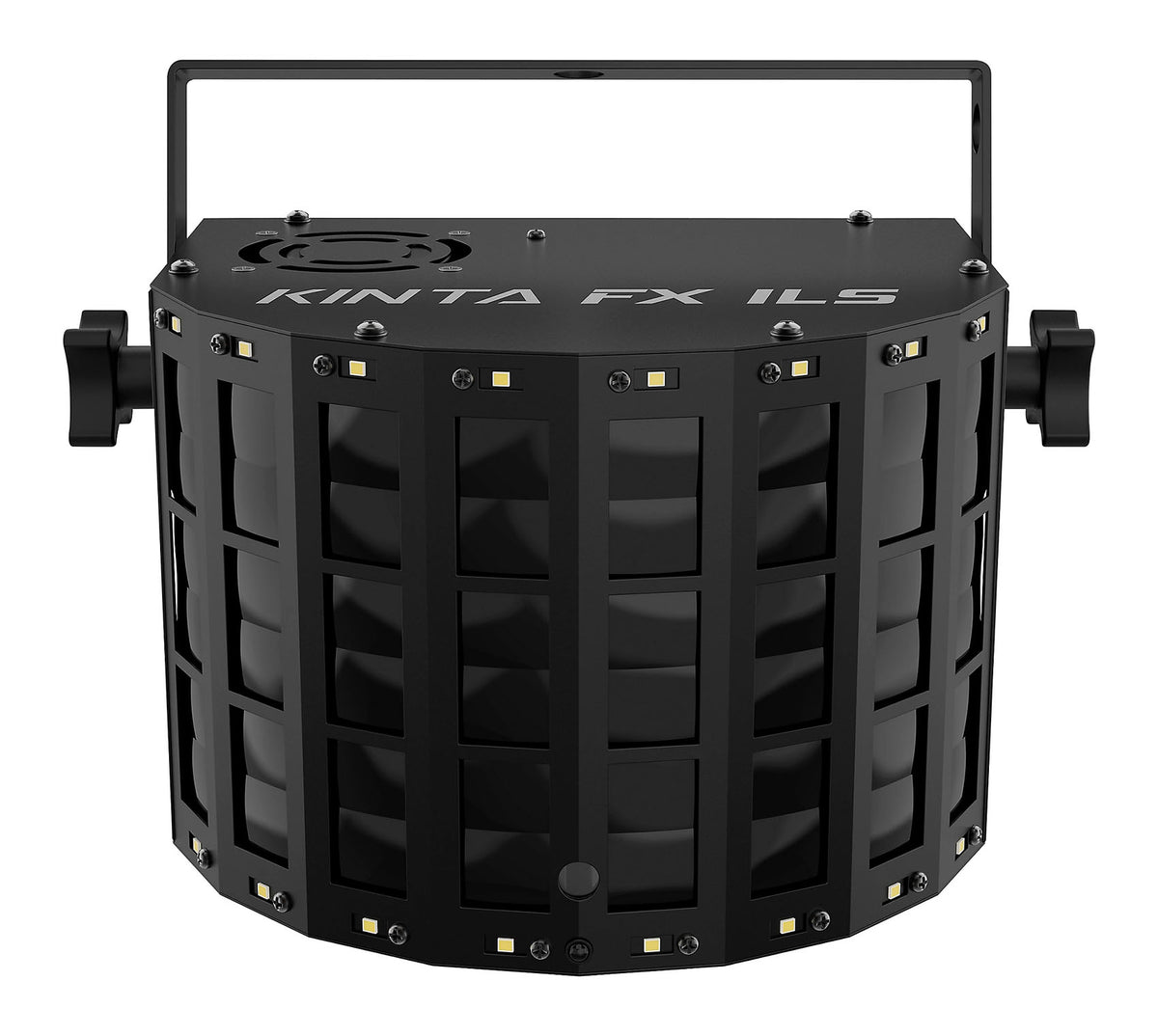

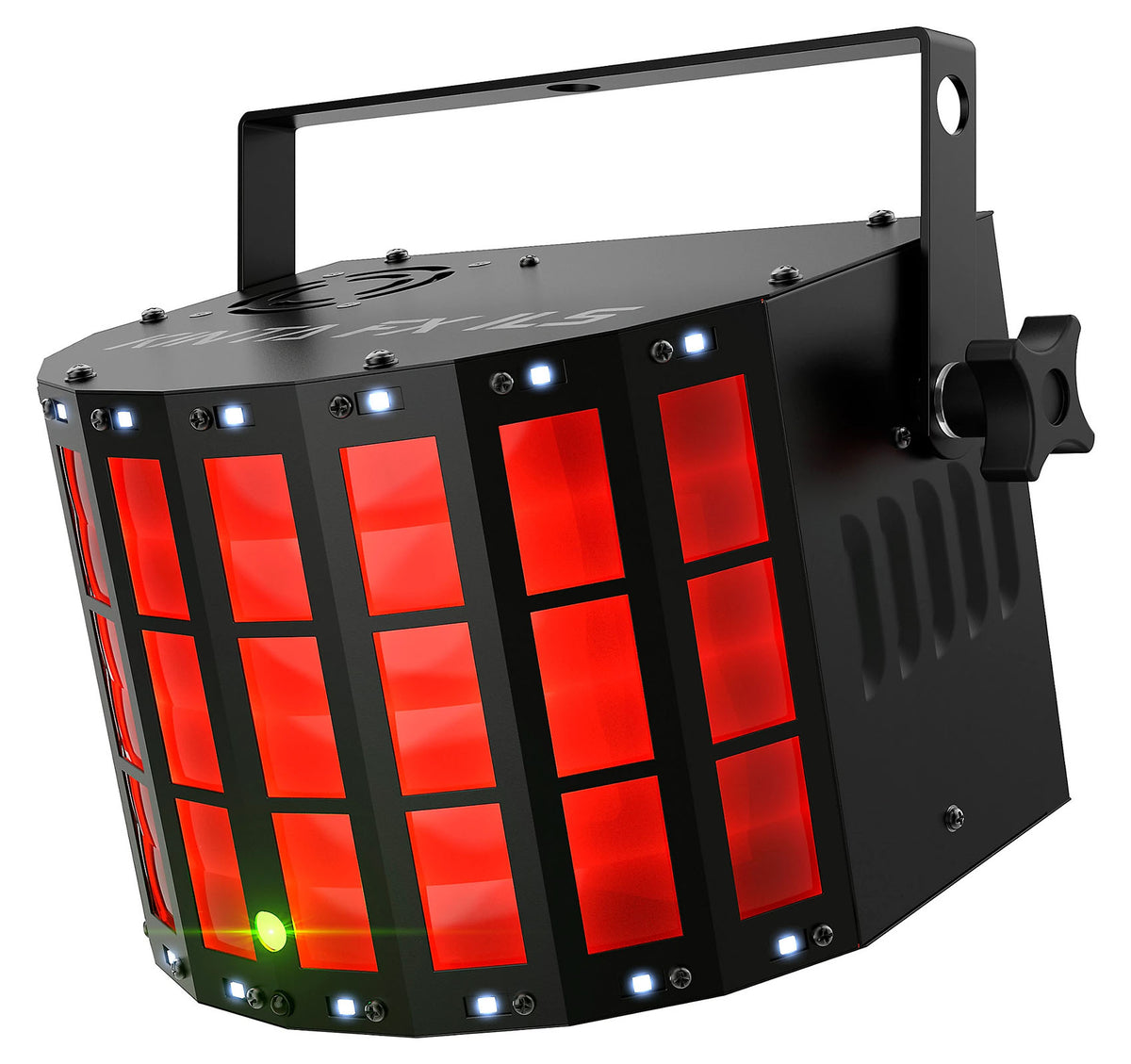

Chauvet DJ Kinta FX ILS D-Fi USB DMX Multi-Effect Light w/Laser/SMD/Strobe
Chauvet DJ
Chauvet DJ Kinta FX ILS D-Fi USB DMX Multi-Effect Light w/Laser/SMD/Strobe
Chauvet DJ Kinta FX ILS D-Fi USB DMX Multi-Effect Light w/Laser/SMD/Strobe
Multi-Effect Light With Kinta, Red/Green Laser, and SMD Strobe, 118° Coverage, Power Cord
Free Shipping
Features
- Kinta, red and green laser, and SMD strobe in one 3.8 lb fixture
- Four RGBW LEDs project multicolor beams across 118 degree coverage
- 16 white SMD LEDs produce strobe effects and chases
- ILS and D-Fi USB compatibility for synced and wireless control
- Power link up to 17 units at 120 V from one outlet
Couldn't load pickup availability

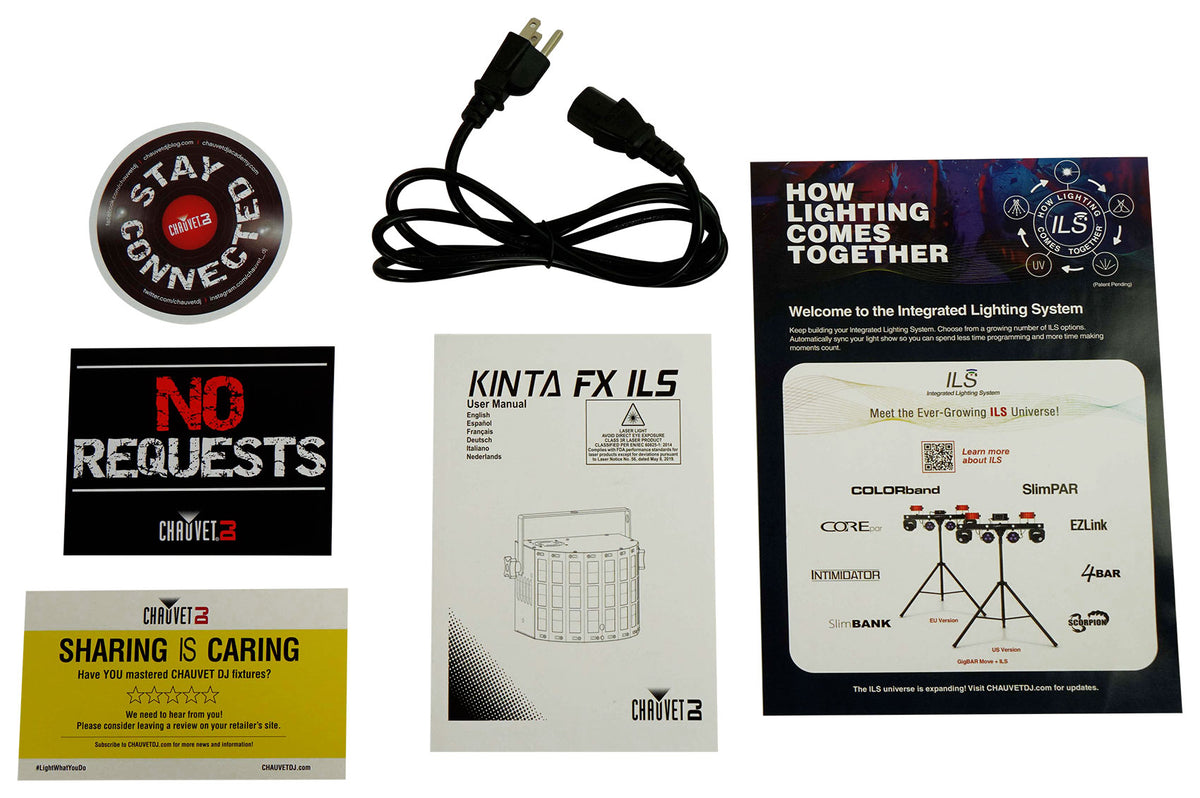

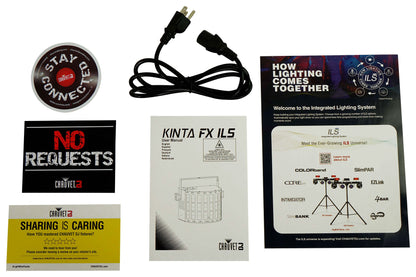

What's Included in the box
- Kinta FX ILS
- Power Cord
SKU: SKU: Kinta FX ILS
View full details








Product Description
Features
-
Three Effects, One Mount
A Kinta, laser, and SMD strobe share a single 3.8 lb housing, freeing two spots on a crowded T-bar and cutting your power drops to one.
-
Wide Beam Spread
Four RGBW LEDs throw multicolor beams across a 118 degree coverage angle, filling a small to mid-size room from one fixture position.
-
Synced Multi-Fixture Looks
ILS compatibility coordinates this unit with other ILS fixtures, so a mixed rig runs together without programming each cue separately.
-
Control Options For Any Gig

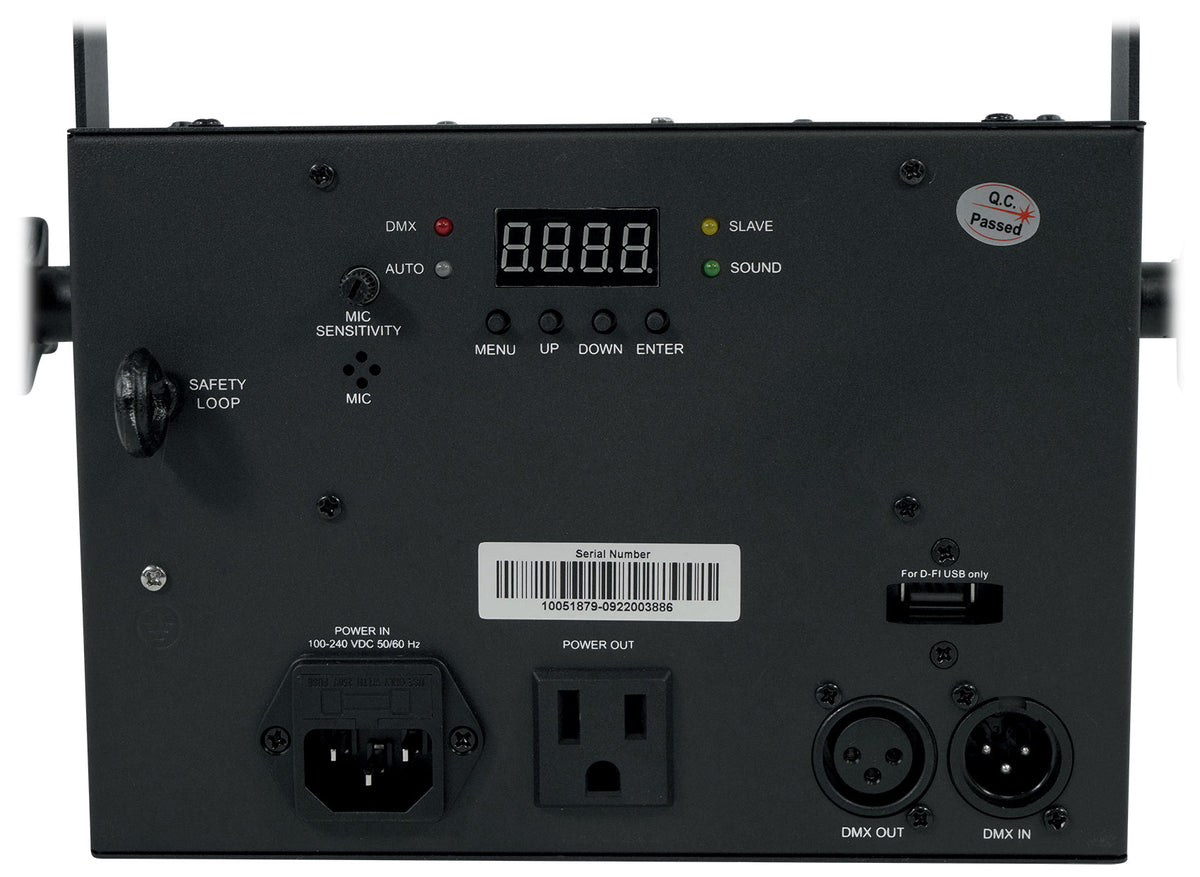

Run it from DMX over 2 or 9 channels, the digital display, D-Fi USB wireless, or the optional IRC-6 remote when no console is on site.
-
Simple Power Distribution
Power linking supports 17 units at 120 V or 33 at 230 V, so a row of effects feeds from one outlet instead of multiple extension cords.
Technical Specifications
- Product Type LED Multi-Effect Light
- DMX Channels 2 or 9

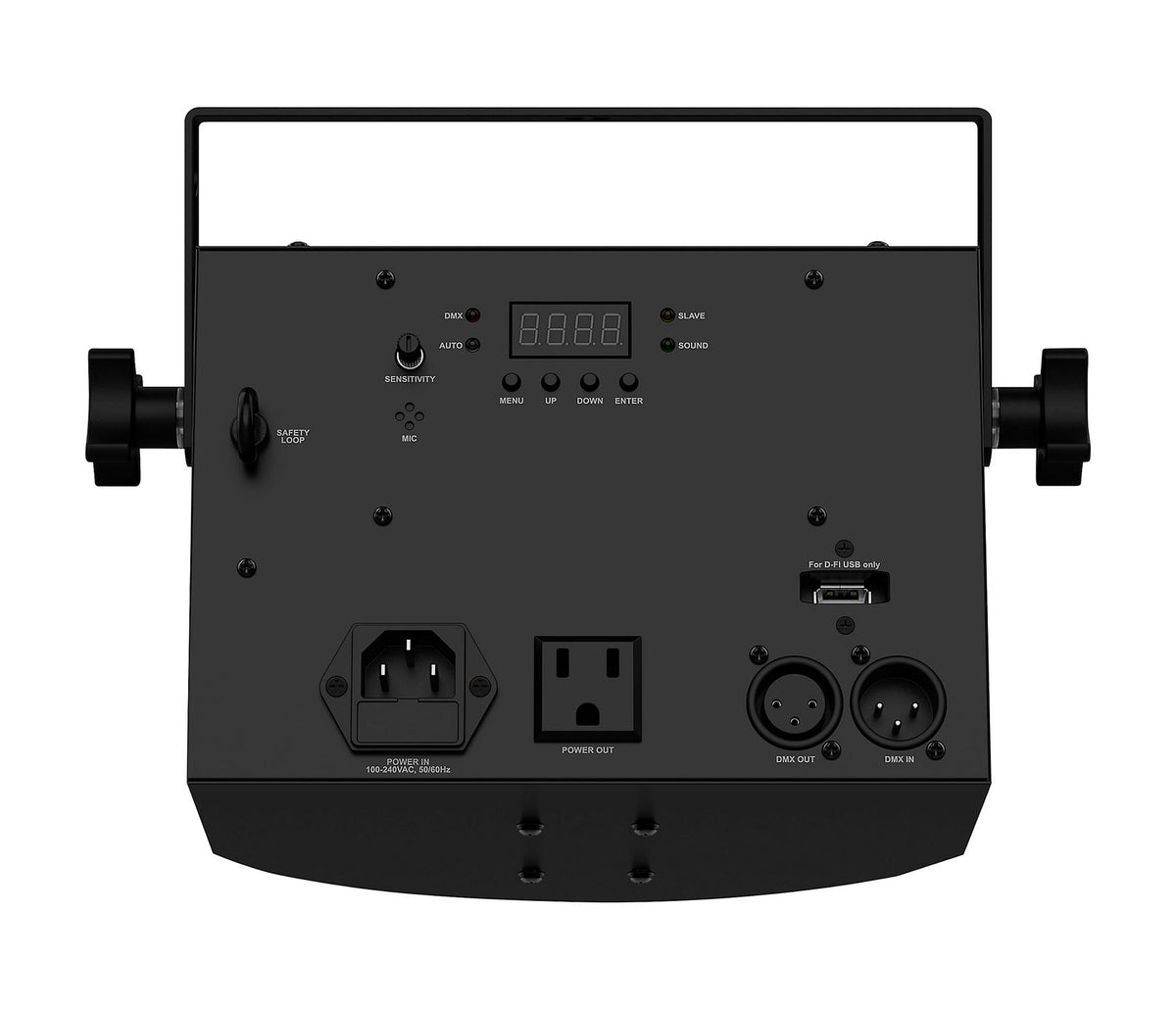

- DMX Connectors 3-pin XLR
- Light Source (Kinta) 4 LEDs (1 red, 1 green, 1 blue, 1 white) 7.5 W, 2.4 A, 50,000 hours life expectancy
- Light Source (Strobe) 16 SMD LEDs (white) 5 W, 1.6 A, 50,000 hours life expectancy
- Light Source (Laser) 650 nm/100 mW red diode; 520 nm/30 mW green diode
- Strobe Rate 0 to 20 Hz
- Coverage Angle 118 degrees
- Power Linking 17 units @ 120 V; 33 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 25 W, 0.5 A @ 120 V, 60 Hz; 24 W, 0.2 A @ 230 V, 50 Hz
- Optional Controllers IRC-6
- Approvals CE, FDA, RoHS, UKCA
- Weight 3.8 lb (1.7 kg)
- Dimensions 7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
