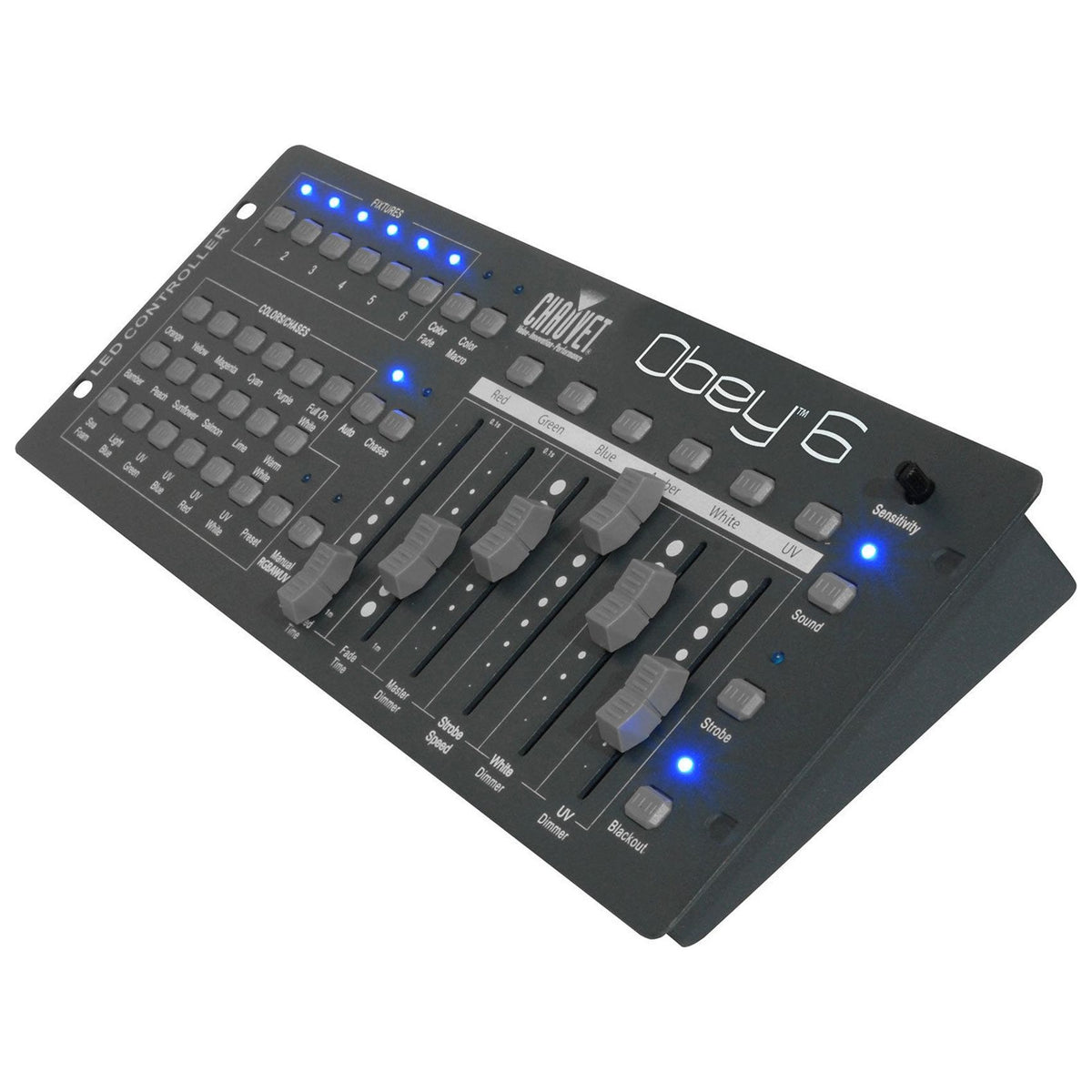

Chauvet DJ Obey 6 Compact Universal 6 Channel DMX DJ MIDI FX Controller

Chauvet DJ Obey 6 Compact Universal 6 Channel DMX DJ MIDI FX Controller

Compact 36-Channel DMX Controller, 6 Fixtures at 6 Channels Each, 24 Preset Colors

Free Shipping

Regular price $109.99
Sale price $109.99 Regular price $159.98
Save 31%
Shipping calculated at checkout.
Features
    • 36 DMX channels across 6 fixtures at up to 6 channels each
    • Handles RGBAW+UV fixtures that 4-channel boards cannot cover
    • 24 preset colors and 18 manually triggered chases
    • Each fixture can run its own playback mode at once
    • Weighs 3.8 lb and fits the CHS-25 VIP gear bag
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

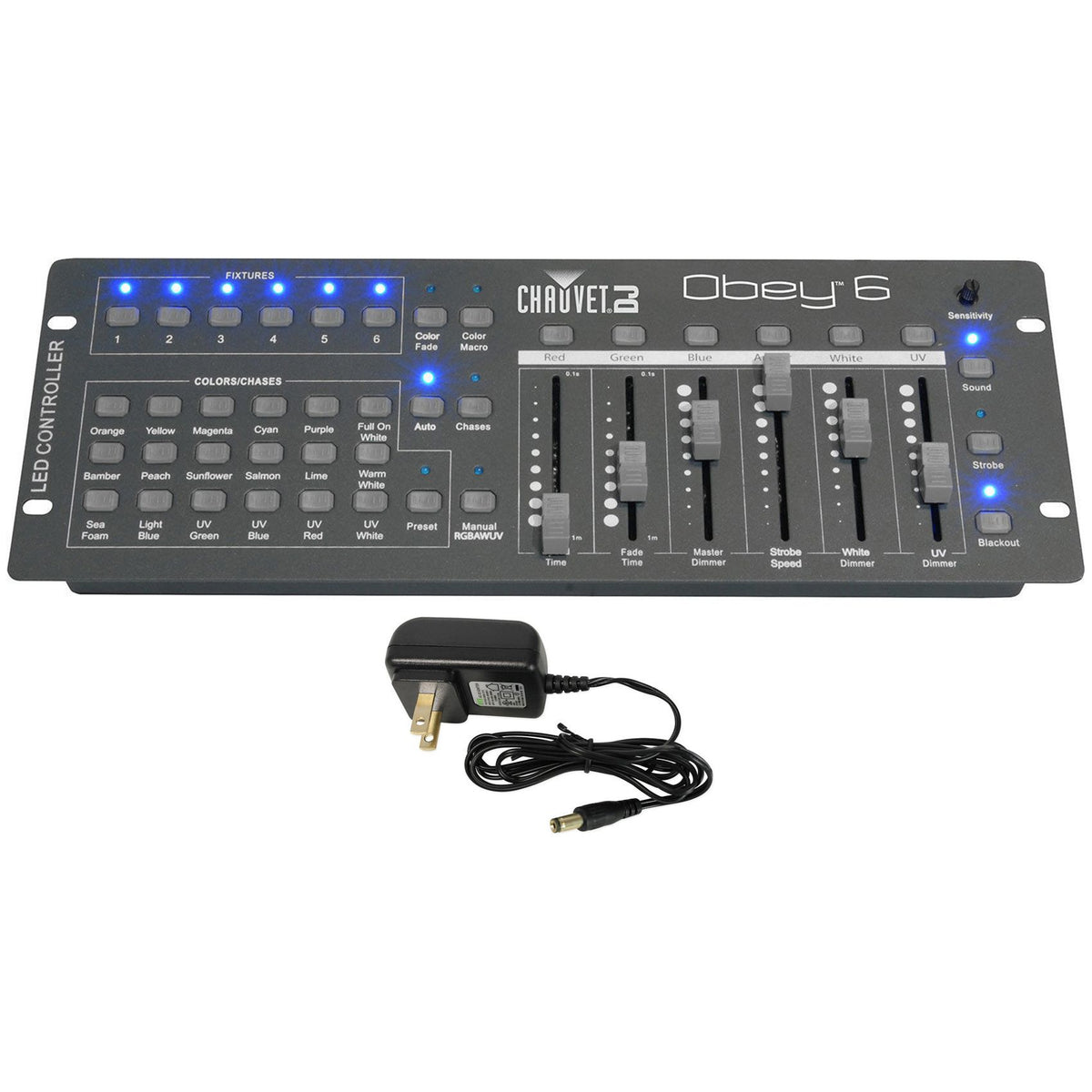

    • Obey 6 Controller

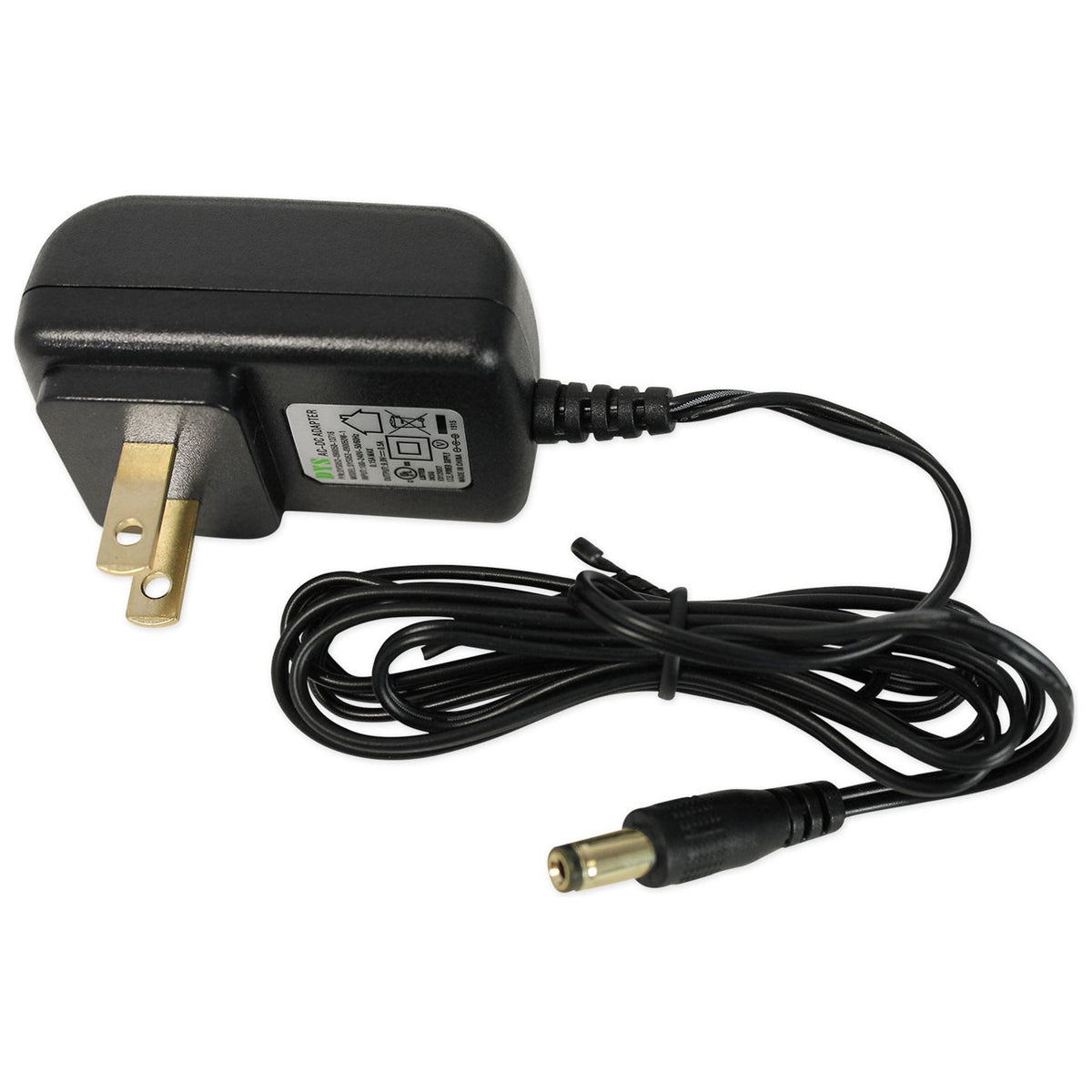

    • External Power Supply

SKU: SKU: OBEY6

View full details

Product Description

Obey 6 is a compact DMX-512 controller for LED fixtures, handling up to 6 fixtures at up to 6 channels each across 36 total DMX channels. That channel count covers RGBAW+UV fixtures, which a 4-channel board cannot cover in full. Pre-set color buttons select colors on the fly, and Quick Color buttons layer effects without stopping to program. Each fixture can run in a different playback mode simultaneously with variable fade times, so part of your rig holds a static wash while the rest cycles. Playback options include 24 built-in preset colors, 18 manually triggered chases, a color macro for manual spectrum scrolling, color fade for automatic scrolling, color fade delay that offsets each fixture for a wave effect, and auto mode that assigns random colors per fixture. Adjustable audio sensitivity, strobe, and blackout controls round out live operation. Control connects over 3-pin XLR and runs on 9 VDC from an external 100 to 240 VAC supply. At 3.8 lb and 15.5 x 5.5 x 1.9 in, it sits on a DJ table rather than taking rack space, and fits the CHS-25 VIP gear bag.

Features

    • Six Channels Per Fixture

      Support for up to 6 channels each covers RGBAW+UV LED fixtures in full, where a four-channel board leaves amber and UV unused.

    • Color Without Programming

      Pre-set color buttons and Quick Color buttons pick and layer colors during a set, so changes happen in a beat rather than a menu.

    • Independent Fixture Behavior

      Each of the six fixtures runs its own playback mode with its own fade time, letting part of the rig hold while the rest cycles.

    • Six Ways To Play Back

      Preset, chases, color macro, color fade, color fade delay, and auto cover static looks, manual control, and automated movement across the rig.

    • Table-Top Format

      At 3.8 lb and 15.5 x 5.5 x 1.9 in, the board sits beside the mixer instead of consuming a rack space, and packs in the CHS-25 bag.

Technical Specifications

  • Product Type DMX-512 LED Lighting Controller
  • DMX Channels 36

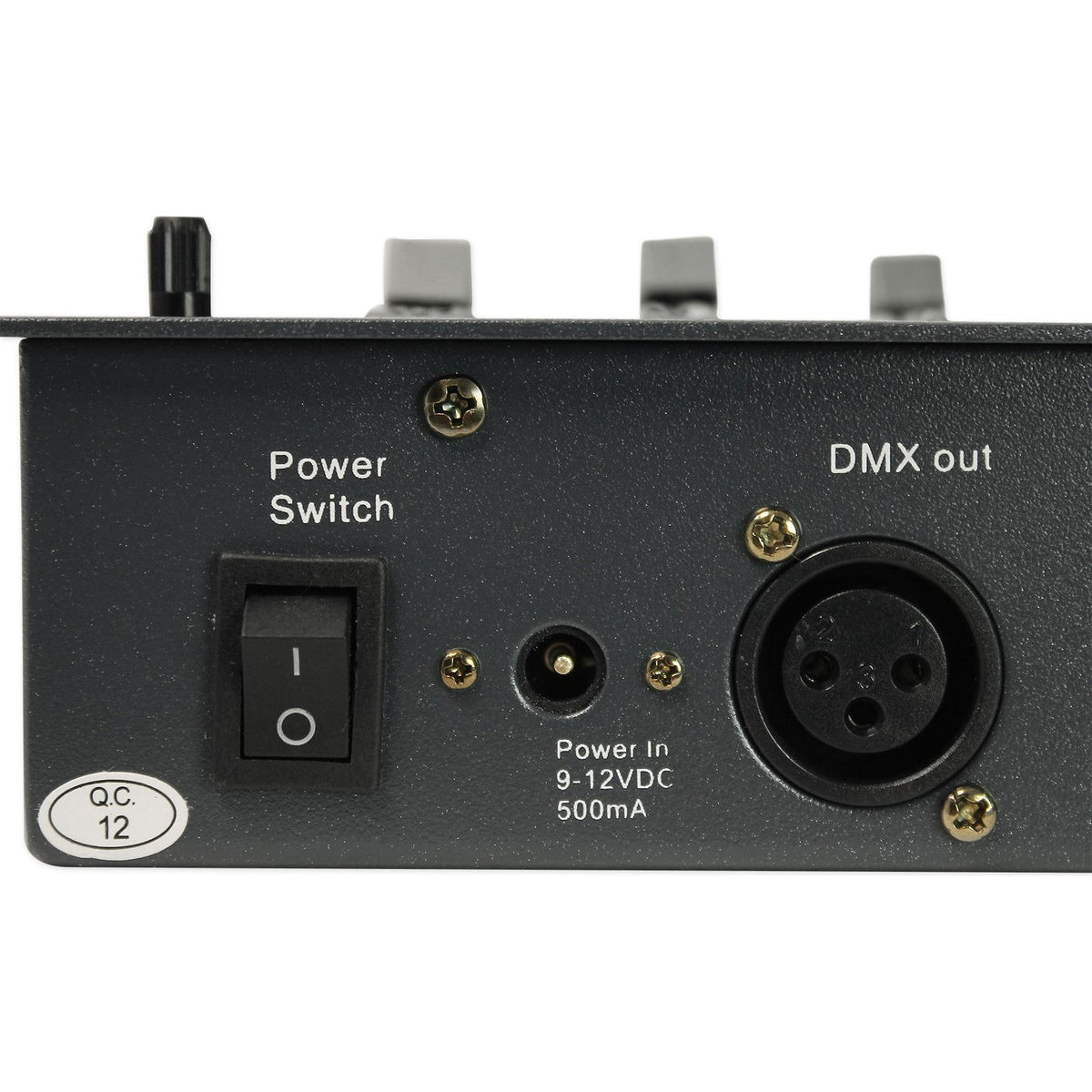

  • DMX Connectors 3-pin XLR
  • Fixtures Controlled Up to 6 at up to 6 channels each
  • Preset Colors 24
  • Chases 18
  • Playback Modes Preset, chases, color macro, color fade, color fade delay, auto
