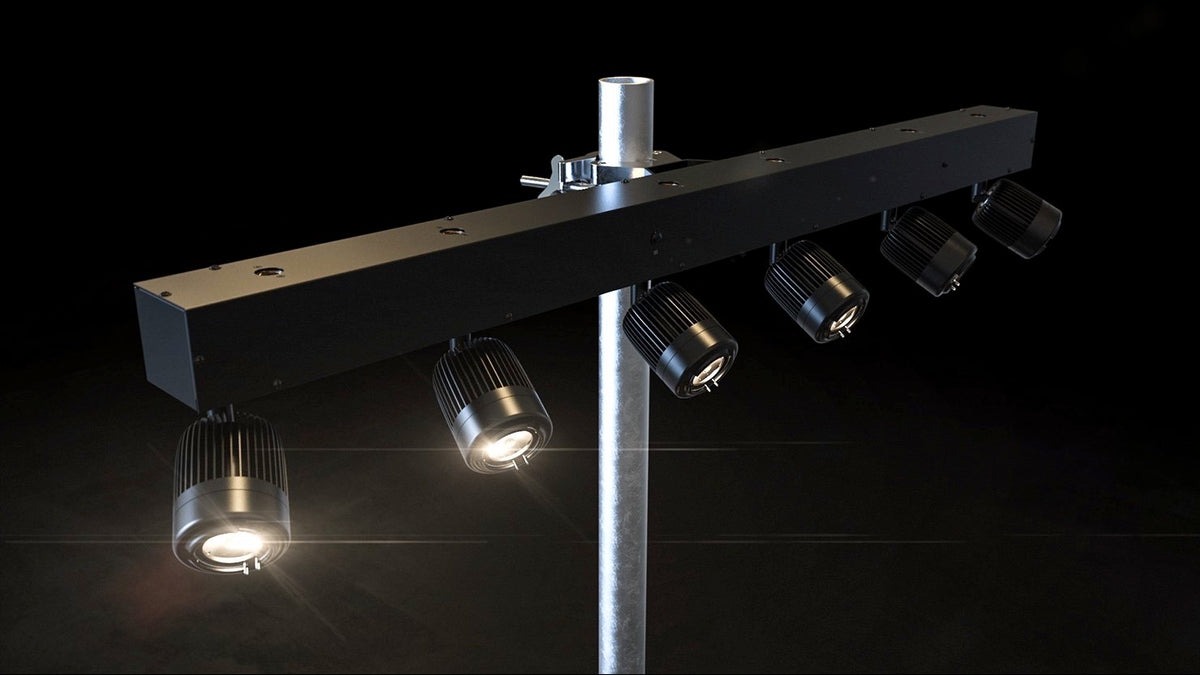

Chauvet DJ Pinspot Bar DMX w/ (6) Independantly Controlled Pinspots Lights
Chauvet DJ Pinspot Bar DMX w/ (6) Independantly Controlled Pinspots Lights

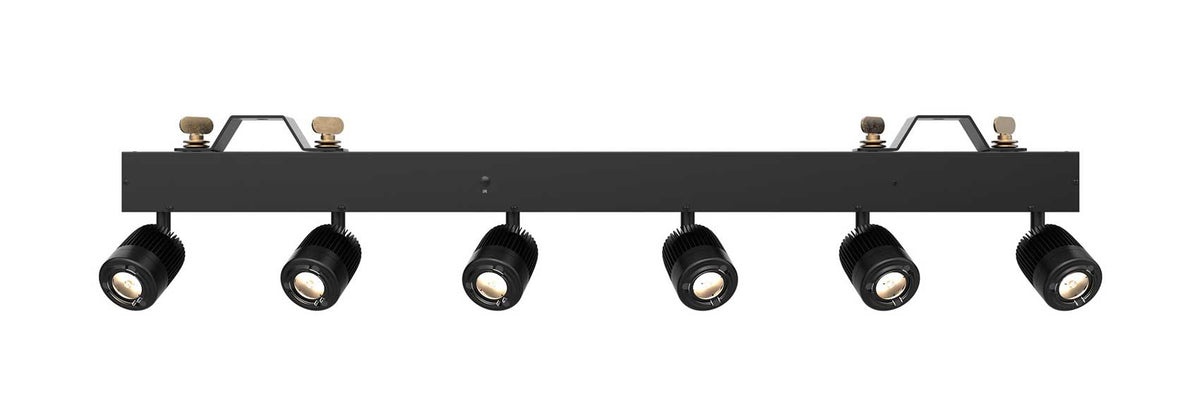

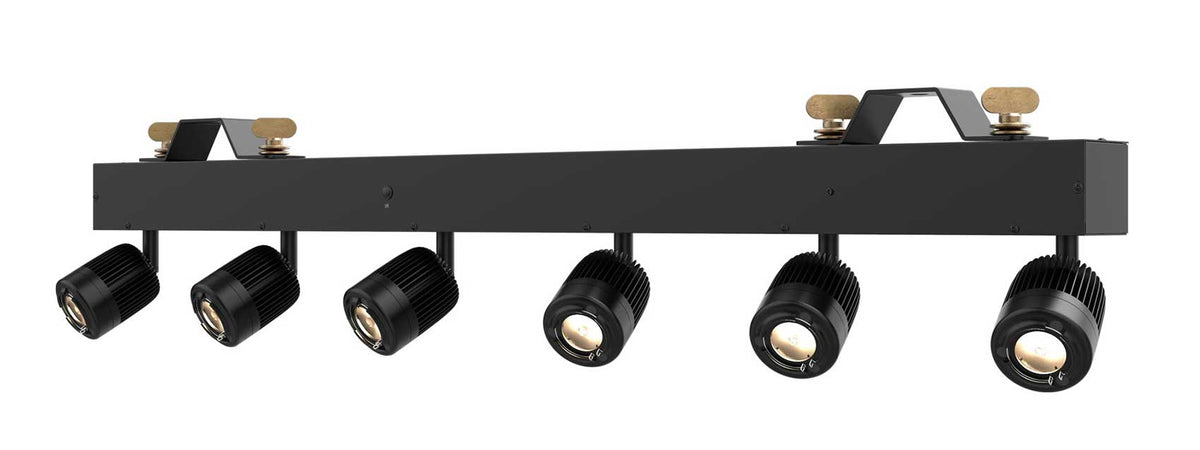

39" Bar With 6 Independent 15 W Pinspots, Includes Diffusers, CTO Filters, Omega Brackets
Free Shipping
Features
- Six 15 W warm white pinspots on one 39 in bar
- Each head controls independently at 7,707 lux at 2 m
- Includes six 10 and six 20 degree diffusers plus CTO filters

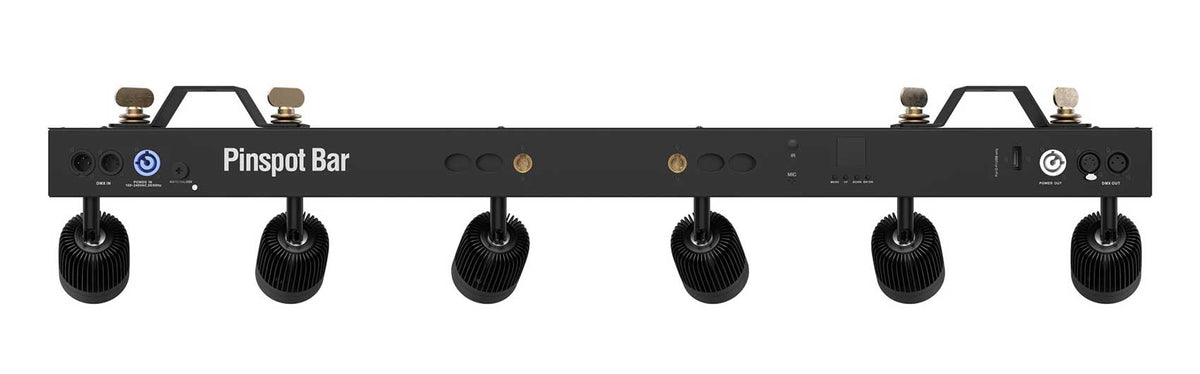

- Single PowerCon-compatible input keeps cabling clean
- Control by DMX, digital display, IRC-6 remote, or D-Fi USB
Couldn't load pickup availability

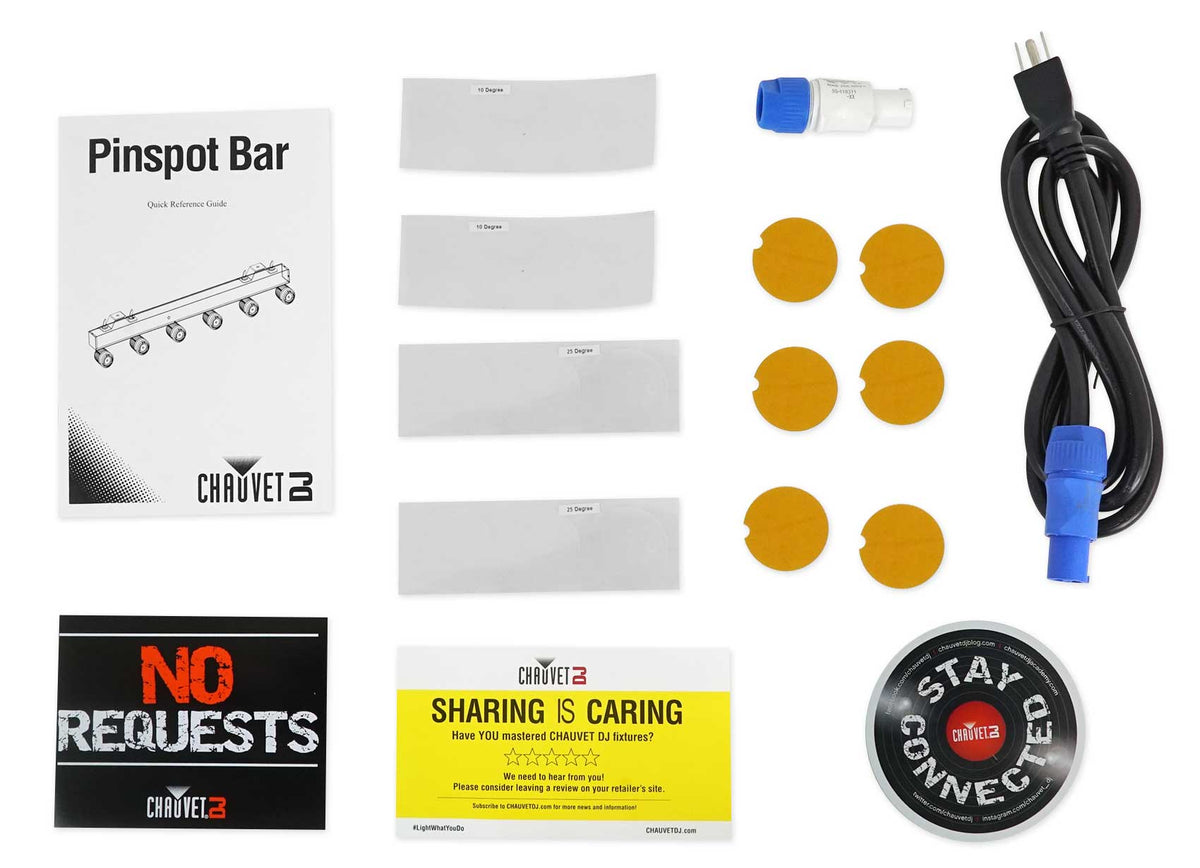

What's Included in the box
- Pinspot Bar
- Power Cord
- 2 Omega Brackets
- 6 10-Degree Diffusers
- 6 20-Degree Diffusers
- 6 2700 K CTO Filters
SKU: SKU: Pinspot Bar
View full details








Product Description
Features
-
Six Lights, One Fixture

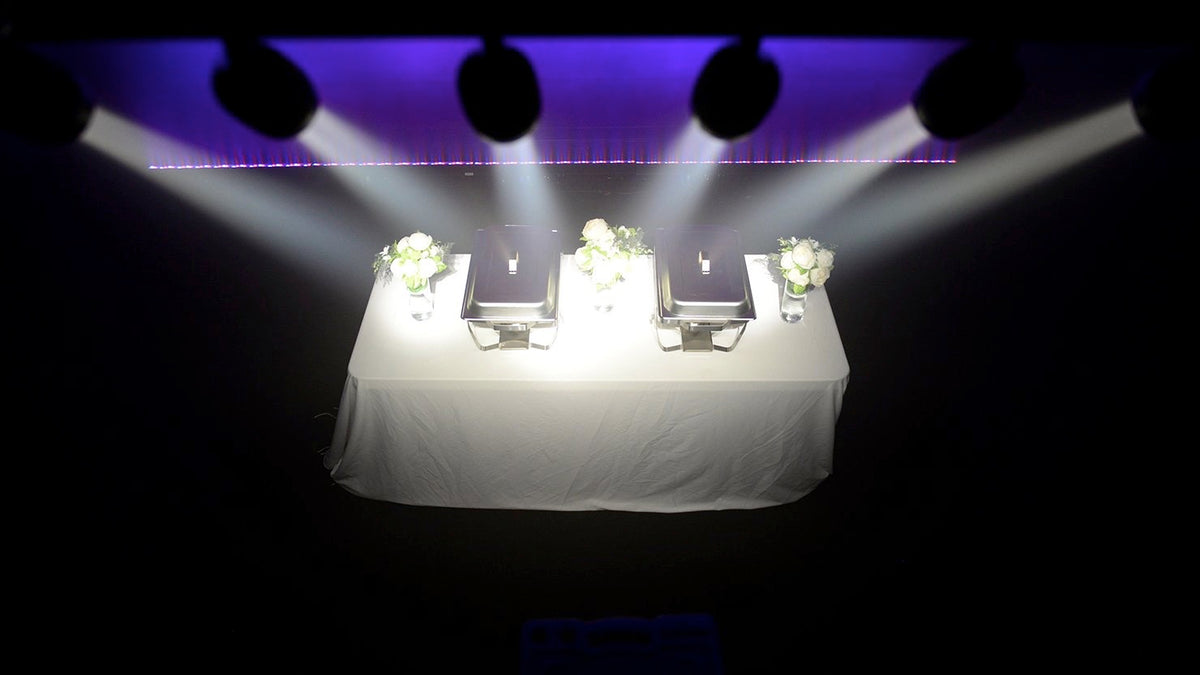

Independent control of each 15 W head lets one bar spot six centerpieces or chase across a buffet, replacing six separately hung pinspots.
-
Clean Cable Runs
A single PowerCon-compatible input feeds all six heads, with linking for 8 units at 120 V, keeping cable out of sight at upscale events.
-
Beam Shaping Included
Six 10 degree diffusers, six 20 degree diffusers, and six 2700 K CTO filters ship in the box, so you can widen or warm the beam on site.
-
Warm Incandescent Look
Warm white LEDs with a CRI of 81 replicate traditional lamp color, keeping food and decor looking natural under the light.
-
Flexible Mounting And Control

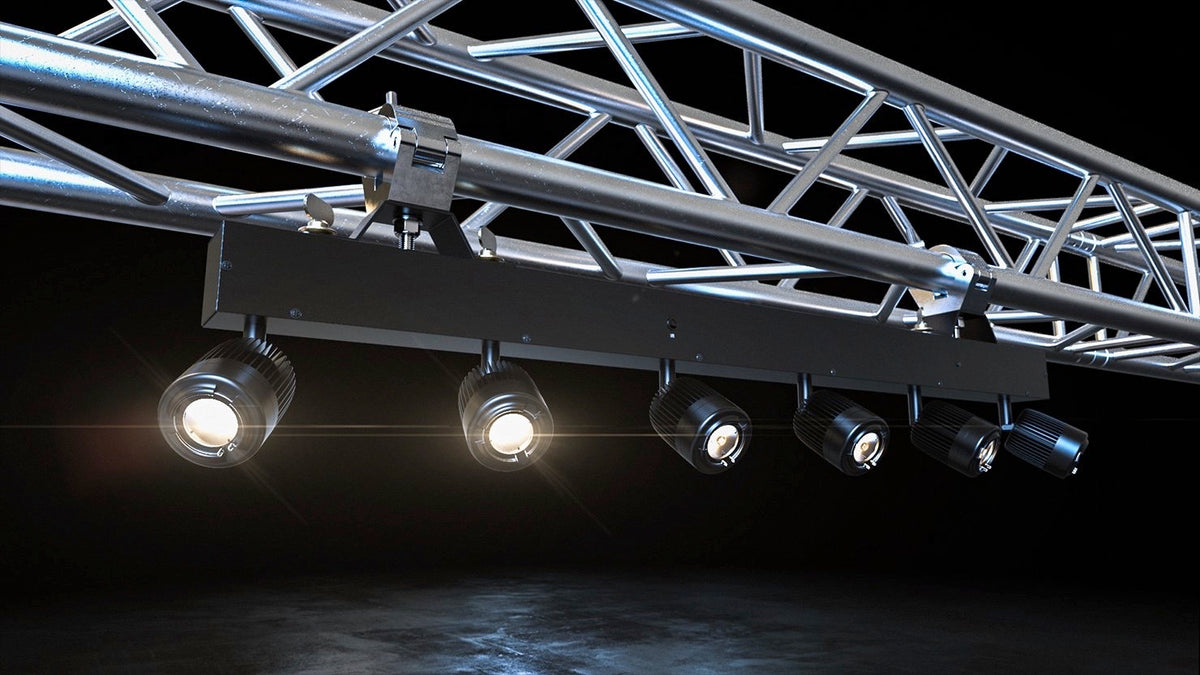

Two included Omega brackets handle pipe and drape or truss, and control runs from DMX, the display, an IRC-6 remote, or D-Fi USB.
Technical Specifications
- Product Type LED Pinspot Bar
- DMX Channels 1, 6, and 11
- DMX Connectors 3- and 5-pin XLR
- Light Source 6 LEDs (warm white) 15 W, 3.6 A, 50,000 hours life expectancy
- PWM Frequency 1000 Hz
- Beam Angle 5 degrees
- Field Angle 11 degrees
- Illuminance 7,707 lux @ 2 m (per pod)
- Color Temperature 4000 K
- CRI 81
- Power Linking 8 units @ 120 V; 13 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 171 W, 1.4 A @ 120 V, 60 Hz; 191 W, 0.8 A @ 230 V, 50 Hz
- Bracket Mounting Hole 13 mm
- Optional Controllers IRC-6, D-Fi USB
- Approvals CE, RoHS
- Weight 9.4 lb (4.3 kg)
- Dimensions 39 x 4.6 x 5 in (1000 x 119 x 131 mm)
