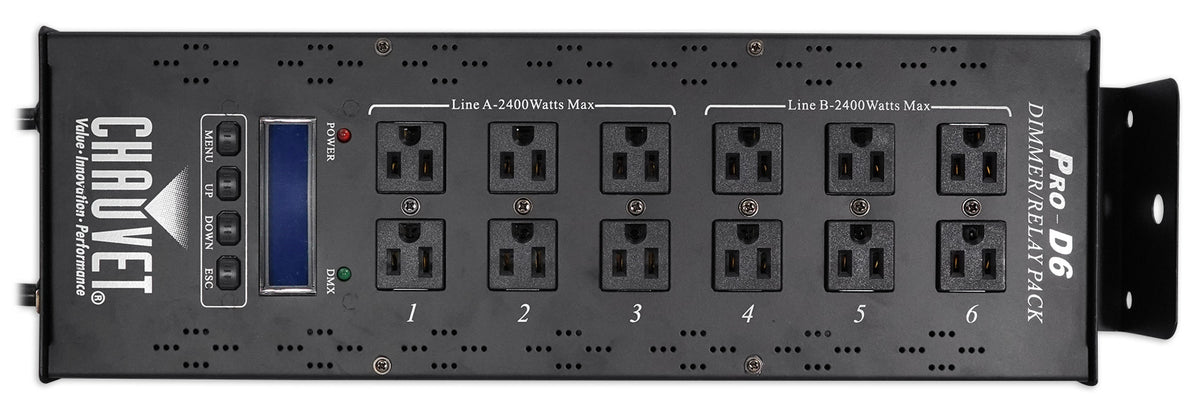

Chauvet PRO-D6 6 Ch 20A DMX-512 Dimmer Switch Pack Simultanious115V and 230V

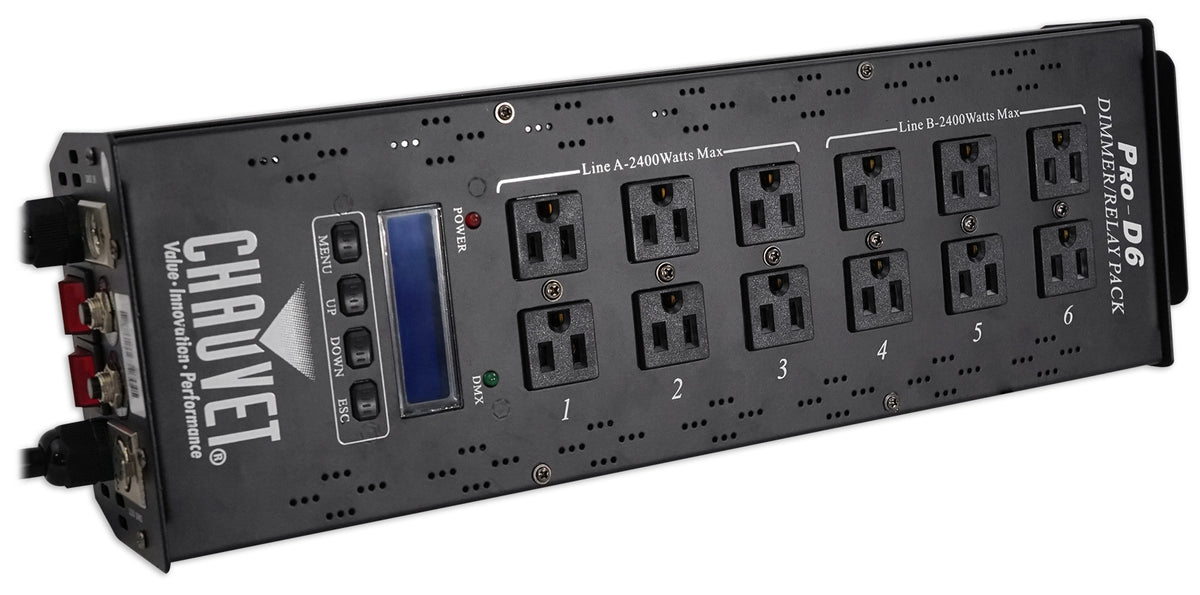

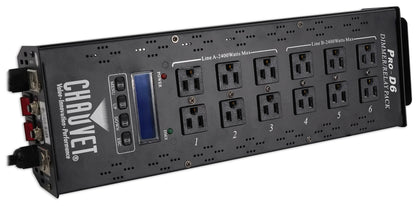

Pro D6 is a 6-channel DMX-512 dimmer and switch pack built for rigs that mix conventional fixtures with modern control. Each of the six channels handles 10 A and feeds two Edison outlets, giving you 12 outlets total across two 20 A power lines and a 40 A maximum load.

Every channel can be set individually as a dimmer or as a relay, so one pack can fade a row of par cans while hard-switching a practical lamp or a fog machine on the same run. Electronic dimming is variable across the full 0 to 100 percent range, and each channel gets its own dimmer curve selection: square, switch or linear. That matters when you are matching older lamp behavior to a console fade or holding low-end response on a slow theatrical cue.

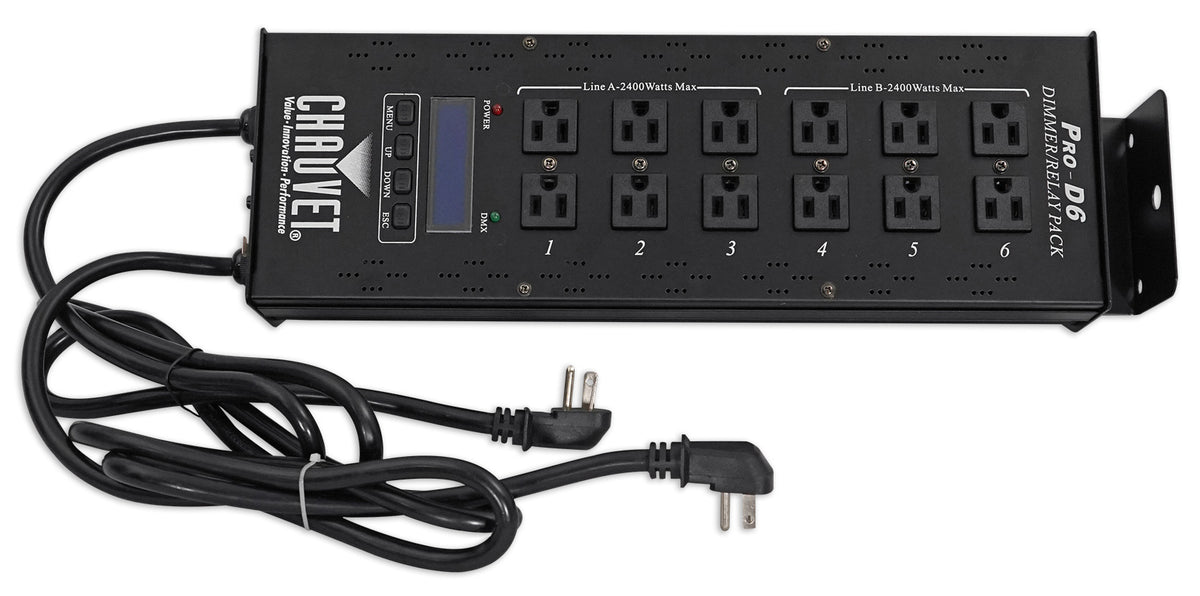

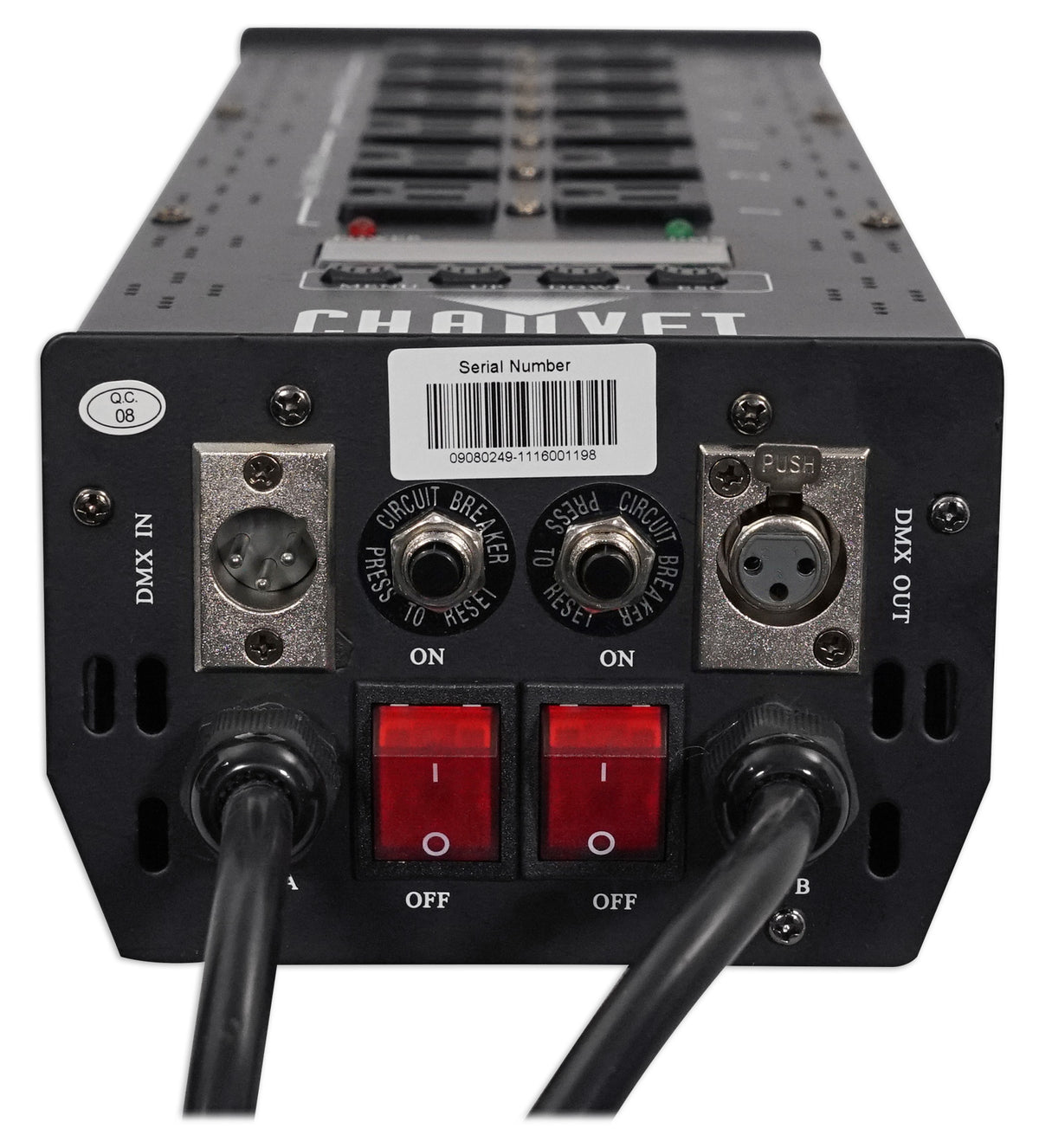

The dual-line design accepts 115 V and 230 V at the same time, with a separate switch, circuit breaker and plug on each line. Two separate circuits are required. Input voltage equals output voltage, so the pack passes whatever you feed it. Any channel can be assigned to any DMX start channel, which keeps patching simple when the pack drops into an existing universe.

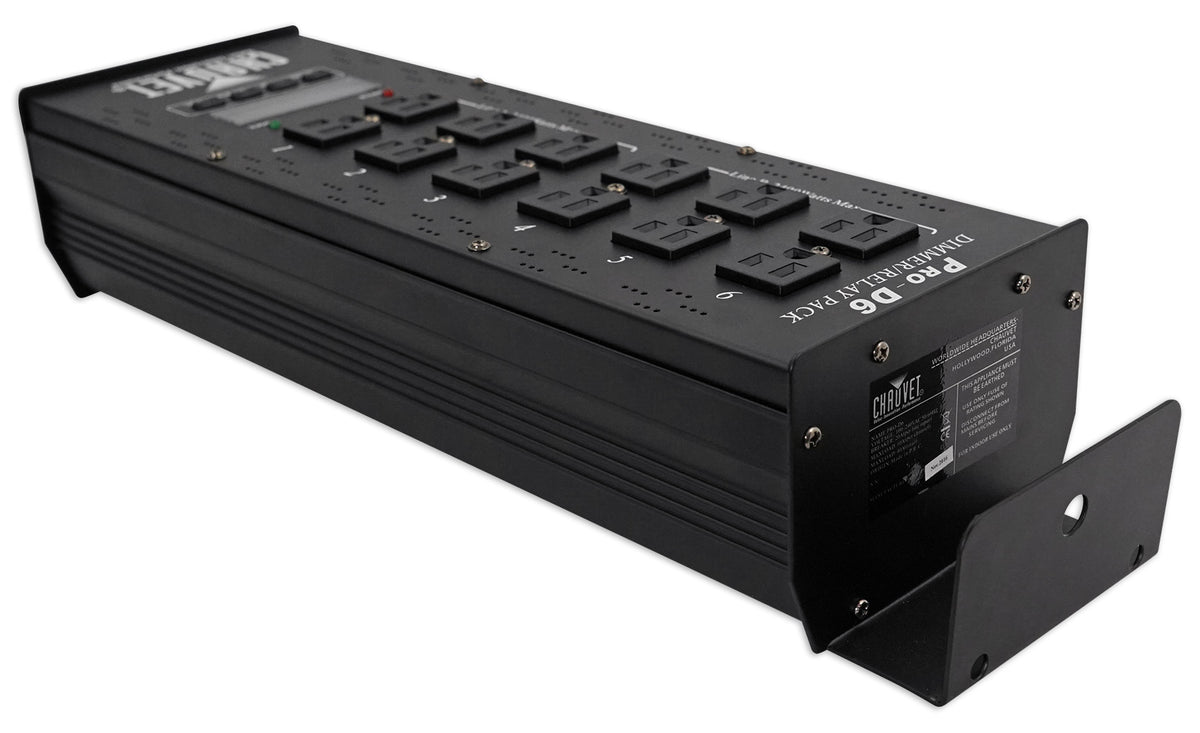

At 9.3 lb and 18 in wide, it sits behind a truss leg, under a stage deck or in a road case without taking a full rack space. Suited to touring rigs, school auditoriums, houses of worship and permanent installs that still run conventional dimmable fixtures alongside LED.
