Chauvet DJ Shocker Panel FX Blinder/Wash/Strobe/Eye Candy Effect Light

Name: Chauvet DJ Shocker Panel FX Blinder/Wash/Strobe/Eye Candy Effect Light
Brand: Chauvet DJ
SKU: Shocker Panel FX
Price: 489.99 USD
Availability: InStock

Blinder, Wash and Strobe Panel, 512 LEDs, 16 Mappable Sections, Metal Housing, Power Cord Included

Free Shipping

$489.99

$489.99 ~~$533.32~~

Save 8%

Shipping calculated at checkout.

Features

512 LEDs deliver 13,626 lumens for blinder, wash and strobe looks
16 controllable sections, 8 RGB and 8 white, for pixel chases
Strobe rate up to 20 Hz with a 158° field angle for wide coverage
All-metal housing stands up to repeated mobile load-ins
powerCON-compatible in and out links up to 5 units at 120 V

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

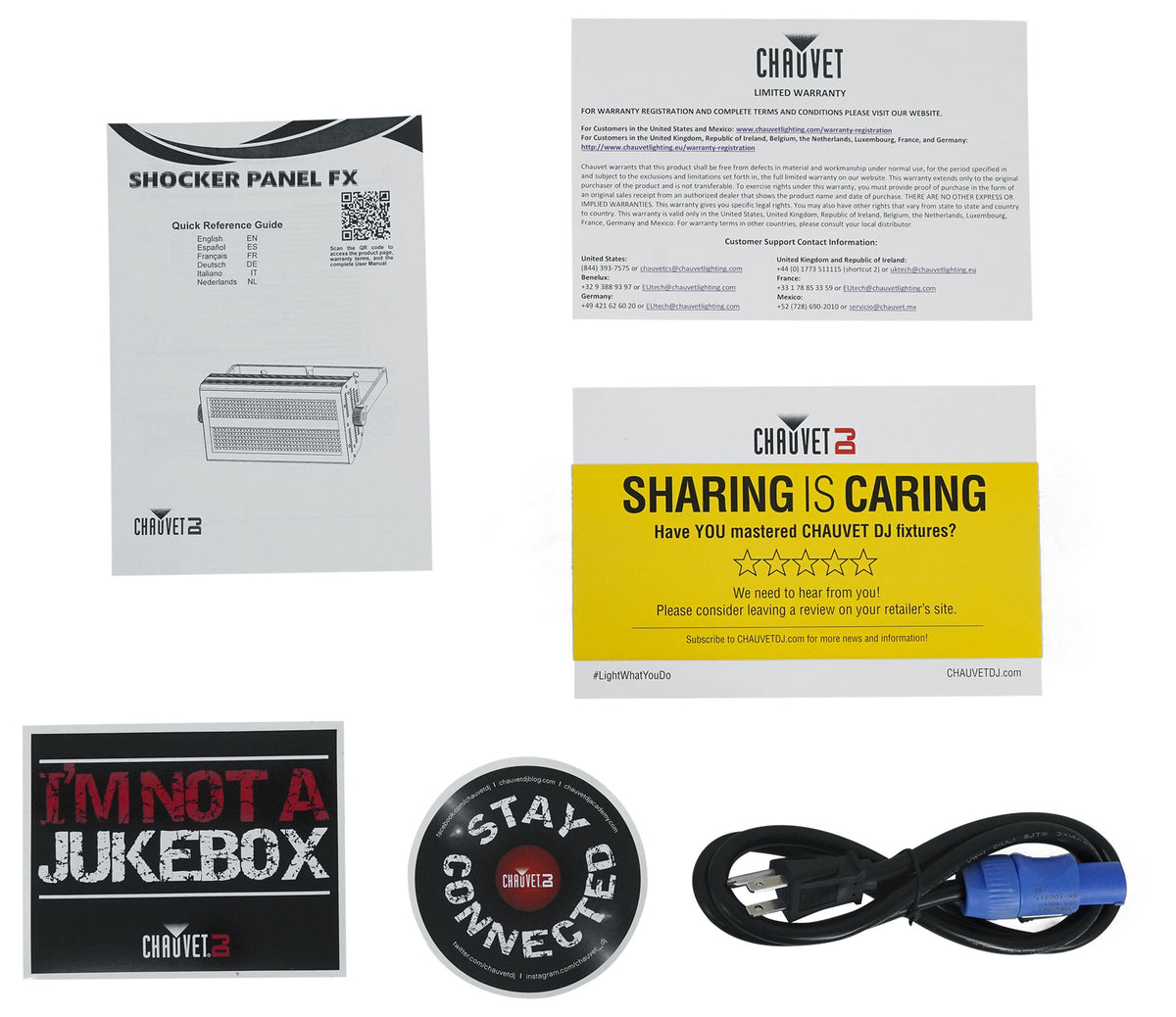

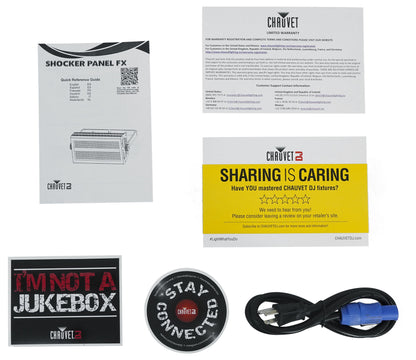

What's Included in the box

Shocker Panel FX
Power cord

SKU: SKU: Shocker Panel FX

View full details

Product Description

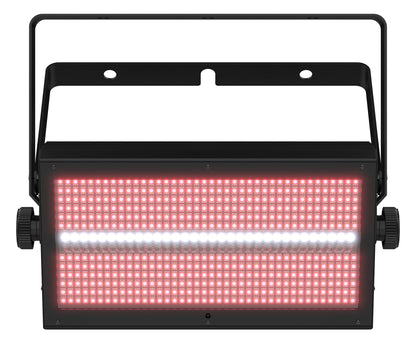

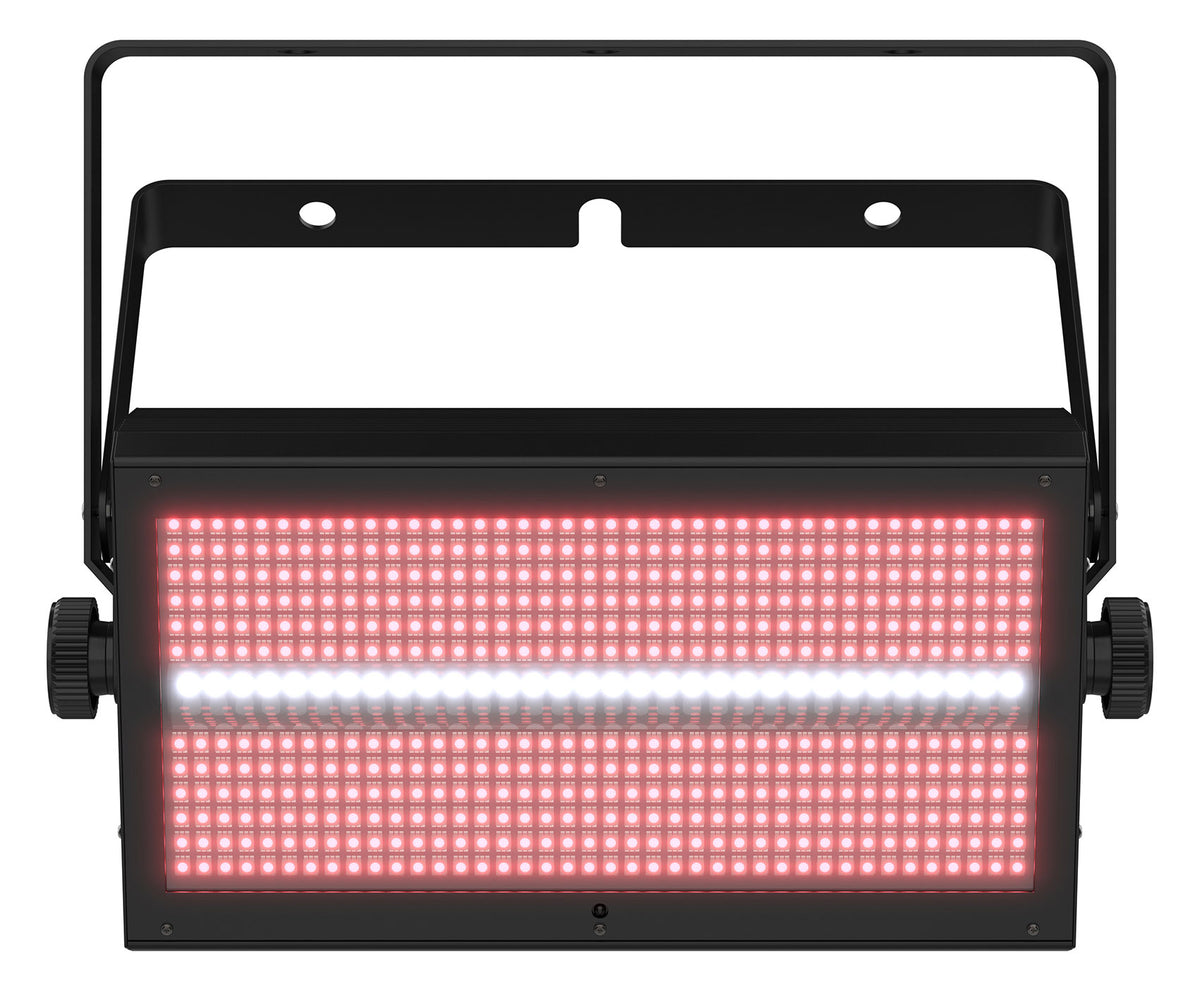

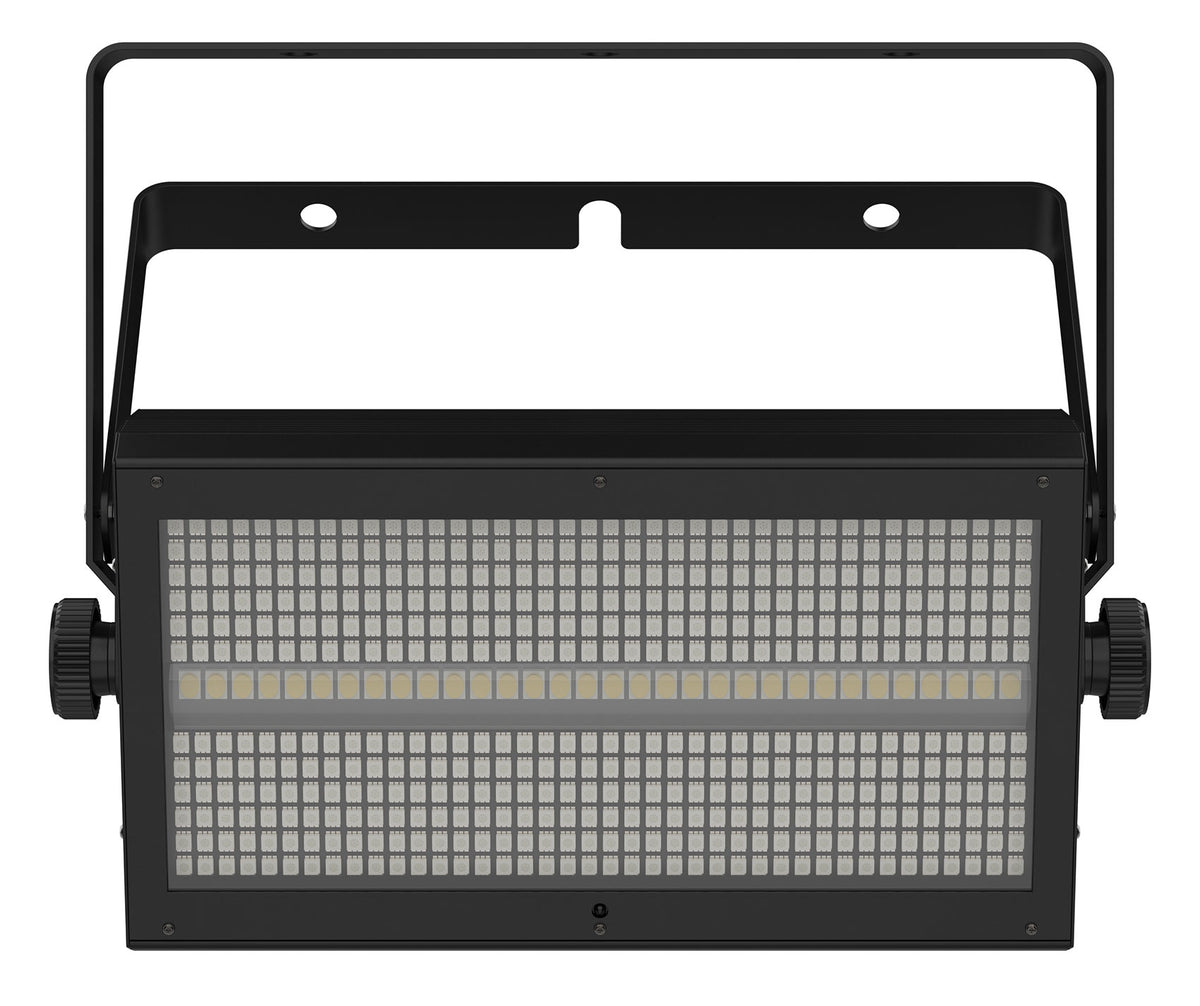

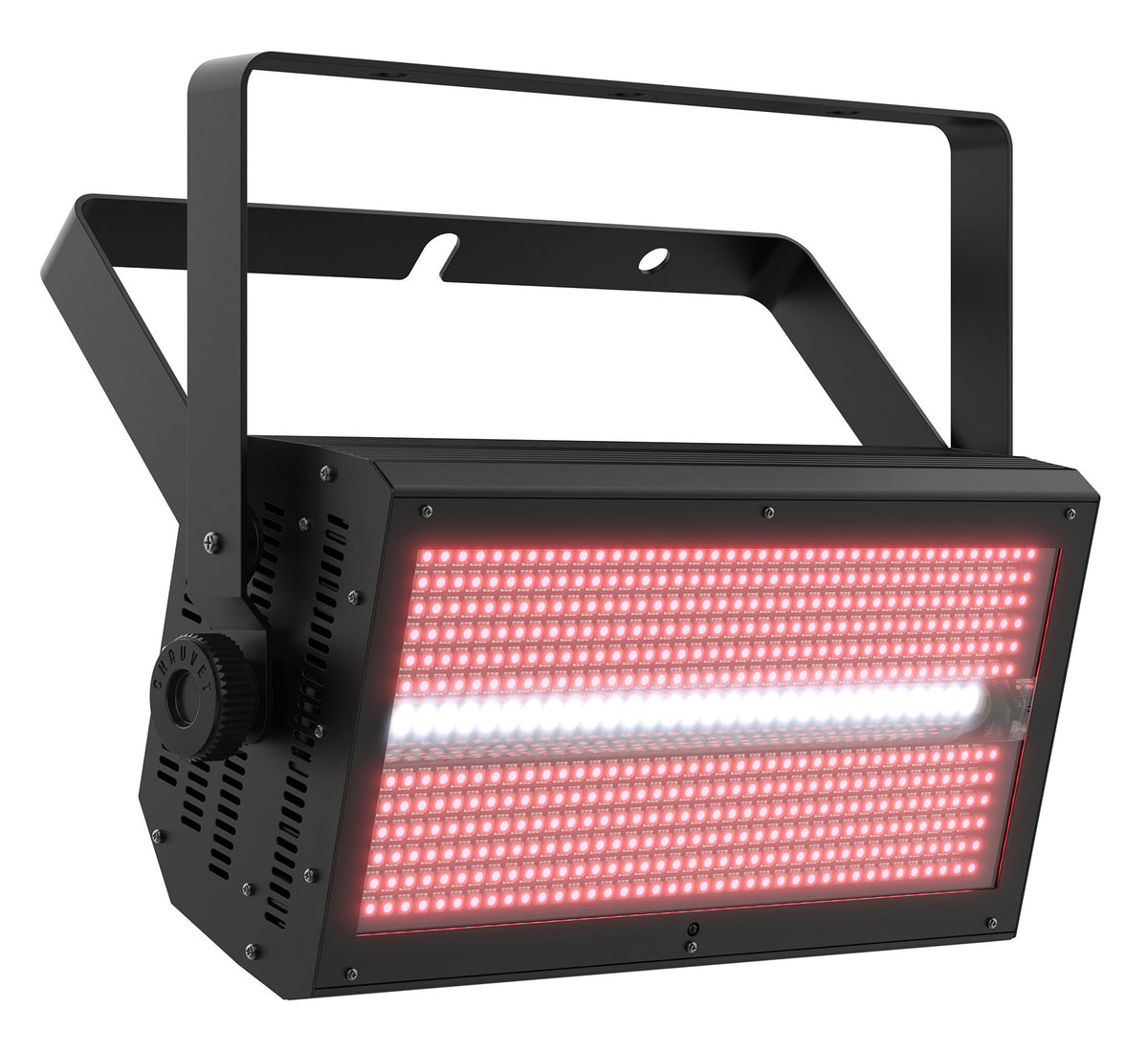

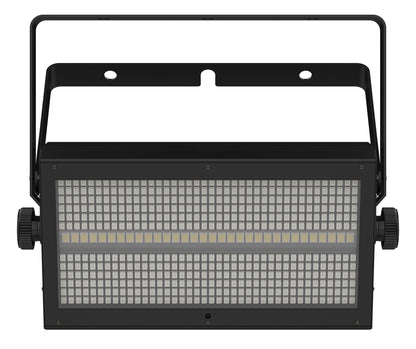

Shocker Panel FX is three fixtures in one compact panel: a blinder, a wash light and a strobe, with pixel-mapped eye candy on top. It carries 512 LEDs, 480 tri-color and 32 cool white, split into 16 controllable sections (8 RGB and 8 white).

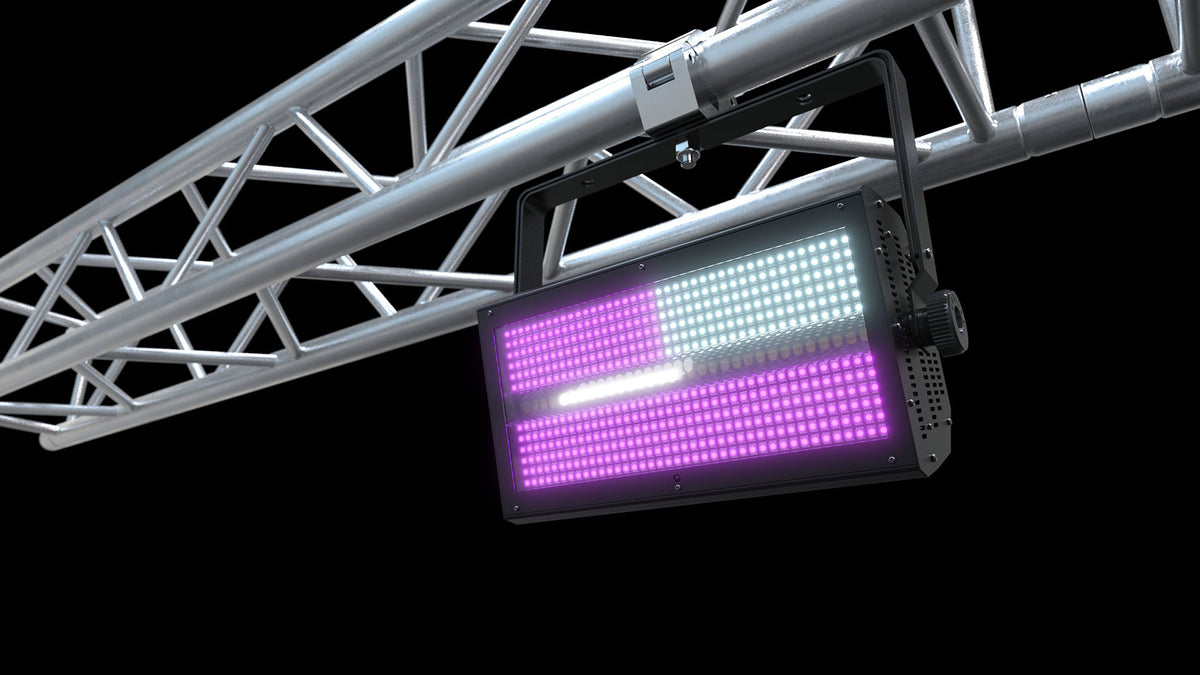

Those 16 sections are where the creative range comes from. Chase them left to right for a runway look, split them into blocks for a checkerboard, or hit all of them at once for a full-power blinder moment on a drop. Total output is 13,626 lumens with 1,131 lux at 2 m, and the strobe runs to 20 Hz. A 119° beam angle and 158° field angle spread light wide enough to cover a dance floor from a single upstage position.

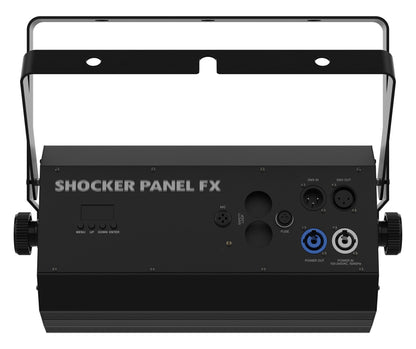

Control runs on 4, 7, 18, 34 or 47 DMX channels over 3-pin XLR, so you can pick a simple mode for a quick gig or full pixel control for a programmed show. Built-in macros trigger from the display or over DMX when you do not have time to build cues.

The all-metal housing holds up to repeated load-ins, and powerCON-compatible input and output connections let you link 5 units at 120 V or 10 at 230 V on one feed. At 8.6 lb and 12.63 in wide, it stacks easily in a truck.

Built for mobile DJs, club installs, bands and production companies that want high-intensity output and fast transitions from one fixture.

Features

Three Fixtures, One Panel

A blinder, wash light and strobe share a single 12.63 in housing, so one fixture covers audience blasts, color washes and hard hits on a drop.

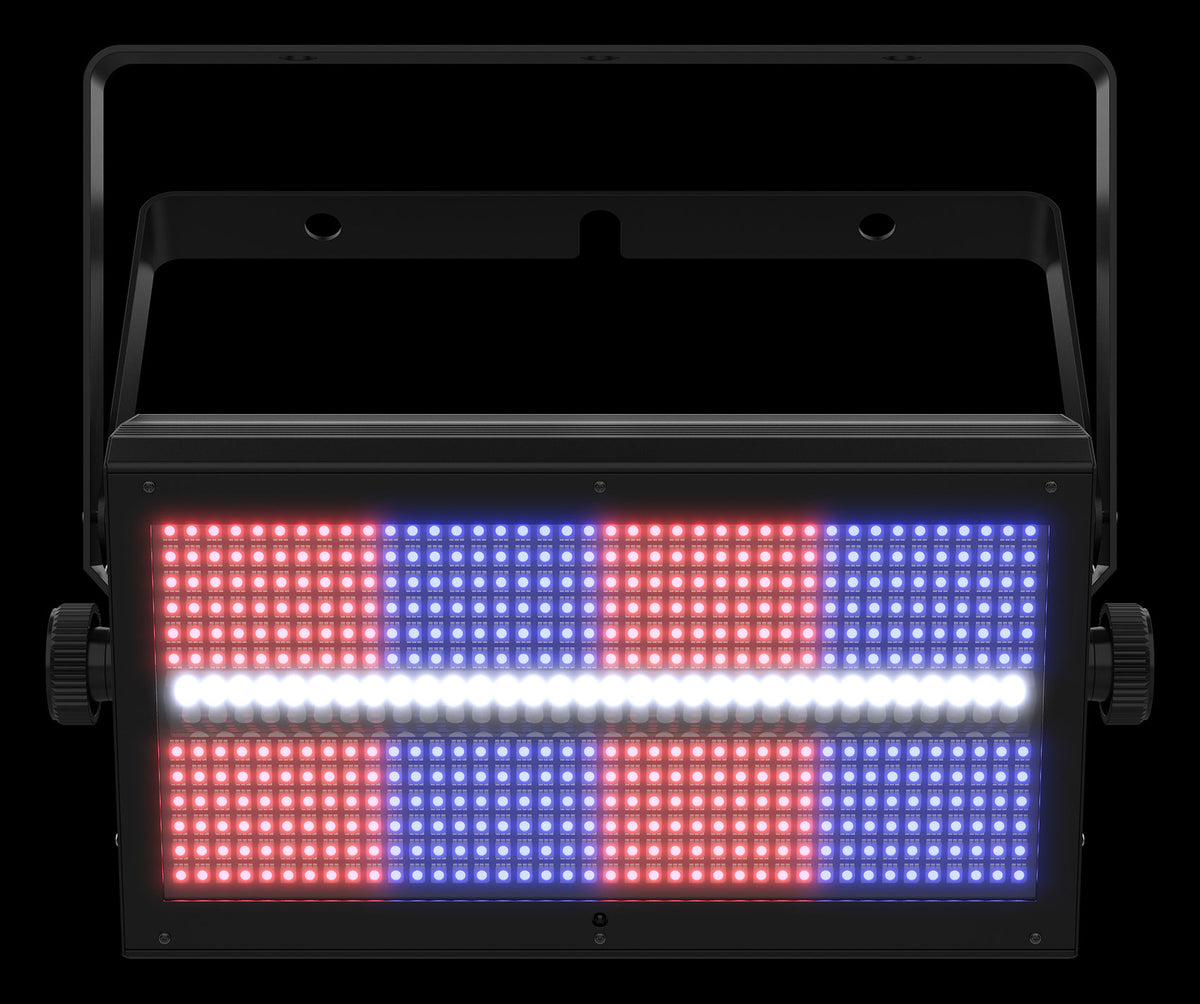

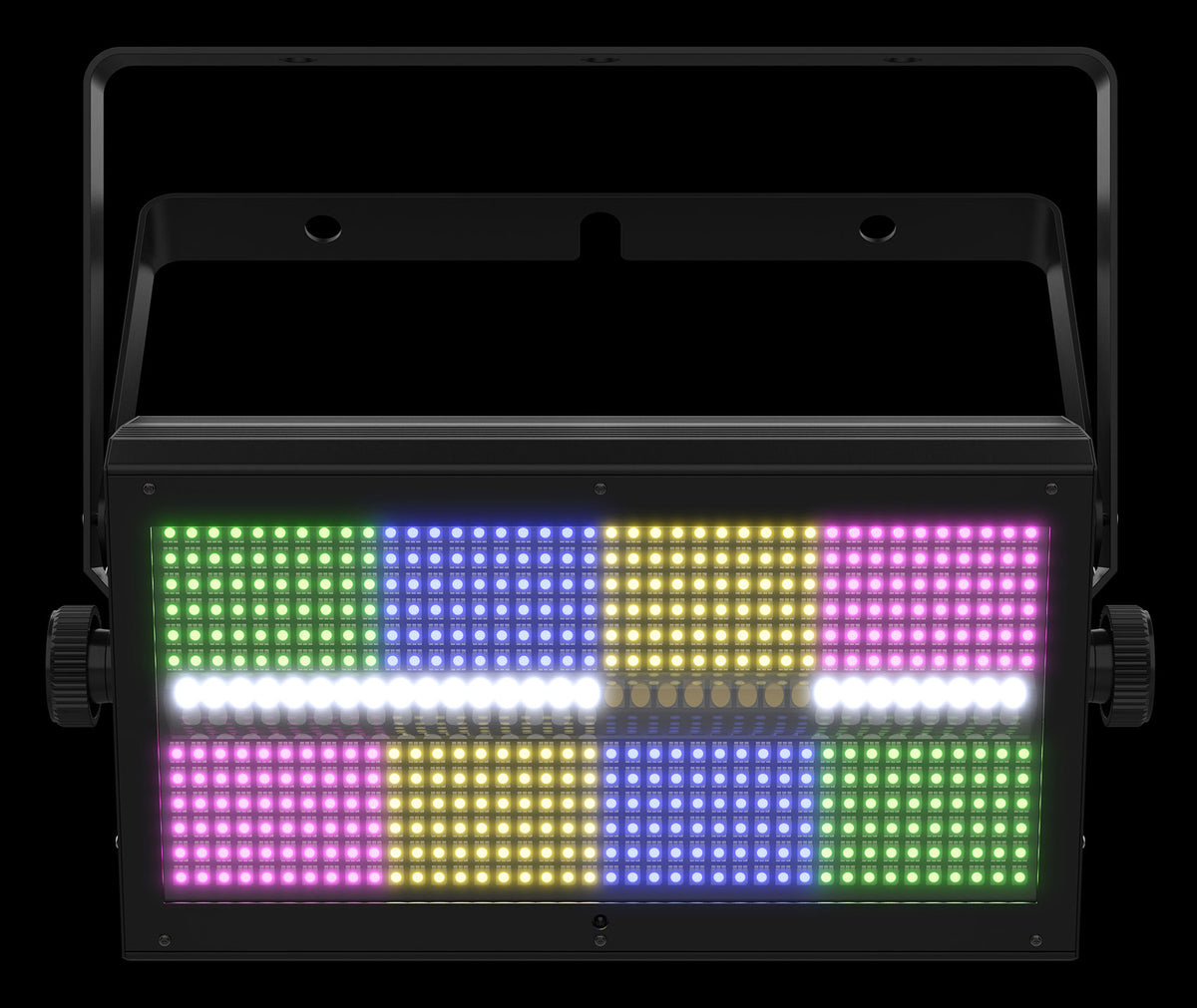

Section-Level Programming

Sixteen controllable sections, eight RGB and eight white, let you run chases, checkerboards and split-color looks instead of a single flat output.
High-Intensity Output

A total of 512 LEDs produce 13,626 lumens at 1,131 lux measured at 2 m, enough punch to read clearly over a lit dance floor.
Built for the Road

Rugged all-metal housing takes repeated load-ins, stacking and truck pack without the flex you get from plastic-bodied panels.
Simplified Power Runs

powerCON-compatible input and output connections link five units at 120 V or ten at 230 V, cutting the extension cords you carry.

Technical Specifications

Product Type LED Blinder, Wash and Strobe Panel
Light Source 480 tri-color LEDs, 2 W and 32 cool white LEDs, 1.1 W, 50,000-hour life expectancy
Lumens 13,626
Illuminance 1,131 lux @ 2 m
Controllable Sections 16 (8 RGB + 8 white)
Strobe Rate 0 to 20 Hz
Beam Angle 119°
Field Angle 158°
DMX Channels 4, 7, 18, 34 or 47

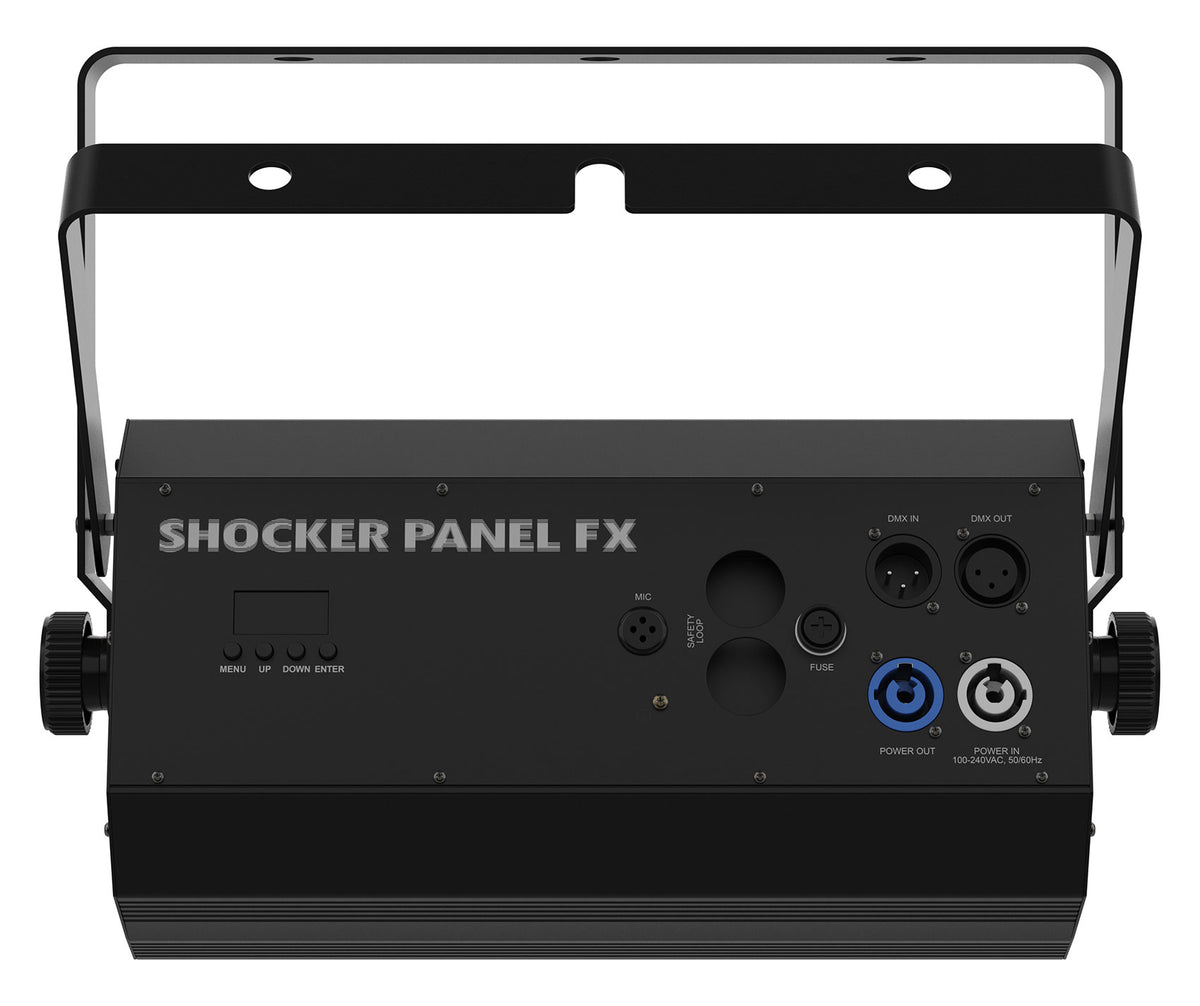

DMX Connectors 3-pin XLR
Power Linking 5 units @ 120 V; 10 units @ 230 V
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current (120 V) 296 W, 2.5 A @ 120 V, 60 Hz
Power and Current (230 V) 281 W, 1.3 A @ 230 V, 50 Hz
Approvals CE, UKCA, RoHS
Weight 8.6 lb (3.9 kg)
Dimensions 12.63 x 4.3 x 6.7 in (310 x 110 x 170 mm)
