Chauvet DJ SLIMBANK H18 ILS DMX RGBAW+UV LED Wash Par Up-Light w/ Eye Candy FX
Chauvet DJ SLIMBANK H18 ILS DMX RGBAW+UV LED Wash Par Up-Light w/ Eye Candy FX
Hex-Color RGBAW+UV LED Wash Light, 18 LEDs, Fan-Free Cooling, Barn Doors and Power Cord Included
Free Shipping
Features

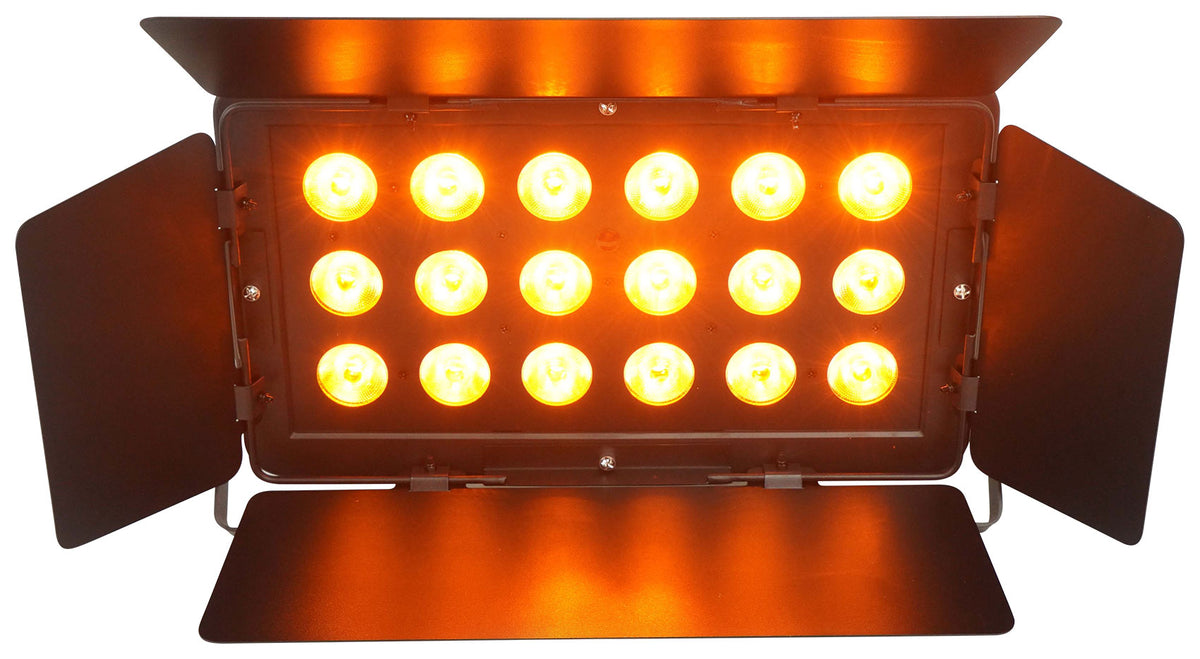

- Eighteen hex-color RGBAW+UV LEDs produce 3,356 lumens of output
- Fan-free radiant cooling runs silently in ceremonies and recordings
- Built-in auto programs with sectional control create chase effects

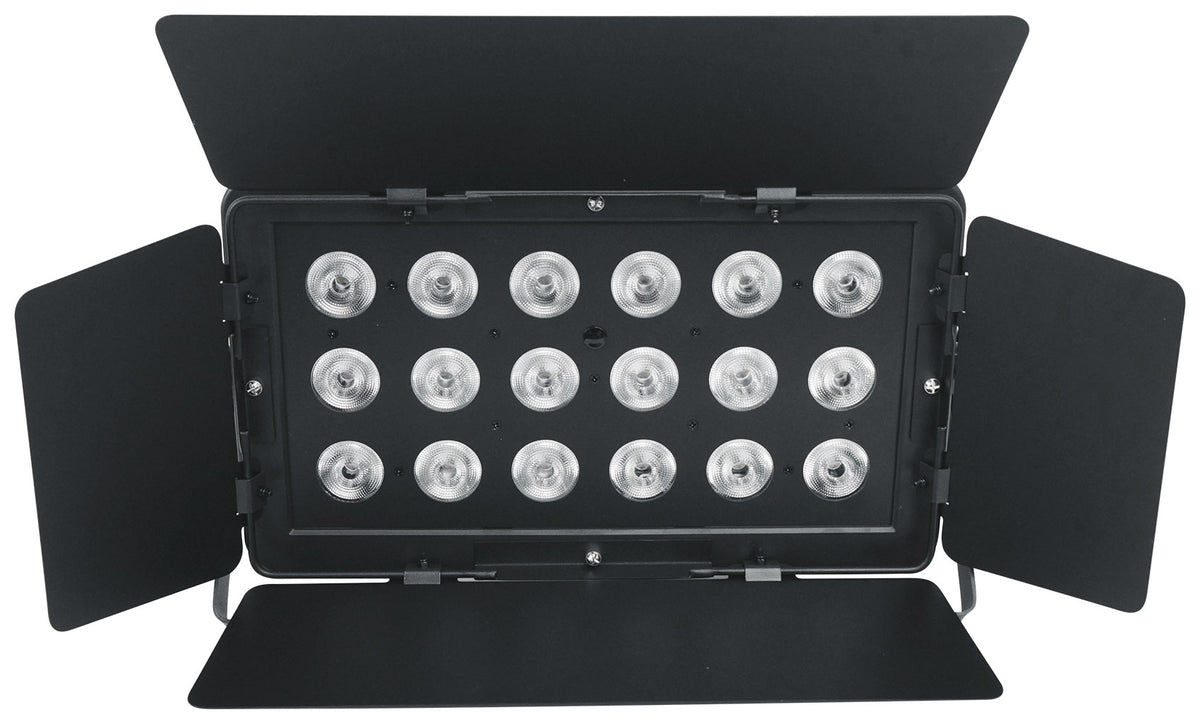

- Adjustable barn doors are included to direct and cut the beam
- Slim 2.2 in housing hides behind set pieces or mounts flat to truss
Couldn't load pickup availability

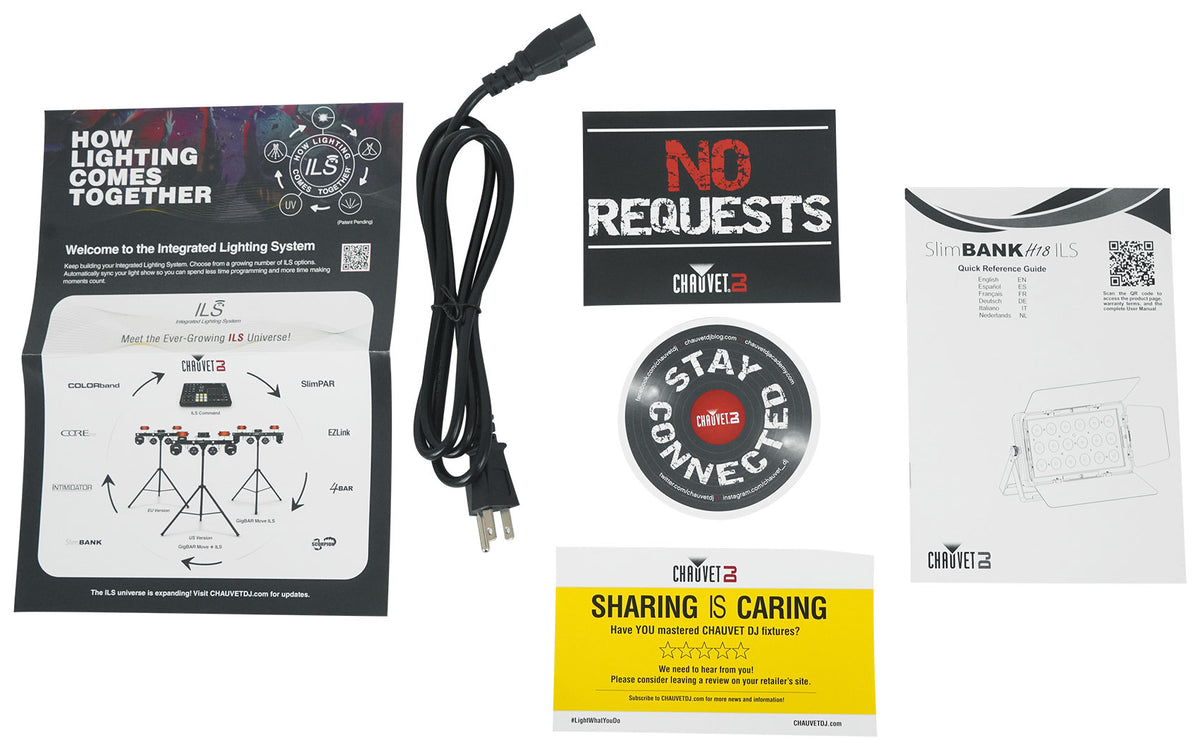

What's Included in the box
- SlimBANK H18 ILS
- Power cord
- Barn doors
SKU: SKU: SLIMBANKH18ILS
View full details











Product Description
The standout detail is the cooling design. SlimBANK H18 ILS uses radiant cooling with no fan, so it makes no noise at all. In a house of worship, a wedding ceremony, a conference room or a recording space, that removes a variable you would otherwise have to plan around by moving fixtures away from microphones.

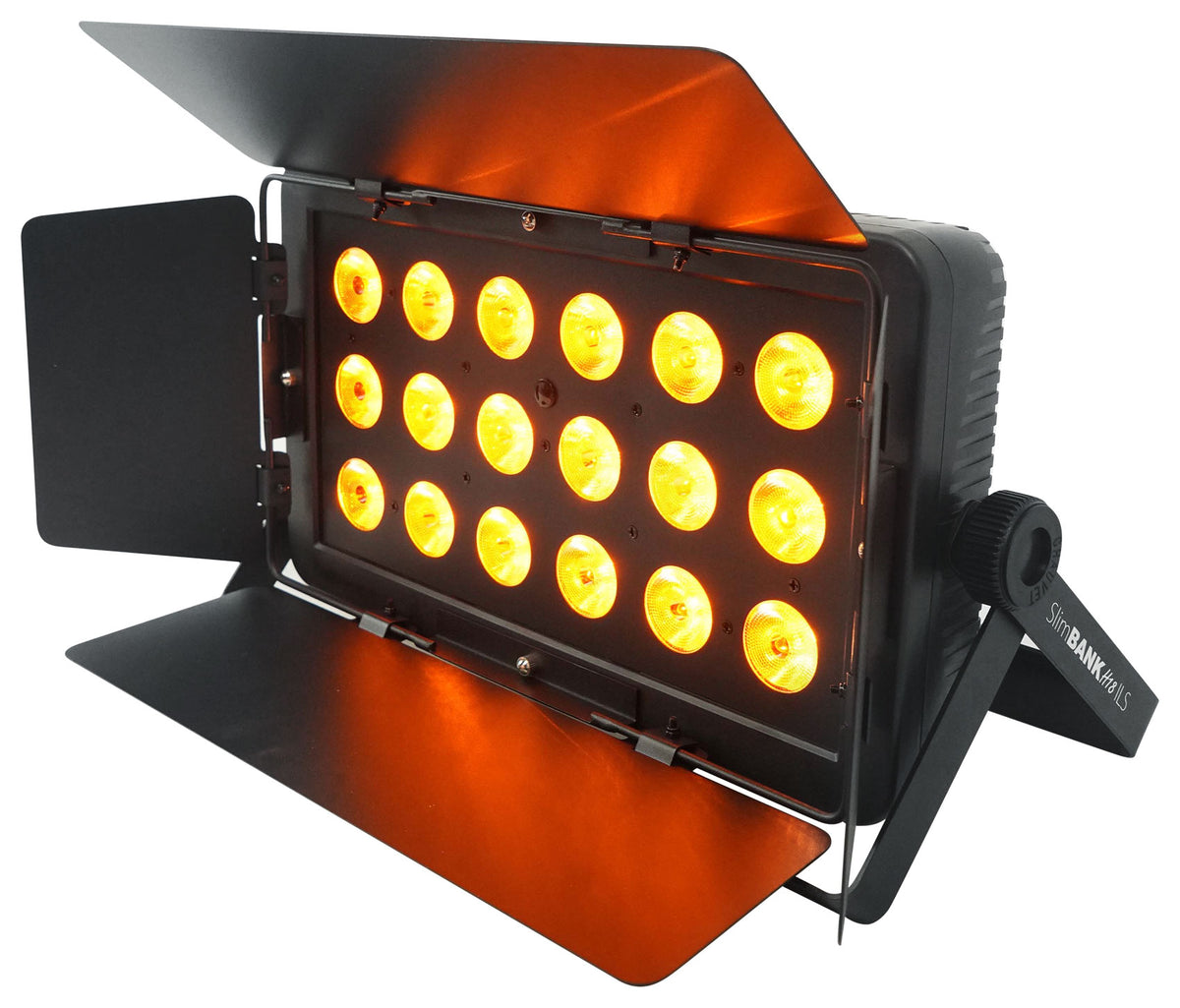

The fixture supports built-in auto programs with sectional control, so it produces eye candy chases across its own LED sections instead of a single flat output. Built-in dimming curves give gradual fades rather than stepped ones. Adjustable barn doors are included to direct and cut the light.

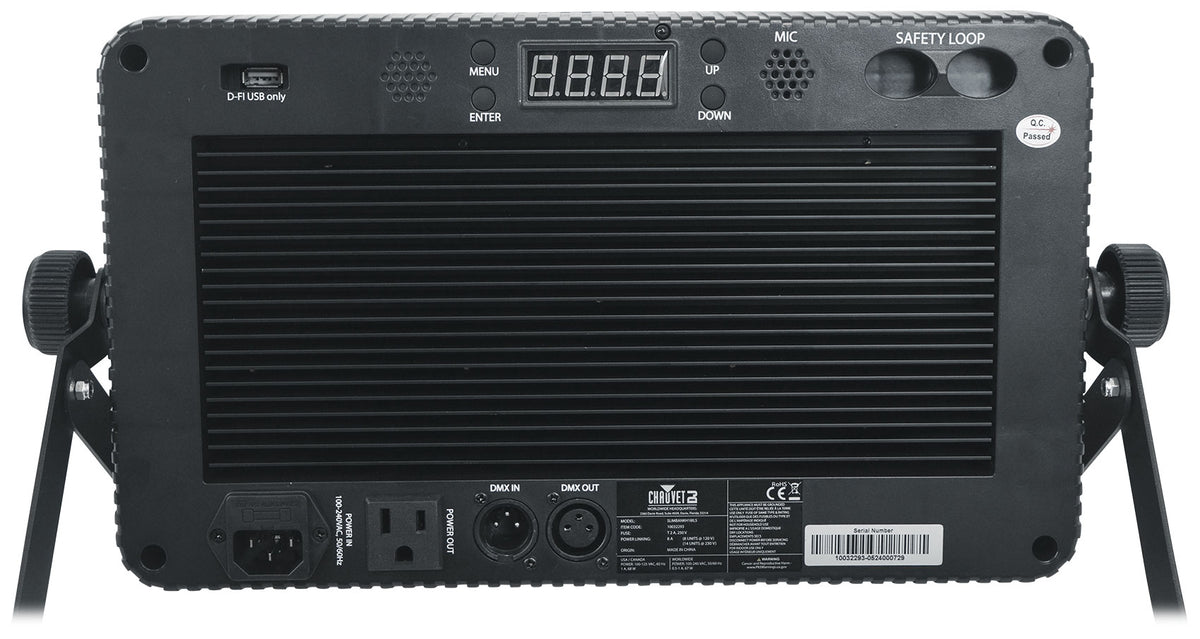

Control options are broad: 6, 8, 12 or 22 DMX channels over 3-pin XLR, ILS for coordinated multi-fixture shows, follower mode, or the IRC-6 remote. Power linking runs 8 units at 120 V or 14 at 230 V from a single feed.

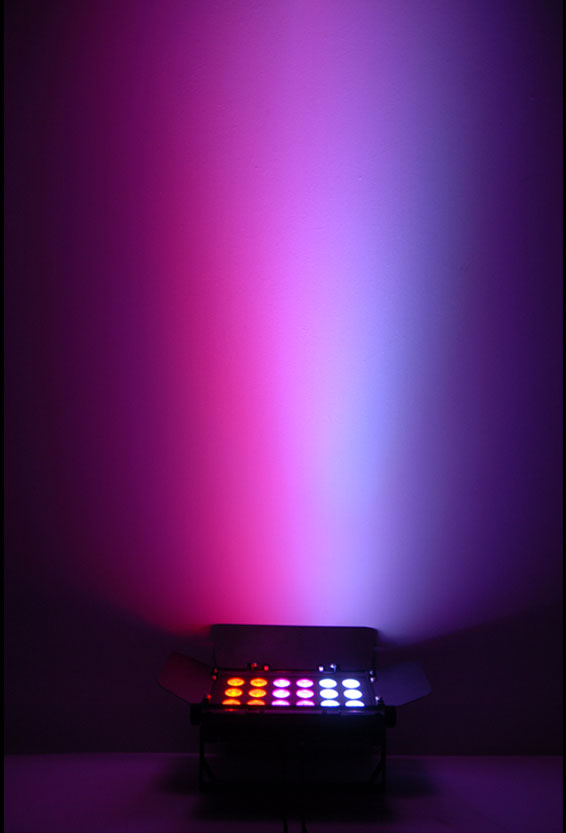

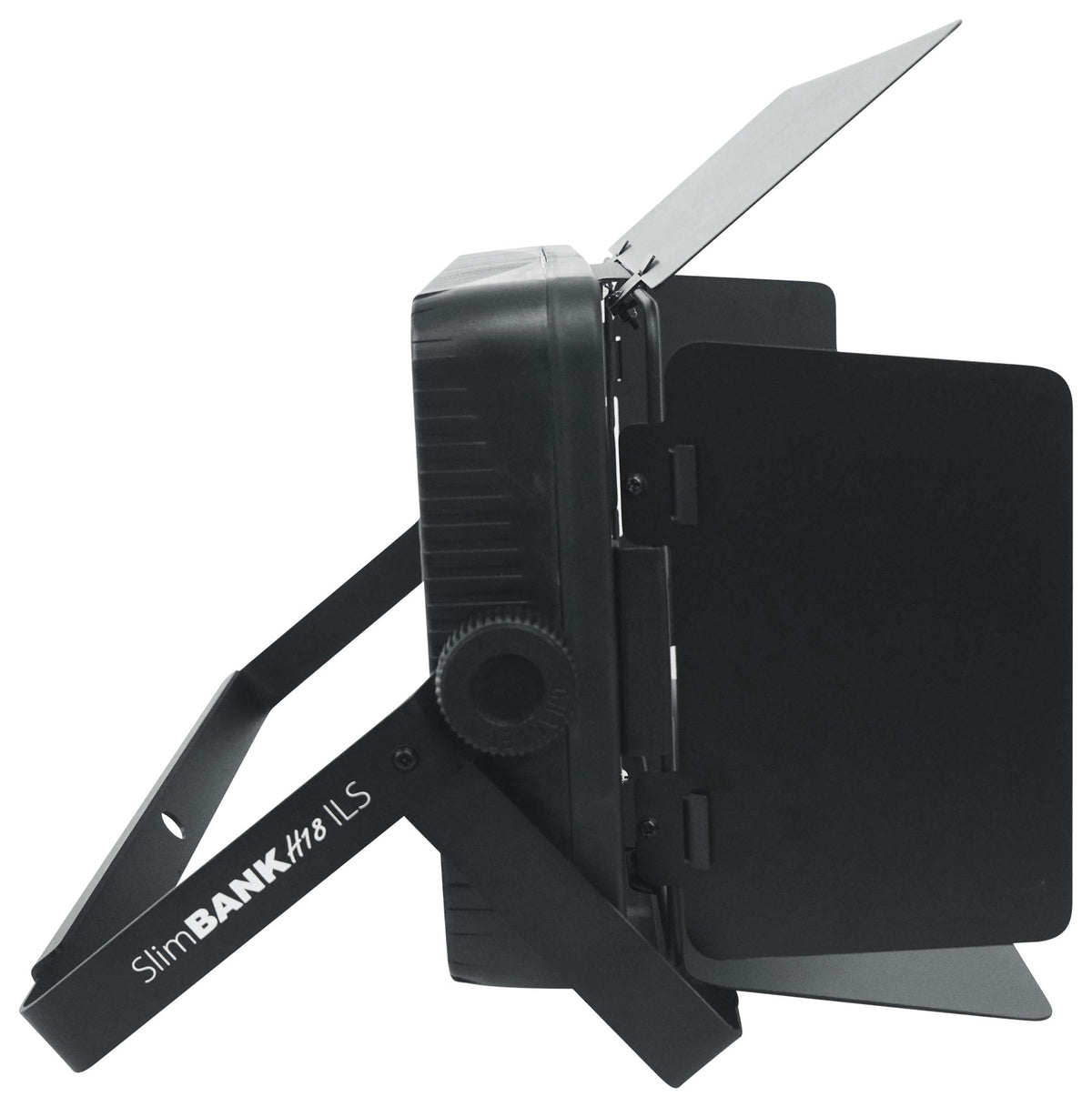

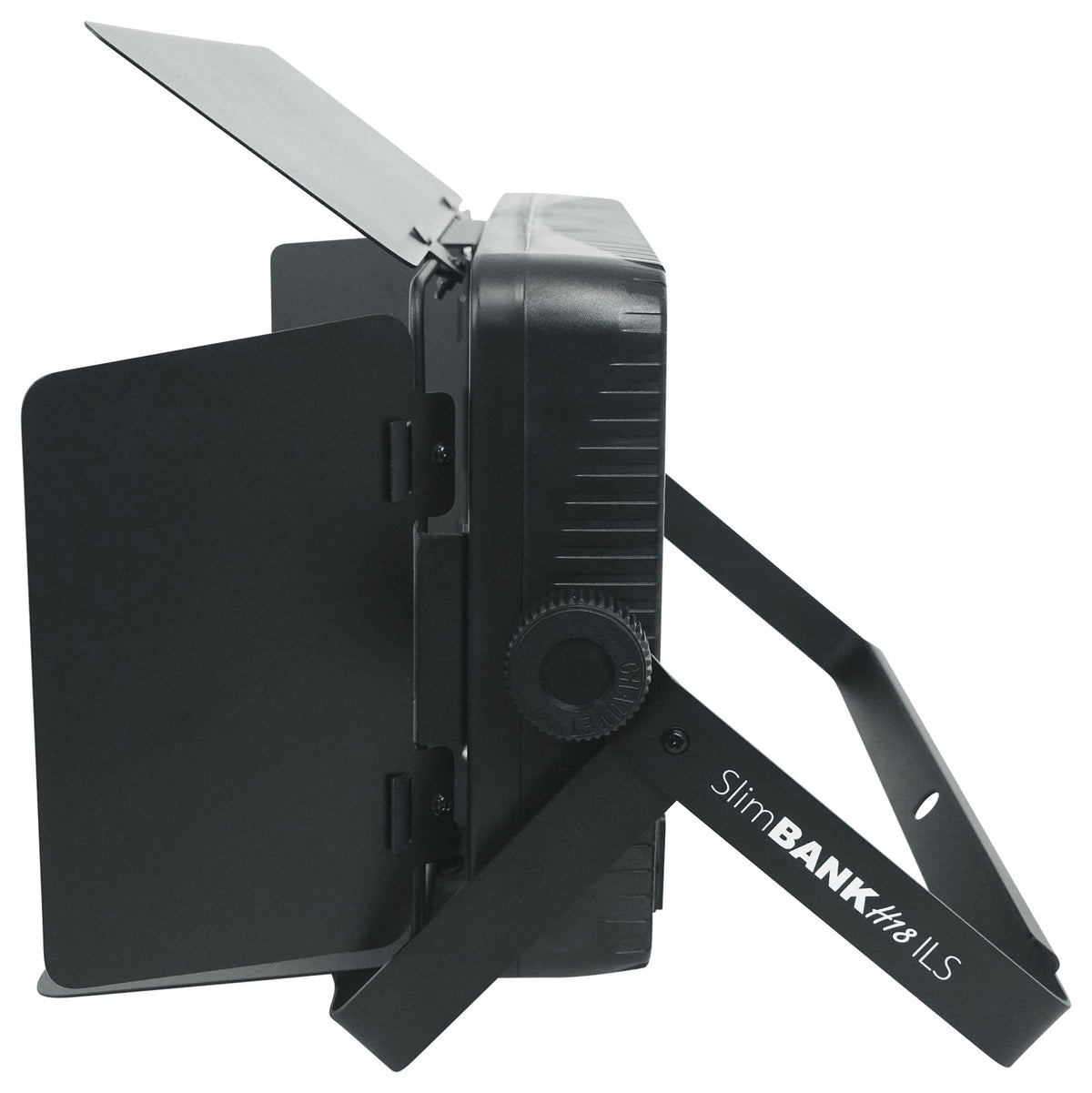

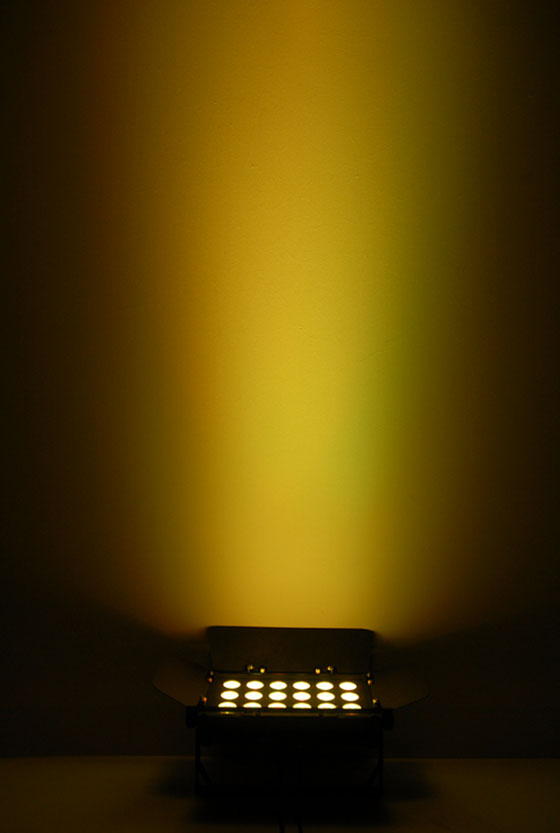

The housing is 2.2 in deep and weighs 6 lb, so it hides behind set pieces, mounts flat to truss or sits on the floor as an uplight. Suited to houses of worship, wedding and event uplighting, small stages, and any quiet room that still needs color.
Features
-
Silent by Design
Radiant cooling with no fan means zero fixture noise, so you can place it near microphones during ceremonies, sermons and recorded sessions.
-
Six-Color Mixing
Eighteen RGBAW+UV LEDs cover saturated colors, natural white tones and a UV blacklight look, replacing several single-purpose fixtures.
-
Sectional Effects
Built-in auto programs control the LED sections independently, producing chases and eye candy looks without programming a single DMX cue.
-
Precise Beam Shaping

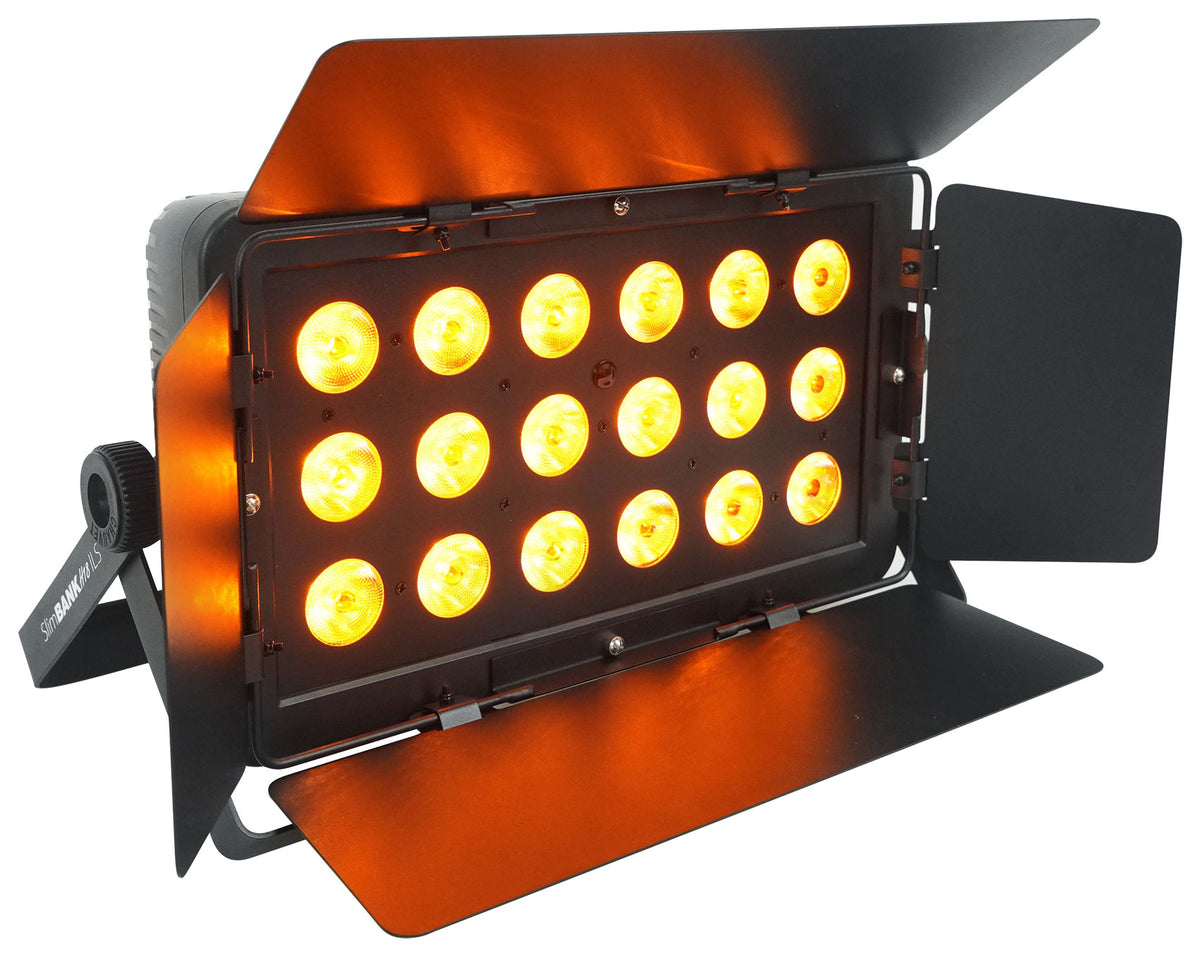

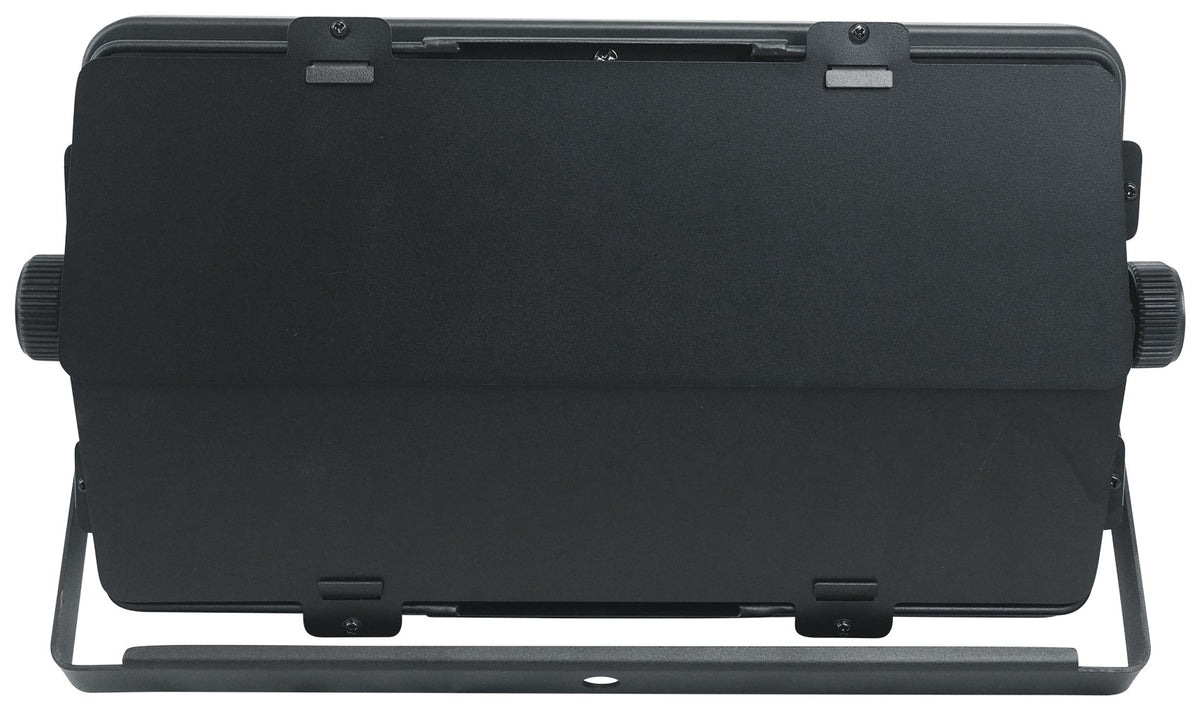

Adjustable barn doors ship in the box, letting you keep light off projection screens, ceilings and the front row of an audience.
-
Fits Tight Positions
A 2.2 in deep, 6 lb housing tucks behind set pieces, mounts flush to truss or sits on the floor as a wall uplight.
Technical Specifications
- Product Type LED Wash Light
- Light Source 18 LEDs (hex-color RGBAW+UV), 6.2 W, 50,000-hour life expectancy
- Lumens 3,356
- Illuminance 3,111 lux @ 2 m
- Beam Angle 27°
- Field Angle 43°
- Strobe Rate 0 to 20 Hz
- DMX Channels 6, 8, 12 or 22
- DMX Connectors 3-pin XLR
- Power Linking 8 units @ 120 V; 14 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current (120 V) 68 W, 1 A @ 120 V, 60 Hz
- Power and Current (230 V) 67 W, 0.5 A @ 230 V, 50 Hz
- Bracket Mounting Hole 13 mm
- Optional Controllers IRC-6, ILSCOMMAND
- Approvals CE, RoHS
- Weight 6 lb (2.7 kg)
- Dimensions 8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
