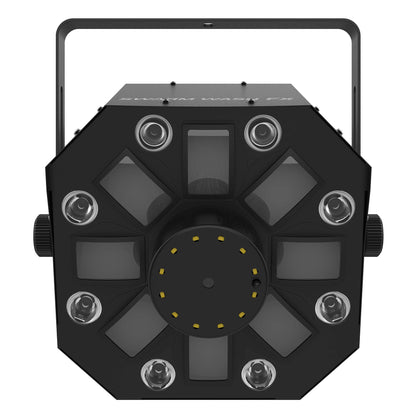

Chauvet DJ Swarm Wash FX ILS RGBAW+UV DMX LED Rotating Derby/Laser/Strobe Light

Name: Chauvet DJ Swarm Wash FX ILS RGBAW+UV DMX LED Rotating Derby/Laser/Strobe Light
Brand: Chauvet DJ
SKU: Swarm Wash FX ILS U
Price: 206.12 USD
Availability: OutOfStock

4-in-1 LED Effect Light With RGBAW Derby, RGB+UV Wash, Red/Green Laser, White SMD Strobe Ring

Free Shipping

$206.12

$206.12 ~~$413.32~~

Save 50%

Shipping calculated at checkout.

Features

Combines a rotating derby, wash, laser and strobe in one fixture
Red 100 mW and green 30 mW lasers project thousands of beams
RGB+UV wash section adds color fill and a blacklight effect
Sound-active and automated programs run with nothing connected
Draws 51 W and links up to 11 units on one 120 V circuit

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

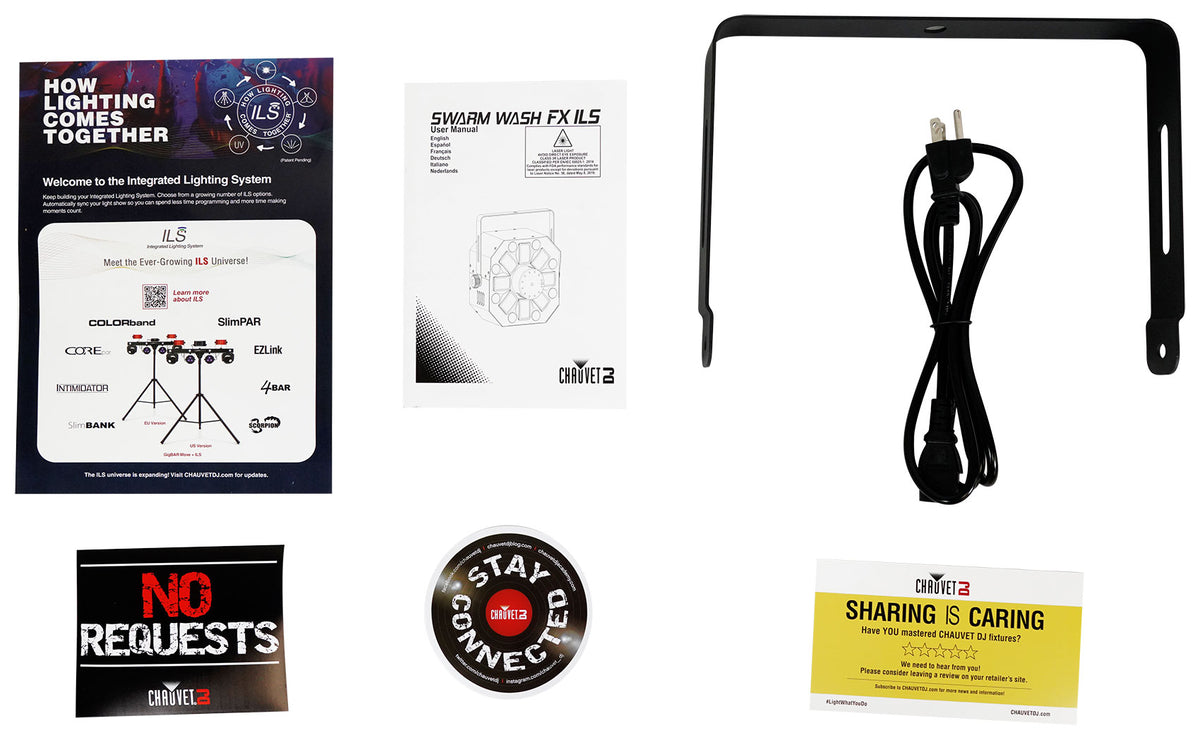

What's Included in the box

Swarm Wash FX ILS
Power cord

SKU: SKU: Swarm Wash FX ILS U

View full details

Product Description

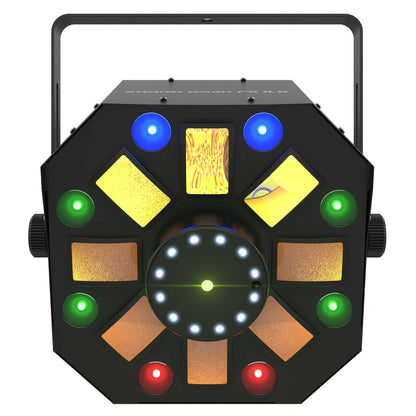

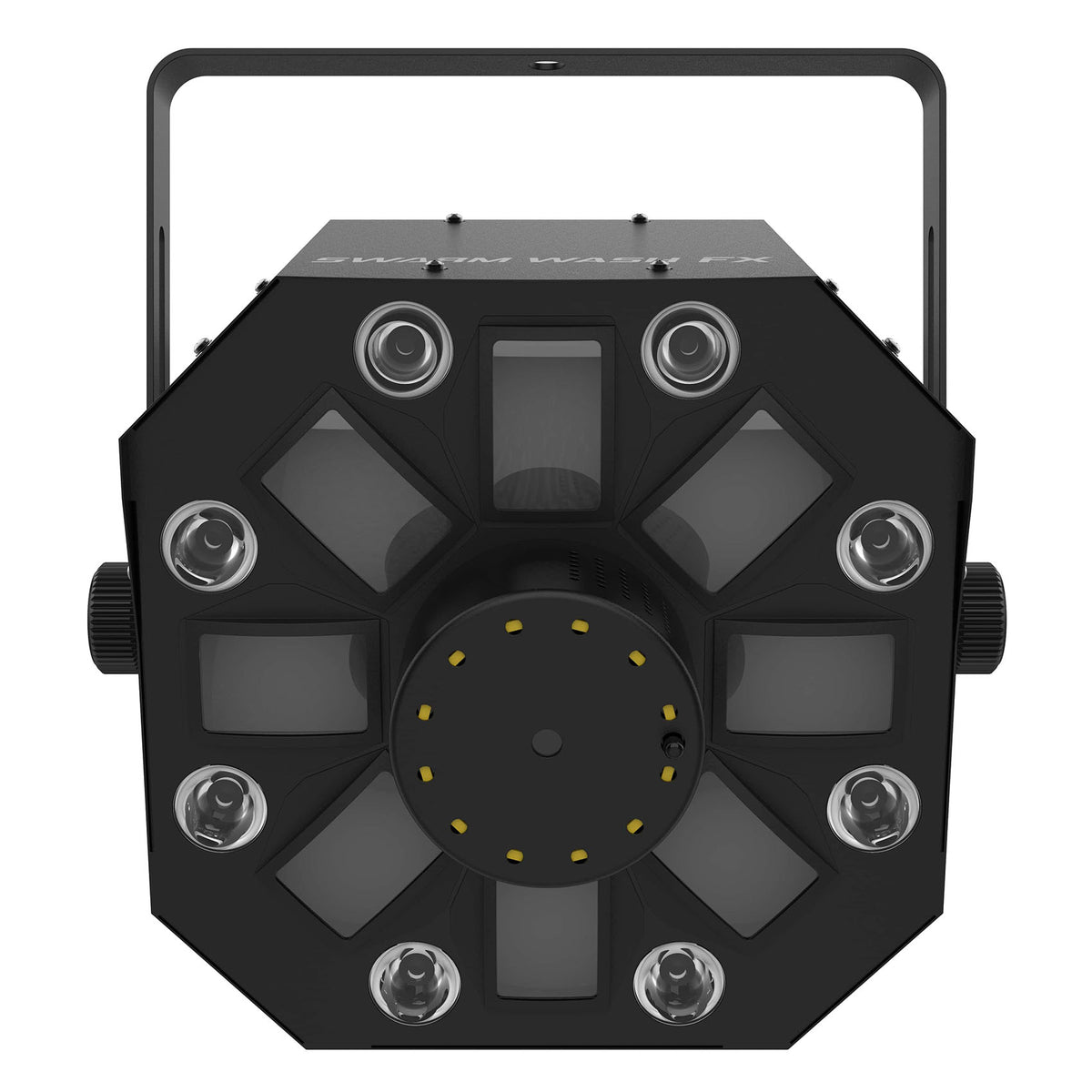

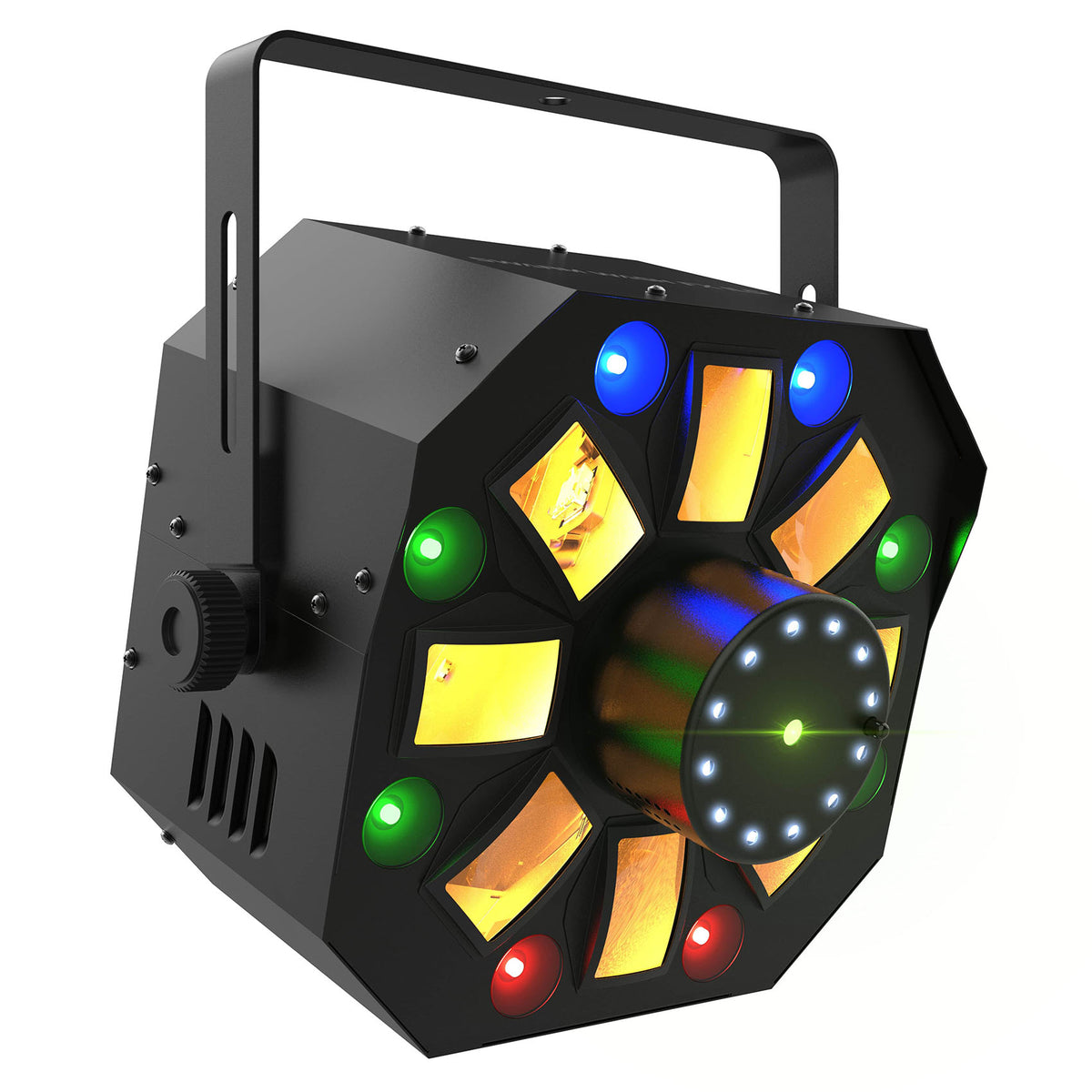

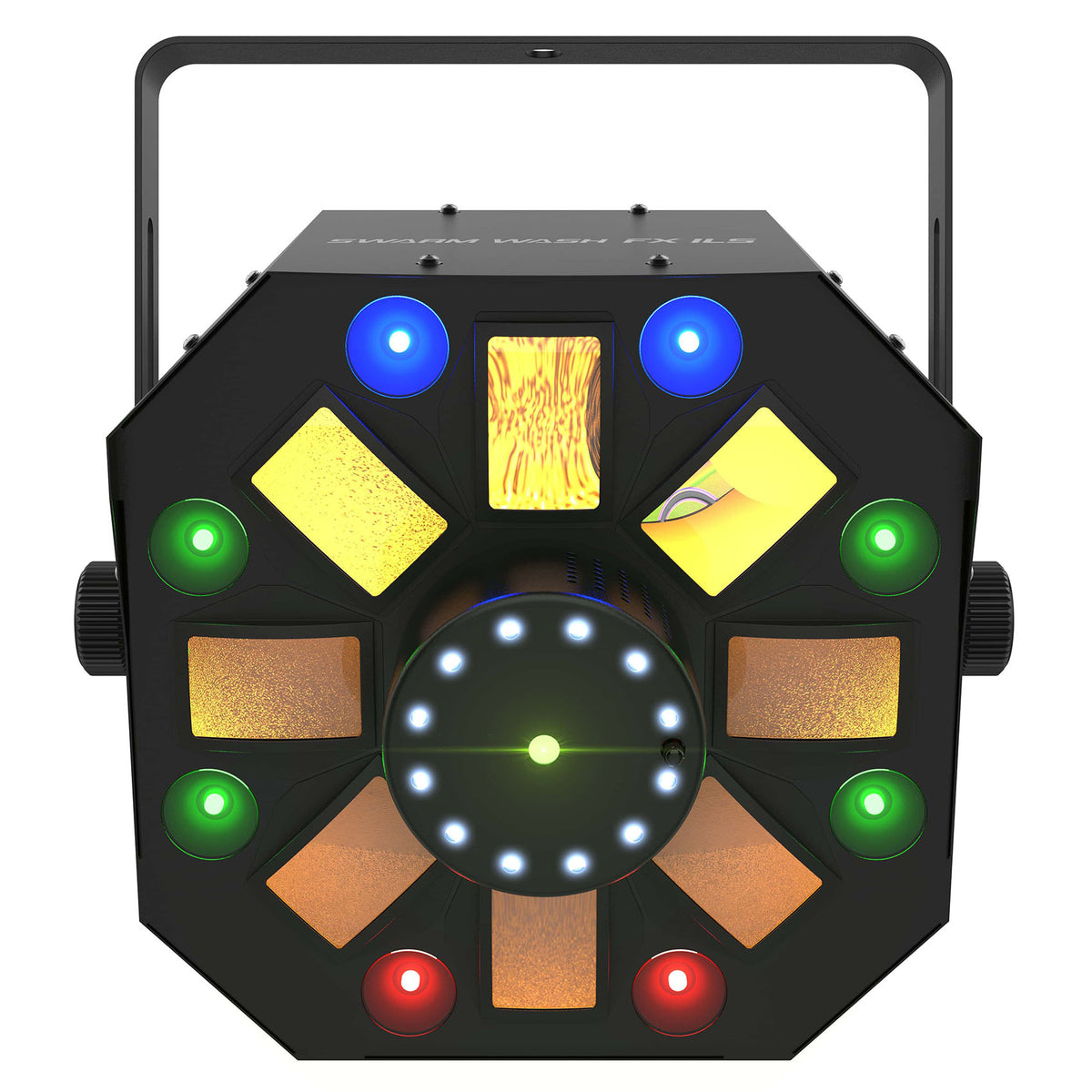

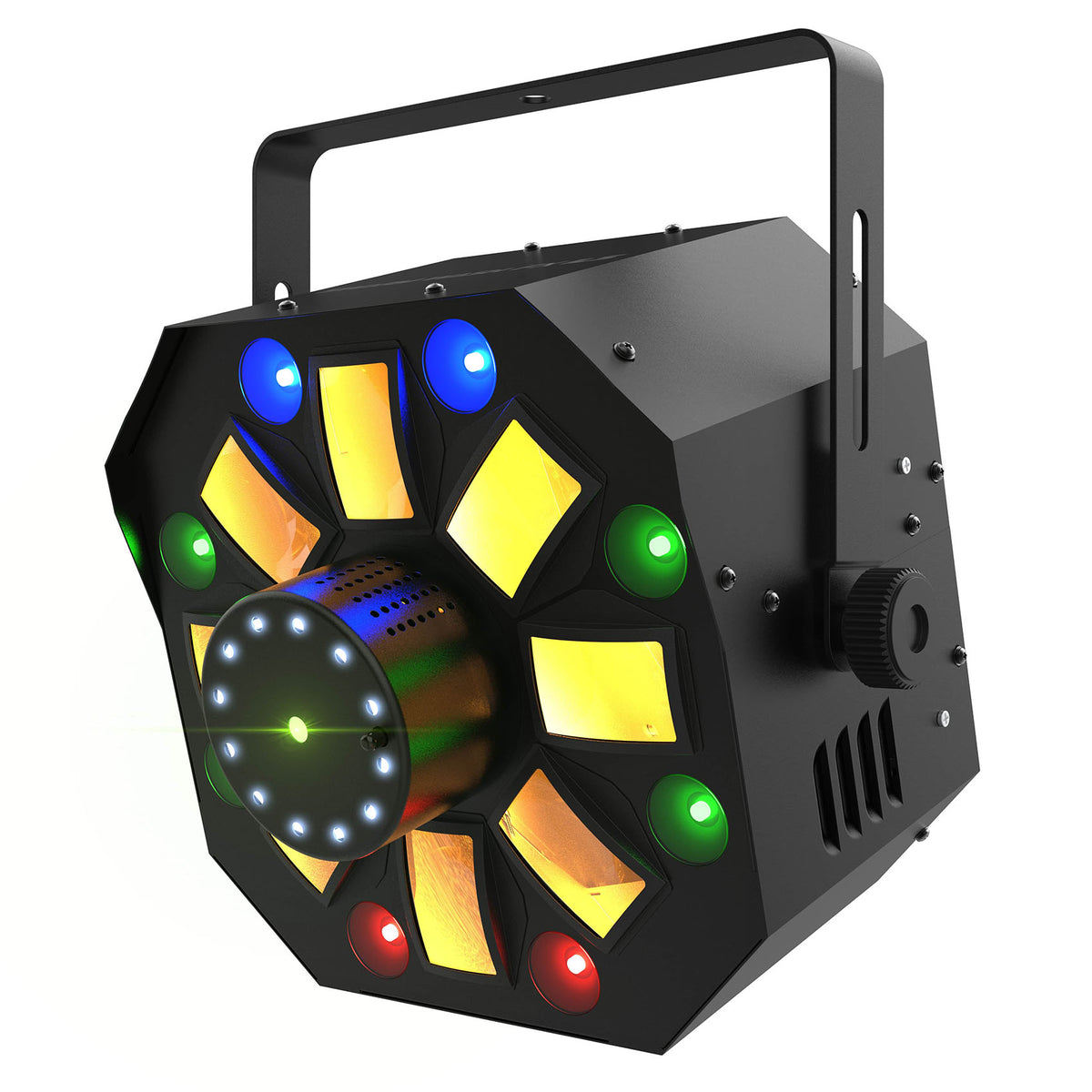

Swarm Wash FX ILS puts four effects in one housing: an RGBAW rotating derby, an RGB+UV wash, a red and green laser, and a ring of white SMD strobes. For a mobile setup, that replaces four fixtures, four power drops and four spots on the truss.

The derby throws rotating beams across the room. The wash fills the space with color and adds a UV blacklight look. The 100 mW red and 30 mW green laser diodes project thousands of beams for coverage across a ceiling or dance floor. The strobe ring at 20 Hz adds hard accents on a drop. Coverage angles run 82° for the laser, 65° for the derby, 71° for the strobe and 46° for the wash.

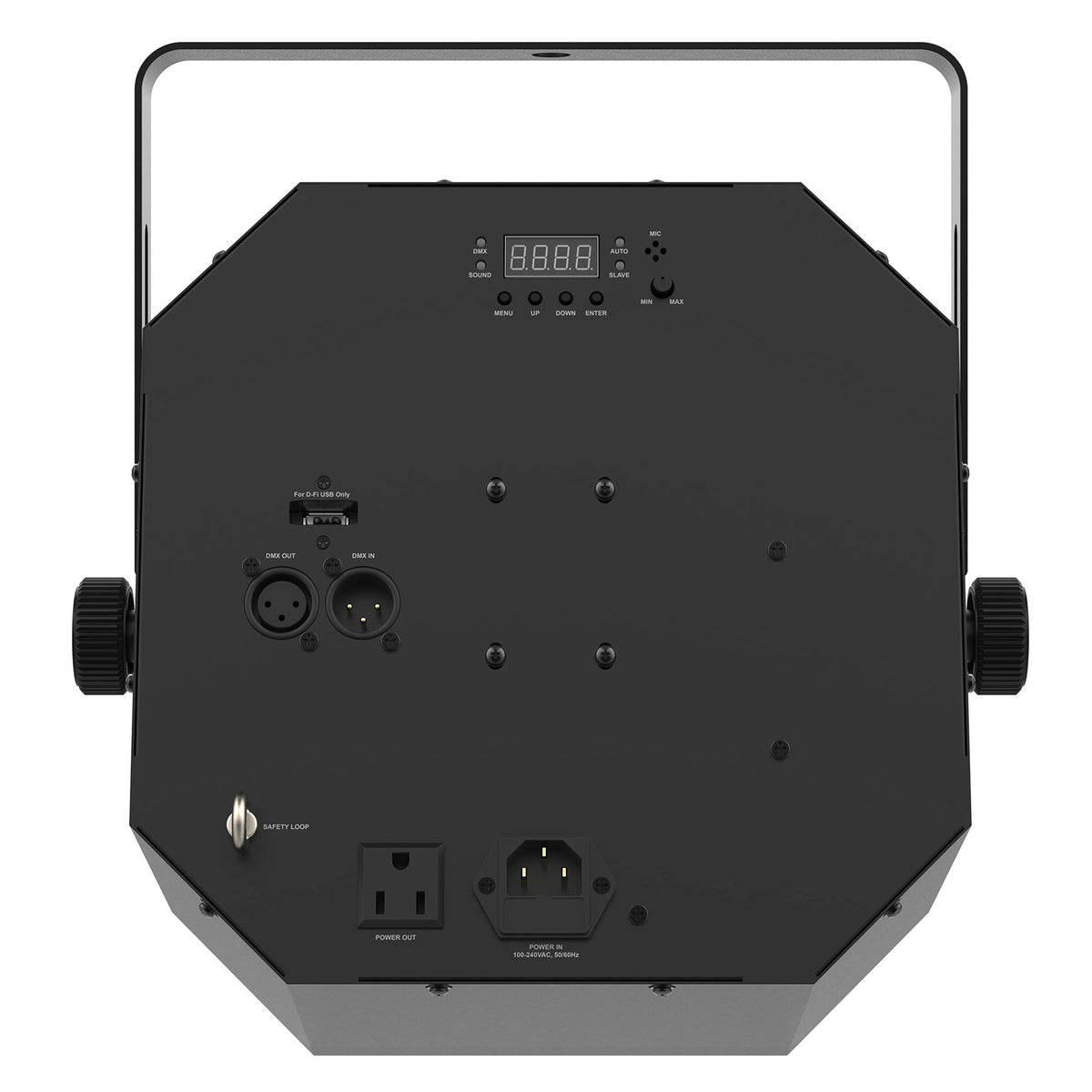

Running it is simple. Automated and sound-activated programs generate complex looks with nothing connected, which is the point for a solo operator who is also running music. When you want control, it takes 2 or 18 DMX channels over 3-pin XLR, links into coordinated ILS shows with other ILS fixture types, accepts D-Fi USB for wireless DMX, and responds to the IRC-6 remote.

Power draw is 51 W, allowing 11 linked units at 120 V. At 9.5 lb it fits the CHS-40 VIP gear bag.

Aimed at mobile DJs, small clubs, roller rinks, bars, school dances and party rental inventory.

Features

Four Effects, One Power Drop

A rotating RGBAW derby, RGB+UV wash, red and green laser and white strobe ring share one housing, replacing four fixtures on the truss.
Full Dance Floor Coverage

Coverage angles of 82° for the laser and 65° for the derby spread beams across a ceiling and floor from a single center position.
Runs Itself

Built-in automated and sound-activated programs generate complex looks with nothing connected, which matters when you are also running the music.
Color Plus Blacklight

The RGB+UV wash section fills the room with color and doubles as a blacklight source for glow paint, white fabric and themed nights.
Grows Into a Bigger Rig

ILS linking, D-Fi USB wireless DMX, wired DMX on 2 or 18 channels and the IRC-6 remote keep the fixture useful as your setup expands.

Technical Specifications

Product Type 4-in-1 LED Effect Light
Light Source (Wash) 8 LEDs (quad-color RGB+UV), 1.5 W, 50,000-hour life expectancy
Light Source (Strobe) 12 LEDs (white), 1 W, 50,000-hour life expectancy
Light Source (Laser) 650 nm/100 mW red diode, 520 nm/30 mW green diode
Coverage Angle 82° laser, 65° derby, 71° strobe, 46° wash
Strobe Rate 0 to 20 Hz
DMX Channels 2 or 18
DMX Connectors 3-pin XLR
Power Linking 11 units @ 120 V; 20 units @ 230 V
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current (120 V) 51 W, 0.7 A @ 120 V, 60 Hz
Power and Current (230 V) 50 W, 0.4 A @ 230 V, 50 Hz
Optional Controllers IRC-6
Approvals CE, FDA, RoHS, UKCA
Weight 9.5 lb (4.3 kg)
Dimensions 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)
