Chauvet DJ EVE E-160ZQ 160W RGBW Ellipsoidal D-Fi LED DMX Gobo Spot Light
Chauvet
Chauvet DJ EVE E-160ZQ 160W RGBW Ellipsoidal D-Fi LED DMX Gobo Spot Light
Chauvet DJ EVE E-160ZQ 160W RGBW Ellipsoidal D-Fi LED DMX Gobo Spot Light
160W RGBW LED Ellipsoidal, 24° To 37° Zoom, Gel Frame, Metal And Glass Gobo Holders Included
Features
- 160 W quad-color RGBW LED delivers 5,231 lumens
- Integrated zoom covers 24° to 37° with no lens tube swap
- Color temperature presets from 2,800K to 8,000K
- Flicker-free output suits streamed and recorded video
- Includes gel frame plus metal and glass gobo holders
Couldn't load pickup availability

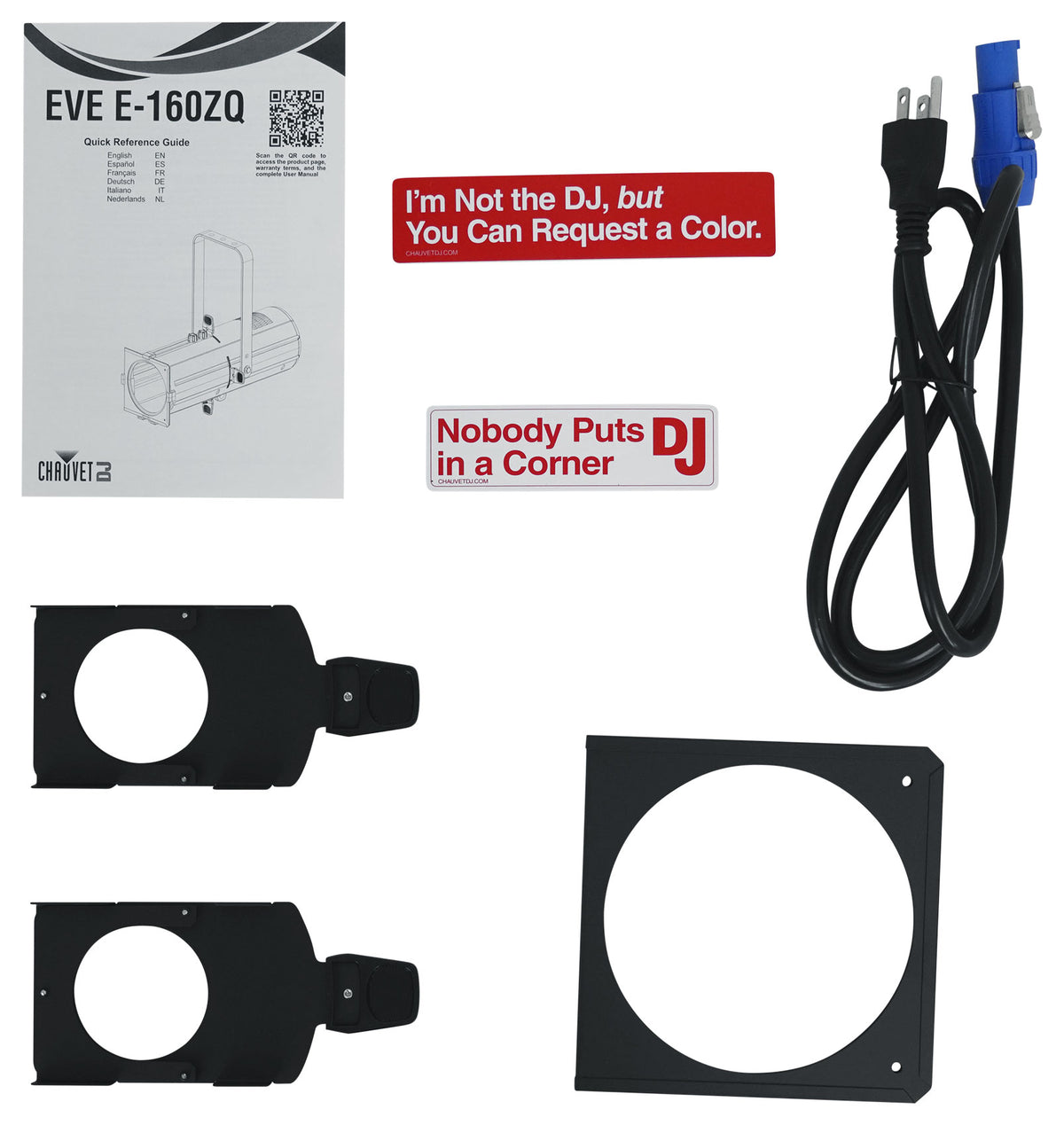

What's Included in the box
- EVE E-160ZQ
- Power cord
- Gel frame
- Metal gobo holder
- Glass gobo holder
SKU: SKU: EVEE160ZQ
View full details







Product Description
Features
-
One Fixture, Many Throws
Integrated zoom optics move from 24° to 37°, keeping a subject framed from front of house or a short side position with no lens tube swap.
-
Bright Enough To Cut Through
A 160 W quad-color LED produces 5,231 lumens and 7,072 lux @ 2 m, isolating a speaker or soloist even when house lights stay up.
-
White Without Guesswork
Pre-set color temperature ranges from 2,800K to 8,000K give you a usable white instantly instead of blending RGB and white by hand.
-
Ready For Gobos Day One
A gel frame, metal gobo holder, and glass gobo holder ship in the box, and size M gobos drop in for logos, patterns, and breakup textures.
-
Built For Camera
Flicker-free operation keeps streamed services, recorded lectures, and hybrid corporate events clean on video with no rolling bands.
Technical Specifications
- Product Type LED Ellipsoidal Spot Light
- DMX Channels 3, 4, or 11

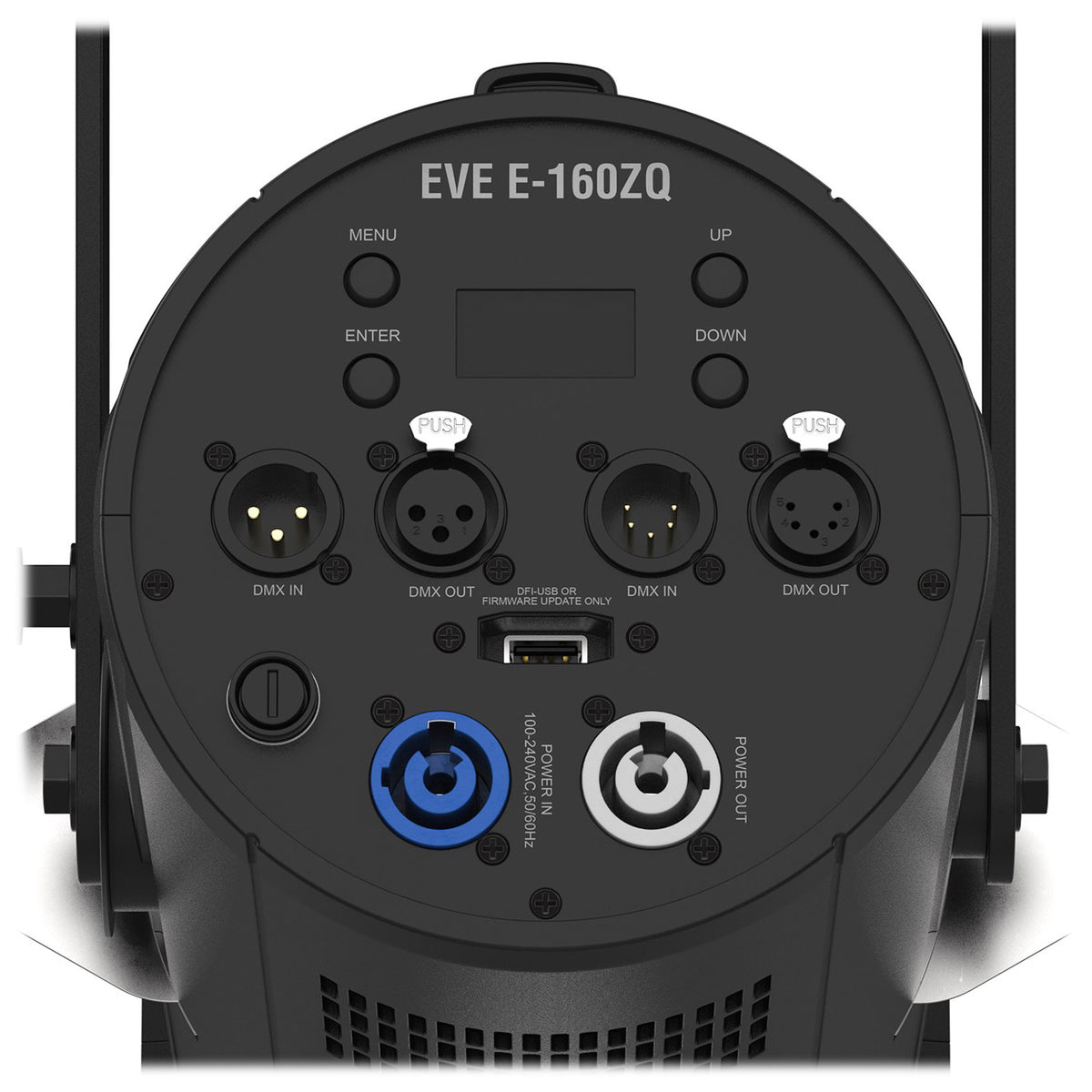

- DMX Connectors 3- and 5-pin XLR
- Light Source 1 LED (quad-color RGBW) 160 W, 7.3 A, 50,000 hours life expectancy
- Zoom Angle 24° to 37°
- Lumens 5,231
- Color Temperature Range 2,800K to 8,000K
- Strobe Rate 1 to 30 Hz
- Illuminance (24°) 7,072 lux @ 2 m
- Illuminance (37°) 2,964 lux @ 2 m
- Illuminance (24°) 1,132 lux @ 5 m
- Illuminance (37°) 474 lux @ 5 m
- Gobo Size M (66 mm outside, 48 mm image, 2 mm max thickness)
- Accessory Holder Size 6.25 in
- Power Linking 9 units @ 120 V; 16 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 150 W, 1.3 A @ 120 V, 60 Hz
- Power and Current 150 W, 0.7 A @ 230 V, 50 Hz
- Approvals CE, RoHS, MET
- Weight 12.2 lb (5.5 kg)
- Dimensions 18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm)
