Chauvet DJ GIGBAR 3 ILS Light Bar w/(2) Derby/Pars/Strip+Tripod+Footswitch+Bag
Chauvet
Chauvet DJ GIGBAR 3 ILS Light Bar w/(2) Derby/Pars/Strip+Tripod+Footswitch+Bag
Chauvet DJ GIGBAR 3 ILS Light Bar w/(2) Derby/Pars/Strip+Tripod+Footswitch+Bag

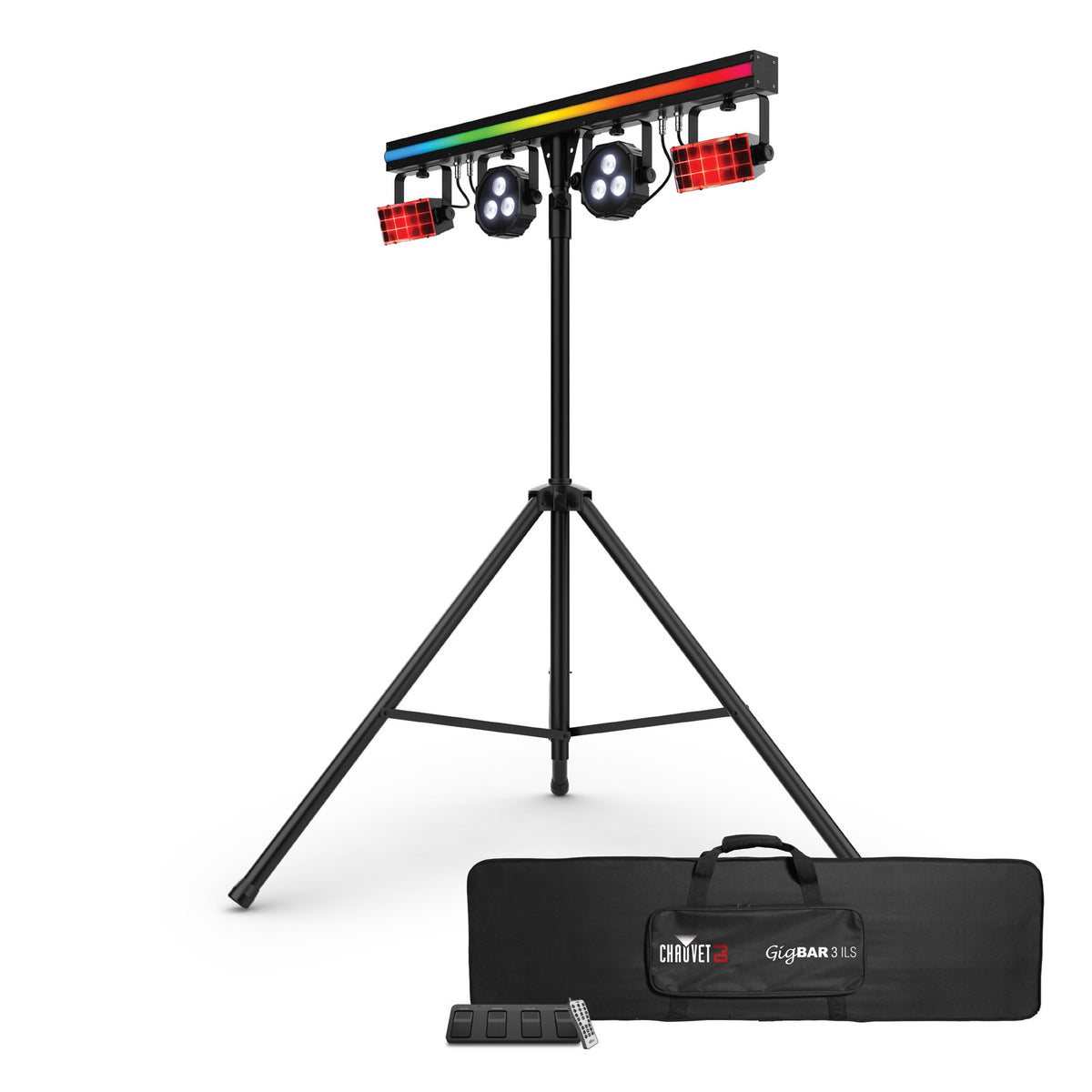

3-In-1 Light Bar With 2 Derbies, 2 Pars, LED Strip, Tripod, Wireless Footswitch, RF Remote, Bags
Free Shipping
Features

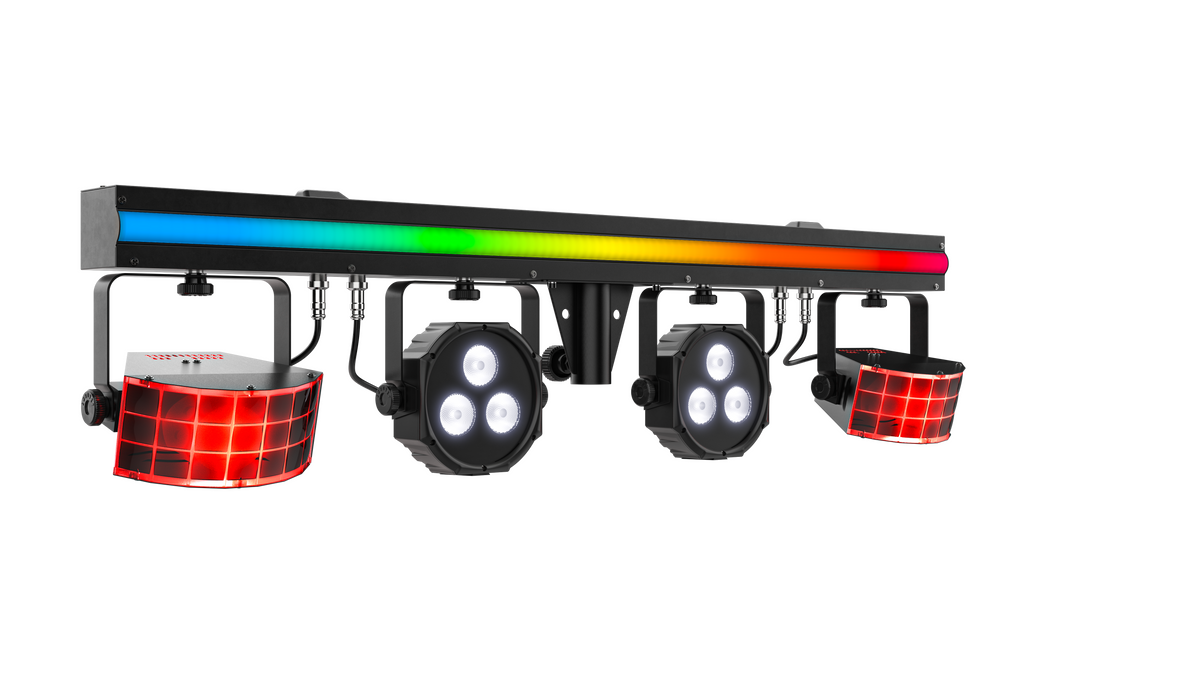

- Two LED derbies, two RGB+UV pars, and a 74-LED strip on one bar
- Includes tripod, wireless footswitch, RF remote, and two carry bags
- Sound-active and automated programs run all three effects together
- Built-in D-Fi transceiver sends DMX or ILS signals wirelessly
- Mount up to 4 additional fixtures on top of the bar
Couldn't load pickup availability
What's Included in the box
- GigBAR 3 ILS
- Power cord
- Stealth filter

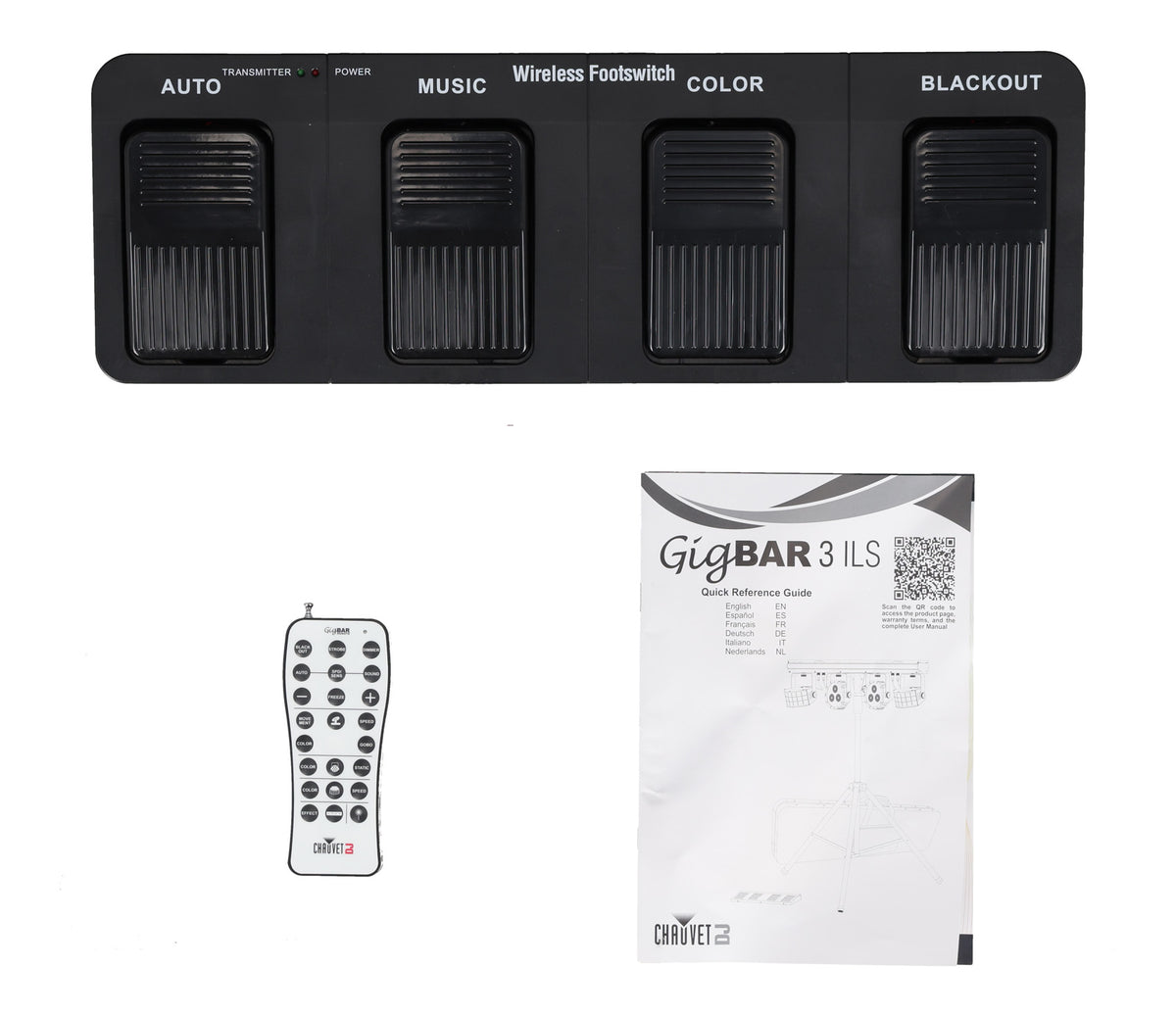

- Wireless footswitch
- RF remote

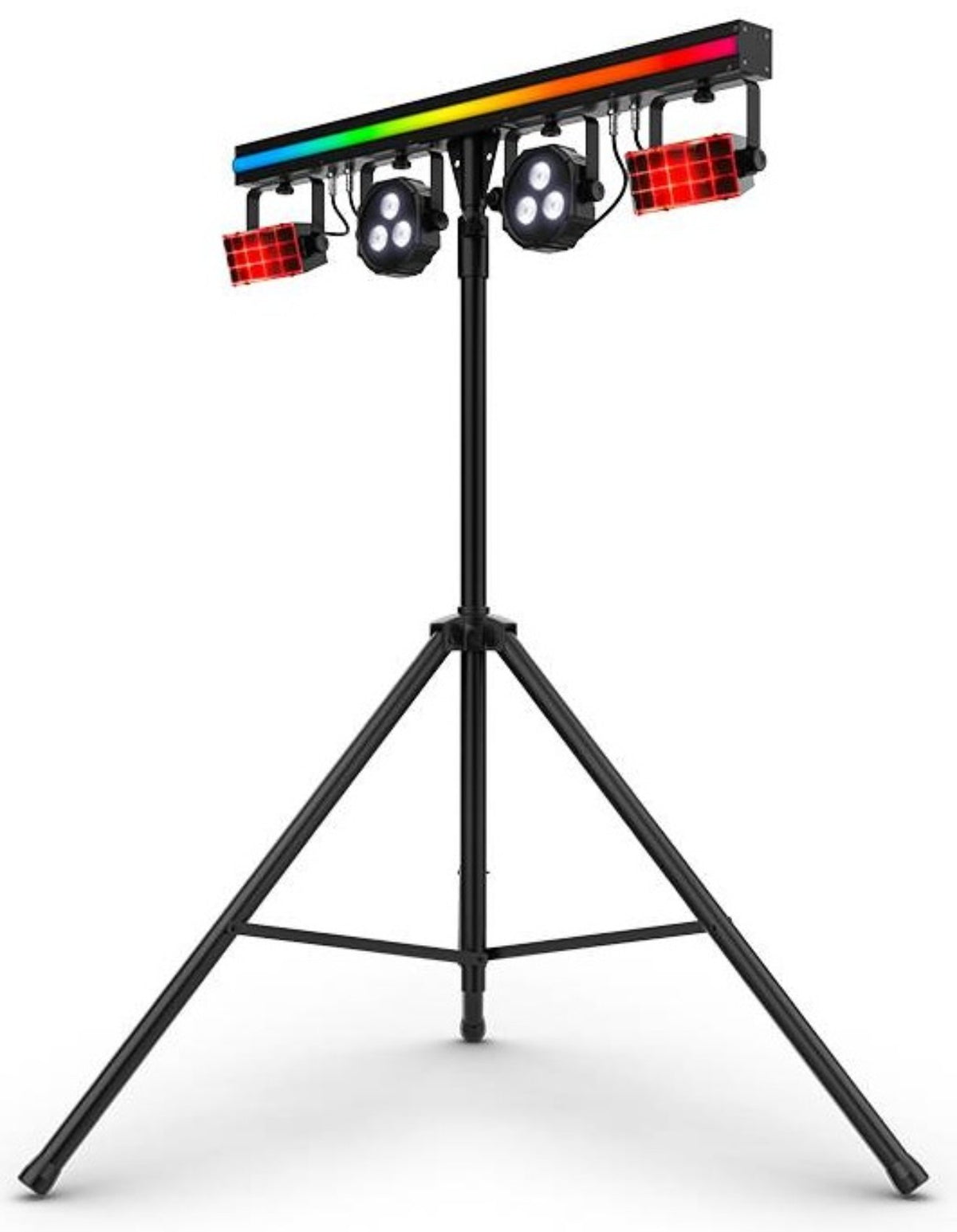

- Tripod

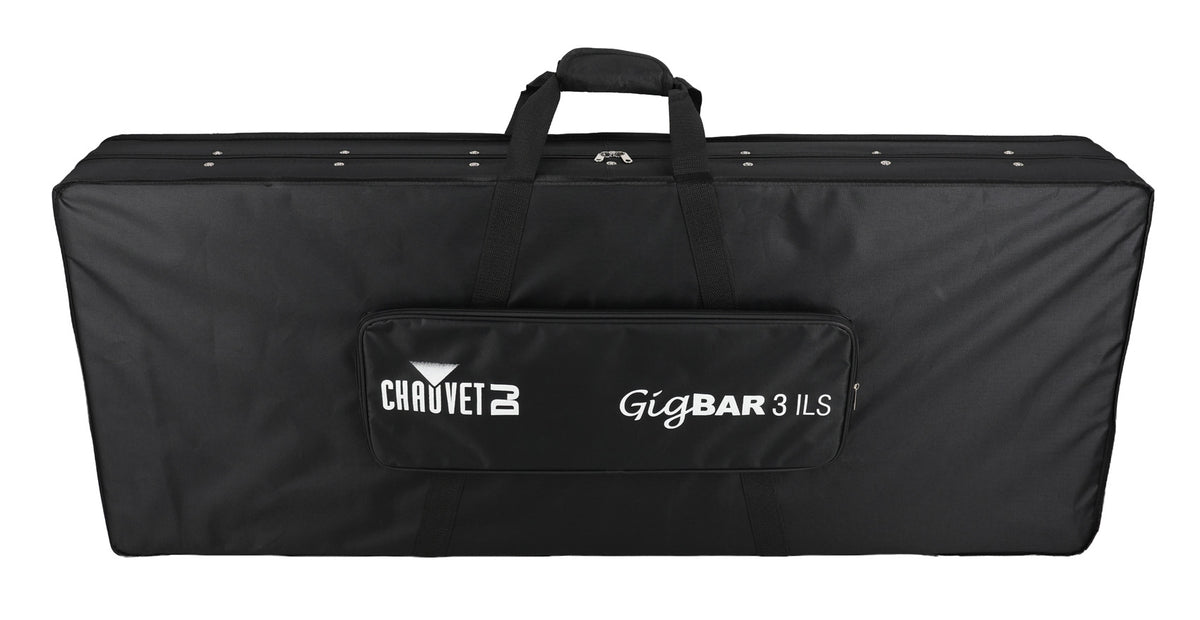

- Carrying bag
- Tripod bag
SKU: SKU: GIGBAR3ILS
View full details










Product Description
Features
-
Six Effects, One Cord

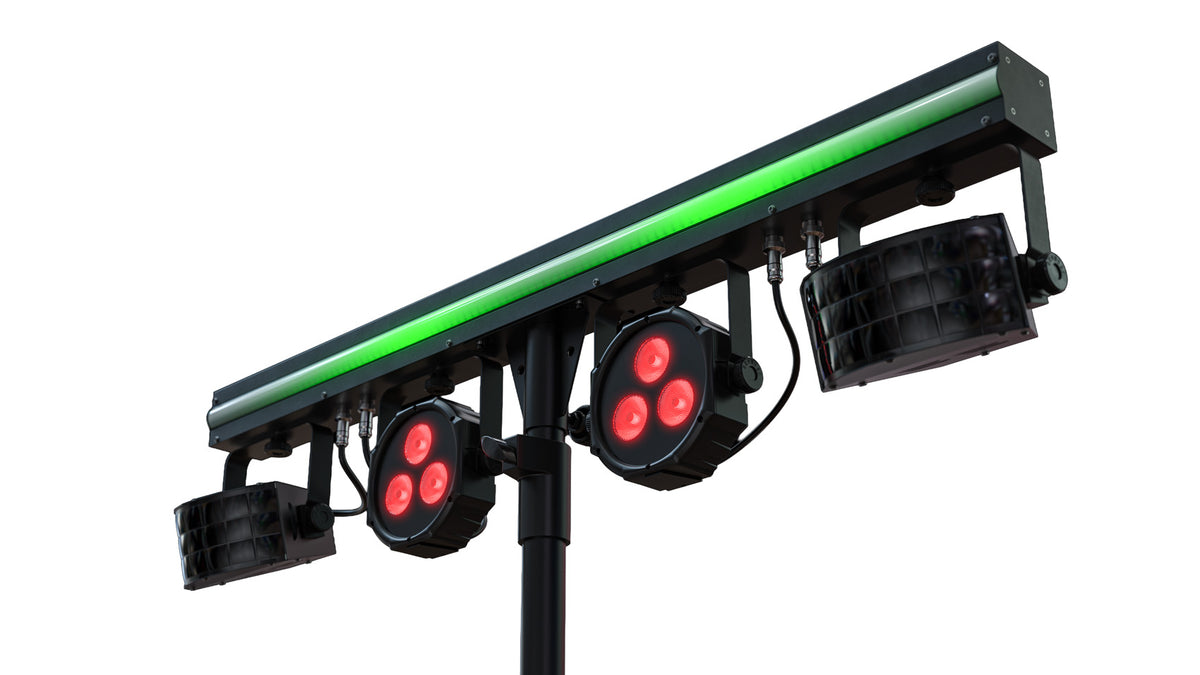

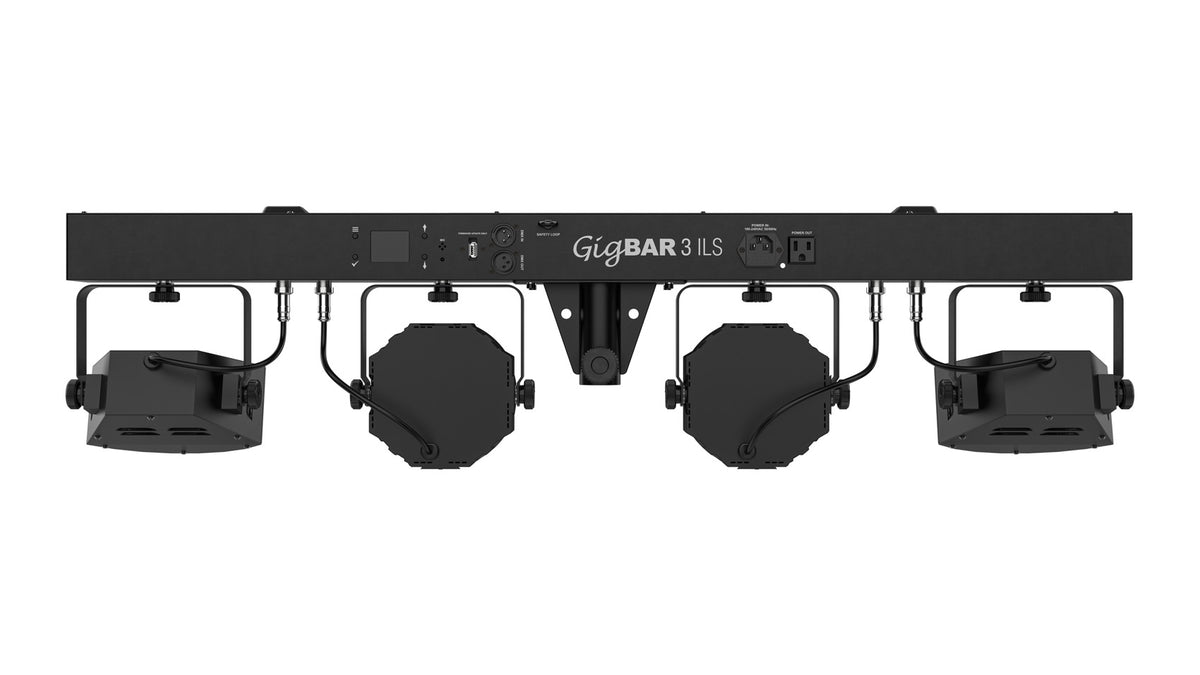

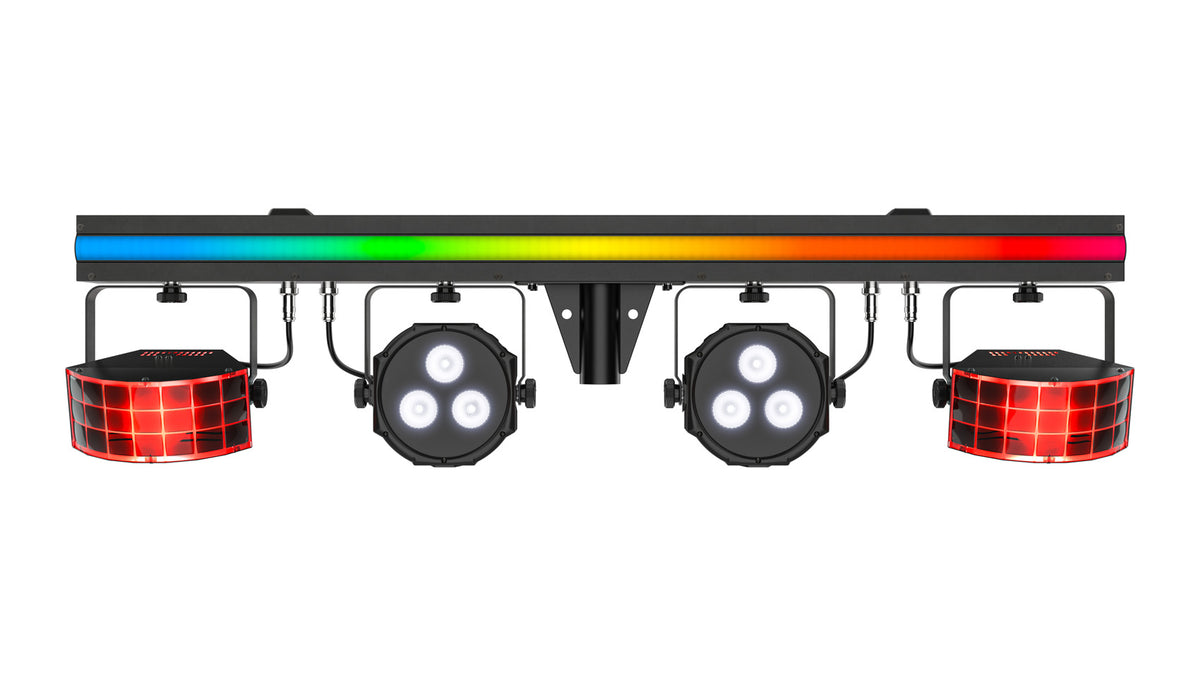

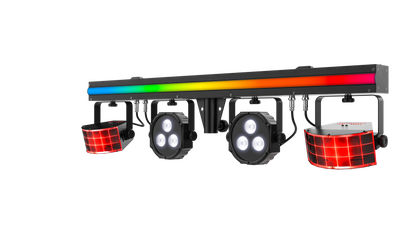

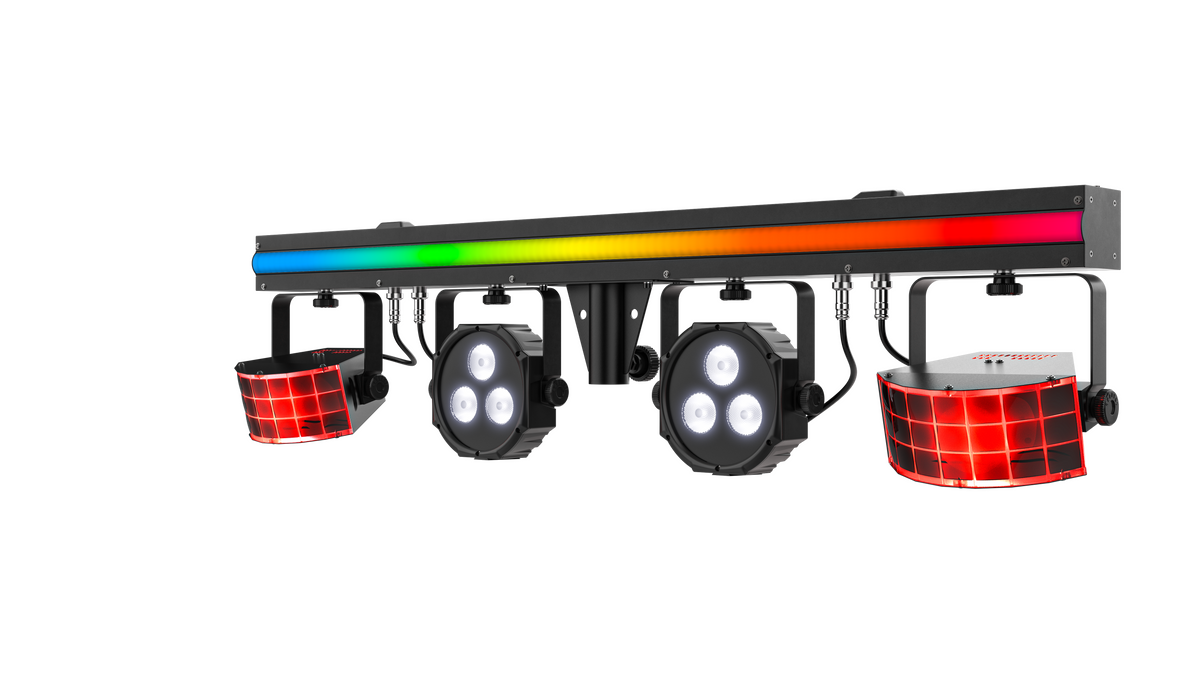

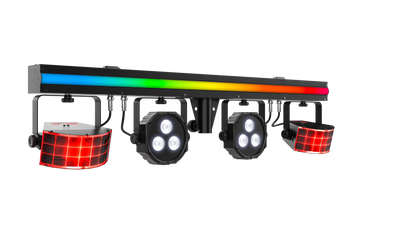

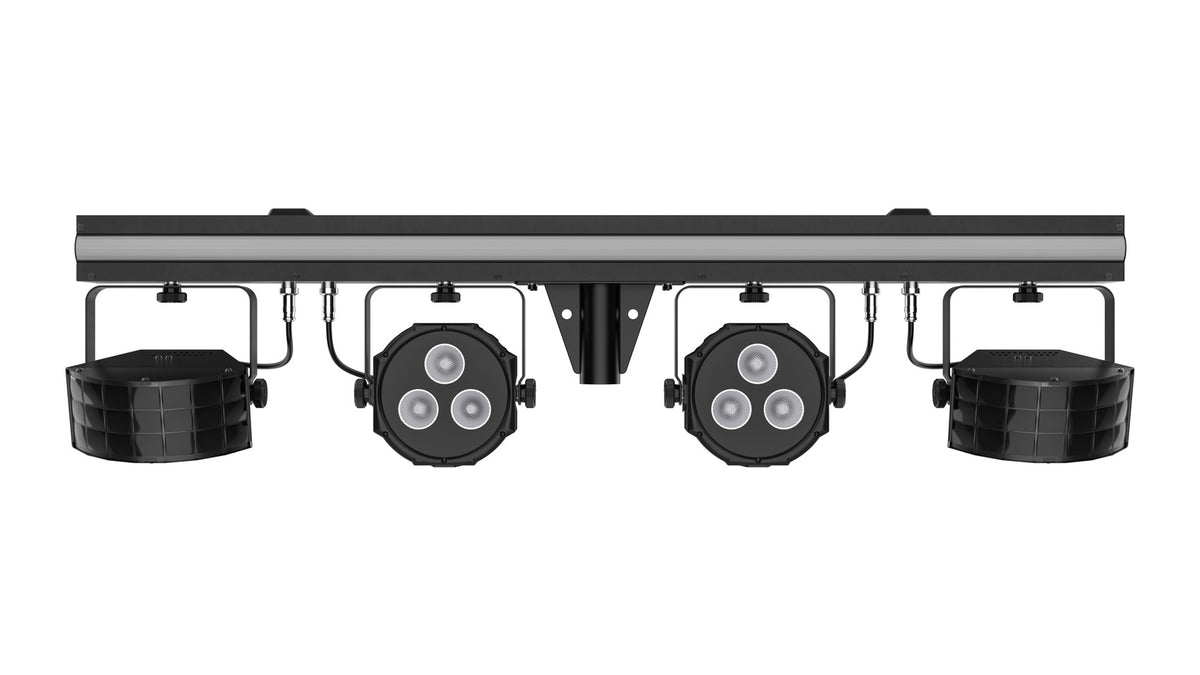

Two derbies, two pars, and an LED strip come pre-mounted and pre-wired on one 41.2 in bar, so a full show runs off a single power connection.
-
In And Out Fast

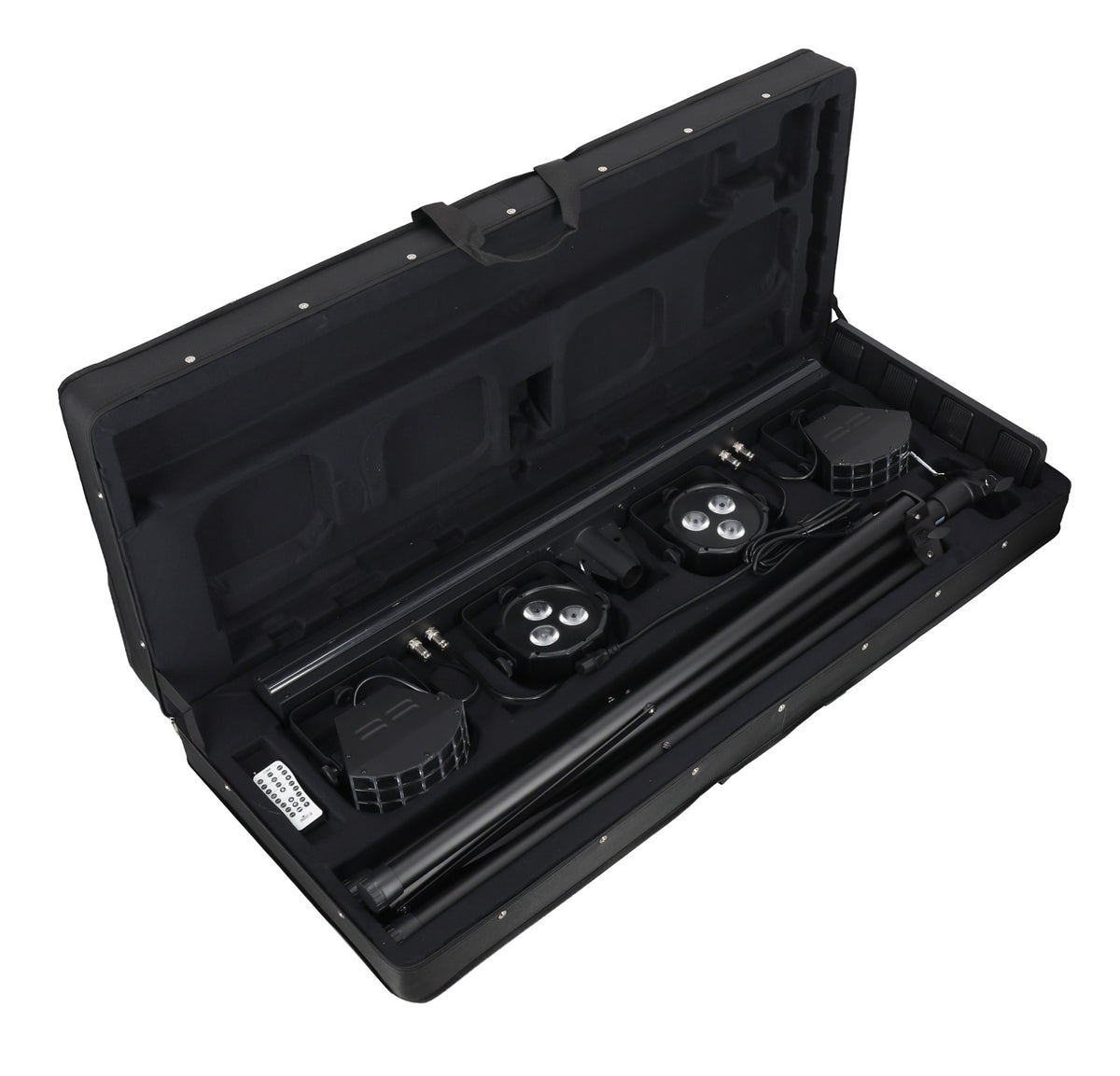

The included tripod, carry bags, and reversible mounting bracket mean one person can load in, set up, and strike the entire rig alone.
-
Change Looks From The Booth
A wireless footswitch works up to 100 ft away and the RF remote adds control, so you adjust the show without leaving your equipment.
-
Grows With Your Rig
Four extra mounting points on top of the bar accept additional fixtures, letting you expand the setup without buying a second stand.
-
Automatic Coordination
ILS compatibility and a built-in D-Fi transceiver sync the bar wirelessly with other ILS fixtures, so added lights match the show automatically.
Technical Specifications
- Product Type 3-in-1 LED Effect Light Bar
- DMX Channels 2, 21, or 132
- DMX Connectors 3-pin XLR
- Light Source (pars) 6 LEDs (quad-color RGB+UV) 3.7 W, 1 A, 50,000 hours life expectancy
- Light Source (LED strip) 74 LEDs (red, green, blue) 5 W, 0.03 A, 50,000 hours life expectancy
- Light Source (derby) 6 LEDs (2 red, 2 green, 2 blue) 3 W, 0.6 A, 50,000 hours life expectancy
- Beam Angle (pars) 13°
- Field Angle (pars) 24°
- Coverage Angle (derby) 114°
- Coverage Angle (LED strip) 174°
- Strobe Rate 0 to 20 Hz
- Operating Frequency 2.412 to 2.484 GHz
- Stand Height 4.8 ft to 7.8 ft (1.5 to 2.4 m)
- Tripod Leg Width 3.9 ft (1.2 m)
- Fits Tripod Size 1.5 in (37.4 mm)
- Cable Length 9 ft (2.844 m)
- Footswitch Operating Frequency 433 MHz
- Footswitch Max Unobstructed Distance 100 ft (30.5 m)
- Footswitch Battery 9 V, 300 mA
- Power Linking 11 units @ 120 V; 18 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 47 W, 0.7 A @ 120 V, 60 Hz
- Power and Current 45 W, 0.4 A @ 230 V, 50 Hz
- Approvals CE, RoHS, FCC
- Weight 13.2 lb (6 kg)
- Dimensions 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
