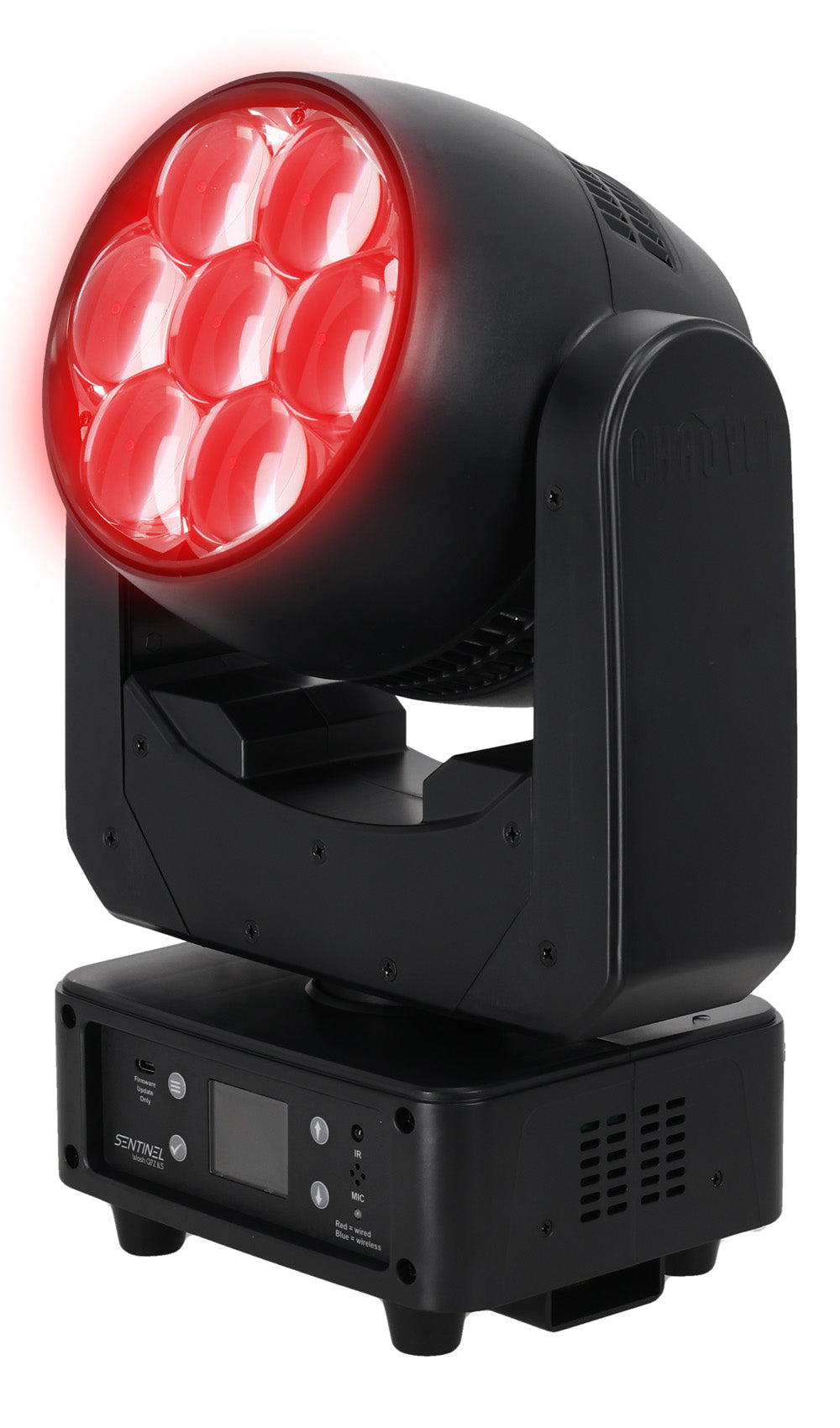

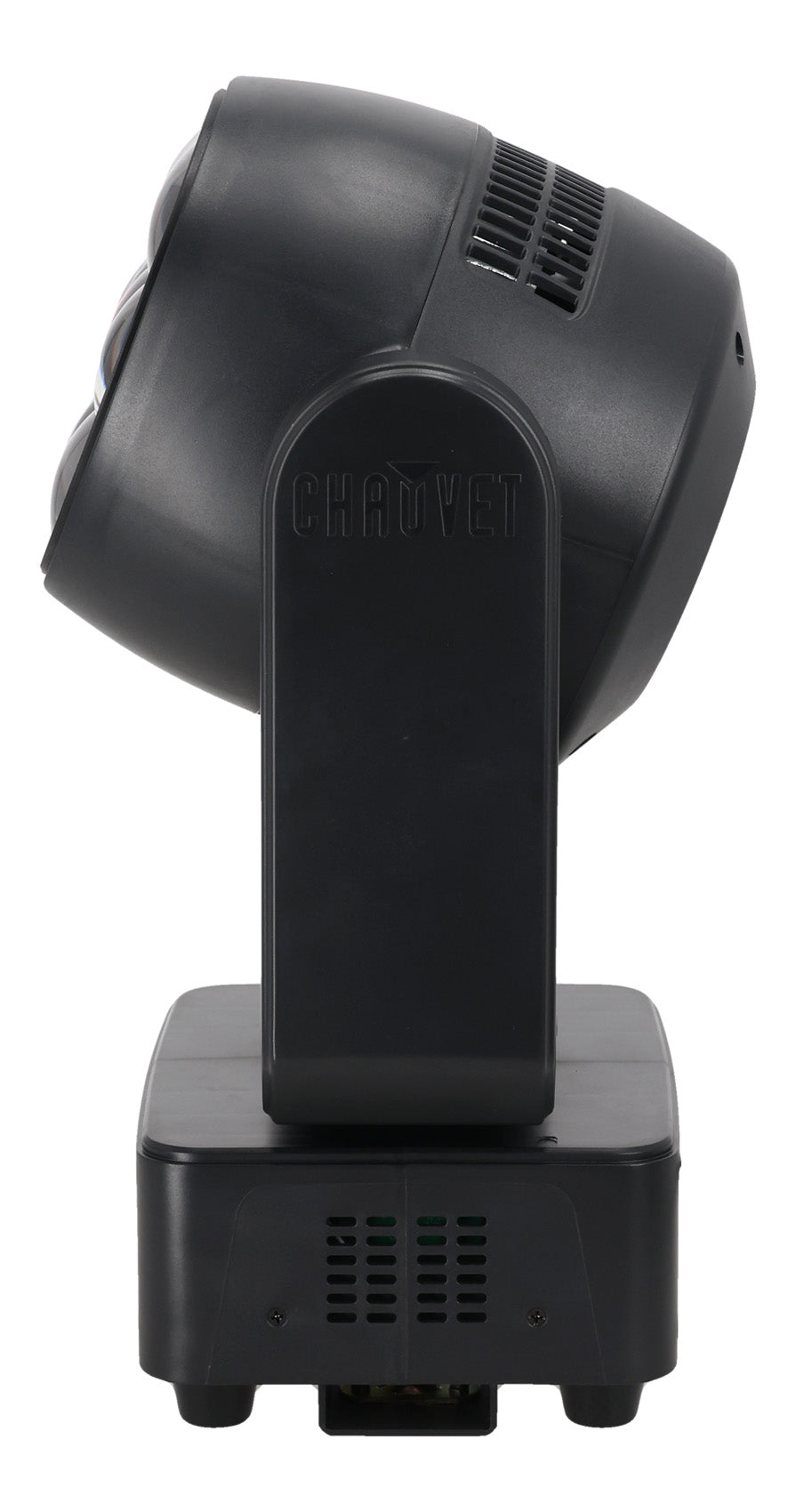

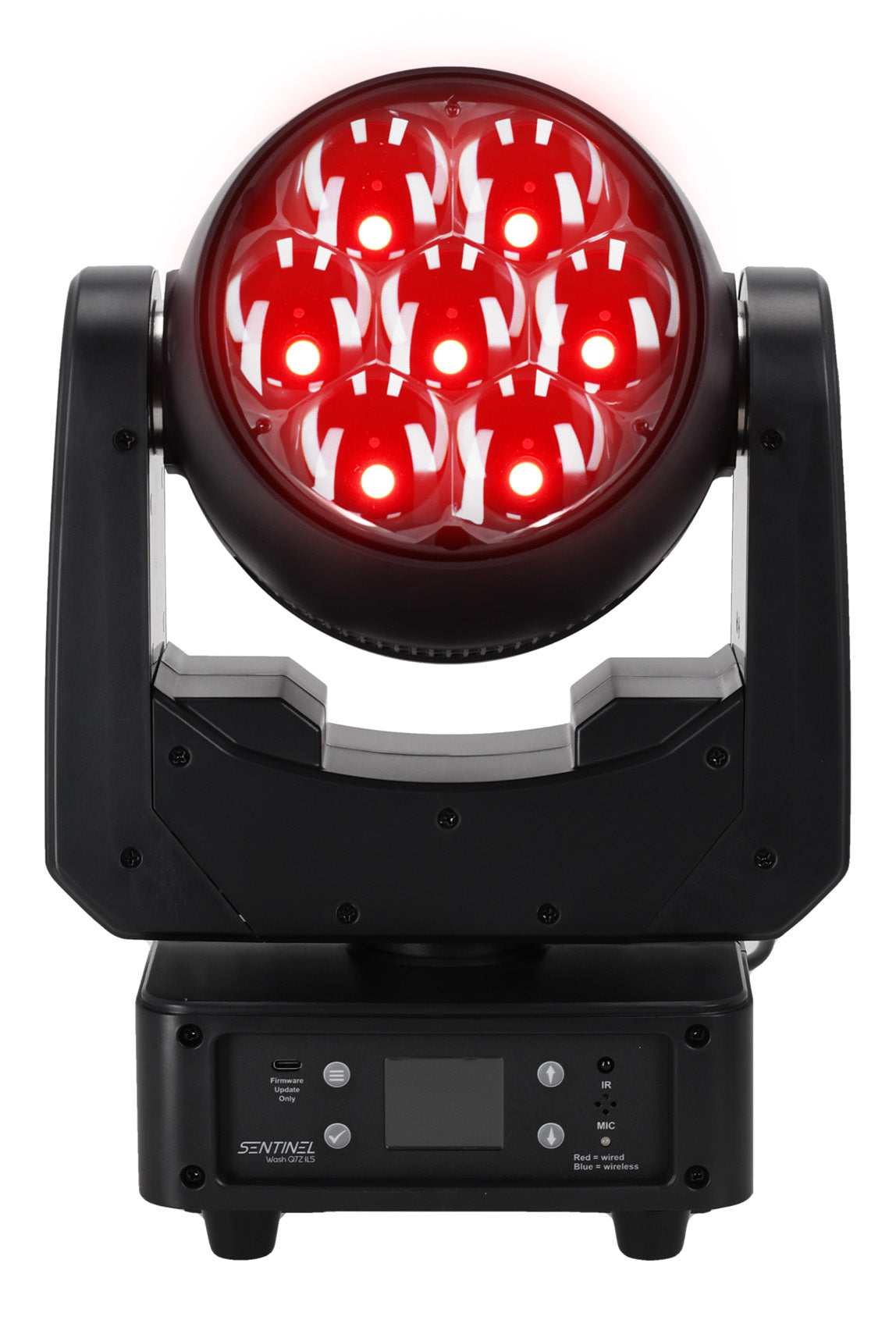

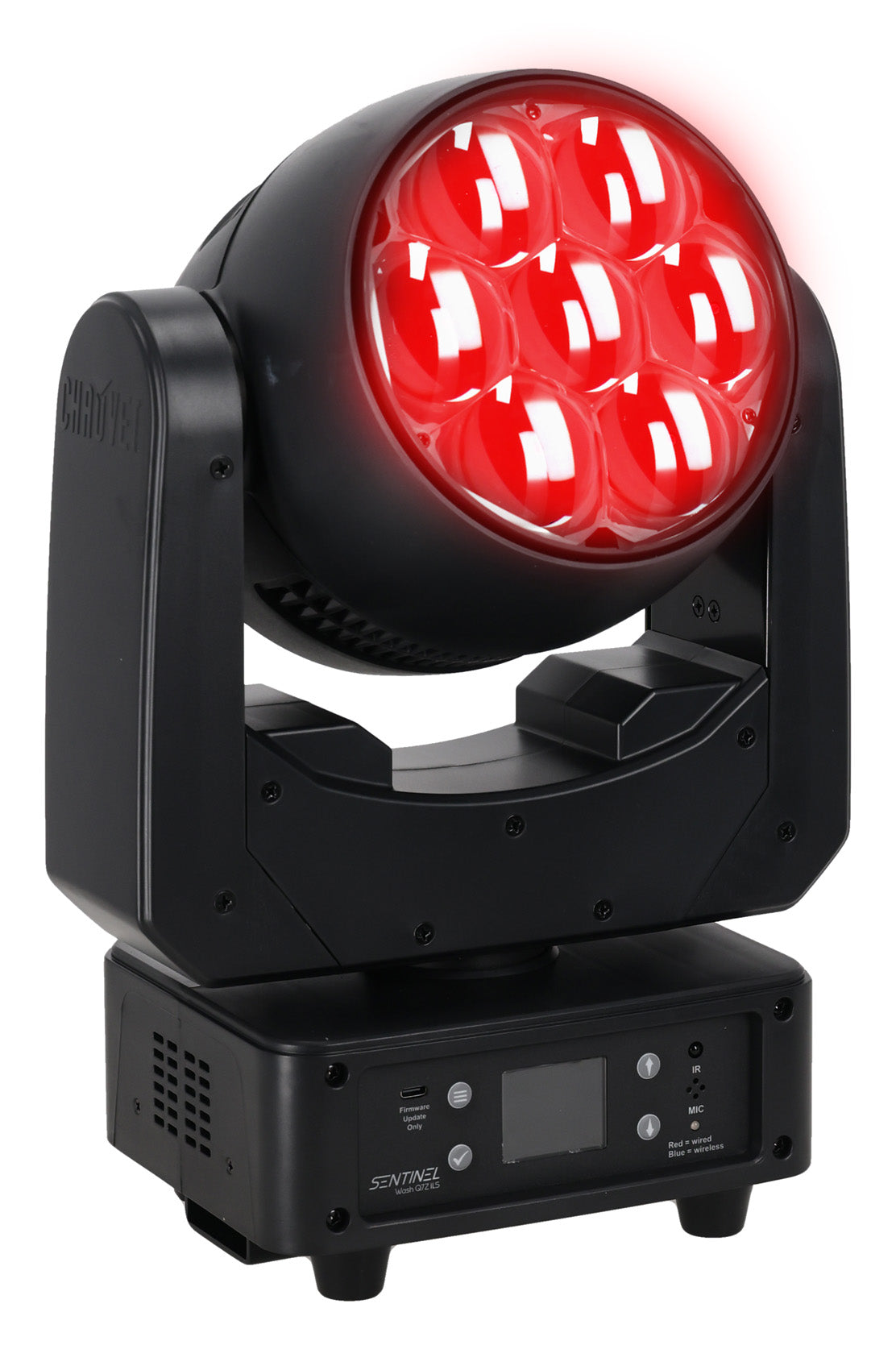

Chauvet DJ SENTINEL WASH Q7Z ILS 20w RGBW LED Moving Head Light w/Built-in DFI
Chauvet
Chauvet DJ SENTINEL WASH Q7Z ILS 20w RGBW LED Moving Head Light w/Built-in DFI
Chauvet DJ SENTINEL WASH Q7Z ILS 20w RGBW LED Moving Head Light w/Built-in DFI
7-LED RGBW Moving Head Wash, 5° To 27° Zoom, Built-In D-Fi, Hanging Bracket, Power Cord
Free Shipping
Features
- Seven quad-color RGBW LEDs totaling 140 W of output
- Motorized zoom runs from a 5° beam to a 27° wash
- Built-in D-Fi transceiver sends DMX or ILS wirelessly
- Totem Mode keeps the head aimed at the dance floor
- 540° pan and 225° tilt with full-color LCD menus
Couldn't load pickup availability

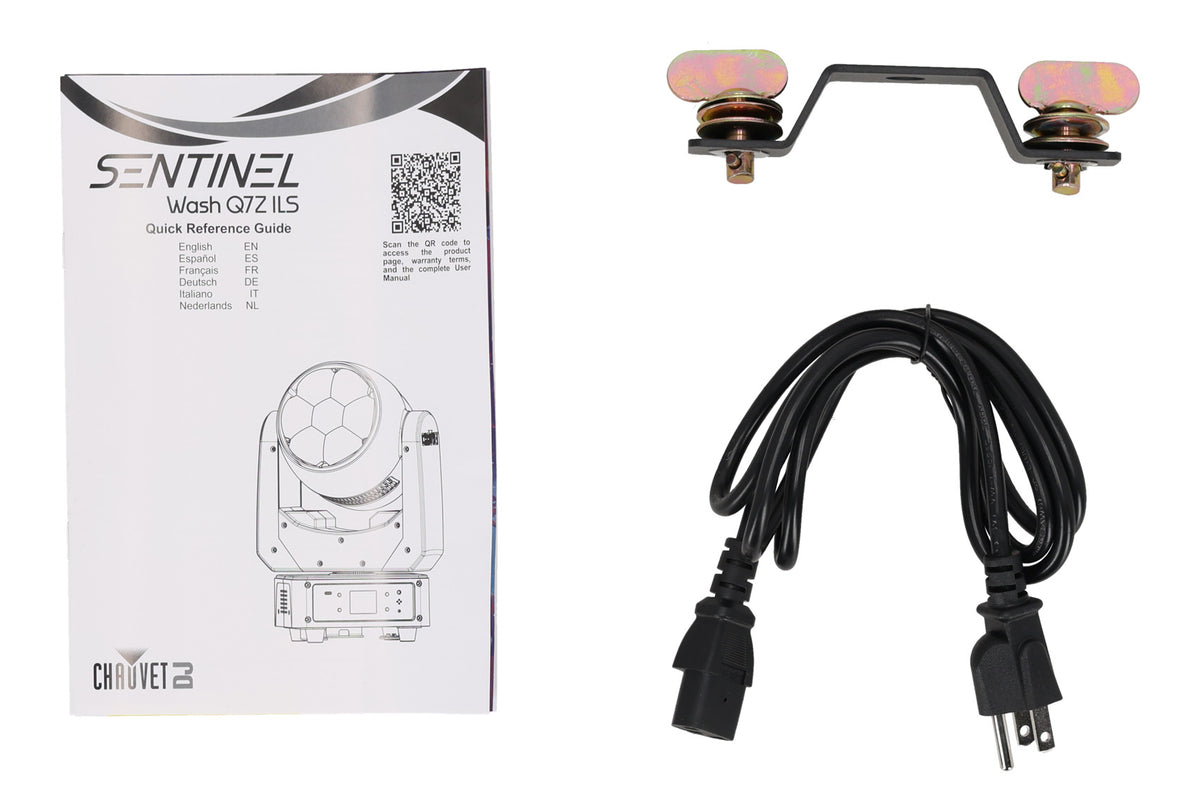

What's Included in the box
- Sentinel Wash Q7Z ILS
- Power cord
- Hanging bracket
SKU: SKU: SENTINELWASHQ7ZILS
View full details





Product Description
Features
-
Beam And Wash In One Head
Motorized zoom moves from a 5° shaft at 30,537 lux @ 2 m to a 27° wash, so one fixture covers long throws and close walls.
-
Color Without Shadows
Seven quad-color RGBW emitters blend into a single beam, giving you one solid color instead of separated red, green, and blue edges.
-
Wireless Built In
The D-Fi transceiver is inside the fixture, so wireless DMX or ILS works immediately with no separate module to buy, mount, or power.
-
Beams Aimed At The Crowd
Totem Mode keeps the head pointed at the dance floor when the fixture stands on a totem or stand, so light lands on guests, not the ceiling.
-
Coordinated Rig, No Programming
ILS compatibility syncs this wash with other ILS fixture types automatically, producing a matched show without building cues first.
Technical Specifications
- Product Type LED Moving Head Wash Light
- DMX Channels 9 or 14

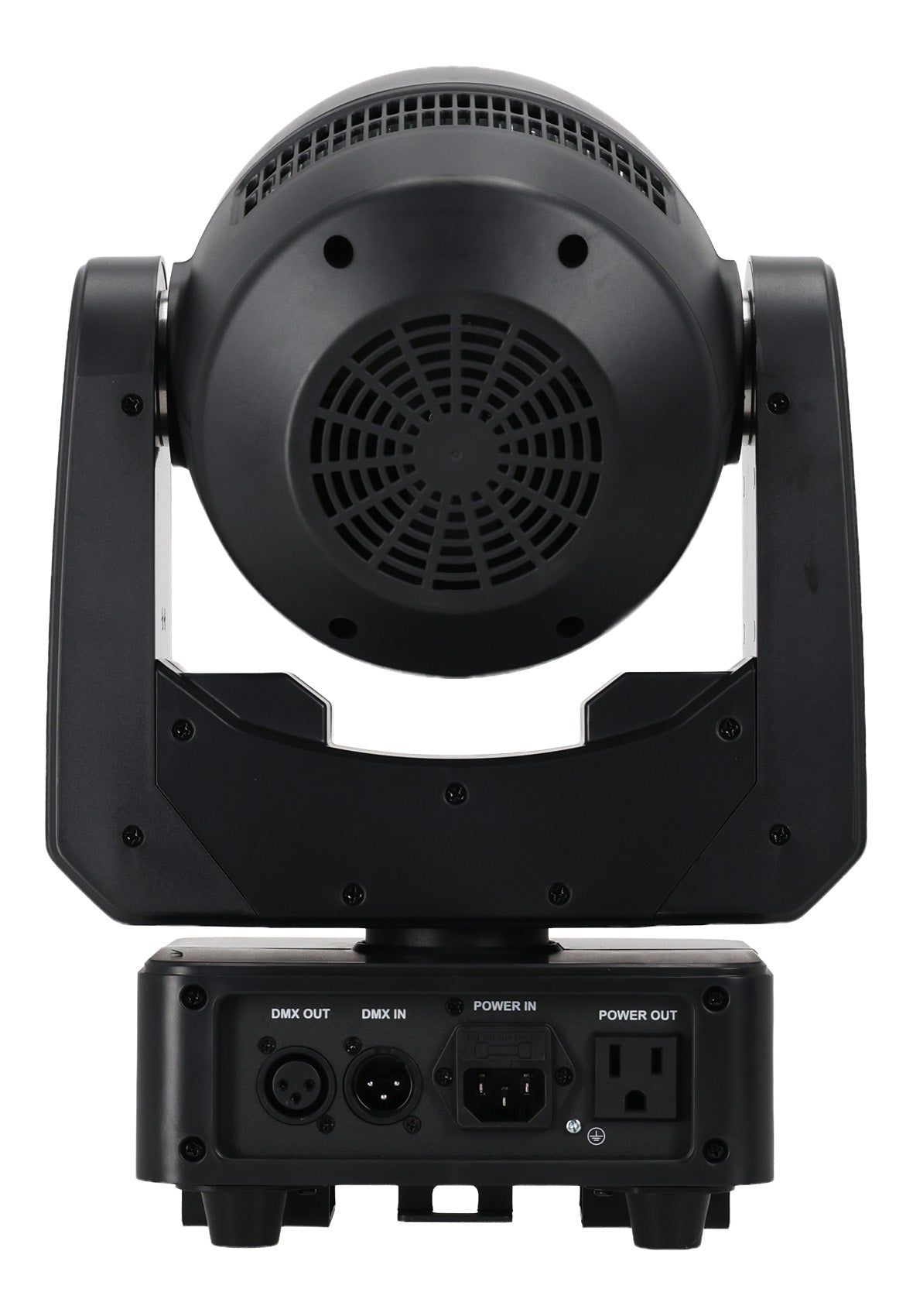

- DMX Connectors 3-pin XLR
- Pan and Tilt 540° / 225°
- Pan and Tilt Ranges 180, 360, 540° pan / 90, 180, 225° tilt
- Light Source 7 LEDs (quad-color RGBW) 140 W total, 5 A, 50,000 hours life expectancy
- Strobe Rate 0 to 20 Hz
- Zoom Angle 5° to 27°
- Illuminance (narrow, 5°) 30,537 lux @ 2 m
- Illuminance (wide, 27°) 3,390 lux @ 2 m
- Cable Length 5 ft (1.5 m)
- Power Linking 6 units @ 120 V; 12 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 148 W, 1.2 A @ 120 V, 60 Hz
- Power and Current 146 W, 0.7 A @ 230 V, 50 Hz
- Optional Controllers IRC-6
- Approvals CE, RoHS, FCC
- Weight 13.8 lb (6.3 kg)
