Control 414C/T
Control 414C/T

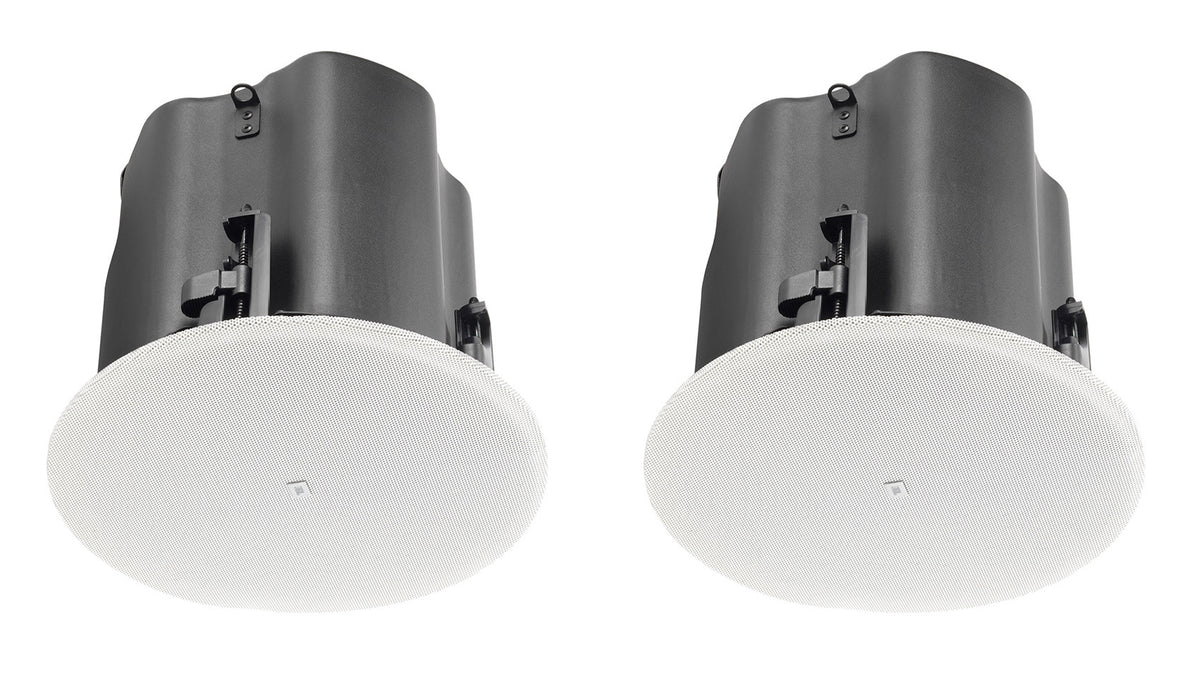

4-In 2-Way Ceiling Loudspeaker, 45 W Capacity, 70V/100V Transformer, Magnetic Grille
Free Shipping
Features

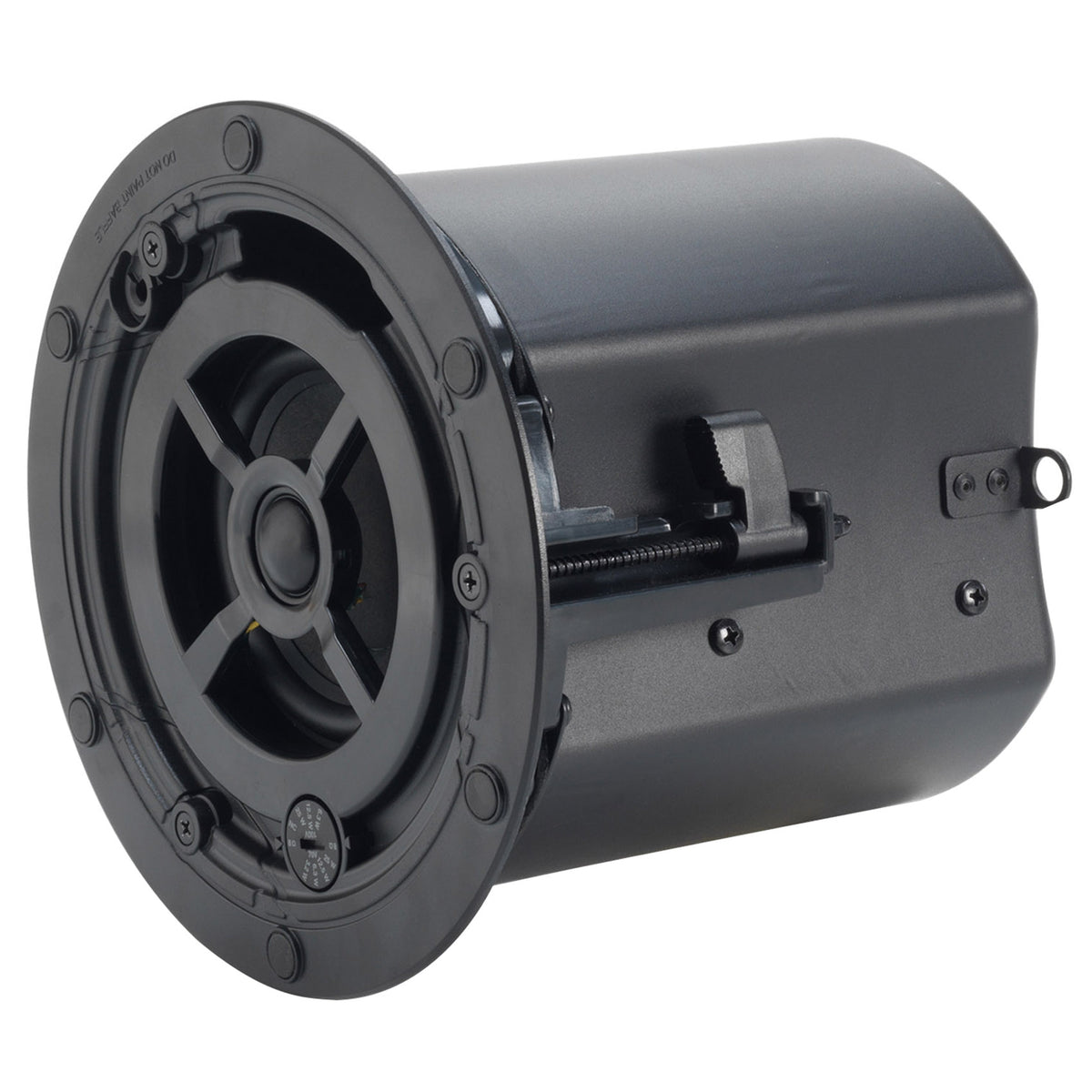

- 4 in woofer and 0.75 in soft-dome tweeter
- 70V/100V transformer with 8-ohm direct input
- 130° conical coverage spreads sound across wide areas

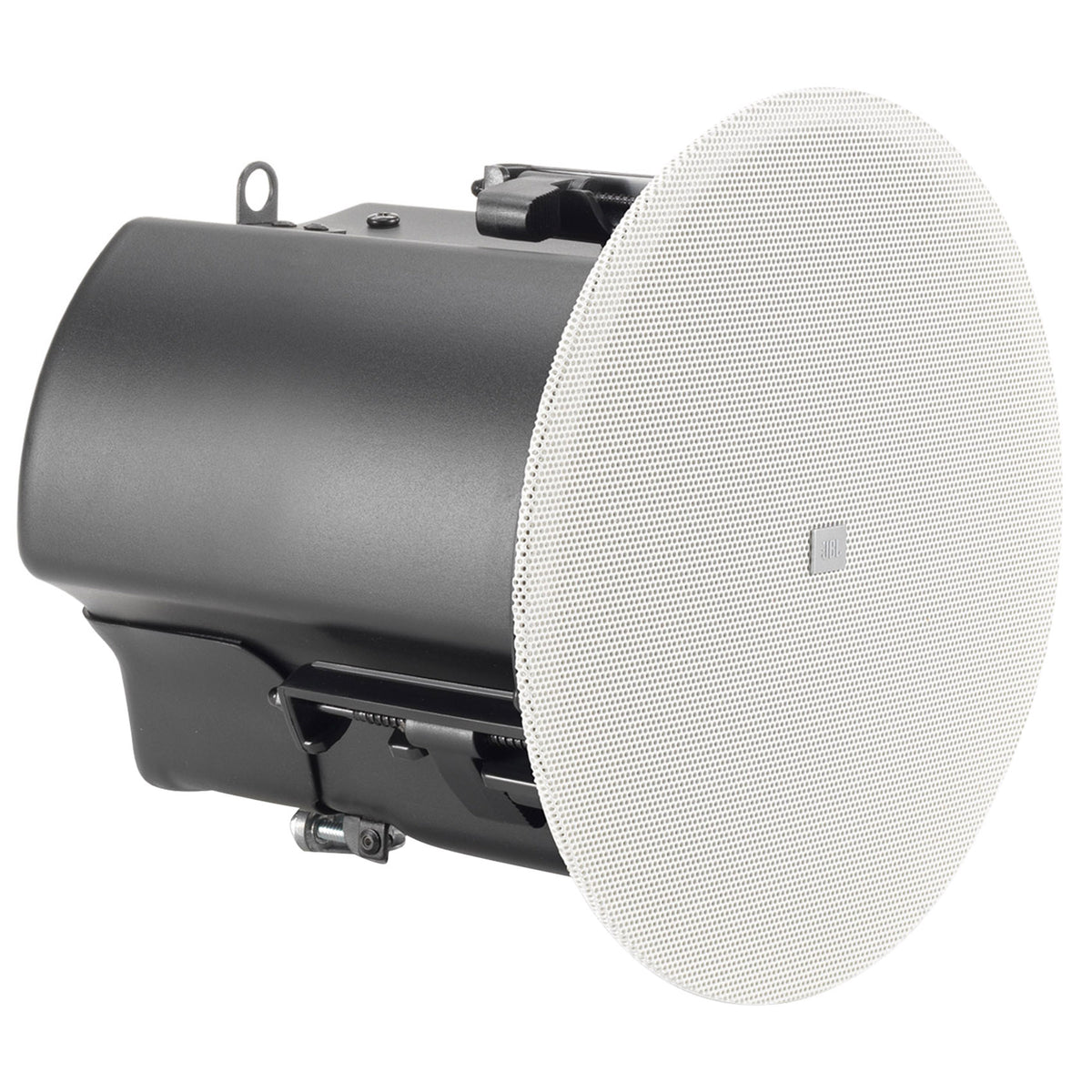

- Paintable full-face magnetic grille with safety tether

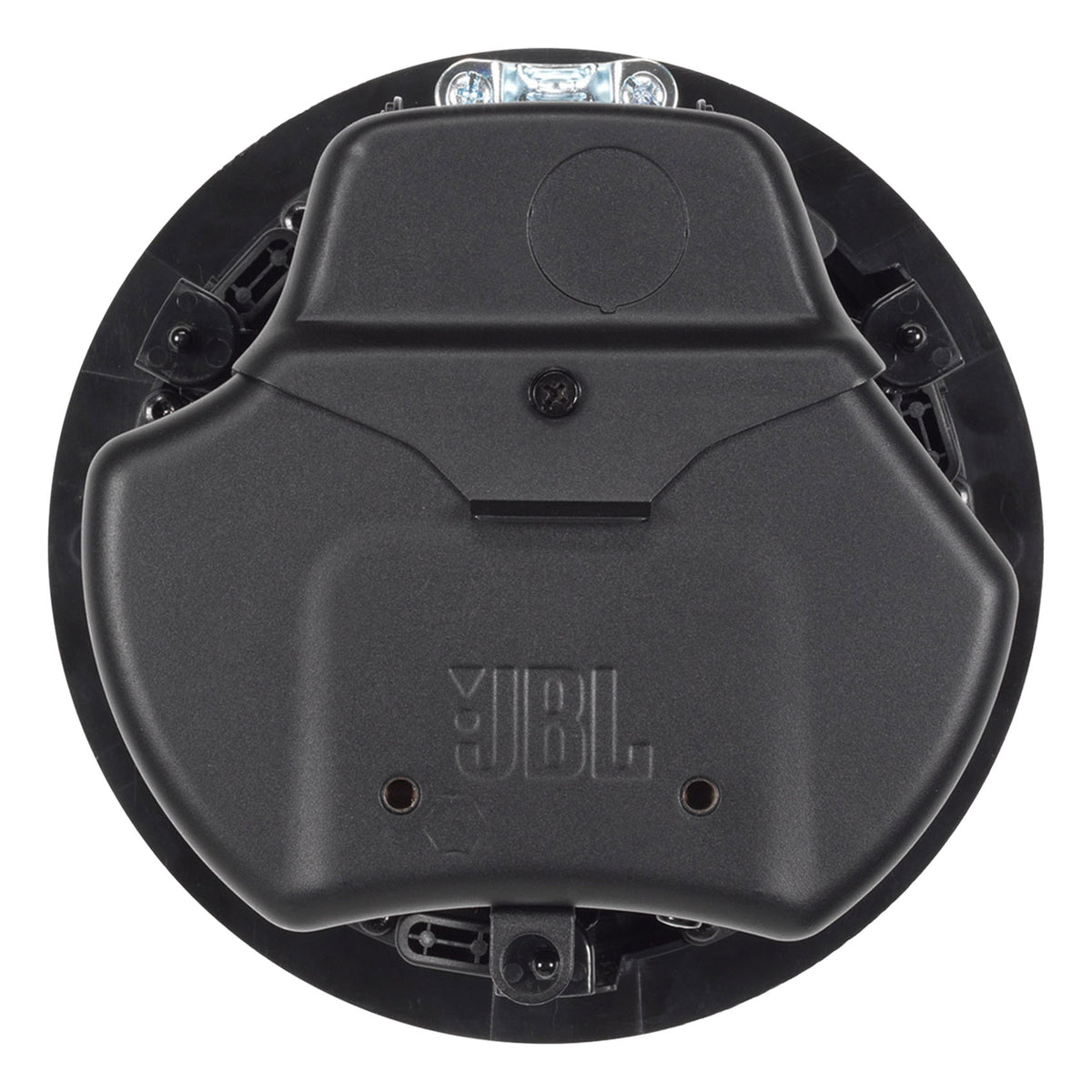

- Top or side cable entry with captive dogear mounting
Couldn't load pickup availability

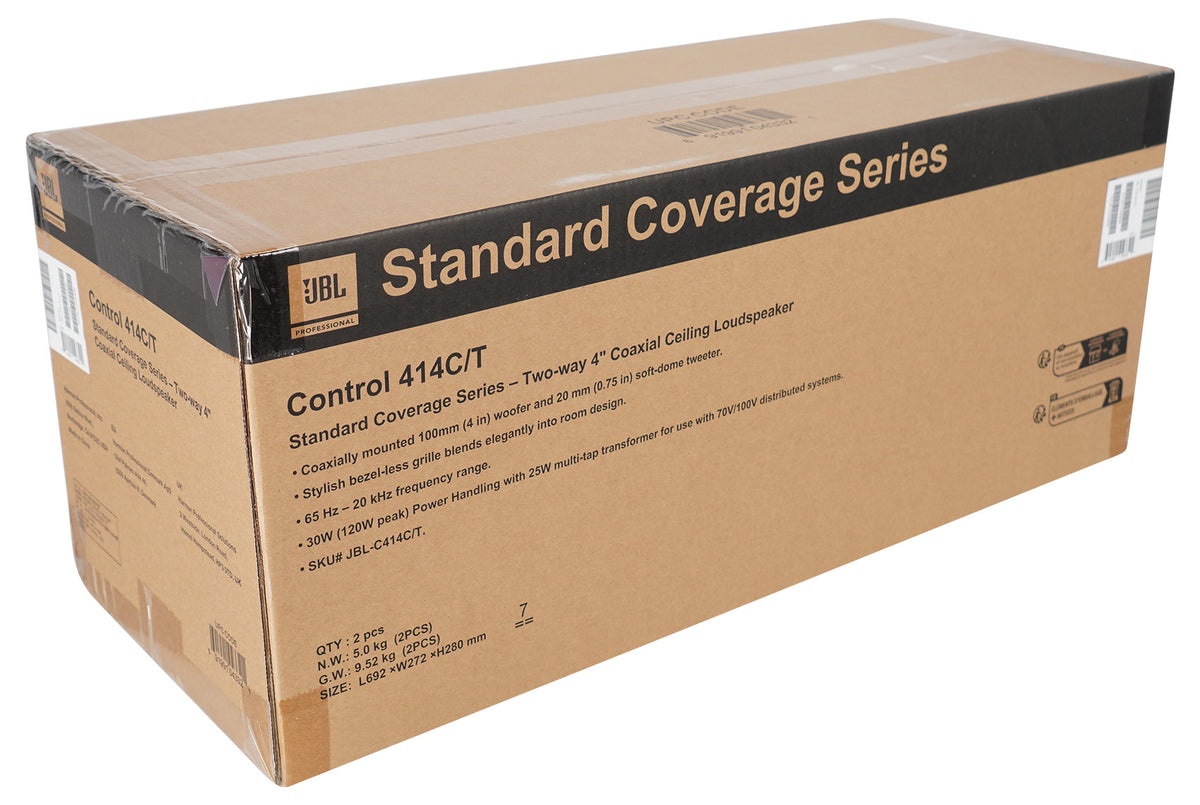

What's Included in the box

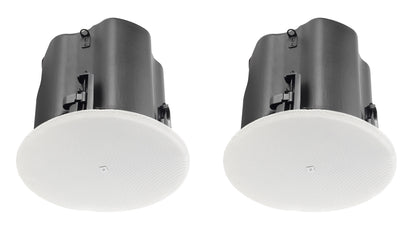

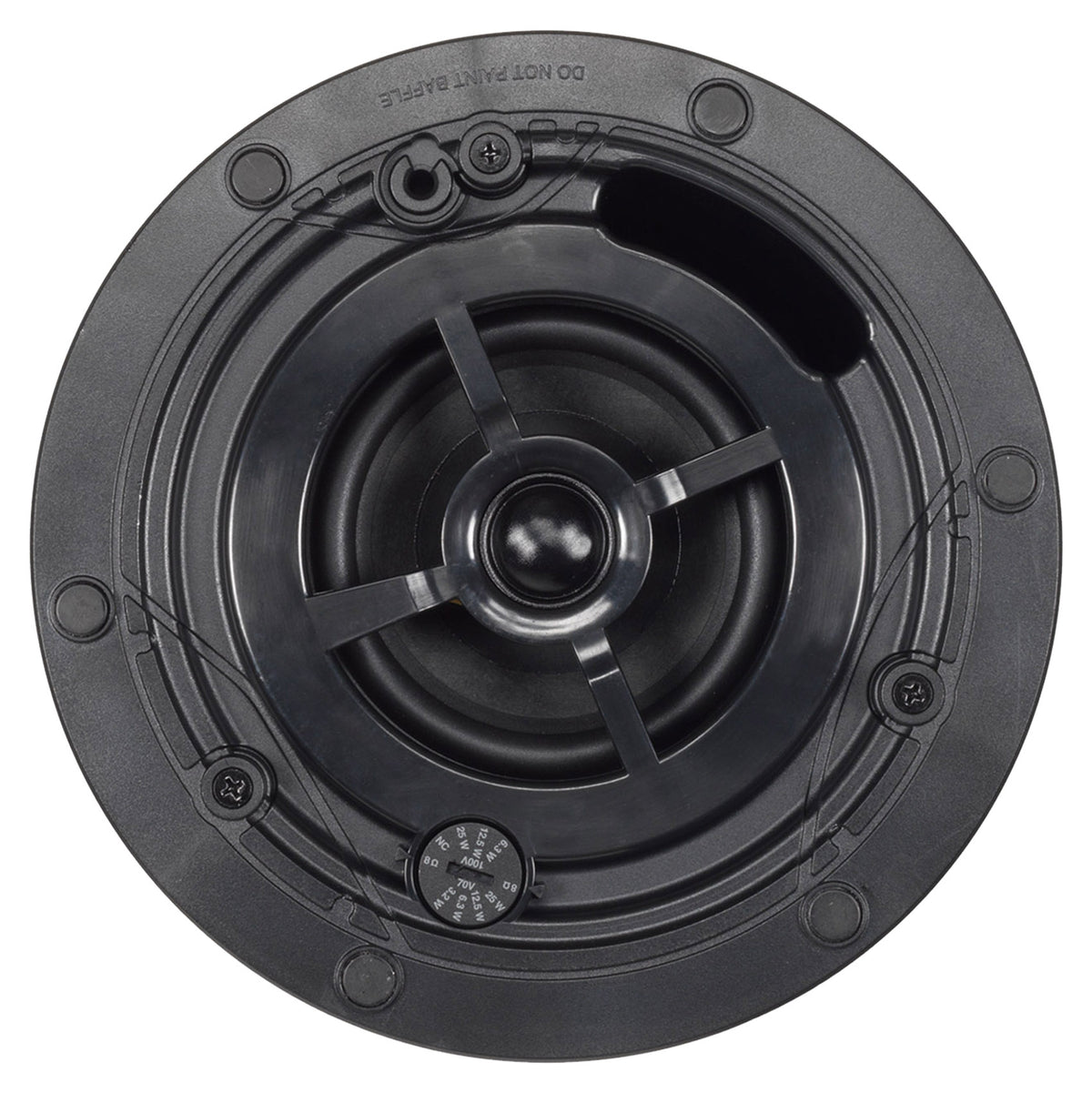

- Control 414C/T ceiling loudspeaker
- Full-face paintable magnetic grille with safety tether
SKU: SKU: Control 414C/T+RCS80-1
View full details



















Product Description
The integrated enclosure fits most ceiling plenum spaces, and the captive dogear mounting works across a wide range of ceiling thicknesses. Installers can route cable from the top or side through the terminal cover, then finish the room with the included full-face magnetic grille. The white grille is paintable, so the speaker can match the ceiling without adding a separate trim piece. IP33 construction, air-handling-space listings, and a 65 Hz to 20 kHz frequency range make it suited to commercial interiors that need dependable coverage and a neat finish.
Features
Broad Room Coverage
The 130° conical coverage from the coaxial driver layout helps distribute paging and background audio across open commercial areas with fewer dead spots.
Two-Way Clarity
The 4 in woofer and 0.75 in soft-dome tweeter divide low and high frequencies for balanced speech and music reproduction.
System Compatibility

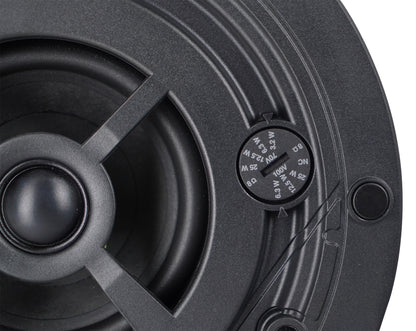

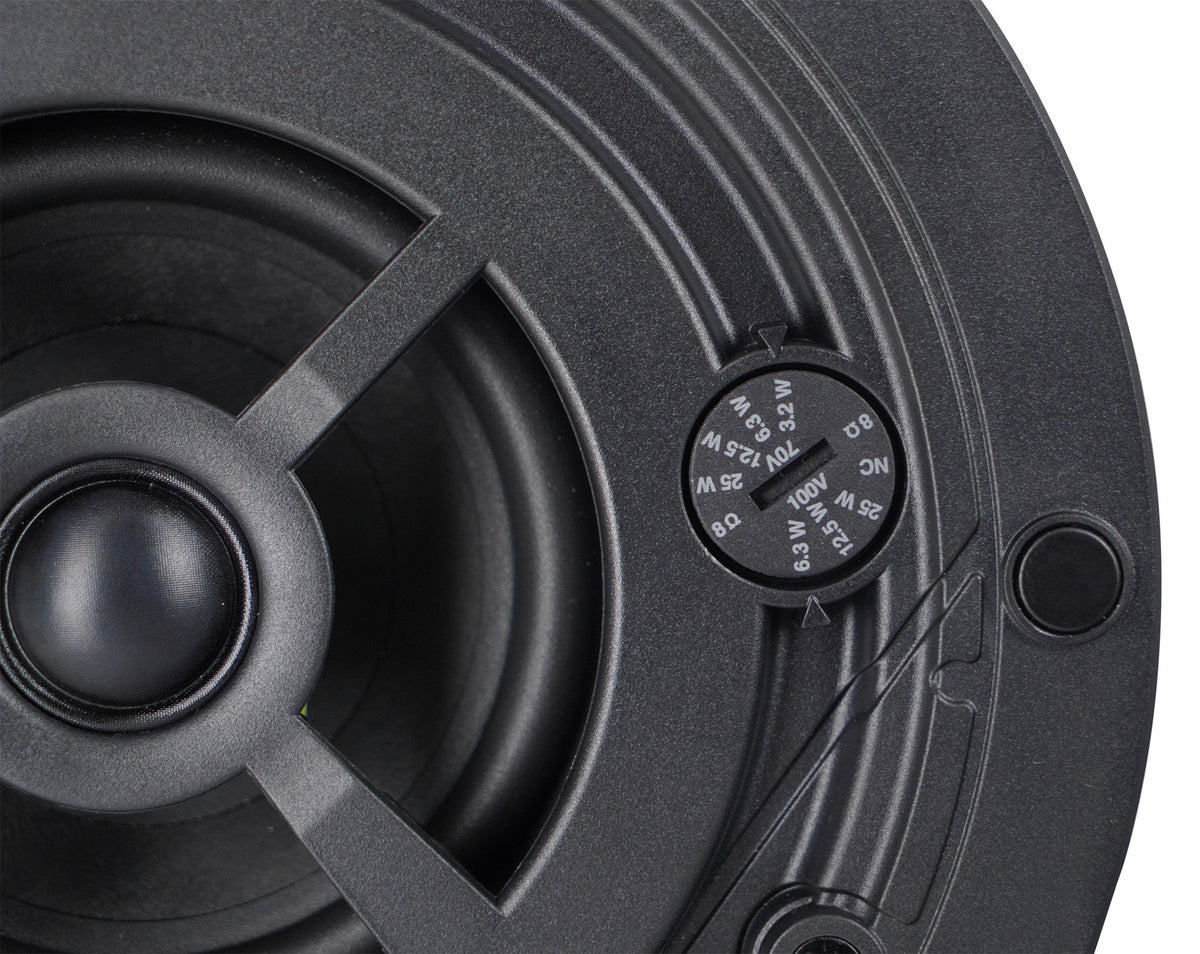

Select 70V taps from 3.2 W to 25 W or 100V taps from 6.3 W to 25 W, then use the 8-ohm direct input for low-impedance systems.
Faster Installation

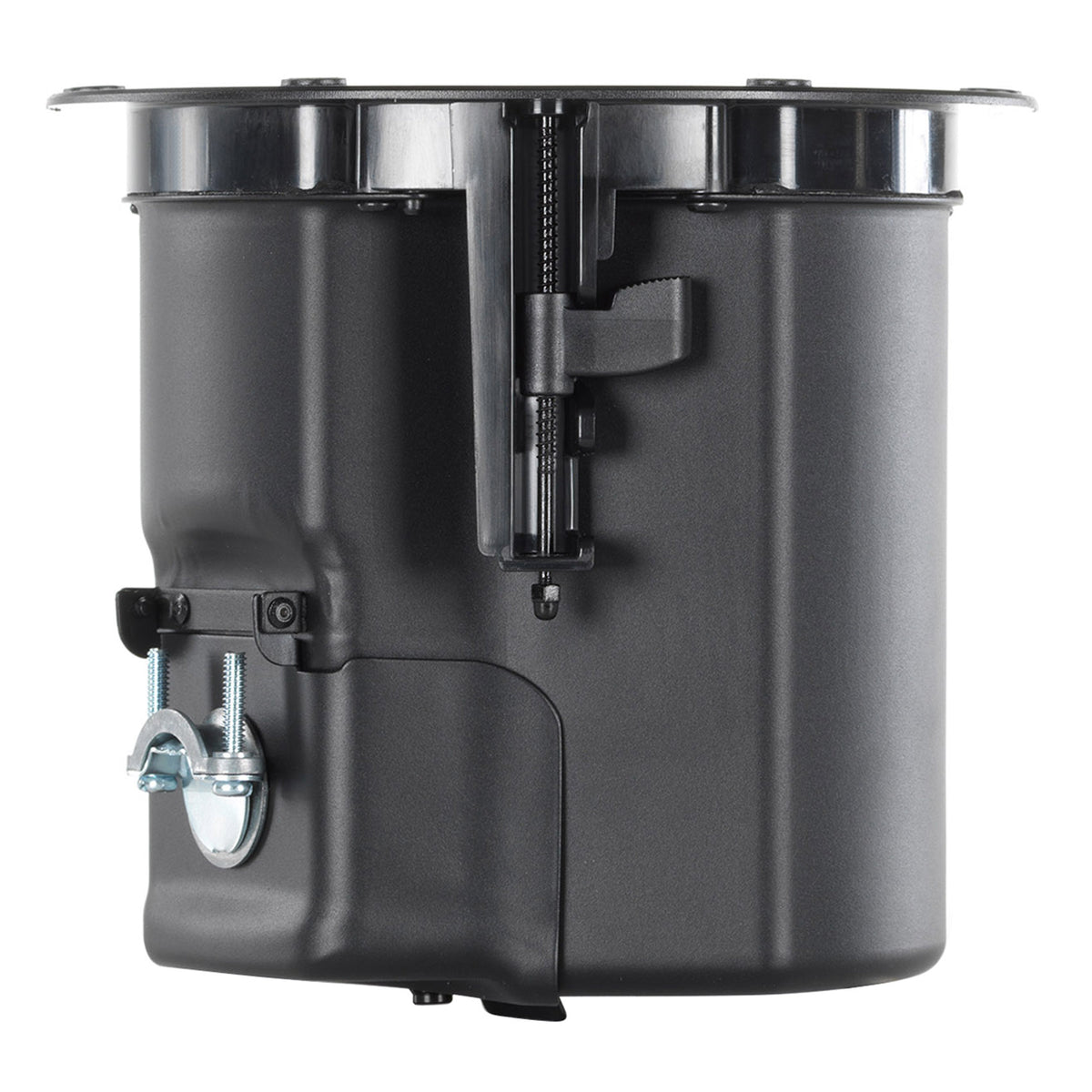

Top or side cable entry and captive dogear mounting accommodate varied ceiling thicknesses, giving installers practical routing and a secure fit.
Clean Finished Look
The included white magnetic grille accepts paint and includes a safety tether, helping the speaker blend into architectural ceilings without a separate trim piece.
Technical Specifications
- Product Type 2-Way Coaxial In-Ceiling Loudspeaker
- Frequency Range (-10 dB) 65 Hz to 20 kHz
- Power Capacity 45 W (180 W peak) continuous pink noise (2 hours); 30 W (120 W peak) continuous pink noise (100 hours)
- Sensitivity 86 dB (1 m/1 W)
- Coverage Angle 130° conical
- Maximum SPL 103 dB continuous pink noise (109 dB peak) at 1 m
- Nominal Impedance 8 ohm
- Transformer Taps 70 V: 25 W, 12.5 W, 6.3 W, 3.2 W; 100 V: 25 W, 12.5 W, 6.3 W
- Drivers LF: 100 mm (4 in) paper cone with SBR surround; HF: 20 mm (0.75 in) soft dome
- Ceiling Cutout Size 168 mm (6.6 in)

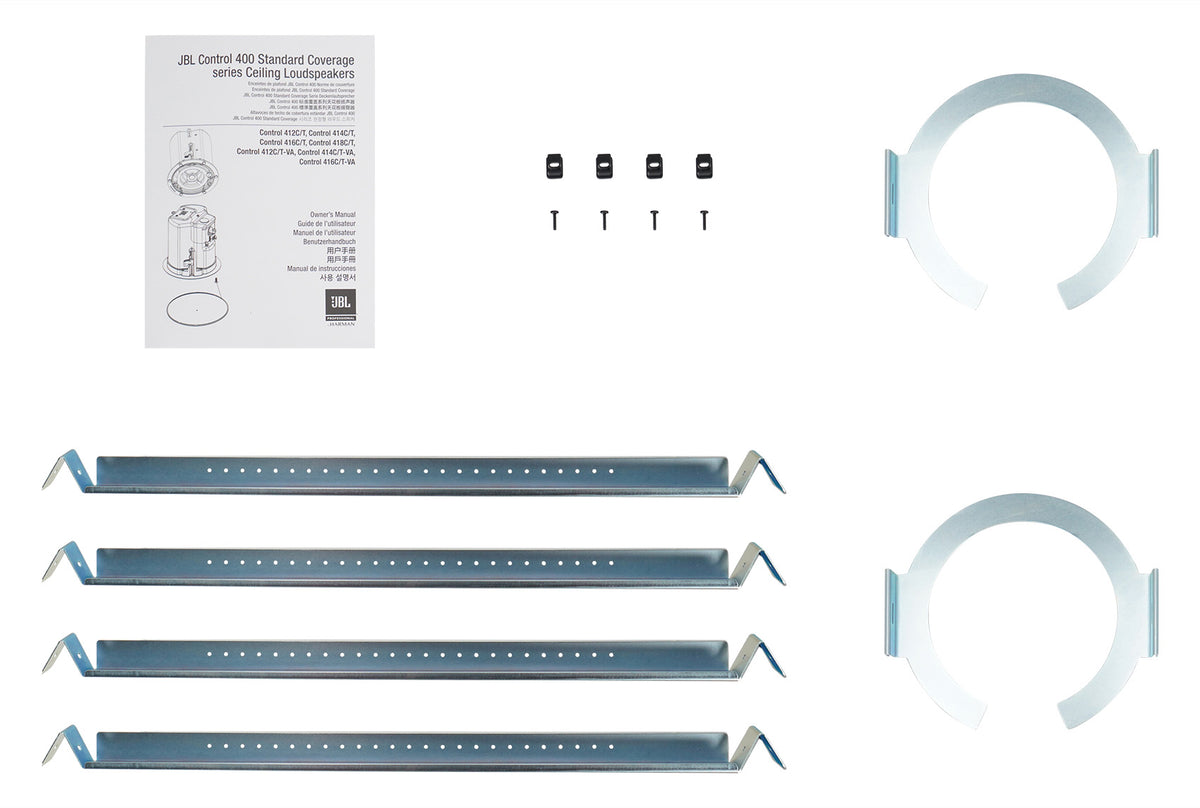

- Installation Integrated enclosure for most ceiling plenum spaces; captive dogear mounting for varied ceiling thicknesses
- Environmental Rating IP33 per EN/IEC 60529; operating temperature 0 °C to 45 °C
- Safety Agency Rating Suitable for air handling spaces per UL 2043, NFPA 90A, NFPA 70, and CSA C22.2 No. 205; UL 1480A listed; UL registered transformer
- Color White RAL9003, paintable
- Weight 5.51 lb (2.50 kg) net per speaker; 20.99 lb (9.52 kg) shipping weight per pair
- Dimensions 7.4 in H x 8.1 in diameter; 7.1 in from bottom of ceiling tile to top of backcan
