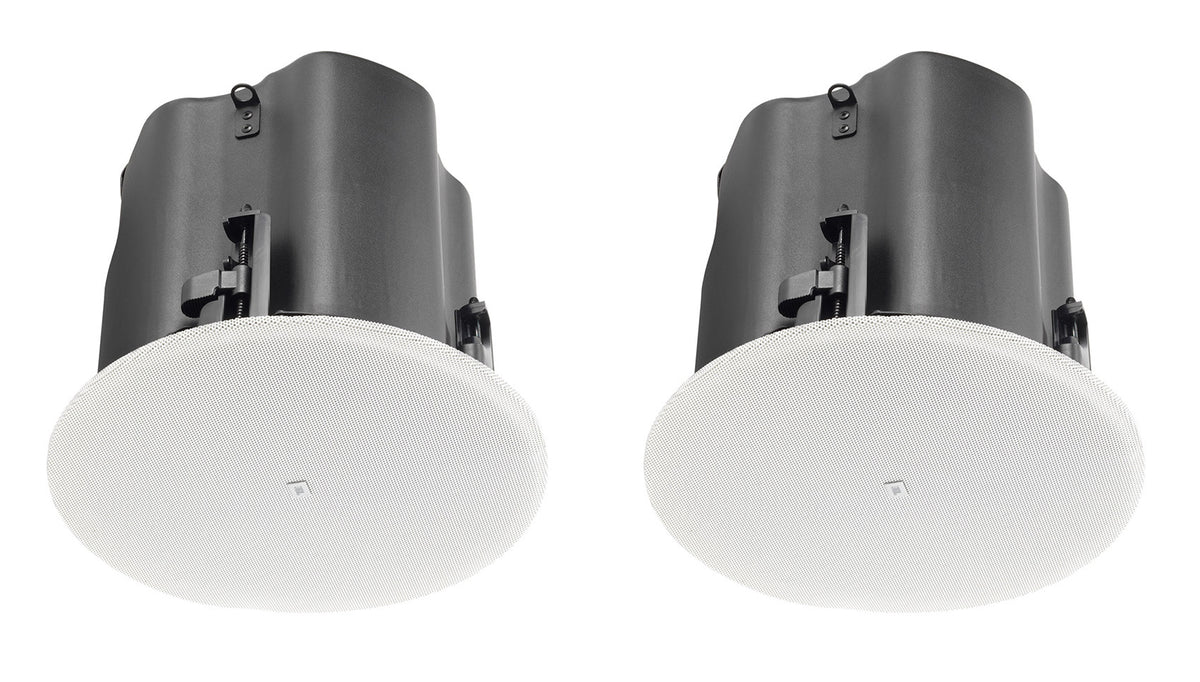

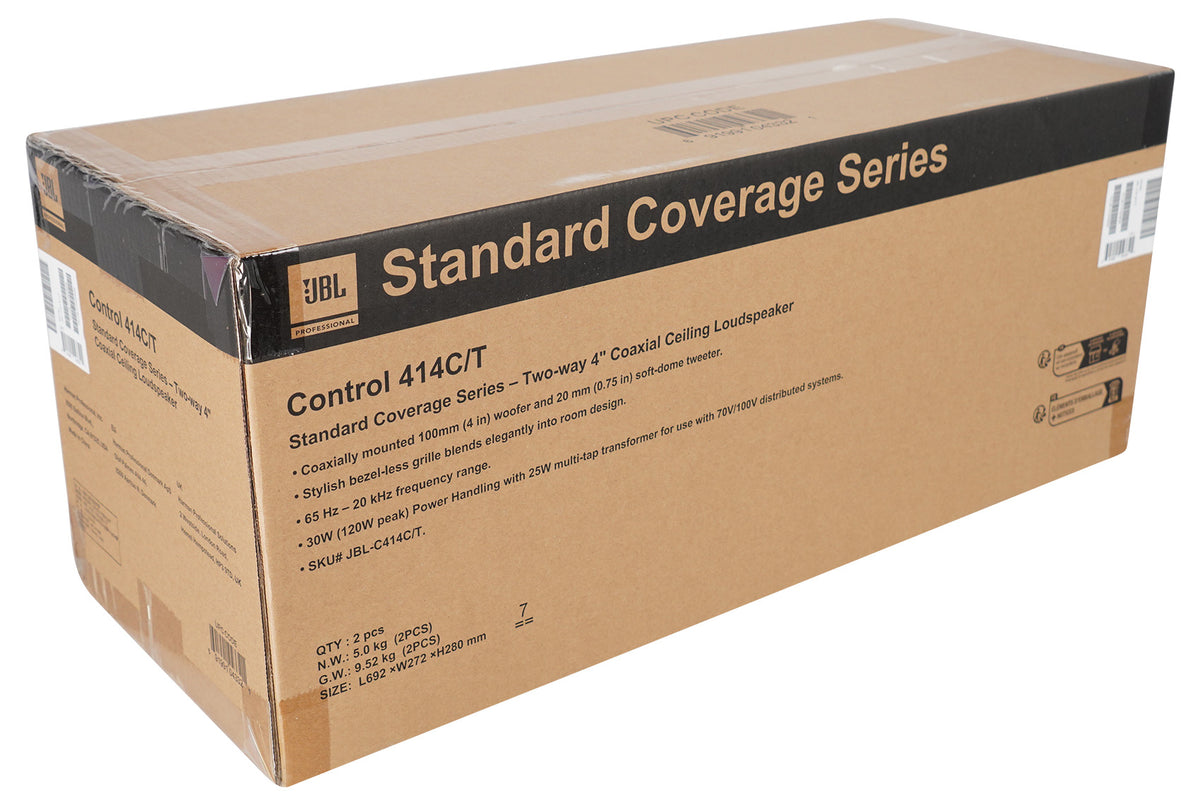

2 JBL Control 414C/T 4" Commercial 70v/8-ohm Ceiling Speakers For Restaurant/Bar

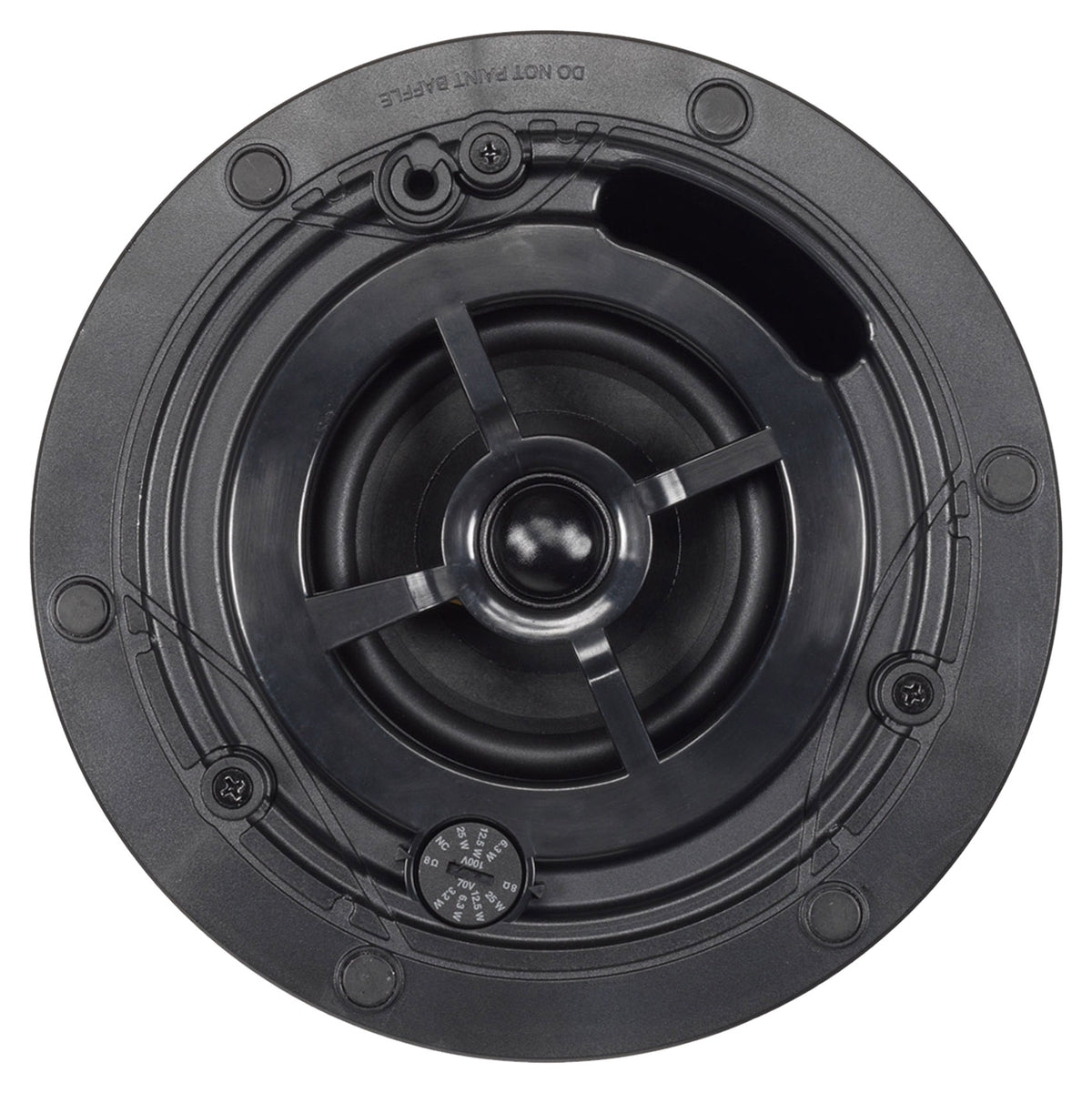

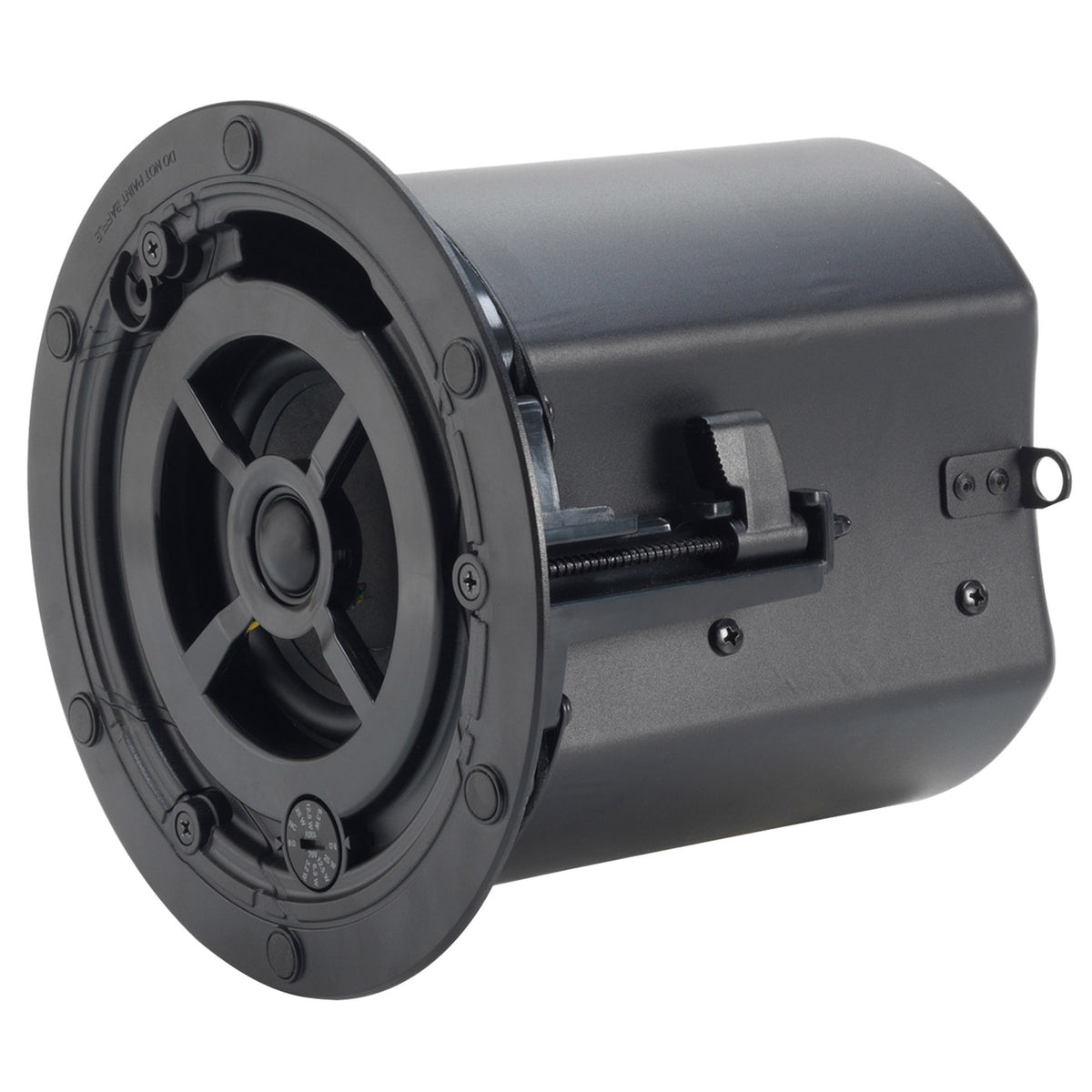

The JBL Control 414C/T is a two-way coaxial ceiling loudspeaker featuring a 4 in paper-cone woofer and 0.75 in soft-dome tweeter, plus an integrated enclosure that fits most ceiling plenum spaces. This pair suits restaurants, bars, cafes, offices, and retail floors where the ceiling has to carry both background music and paging.

Coverage is 130 degrees conical, which spreads sound evenly across the floor below and lets a layout use fewer speakers to reach the whole room.

Frequency range is 65 Hz - 20 kHz with 45 W (180 W peak) continuous pink noise handling over two hours and 30 W (120 W peak) over 100 hours, reaching 103 dB continuous pink noise, 109 dB peak. Sensitivity is 86 dB and coverage is 130 degrees conical.

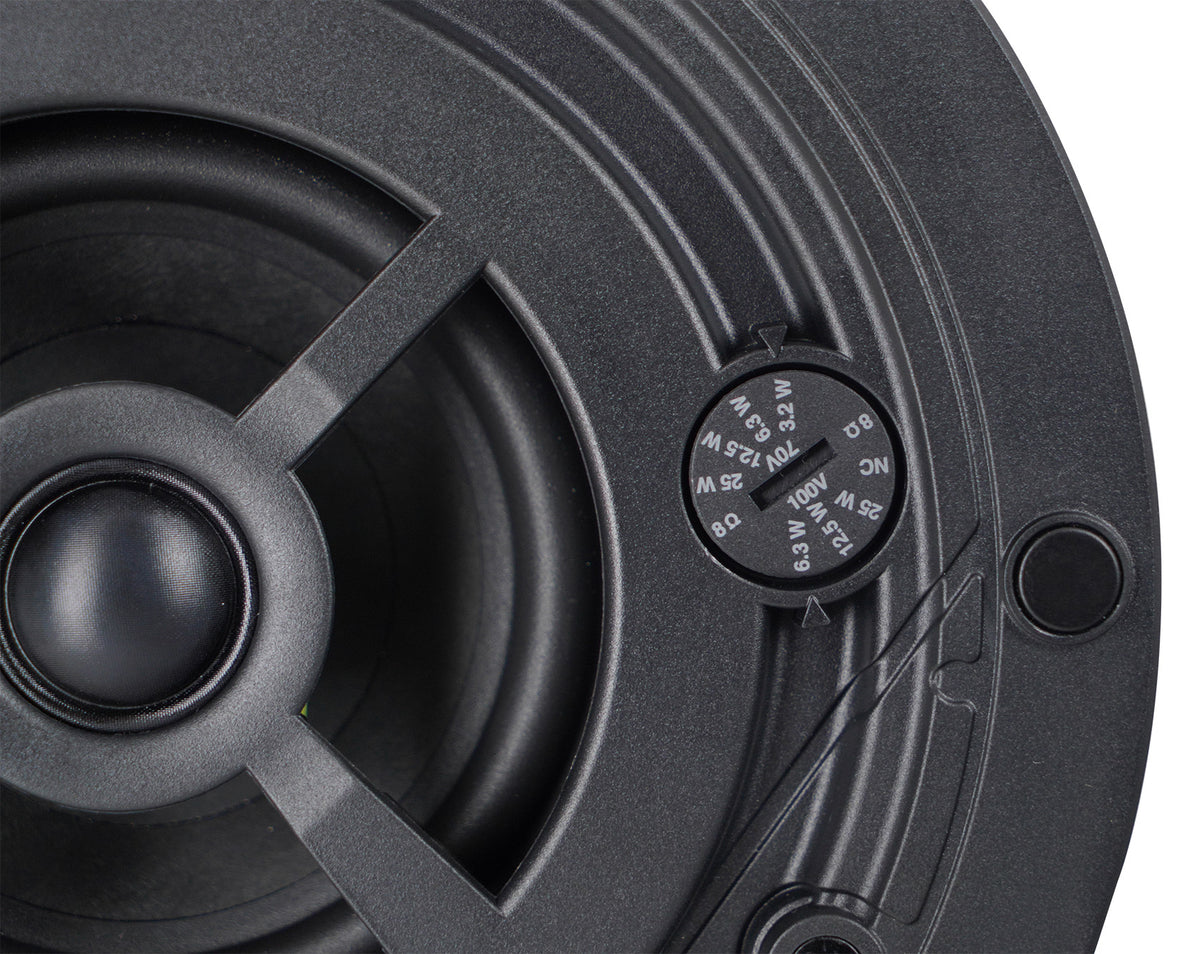

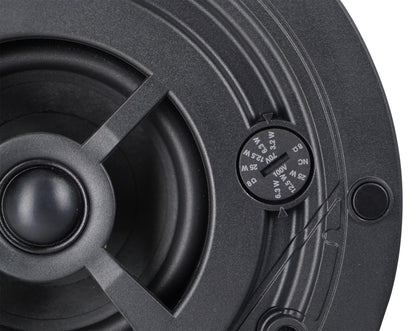

Wiring works either way. The built-in multi-tap transformer offers 70V taps at 25 W, 12.5 W, 6.3 W, 3.2 W (100V: 25 W, 12.5 W, 6.3 W), or connect directly at 8 ohms for a low-impedance amplifier.

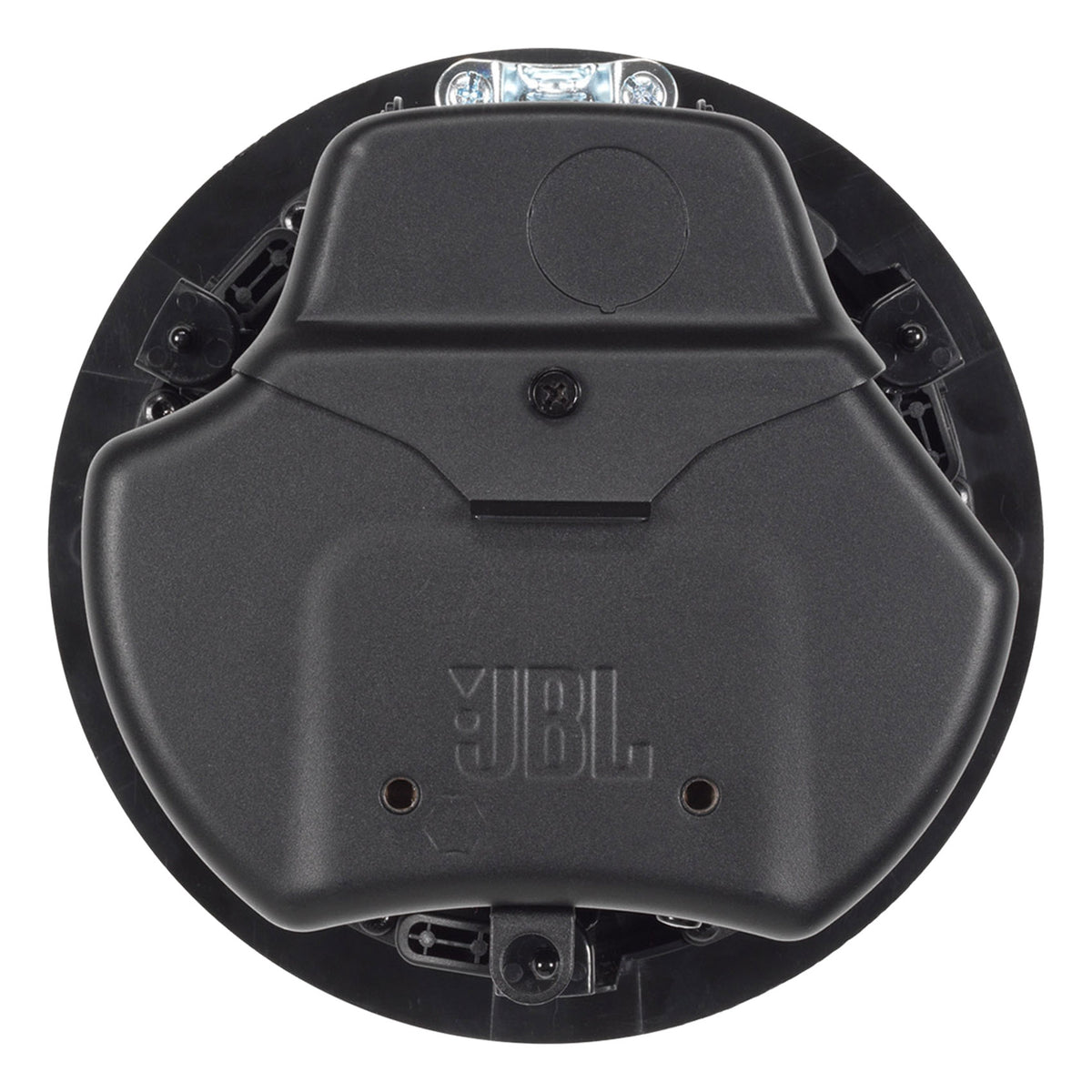

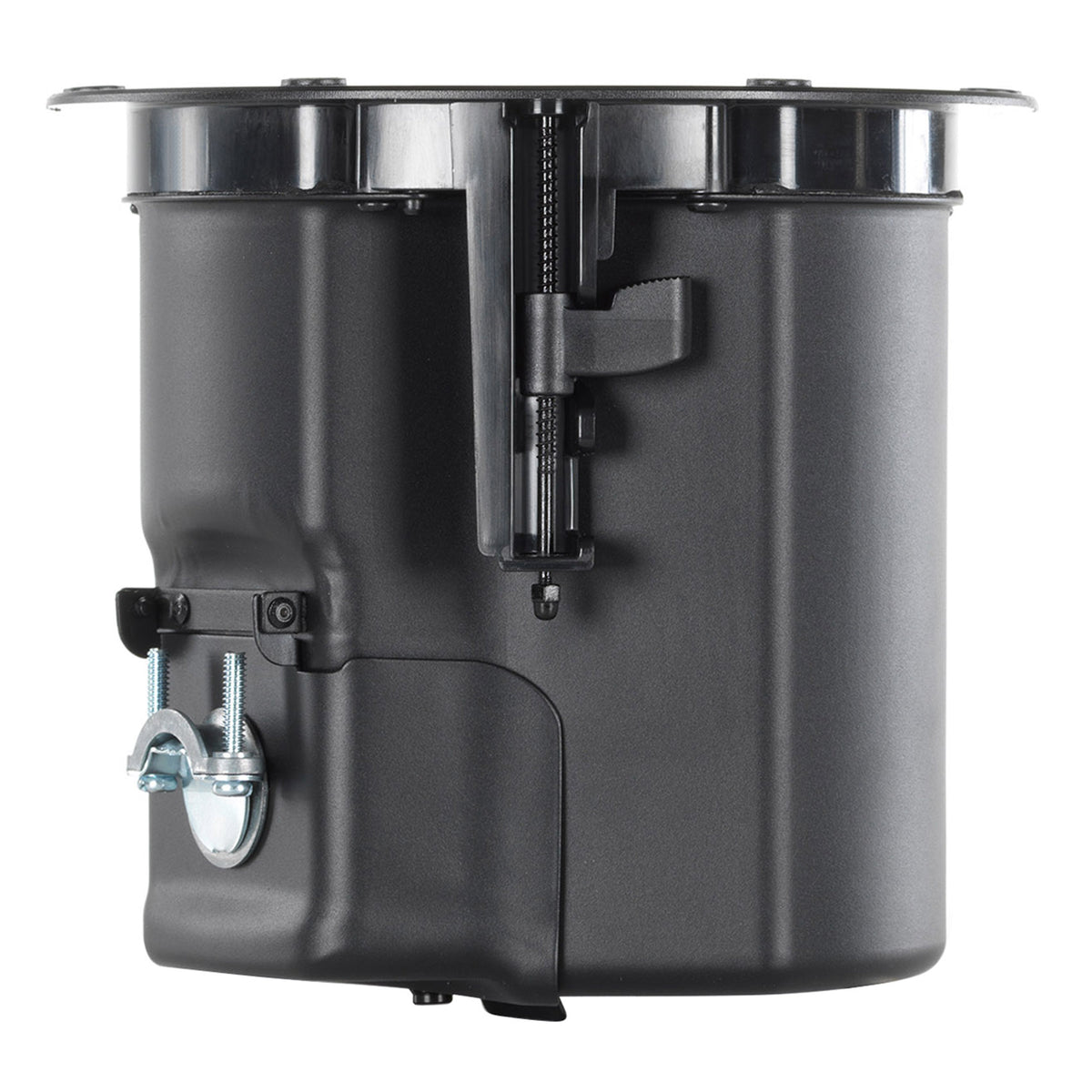

The terminal cover gives both top and side cable entry, so conduit routing does not dictate speaker placement. The captive dogear design works across a wide range of ceiling thicknesses and holds position during tightening. Cutout size is 168 mm (6.6 in).

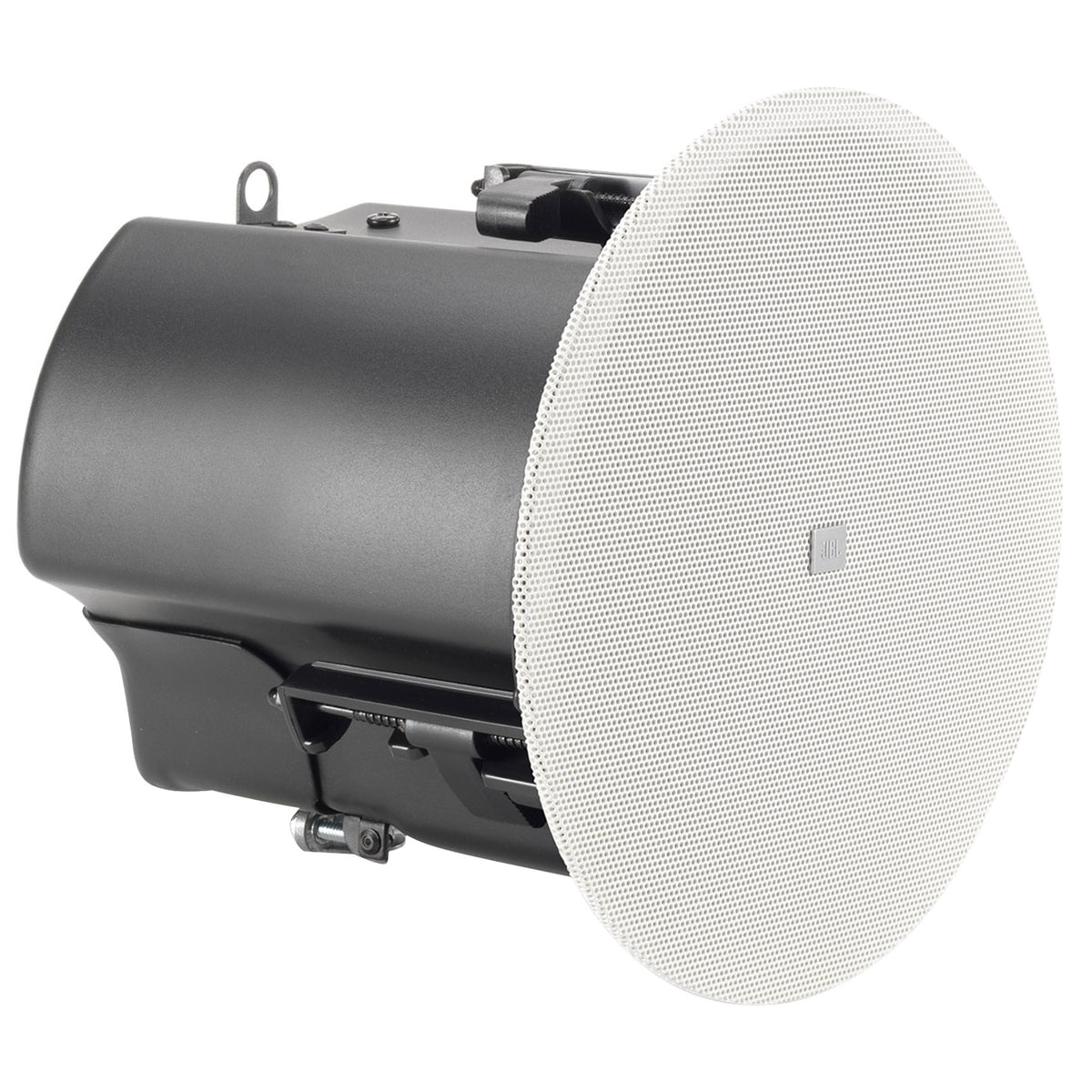

The full-face magnetic grille takes paint, so the speakers disappear into any ceiling color. Safety tethers mount directly into the baffle. Optional black round and white square grilles are available.

Rated IP33 per EN/IEC 60529 and listed for air handling spaces per UL 2043 and UL 1480A. Each speaker weighs 5.51 lb and measures 7.4 in H by 8.1 in in diameter.
