Control 424LP Pair + RCS80-1 Amplifier
JBL
Control 424LP Pair + RCS80-1 Amplifier
Control 424LP Pair + RCS80-1 Amplifier
70V Low-Profile Ceiling Speaker System, (2) 4" Coaxial Ceiling Speakers, 60W Bluetooth Amplifier, Retail, Offices
Free Shipping
Features

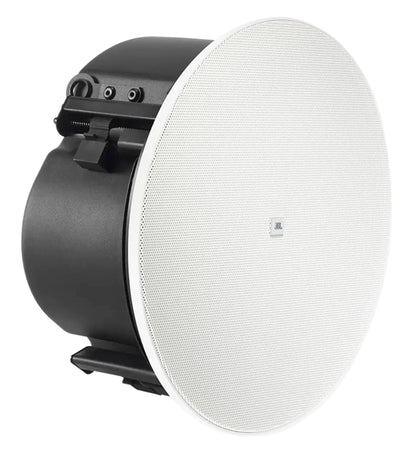

- Pair of low-profile 4" coaxial ceiling speakers with 0.75" soft-dome tweeters
- Back cans need only 3.9 in of depth to fit tight ceiling plenums
- CRBI technology spreads even sound across a wide 130° coverage pattern
- 60W RMS 70V/100V amplifier powers both speakers at their 30W tap
- Bluetooth, USB/SD, FM tuner, AUX, and dual mic inputs for music and paging
Couldn't load pickup availability

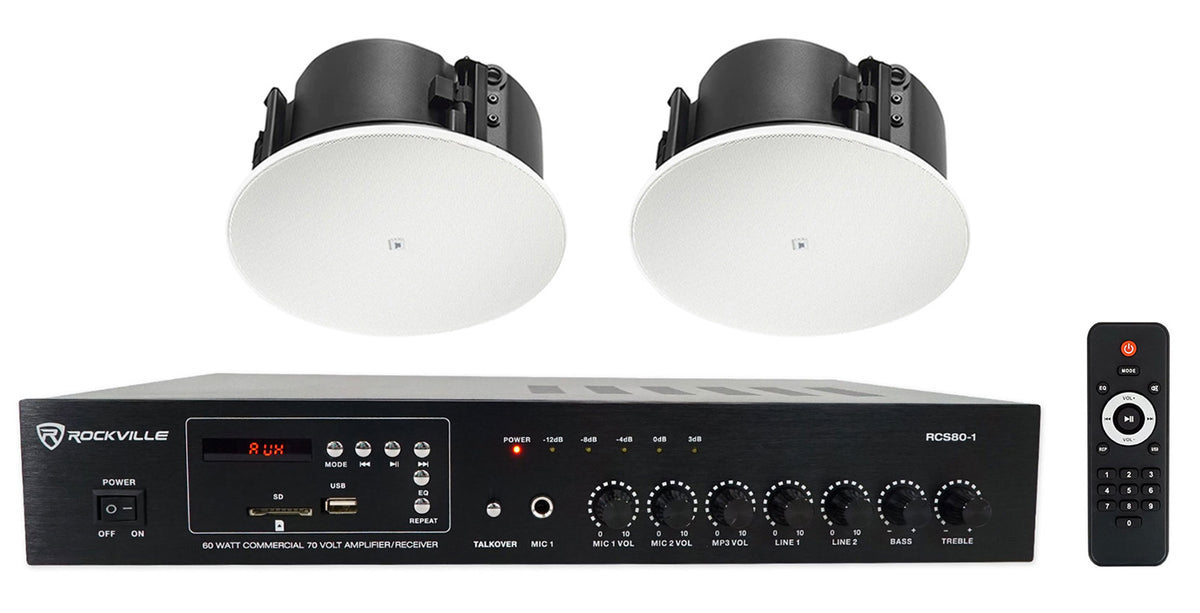

What's Included in the box

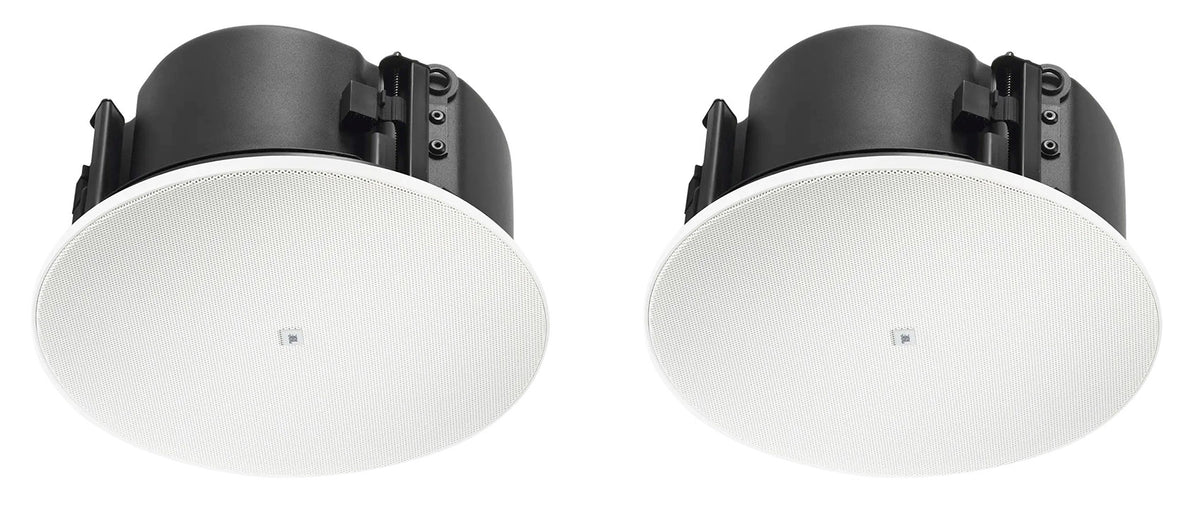

- (2) Control 424LP Ceiling Speakers

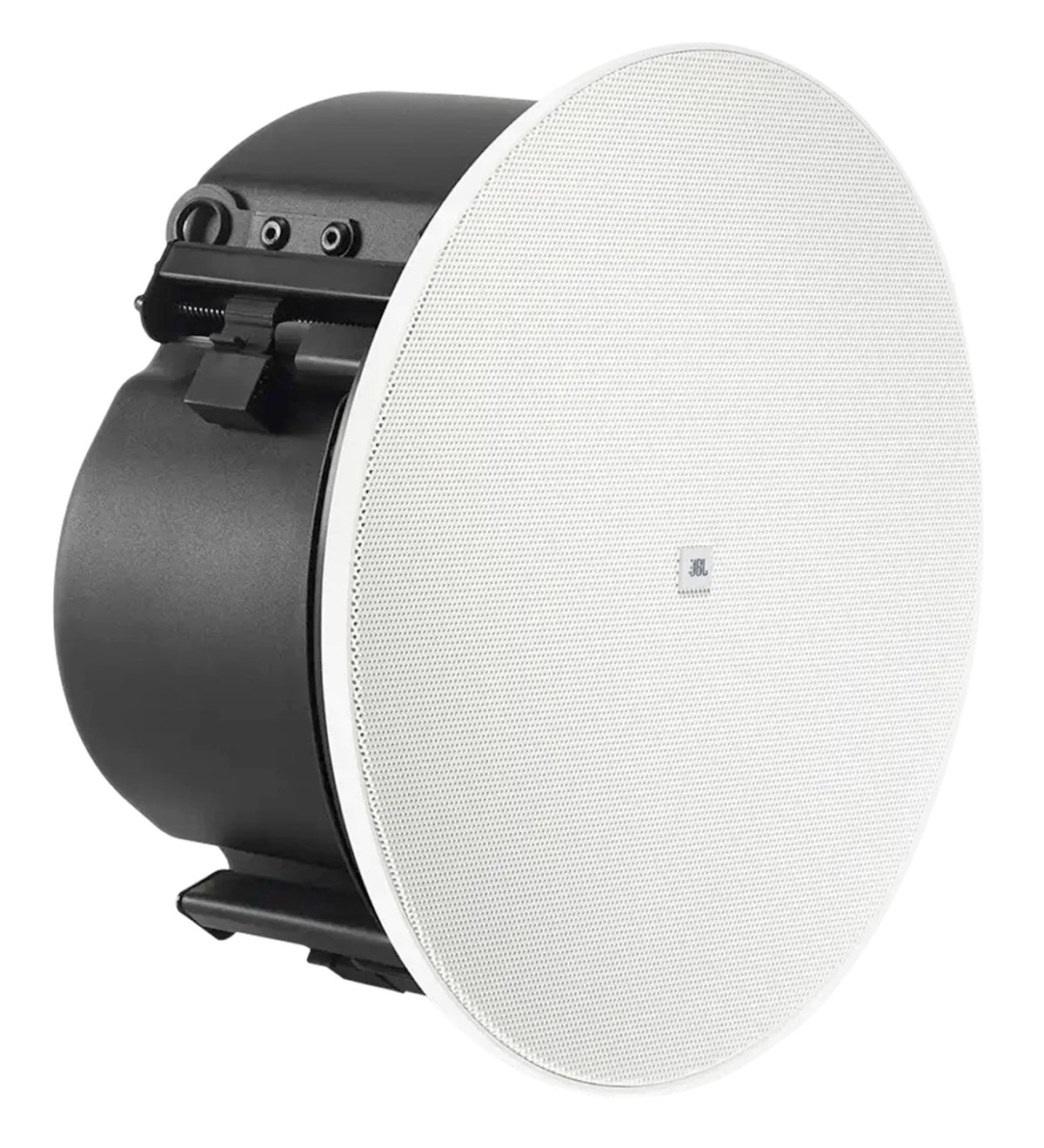

- (2) Full-Face Magnetic Grilles (White, Paintable)

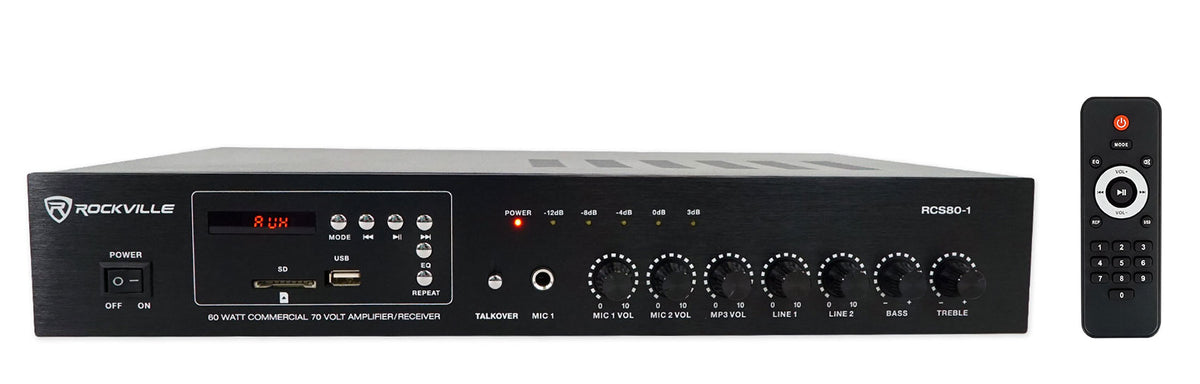

- (1) RCS80-1 Amplifier
- (1) Remote Control
- (1) Set of Rack Mount Ears
- (1) Power Cable
- (1) FM Radio Antenna
SKU: SKU: Control 424LP+RCS80-1
View full details











Product Description

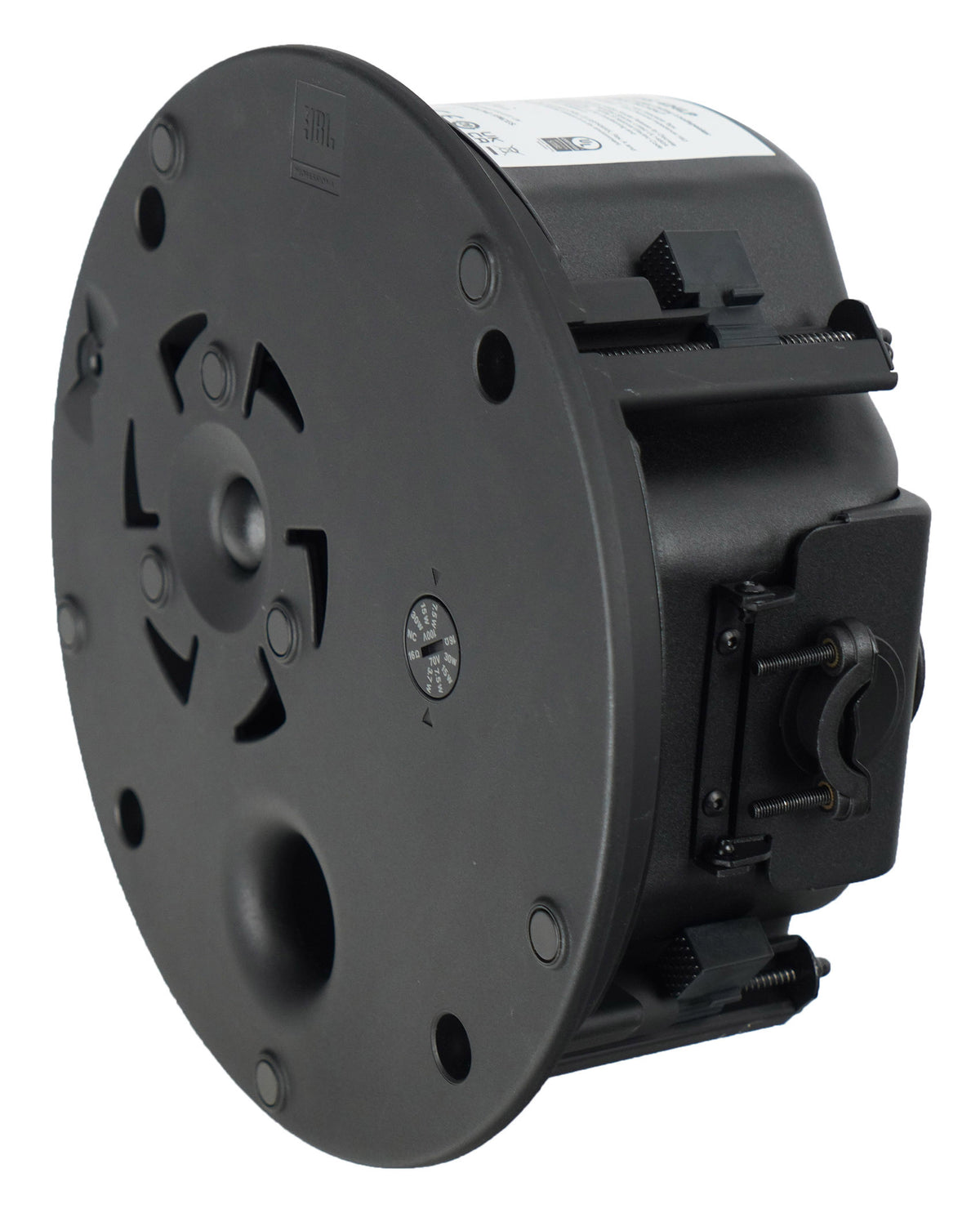

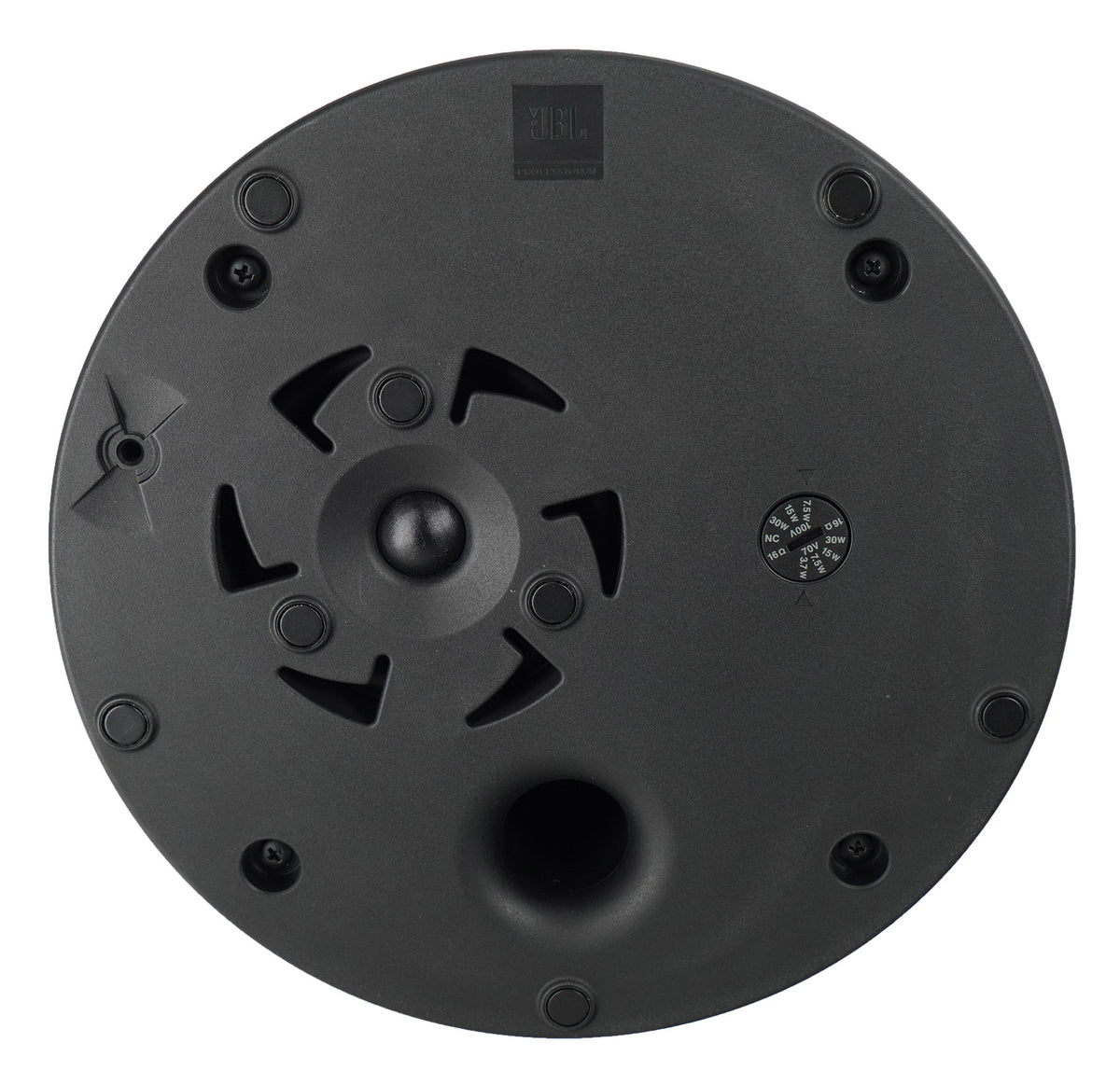

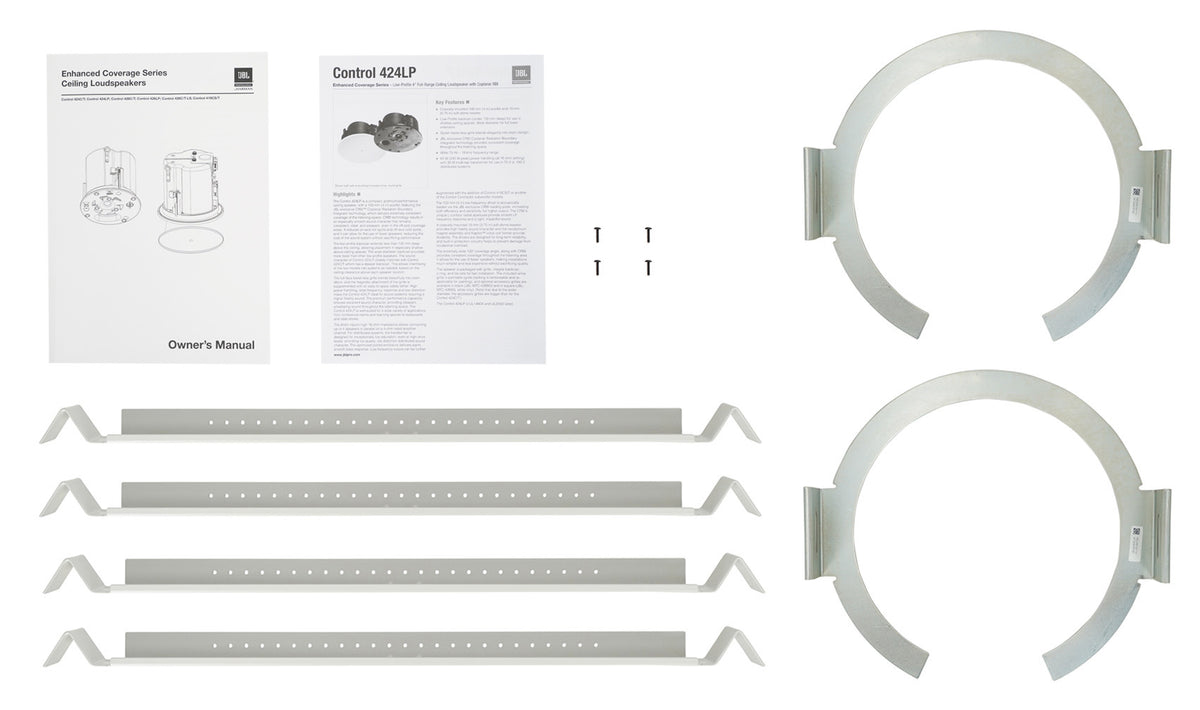

Each Control 424LP has a built-in multi-tap transformer with 70V taps at 30W, 15W, 7.5W, and 3.7W. Run both at 30W to use the amp's full 60W RMS, or tap down to 15W each and leave headroom for more speakers on the same line later. 70V wiring handles long cable runs without impedance math. Terminal covers with captive hand-screws go on without tools, cables enter from the top or side, and captive dogears grip a wide range of ceiling thicknesses. The speakers are listed to UL 2043 for air handling spaces, the white magnetic grilles take paint to match the ceiling, and the amplifier mounts in a rack with the included ears.
Features
Complete System in One Box
A pair of low-profile 4 in coaxial ceiling speakers and a 60W 70V amplifier arrive together, so background music and paging are covered without sourcing parts separately.
Fits Shallow Ceilings

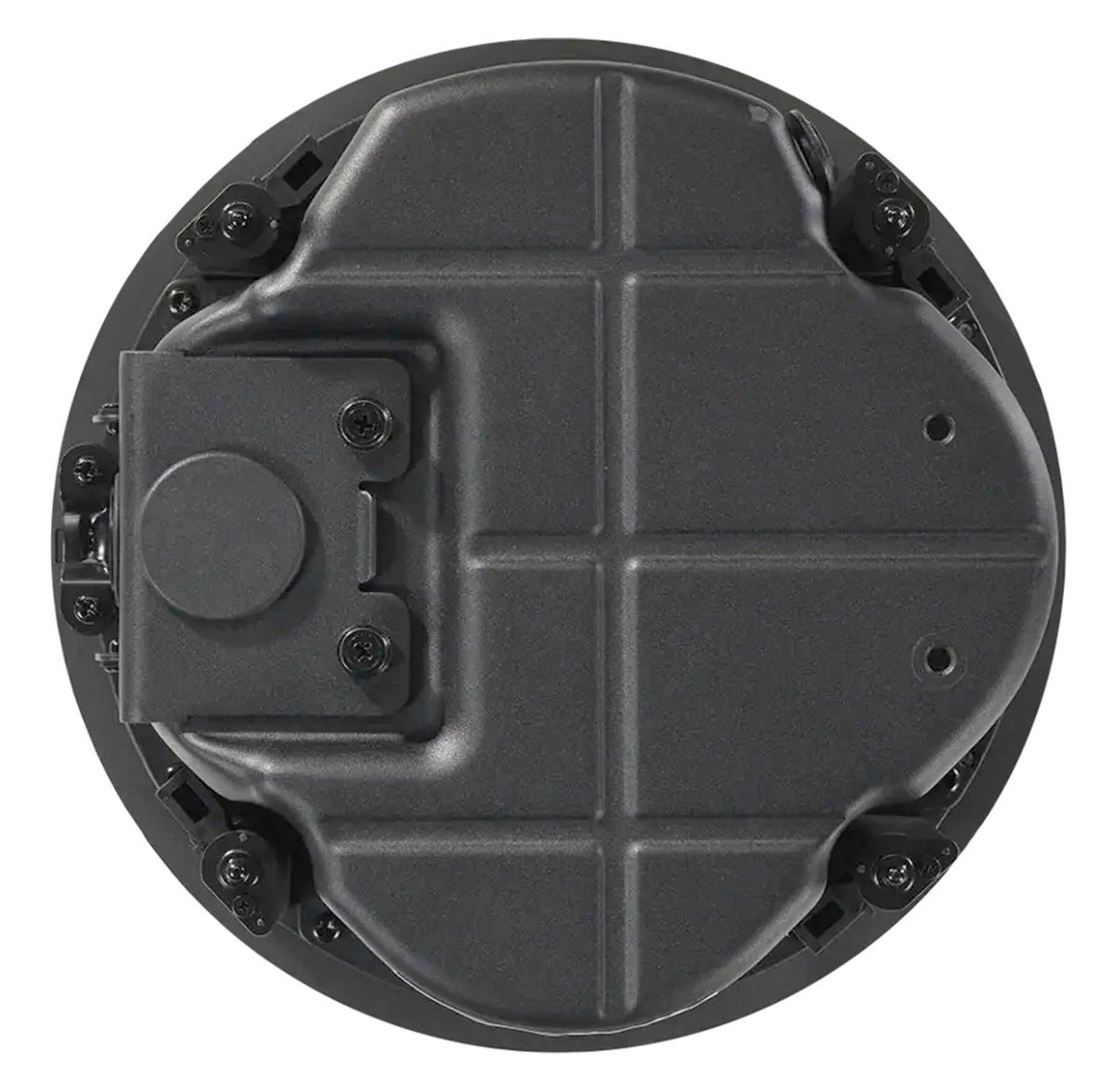

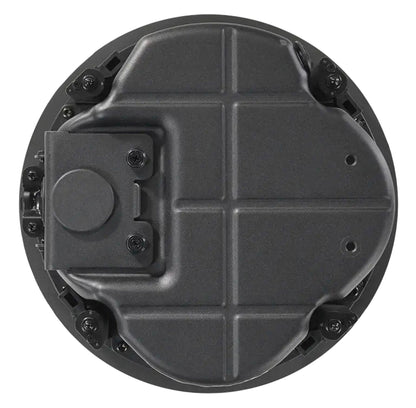

Each back can needs just 98 mm (3.9 in) above the ceiling tile, so the speakers install where ductwork, beams, or tight plenums rule out deeper models.
Even Sound Across the Room
CRBI technology spreads sound across a 130° conical pattern, cutting loud and quiet spots so customers hear the same mix wherever they stand or sit.
Music and Announcements From One Amp
Stream over Bluetooth, play USB or SD files, tune FM radio, or connect two AUX sources, while two mic inputs with their own volume handle paging.
Set the Level at Each Speaker
70V transformer taps at 30W, 15W, 7.5W, and 3.7W let you run more volume over the sales floor and less in hallways, all from one amplifier.
Technical Specifications
- Product Type 70V Low-Profile Ceiling Speaker and Amplifier System
- Speakers Included (2) Control 424LP
- Speaker Drivers 100 mm (4 in) woofer with treated paper cone; 19 mm (0.75 in) textile soft-dome tweeter with neodymium magnet
- Coverage Technology CRBI (Coplanar RBI)
- Speaker Frequency Range (-10 dB) 75 Hz - 18 kHz
- Speaker Power Capacity 60 W (240 W peak), 2 hrs; 40 W (160 W peak), 100 hrs
- Speaker Sensitivity (1 m/1 W) 85 dB
- Speaker Maximum SPL (1 m) 103 dB continuous (109 dB peak)
- Coverage Angle 130° conical
- Speaker Impedance 16 ohms

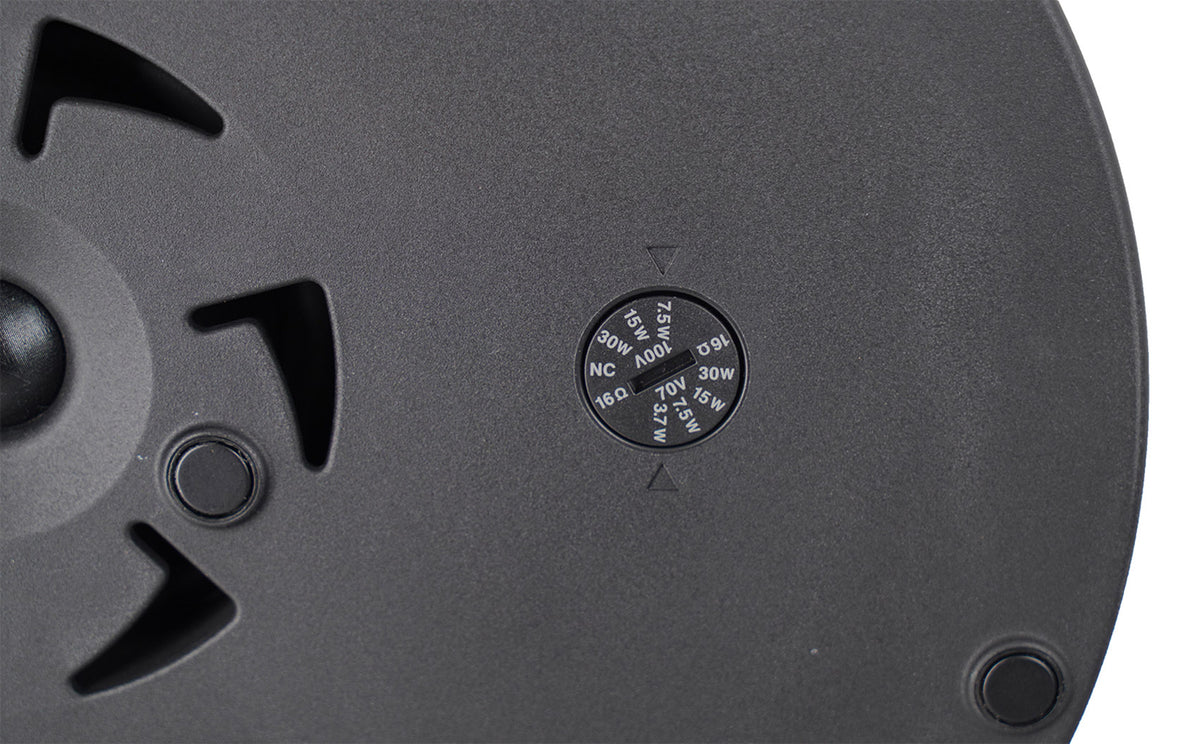

- Transformer Taps (70V) 30 W, 15 W, 7.5 W, 3.7 W
- Transformer Taps (100V) 30 W, 15 W, 7.5 W
- Ceiling Cutout 224 mm (8.8 in)

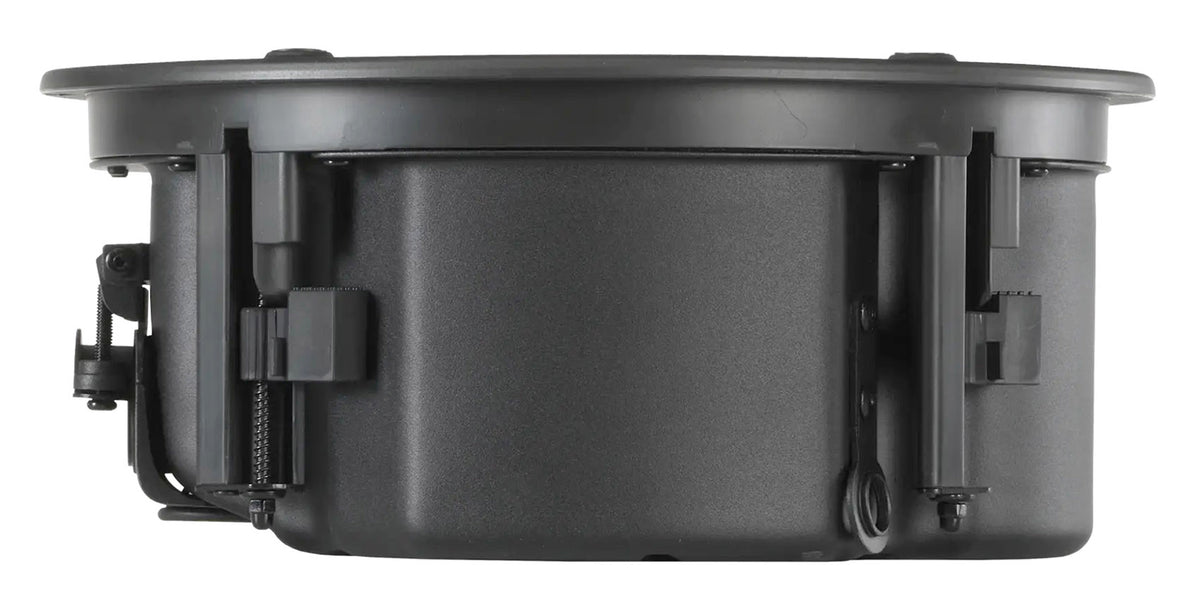

- Mounting Depth 98 mm (3.9 in) from bottom of ceiling tile to top of back can
- Speaker IP Rating IP33 per EN/IEC 60529
- Operating Temperature 0°C to 45°C
- Safety Agency Rating UL 2043, NFPA 90A & NFPA 70; CSA C22.2 No. 205; UL 1480A
- Grille Color White (RAL9003), paintable

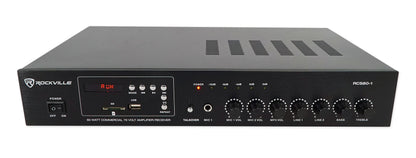

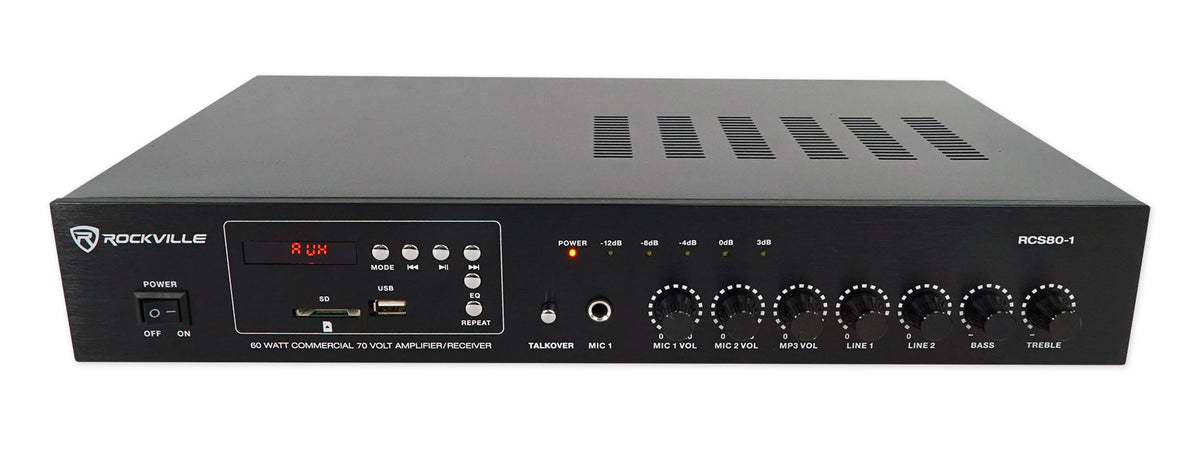

- Amplifier RCS80-1
- Amplifier Power Output 70V/100V: 60 W RMS; 4 ohm: 80 W; 8 ohm: 70 W; 16 ohm: 11 W
- Amplifier Inputs Bluetooth, FM tuner, USB/SD (up to 32GB), 2 RCA AUX, 2 mic
- Amplifier Outputs 100V, 70V, and 8 ohm speaker terminals; RCA REC out
- Amplifier Frequency Response 10 Hz - 22.8 kHz
- Amplifier THD Less than 0.5%
- Amplifier Signal-to-Noise Ratio Greater than 79 dB
- Weight Speakers: 6.7 lb (3.0 kg) each; Amplifier: 10.91 lb
- Dimensions Speakers: 4.2 x 9.9 in (107 x 253 mm) (H x Dia.); Amplifier: 16.9 x 10.4 x 3.1 in
