Control 426LP Ceiling Speakers + RCS180-6 6-Zone Amplifier
Control 426LP Ceiling Speakers + RCS180-6 6-Zone Amplifier
6.5" Low-Profile 70V Ceiling Speaker Pair, 180W 6-Zone Bluetooth Amplifier, Restaurants, Offices, Retail
Free Shipping
Features
- Two 6.5" coaxial ceiling speakers with 1" soft-dome tweeters and 110° coverage
- Low-profile enclosure under 100 mm deep fits ceilings with limited plenum space
- 180W 70V amplifier splits power across six zones with separate volume knobs
- Bluetooth, FM tuner, USB, SD, optical, and two line inputs for music sources
- Three mic inputs with echo control and a chime button for clear announcements
Couldn't load pickup availability

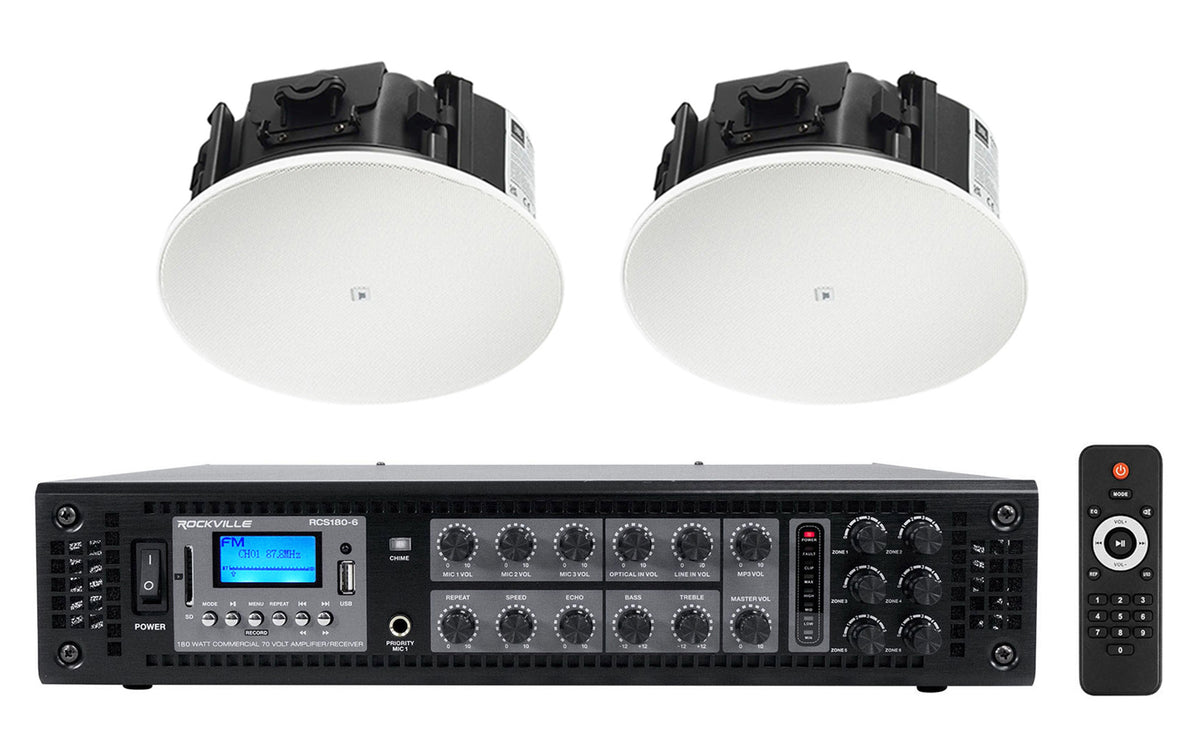

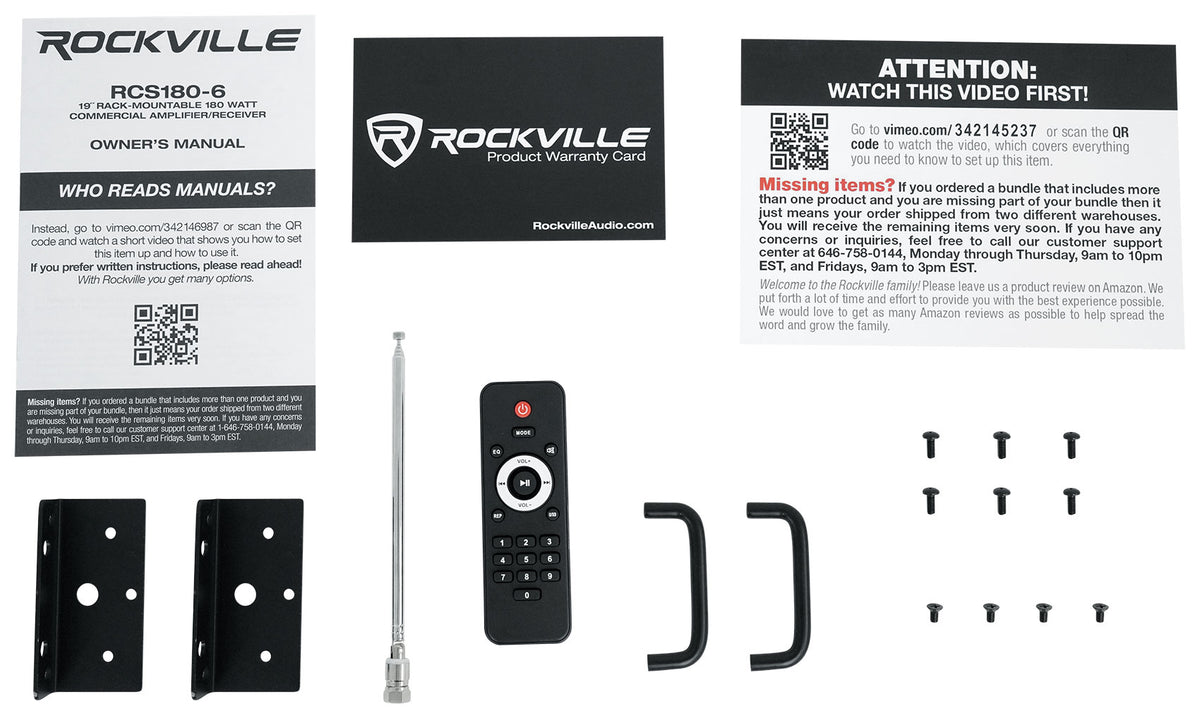

What's Included in the box

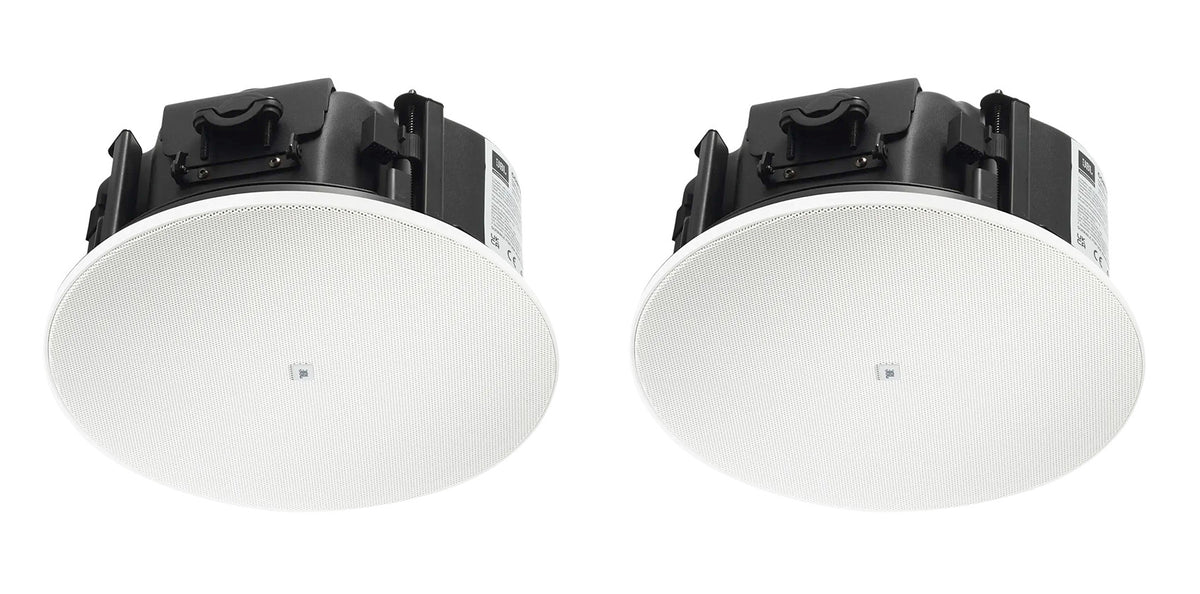

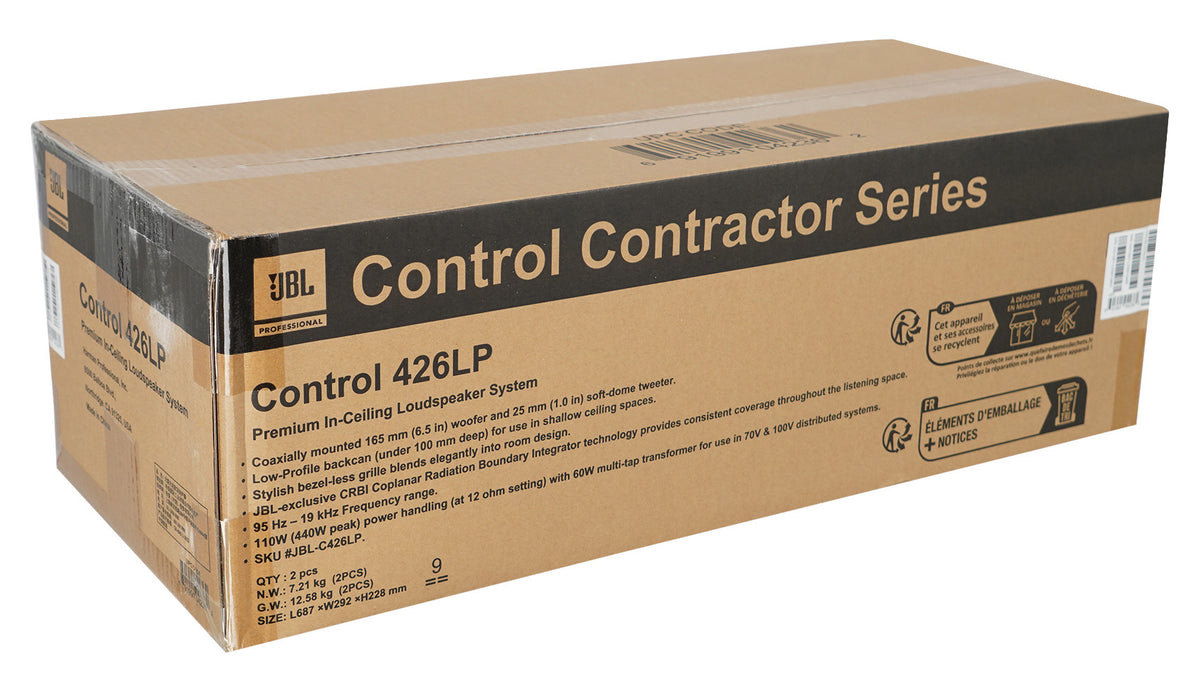

- (2) JBL Control 426LP 6.5" Low-Profile 70V Ceiling Speakers

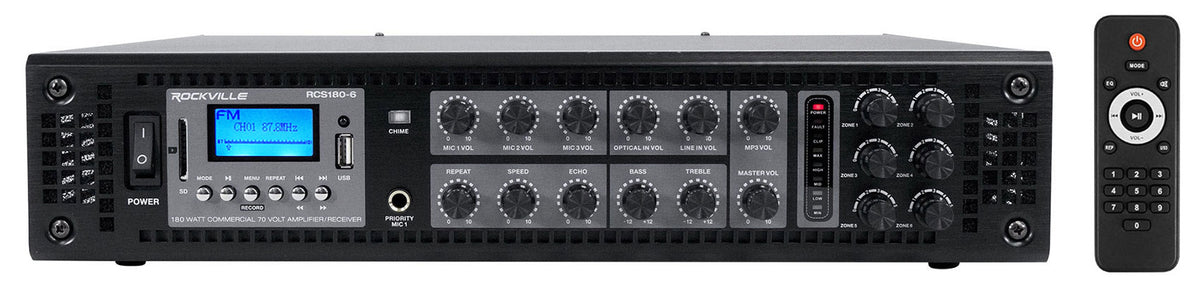

- (1) Rockville RCS180-6 180W 6-Zone 70V Amplifier
- (1) Remote Control
- (1) Pair of Rack Mount Ears
- (1) Power Cable
- (1) FM Radio Antenna
SKU: SKU: Control 426LP+RCS180-6
View full details













Product Description

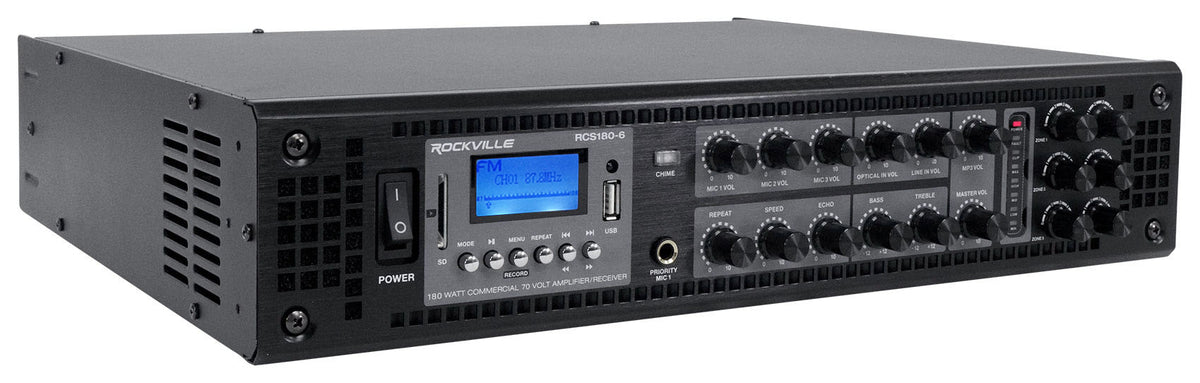

The RCS180-6 delivers 180W at 70V and splits that power across six zones, each with its own volume knob. Tap each speaker at 7.5W, 15W, 30W, or 60W to set levels room by room, then add more 70V speakers to the system as the space grows. Music comes in over Bluetooth, the FM tuner, USB, SD card, optical, or two line inputs, while three mic inputs with echo control and a chime button cover announcements, speeches, and karaoke nights.

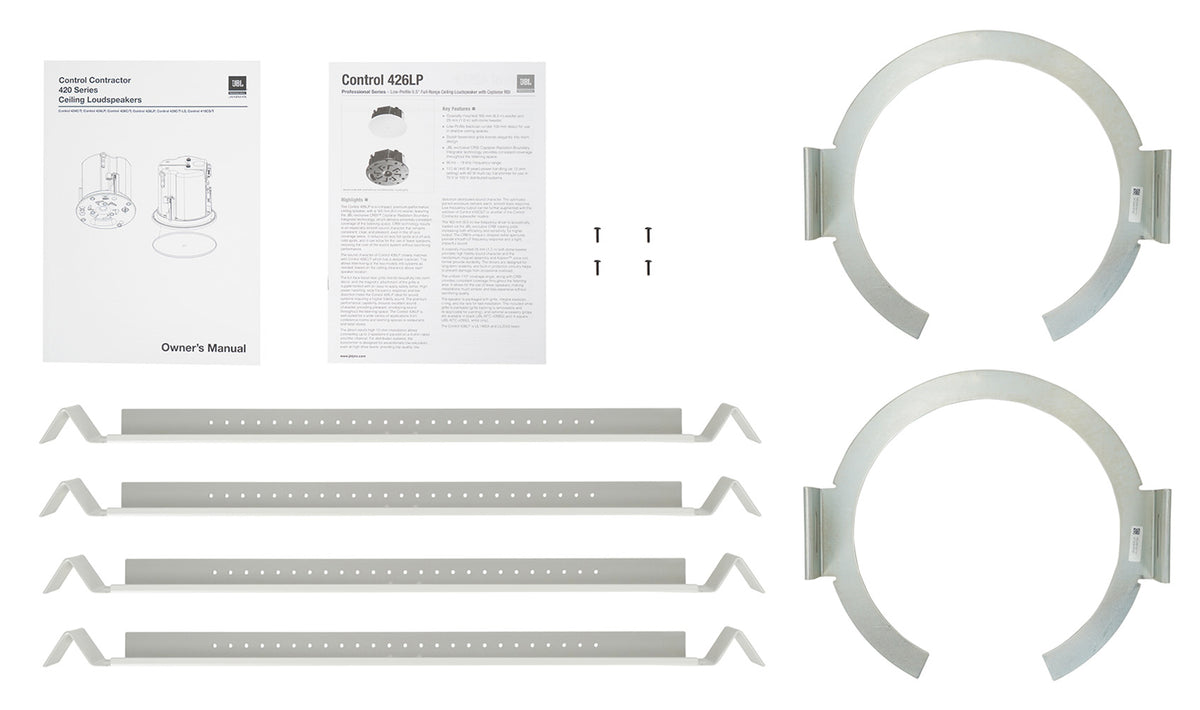

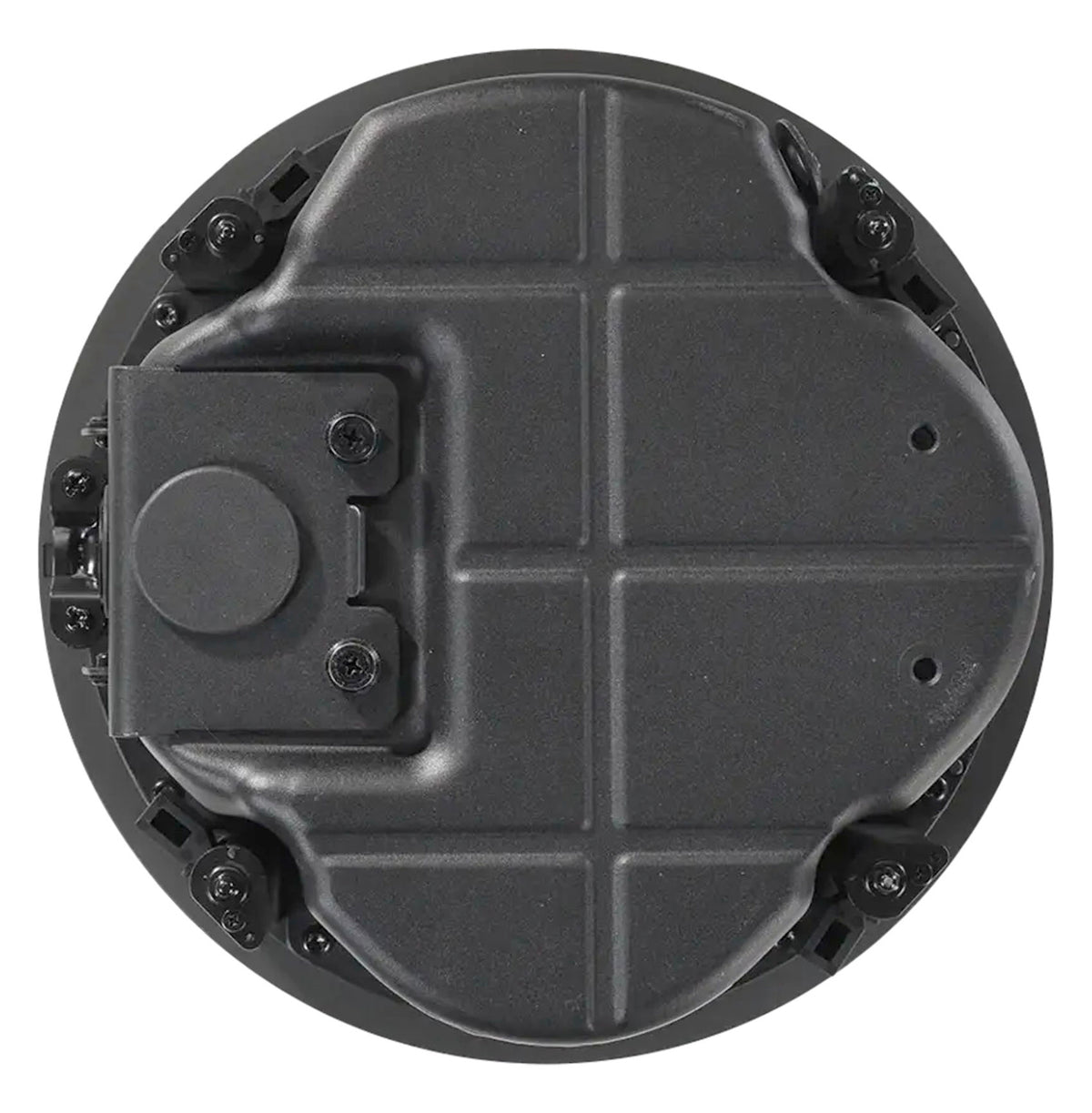

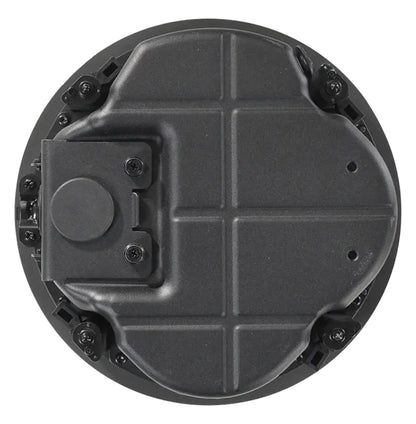

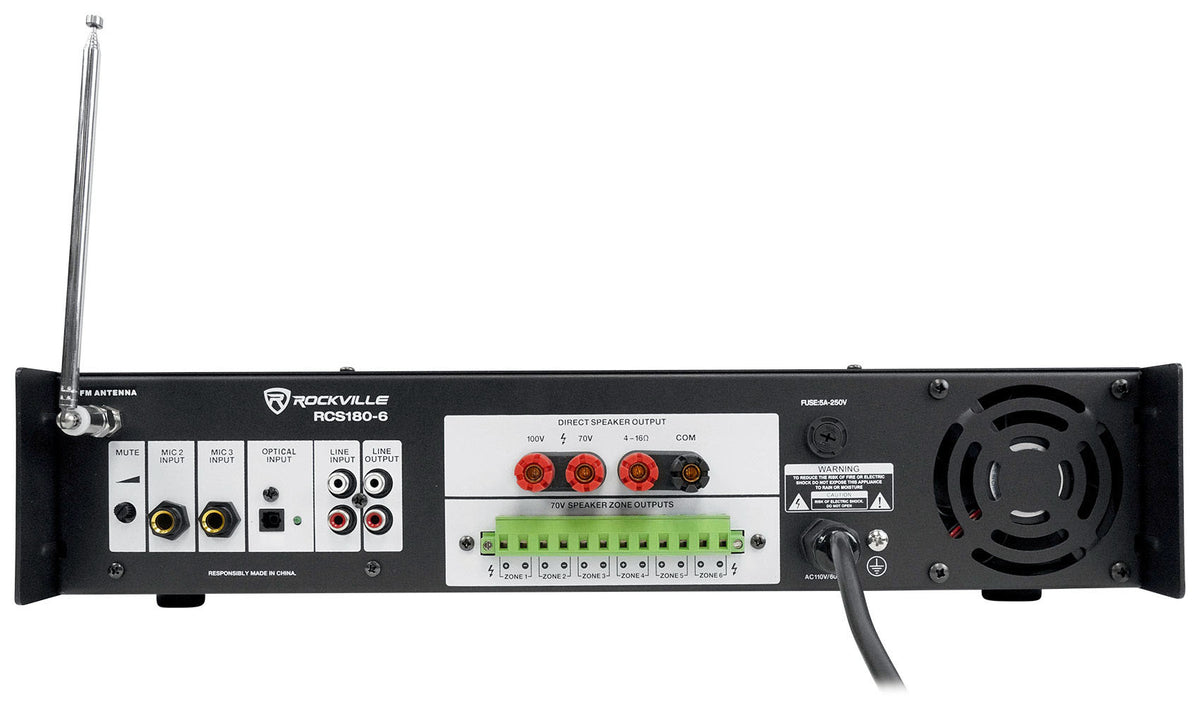

Installation stays simple on both ends. The speakers use tool-free terminal covers with top and side cable entry and captive dogears that fit a wide range of ceiling thicknesses, and the amp's detachable euro-block terminals click back in after wiring. Removable rack ears let the amp mount in a standard 19" rack, and a built-in clipping limiter and cooling system protect the speakers and amplifier through long business hours.
Features
Fits Shallow Ceilings

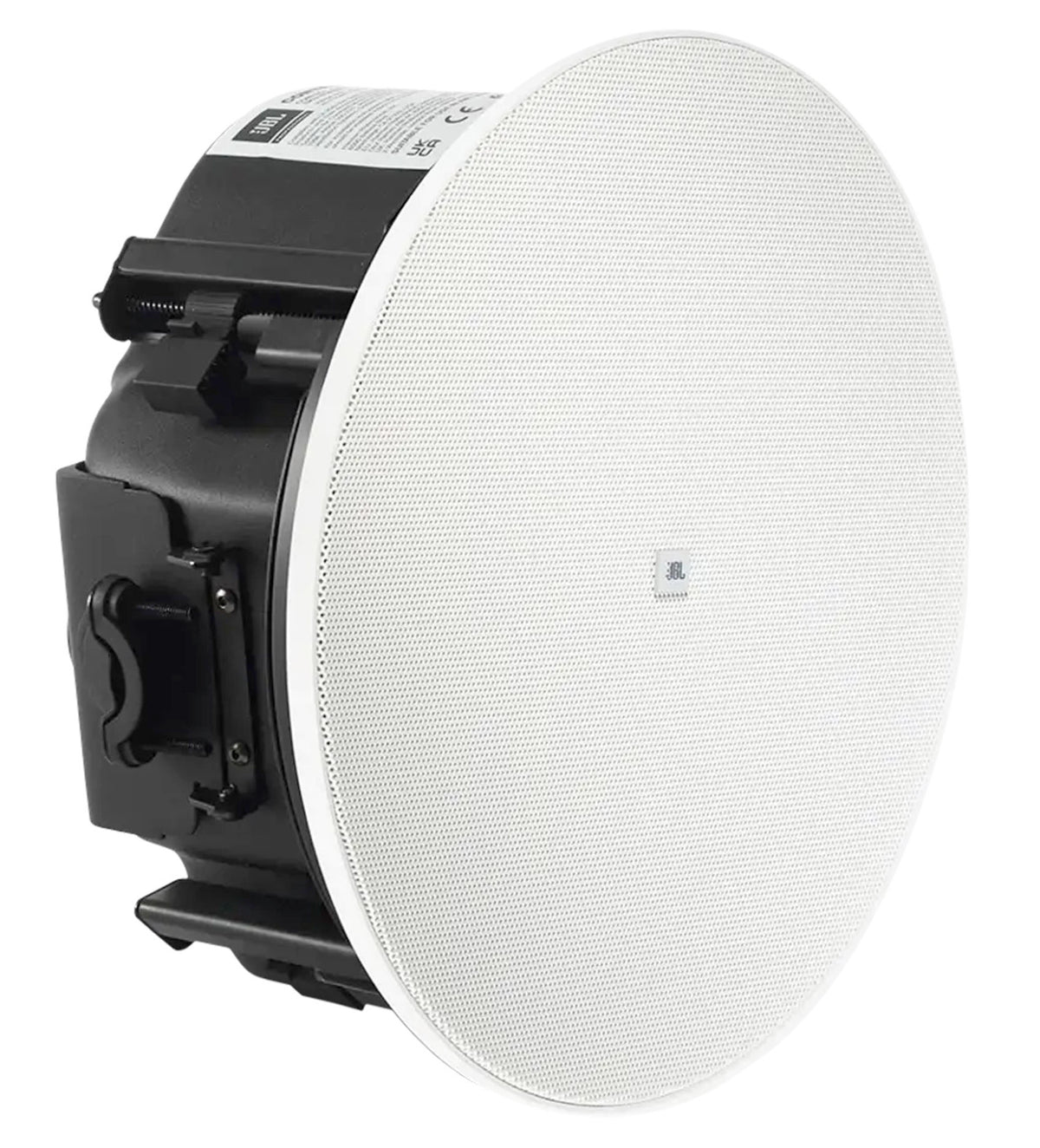

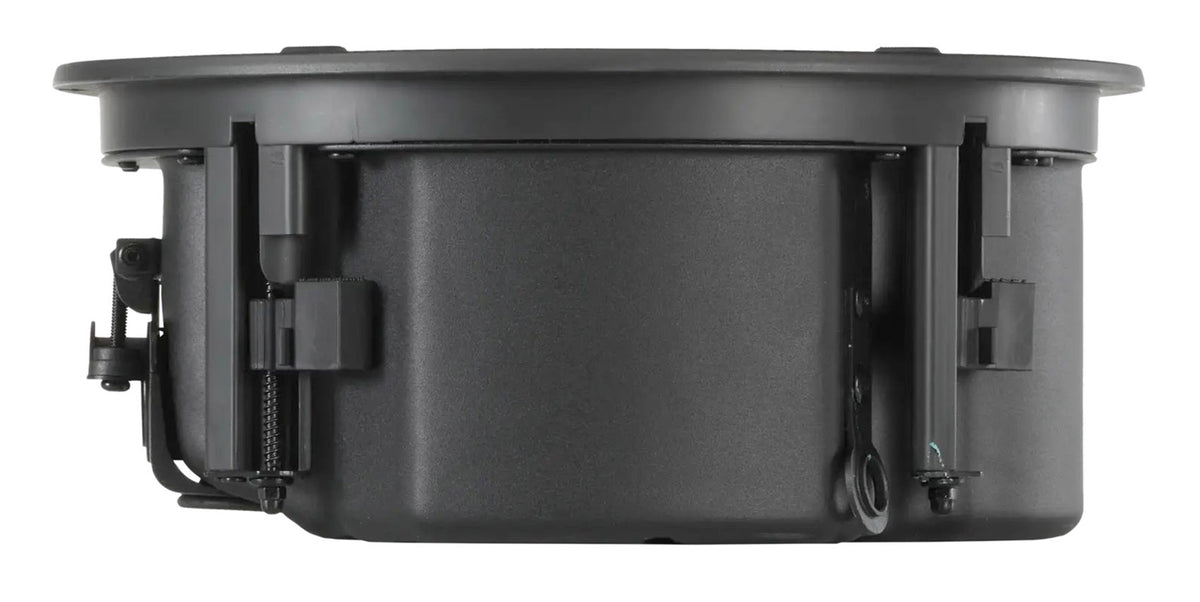

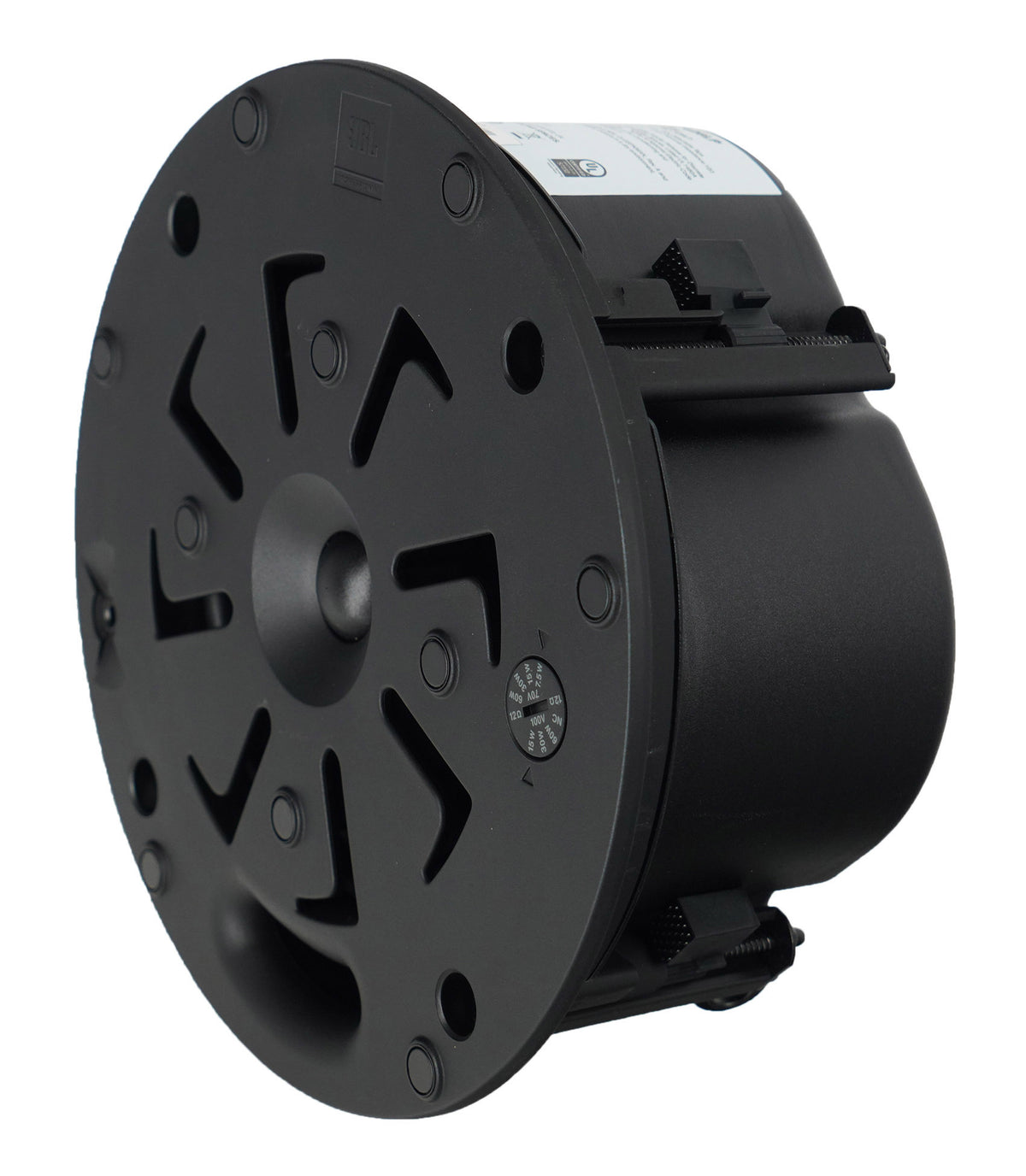

A low-profile enclosure only 98 mm from ceiling tile to backcan lets the 426LP install where plenum space is limited, a good fit for retrofits and tight commercial ceilings.
Even Coverage Across the Room
CRBI technology spreads sound across a 110° conical pattern, reducing hot and cold spots so guests hear consistent audio as they move through the space.
Six Zones, Independent Levels
The RCS180-6 splits 180W at 70V across six zones, each with its own volume knob, so the dining room, bar, and patio can run at different levels.
Music From Any Source
Stream over Bluetooth, tune in FM radio, or play from USB, SD card, optical, or two line inputs to keep background music going from open to close.
Built-In Announcement Tools
Three mic inputs with individual volume and echo control, plus a chime button, let staff make announcements, run speeches, or host karaoke nights without extra gear.
Technical Specifications
- Product Type 70V Commercial Ceiling Speaker and Amplifier Package
- Speaker Model JBL Control 426LP (Pair)
- Speaker Type 2-Way Coaxial Low-Profile Ceiling Speaker
- Woofer 6.5" (165 mm) Treated Paper Cone
- Tweeter 1" (25 mm) Textile Soft-Dome, Neodymium Magnet
- Frequency Range (-10 dB) 95 Hz to 19 kHz
- Speaker Power Capacity 110W Continuous, 440W Peak
- Sensitivity (1W/1m) 89 dB
- Maximum SPL (1m) 109 dB Continuous, 115 dB Peak
- Coverage Angle 110° Conical
- Nominal Impedance 12 Ohm

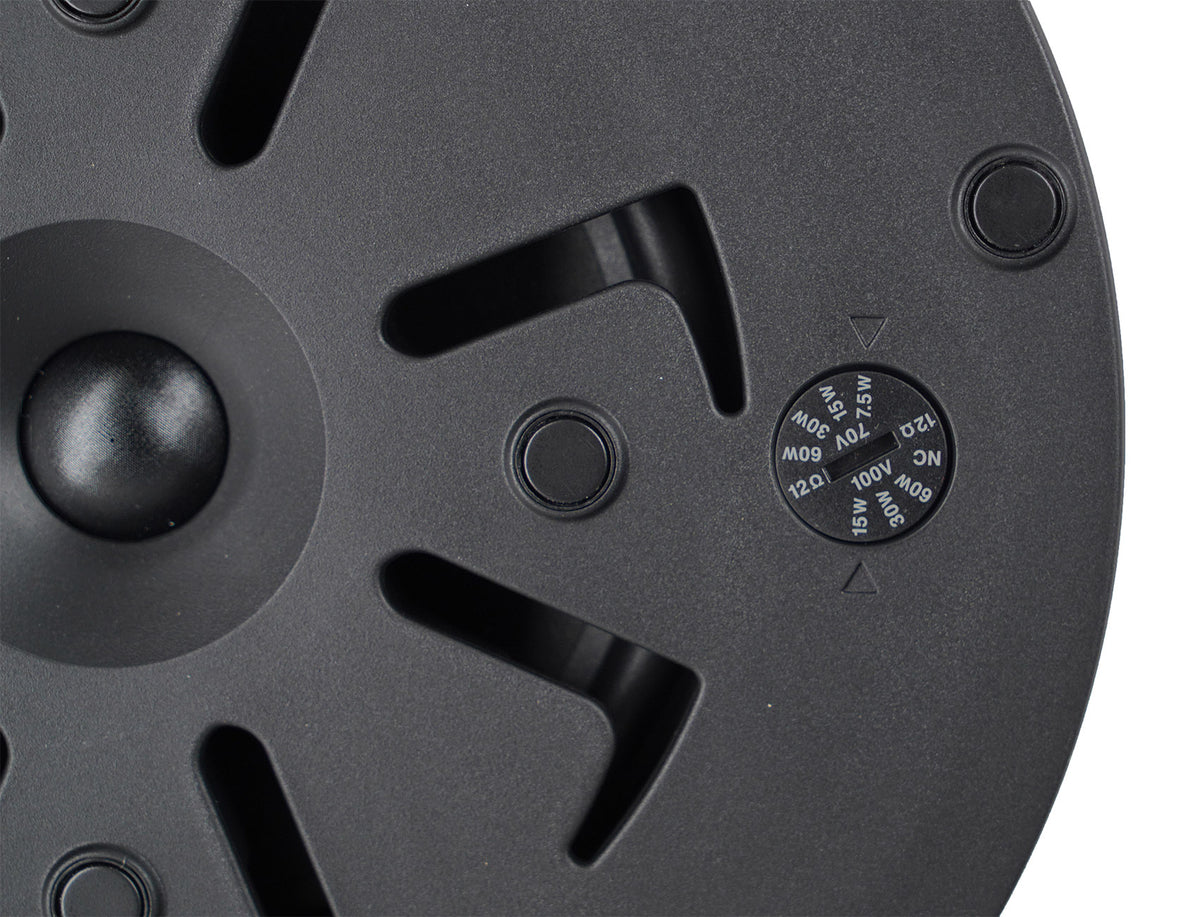

- 70V Transformer Taps 60W, 30W, 15W, 7.5W
- 100V Transformer Taps 60W, 30W, 15W
- Ceiling Cutout 8.8" (223 mm)
- Mounting Depth 3.9" (98 mm) from Ceiling Tile to Top of Backcan
- Safety Rating UL2043, NFPA 90A, NFPA 70 (Air Handling Spaces)
- IP Rating IP33
- Operating Temperature 32°F to 113°F (0°C to 45°C)

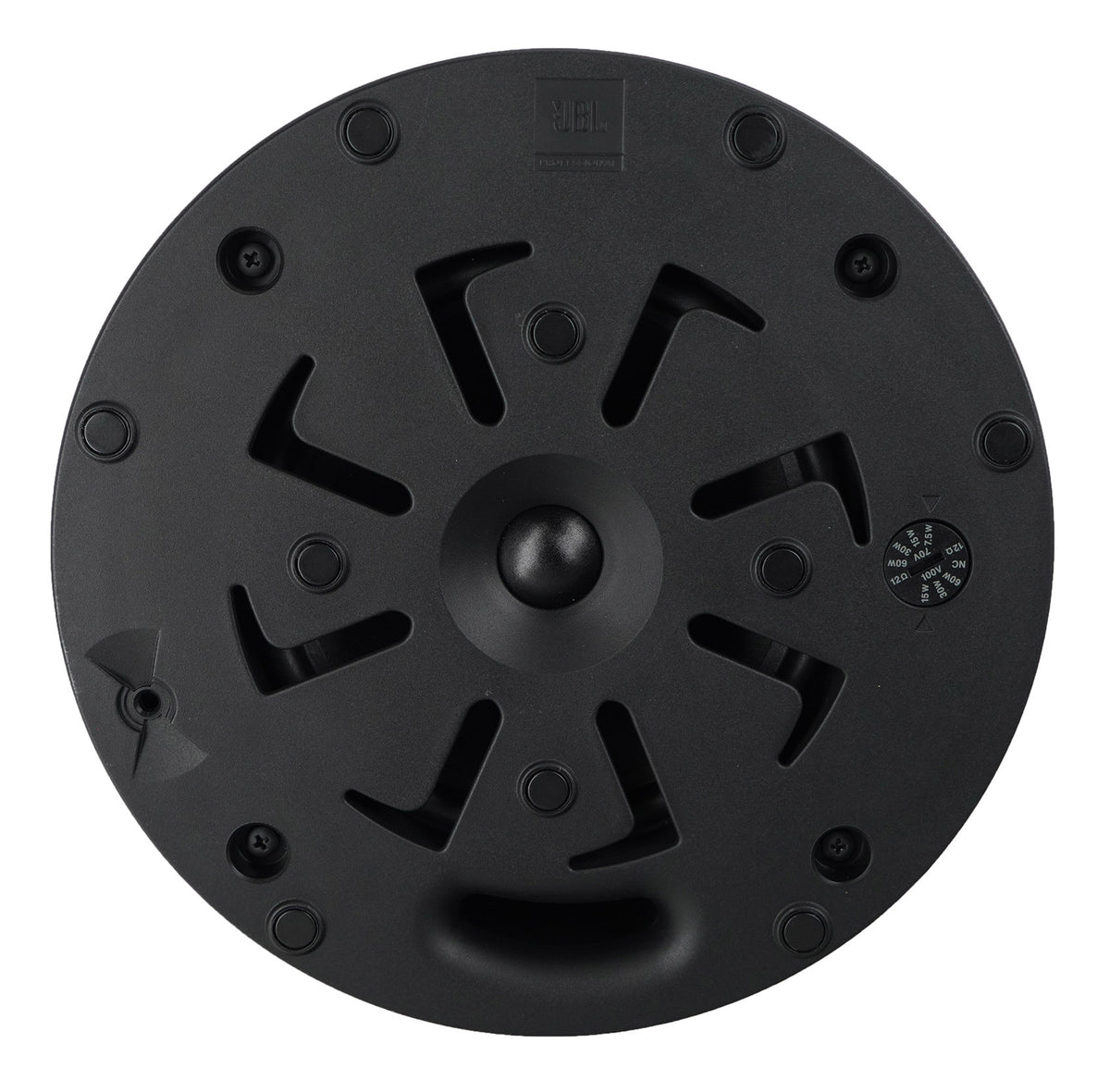

- Grille White (RAL9003) Magnetic, Paintable
- Amplifier Model Rockville RCS180-6
- Amplifier Power 180W at 70V/100V (184W RMS)
- Amplifier Output Modes 70V, 100V, 4 to 16 Ohm
- Zones 6, Individual Volume Control
- Inputs Bluetooth, FM Tuner, USB (32GB Max), SD Card (32GB Max), Optical, 2 Line, 3 Mic
- Rack Mount 19" with Removable Rack Ears
- Speaker Weight 8.6 lb Each
- Speaker Dimensions 4.2" H x 9.9" Dia. (107 x 253 mm)
