CROWN

DCi 4|1250

DCi 4|1250

4-Channel Install Power Amplifier, 1250W Per Channel, 70V/100V Direct Outputs, 2RU Chassis
$6,056.00
$6,056.00 $5,550.00
Shipping calculated at checkout.
Features
    • 1250 W per channel with four channels in a 2RU chassis
    • Direct 70Vrms and 100Vrms output without a step-up transformer
    • Independent Hi-Z or Low-Z selection on every channel
    • Bridgeable channel pairs, including 100Vrms mode, for higher-power loads
    • Power factor corrected supply runs on 100V to 240V mains at 50/60 Hz
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • Crown DCi 4|1250 4-Channel Install Power Amplifier

SKU: DCi41250

View full details

Product Description

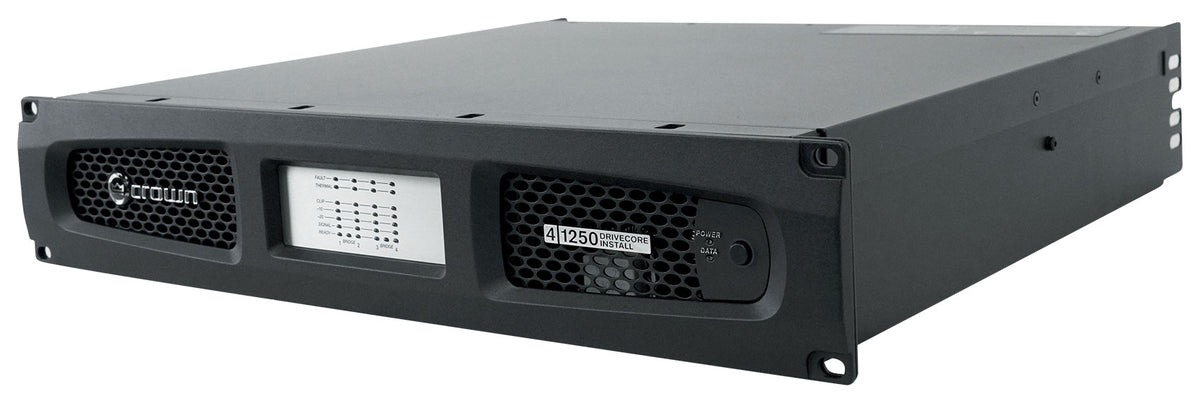

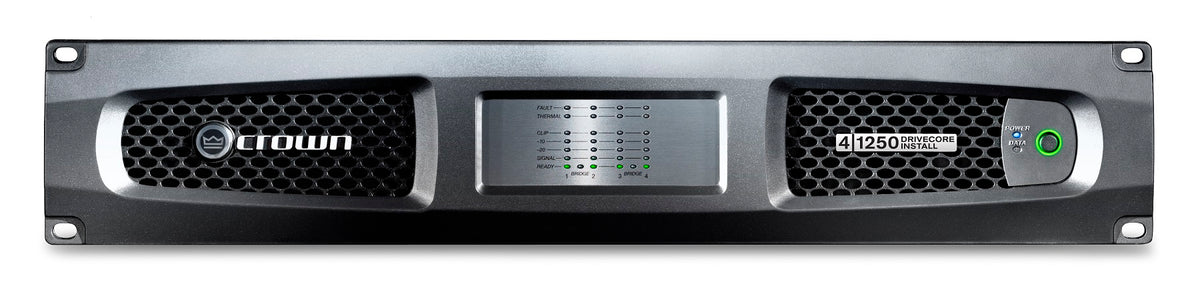

The Crown DCi 4|1250 is a four-channel DriveCore Install amplifier rated at 1250 W per channel, built for large installed systems that need high power density in two rack units. Load impedance runs 2 to 16 ohms in stereo and dual mode plus 70Vrms and 100Vrms constant voltage, and bridged pairs handle 4 to 16 ohms or 140Vrms and 200Vrms.

Constant-voltage output is direct, with no step-up transformer, so installers can run smaller gauge wiring over long distances while keeping audio quality high. Each channel selects Hi-Z or Low-Z independently, which means one amplifier can feed a pair of low-impedance subwoofers on two channels and hundreds of 70V ceiling speakers on the other two. Channel pairs bridge even in 100Vrms mode for higher-power loads such as subwoofers.

An advanced power factor corrected universal supply accepts 100V to 240V at 50/60 Hz through a 20A IEC connector and converts it efficiently, so less energy turns into heat inside the rack. Cooling is continuously variable speed with front-to-back airflow, and maximum fan noise is 47 dBA at 1 m: quiet enough for racks near occupied rooms. A remote on/off interface lets a control system shut the amplifier down outside operating hours.

Measured performance includes frequency response of ±0.25 dB from 20 Hz to 20 kHz at 8 ohms, total harmonic distortion of 0.35% at full rated power, and damping factor above 1500. The chassis measures 19" x 3.5" x 17" and weighs 30 lb.

Typical homes for it include stadiums, convention centers, houses of worship, and multi-zone corporate campuses.

Features

    • Four Channels, Two Rack Units

      Four channels of 1250 W in a 2RU frame keep infrastructure rooms small, which lowers the cost of the space a system occupies over its lifetime.

    • Constant Voltage, No Transformer

      Direct 70Vrms and 100Vrms output allows smaller gauge wiring on long runs and holds audio quality without a step-up transformer at the output.

    • Mix Load Types Per Channel

      Each channel selects Hi-Z or Low-Z on its own, so two channels can feed subwoofers while the other two cover hundreds of ceiling speakers.

    • Bridge For Bigger Loads

      Channel pairs bridge even in 100Vrms mode, giving the system headroom for subwoofers or high-output zones without adding another amplifier to the rack.

    • Quiet, Efficient Operation

      Variable-speed front-to-back cooling peaks at 47 dBA at 1 m and the power factor corrected supply cuts heat, keeping racks near occupied rooms comfortable.

Technical Specifications

  • Product Type 4-Channel Install Power Amplifier
  • Output Channels 4
  • Rated Power Output (per channel) 1250 W
  • Load Impedance (Stereo/Dual Mode) 2 - 16 ohms; 70Vrms and 100Vrms
  • Load Impedance (Bridge Mono) 4 - 16 ohms; 140Vrms and 200Vrms
  • Frequency Response (8 ohms, 20 Hz - 20 kHz) ±0.25 dB
  • Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz) 0.35%
