XLS2502 2400W DJ/PA Power Amplifier with DSP

The Crown XLS2502 is a 2400W Class D power amplifier built on Crown's DriveCore technology, delivering large-venue output at just 10.8 lb. It puts out 775W per channel at 4 ohms, 1200W per channel at 2 ohms, or up to 2400W bridged into a 4-ohm load, enough for touring PA systems and larger houses of worship. Built-in DSP adds a band-pass filter per channel and an integrated PureBand crossover, so system tuning happens inside the amp rather than through outboard processing.

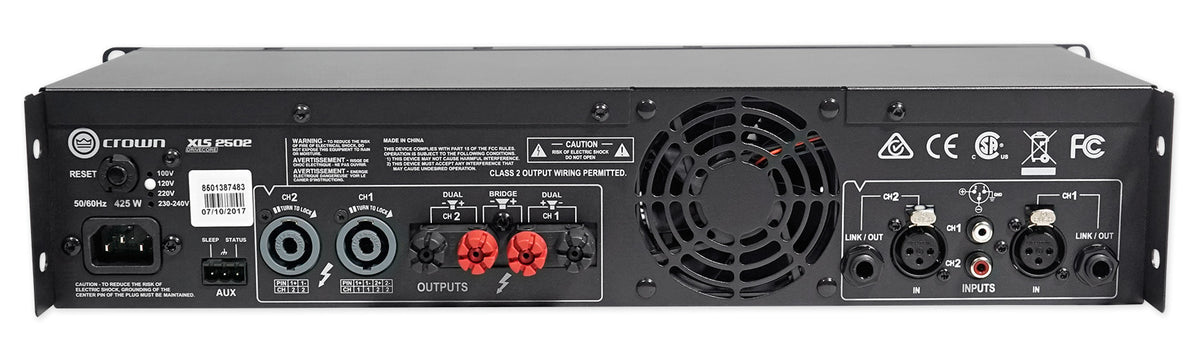

XLR, 1/4 inch, and RCA inputs cover most mixer connections, and selectable input sensitivity between 1.4Vrms and 0.775Vrms lets the amp reach full power from nearly any source. Peakx limiters protect connected speakers during peak output, a remote power trigger allows the amp to switch on with the rest of a rig, and a lockable menu keeps settings from shifting mid-show. Forced-air cooling fans manage heat through long runs, and an automatic sleep mode powers the amp down after a set period of inactivity.
