CSMA180 Mixer Amplifier + 2 White WET-6525W 70V Indoor/Outdoor Wall Speakers
JBL
CSMA180 Mixer Amplifier + 2 White WET-6525W 70V Indoor/Outdoor Wall Speakers
CSMA180 Mixer Amplifier + 2 White WET-6525W 70V Indoor/Outdoor Wall Speakers

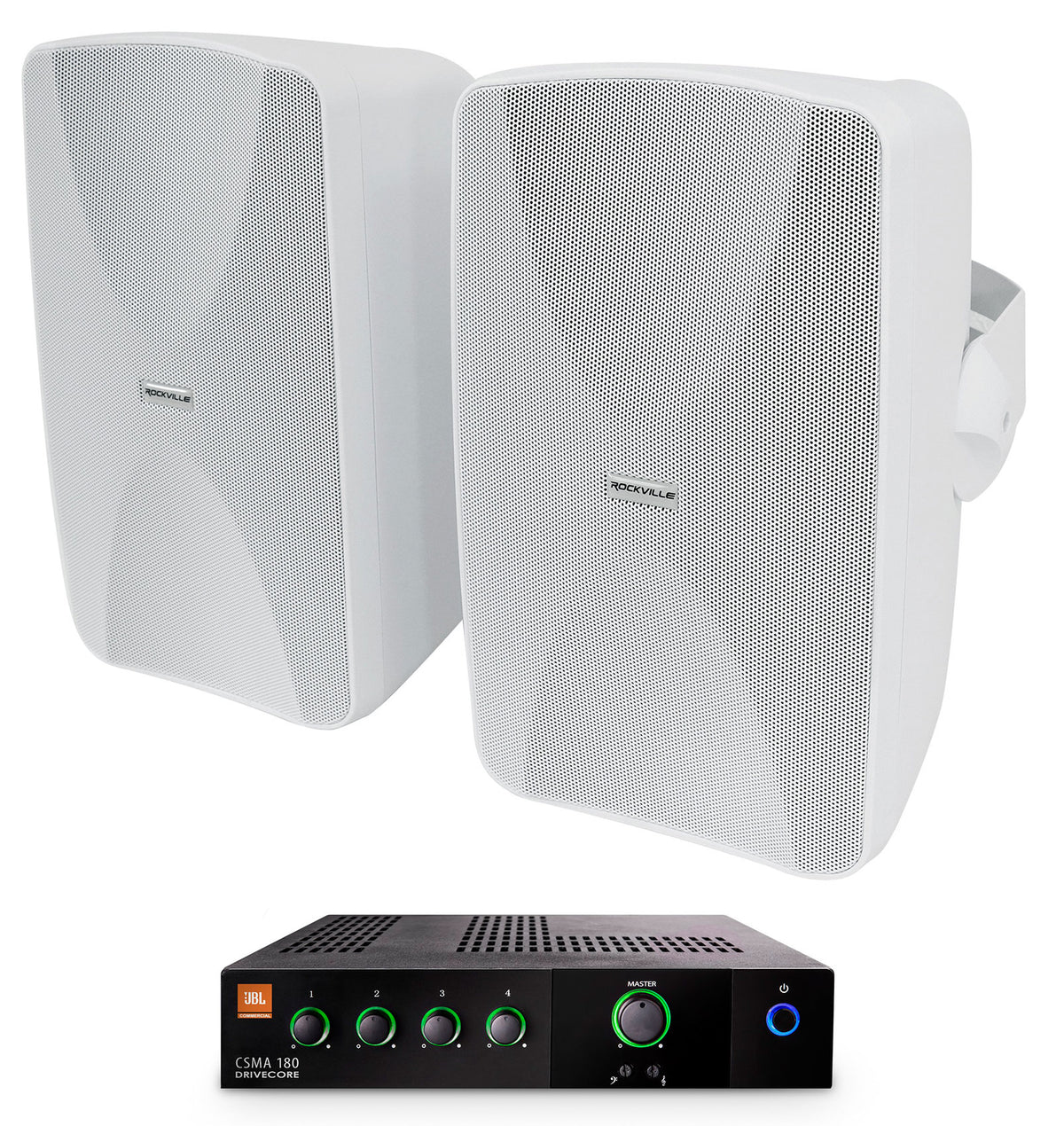

80W 70V Commercial Mixer Amplifier, 4 Inputs, (2) 6.5" White Indoor/Outdoor Wall Speakers, Rack Kit
Free Shipping
Features
- 80W fanless mixer amplifier fits one 1U rack space and runs silently
- Two white 6.5" 70V wall speakers rated IPX55 for indoor or outdoor installs

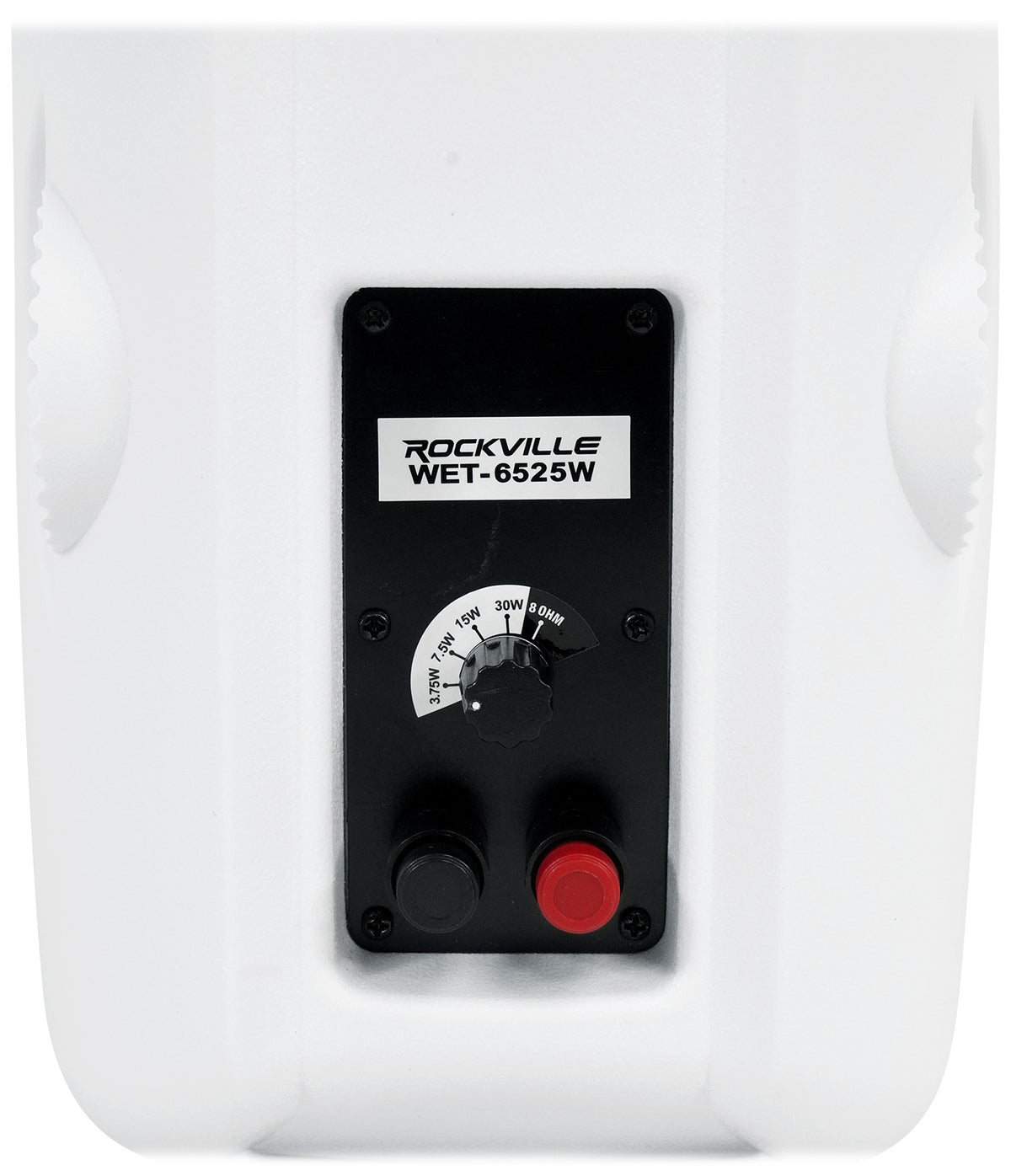

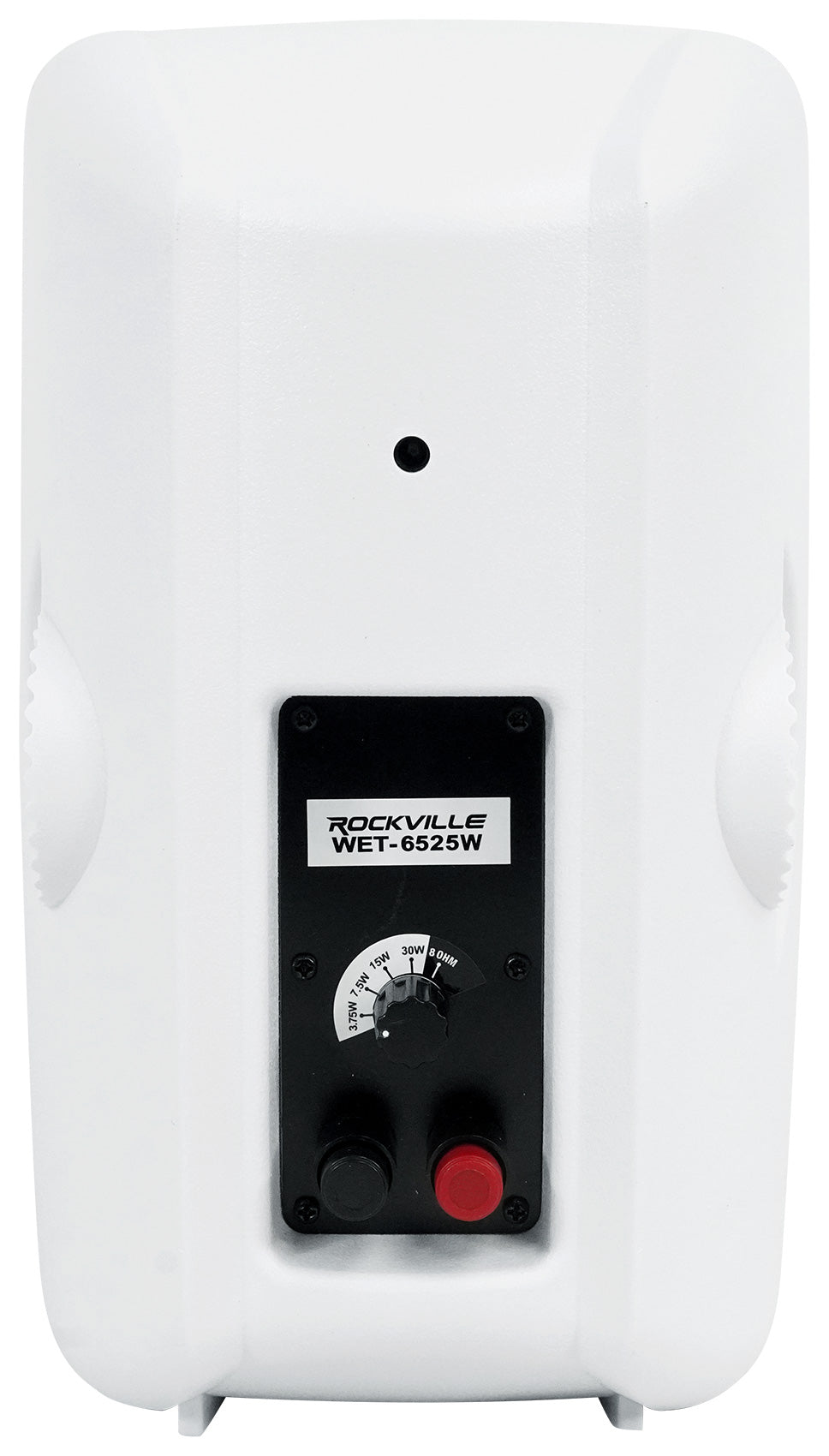

- Tap switch sets each speaker at 30W, 15W, 7.5W, or 3.75W on 70V lines

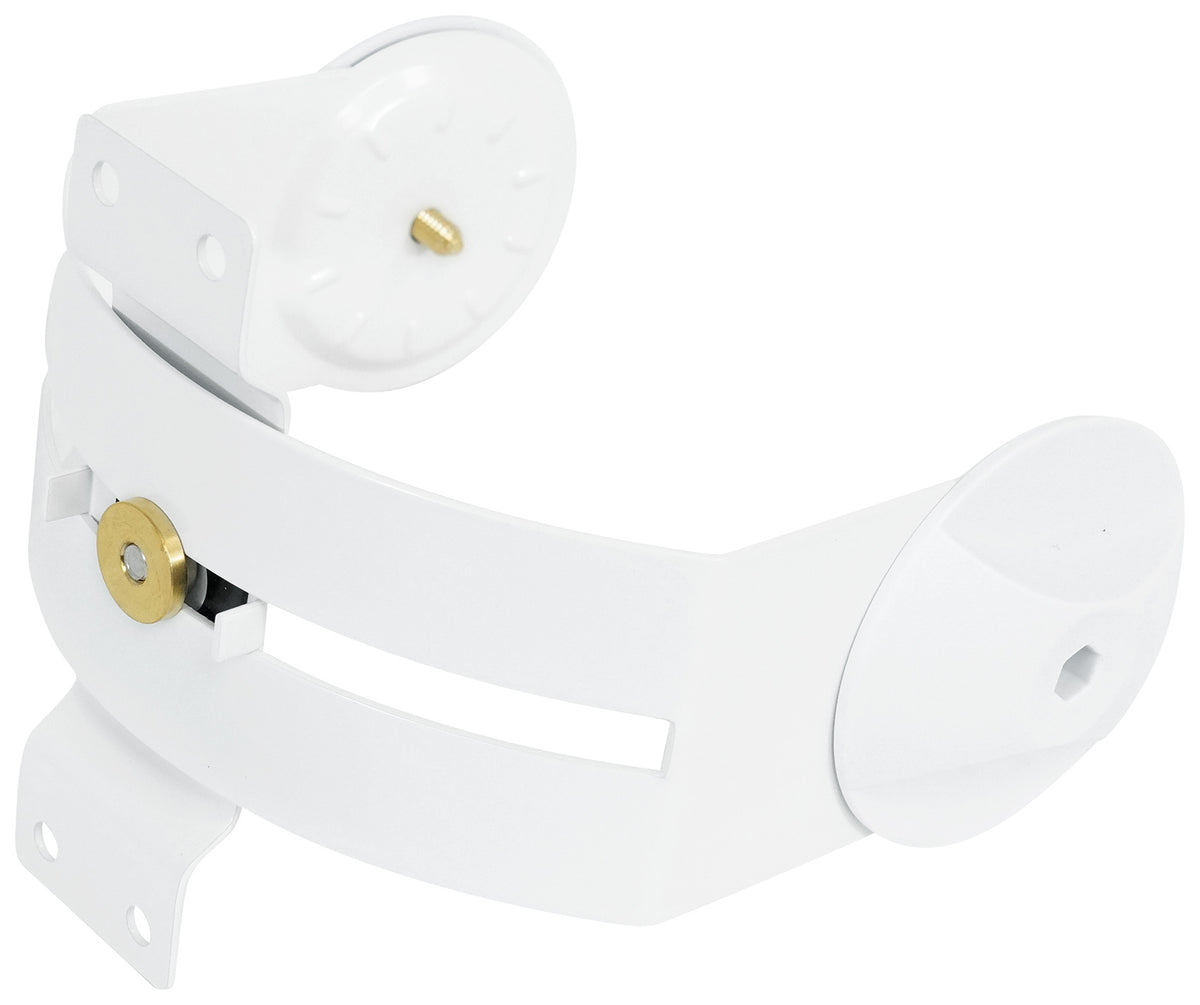

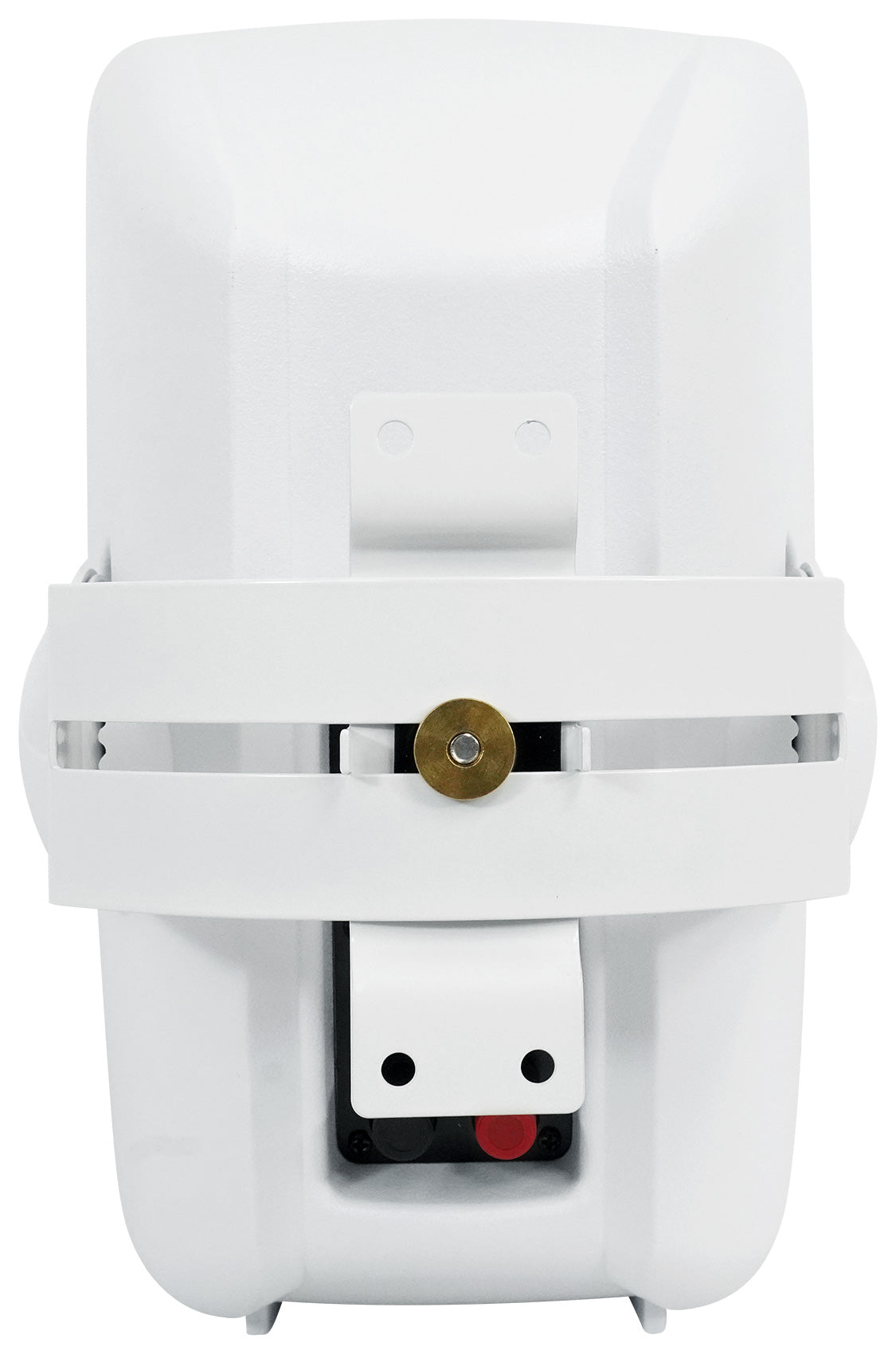

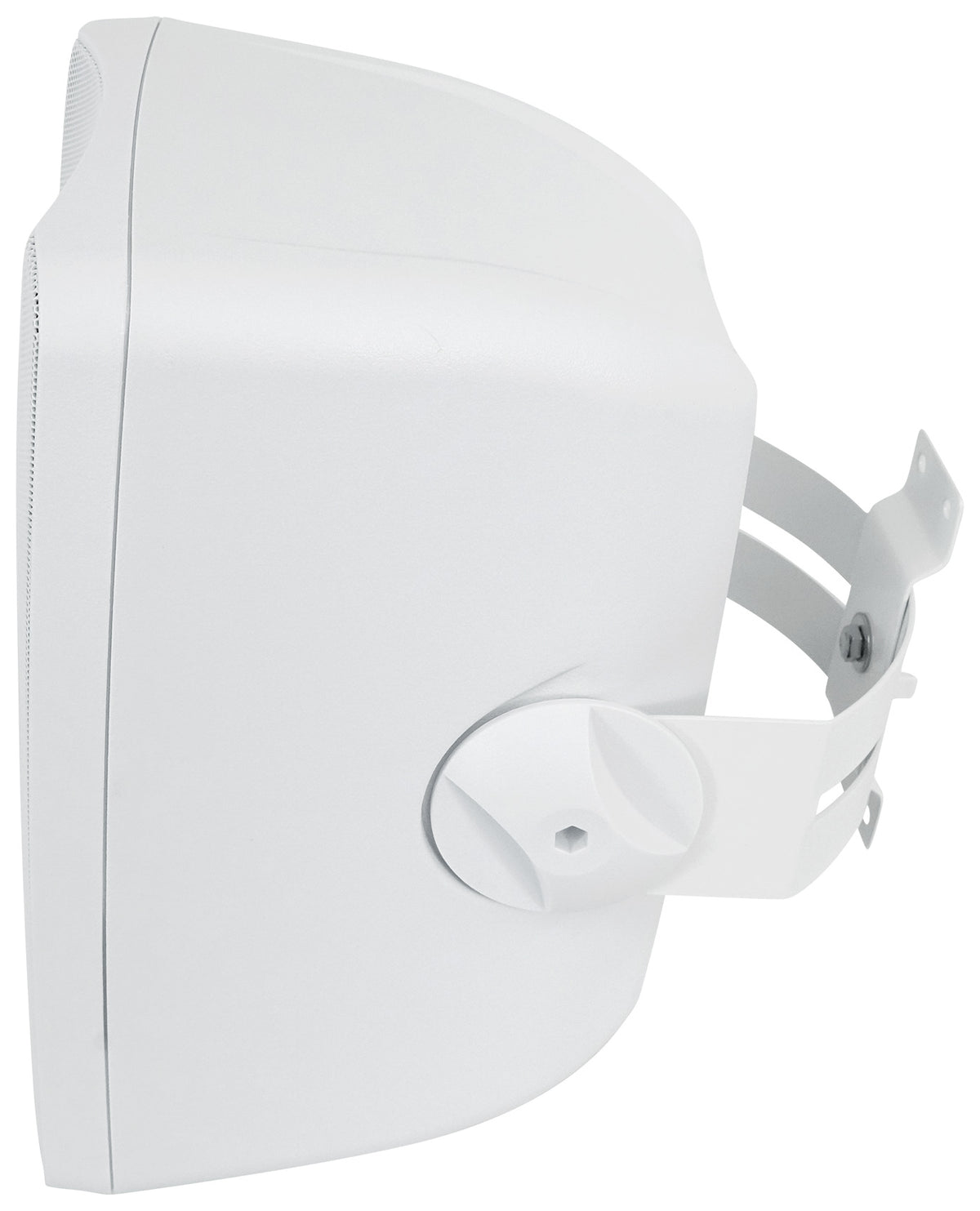

- 4-way swivel brackets angle each speaker up, down, left, or right
- Four inputs with priority muting let paging cut in over background music
Couldn't load pickup availability

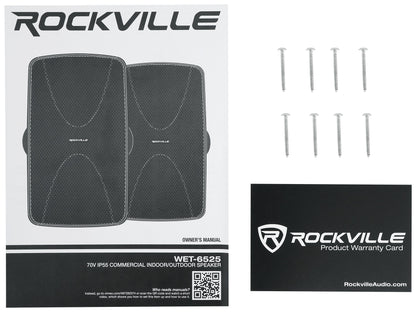

What's Included in the box

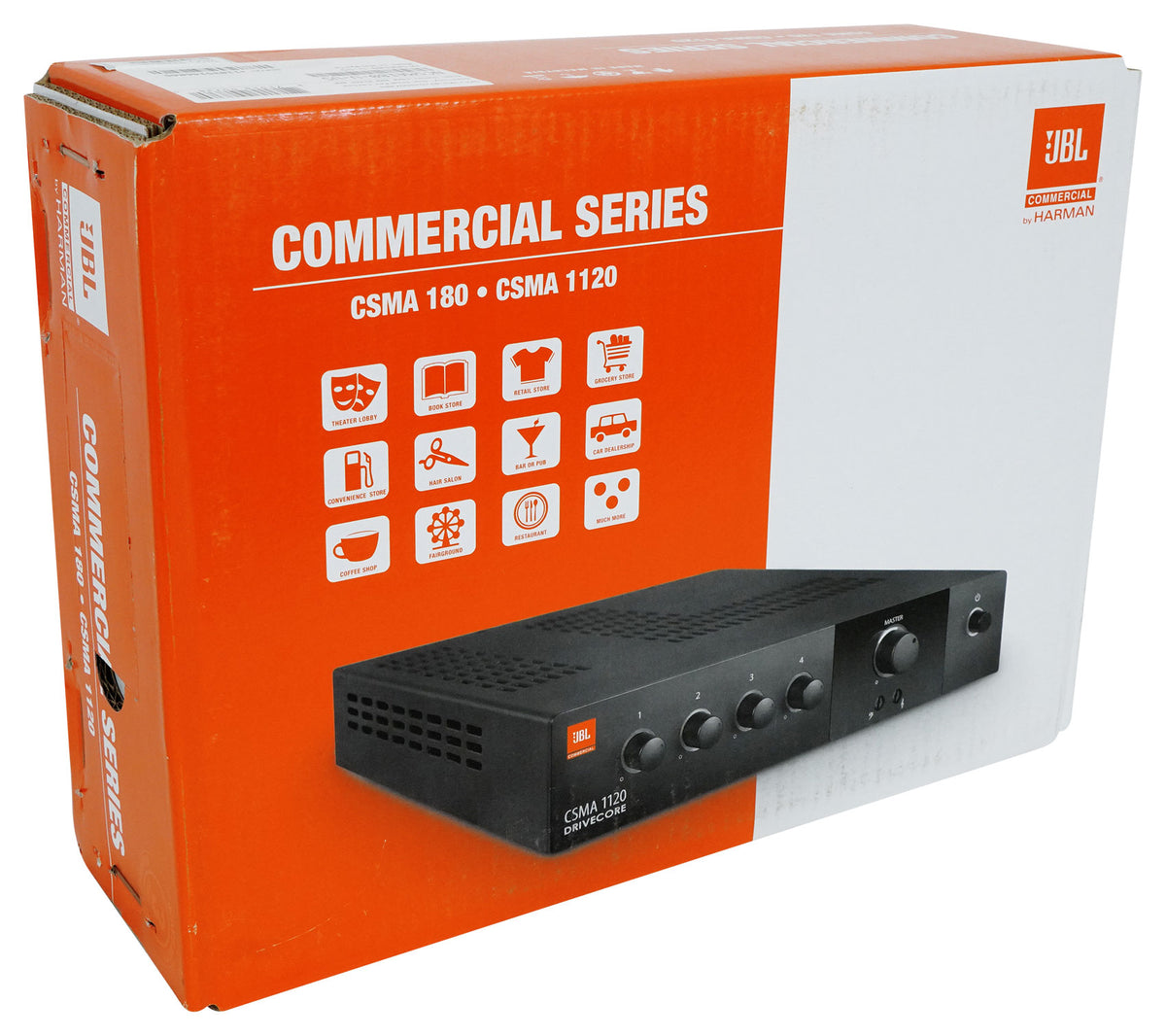

- (1) JBL CSMA180 Commercial Mixer Amplifier

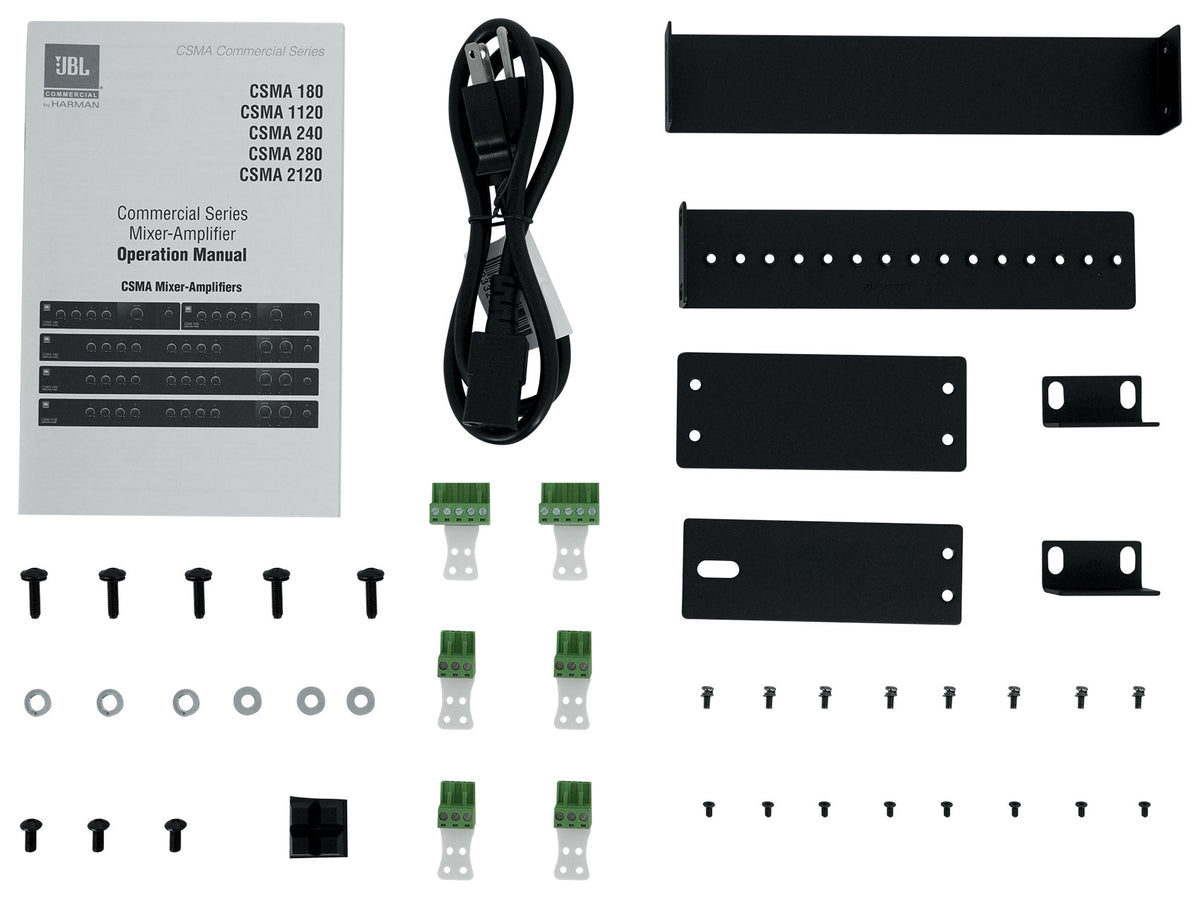

- (1) Rack Mounting Kit

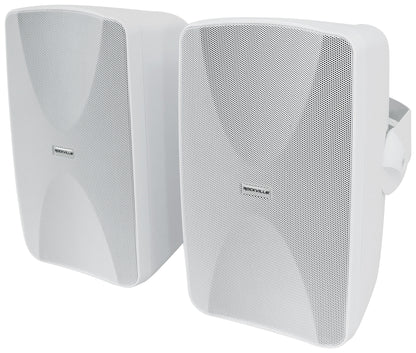

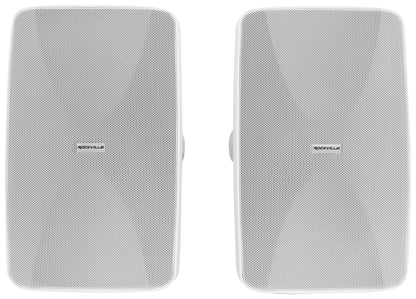

- (2) Rockville WET-6525W 6.5" 70V Indoor/Outdoor Wall Speakers, White
SKU: SKU: CSMA180+WET-6525W
View full details













Product Description

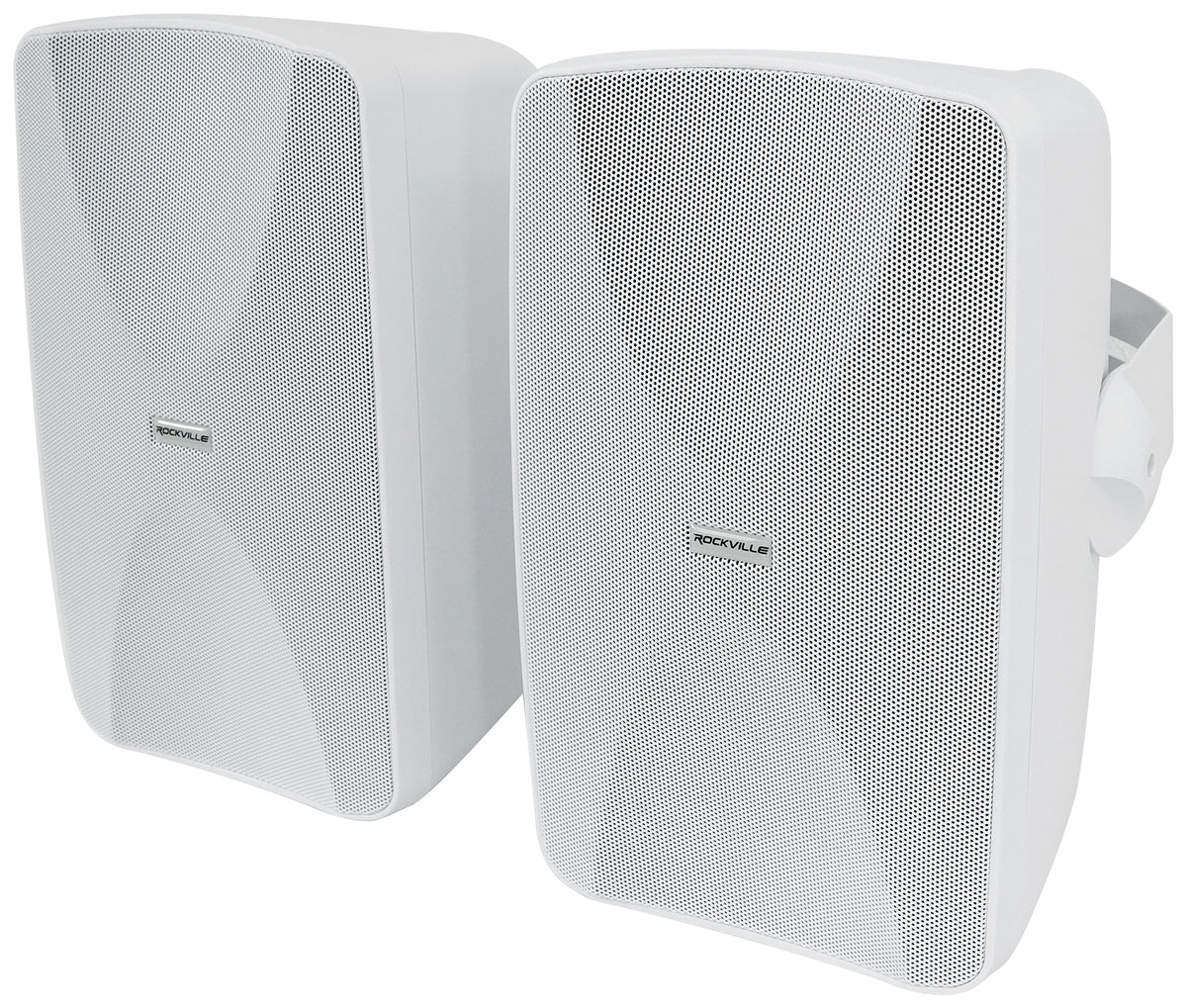

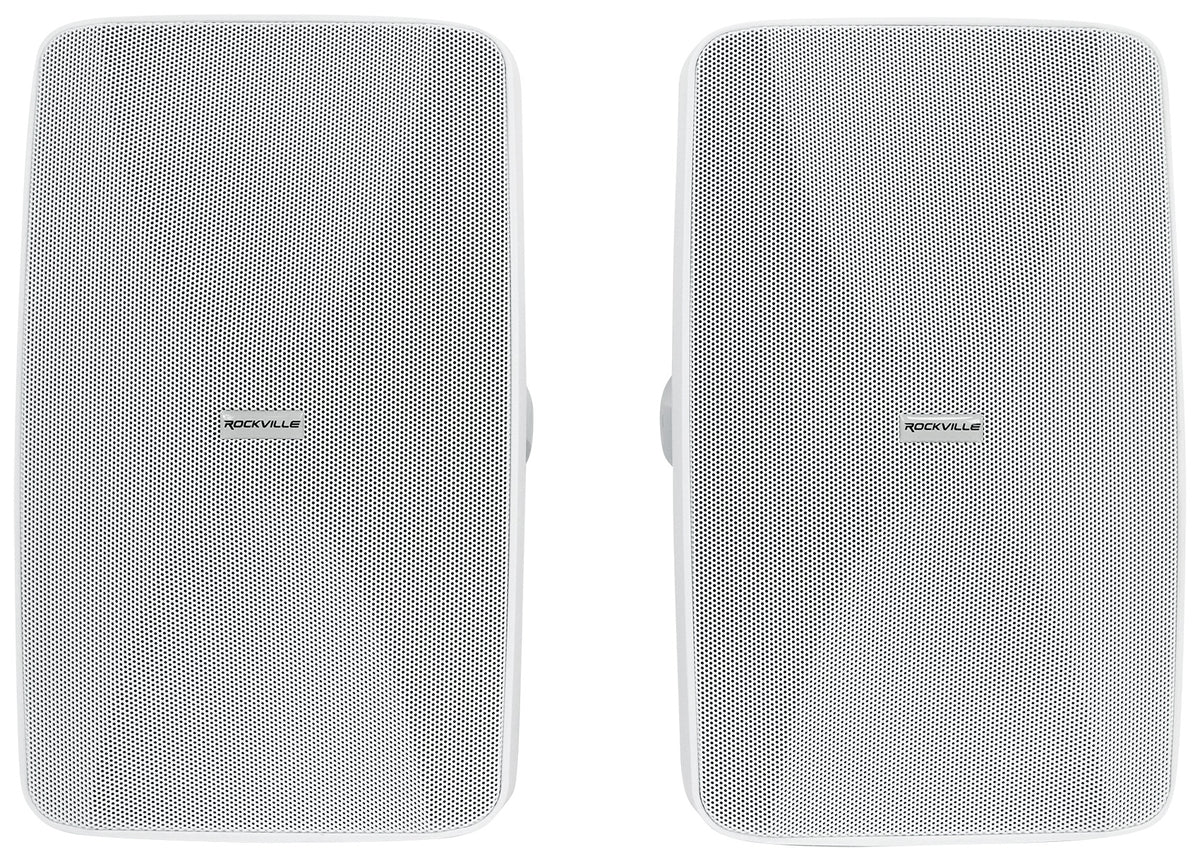

Each WET-6525W pairs a 6.5" polypropylene woofer with a 20mm PEI dome tweeter in a vented enclosure tuned for fuller bass and clear vocals. A tap switch on each speaker selects 30W, 15W, 7.5W, or 3.75W, so the bar side can run louder than a quiet corner, and two speakers at the 30W tap still leave headroom on the amplifier's 80W output. The 4-way swivel bracket tilts each speaker up, down, left, or right to point sound at the tables instead of the parking lot.

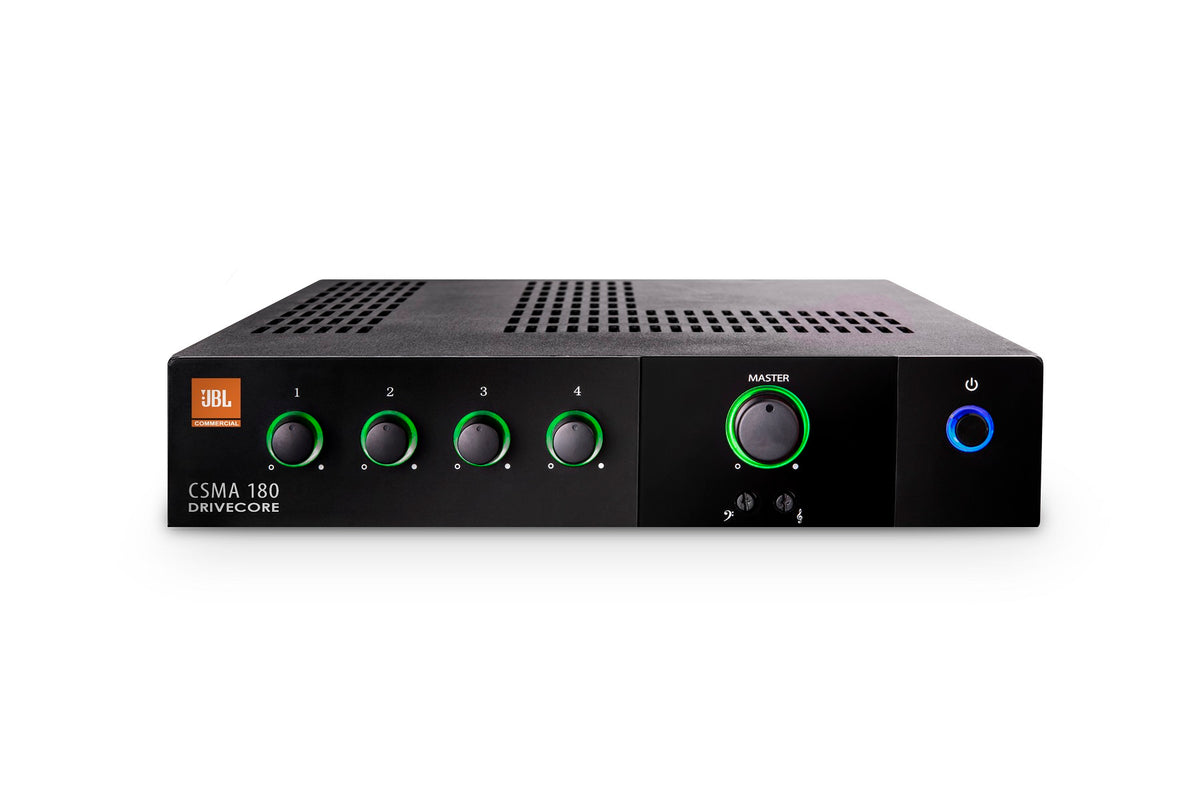

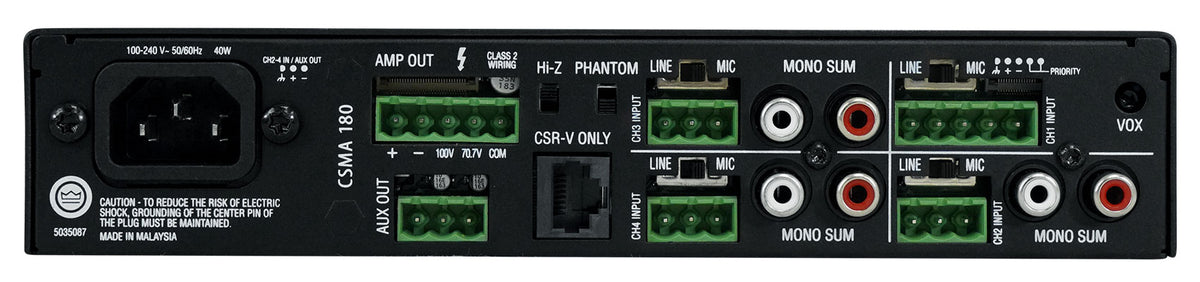

The CSMA180 takes up a single 1U rack space with the included rack mounting kit and runs without a fan, so it stays silent in a back office or closet. It connects straight to 70V or 100V lines with no separate transformer, accepts balanced mic/line and unbalanced RCA sources across four inputs, and uses priority muting to drop the music when someone makes an announcement. Illuminated volume rings, bass and treble controls, and RJ45 ports for JBL CSR-V in-wall volume controls keep daily adjustments simple for staff.
Included in the Bundle
-
CSMA180
The JBL CSMA 180 puts a four-channel mixer and an 80 W amplifier in a single 1U chassis, covering a full single-zone commercial system without a separate mixer.
Learn More: CSMA180 -
WET-6525W
The Rockville WET-6525W delivers powerful audio performance designed for both indoor and outdoor commercial installations. Built with IPX55 waterproof rating, these speakers withstand heavy rain, moisture, and dust while maintaining exceptional sound quality.
Learn More: WET-6525W
Features
Complete Cafe and Patio Sound
One amplifier and two matched 70V wall speakers cover a dining room, bar, or patio, so you skip the guesswork of pairing speakers with a commercial amplifier.
Clean White Finish
White cabinets and grilles blend into light walls and trim, keeping the speakers low-profile in bright dining rooms, coffee shops, and covered porches.
Ready for Outdoor Walls
IPX55-rated cabinets, rustproof aluminum grilles, and powder coated steel brackets that pass a 96-hour salt spray test hold up to rain, sun, dust, and moisture.
Volume Set Zone by Zone
Tap switches at 30W, 15W, 7.5W, and 3.75W let a bar-side speaker play louder than one by the tables, while two speakers at 30W leave amplifier headroom.
Quiet, Compact Rack Install
The CSMA180 uses a fanless 1U chassis with an included rack kit, and priority muting lowers the music automatically whenever staff make an announcement.
Technical Specifications
- Product Type Commercial Mixer Amplifier and 70V Indoor/Outdoor Wall Speaker Kit
- Amplifier Output 80W
- Amplifier Inputs 4, balanced mic/line Euro-block and unbalanced RCA
- Output Channels 1
- Distributed Audio 70V and 100V, no separate transformer required
- Load Impedance Stable from 2-16 ohms
- Amplifier Input Sensitivity 1.4 Vrms
- Amplifier Signal-to-Noise Ratio Greater than 100 dB, 1kHz, A-weighted
- Input Impedance Balanced 20k ohms, unbalanced 10k ohms
- Maximum Input +20 dBu typical
- Tone Controls Independent bass and treble
- Priority Muting Yes
- Remote Volume Control RJ45 for JBL CSR-V in-wall controls
- Amplifier Design Fanless, 1U rack-mount, rack mounting kit included
- Power Supply 100-240 VAC, 50/60 Hz
- Certification Energy Star
- Speaker Quantity 2 (1 pair)
- Speaker Type 6.5" 70V indoor/outdoor wall speaker
- Woofer 6.5" polypropylene cone
- Tweeter 20mm PEI dome
- Speaker Enclosure Vented, waterproof plastic
- Weather Rating IPX55
- Speaker Grille Aluminum, rustproof

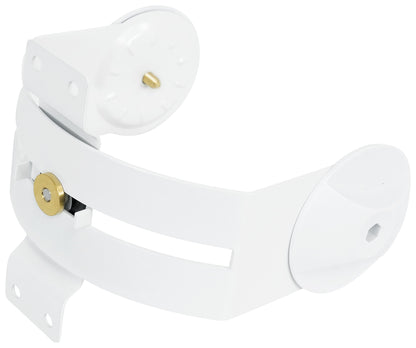

- Mounting 4-way swivel powder coated steel bracket, 96-hour salt spray tested
- 70V Taps 30W, 15W, 7.5W, 3.75W
- 8 Ohm Power Handling 40W RMS
- Speaker Impedance 8 ohms nominal
- Speaker Sensitivity 85 dB ±2 dB
- Speaker Frequency Response 55Hz-20kHz
- Speaker Terminals Waterproof, spring-loaded
- Speaker Color White
- Weight CSMA180: 9.9 lb (4.5 kg) shipping; WET-6525W: 6.94 lb (3.15 kg) each
- Dimensions CSMA180: 1.7 x 8.6 x 11.9 in (43.3 x 218.5 x 303.4 mm); WET-6525W: 12.21 x 7.4 x 7.3 in (310 x 188 x 186 mm)
