Cyber Pack
Elation
Cyber Pack
Cyber Pack
4-Channel Dimmer/Relay Power Pack, 600W Per Channel, 8 Edison Outlets, DMX And MIDI Control
Free Shipping
Features
- 4-channel dimmer and relay pack with 600W per channel, 2,400W total
- Eight 3-prong Edison sockets, two per channel, for four separate circuits
- Individual DMX address and output limiter on every channel
- 16 internal chase programs with adjustable fade in and fade out times
- MIDI In and Through ports receive notes 001-128 for music-synced cues
Couldn't load pickup availability
What's Included in the box
- Elation Professional CyberPak Dimmer Power Pack
SKU: SKU: CYBER PACK
View full details




Product Description
Three operating modes cover most control setups. Dimmer mode runs 1, 2, or 4 channels, each with its own DMX address and output limiter, so you can set levels precisely from any DMX console. Relay mode switches those same channels fully on or off for fixtures that should not be dimmed, such as fog machines and LED washes. Chase mode runs 16 internal chase programs with adjustable fade in and fade out times, which covers you when there is no console on the gig.
MIDI In and MIDI Through ports receive notes 001-128, so a keyboard, pad controller, or DAW can fire lighting changes in time with the music. 3-pin XLR in and out let you drop the pack into an existing DMX line, and a 4-button LED display panel shows the active program and address at a glance.
DMX fail settings decide what the channels do if signal drops mid-show: hold the last look, go off, or go on. Power failure memory returns the pack to its previous state once power comes back. At 8.0 lb and 10.4 inches wide, it fits under a stage deck, on a truss, or in a road case.

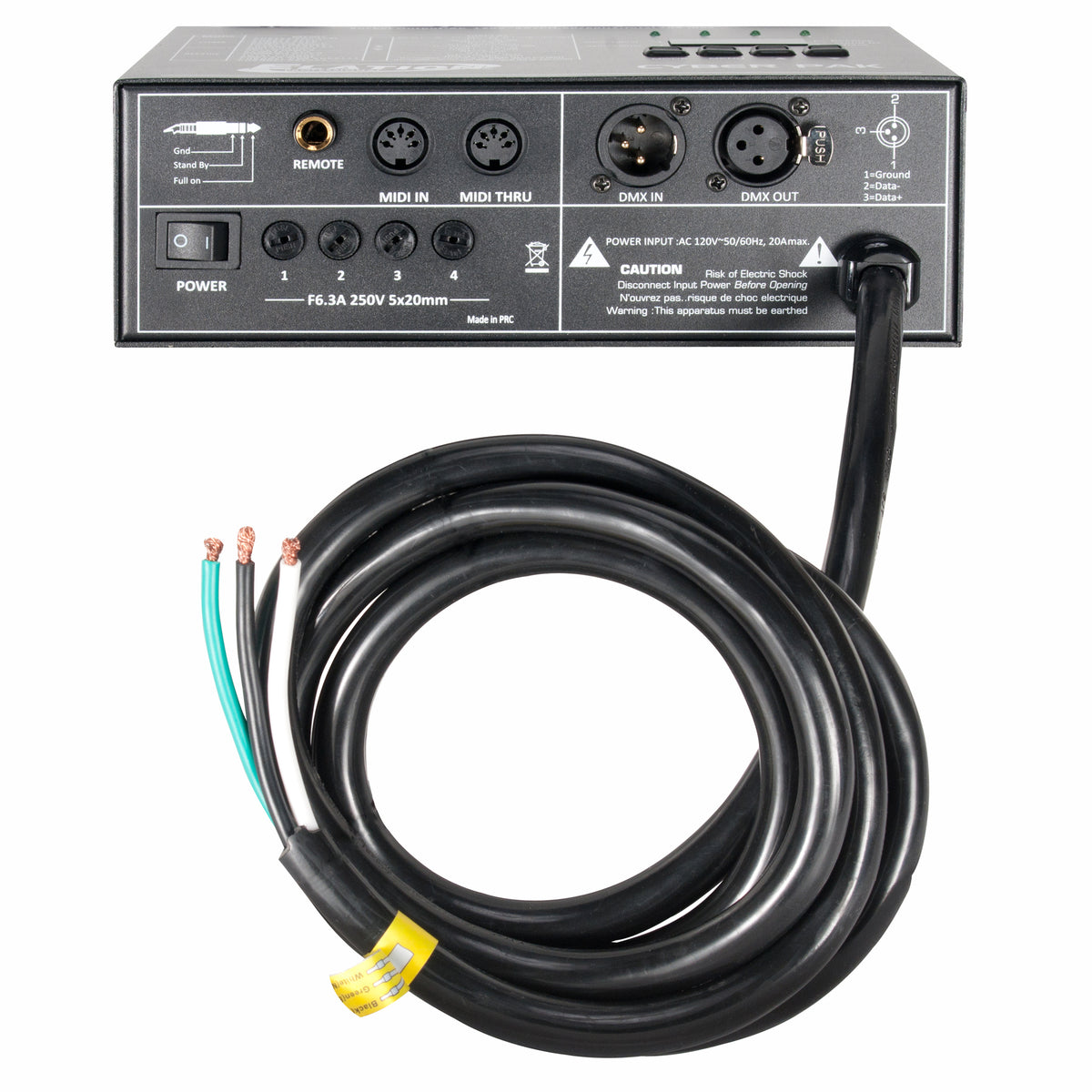

Note: the main power cord is bare wire and a 3-prong connector is not included.
Features
-
Four Circuits From One Box
Eight 3-prong Edison sockets split across four channels handle 600W each, powering par cans, floods, and practicals from a single 2,400W pack.
-
Dim Or Switch, Your Call
Each channel works as a dimmer with an output limiter or as an on/off relay, so fog machines and LED fixtures stay off the dimmer curve.
-
Runs Without A Console
16 internal chase programs with adjustable fade times give you a working light show straight from the front panel at mobile gigs and small rooms.
-
Trigger Cues From Your Instrument
MIDI In and Through ports accept notes 001 through 128, letting a keyboard, pad controller, or DAW fire lighting changes in time with the music.
-
Show Protection Built In
DMX fail settings hold, kill, or force channels on when signal drops, and power failure memory restores the previous state after an outage.
Technical Specifications
- Product Type 4-Channel Dimmer/Relay/MIDI Power Pack
- Channels 4 (1, 2, or 4 channel operation)
- Dimmer Mode Individual channel assignment and output limiter
- Relay Mode 4-channel, individual channel assignment
- Chase Controller 4-channel, 16 internal chase programs, adjustable fade times
- MIDI Receives notes 001-128

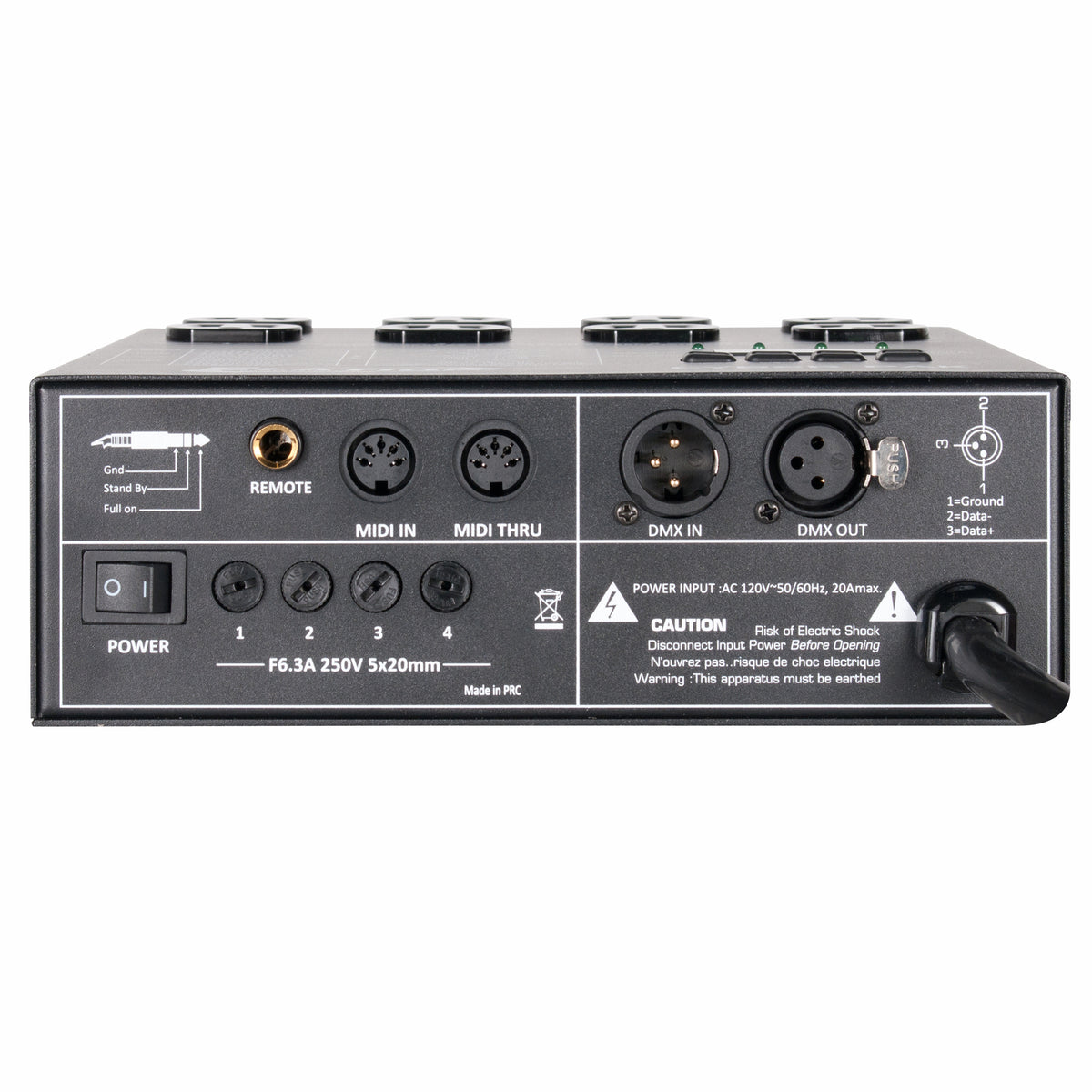

- MIDI Ports 5-pin MIDI In and MIDI Through
- DMX Ports 3-pin XLR In and Out
- DMX Fail Settings Hold / Off / On
- Power Failure Memory Yes

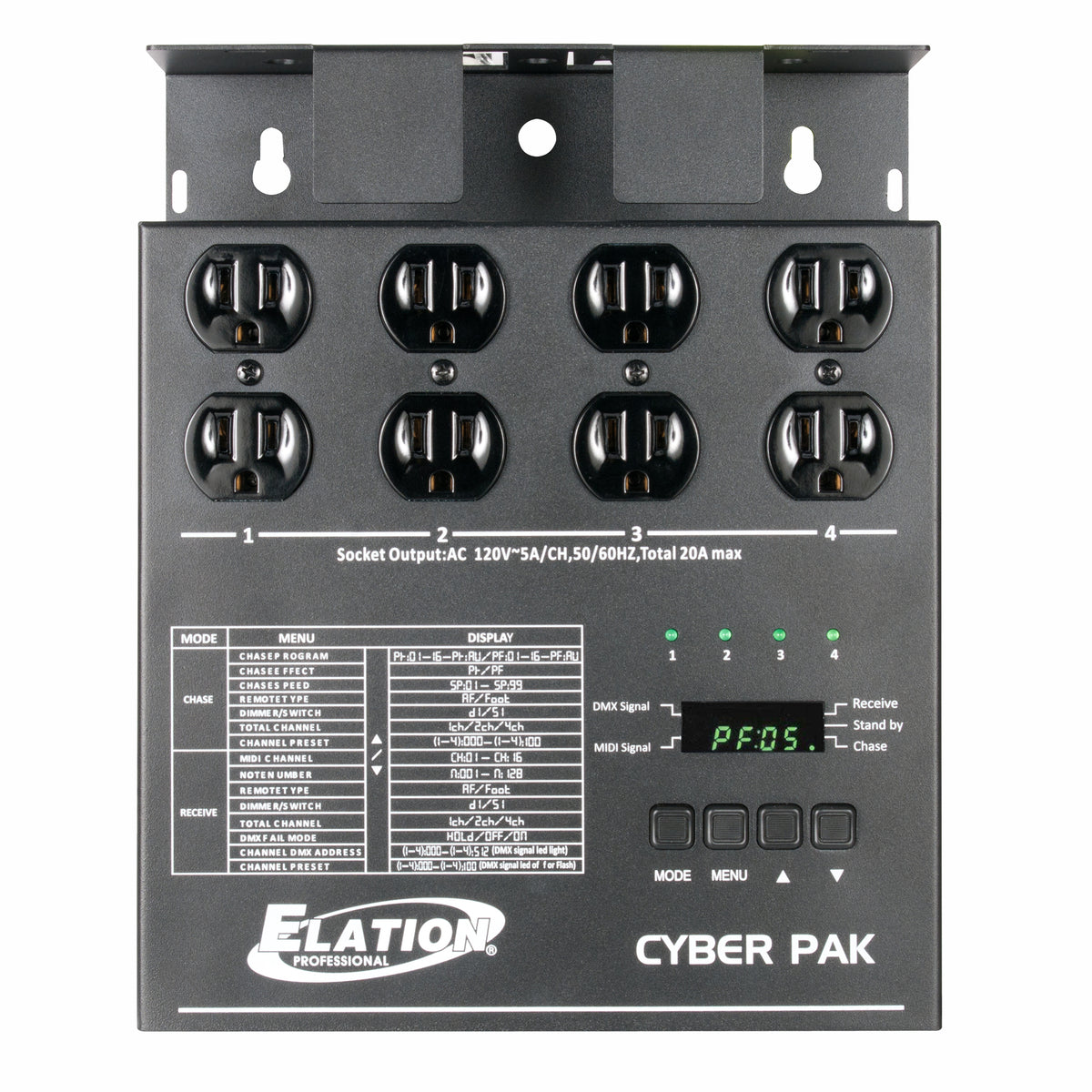

- Outlets Two 3-prong Edison sockets per channel (8 total)
- Control Panel 4-button LED display
- Power Switch Front-panel, all channels
- Power Input AC 120V 50/60Hz, 20A max
- Max Power Consumption 2,400W (600W per channel)
- Note Main power cord is bare wire; 3-prong connector not included
- Weight 8.0 lb (3.6 kg)
- Dimensions 10.4" W x 8.3" L x 3.0" H (265 x 212 x 75 mm)
