JBL

EON718S

EON718S

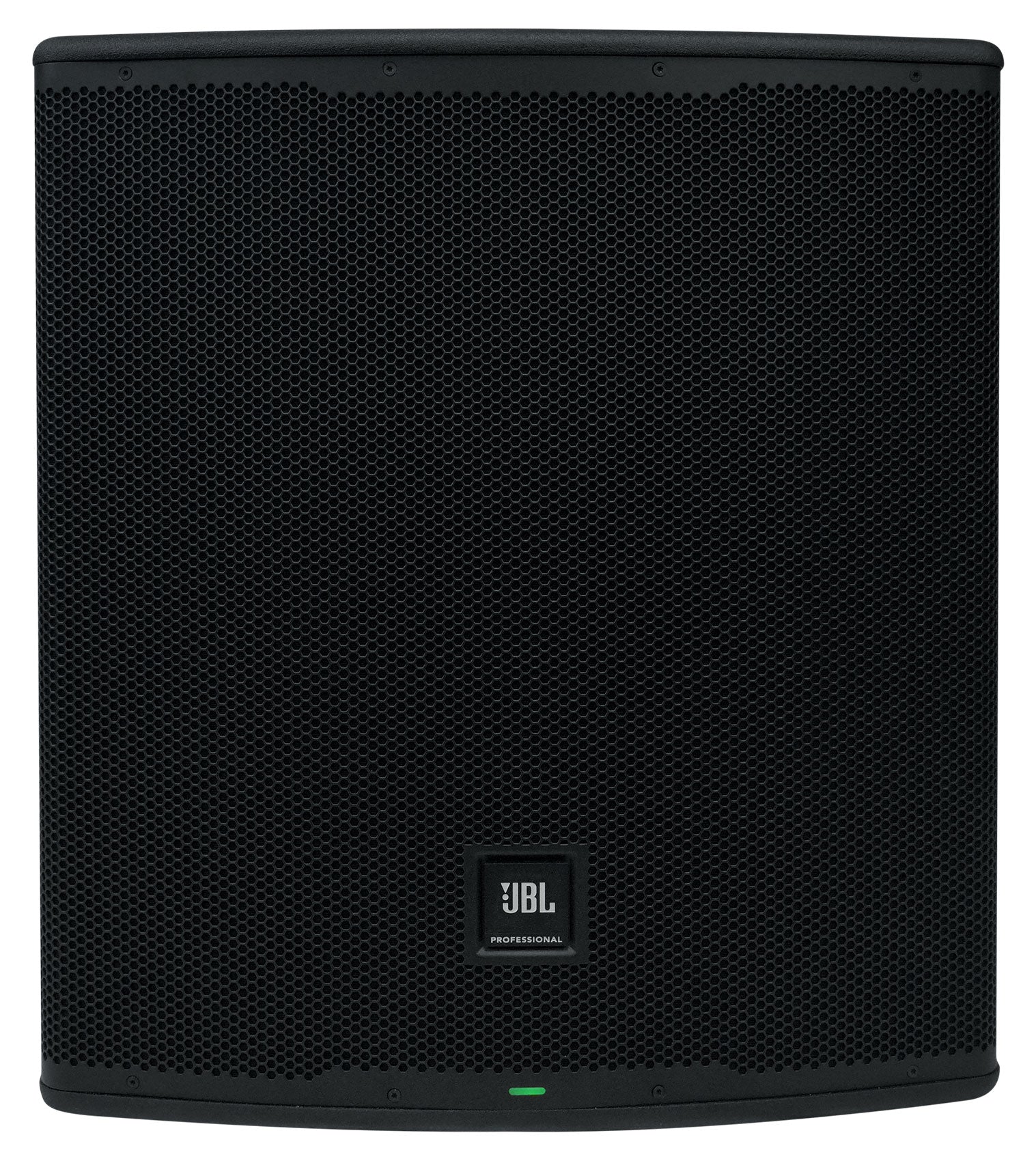

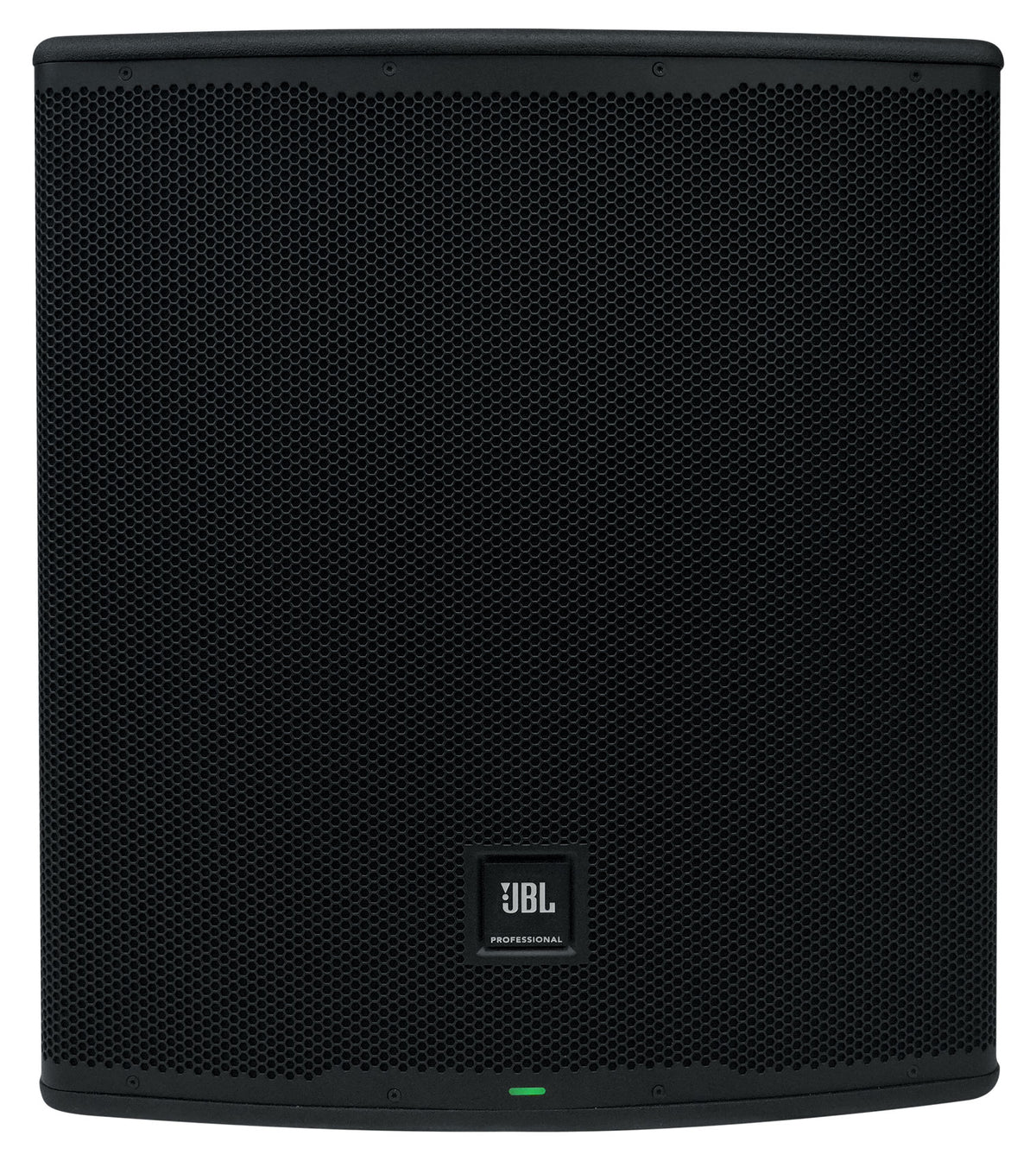

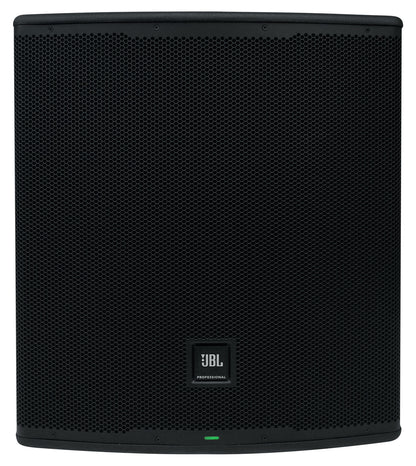

18" Powered Subwoofer, 1,500W Peak, 31 Hz Extension, 2-Channel Mixer, Birch Cabinet, Pole Mount
$1,099.00
$1,099.00 $1,750.02
Save 37%
Shipping calculated at checkout.
Features
    • 1,500W peak amplification delivers 131 dB max SPL
    • Custom 18" woofer with 3" voice coil reaches down to 31 Hz
    • Selectable 80, 100 and 120 Hz crossover points
    • Two XLR combo inputs and two XLR loop-outs feed your tops
    • M20 threaded pole cup mounts a full-range speaker above the sub
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • EON718S Powered Subwoofer

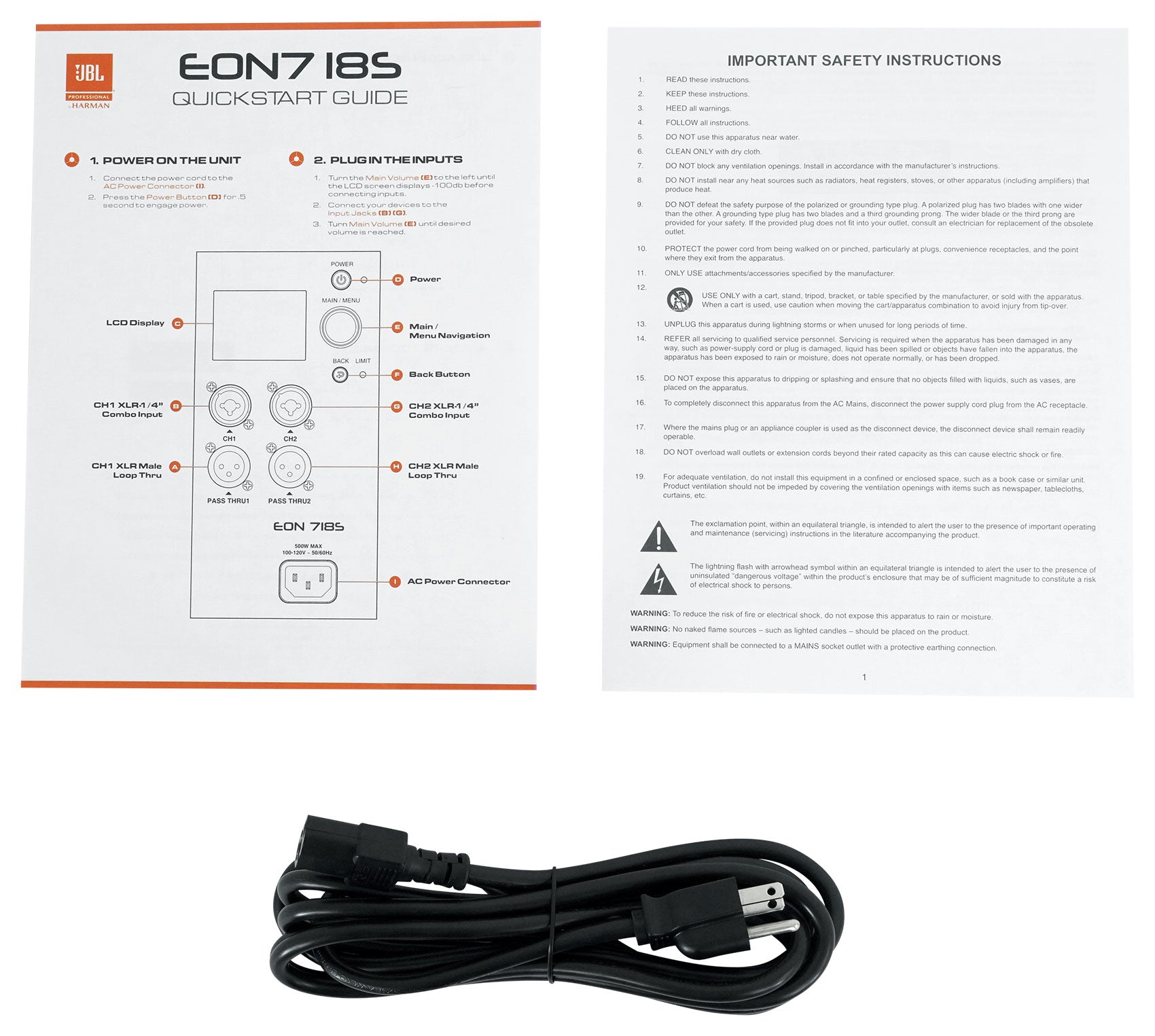

    • IEC Power Cable

SKU: EON718S

View full details

Product Description

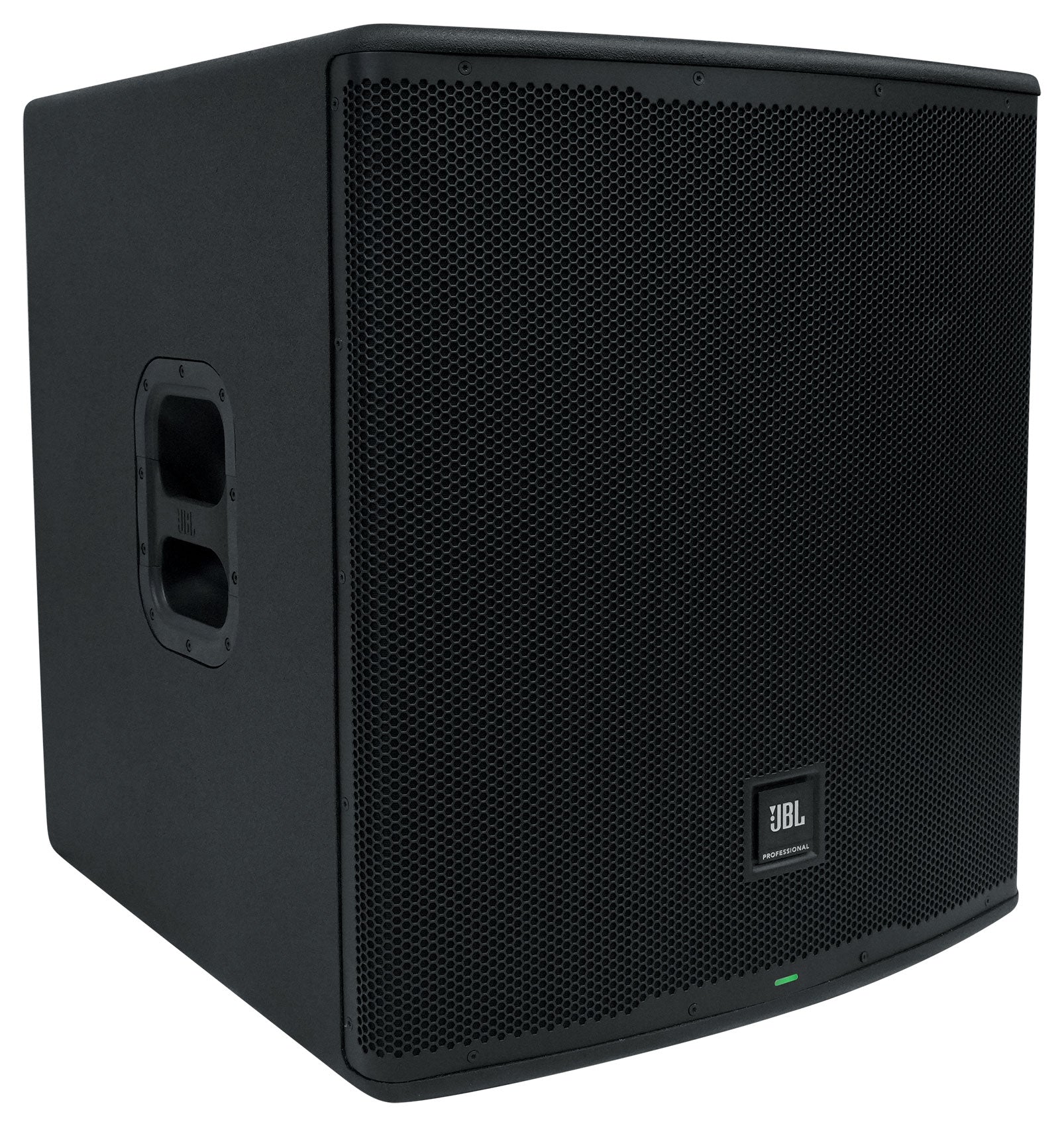

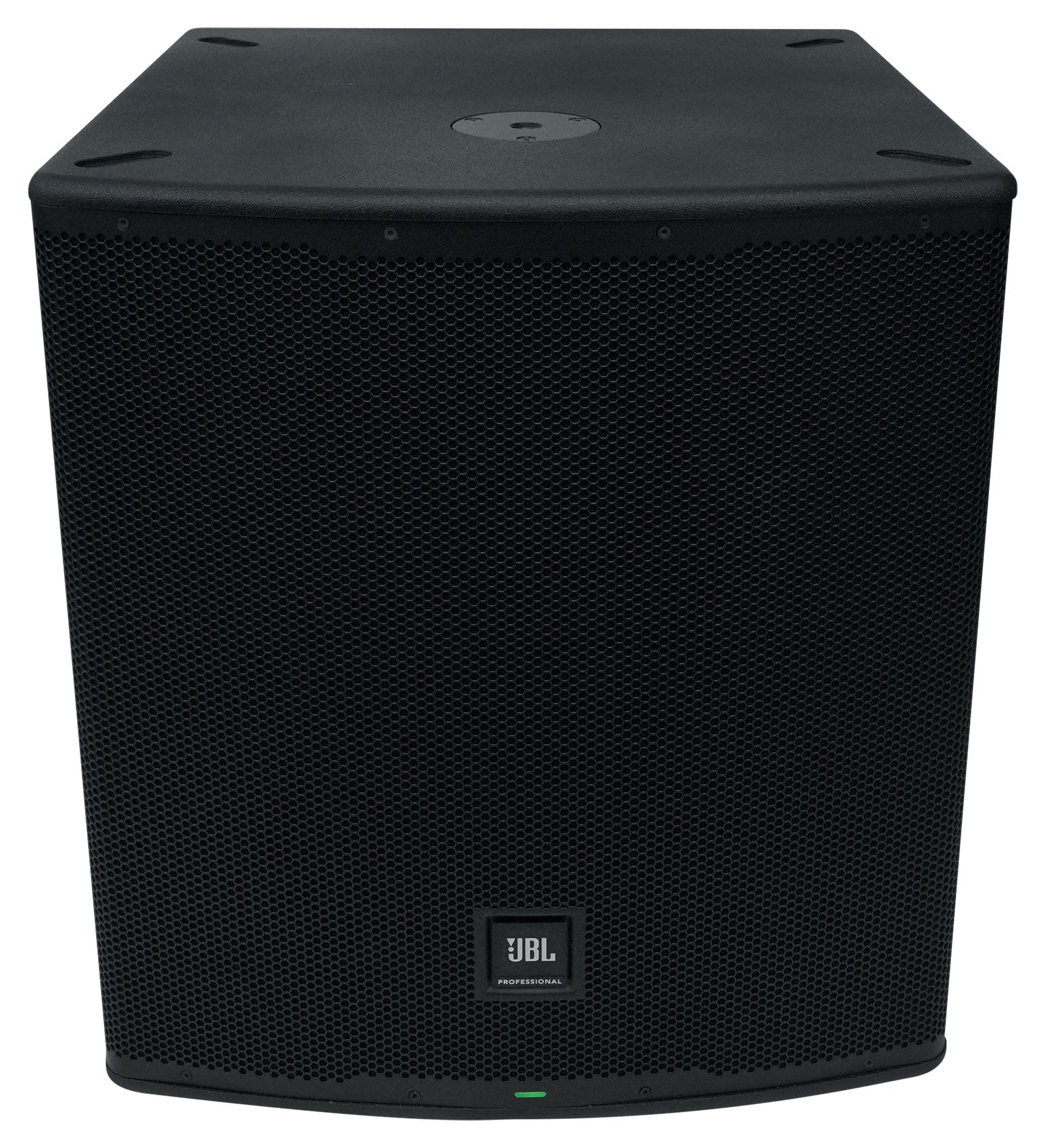

The JBL EON718S is a self-powered 18-inch subwoofer that extends a portable PA down to 31 Hz. A custom 718G woofer with a 3-inch voice coil runs on 1,500W peak amplification and produces 131 dB max SPL, giving DJ sets, playback tracks and live bands the low end that full-range tops cannot reach on their own.

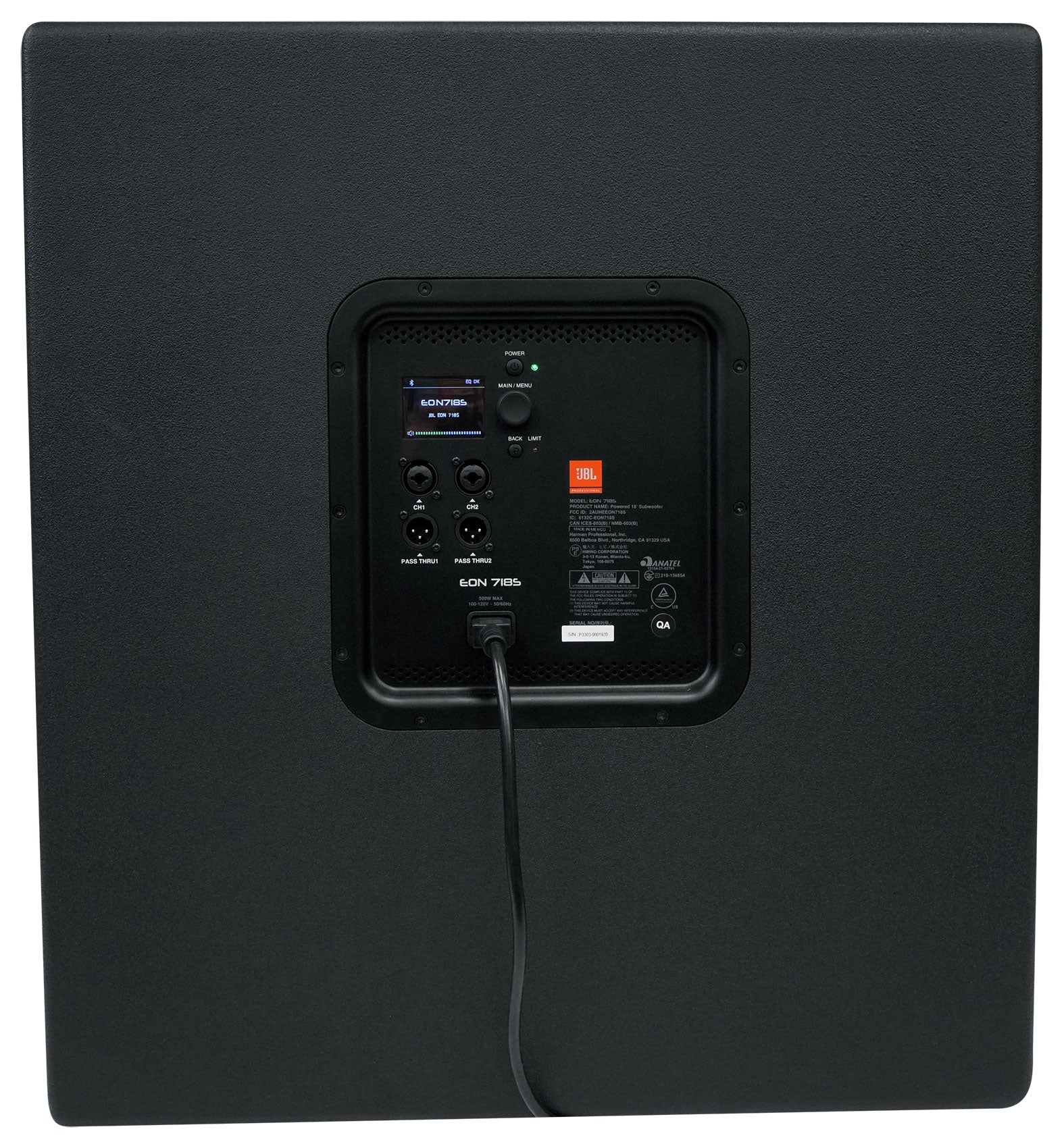

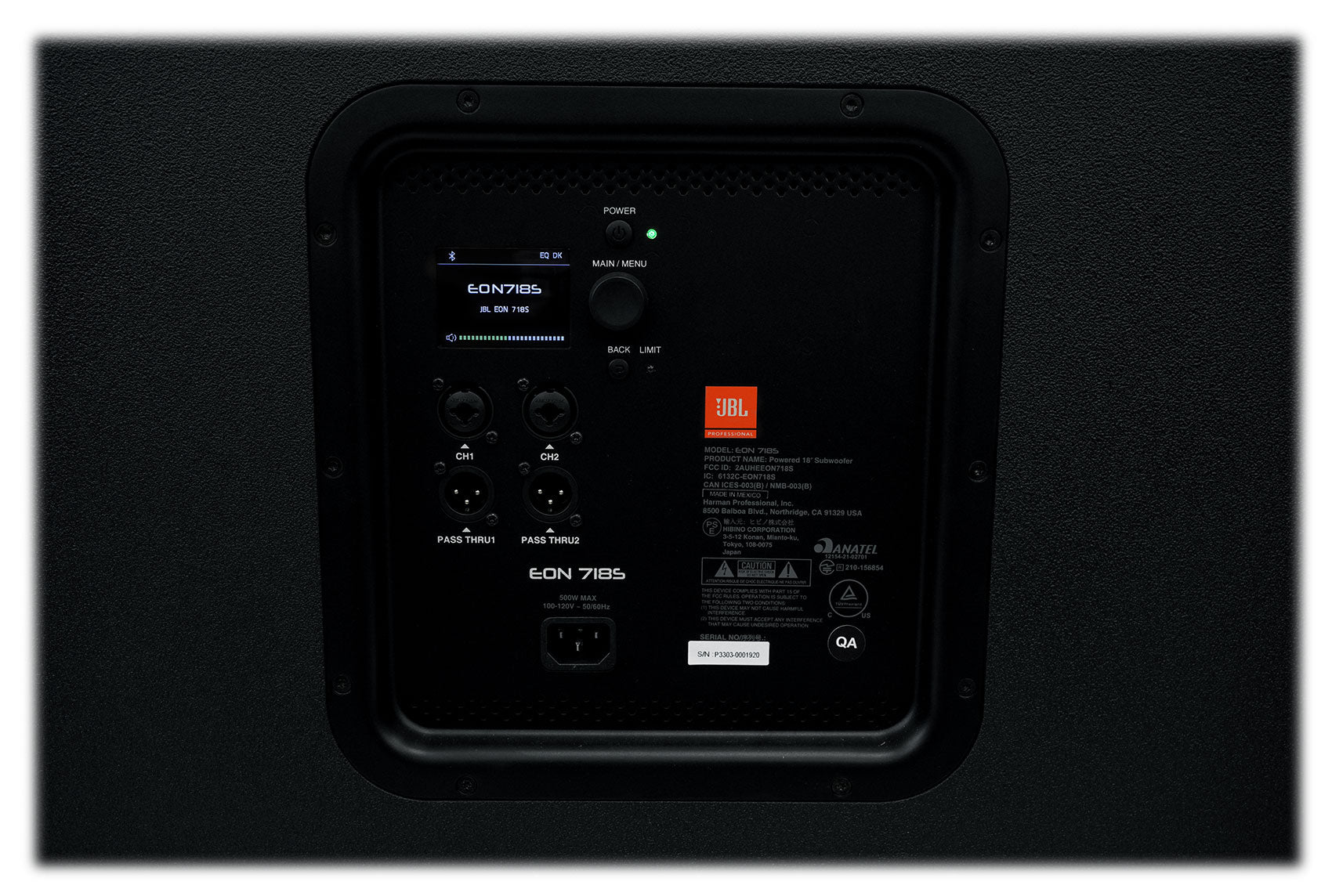

The back panel carries a 2-channel digital mixer with two XLR combo inputs and two XLR loop-outs to feed your tops. Selectable 80, 100 and 120 Hz crossover points set the handoff to the full-range cabinets, and the dbx DSP package adds parametric EQ, polarity inversion and speaker delay. Settings are reachable from the backlit color LCD or the JBL Pro Connect app.

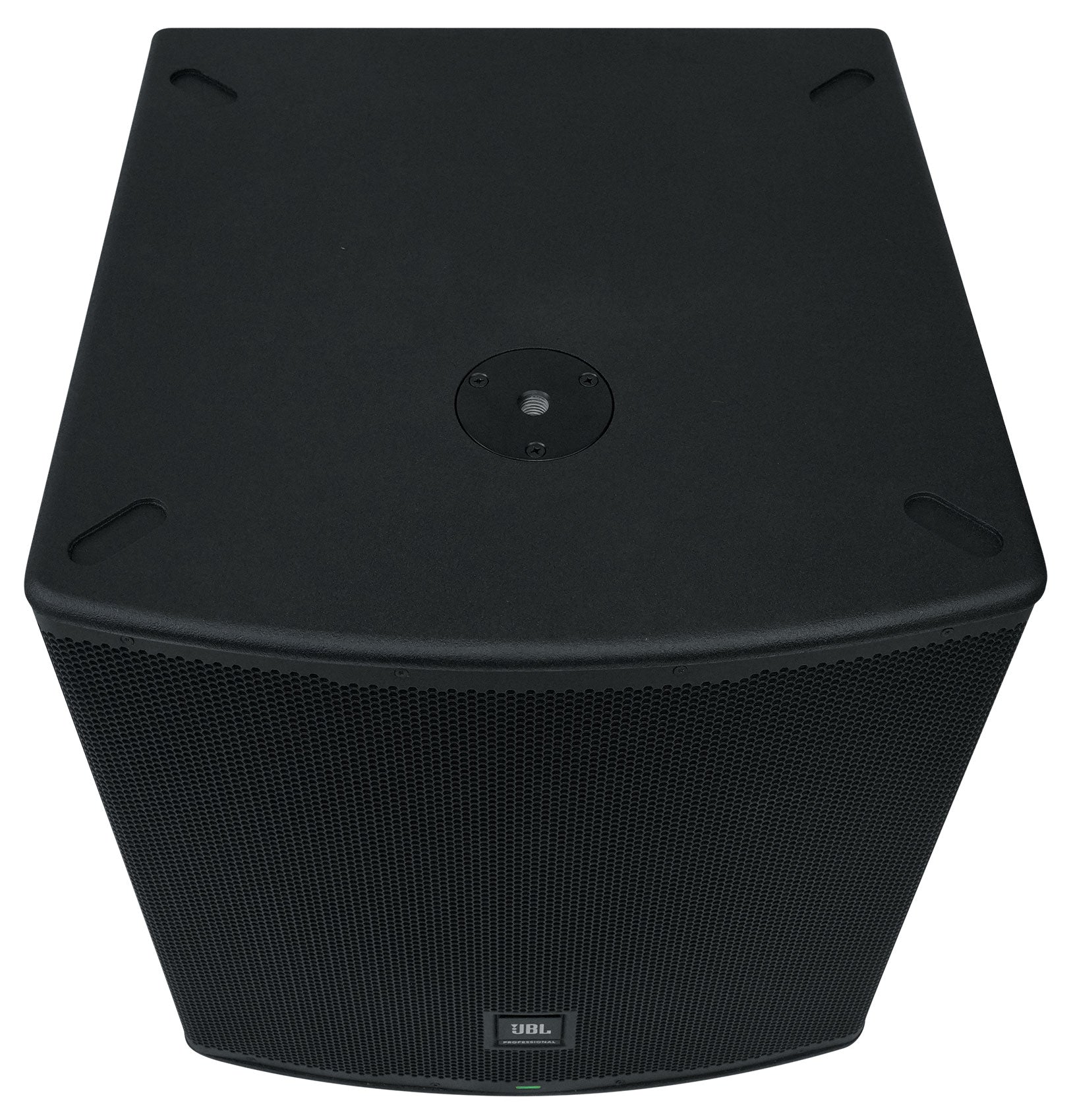

An M20 threaded pole cup on top mounts a full-range speaker directly above the sub, and cabinets stack for cardioid arrays that push bass forward and reduce it on stage. That makes it straightforward to scale from one sub for a small room to a pair or more for larger events.

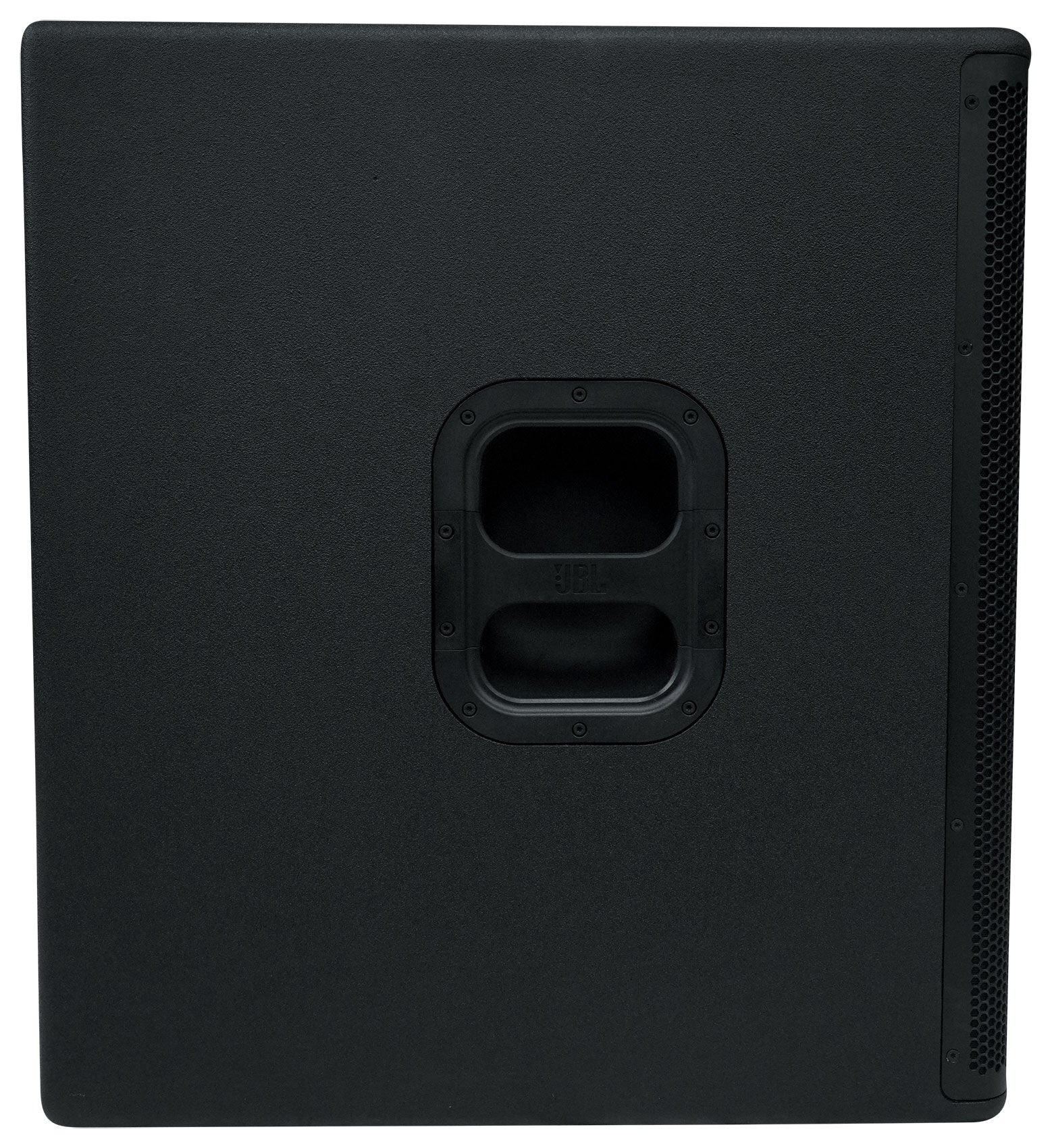

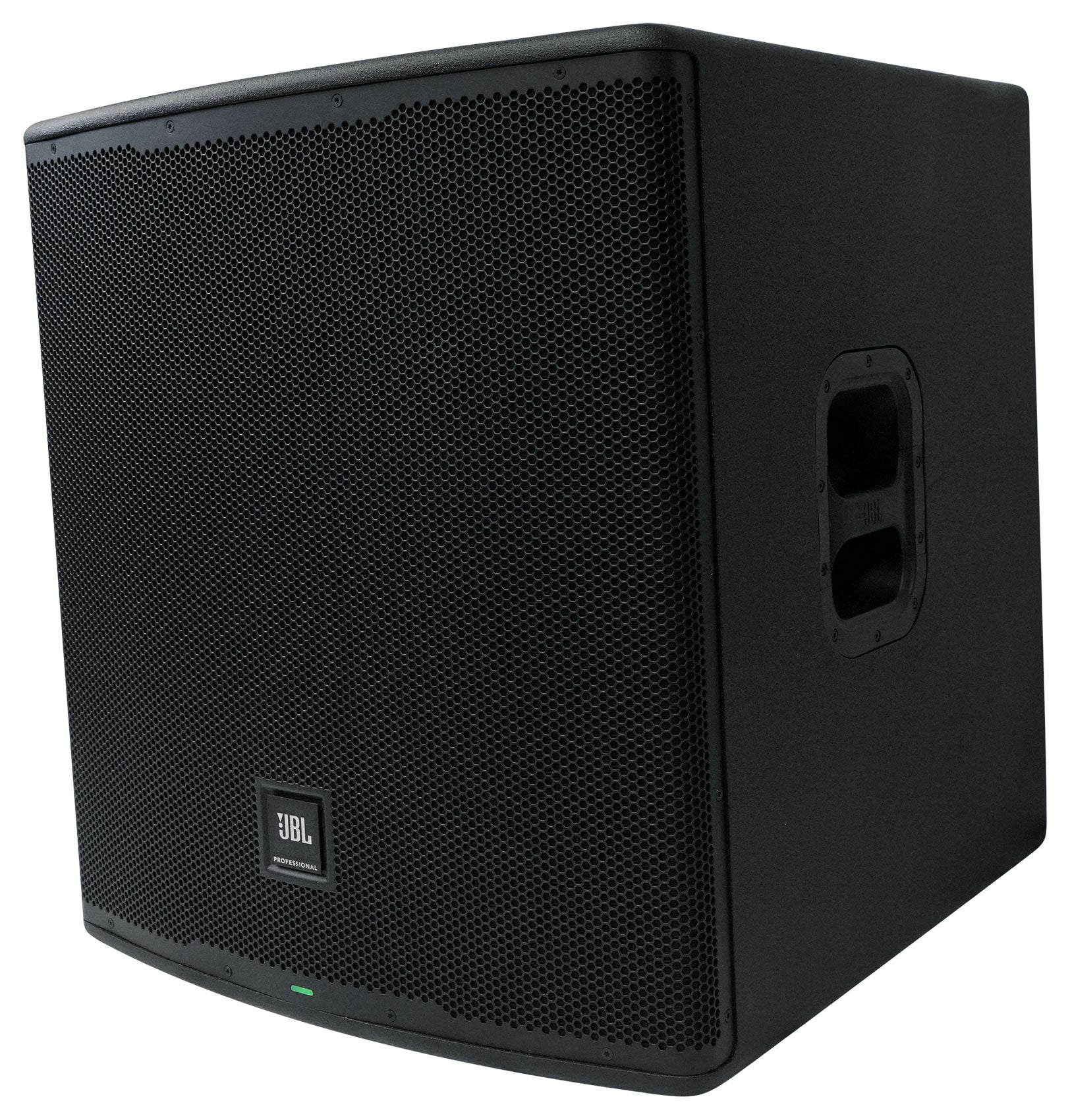

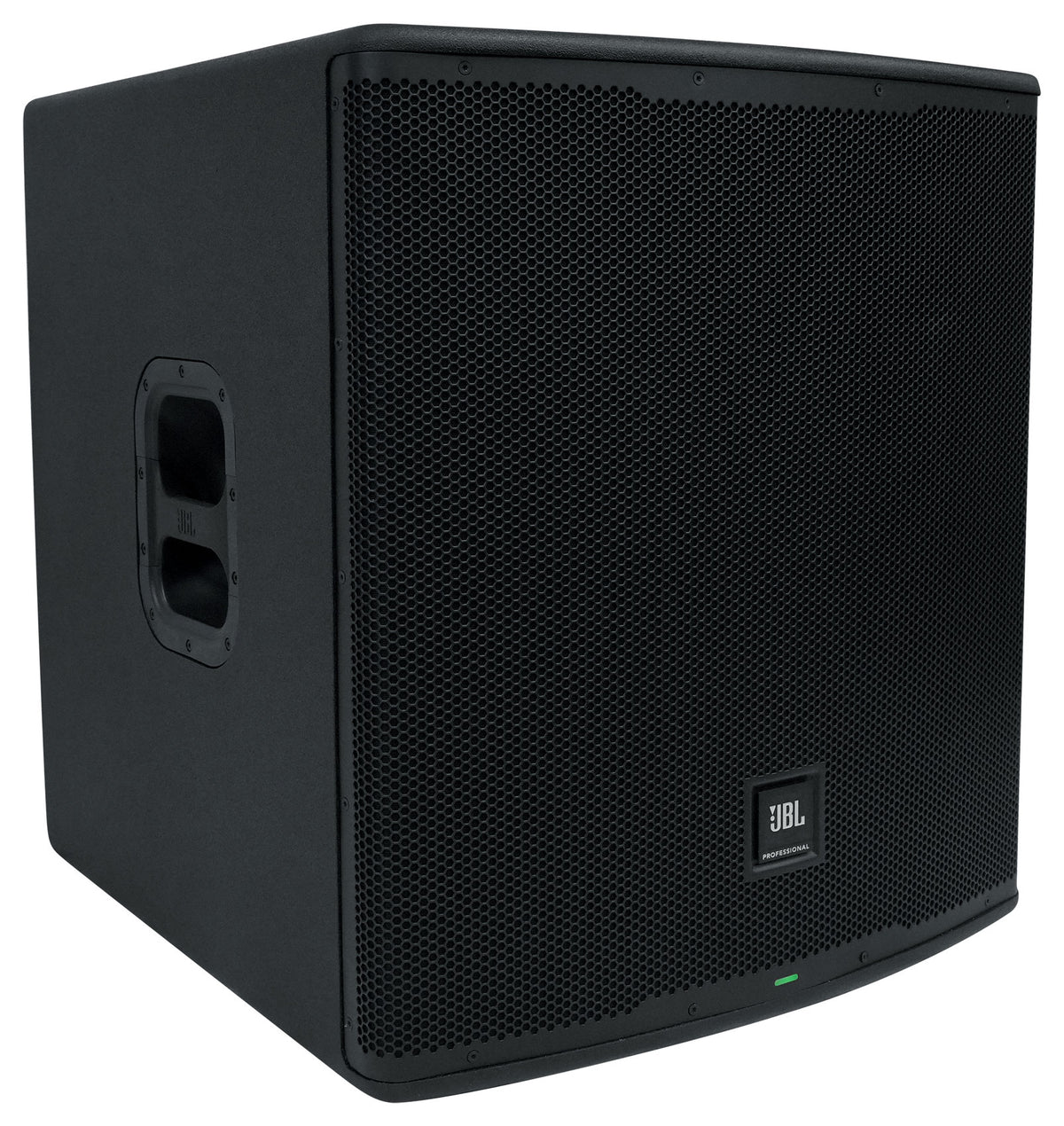

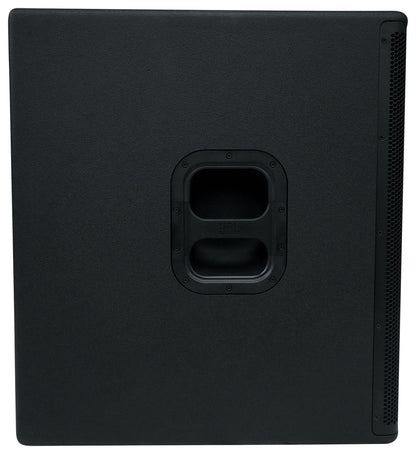

The enclosure is 18 mm birch plywood with a DuraFlex finish, a 16-gauge perforated steel grille and two ergonomic handles, weighing 81.5 lb. Every unit clears JBL 100-hour power testing.

Features

    • Low End Down To 31 Hz

      A custom 18-inch woofer and 1,500W peak amplification produce 131 dB max SPL, adding the bottom octave that full-range tops cannot cover alone.

    • Crossover Points You Choose

      Selectable 80, 100 and 120 Hz crossovers set the handoff to your tops, so the sub matches an 8-inch, 12-inch or 15-inch full-range cabinet.

    • Wire The Whole Rig Through It

      Two XLR combo inputs and two XLR loop-outs pass signal to your full-range speakers, keeping the system to one set of cables.

    • Build Up As Rooms Get Bigger

      An M20 threaded pole cup stacks a top directly above the sub, and multiple cabinets stack for cardioid arrays that keep bass off the stage.

    • Birch Cabinet Built For The Road

      An 18 mm DuraFlex-coated birch plywood enclosure, steel grille and two ergonomic handles hold up to repeated load-ins at 81.5 lb.

Technical Specifications

  • Product Type 18" Powered Subwoofer
  • Woofer 18" 718G, Ferrite Magnet, 3" Voice Coil
  • Power Rating 1,500W Peak / 750W RMS / 170W Continuous
  • Max SPL 131 dB @ 1m
  • Frequency Range (-10 dB) 31 Hz - 150 Hz
  • Frequency Range (-3 dB) 40 Hz - 120 Hz
  • Crossover Frequency 80, 100 or 120 Hz Selectable
