Fender

Quantum HD 8

Quantum HD 8

26x30 USB-C Audio Interface, 32-Bit/192 kHz, MAX-HD Preamps, 16 ADAT Channels, S/PDIF, Studio Pro License

Free Shipping

$999.99
$999.99 $1,499.99
Save 33%
Shipping calculated at checkout.
Features
    • 26 x 30 USB-C interface with 32-bit / 192 kHz converters for full-band sessions
    • MAX-HD mic preamps with +75 dB gain for transparent recordings
    • 16 ADAT channels, S/PDIF, and standalone ADAT preamp mode
    • Front-facing instrument inputs and re-amp outputs for guitar and bass
    • DSP monitor mixer builds separate low-latency headphone mixes
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

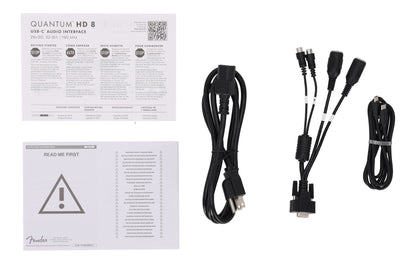

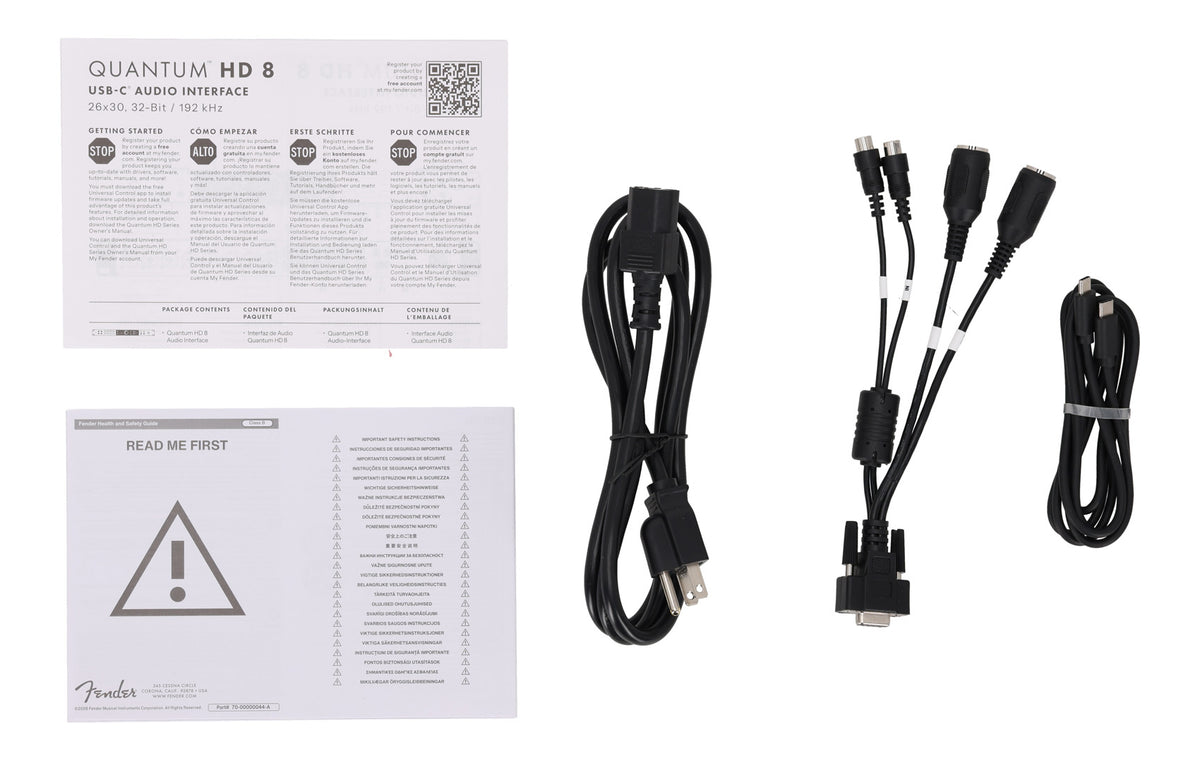

    • Fender Quantum HD 8 26 x 30 USB-C Audio Interface
    • Fender Studio Pro Perpetual License

SKU: Quantum HD 8

View full details

Product Description

The Fender Quantum HD 8 is a 26-in / 30-out USB-C recording interface built for full-band sessions and multi-microphone workflows. MAX-HD preamps deliver +75 dB of gain for transparent recordings from any microphone, and 32-bit / 192 kHz converters capture a wide dynamic range without squashing the loud parts or losing the quiet ones.

Channel count is the point here. Sixteen ADAT channels, additional TRS outputs, and S/PDIF connectivity let you mic a full drum kit, run several vocalists, and feed multiple monitor pairs from one interface. ADAT preamp standalone mode also lets the HD 8 serve as a preamp bank inside a larger rig.

Front-facing Fender instrument inputs take guitar and bass directly with natural tone, while Auto Gain sets levels quickly across sources so tracking starts sooner. Re-amp outputs push recorded DI tracks back through amps and pedals, keeping tone decisions open until the mix.

The DSP monitor mixer creates independent low-latency headphone mixes for each performer, and loopback routing covers streaming, podcasting, and multi-app recording. Preamp gain, phantom power, and signal routing adjust from the Universal Control app or Fender Studio Pro on desktop, tablet, or phone, so settings change from the live room rather than the control desk. A Fender Studio Pro perpetual license is included.

At 19" deep and 6.3 lb, the HD 8 fits a rack-based project studio, a rehearsal space recording rig, or a location setup capturing live performances.

Features

    • Track The Whole Band At Once

      26 inputs and 30 outputs cover a full drum kit, multiple vocalists, and several monitor pairs in a single session without a second interface.

    • Transparent Capture At Any Level

      MAX-HD preamps with +75 dB gain and 32-bit / 192 kHz converters record quiet acoustic detail and loud sources cleanly across a wide dynamic range.

    • Expansion Built In

      16 ADAT channels, S/PDIF, and ADAT preamp standalone mode let the interface grow with the studio or act as a preamp bank in a larger rig.

    • Guitar And Bass Workflows

      Front-facing Fender instrument inputs keep tone natural, and re-amp outputs send recorded DI tracks back through amps and pedals during the mix.

    • Individual Headphone Mixes

      The DSP monitor mixer builds separate low-latency mixes per performer, so each player hears what they need while loopback handles streaming and podcasting.

Technical Specifications

  • Product Type USB-C Audio Interface
  • Channels 26 x 30
  • Bit Depth / Sample Rate 32-bit / 192 kHz
  • Mic Preamps MAX-HD with +75 dB gain
  • Instrument Inputs Front-facing, Fender-designed, for guitar and bass
  • Digital I/O 16 ADAT channels, S/PDIF, ADAT preamp standalone mode
  • Analog Outputs Additional TRS outputs
