ZD-1350.1D [Open Box]
1
/
of
5
HIFONICS

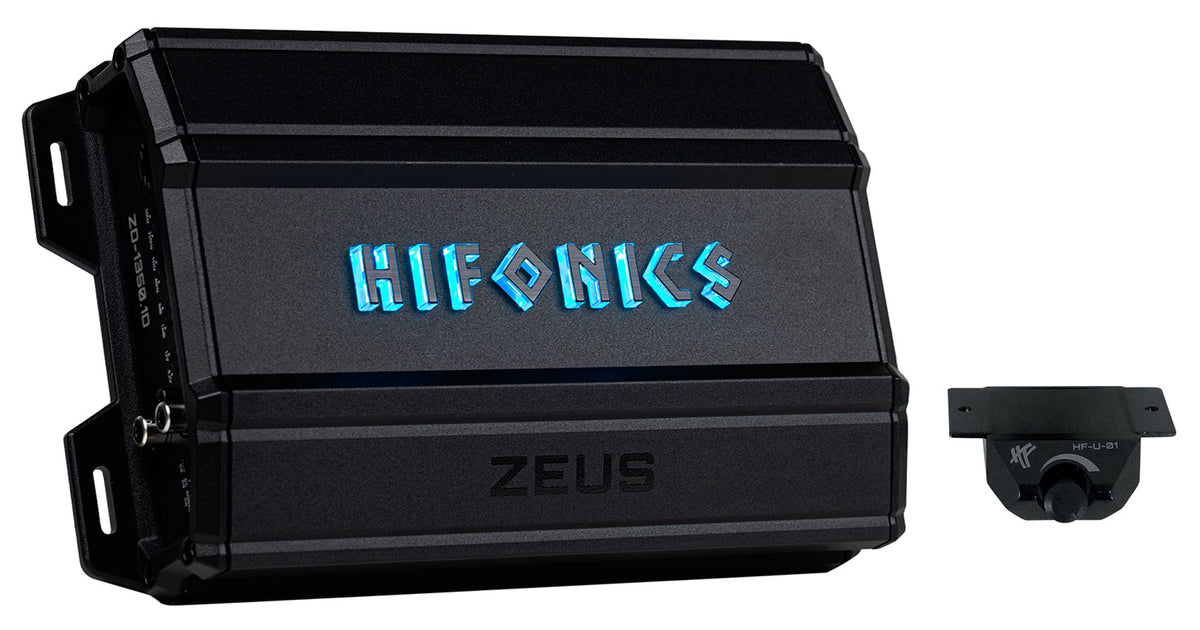

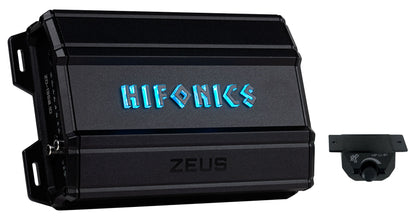

ZD-1350.1D [Open Box]
ZD-1350.1D [Open Box]
1350W Mono Class D Car Amplifier, 1 Ohm Stable, With Bass Remote
Free Shipping
Regular price
$124.95
Sale price
$124.95
Regular price
$199.99
Unit price
/
per
Save 37%
Shipping calculated at checkout.
Features
- PWM MOSFET power supply holds current steady under load
- Pushes 1350W at 1 ohm, 675W at 2 ohms, 350W at 4 ohms
- Adjustable low pass and subsonic filter tune output to the sub
- Bass remote included for on-the-fly boost adjustment
- DC signal sense turns the amp on without a separate remote wire
Couldn't load pickup availability
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

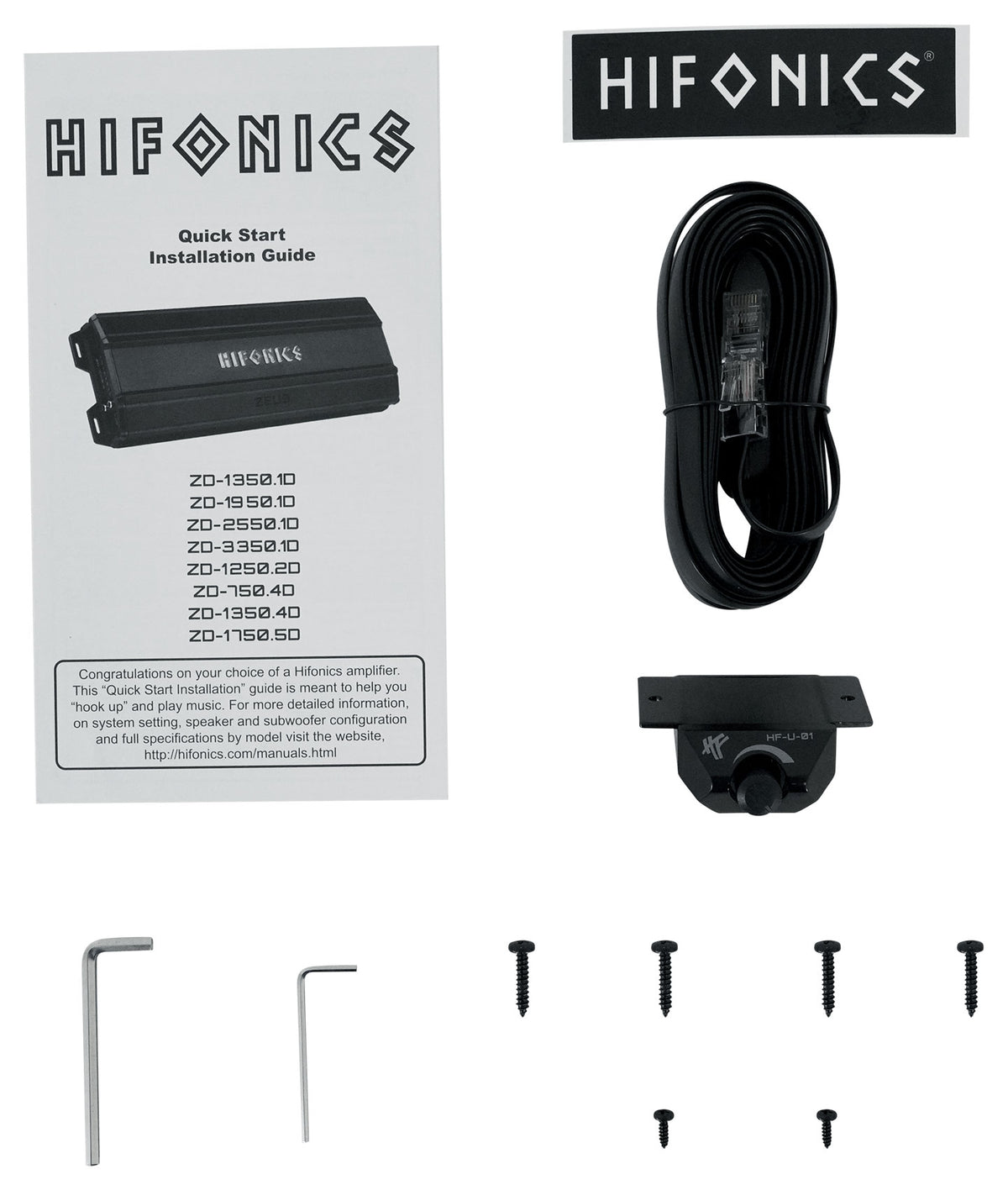

What's Included in the box
- Hifonics ZD-1350.1D 1350W Mono Class D Amplifier
- Bass Remote Control
SKU: SKU: ZD-1350.1D*
View full details![ZD-1350.1D [Open Box]](http://audiosavings.com/cdn/shop/files/2819761.jpg?v=1754347033&width=1445)
![ZD-1350.1D [Open Box]](http://audiosavings.com/cdn/shop/files/2819760.jpg?v=1754347033&width=1445)
![ZD-1350.1D [Open Box]](http://audiosavings.com/cdn/shop/files/2819759.jpg?v=1754347033&width=1445)
![ZD-1350.1D [Open Box]](http://audiosavings.com/cdn/shop/files/2819758.jpg?v=1754347033&width=1445)
![ZD-1350.1D [Open Box]](http://audiosavings.com/cdn/shop/files/2819757.jpg?v=1754347033&width=1445)
Product Description
The Hifonics Zeus Delta ZD-1350.1D is a mono Class D amplifier built around a PWM MOSFET power supply that keeps current levels high and steady even as the subwoofer load pulls hard during bass-heavy passages. It pushes 1350 watts at 1 ohm, 675 watts at 2 ohms, or 350 watts at 4 ohms, giving you flexibility in how the subwoofer or subwoofers are wired without changing amplifiers. An onboard electronic crossover with a low pass adjustable from 50Hz to 250Hz lets you tailor the output to the subwoofer instead of running full range, and a subsonic filter from 15Hz to 40Hz cuts frequencies below what the subwoofer can reproduce, protecting the cone from over-excursion. The built-in bass control adds up to 12dB of boost, adjustable from the included remote, so you can dial in more low end from the driver's seat without reaching for the amplifier. A DC signal sense feature lets the amp turn on automatically when it detects a signal on the RCA inputs, removing the need for a separate remote turn-on wire in installs where that wire isn't easily accessible. Nickel-plated RCA inputs resist corrosion, and an aluminum heat sink dissipates heat generated during extended high-power playback. Secure molded connection terminals keep power, ground, and speaker wiring organized and angled for easier access once the amp is mounted.
Features
Steady Power Under Load
A PWM MOSFET power supply keeps current levels stable even as the subwoofer load pulls hard during bass-heavy passages.
1350W At 1 Ohm
The mono amplifier pushes 1350W at 1 ohm, 675W at 2 ohms, or 350W at 4 ohms depending on how it's wired.

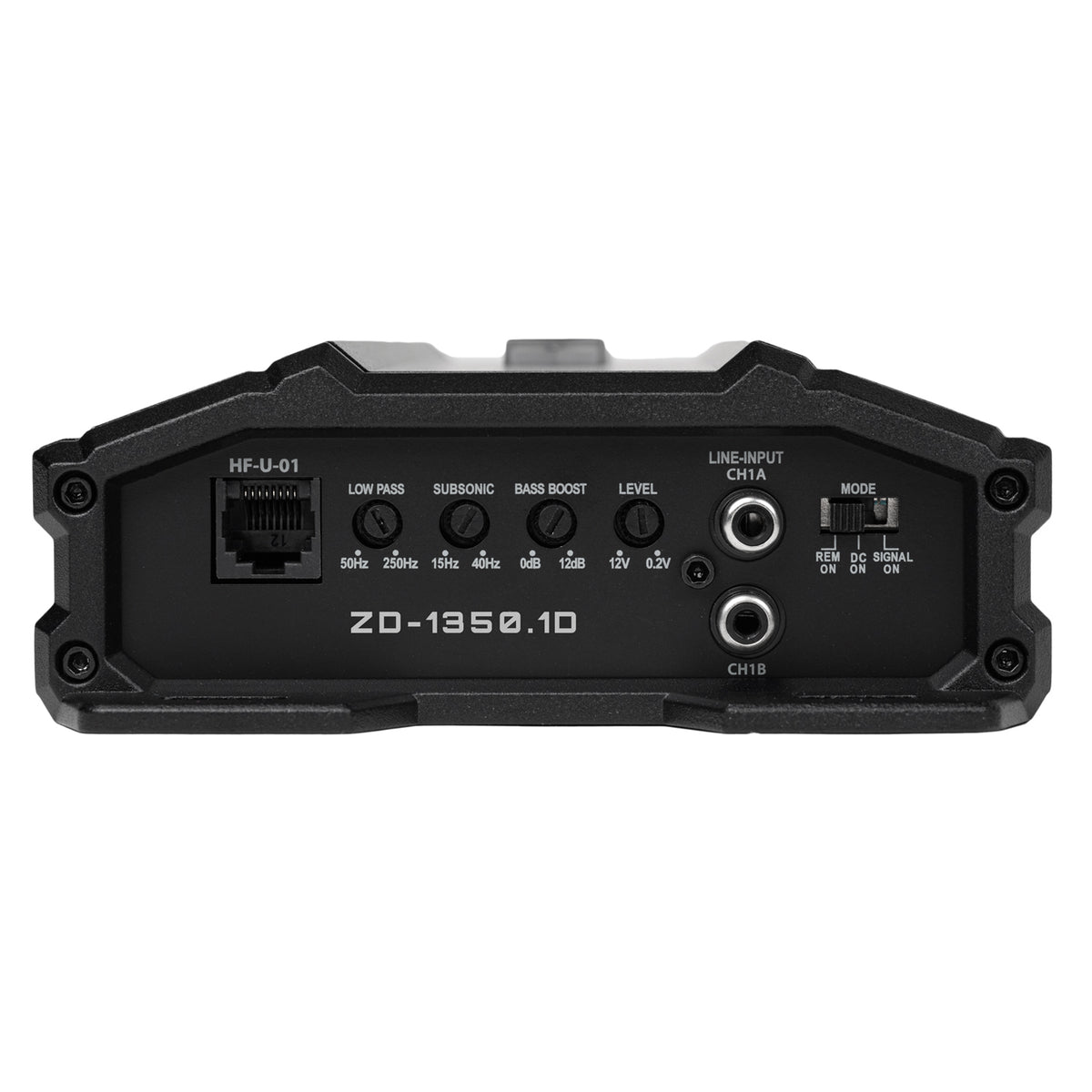

Tunable Output
An adjustable low pass from 50Hz to 250Hz and a subsonic filter from 15Hz to 40Hz protect the subwoofer from over-excursion.
Bass Remote Included
The included remote adjusts bass boost up to 12dB from the driver's seat without reaching for the amplifier.
No Extra Turn-On Wire
DC signal sense turns the amp on automatically from the RCA signal, skipping a separate remote turn-on wire run.
Technical Specifications
- Product Type Mono Class D Car Amplifier
- Series ZEUS DELTA
- Channels 1 (Mono)
- Max Power 1350 W
- Power @ 1 Ohm 1 x 1350 W
- Power @ 2 Ohms 1 x 675 W
- Power @ 4 Ohms 1 x 350 W
- Low Pass Crossover 50Hz - 250Hz, 12 dB/Octave
- Bass Boost 0-12 dB
- Subsonic Filter 15Hz - 40Hz
- Frequency Response 15Hz - 250Hz
- Fusing External 80A
- Weight 4.32 lb
- Dimensions 9.68 x 5.75 x 2.16 in
