(10) CSS8018 8" Commercial Ceiling Speakers
JBL
(10) CSS8018 8" Commercial Ceiling Speakers
(10) CSS8018 8" Commercial Ceiling Speakers
8" Commercial 70V/100V Ceiling Speakers, Set Of 10, For Restaurants And Stores
Free Shipping
Features

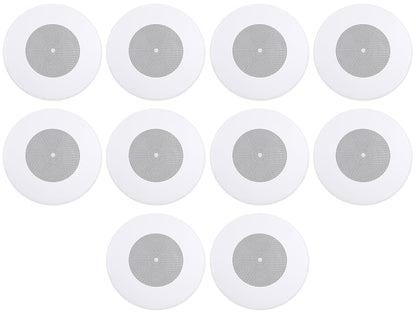

- Set of 10 higher-output 8 inch dual cone ceiling speakers
- 97 dB sensitivity and 50 Hz extension add depth to background music
- 110 degree coverage suits larger rooms and higher ceilings
- Selectable 100V, 70V, and 25V taps match power to each zone

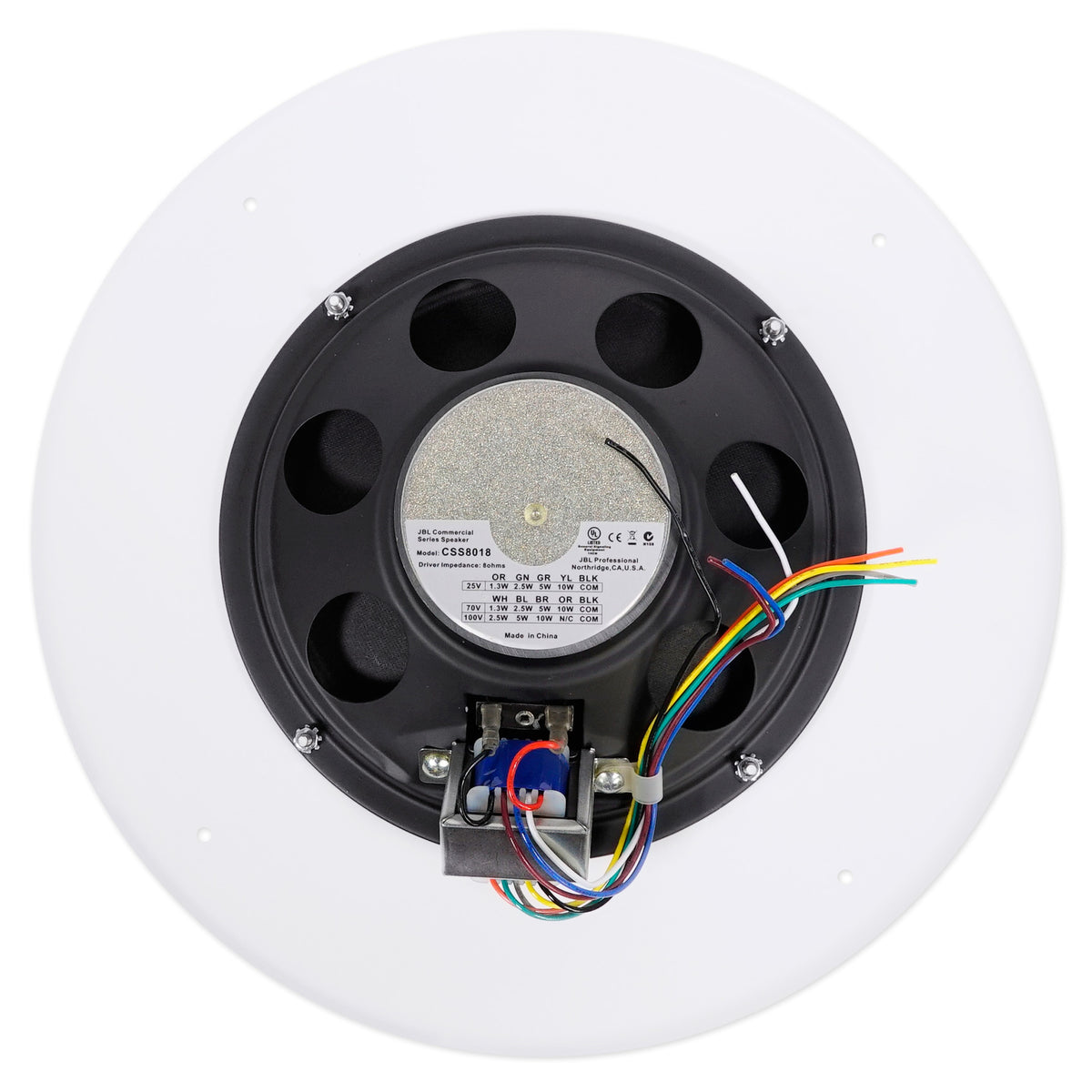

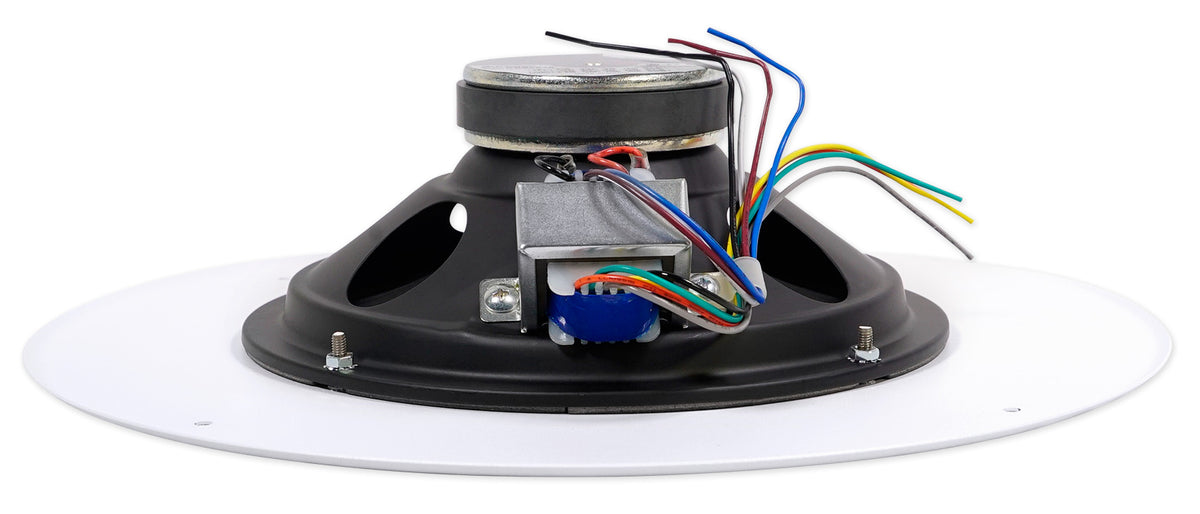

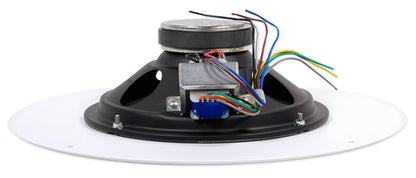

- Bare-wire transformer connection keeps installation simple
Couldn't load pickup availability
What's Included in the box

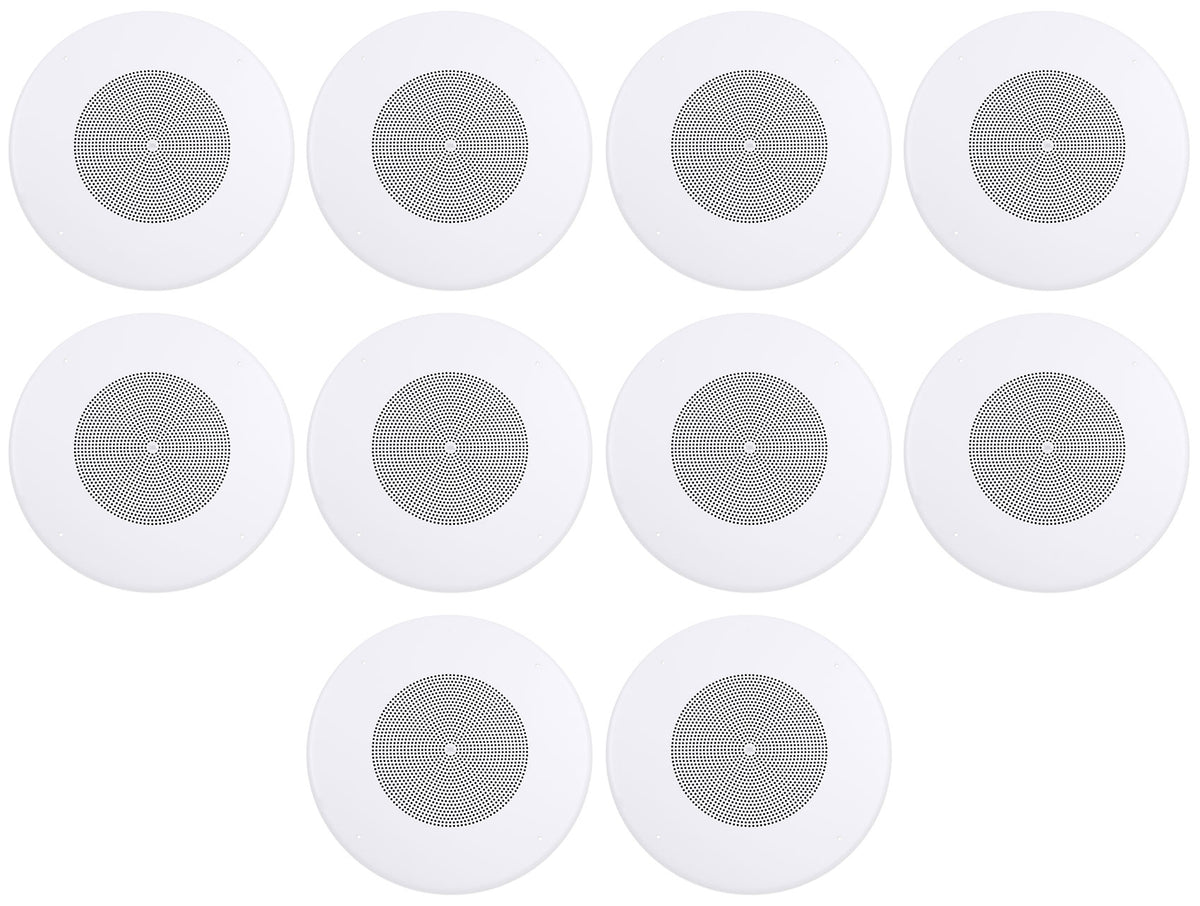

- 10 JBL CSS8018 8" Commercial Ceiling Speakers
- 10 Grilles
SKU: SKU: (10) CSS8018
View full details






Product Description
A 110 degree coverage pattern focuses sound more directly than a wide-dispersion design, which suits larger or higher-ceiling spaces where even, controlled coverage matters more than raw spread. The bare-wire transformer connection keeps wiring simple, and a 1.5 dB maximum insertion loss preserves signal clarity on the way to the driver. Ordering ten as a matched set makes it straightforward to plan a full-room paging and music system without mixing speaker generations or finishes across a single install.
Features
Deeper Background Sound
A 200mm dual cone driver extends down to 50 Hz, giving background music more body than a smaller ceiling speaker can produce.
High-Output Sensitivity
A 97 dB sensitivity rating keeps sound clear and full across a larger dining room or retail floor without pushing the amp harder.
Focused Room Coverage
A 110 degree coverage pattern directs sound more precisely, which suits bigger spaces and higher ceilings.
Flexible Power Matching
Selectable 100V, 70V, and 25V transformer taps let each speaker draw exactly the power its zone needs.
Simple Wiring
A bare-wire transformer connection and 1.5 dB maximum insertion loss keep install and signal quality straightforward.
Technical Specifications
- Product Type Commercial Ceiling Speaker (Set of 10)
- Driver Size 200mm (8 in) Dual Cone
- Driver Sensitivity 97 dB
- Frequency Range 50 Hz to 17 kHz
- Coverage Angle 110 degrees
- Continuous Power Handling 20W
- 100V Taps 10W, 5W, 2.5W
- 70V Taps 10W, 5W, 2.5W, 1.3W
- 25V Taps 10W, 5W, 2.5W, 1.3W
- Transformer Insertion Loss 1.5 dB Maximum
- Cutout Diameter (Open-Back) 216mm (8.5")
- Weight 3.5 lb (each)
